Product Type	40-inch LED HDTV
Screen Size	40 inches (diagonal)
Display Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Supported TV Standards	ATSC (digital) / NTSC (analog)
Inputs	HDMI, Composite (AV), Component (YPbPr), VGA/PC, USB, RF Antenna, Optical Audio In? (actually out), Audio L/R
Outputs	Optical Audio Out, Audio Out (RCA)
Audio	Built-in stereo speakers
Remote Control	Yes, with 2x AAA batteries (included)
Stand	Removable stand included (screws provided)
Wall Mount Compatibility	VESA 200 x 200 mm, M6 bolts (15-25mm length)
Media Playback (USB)	JPEG images and audio files; video not supported
Parental Controls	V-Chip with US and Canadian rating systems
Closed Captioning	Yes (CC button on remote)
Sleep Timer	Yes, adjustable via remote
Power Supply	AC 100-240V, 50/60Hz (standard wall outlet)
Power Consumption	Approximately 70W (typical for 40" LED TV)
Weight	Approximately 8.5 kg (18.7 lbs) without stand
Dimensions (without stand)	Approximately 91 x 53 x 8 cm (35.8 x 20.9 x 3.1 inches)
Safety Certifications	FCC Class B, UL/cUL
Cleaning Instructions	Use only a dry cloth; do not use liquid cleaners
Warranty	See www.gpx.com for warranty details

Frequently Asked Questions - TE4014B GPX

How do I connect my cable or antenna to the TV?

Connect the coaxial cable from your cable service or antenna to the RF Input on the back of the TV. Press the Source button to select TV mode, then go to Setup > Channel > Auto Scan to search for available channels.

How do I set up parental controls (V-Chip)?

Press Setup on the remote, navigate to the Lock icon, and enter the default passcode 0000. You can then enable V-Chip to block content based on US or Canadian ratings, lock the TV buttons, or lock specific inputs.

Why is there no sound coming from the TV?

First, check that the volume is not muted (Mute button) and that the volume level is adequate. If using external devices, ensure the correct input is selected. For optical audio output, set the Digital Audio Output to PCM in the TV setup menu.

Can I mount this TV on a wall?

Yes, the TV supports a VESA 200x200 mm wall mount pattern. Use M6 bolts (15-25mm length depending on mount thickness). We strongly recommend professional installation.

What file types can I play via USB?

The USB port supports JPEG images and audio files (e.g., MP3). Video files are not supported. Insert a USB drive, press Source, and select Media mode.

How do I scan for channels?

Press Source to switch to TV mode, then press Setup. Arrow to the Channel icon, select Air/Cable to choose your signal type, then select Auto Scan and press Enter. The scan may take up to 15 minutes.

How do I adjust the picture settings?

Press the Picture button on the remote to cycle through presets (Standard, Soft, User, Dynamic). For custom adjustments, access Picture Settings in the Setup menu after selecting User mode.

How do I set the sleep timer?

Press the Sleep button repeatedly on the remote to select the desired time (e.g., 30 min, 60 min). The TV will automatically turn off after the set time.

How do I switch between different input sources?

Press the Source button on the remote. Use the Arrow keys to highlight the desired input (e.g., HDMI, AV, YPbPr, PC) and press Enter to select it.

How do I clean the TV screen?

Use a dry, soft cloth to gently wipe the screen. Do not use any liquid cleaners, abrasives, or harsh chemicals as they may damage the screen.

USER MANUAL TE4014B GPX

Black-and-white photo of a modern flat-screen TV displaying a field of poppy flowers under a cloudy sky (no text or symbols visible)

40" LED HDTV

User's Guide for Model No. TE4014B v1086-01

For the most up-to-date version of this User's Guide, go to www.gpx.com

Safety Instructions & Warnings

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Important Safety Instructions

• Read these Instructions.

- Keep these Instructions.

- Heed all Warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Safety Instructions & Warnings

Additional Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. AVIS: AFIN DE PRÉVENIR LES CHOCS ÉLÉCTRIQUES, FAITES CORRESPONDRE LA FICHE BLANCHE DE LA PRISE À LA FENTE LARGE, INSÉREZ TOTALEMENT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.

disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open. AVIS: Risque de choc électrique - ne pas ouvr
• Caution and marking information is located at the rear or bottom of the apparatus.

• Objects filled with liquids, such as vases, shall not be placed on the apparatus. Objets remplis de liquides, comme des vases, ne doivent pas être placés sur l'appareil.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Connecting the Stand

Power

Remote

Orientation 6-7

TV Controls & Inputs

Remote

Connecting Devices to Your TV 8-9

Connecting Cable/TV Antenna

Connecting HDMI

Connecting Composite Audio/Video

Connecting Devices to Your TV 10-13

Connecting Component (YPbPr) Video/Audio

Connecting a Computer

Connecting Optical Audio

Connecting Audio Output

Settings 14

Auto Scanning for Channels

Parental Controls (V-Chip)

Setting Favorites

Viewing Favorites

Setting the Clock

USB....15

Using a USB Thumb Drive

Mounting to a Wall 15

Specifications

Using a USB Thumb Drive - Rear View

Company Information 16

Contact Information

Warranty

International Support

Green Initiative

Includes

• Remote control and 2 AAA batteries
- Removable stand

Setup

Some pixels may be visible on the screen, appearing as tiny red, green, blue or black spots. This is normal and is not a defect on the TV, and does not negatively affect the performance or picture quality.

Three identical line drawings of electronic components mounted on small legs, showing internal circuitry and mounting brackets (no text or symbols)

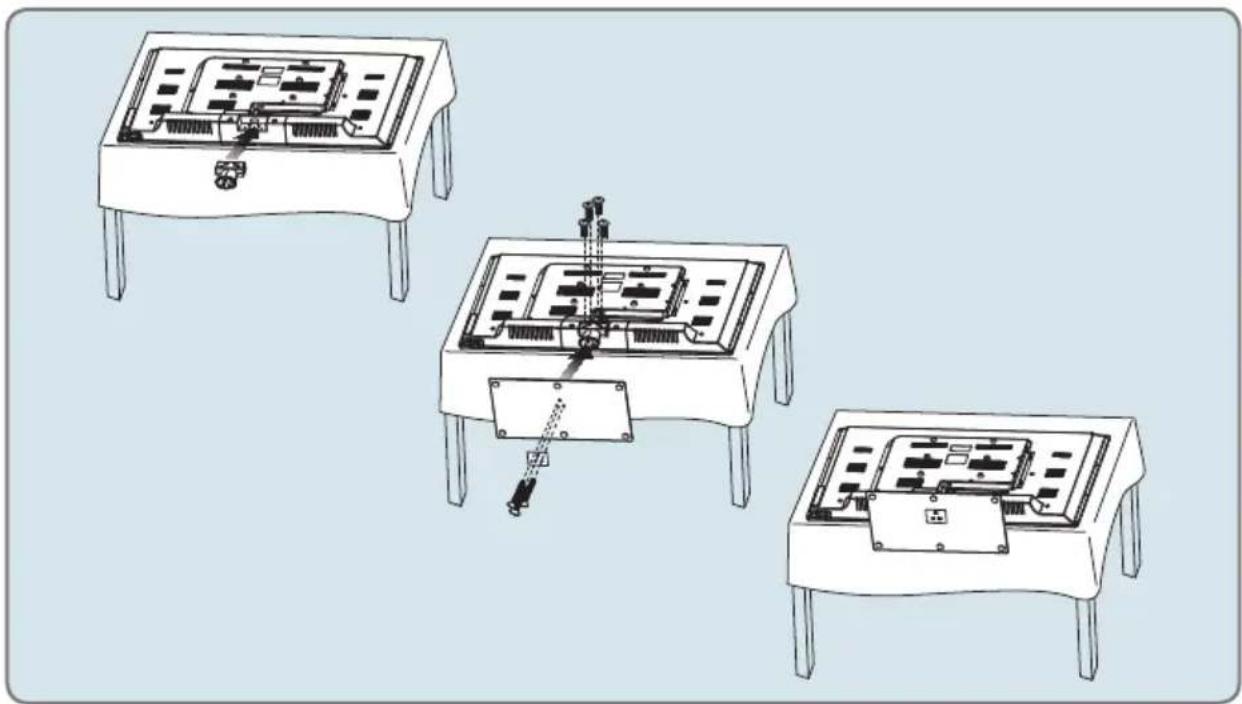

Connecting the Stand

When placing TV on flat surface, be careful not to push, scratch, or otherwise damage the front of the TV and LCD screen. Using a phillips-head screwdriver, tighten the screws by hand. Using a power drill could damage the TV stand.

Diagram of an open TV rack with connectors and a power outlet, no text or symbols present

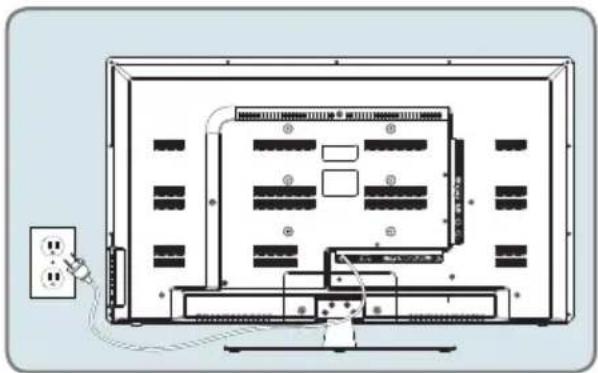

Power

Plug the power cord on the back of the TV into a standard wall outlet.

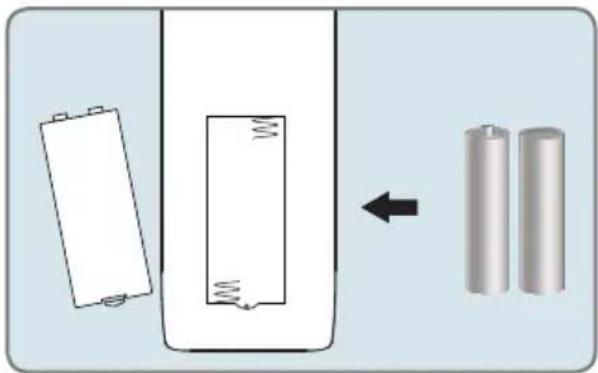

Remote

Requires 2, AAA-size batteries (included)

TV Controls & Inputs

Remote

Power

Press to power the television off or on.

Display

Press to view the on-screen display.

Source

Press and use the Arrow/Enter buttons to adjust the source.

Aspect

Press to adjust the aspect ratio between WIDE, CINEMA, ZOOM, and NORMAL.

Setup

Press to view the television setup menu.

Volume ±

Press to adjust the volume.


Press to adjust the picture between STANDARD, SOFT, USER, and DYNAMIC. The user mode can be customized by accessing Picture Settings in the menu.

Sound

Press to adjust the sound between STANDARD, MUSIC, USER, MOVIE, and SPORTS. The user mode can be customized by accessing Sound Settings in the menu.

Audio/CC

Press to adjust the current audio settings. In TV mode, press to turn closed captioning off or on.

Skip Back

Press to skip backward in Media Mode.

Stop

Press to stop in Media Mode.

Favorites

In TV mode, press to view your favorites list.

Mute

Press to mute the volume.

Number Keypad

Repeat

In Media mode, press to repeat a selection or track.

Freeze

Press to freeze or unfreeze the current frame in TV mode.

Guide

In TV mode, press to view the on-screen television guide.

Arrows/Enter

Press to make selections in the on screen or disc menus.

Exit

Press to exit the current on-screen menu.

Channel ±

Press to adjust the television channel.

Sleep

Press repeatedly to set the sleep timer. After the set time has expired the television will automatically power off.

Prev

In TV mode, press to switch to the previous channel.

Play/Pause

Press to play or pause in Media Mode.

Skip Forward

Press to skip forward in Media Mode.

CH List

Press to view the channel list.

Connecting Cable/TV Antenna

You will need: a cable/antenna wire (not included).

1. Connect the Cable/Antenna wire to the input on the television.
2. Press the Source button to switch to TV mode.
3. Press the Setup button to access the setup menu.
4. Press the Arrow (◀ ▶) buttons to highlight the Channel icon, and press the Enter button.
5. Press the Arrow (▲▼) buttons to highlight Air/Cable. Press the Arrow (◀▶) buttons to select AIR or Cable.
6. Press the Arrow (▲▼) buttons to highlight Auto Scan. Press the Enter button to begin scanning for available channels.

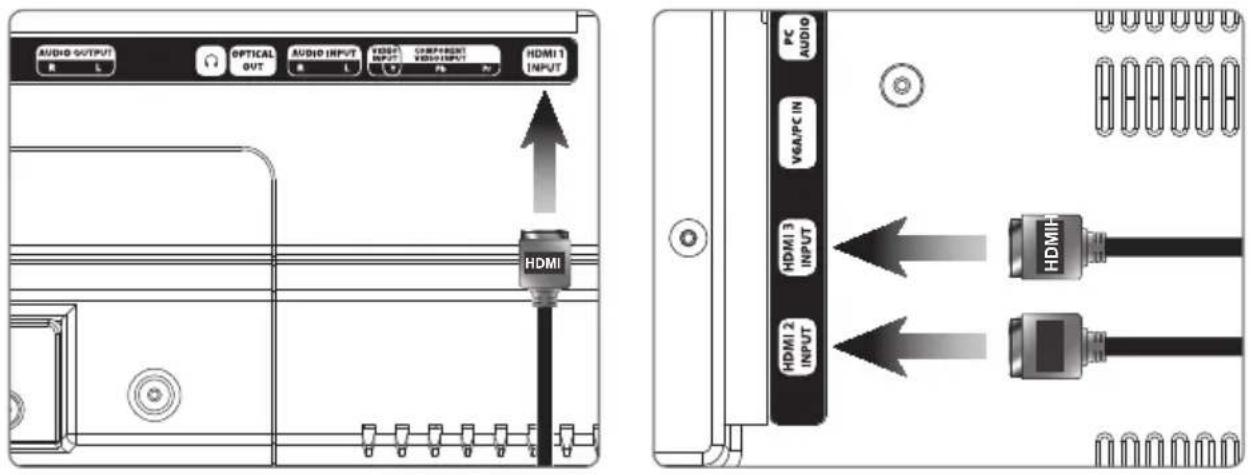

Connecting HDMI

You will need: a device that supports HDMI and a HDMI cable (not included).

1. Connect the device's HDMI output to the HDMI input on the television.
2. Press the Source button to switch to the connected input HDMI.
   Note:
   HDMI offers superior sound and picture quality when compared to Composite or other connection types, and is the easiest way to connect your media devices to the television.

Connecting Composite Audio/Video

You will need: composite video (yellow) and RCA stereo (red, white) cables (not included).

1. Connect the video output on your media device to the corresponding color coded video inputs on the television with a Composite Video cable.
2. Connect the audio output on your media device to the corresponding color coded audio input on the television with stereo RCA cables.
3. Press the Source button to switch to the connected input AV Composite.

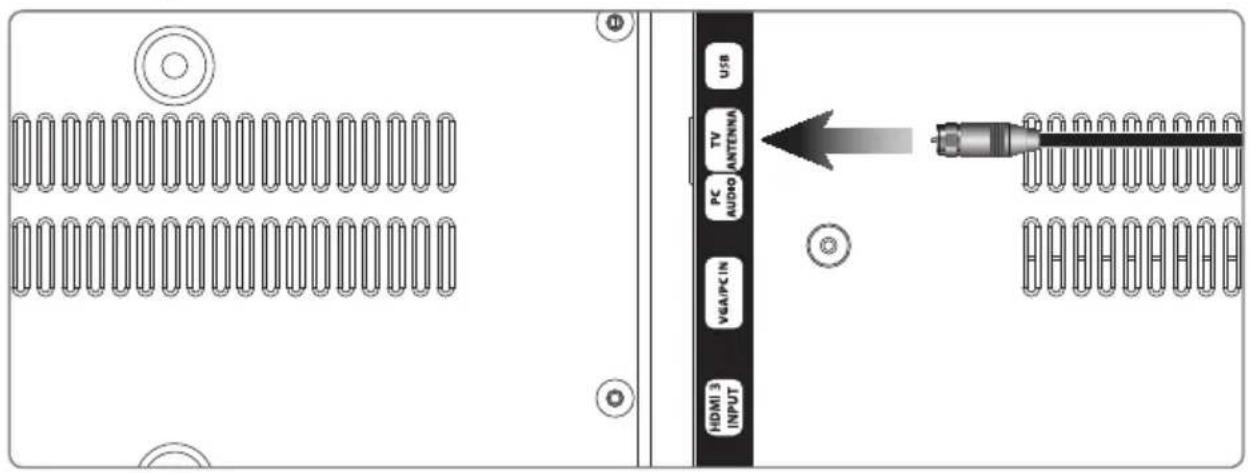

Connecting Cable/TV Antenna- Rear View

Connecting HDMI - Rear View

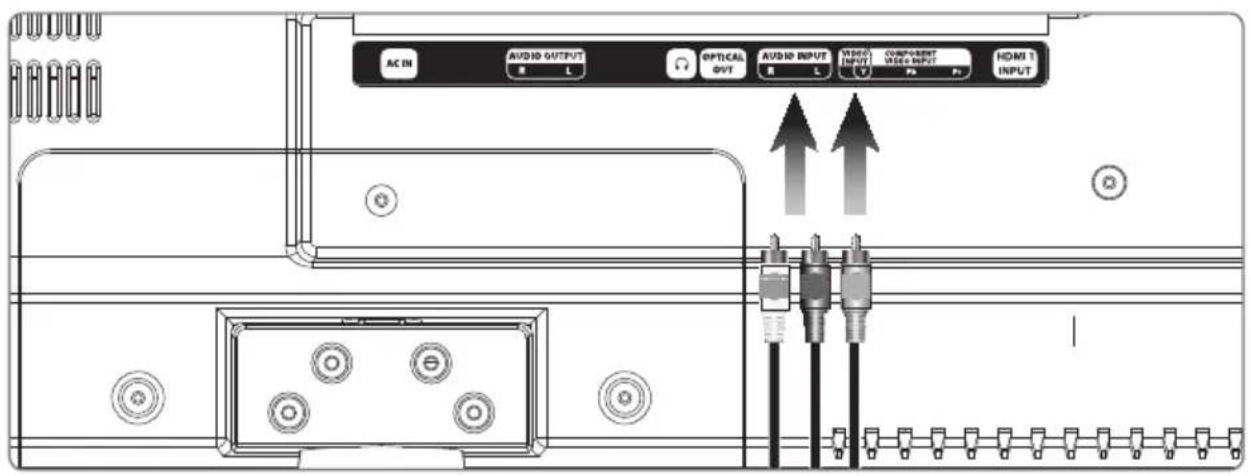

Connecting Composite Audio/Video- Rear View

Connecting Component (YPbPr) Video/Audio

You will need: component video (green, blue, red) and RCA stereo (red, white) cables (not included).

1. Connect the audio output on your media device to the corresponding color coded audio input on the television with stereo RCA cables.
2. Connect the video output on your media device to the corresponding color coded video inputs on the television with a Component Video cable.
3. Power the television on and press the Source button to switch to the connected input YPbPr.

Connecting a Computer

You will need: a PC with a VGA output, and a VGA cable (not included).

1. Connect the computer's VGA output to the VGA/PC Input on the television.
2. Press the Source button to switch to the PC Mode.
3. Audio from the connected PC can be input to the television through the TV's PC Audio Input by using a 3.5mm audio cable (not included).

Connecting Optical Audio

You will need: a receiver with a Digital Optical Input and a Digital Optical Audio Cable (not included).

1. Connect the Digital Optical Audio Cable from the Optical Output on the television to the Input on the receiver.
2. Set the receiver to accept the Optical Input source from the television.

Please Note:

Home theater systems may label the Digital Optical Out source differently, such as "PCM", or "Digital Audio Input". Please consult your home theater system's user manual in order to select the correct input source.

If there is no sound, be sure the Digital Audio Output is set to PCM (under the screen in TV Setup).

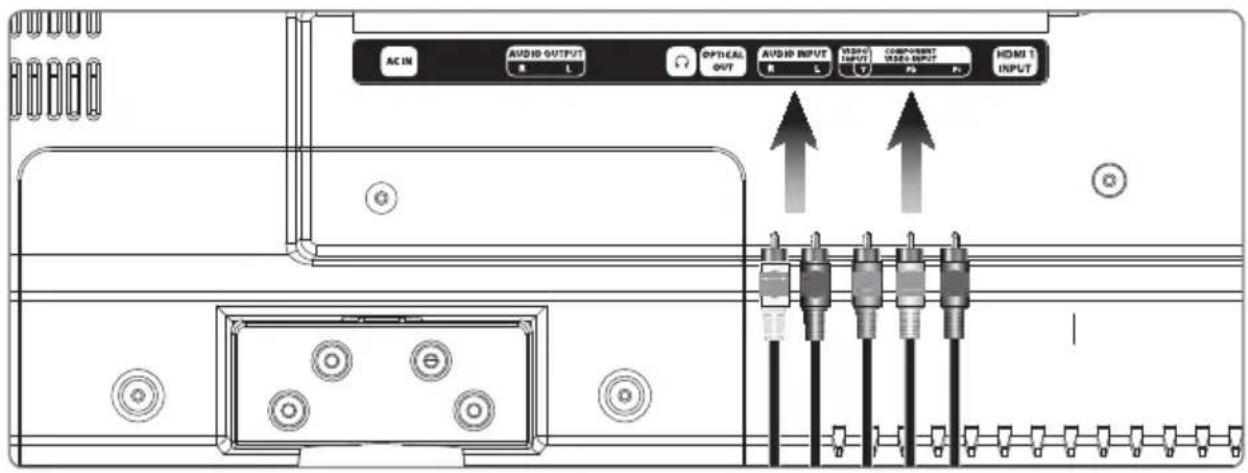

Connecting Component (YPbPr) Cables - Rear View

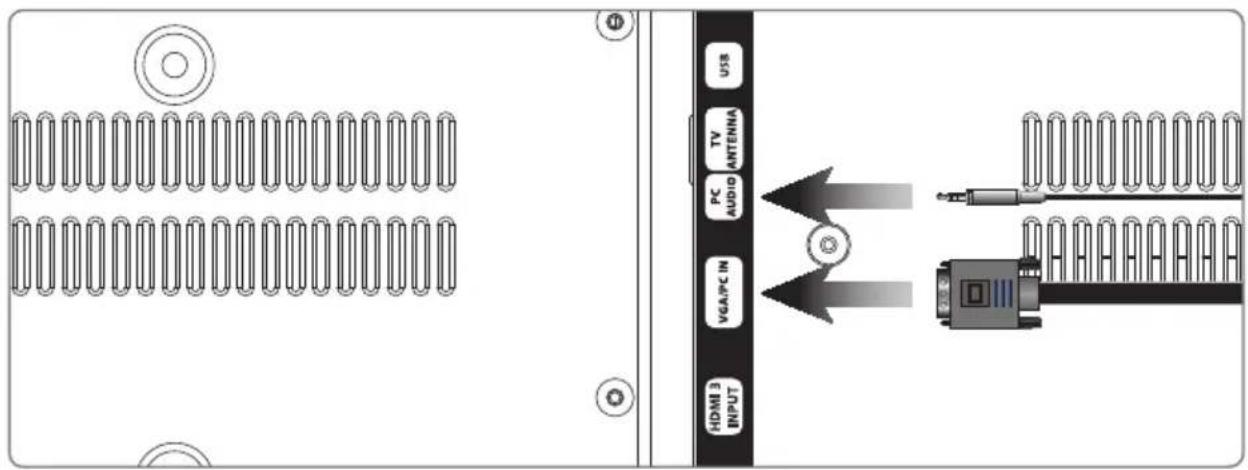

Connecting a Computer- Rear View

Connecting Optical Audio - Rear View

Connecting Devices to Your TV

Connecting Audio Output

You will need: a RCA to RCA audio cable (not included)

1. Connect a RCA cable to the Audio Output on the unit and an audio input on an external stereo system.

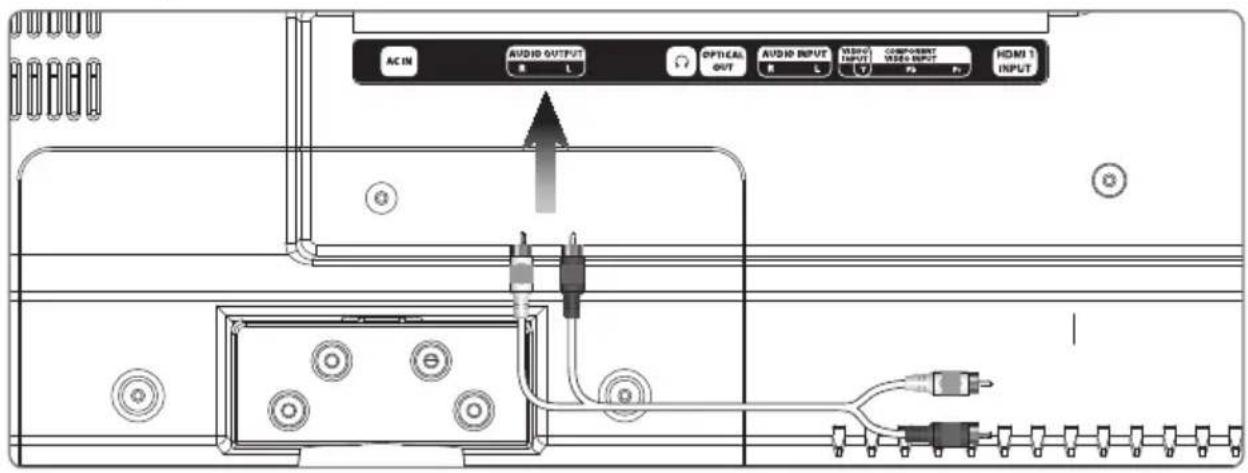

Connecting a RCA to RCA Audio Cable - Rear View

Auto Scanning for Channels

The Auto Channel Scan must be run before any channels can be viewed on the television.

1. Press the Source button to switch to TV mode.
2. Press the Setup button to access the setup menu.
3. Press the Arrow (◀ ▶) buttons to highlight the CHANNEL icon. Press the Enter button.
4. Press the Arrow (▲▼) buttons to highlight Air/Cable. Press the Arrow (◀▶) buttons to select AIR.
5. Press the Arrow (▲▼) buttons to highlight Auto Scan. Press the Enter button to begin scanning for available channels.

Note: Initial channel scanning process may take up to 15 min.

Parental Controls (V-Chip)

1. Press the Source button to switch to TV mode.
2. Press the Setup button.
3. Press the Arrow (◀ ▶) buttons to highlight Lock, and press the Enter button.
4. Enter the default passcode to access the Lock preferences. The default passcode is 0 0 0 0.
5. From this menu, you can lock out specific ratings from the United States rating system or the Canadian rating system by accessing the V-CHIP settings. You can also lock the buttons on the television or lock specific sources from access.

Setting Favorites

1. Press the Source button to switch to TV mode.
2. Press the Setup button to access the setup menu.
3. Press the Arrow (◀ ▶) buttons to highlight the Channel icon. Press the Enter button.
4. Press the Arrow (▲▼) buttons to highlight the Favorites icon. Press the Enter button.
5. Use the Arrow (▲▼) buttons to select the desired channels and then press the Enter button.

Viewing Favorites

1. Press the Source button to switch to TV mode.
2. Press the Favorites button to view a list of your saved favorites.

Setting the Clock

1. Press the Setup button to access the setup menu.
2. Press the Arrow (◀ ▶) buttons to highlight the Time icon, and press the Enter button.
3. Press the Arrow (▲▼) buttons to highlight Time Zone, and press the Arrow (◀▶) buttons to select your current time zone.
4. Press the Arrow(▲▼) buttons to highlight Auto Clock, and press the Arrow(◄►) buttons to turn auto clock on or off. When the correct time zone is set, auto clock will automatically set your clock and date for you.
5. To set the time and date manually, turn Auto Cock off, highlight Clock, and use the Arrow and Enter buttons to manually set the time and date.

Using a USB Thumb Drive

Please note that this unit only supports JPEG and audio files. Video file types are not supported

1. Load a USB thumb drive into the USB Port on the back of the television.
2. Press the Source button to switch to Media mode.
3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive.

Using a USB Thumb Drive - Rear View

Mounting to a Wall

Specifications

• 200mm x 200mm spacing (ht. x wth.)
  • M6 bolt pattern and thread pitch

A 15 to 25mm long bolt is recommended, depending on the thickness of the wall bracket selected.

WE STRONGLY RECOMMEND HAVING THIS TELEVISION MOUNTED PROFESSIONALLY.

Contact Information

Website: www.gpx.com

Email Support: [e-mail]

Email Parts: [e-mail]

Phone Support: 1-888-999-4215

Warranty

For Warranty Information and the most up-to-date version of this User's Guide, go to: www.gpx.com

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com

Our Environmental Commitment to "Protect for Today and Sustain for Tomorrow". On a continual basis DPI, Inc. is making efforts to sustain the environment and improve the recyclability of its products and packaging.

Focusing on "protecting for today and sustaining for tomorrow" DPI, Inc. has committed to reducing packaging size, increasing the usage of recyclable plastics, and ensuring that packaging and manuals are made with up to 85% recycled material. In addition to material consideration, DPI, Inc. has also focused on the finer details that positively impact the environment such as employing the usage of soy-based inks.

DPI, Inc. also ensures that the factories that produce the company's wide variety of consumer electronics adhere to environmentally friendly air and water restrictions. This is yet another example that every step of the way DPI, Inc. is making efforts to lessen any impact on the environment.

In 2011 DPI, Inc. also began conversations with Energy Star in order to ensure that the consumer electronics being produced meet high standards of energy efficiency. The ultimate goal is keeping energy costs for consumers low while providing quality, feature-rich products.

Copyright © 2014 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
