USER MANUAL ICA-4130S Planet

Ultra-mini SIP PoEP Camera

ICA-4130S / ICA-4230S

Group of business professionals in a meeting around a laptop, no visible text or symbols

White spherical device with black interior and 'PLANNET' logo on top, set against a blue background (no readable text or symbols beyond branding)

Close-up of a black circular device with a white base and a small circular component, labeled 'PLRNET' on the top (no other text or symbols visible)

Copyright

Copyright © 2014 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.

FCC Caution

To assure continued compliance, for example, only shielded interface cables are used when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

WEEE Regulation

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

User's Manual for PLANET Ultra-mini SIP PoE IP Camera

Model: ICA-4130S / ICA-4230S

Rev: 1.00 (March.2014)

Part No. EM-ICA-4130S_ICA-4230S_v1.0

Table of Contents

Chapter 1. Product Introduction......5

1.1. Package Contents 5
1.2. Overview 5
1.3. Features 6
1.4. Product Specifications 7

Chapter 2. Hardware Interface ...... 9

2.1 Physical Description....9
2.2 Hardware Installation 10
2.3 Initial Utility Installation 11
2.4 Preparation 11

2.4.1 Search by PLANET Smart Discovery Lite.... 12
2.4.2 Configuring Network by PLANET Smart Discovery Lite 12

Chapter 3. Web-based Management....14

3.1. Introduction.... 14
3.2. Connecting to Internet Camera.... 14
3.3 Live View....15
3.4 Playback....18
3.5 Basic Settings 19

3.5.1 Video 19
3.5.2 Image 21
3.5.3 Audio 23
3.5.4 Network 24
3.5.5 Date and Time 26

3.6 Advanced Settings....26

3.6.1 SIP 26
3.6.2 UPnP 29
3.6.3 DDNS 29
3.6.4 SMTP 30
3.6.5 FTP 30
3.6.6 Alarm 31
3.6.7 Privacy Mask.... 33
3.6.8 SD Card 34
3.6.9 PTZ 35
3.6.10 User 35
3.6.11 Access List.... 36
3.6.12 Logs.... 37

3.7 System.... 37

3.8 Maintenance 38

Appendix A: PING IP Address 39

Appendix B: Bandwidth and Video Size Estimation 40

Appendix C:DDNS Application....41

Appendix D:Configuring Port Forwarding Manually 42

Appendix E: Power Line Frequency 46

Chapter 1. Product Introduction

1.1. Package Contents

The package should contain the following:

• IP Camera Unit x 1
• Camera Mount Kit x 1
• User's Manual CD-ROM x 1
• Quick Installation Guide x 1

1. If any of the above items are missing, please contact your dealer immediately.
2. The IP camera is powered by PoE, power supply is not necessary and included in the package.

1.2. Overview

Compact Design Solution with SIP-based IP Surveillance

PLANET ICA-4130S/4230S Ultra-mini IP Camera with PoE are designed for easy installation with versatile functions. The cameras feature a megapixel sensor and support H.264, MPEG-4 and M-JPEG compression formats to deliver excellent picture quality for different applications. Integrated with SIP/VoIP protocol, the cameras provide more aggressive and efficient solution to dealing with event triggers via video phone. It is perfect for remote and discreet monitoring of indoor areas such as homes, small businesses, boutiques, restaurants, hotels, residences, etc.

Day & Night Functionality

The ICA-4130S/4230S brings the clearest vision by featuring 0.5 lux illumination and day/night mode switching. To adapt to constantly changing lighting conditions, the ICA-4230S comes with a removable IR-cut filter and built-in IR illuminator which enable the cameras to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-4230S is able to maintain clear images 24 hours a day.

Exceptional Image quality

Together with powerful image processing attributes like Back Light Compensation (BLC) and 3D Digital Noise Reduction (3DNR) technology, the ICA-4130S/4230S is able to adjust the exposure of the entire image to properly expose the subject in the foreground and remove noises from video signal. Thus, it brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

Camera Tampering and Audio Detection

Provided with individually configurable motion detection zones, the ICA-4130S/4230S can record video or trigger alarms and alerts when motion is detected in user-specified areas of the camera image. Also, its built-in microphone enables the system to capture the sound that is within the camera's surveillance range. The system will trigger the audio detection alarm when sounds like screams, glass breaking, etc. are detected.

Advanced Event Management

The ICA-4130S/4230S features industry-led SIP/VoIP for audio, alarm, intercom and video streaming for mobile phones and video phones. When the event is triggered, the administrator can receive alarm, video even audio via video phones. Besides, the administrator is able to view status of remote site via video phone aggressively at any time. With this function, the ICA-4130S/42530S provides more instant, efficient response method to deal with events or prevent events from happening when compared with other even actions (FTP, Email, SD Card, etc.).

Flexible Installation and Power Functionality

The ICA-4130S/4230S incorporates IEEE 802.3af Power over Ethernet standard and is able to be powered via the network cable from a PoE power sourcing equipment such as PoE Switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility. The ICA-4130S/4230S is ONVIF compliant and interoperable with other brands in the market. Moreover, the camera features 3-axis mechanical design for fast and easy adjustment of the camera's viewing angle, allowing you to precisely position the camera. The ICA-4130S is indisputably the ideal choice for reliable and high performance surveillance.

1.3. Features

Camera

■ SIP 2.0 (RFC3261) compliant

■ 1/2.5" Progressive CMOS

■ 3.6mm Fixed Lens provides 96 degrees horizontal / 72 degrees vertical angle of view

■ 0.5 lux minimum illumination at F1.2

■ Removable IR-cut Filter for Day & Night Function (For ICA-4230S)

■ Built-in IR illuminators, effective up to 10 meters (For ICA-4230S)

Video / Audio

■ H.264 / MPEG-4 and M-JPEG video compression simultaneously

■ Simultaneous multi-stream support

■ H.264 high profile, main profile and baseline

■ Max. resolution 1080P at 30fps (For ICA-4230S)

■ 3DNR to improve picture quality at low lux

■ Supports e-PTZ advanced function

■ Built-in microphone

Network and Configuration

■ Compliant with IEEE 802.3af PoE

■ RTSP / UPnP / HTTPS protocols selectable

Easy Installation & Management

■ 3-axis mechanical design

■ ONVIF/PSIA compliant for interoperability

■ Motion detection, privacy mask and image snapping

■ Intelligent motion / audio / network disconnect / tamper detection alarm triggers

■ Watermark prevents video from tampering

■ Micro SD/SDHC card local video recording supported

■ Easy configuration and management via Windows-based utility or web interface

1.4. Product Specifications

Product ICA-4130S ICA-4230S
Camera
Image Device	1/2.5" Progressive CMOS
Lens	3.6 mm, 4.0mm
Effective Pixels	1280 x 960 pixels 1920 x 1080 pixels
Min Illumination	0.5 lux @ F1.2, B/W: 0.2 lux @ F1.2 0	.5 lux @ F1.2, B/W: 0 lux @ F1.2
Shutter Time	Auto, 1/100000s~1/5s
IR Distance	N/A	10m
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Resolution	H.264: 1280 x 960 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192M-JPEG: 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192MPEG-4: 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192	H.264: 1920 x 1080 / 1600 x 1200 / 1280 x 960 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192M-JPEG: 640 x 480 / 640 x 368 / 320x 240 / 320 x 192MPEG-4: 640 x 480 / 640 x 368 / 320 x 240 / 320 x 192
Frame Rate	30fps (1280 x 960),30fps (1280 x 720),30fps (704 x 576)	30fps (1920 x 1080)30fps (1600 x 1200)30fps (1280 x 960),30fps (1280 x 720),30fps (704 x 576)
Image Setting	Brightness / Contrast / Saturation
Streaming	Simultaneous multi-profile streamingStreaming over UDP, TCP, or HTTPControllable frame rate and bit rateConstant and variable bit rate (MPEG4 / H.264)I-frame Interval
Audio
Audio Streaming	Built-in microphone
Audio Compression	G.711
Audio Input	Adjustable audio input gain
Network and Configuration
Network Standard	IEEE 802.3 10Base-TIEEE 802.3u 100Base-TXIEEE 802.3af
Network Protocol	TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPNP, SIP
Security	Password protection, IP address filtering
Users	5 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open SDK/API for software integrationONVIF Compliant
VoIP Standard	SIP 2.0 (RFC3261)
Intelligent Video	Motion detectionPrivacy maskBacklight compensation3D Noise Reduction
Alarm Triggers	Motion detectionNetwork disconnectTampering detectionAudio detection
Alarm Events	FTP upload, email upload, SD Card record and SIP Phone
Environment
Power Requirements	IEEE 802.3af (Class 2)
Power Consumption	4W	4W max.6W max. (with IR-cut filter on)
Operating Temperature	-10 ~ 60 degrees C
Operating Humidity	0 ~ 90% (non-condensing)
Dimensions (W x D x H)	85 x 85 x 46.1 mm 85 x 85 x 54mm
Weight	125g	150g
Emission	CE, FCC
Connectors	10/100 Mbps Ethernet, RJ-45Micro SD/SDHC card

Chapter 2. Hardware Interface

2.1 Physical Description

Audio in Reset Button MicroSD/SDHC Card Slot Ethernet Port (PoE) ICA-4130S

Image Sensor IR LED Audio in Reset Button MicroSD/SDHC Card Slot Ethernet Port (PoE) ICA-4230S

Interface Description
Audio In	The Camera has a built-in microphone. This microphone allows outputting voice to video SIP phone or triggering alarm.
Ethernet Port (PoE)	The camera is compliant with IEEE802.3af and only powered by PoE switch or Injector.
Reset Button	1. This button is used to restore all the factory default settings. Sometimes restarting the camera will make the system back to a normal state. If the system still gotproblems after restart, user can restore the factory default settings and install it again.2. Press and hold it for at least 5 seconds. Don’t release the button until the light of error LED is flashing continually.Then the device has been restored to default settings and reboot again.Note:Restoring the factory default setting will lose all the previous settings including IP address forever. User needs to run the PLANET Smart Discovery Lite program to search the device and configure it to let the device work properly again.
MicroSD/SDHC Card Slot	Supports MicroSD card up to 64GB. Please don’t insert or take out the card when the IP camera is operating.
IR LED	IR distance up to 10m (ICA-4230S only)
Image Sensor	1/2.5” CMOS sensor

2.2 Hardware Installation

1. Open white cover of camera

Illustration of a hand interacting with a touchscreen device next to a device with a black dome and white base (no text or symbols)

2. Adjust the lens angle and focus

Secure the screws and adjust the lens angle and focus.

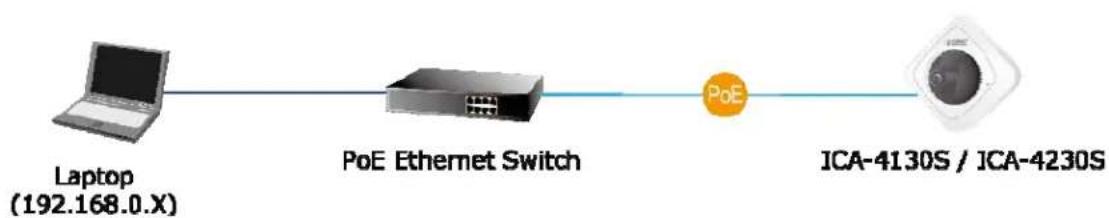

3. Plug an Ethernet cable into the Camera

Connect an Ethernet cable to the LAN socket located on the Network Camera and attach it to the network.

4. Place the Camera on the table or fix it onto the ceiling or wall

Use two screws to fix the Network Camera onto the ceiling or wall. You could also put the Network Camera on the table directly.

Fix it with Screws

5. Replace the white cover of camera

Once you have installed the IP Camera well and powered it on, the power LED light (red) will turn on. It means the system is booting up successfully.

2.3 Initial Utility Installation

This chapter shows how to quickly set up your Internet camera. The camera is with the default settings. However, to help you find the networked camera quickly, the windows utility PLANET Smart Discovery Lite can search the cameras in the network that can help you to configure some basic settings before you start advanced management and monitoring.

1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once completed, a welcome menu screen will appear.
2. Click the "Utility" hyperlink; you will see the dialog box as shown below.

PLANET Smart Discovery Lite File Option Help Refresh Exit PLANET Networking & Communication MAC Address Device Name Version DeviceP NewPassword IP Address NetMask Gateway Description 1 00-30-4F-ED-CB-A9 VC-230N v1.1b120420 192.168.1.1 192.168.1.1 255.255.255.0 192.168.1.1 VC-230N 2 00-30-4F-63-54-5C GSW-2404SF Ver2.0b080103b 10.1.1.232 10.1.1.232 255.255.254.0 10.1.1.254 GSW-2404SF 3 00-30-4F-80-43-00 FSD-804PS v3.01b080725 192.168.0.102 192.168.0.102 255.255.255.0 192.168.0.254 FSD-804PS 4 00-30-4F-00-00-00 ATA-150 v1.2b130122 192.168.1.190 192.168.1.190 255.255.255.0 192.168.1.254 ATA-150 Update Device Device: ATA-150 (00-30-4F-00-00-00) Get Device Information done.

2.4 Preparation

When you install the Internet Camera in a LAN environment, you may execute PLANET Smart Discovery Lite to discover the camera's IP address and set up related parameters in the camera.

2.4.1 Search by PLANET Smart Discovery Lite

Here is the way to execute PLANET Smart Discovery Lite to discover the camera's IP address and set up related parameter in a camera.

Search

PLANET Smart Discovery Lite File Option Help Refresh Exit PLANET Networking & Communication MAC Address Device Name Version DeviceIP NewPassword IP Address NetMask Gateway Description 1 00-30-4F-ED-CB-A9 VC-230N v1.1b120420 192.168.1.1 192.168.1.1 255.255.255.0 192.168.1.1 VC-230N 2 00-30-4F-G3-54-5C GSW-2404SF Ver2.0b000103e 10.1.1.232 10.1.1.232 255.255.254.0 10.1.1.254 GSW-2404SF 3 00-30-4F-80-43-00 FSD-804PS v3.01b080725 192.168.0.102 192.168.0.102 255.255.255.0 192.168.0.254 FSD-804PS 4 00-30-4F-00-00-00 ATA-150 v1.2b130122 192.168.1.190 192.168.1.190 255.255.255.0 192.168.1.254 ATA-150 Update Device Device : ATA-150 (00-30-4F-00-00-00) Get Device Information done.

2.4.2 Configuring Network by PLANET Smart Discovery Lite

In case you want to change the IP-related parameters of wired interface, please select the Internet Camera you want to configure. Related settings will be carried out as shown below.

PLANET Smart Discovery Lite File Option Help Refresh Exit MAC Address Device Name Version DeviceIP NewPassword IP Address NetMask Gateway Description 1 00-30-4F-ED-CB-A9 VC-230N v1.1b120420 192.168.1.1 192.168.1.1 255.255.255.0 192.168.1.1 VC-230N 2 00-30-4F-63-54-5C GSW-2404SF Ver2.0b0801036 10.1.1.232 10.1.1.232 255.255.254.0 10.1.1.254 GSW-2404SF 3 00-30-4F-80-43-00 FSD-804PS v3.01b080725 192.168.0.102 192.168.0.102 255.255.255.0 192.168.0.254 FSD-804PS 4 00-30-4F-00-00-00 ATA-150 v1.2b130122 192.168.1.190 192.168.1.190 255.255.255.0 192.168.1.254 ATA-150 5 00-30-4F-ED-CB-A9 VC-230N v1.1b120420 192.168.1.1 192.168.1.1 255.255.255.0 192.168.1.1 VC-230N 6 00-30-4F-63-54-5C GSW-2404SF Ver2.0b0801036 10.1.1.232 10.1.1.232 255.255.254.0 10.1.1.254 GSW-2404SF Update Device Device : GSW-2404SF (00-30-4F-63-54-5C) Get Device Information done.

YC-230N (00-30-4F-ED-CB-A9) Setting info : MAC Address : 00-30-4F-ED-CB-A9 Device Name : VC-230N Version : v1.1b120420 DeviceIP : 192.168.1.1 NewPassword : No Change IP Address : 192.168.1.2 NetMask : 255.255.255.0 Gateway : 192.168.1.1 Description : VC-230N Enter password: OK Cancel

You can move your mouse to IP Address, NetMask and Gateway column to change parameters and then just click "Update Device" button. Enter password to complete network configuration settings.

Chapter 3. Web-based Management

This chapter provides setup details of the Internet Camera's Web-based Interface.

3.1. Introduction

The Internet Camera can be configured with your Web Browser. Before configuring, please make sure your PC is under the same IP segment with Internet Camera.

3.2. Connecting to Internet Camera

A. Use the following procedure to establish a connection from your PC to the Internet Camera.
B. Once connected, you can add the camera to your Browser's Favorites or Bookmarks.

Start the web browser on the computer and type the IP address of the camera.

The Default IP: "http://192.168.0.20"

PLANET IP Surveillance Web Management - Windows Internet Explorer http://192.168.0.20/

The login window of Internet Camera will appear, Default login username/password is: admin / admin

Full HD Ultra-Mini SIP PoE IR IP Camera PLANET Networking & Communication Remember me ? Language: English Login Reset

After it is logged on, you should see the following message in the middle of the screen:

Click here to download and install controls manually. Please refresh the page after install. If you still don't see the video, please add trusted sites.

Click on the message, and click Save As.

Do you want to run or save MsActiveX.exe (2.82 MB) from 192.168.2.105? Run Save Cancel

When MsActiveX.exe is saved on desktop, please click the program to install.

Installing MsActiveX MsActiveX has been successfully installed! Click Finish to complete the installation. Finish

After refreshing the Web page, the first image will be displayed. You should be able to see the images captured from the Internet Camera on the web page now. For advanced functions, please refer to instructions given in the following chapter.

If you log in the camera as an ordinary user, setting function will not be available. If you log in the camera as the administrator, you can perform all the settings provided within the device.

3.3 Live View

UDP PTZ Speed Configuration

Parameter

Description

Navigation key is used to control the direction. The rotation key is used for auto-rotation.

PTZ Control

Adjust focus of the lens

Focus

Adjust the focal length of the lens

Zoom

Adjust the size of iris

Iris

Auxiliary Focus and Lens Initialization

PTZ Speed

PTZ rotation speed control (1\~10)

Brightness

A brighter scene appears if a higher level of brightness is chosen.

Contrast

The difference in color and light between parts of an image

Saturation

A vivid scene appears if a higher level of saturation is chosen.

Sharpness

Large value will sharpen camera.

Default Setting

Restore brightness, contrast, saturation and sharpness to default settings

Configuration

Start Talking

ePTZ

The icon does not show until Audio function is enabled.

The icon does not show up until the resolution of primary streaming is configured to 720P; able to use PTZ to move the position (only support under 720P).

Digital Zoom

When enabled, you can zoom in on a specific area of video image with your mouse wheel.

Saving Option

Set the saving path of PC for capturing and recording

Mute

Enable Audio Input/output. It can also be set on Audio configuration page.

Recording

Click to start recording video and save to the configured path. Default path is C: VMS+-1\MS_Record. Click again to stop recording

Snapshoot

Click to capture the current image and save to the configured path. Default path is C:VMS+-1\ IMAGE-MANUAL

Stop

Switch off the current video stream on the screen

Choose the Stream (primary or secondary) to show on the current video window

TCP or UDP protocol selection

Recording

When an alarm occurs, the camera starts recording if 'Save Into SD Card' of alarm action is enabled

Alarm

When an alarm occurs, the icon will show up

AUTO

Window Size

Click to display images in a window size

100%

Real Size

Click to display images in a real size

Full Screen

Click to display images in a full-screen

PTZ control and related functions (Focus, Zoom...) are for PTZ camera series only.

3.4 Playback

Playback only displays videos on SD card. There are two types of videos stored in SD card: event trigger and schedule recording. The videos recorded manually on local PC are not included.

Sun Mon Tue Wed Thu Fri Sat 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Search

Interior view of a room with a large monitor and ceiling light, no visible text or symbols on the main subject.

2014-03-27 13:24:42

Parameter

Description

Calendar Search

Search video by calendar. The "Do not have file" message will show up if the date doesn't have any video file.

Set Playback Time

Control Button

Search video files of the period

The buttons include pause, playback (stop), backward, forward, and mute.

Digital Zoom for specific zoon

Digital Zoom

Full Screen
Click to display images in a full-screen. Click right button of mouse, select full screen and disable it, then it will display images in a normal size

Increase or decrease time scale

Time Scale

Video Type

Red: Videos of motion alarm triggered

Blue: Videos of schedule recording

3.5 Basic Settings

3.5.1 Video

OSD (On Screen Display) content and video time can be displayed to enrich the video information. Stream parameters can also be set on this page to adapt to different network environments and demands.

On Screen Display(OSD)

Show Video Title:

Video Title:

Text Position:

Show Timestamp:

Date Position:

Date Format:

text1

Top-Right

DD/MM/YYYY

Parameter

Description

Show Video Title

Check the checkbox to show video title

Video Title

OSD content customized

Text Position

OSD display position on the image

Show Timestamp

Check the checkbox to display date on the image

Date Position	Date display position on the image
Date Format	The format of date
Video Settings
Primary Stream Settings
	Video Codec:	H.264
	Frame Size:	720P(1280*720)
	Maximum Frame Rate:	25 fps
	Bit Rate:	4096 kbps
	Bit Rate Control:	VBR
	Profile:	High
	I-frame Interval:	20 Frame(1-30)
	EPTZ:
Secondary Stream Settings
	Enable:
	Video Codec:	H.264
	Frame Size:	320*192
	Maximum Frame Rate:	25 fps
	Bit Rate:	512 kbps
	Bit Rate Control:	VBR
	Profile:	Base
	I-frame Interval:	20 Frame(1-30)

Primary Stream Settings

Parameter	Description
Video Codec	H.264/MPEG-4/MJPEG available (Main stream only supports H.264)
Frame Size	Options include 5M(2560 × 1920), 3M(2048 × 1536), 1080P(1920 × 1080), 2M(1600 ×1200), 1.3M(1280 × 960), 720P(1280 × 720), D1 (704 × 576)
Maximum Frame Rate	Maximum refresh frame rate of per second
Bit Rate	Transmitting bits of data per second
Bit Rate Control	CBR: Constant Bitrate. The rate at which a codec's output data should be consumed is constant.VBR: Variable Bitrate. VBR files vary the amount of output date pertime segment
Profile	High / Main / Base selection
I-frame Interval	Set the I-frame interval to 1~30
EPTZ	EPTZ is simply “electronic pan-tilt-zoom”. The function is supported in 720P only.

Secondary Stream Settings

Parameter	Description
Video Codec	H.264/MPEG-4/MJPEG available
Frame Size	The optional resolutions of the secondary stream depend on the Codec of the primary stream and the secondary stream
Maximum Frame Rate	Maximum refresh frame rate of per second
Bit Rate	Transmitting bits of data per second
Bit Rate Control	CBR: Constant Bitrate. The rate at which a codec's output data should be consumed is constant.VBR: Variable Bitrate. VBR files vary the amount of output date per time segment
Profile	High / Main / Base selection
I-frame Interval	Set the I-frame interval to 1~30

Note

If you log in the camera as an ordinary user, setting function will be not available.

If you log in the camera as the administrator, you can perform all the settings provided within the device.

When the configuration is finished, please click "Save" to save and enable the setting.

3.5.2 Image

General Settings

Exposure Region:

Outdoor/Indoor Mode:

Power Line Frequency:

IR Light sensor sensitivity:

Day/Night Mode:

Full View

Indoor

60HZ

MEDIUM

Auto Mode

Profile

Day/Night Mode

Day/Night Mode	Exposure Level	Maximum Exposure Time	IR-CUT Interval	IR-CUT	IR LED	Color Mode
Night Mode:	5	1/30	10	Off	On	B/W
Day Mode:	5	1/30	10	On	Off	Color

Schedule Mode

Timer						Exposure Level	Maximum Exposure Time	IR-CUT Interval	IR-CUT	IR LED	Color Mode
	00	:	00	-	00	:	5	1/30	10	Off	Off B/W
	00	:	00	-	00	:	5	1/30	10	Off	Off B/W
	00	:	00	-	00	:	5	1/30	10	Off	Off B/W
	00	:	00	-	00	:	5	1/30	10	Off	OFF B/W
	00	:	00	-	00	:	5	1/30	10	Off	Off B/W

Save Reset Close

- Advanced Settings

Video Orientation:

Noise Reduction:

Spatial Reduction:

Temporal Reduction:

Parameter

Description

	Full View, Custom, and BLC are selectable
	Full view: Calculate the full range of view and offer appropriate light compensation.
Exposure Region	Custom: This option enables you to add customized windows as inclusive or exclusive regions manually.
	BLC (Back Light Compensation): This option will automatically add an inclusive region in the middle of the window and give the necessary light compensation.

Outdoor/Indoor Mode

Select indoor or outdoor mode according to your needs

Power Line Frequency

60HZ flicker for NTSC mode and 50HZ flicker for PAL mode

IR Light Sensor Sensitivity

Low / Medium / High, the default setting is Medium

Day/Night Mode

Select Day/Night/Auto/Customize mode. Day and night will auto switch under auto mode.

Profile

Set Day/Night Mode, here you can do different settings under each mode.

Exposure Level	Set the exposure level to 0~10
Maximum Exposure Time	Set the maximum exposure time to 1/5~1/100000
IR-cut Interval	IR-cut switch time between each mode
IR-cut	Choose to turn on or turn off under the mode
IR-LED	On / Off switch
Color Mode	Here you can choose B/W or color mode under Day/Night mode.
Schedule Mode	Here you can customize your special demands for different time, then the Day mode and Night mode will switch according to your settings.
Video Orientation	Normal: Remain the image in normal directionFlip Horizontal: Flip the image horizontallyFlip Vertical: Flip the image verticallyRotating 180°: The image is presented upside down
Spatial Reduction	Enable/disable spatial reduction
Temporal Reduction	Enable/disable temporal reduction

3.5.3 Audio

Audio

Enable Audio:

Audio Input

Input Gain:

Alarm Level:

Save

Parameter

Description

Enable Audio

Check the checkbox to enable audio feature.

Input Gain Input audio gain level

Alarm Level Alarm will be triggered if voice alarm is enabled and input gained volume is higher than the alarm level.

3.5.4 Network

IP Address Configuration

Get IP address automatically
○ Use fixed IP address:

IP Address:

192.168.0.20

Subnet Mask:

255.255.255.0

Default Router:

192.168.0.1

Primary DNS:

8.8.8.8

Other Settings

HTTP Enable:

HTTP Port:

HTTPS Enable:

HTTPS Port:

RTSP Port:

Multicast Group Address:

RTP Size:

ONVIF RTSP Custom:

FTP Port:

Save

Parameter

Description

Obtain an IP address automatically (DHCP)	Enable this checked box when a DHCP server is installed on the network to issue IP address assignment. With this setting, the IP address is assigned automatically. If this device cannot get an IP address within limited tries, the device will assign a default IP address for 192.168.0.20If you do not select “Obtain an IP address automatically”, then you need to enter these network parameters by yourself.
IP Address	This address is a unique number that identifies a computer or device on the WAN or LAN. These numbers are usually shown in groups separated by periods, for example: 192.168.0.200.
Subnet Mask	Subnets allow network traffic between hosts to be separated based on the network’s configuration. In IP networking, traffic takes the form of packets. IP subnets advance network security and performance to some level by organizing hosts into logical groups. Subnet maskscontain four bytes and usually appear in the same "dotted decimal" data. For example, a very common subnet mask in its binary demonstration 11111111 11111111 11111111 00000000 will usually be shown in the corresponding, more readable form as 255.255.255.0.
Default Router	A gateway is a piece of software or hardware that passes information between networks. You'll see this term most often when you either log in to an Internet site or when you're transient email between different servers.
Primary DDNS	When you send email or position a browser to an Internet domain such as xxxx.com, the domain name system translates the names into IP addresses. The term refers to two things: the conventions for naming hosts and the way the names are controlled across the Internet.
HTTP Port Web GUI log on port
HTTPS Port	The port of communications protocol for secure communication over a computer network. The default port setting is 443.
RTSP Port Port to connect Network Camera via RTSP protocol
Multicast Group Address	Support multicast
RTP Size	RTP is designed for end-to-end, real time, transfer of stream data. The default RTP size is 8000
ONVIF RTSP Custom	If you want to remote access the camera via ONVIF, you need to enter your public IP here.

FTP Port The default port setting is 21.

3.5.5 Date and Time

Current System Time

Date:

26/3/2014

Time:

00:59:40

Set the System Time

Time Zone:

-6 United States - Central Time

Daylight Saving Time:

Disabled

○ Synchronize with computer time

Date:

26/3/2014

Time:

15:01:04

○ NTP server

○ Manual

Save

Parameter	Description
Time Zone	Choose a time zone for your location; the default time zone is ‘United States-Central Time’.
Daylight Saving Time	Enable the daylight saving time.
Synchronize with Computer Time	Synchronize the time with your computer.
NTP Server	Synchronize the time with configured SNTP server and selected time zone; the default NTP Server is ‘pool.ntp.org’.
Manual Set the system time Manually.

3.6 Advanced Settings

3.6.1 SIP

The Session Initiation Protocol (SIP) is a signaling communications protocol, widely used for controlling multimedia communication sessions such as voice and video calls over Internet Protocol (IP) networks.

This page allows user to configure SIP related parameters.

PLANET cameras can be configured as SIP endpoint to call out when alarm is triggered, or allow permitted number to call in to check the video if the video IP phone is used.

To use this function, the settings on SIP page must be configured properly.

1. Before using the SIP, you need to register an account for the camera from the SIP server;
2. Register another user account for the SIP device from the same SIP server;
3. Call the camera User ID from the SIP device; you will get the video on the SIP device.

SIP Settings

Unregistered Enable: Register Status: Enable User ID: 508 Password: ********** User Name: spclient Server IP: 192.168.5.101 Server Port: 5060 Enable Audio in SIP Call: Max Call Duration: 1800 s A settings of 0 disables the timeout. Note: SIP supports Direct IP call. SIP only supports second stream with H.264 or MPEG4 Video Compression. Save

Parameter

Description

Unregistered

SIP registration status. Display "Unregistered" or "Registered"

Enable Start or stop using SIP

Register Status

Choose to use Enable mode or Disable mode. Enable mode means to use with a registered account. Disable mode refers to SIP without a registered account; just use the IP address to call.

User ID SIP username, or telephone number from ITSP

Password SIP account password

User Name SIP account name

Server IP

FQDN or IP of SIP server from VoIP service provider.(IPPBX)

Server Port The default server port is 5060

Enable Audio in SIP Call

Start or stop using Audio

Max. Call Duration The max. call duration when SIP is used.

Note

(1) SIP supports Direct IP call.
(2) SIP only supports second stream with H.264 or MPEG4 video compression.

=Alarm Phone List

Phone Type:

Phone Number:

Remark Name:

Duration:

Phone Number

From 00 : 00 To 24 : 00

Add

-White List

Phone Type:

Phone Number:

Phone Number

Add

Enable White List Number Filter:

□

Save

Parameter

Description

Phone Type

Phone Number (Call by phone number) & Direct IP Call (Check to accept peer to peer IP call)

Phone Number Call by phone number or IP address

Remark Name Display name

Duration The time schedule to use SIP

Enable White List Number Filter

Including the phone number or IP address on the white list

-

Note

In alarm phone list, the port column (refer to server port, eg. 5060) must be input when Direct IP Call of phone type is chosen. Otherwise, the video stream can't be displayed in video SIP phone.

3.6.2 UPnP

UPNP Enable: Name: Upnp Type: Auto Protocol Name External Port Internal Port Status HTTP 21202 80 Invalid RTSP 23202 554 Invalid Save

Parameter	Description
Enable	Start or stop using UPnP
Name	Display name
Type	Auto / Manual selection

3.6.3 DDNS

DDNS allows you to access the camera via domain names instead of IP address. It manages to change IP address and update your domain information dynamically.

DDNS DDNS is not running Enable DDNS: Provider: PlanetDDNS.com Easy DDNS: User Name: Password: Easy Domain Name: p10202ef.planetddns.com Save

Parameter	Description
Enable DDNS	Start or stop using DDNS
Provider	Supports DDNS from now dyndns.org, freedns.afraid.org, www.no-ip.com, www.zoneedit.com and planetddns.com. The default provider is planetddns.com. User is able to go towww.planetddns.comto apply a login account, password and register a host name.
Enable Easy DDNS	Easy Domain Name will be created automatically by referring to device MAC address when Easy DDNS is enabled. With this function user is not necessary to register a host name in PLANET DDNSmanually in advance
User Name	The user name is used to log into DDNS
Password	The password is used to log into DDNS
Easy Domain Name	The domain name is applied for this device

3.6.4 SMTP

You may set up SMTP mail parameters for further operation of Event Schedule. That is, if users want to send the alarm message out, it will need to configure parameters here and also add at least one event schedule to enable event triggering.

SMTP Settings

User Name:	hdipnc
Sender Email Address:	[e-mail]
Password:	**********
Server Address:	smtp.sina.com
Server Port:	25
Recipient Email Address:	[e-mail]

Parameter	Description
User Name	Type the user name for the SMTP server if Authentication is enabled.
Sender Email Address	Type the sender's E-mail address. This address is used for reply e-mails.
Password	Type the password for the SMTP server if Authentication is enabled.
Server Address	Type the SMTP server name or the IP address of the SMTP server
Server Port	Set port number of SMTP service
Recipient Email Address	Type the receiver's e-mail address
Test	Send a test mail to mail server to check whether this account is available or not.

3.6.5 FTP

You may set up FTP parameters for further operation of Event Schedule. That is, if users

want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

FTP Settings

Server Address:	192.168.5.1
Server Port:	21
User Name:	ftpuser
Password:	●●●●
FTP Folder Name:	default_folder

Parameter	Description
Server Address	Type the server name or the IP address of the FTP server
Server Port	Set port number of FTP service
User Name	Type the user name for the FTP server
Password	Type the password for the FTP server
FTP Folder Name	Set working directory path of FTP server, eg. VOLUME2/PLANET
Test	Check the FTP server whether this account is available or not

3.6.6 Alarm

Alarm Event

Enable Alarm:	☑
Trigger Type:	☑ Motion DetectionSet MotionRegion	Schedule Settings
	☐ Network Lost
	☐ Audio Alarm
	☐ Tampering Alarm
Trigger Duration:	30 seconds	☑

Parameter	Description
Enable Alarm	Start or stop using Alarm
Motion Detection	Trigger alarm when any movement is detected in motion detection monitored area. The image is divided into 4 x 3 areas, and you can select your preferred areas. Set Motion Region and Schedule Settings will enable when the Motion Detection is checked. The provided sensitivity levels of Motion Settings are low, medium andhigh. The motion alarm will not be triggered if the Motion Detection Time Schedule is not enabled and worked with Set Motion Region together.
Network Lost	Trigger alarm when the network connection is down or network cable is tampered
Audio Alarm	Trigger alarm when the input gained volume is higher than alarm level. (Audio Input must be enabled in advance)
Tampering Alarm	Trigger alarm when the cover of case is tampered
Trigger Duration	Length of time an alarm lasts

Motion Settings

Interior view of an office with a blue grid overlay and ceiling lights (no visible text or symbols)

Select All

Clear All

(Please click the screen for setting!)

Sensitivity:

MEDIUM

Save

Close

Motion Detection Time Schedule

	Period1				Period2				Period3
Sunday	00	00	24	00	00	00	00	00	00	00	00	Copy to Other Days
Monday	00	00	24	00	00	00	00	00	00	00	00	Copy to Other Days
Tuesday	00	00	24	00	00	00	00	00	00	00	00	Copy to Other Days
Wednesday	00	00	24	00	00	00	00	00	00	00	00	Copy to Other Days
Thursday	00	00	24	00	00	00	00	00	00	00	00	Copy to Other Days
Friday	00	00	24	00	00	00	00	00	00	00	00	Copy to Other Days
Saturday	00	00	24	00	00	00	00	00	00	00	00	Copy to Other Days

Save

Clear

Alarm Action

Upload Via FTP:

Upload Via SMTP:

Save Into SD Card:

Play Buzzer:

Voice Alarm to SIP Phone:

File Format: AVI

File Format: AVI

File Format: AVI (Please insert SD card.)

□ (Please open the SIP.)

Alarm Setting

Record Video Sections

Snapshot Stream:

Snapshot:

Save

Parameter

Description

Upload Via FTP	Upload alarm recording files to the configured FTP server
Upload Via SMTP	Upload alarm recording files to SMTP with the configured format
Save into SD Card	Save alarm recording files into the SD card inserted
Play Buzzer	Play specific audio file when an alarm is triggered
Voice Alarm to SIP Phone	Choose to call the sip phone when alarm is triggered
Record Video Sections	Recording time when alarm is triggered
Snapshot Stream	Choose primary stream or secondary stream to snapshot
Snapshot	Number of snapshot

3.6.7 Privacy Mask

Privacy Masking is used to protect personal privacy by concealing parts of the image from view with a masked area. Examples of this use would be masking windows of domestic properties or car number plates which are not subject to surveillance.

After enabling the privacy masking, you can select a region No.1-4 and type of mask. Then draw a square covering your sensitive area by mouse. Click 'set' will bring the masking into effect. Click 'Clean' to cancel a specific privacy masking area.

Privacy Mask

Interior ceiling view of an office with recessed lighting and patterned ceiling tiles (no visible text or symbols)

Enable:

Region:

Type:

Set

Clean

Save

3.6.8 SD Card

Files will be seen on this page when they are configured to save onto SD card. You can configure time schedules of video recording every day and save video files to SD card.

Note

Files are visible once SD card is inserted. Don't insert or plug out SD card when powered on.

=Record Settings

□ Enable cyclic storage

Schedules Expires In

○ Infinite Loop

File Format: AVI

Record Frame Type: All

Snapshot Stream: Primary Stream

Snapshot: (1-5)

Save

clear

SD Card Explorer

Total Size:

Free Size:

Used Size:

Format

UnMount

Parameter

Description

Enable Cyclic Storage

When the function is enabled, it will record data circularly.

Schedules Expires

Set expire time of video files.

Infinite Loop

Video files will not expire. Old ones will be deleted when there is not enough space.

File Format

AVI / JPG/ All

Record Frame

All / Key

Type
Snapshot Stream	Choose primary stream or secondary stream to snapshot
Snapshot	Number of snapshot
Format	Format the SD card
Unmount	Unmount the SD card. Once unmounted, the files will not be listed.

3.6.9 PTZ

PTZ Settings

Protocol:

Baudrate:

Parameter Description

Protocol Select the PTZ protocol your camera supports

Baud Rate

Select the baud rate from the drop down menu. Baud rate is the number of distinct symbol changes (signaling events) made to the transmission medium per second in a digitally modulated signal or a line code.

3.6.10 User

Three privilege levels are available, including admin, operator and viewer. Up to 10 users can be added to this system. It is also able to log on the web with anonymous viewing, no need to enter the username and password.

Manage privilege Allow anonymous viewing: Save Account Management User Name: User Password: Confirm User Password: Privilege: Administrator ○ Operator ○ Viewer (You can only add 10 users) Save Clear User Name Privilege Edit Delete admin Administrator ✗ operator Operator ✗ ✗ viewer Viewer ✗ ✗

Parameter	Description
Administrator	An administrator can manage all configuration pages of the device, including change of user password, add or delete users (the default user 'admin' cannot be deleted).
Operator	An operator can manage all configuration pages except the user page.
Viewer	A viewer can't change any settings.

3.6.11 Access List

General settings Maximum number of concurrent streaming: No Limit Filter IPv4 access list IP Address Delete Rule: Single IP address: Add Enable access list filtering: Filter type: Allow Deny Save

Parameter	Description
Maximum Number of Concurrent Streaming	Select the maximum number of concurrent streaming. Options include No Limit, 1, 2, 3, 4, 5.
Rule	Single / Network / Range types
IP Address	The input format of IP address relays on Rule selection.
Enable Access List Filtering	Able to access or restrict access for some IP addresses
Filter Type	Access or restrict access

3.6.12 Logs

The logs contain the information about the time and IP that have accessed the camera through web.

Logs

2014-03-26 00:01:33 [ALARM]:Motion Alarm,

2014-03-26 00:04:27 [ALARM]:Motion Alarm,

2014-03-26 00:05:13 [ALARM]:Motion Alarm,

2014-03-26 00:06:26 [ALARM]:Motion Alarm,

2014-03-26 00:07:02 [ALARM]:Motion Alarm,

2014-03-26 00:07:33 [ALARM]:Motion Alarm,

2014-03-26 00:10:35 [ALARM]:Motion Alarm,

2014-03-26 00:10:35 [ALARM]:Motion Alarm,

2014-03-26 00:13:46 [ALARM]:Motion Alarm,

2014-03-26 00:14:51 [ALARM]:Motion Alarm,

2014-03-26 00:16:09 [ALARM]:Motion Alarm,

2014-03-26 00:18:38 [RTSP]:stop one session,IP=192.168.2.95

2014-03-26 00:18:56 [RTSP]:start one session,IP=192.168.2.95

2014-03-26 00:19:04 [ALARM]:Motion Alarm,

2014-03-26 00:22:40 [ALARM]:Motion Alarm,

2014-03-26 00:24:37 [RTSP]:stop one session,IP=192.168.2.95

2014-03-26 00:30:04 [ALARM]:Motion Alarm,

2014-03-26 00:31:03 [ALARM]:Motion Alarm,

2014-03-26 00:34:41 [ALARM]:Motion Alarm,

2014-03-26 00:35:11 [ALARM]:Motion Alarm,

2014-03-26 00:35:56 [ALARM]:Motion Alarm,

3.7 System

All information about the hardware and software of the camera can be checked on this page.

System

Device Name:

IPCAM

Product Model:

ICA-4230S

Hardware Version:

V1.2

Software Version:

21.4.12.70

Kernel Version:

2.2.0.5

MAC Address:

00:30:4F:02:02EF

System Up Time Since:

1 days 9 minutes

Save

3.8 Maintenance

The software can be upgraded by the following steps

1. Browse and select the upgrading file.
2. Click the 'update' button after it prompts upload file successfully. After the system reboots successfully, the update is done.

Note

Do not disconnect the power of the device during the update. The device will be restarted to complete the upgrading.

Upgrade Firmware

Hardware Version:

V1.2

Software Version:

21.4.12.70

Kernel Version:

2.2.0.5

Firmware File:

Upgrade

Note: Do not disconnect the power of the device during the upgrade. The device will be restored after the upgrading.

Maintenance

Reboot the device:

Reboot

Reset settings, except IP address, to factory default:

Restore

Export configuration file:

Export

Configuration file:

Browse...

Upload

Parameter

Description

Firmware File

Select the firmware used to upgrade

Reboot

Click 'Reboot' button to restart the device immediately

Restore

Click 'Restore' button to restore the camera to factory default settings

Export

Click this button to export the configuration file

Upload

Click this button to import the old configuration file

Appendix A: PING IP Address

The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It's also a very useful tool to confirm Internet Camera installed or if the IP address conflicts with any other device over the network.

If you want to make sure the IP address of Internet Camera, utilize the PING command as follows:

• Start a DOS window.
  • Type ping x.x.x.x, where x.x.x.x is the IP address of the Internet Camera.

The replies, as illustrated below, will provide an explanation to the problem.

Microsoft Windows XP [Version 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. D:\Documents and Settings\Administrator>PING 192.168.0.20 Pinging 192.168.0.20with 32 bytes of data: Reply from 192.168.0.20: bytes=32 time=1ms TTL=64 Reply from 192.168.0.20: bytes=32 time<1ms TTL=64 Reply from 192.168.0.20: bytes=32 time<1ms TTL=64 Reply from 192.168.0.20: bytes=32 time<1ms TTL=64 Ping statistics for 192.168.0.20: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = One, Maximum = 1ms, Average = One D:\Documents and Settings\Administrator>

If you want to detect any other device which conflicts with the IP address of Internet Camera, you also can utilize the PING command but you must disconnect the Internet Camera from the network first.

Appendix B: Bandwidth and Video Size Estimation

The frame rate of video transmitted from the Internet Camera depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements for your Internet Camera.

The required bandwidth depends on content of video source. The slow motion video will produce smaller bit rate generally and fast motion will produce higher bit rate and vice versa. Actual results generated by the Internet Camera may be varying.

Image Resolution	Average range of data sizes for JPEG mode	Average bit rate for MPEG4 mode	Average bit rate for H.264 mode
320 x 240	8 ~ 20k byte per frame	256kbps~768kbps @ 30fps	192kbps~512kbps @ 30fps
640 x 480	20 ~ 50K byte per frame	512kbps~3072kbps @ 30fps	384kbps~1536kbps @ 30fps
1920 x 1080	200 ~ 500k byte per frame	- 1536kbps~	10000kbps @ 30fps
2048 x 1536	300 ~ 750k byte per frame	-	2048kbps~12000kbps @ 30fps

Note

Audio streaming also takes bandwidth around 32kbps. Some xDSL/Cable modem upload speeds could not even reach up to 128 kbps. Thus, you may not be able to receive good quality video while also streaming audio on a 128 kbps or lower connection. Even though the upload speed is more than 128kbps, for optimal video performance, disabling audio streaming will get better video performance.

Appendix C: DDNS Application

1. Configuring PLANET DDNS steps:

Step 1: Enable DDNS option through accessing web page of NAS

Step 2: Select DDNS server and register an account if you have not used yet.

Let's take dyndns.org as an example. Register an account in http://planetddns.com

PLANET DDNS PLANET Website FAQ Support Sign in ID / Email Sign in Forgotten Password / Create A New Account XRT-401F Internet Broadband Router More Info ICA-HM132 2 Mega-Pixel 20M IR Vari- Focal Dome IP Camera More Info ICA-HM316 2 Mega-Pixel 11n Outdoor IR IP Camera More Info Access anytime & anywhere Sign-in PLANET DDNS to register a simple domain name to access home device anytime and anywhere. Go! Support & Download You can find drivers, firmware updates, other software and documentation for your PLANET products About DDNS | Term of Usage PLANET Technology Corp. Copyright ©2012 All Rights Reserved.

Appendix D: Configuring Port Forwarding Manually

The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be set up as fixed IP address, also the port forwarding or Virtual Server function of router needs to be set up. This device supports UPnP traversal function. Therefore, user could use this feature to configure port forwarding of NAT router first. However, if user needs to configure port forwarding manually, please follow the steps as shown below:

Manually installing the device with a router on your network is an easy 3-step procedure as follows:

1. Assign a local/fixed IP address to your device
2. Access the Router with your Web browser
3. Open/Configure Virtual Server Ports of your Router

1. Assign a local/fixed IP address to your device

The device must be assigned a local and fixed IP Address that allows it to be recognized by the router. Manually set up the device with a fixed IP address, for example, 192.168.0.100.

2. Access the Router with Your Web browser

The following steps generally apply to any router that you have on your network. The PLANET WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router's Quick Installation Guide.

If you have cable or DSL service, you will most likely have a dynamically assigned WAN IP Address. 'Dynamic' means that your router's WAN IP address can change from time to time depending on your ISP. A dynamic WAN IP Address identifies your router on the public network and allows it to access the Internet. To find out what your router's WAN IP Address is, go to the Status screen on your router and locate the WAN information for your router. As shown on the following page the WAN IP Address will be listed. This will be the address that you will need to type in your web browser to view your camera over the Internet. Be sure to uncheck the Reset IP address at next boot button at the top of the screen after modifying the IP address. Failure to do so will reset the IP address when you restart your computer.

PLANET Internet Broadband Router Internet Connection ? View the current Internet connection status and related information Status Connect (Connecting) Connect Status System Log Connect Link Active DNS Client Estee Attain IP Protocol : Dynamic IP disconnect IP Address : Subnet Mask : Default Gateway : 0.0.0.0 MAC Address : 03:11:22:33:44:56 Primary DNS : Secondary DNS :

Your WAN IP Address will be listed here.

3. Open/set Virtual Server Ports to enable remote image viewing

The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet. The router connects to the Internet over a series of numbered ports. The ports normally used by the device are blocked from access over the Internet. Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the router. The Virtual Server ports used by the camera must be opened through the router for remote access to your camera.

Follow these steps to configure your router's Virtual Server settings

• Click Enabled.
• Enter a unique name for each entry.
• Select Both under Protocol Type (TCP and UDP)
• Enter your camera's local IP Address (192.168.0.100, for example) in the Private IP field.
• If you are using the default camera port settings, enter 80 into the Public and Private Port section, click Add.

A check mark appearing before the entry name will indicate that the ports are enabled.

Note

Some ISPs block access to port 80. Be sure to check with your ISP so that you can open the appropriate ports accordingly. If your ISP does not pass traffic on port 80, you will need to change the port the camera uses from 80 to something else, such as 8080. Not all routers are the same, so refer to your user manual for specific instructions on how to open ports.

PLANET Internet Broadband Router Home | General Setup | Status | Tool | System WAN LAN Wireless QoS NAT Port Forwarding Virtual Server Special applications UPoP Setting AUG Settings Firewall Virtual Server 2. You can configure the Broadband router as a Virtual Server so that remote users accessing services such as the Web or FTP at your local site via Public IP Addresses can be automatically redirected to local servers configured with Private IP Addresses. In other words, depending on the requested service (TCP/UDP) port number, the Broadband router redirects the external service request to the appropriate internal server (located at one of your LAN's Private IP Address). Enable Virtual Server Private IP Private Port Type Public Port WAN Port Comment Back WAN1 Add Reset Current Virtual Server Tables: Private IP Private Port Way Type Public Port WAN Port Comment Select 192.168.0.130 05 TCP+LDP 05 WAN1 CA+H230 Change Select Delete All Reset Apply Cancel

Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be accessed from WAN by the router's WAN IP Address.

By now, you have finished your entire PC configuration for this device.

Appendix E: Power Line Frequency

COUNTRY	VOLTAGE	FREQUENCY	COMMENTS
Argentina	220V	50	*Neutral and line wires are reversed from that used in Australia and elsewhere.
Australia	230V*	50	*Outlets typically controlled by adjacent switch.Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
Austria 230V 50 Hz
Brazil	110/220V*	60 Hz	*127V found in states of Bahia, Paraná (including Curitiba), Rio de Janeiro, Paulo and Minas Gerais (though 220V may be found in some hotels). Other areas are 220V only, with the exception of Fortaleza (240V).
Canada	120V	60 Hz
China	220V	50 Hz
Finland	230V	50 Hz
France	230V	50 Hz
Germany	230V 50 Hz
Hong Kong	220V*	50 Hz
India	230V	50 Hz
Italy	230V	50 Hz
Japan	100V	50/60 Hz*	*Eastern Japan 50 Hz (Tokyo, Kawasaki, Sapporo, Yokohoma, and Sendai); Western Japan 60 Hz (Osaka, Kyoto, Nagoya, Hiroshima)
Malaysia	240V 50 Hz
Netherlands	230V 50 Hz
Portugal	230V 50 Hz
Spain	230V 50 Hz
Sweden	230V 50 Hz
Switzerland	230V	50 Hz
Taiwan	110V 60 Hz
Thailand	220V	50 Hz
United Kingdom	230V*	50 Hz	*Outlets typically controlled by adjacent switch.Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
United States of America	120V 60 Hz
