USER MANUAL HPX-AV102-RGB+A AMX

SPRING 2014 POCKET GUIDE

automate > successes

TABLE OF CONTENTS

ENOVA PERFECT MEETING SOLUTIONS

Automation & Control 4-5

Enova DVX System Diagram 6-7

Enova DVX Models and Comparison Chart....8-9

Enova DVX-3156HD 10-11

Inside SmartScale Technology 12-13

DIGITAL MEDIA SWITCHERS

DXLink Fiber and Epica DGX 288 Fiber....14-15

Enova DGX Digital Media Switchers 16-19

Enova DGX / DXLink Board Options Chart....20-21

DXLink Twisted Pair, DXLink Fiber, DXLink Power....22-27

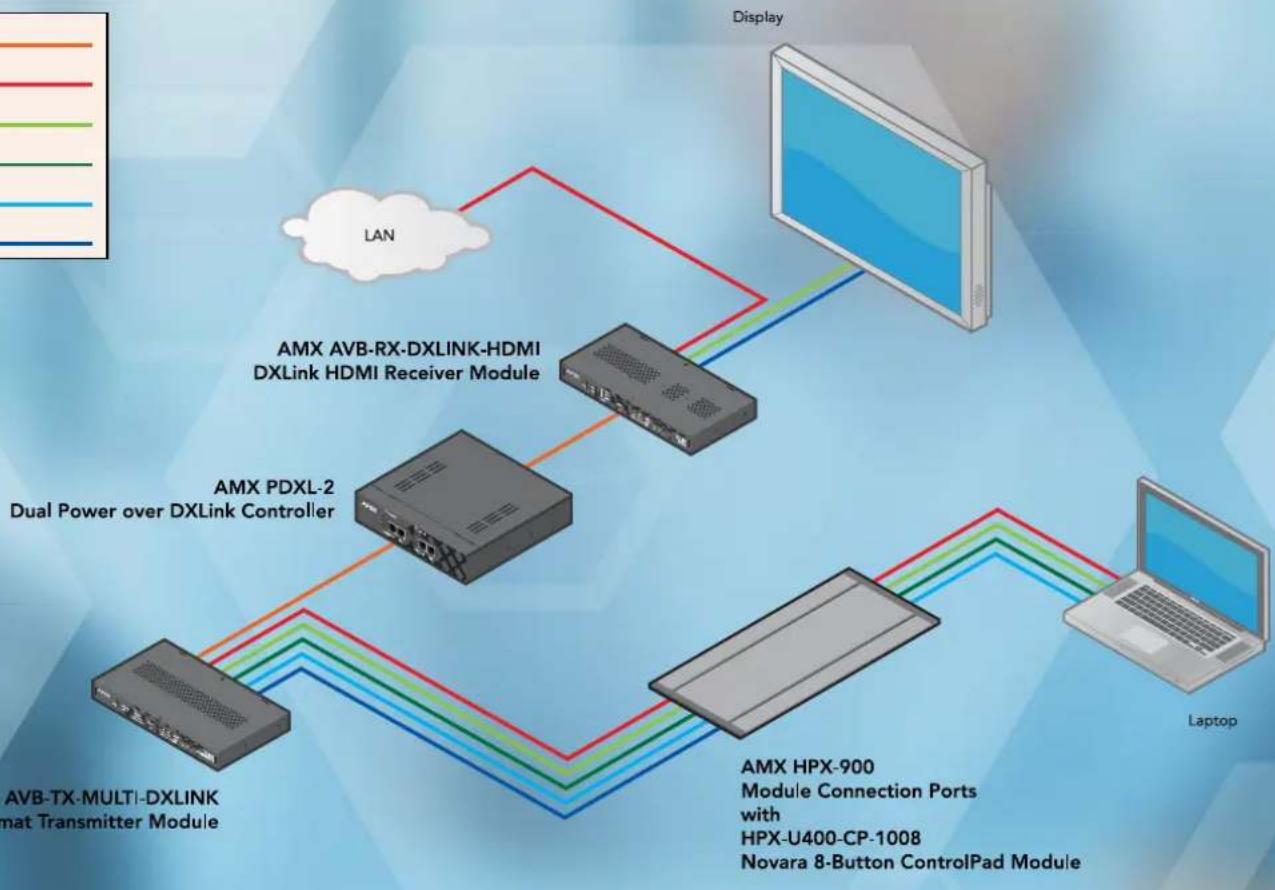

Bringing Enova to Every Space....28-29

DISTRIBUTED AUDIO

Alero Power Amplifier 30-31

DEVICE CONTROL

NetLinx Integrated Controllers and Comparison Chart....32-33

ICSLan Device Control Boxes 34-35

ENERGY MANAGEMENT

Power Distribution Unit 36-37

BMS/Energy Management 38-39

SOFTWARE

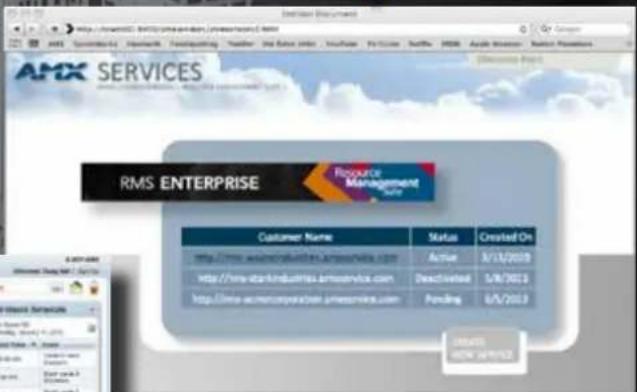

Resource Management Suite Enterprise 40-43

Rapid Project Maker (RPM) 44-45

SALES AND PROGRAMS

InConcert Partnership Program 46-47

AMX Europe-London Showroom / Global Regional Offices...... 48-49

Global Sales Offices Map....50-51

Global Sales Offices Contact Information....52-53

infoComm

NSCA EDUCATION FOUNDATION

NSCA BUILDING CONNECTIONS

Integrated Systems Europe

© 2014 AMX. All rights reserved. AMX does not assume responsibility for errors or omissions.

Alora, AMX. AMX Device Discovery; CatPro. DXLink, Enova, Esica, HydraPort, InspireSignage. InConcert, InstaGate Pro, Motresu, Mio. Modern, Monaro X Series, Monaro B Series, NetLink, Network Media. Novara. Precis, Rapid Project Maker, Drive Design, Resource Management Suite. RMS, RMS Enterprise. SmartScale. SmoothTouch, Viscera, XPort, XPort and XPress are trademarks/registered trademarks of AMX.

AIA, Android, Apple, Apple Sport Proms and Post, Adrian Martin, Bang & O'Oran, Bang, BICSI, Powers & Winkra, Canon, Cassi, CFDIA, CPA, Chief, Charlie, Cisco, DENT PowerScout, Digital Signage Association, EPH Publishing, Exxon Field Server Technologies, Google, NBA, Hitachi, OffPower InfoComm, Kensington, KNE, Linhan, Latham Clear Connect, Mercedes-Benz, Microsoft, Microsoft Windows 8, XP and Viola, Mitsubishi NAO, NAHO, NEC, NSGA, Panasonic, Parra Associates, RedMine Technology, Rube, Sony, Indium, TouchPane Control, T.P. Control, USCDC and Zigmo are in compliance-regulated trademarks of their respective companies.

The product specifications/information provided specific to these designated products are not confirmed as of printing on 01-20-14 and are subject to change. The information includes is solely intended as a basis for comparison and forecasting. AMX reserves the right to change said product specifications without prior notification.

THINK

The perfect interface. It's in here.

Presentations

Audio Conferencing

Video Conferencing

Google A10X

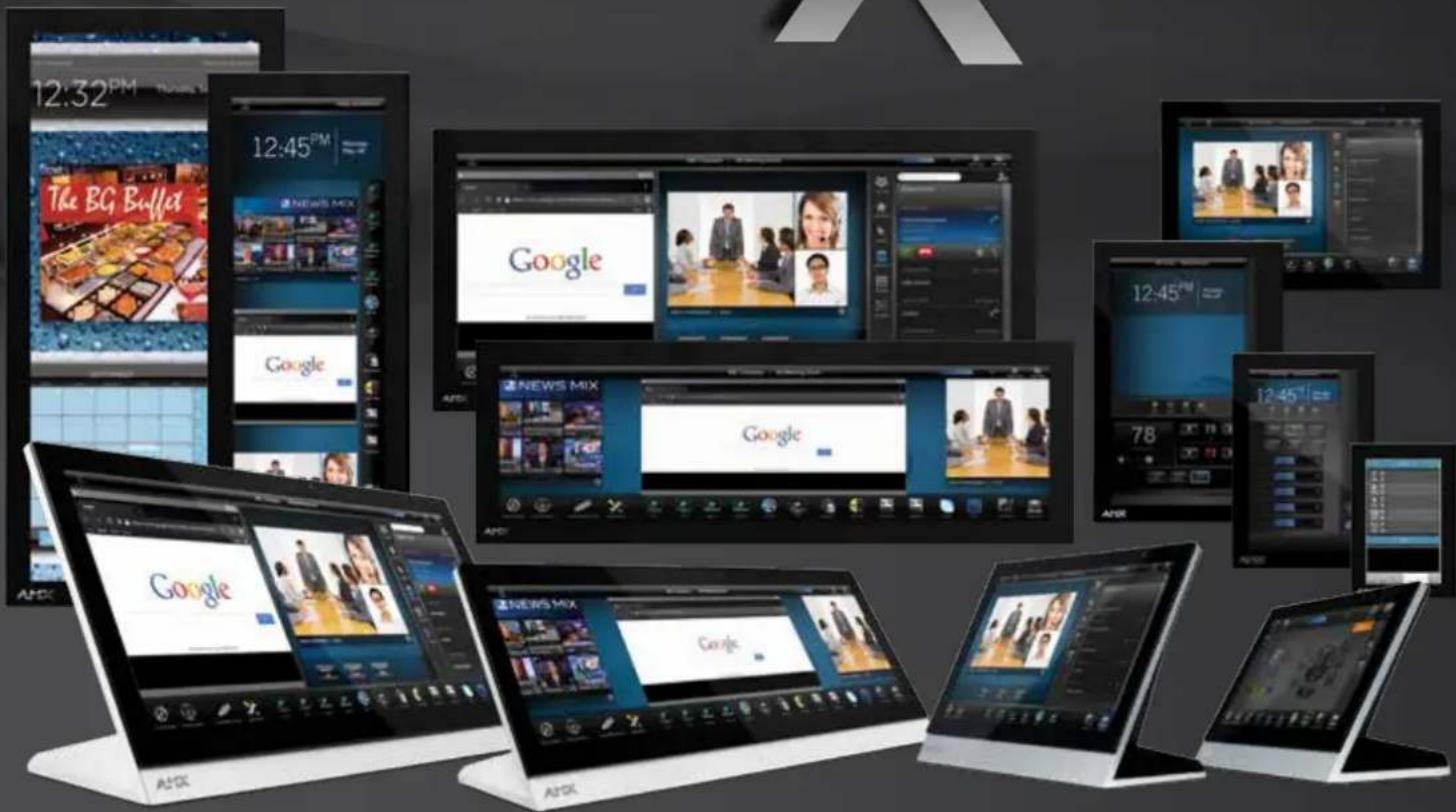

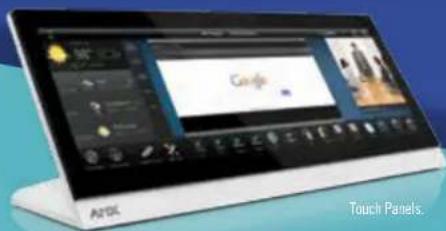

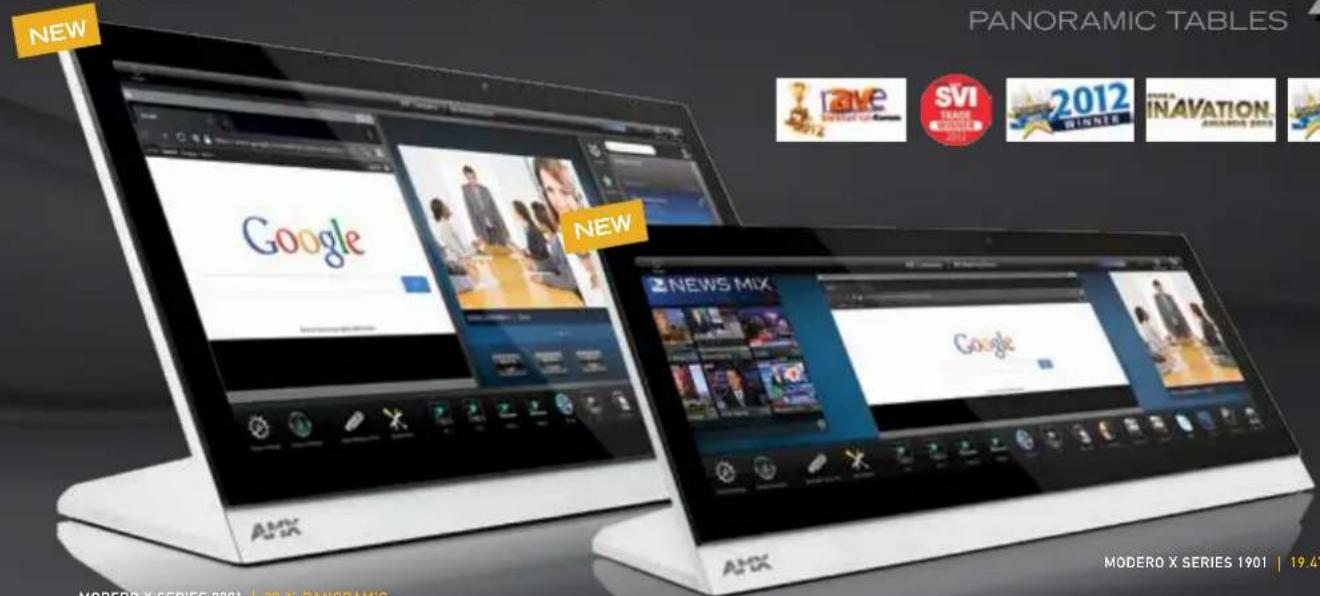

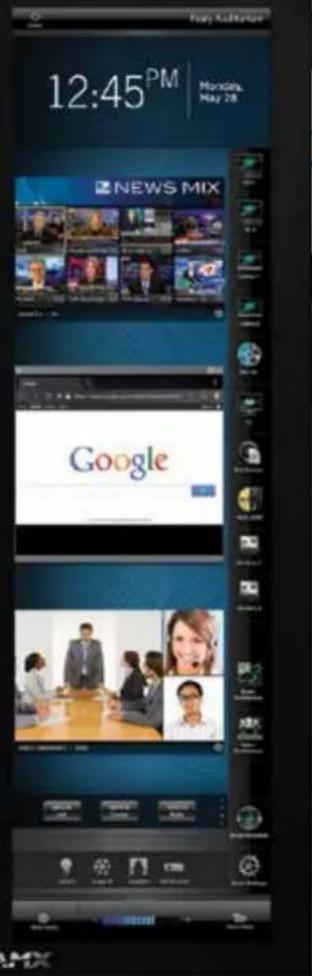

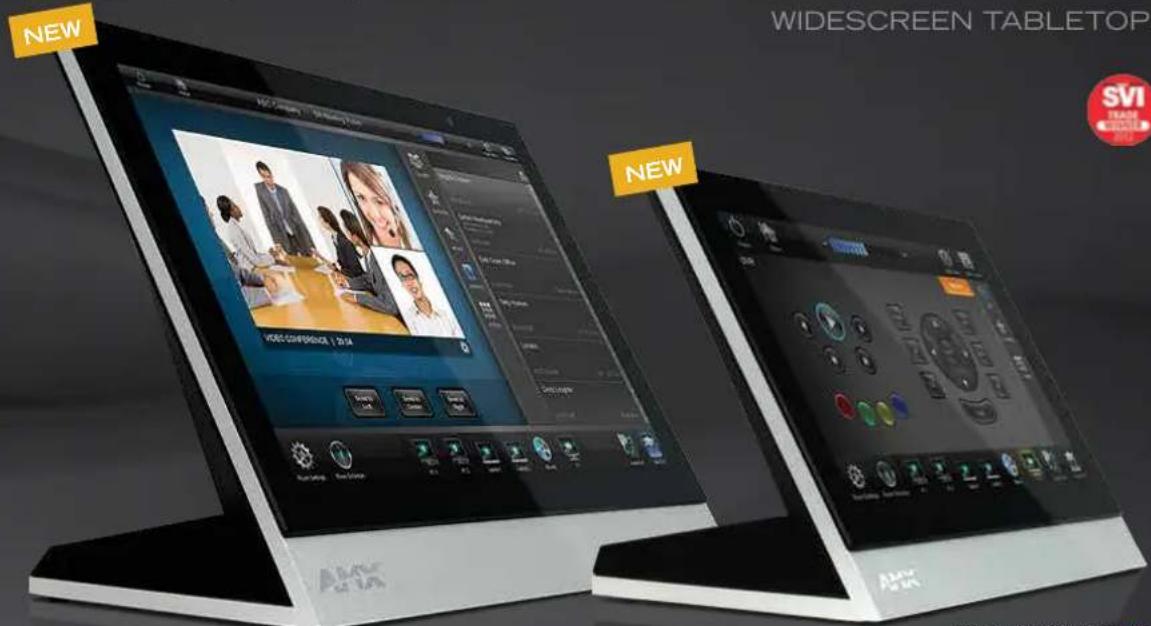

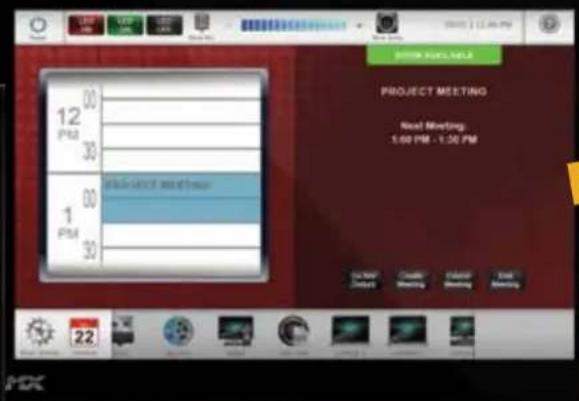

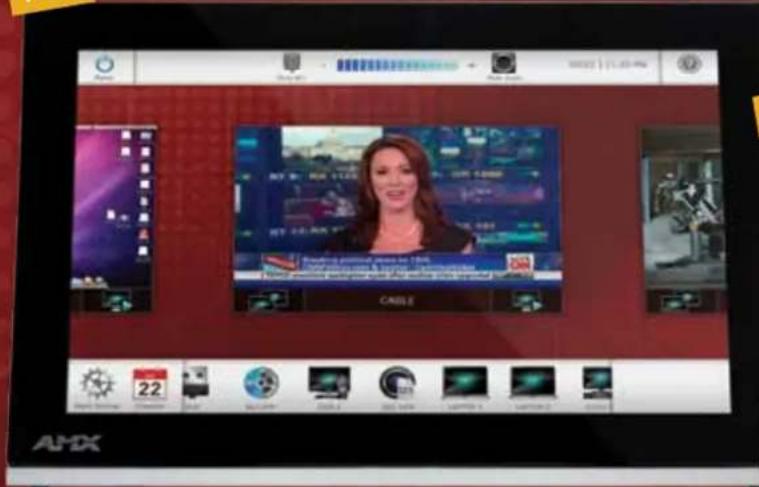

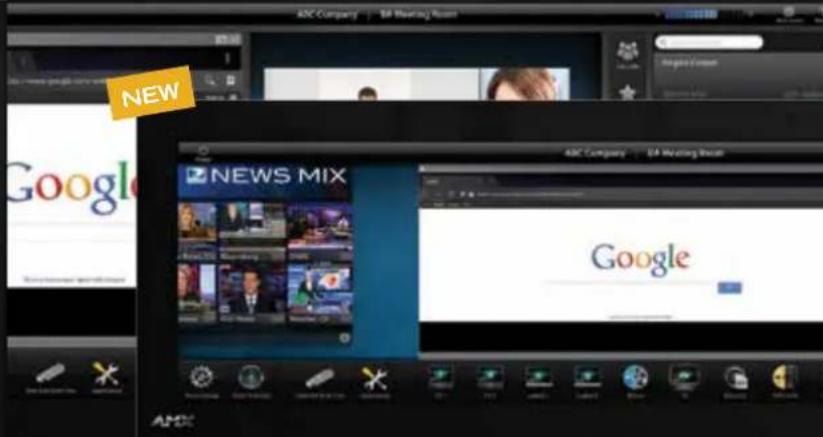

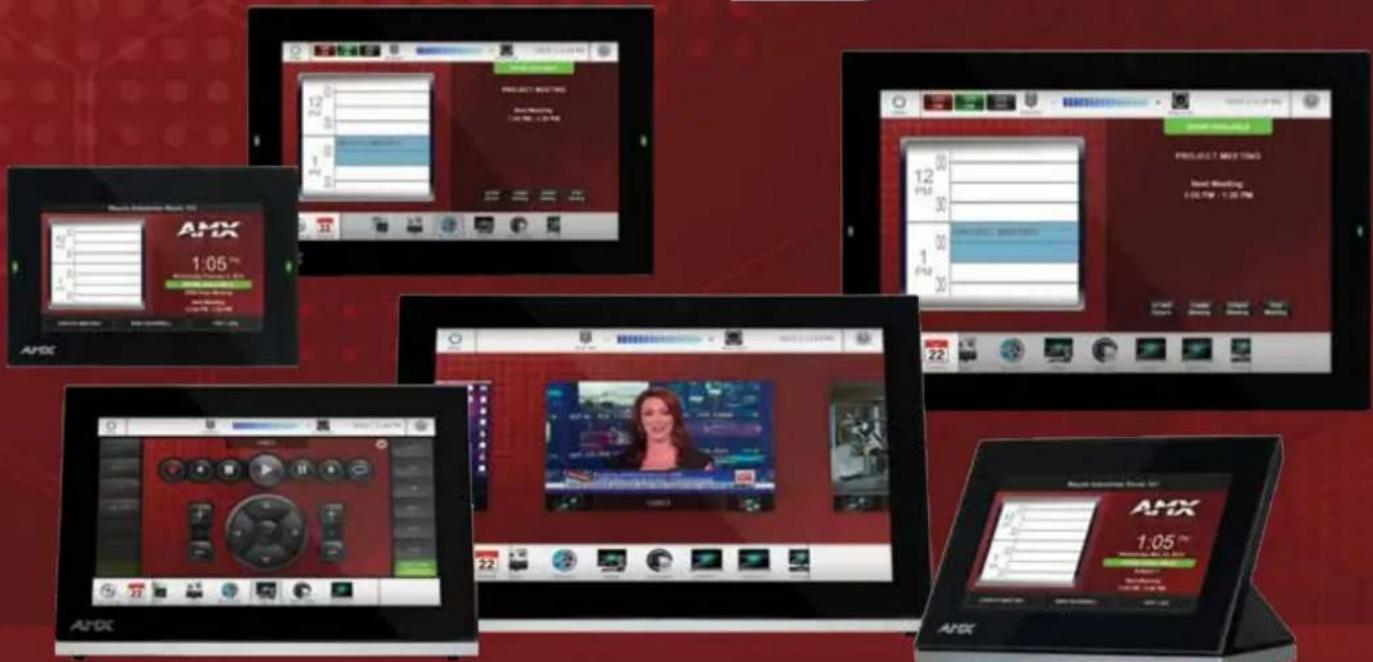

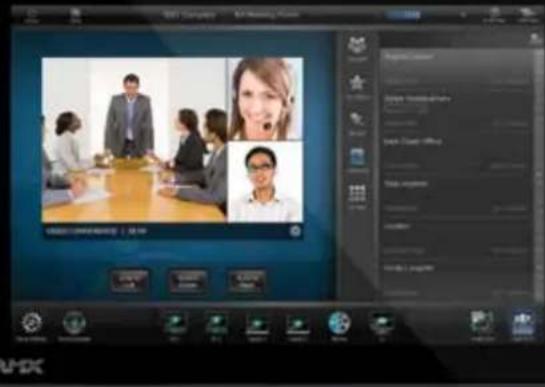

AMX MODERO X SERIES PANORAMIC TOUCH PANELS

AMX has unified technologies to simplify your world. Whether you are a CEO meeting with 24 attendees in a global video conference or a teacher lecturing for a multi-continent distance learning session—everything is accomplished with ease from the Modero X Series Panoramic Touch Panel. This new aspect ratio is a revolutionary way of combining the form and function of the touch panel by introducing a new form factor that celebrates the functionality you expect. The end result is an interface that has never so strikingly put the user in such direct contact with the simplification of technology.

• Audio Video Conferencing
- Presentations
• Distance Learning
• Automation/Control
• Media Management

AMX

www.amx.com

enova DVX

The perfect automated...

Presentations Audio Conferencing Video Conferencing

classroom ARX

auditorium ARX

...conference room ATOX

It's in here.

AMX has unified technologies to automate and simplify auditorium, classroom and conference room equipment to ensure meetings and presentations run seamlessly. Enova DVX All-In-One Presentation Switchers combine AV switching, control, audio processing, amplification and category cable distribution in a single 3U chassis that can be supported and serviced remotely over your current IT infrastructure.

• Media Switching • Control
- Amplification • Audio Processing
• Video Scaling • Media Distribution

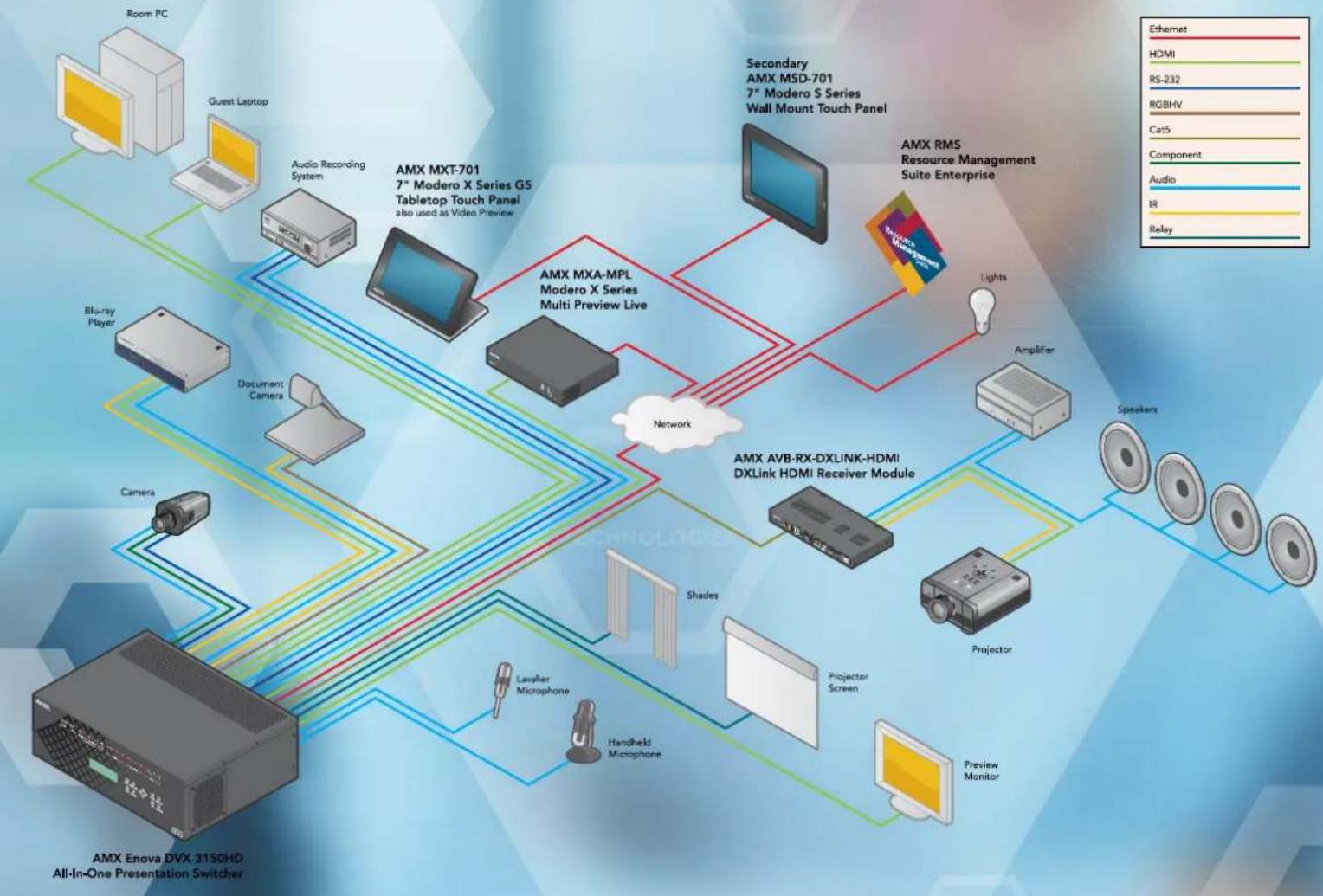

bringing the PERFECT

Enova DVX All-In-One Presentation Switchers are the centerpiece of the Perfect Meeting. They dramatically simplify AV control and distribution in conference rooms, classrooms and auditoriums and are ideal for any room with a mix of analog and digital sources,

MEETING together

multiple displays, or rooms that require support for video conferencing. Exclusive technologies like SmartScale® and InstaGate Pro® ensure perfect video scaling on every output and hassle-free HDMI/HDCP installations.

enova DVX

All-In-One

10x4s

Includes 4 independent scaled HDMI outputs and 2 DXLink Twisted Pair outputs (unpowered) that mirror two of the scaled HDMI outputs

DVX-3156HD-SP

10 Video Inputs: 2 Multi-Format DVI (HDMI/HDCP capable), 4 HDMI/HDCP, 4 DXLink, Amplifier: 2x25w - 8 Ohm

DVX-3156HD-T

10 Video Inputs: 2 Multi-Format DVI (HDMI/HDCP capable), 4 HDMI/HDCP, 4 DXLink, Amplifier: 75w - 70V/100V

DVX-3155HD-SP

10 Video Inputs: 4 Multi-Format DVI (HDMI/HDCP capable), 4 HDMI/HDCP, 2 DXLink, Amplifier: 2x25w - 8 Ohm

DVX-3155HD-T

10 Video Inputs: 4 Multi-Format DVI (HDMI/HDCP capable), 4 HDMI/HDCP, 2 DXLink, Amplifier: 75w - 70V/100V

DVX-3150HD-SP

10 Video Inputs: 4 Multi-Format DVI (HDMI/HDCP capable), 6 HDMI/HDCP, Amplifier: 2x25w - 8 Ohm

DVX-3150HD-T

10 Video Inputs: 4 Multi-Format DVI (HDMI/HDCP capable), 6 HDMI/HDCP, Amplifier: 75w - 70V/100V

DVX-3156HD-SP

DVX-3156HD-T

DVX-3155HD-SP

DVX-3155HD-T

DVX-3150HD-SP

DVX-3150HD-T

6x3s

Includes 2 independent, scaled HDMI outputs and 1 independent DXLink Twisted Pair output with power

DVX-2150HD-SP

6 Video Inputs: 2 Multi-Format DVI (HDMI/HDCP capable), 4 HDMI/HDCP, Amplifier: 2x25w - 8 Ohm

DVX-2150HD-T

6 Video Inputs: 2 Multi-Format DVI (HDMI/HDCP capable), 4 HDMI/HDCP, Amplifier: 75w - 70V/100V

DVX-2155HD-SP

6 Video Inputs: 2 Multi-Format DVI (HDMI/HDCP capable), 2 HDMI/HDCP, 2 DXLink, Amplifier: 2x25w - 8 Ohm

DVX-2155HD-T

6 Video Inputs: 2 Multi-Format DVI (HDMI/HDCP capable), 2 HDMI/HDCP, 2 DXLink, Amplifier: 75w - 70V/100V

DVX-2150HD-SP

DVX-2150HD-T

DVX-2155HD-SP

DVX-2155HD-T

Presentation Switchers

Switcher	Model	Amplifier	Multi-Format Inputs	HDMI Inputs	DXLink Inputs	Analog Audio Inputs	Scaled HDMI Outputs	DXLink Twisted Pair Outputs	Analog Audio Outputs	Control Ports (Serial/IR/IO/Relay)
6x3	DVX-2150HD-SP	2x25w - 8 Ohm	2	4	0	4	2	1*	3	3/4/4/4
	DVX-2150HD-T	75w -70V/100V	2	4	0	4	2	1*	3	3/4/4/4
	DVX-2155HD-SP	2x25w - 8 Ohm	2	2	2	4	2	1*	3	3/4/4/4
	DVX-2155HD-T	75w -70V/100V	2	2	2	4	2	1*	3	3/4/4/4
10x4	DVX-3150HD-SP	2x25w - 8 Ohm	4	6	0	8	4	2**	4	6/8/8/8
	DVX-3150HD-T	75w -70V/100V	4	6	0	8	4	2**	4	6/8/8/8
	DVX-3155HD-SP	2x25w - 8 Ohm	4	4	2	8	4	2**	4	6/8/8/8
	DVX-3155HD-T	75w -70V/100V	4	4	2	8	4	2**	4	6/8/8/8
	DVX-3156HD-SP	2x25w - 8 Ohm	2	4	4	6	4	2**	4	6/8/8/8
	DVX-3156HD-T	75w -70V/100V	2	4	4	6	4	2**	4	6/8/8/8

DAX-215c-DX (the output is an independent, uncalcd output with power. Scaling outputs at DXT or Recovers
** DWX 3.5 By DXLink outputs are unpowered, paired with an HDMI output & contain identical audio & video content & resolution as common or HDMI output

enova DVX

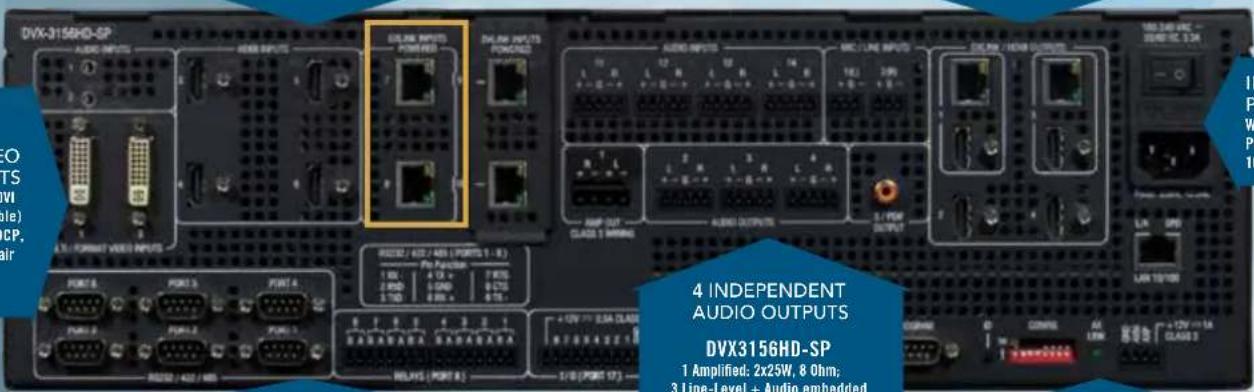

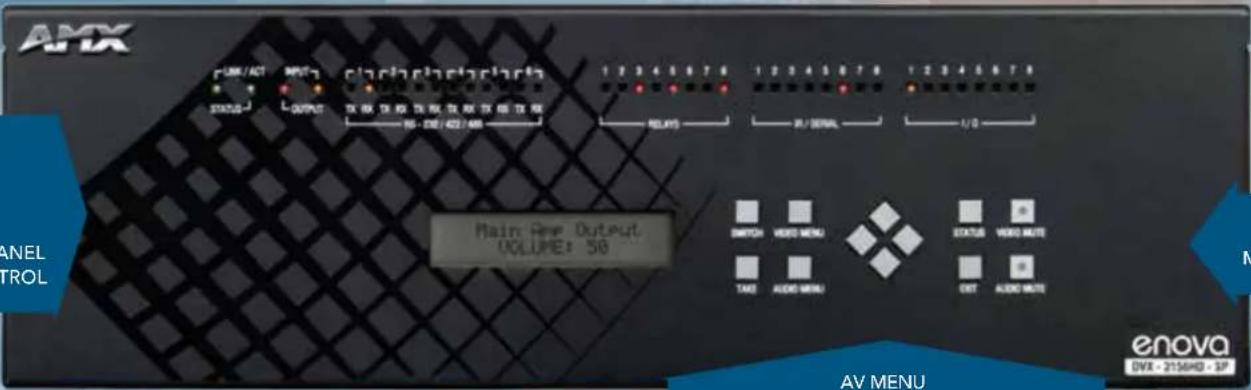

DISSECTING THE DVX INNOVATION - COMBINING AN INCREDIBLE AMOUNT OF FUNCTIONALITY IN A 3RU SPACE 3156HD

FRONT PANEL CONTROL

AMX F-100/ACT 100% clockchelachr STATUS-J L-OUTPUT 12345879 12345879 R-OUT 12345879 R-OUTPUT 12345879 R-OUTPUT 12345879 R-OUTPUT 12345879 R-OUTPUT 12345879 R-OUTPUT 12345879 R-OUTPUT 12345879 R-OUTPUT 12345879 R-OUTPUT 12345876 R-OUTPUT 12345876 R-OUTPUT 12345876 R-OUTPUT 12345876 R-OUTPUT 12345876 R-OUTPUT 12345876 R-OUTPUT 12345876 R-OUTPUT 12345876 R-OUTPUT 123A VIOE MENU R-OUTPUT 123A VIOE MENU R-OUTPUT 123A VIOE MENU R-OUTPUT 123A VIOE MENU R-OUTPUT 123A VIOE MENU R-OUTPUT 123A VIOE MENU R-OUTPUT 123A VIOE MENU R-OUTPUT 123A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT 123 A VIOE MENU R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-INPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R-OUTPUT R- OUTPUT

MUTE

14 AUDIO + 2 MIC INPUTS

6 Analog, 4 Audio on HDMI,

4 Audio on DXLink + 2 Microphone

6 VIDEO OUTPUTS

4 Independent HDMI/HDCP, 2 Mirrored

DXLink Twisted Pair (unpowered)

10 VIDEO INPUTS

2 Multi-Format DVI (HDMI/HDCP capable) 4 HDMI/HDCP, 4 DXLink Twisted Pair

DVX-3156HD-SP AUDIO INPUTS HORN INPUTS EOLAM INPUTS POWERED DOLAM INPUTS POWERED AUDIO INPUTS L 12 R 10 L 8 R 14 L 12 R 10 L 8 MCC/LINE INPUTS 100 V 200 V EOLAM / HORN OUTPUTS Amp OUT CLASS 5 MINDING AUXO OUTPUTS 5 P/40V OUTPUT LAN 10/1000 4 INDEPENDENT AUDIO OUTPUTS DVX3156HD-SP 1 Amplified: 2x25W, 8 Ohm; 3 Line-Level + Audio embedded

INTERNAL

POWER

Worldwide

Power Supply

100-240V AC

AUDIO DSP

10-band Parametric EQ + Microphone Gating, Ducking and Limiting

4 INDEPENDENT

AUDIO OUTPUTS

DVX3156HD-SP

1 Amplified: 2x25W, 8 Ohm;

3 Line-Level + Audio embedded on any HDMI or S/PDIF

DVX-3156HD-T

1 Amplified: 75W, 70V/100V;

3 Line-Level + Audio embedded on any HDMI or S/PDIF

NETLINX 3101

INTEGRATED CONTROLLER

6 Serial Ports, 8 IR Ports, 8 I/O Ports, 8 Relay

Ports, 1 Ethernet Port, 1 AxLink Port

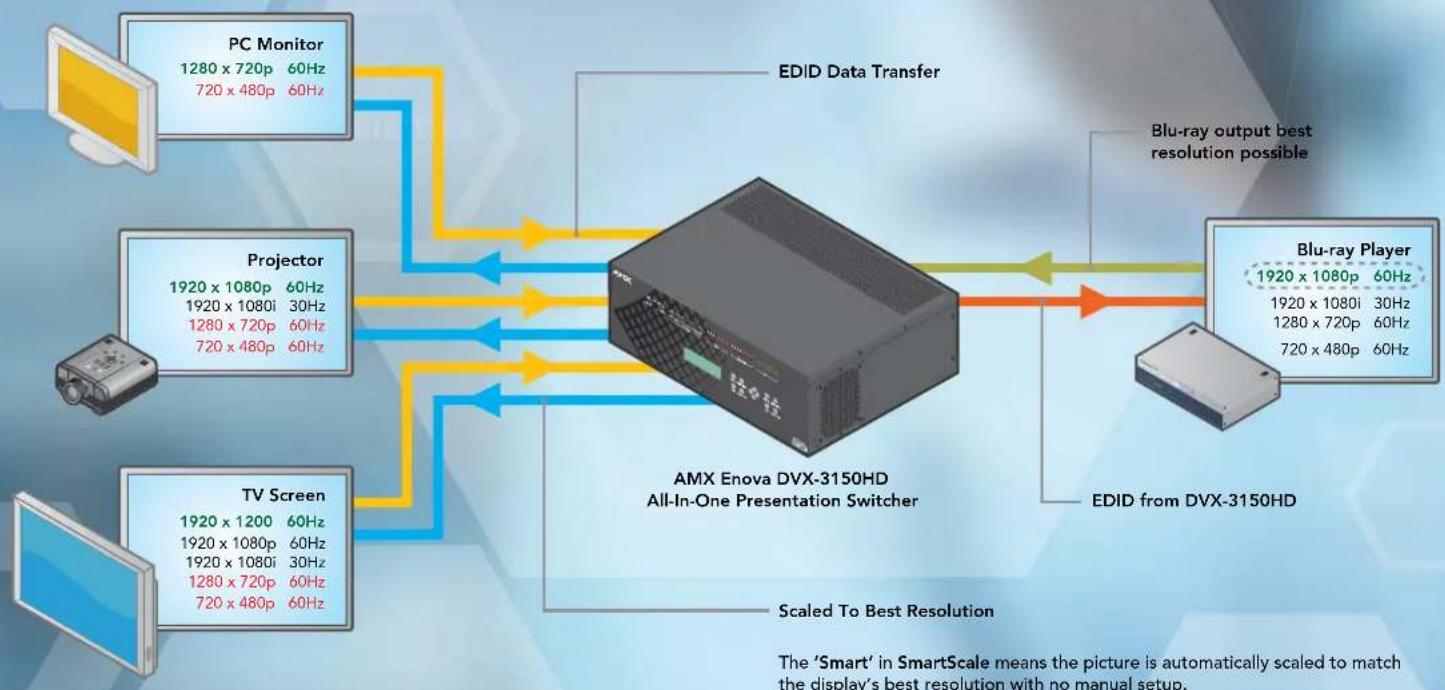

smartscale the answer

GET THE PICTURE

SmartScale automatically responds to the display's declared EDID information to deliver a custom-scaled image, based not only on the preferred resolution but also additional information such as horizontal and vertical pixel count, detailed timing, color space chromaticity and more. No other manufacturer provides automatic video resolution

support with this level of detail. SmartScale eliminates the incompatibilities between sources and displays operating at different resolutions by accepting the highest resolution of every source device to ensure that every display operates at its preferred resolution. SmartScale guarantees every picture looks its best, with no manual adjustments.

Every display shows content at its optimal resolution.
    note right of B: "AMX Enova DVX-3150HD All-In-One Presentation Switcher"
    note right of B: "Blue-ray output best resolution possible"
    note right of B: "EDID from DVX-3150HD"
    note right of B: "The 'Smart' in SmartScale means the picture is automatically scaled to match the display's best resolution with no manual setup."

enova

The 'Smart' in SmartScale means the picture is automatically scaled to match the display's best resolution with no manual setup.

SmartScale is available in Enova DVX, Enova DGX, DXLink Twisted Pair and Fiber Receivers.

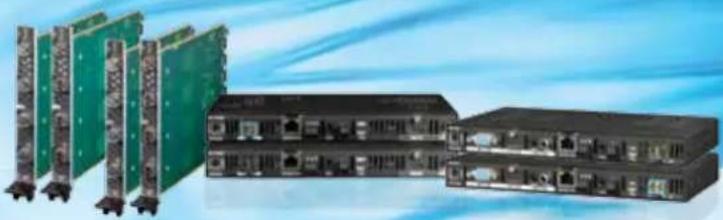

New Links to Fiber

New DXLink Fiber Single Mode and Multimode Transmitters, Receivers, Input and Output Boards expand the reach of HDMI campus-wide – at industry leading speed with 10 Gbps data transfer rate. Now clear, uncompressed, digital video including HDCP protected content can be delivered with maximum security.

• HDMI with HDCP up to 10 Km (6 miles) – Extend the reach of your digital video well beyond the capabilities of twisted pair
• 10 Gbps – Leading the industry with the fastest optical transport data rate
• Secure and isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
• Fiber your way – DXLink Fiber TX/RX and I/O Boards are available in single mode or multimode; simplex or duplex to meet the needs of any installation

INTRODUCING DXLINK FIBER - EXTENDING THE REACH OF THE ENOVA DGX UP TO 10 KM

Exterior view of multiple network equipment units with green and black panels (no visible text or labels)

Epica DGX 288 Fiber Matrix Switcher

Two black server racks side by side: one with ventilation grilles and the other with grid-like heat sinks (no visible text or symbols)

The DXLink Fiber Single Mode Transmitters and Receivers are also compatible with the new Epica DGX 288 Fiber Matrix Switcher. The industry's fastest jumbo-sized optical matrix switcher that securely transports uncompressed video over fiber including HDMI with HDCP.

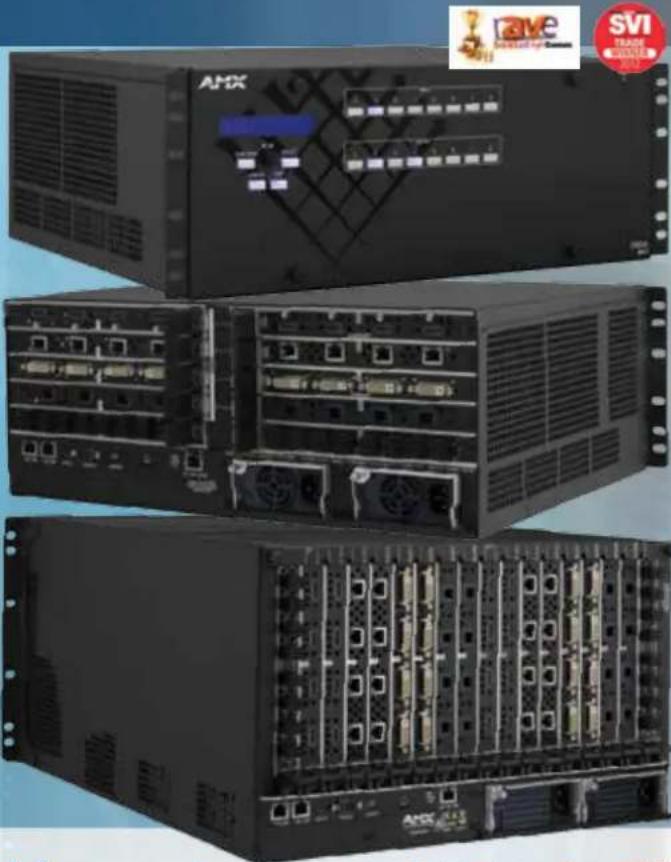

DIGITAL MEDIA SWITCHERS

Boards for All

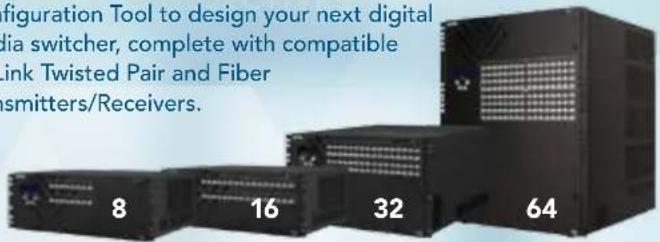

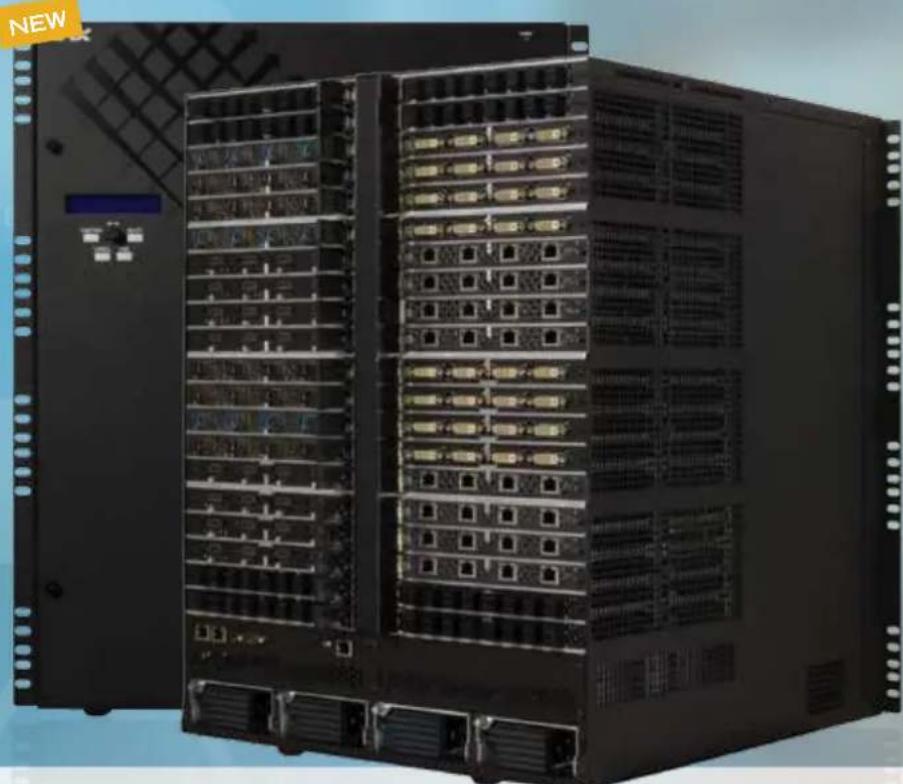

The new Enova DGX 64 Enclosure utilizes the same board sets as the Enova DGX 8/16/32 – lower the total cost of ownership through reduction in spare/expansion Inventory

Fiber Your Way

Input/Output Boards available in single mode or multimode fiber each in simplex or duplex - customize the Enova DGX with any combination of boards for campus-wide distribution

SmartScale® Technology

Automatically outputs video that is perfectly scaled for each connected display, preventing inferior video quality which occurs when sources and displays have different supported resolutions

Front view of a black server rack with multiple drive bays and ventilation grilles (no visible text or labels)

DXLink Twisted Pair Input and Output Boards

HDCP Compliant boards send audio, video, control, Ethernet and power over one standard twisted pair cable up to 200m - 100m to the matrix switcher and 100m after the matrix switcher

HDCP Compliant

Distribute, convert, and scale HDMI signals with full HDCP compliance without interruption using any of the Enova DGX DVI, HDMI or DXLink Boards

Secure and Isolated

Fiber inherently provides maximum security and electrical isolation making it the transport method of choice for mission-critical environments

Enova DGX 64 + DXLink Fiber = 100x Greater Distribution Footprint

All the Features, Capabilities and Functionality of the Enova DGX Family Now in an I/O Range of 64x64 and Distribution up to 6 Miles

The new Enova DGX 64 Enclosure includes all the features that have made the Enova DGX Series the leader in the world of digital media switchers including Integrated NetLinx Controller, redundant power supplies, SmartScale, InstaGate Pro, integrated Ethernet Switch and more. Does it get any better? Yes, actually, how about distribution up to 6 miles? The addition of new single mode and multimode fiber board options (each available in simplex or duplex) makes campus-wide distribution of uncompressed content (including HDCP protected content) a breeze.

Key Features

• HDCP With Simplicity of Analog – Hassle free plug and play operation eliminates the need for time consuming cumbersome work around tools to deal with HDCP key constraints and resolution incompatibilities
• All-In-One Control and Distribution Solution – Powerful combination of modular matrix switcher, built-in controller, embedded Ethernet switch and

Quick Facts Enova DGX 64 System

Control	Max Inputs/ Max Outputs	AIE Board Slots	Video Audio		Integrated Technologies	Enclosure Size (HWD)
Integrated NetLinx Central Controller	64 x 64	4 in 4 out	HDMI, DVI, DisplayPort++, RGBHV, Component, S-Video, Composite	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH though 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels	DXLink Fiber Single Mode & Multimode Distribution, DXLink Twisted Pair Distribution, Embedded Ethernet Switch, HDCP Compliance	22 11/16" x 19" x 20 1/8" (13 RU)

video scaling on every output simplifies the end-to-end distribution and management of audio, video and control throughout multiple rooms

- Fast Easy Installation – Easily incorporate HDCP into system designs - No tools, no delays, and no key constraints – it just works

Common Applications

The Enova DGX 64 can route and transmit up to 64 pure high resolution analog and digital video sources up to 6 miles making it the perfect solution for government agencies, command-and-control environments, universities, hospitals, casinos, retail environments or any facility that demands the highest quality video be shared campus-wide.

enova DGX

DIGITAL MEDIA SWITCHERS

Now with Fiber!

New DXLink Fiber TX/RX and I/O Boards available in single mode or multimode; simplex or duplex are compatible with Enova DGX 8, 16, 32 and 64 Enclosures

Even More

High Powered

Enova DGX 8/16/32 enclosures can now power even more devices over DXLink with new 1200 (DGX 32) and 850 (DGX 8/16) watt power supplies - two per enclosure

SmartScale®

Technology

Automatically outputs video that is perfectly scaled for each connected display, preventing inferior video quality which occurs when sources and displays have different supported resolutions

Exterior view of three black AHX server racks with visible ports and ventilation grilles (no readable text or symbols)

Built in NetLinx Controller

Easily program and manage the entire solution including source equipment and display devices located across multiple rooms – all from a single point of control

InstaGate Pro® Technology

Easily integrate HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays. No tools, no delays, and no key constraints – it just works

HDCP Compliant

Distribute, convert, and scale HDMI signals with full HDCP compliance without interruption using any of the Enova DGX DVI. HDMI or DXLink Boards

DXLink Twisted Pair Input and Output Boards

HDCP Compliant boards send audio, video, control, Ethernet and power over one standard twisted pair cable up to 200m – 100m to the matrix switcher and 100m after the matrix switcher

Combining Switching and Control Plus a Whole Lot More

The Enova DGX is the most reliable end-to-end analog, digital and HDMI/HDCP signal distribution solution on the market today. And now it also includes control, transcoding, scaling – all in a single box that's half the size of the competition.

Key Features

• HDCP With Simplicity of Analog – Hassle free plug and play operation eliminates the need for time consuming cumbersome work around tools to deal with HDCP key constraints and resolution incompatibilities
• All-In-One Control and Distribution Solution – Powerful combination of modular matrix switcher, built-in controller, embedded Ethernet switch and video scaling on every output simplifies the end-to-end distribution and management of audio, video and control throughout multiple rooms
• Fast Easy Installation – Easily incorporate HDCP into system designs - No tools, no delays, and no key constraints – it just works

Quick Facts Enova DGX 8 System

Control	Max I/O	AIE Board Slots	Video	Audio	Integrated Technologies	Enclosure Size (HWD)
Integrated NetLine Central Controller	8 x 8	1 in 1 out	HDMI, DVI, DisplayPort++, RGBHV, Component, S-Video, Composite	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS.2 CH though 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels	DXLink Twisted Pair Distribution, Embedded Ethernet Switch, HDCP Compliance	6 13/16" x 19" x 15" (4 RU)

Quick Facts Enova DGX 16 System

Control	Max I/O	AIE Board Slots	Video	Audio	Integrated Technologies	Enclosure Size (HWD)
Integrated NetLinx Central Controller	16 x 16	1 in 1 out	HDMI, DVI, DisplayPort++, RGBHV, Component, S-Video, Composite	Dolby TrueHD, Dolby Digital, DTS-MD Master Audio, DTS, 2 CH though 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels	DXLink Twisted Pair Distribution, Embedded Ethernet Switch, HDCP Compliance	6 13/16" x 19" x 15" (4 RU)

Quick Facts Enova DGX 32 System

Control	Max I/O	AIE Board Slots	Video	Audio	Integrated Technologies	Enclosure Size (HWD)
Integrated NetLinx Central Controller	32 x 32	1 in 1 out	HDMI, DVI, DisplayPort++, RGBHV, Component, S-Video, Composite	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH though 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels	DXLink Twisted Pair Distribution, Embedded Ethernet Switch, HDCP Compliance	10 1/2" x 19" x 20 1/8" (6 RU)

enova

DGX

Any Board Any

ALL Enova DGX, DXLink and DXLink Fiber boards fit in any Enova DGX Enclosure. Visit AMX.com and use the Enova DGX

Configuration Tool to design your next digital media switcher, complete with compatible DXLink Twisted Pair and Fiber Transmitters/Receivers.

figuration Tool to design your next digital dia switcher, complete with compatible link Twisted Pair and Fiber smitters/Receivers. 8 16 32 64

Enclosure

Enova DGX Enclosures

All Enova DGX Enclosures are also equipped with Integrated NetLinx Control, Redundant Power Supplies, SmartScale, InstaGate Pro and Built-In Ethernet Switch

	ENOVADGX 8	ENOVADGX 16	ENOVADGX 32	ENOVADGX 64
Input / Output Board Slots(4 Connections / Board)	2 / 2	4 / 4	8 / 8	16 / 16
Audio Insert / Extract Board Input /Output Slots	1 / 1	1 / 1	1 / 1	4 / 4

BOARD MODEL CONNECTIONS			HDCP DISTANCE		TRANSMISSION DATA RATE	TRANSMITTED EMBEDDED IR / RS-232 / NETLINX CONTROL	SMARTSCALE
Local
HDMI Input Board	AVS-ENOVADGX32-VI-HDMI	4 HDMI Yes 30.5 m/	100 ft* n/a n/a n/a
DVI Input Board	AVS-ENOVADGX32-VI-DVI	4 DVI-D Yes 30.5 m/	100 ft** n/a n/a n/a
HDMI Output Board	AVS-ENOVADGX32-VO-HDMI	4 HDMI Yes 15 m/	49 ft*** n/a n/a Yes
DVI Output Board	AVS-ENOVADGX32-VO-DVI	4 DVI-D Yes 15 m/	49 ft*** n/a n/a Yes
Audio Insert / Extract Board	AVS-ENOVADGX32-AUD-INS-EXT	8 pluggable, dual three-position, terminal blocks each containing two single-ended stereo contacts	n/a n/a	n/a n/a n/a
DXLink Twisted Pair
Twisted Pair Input Board	AVS-ENOVADGX32-VI-DXLINK	4 RJ-45	Yes	100 m / 328 ft****	10.2 Gbps	Yes n/a
Twisted Pair Output Board	AVS-ENOVADGX32-VO-DXLINK	4 RJ-45	Yes	100 m / 328 ft****	10.2 Gbps	Yes	Yes, at DXLink RX
DXLink Fiber, Multimode Fiber featuring Field Serviceable SFP Modules
Multimode Fiber Input Board (Duplex)	ENOVADGX-VI-DXLINK-MMF-D	4 LC Duplex	Yes	300 m / 984 ft	10 Gbps	Yes	n/a
Multimode Fiber Input Board (Simplex)	ENOVADGX-VI-DXLINK-MMF-S	4 LC Simplex	Yes	300 m / 984 ft	10 Gbps	n/a	n/a
Multimode Fiber Output Board (Duplex)	ENOVADGX-VO-DX-LINK-MMF-D	4 LC Duplex	Yes	300 m / 984 ft	10 Gbps	Yes	Yes, at DXLink Fiber RX
Multimode Fiber Output Board (Simplex)	ENOVADGX-VO-DX-LINK-MMF-S	4 LC Simplex	Yes	300 m / 984 ft	10 Gbps	n/a	Yes, at DXLink Fiber RX
DXLink Fiber, Single Mode Fiber featuring Field Serviceable SFP Modules
Single Mode Fiber Input Board (Duplex)	ENOVADGX-VI-DXLINK-SMF-D	4 LC Duplex	Yes	10 Km / 32,808 ft / 6.21 miles	10 Gbps	Yes n/a
Single Mode Fiber Input Board (Simplex)	ENOVADGX-VI-DXLINK-SMF-S	4 LC Simplex	Yes	10 Km / 32,808 ft / 6.21 miles	10 Gbps	n/a n/a
Single Mode Fiber Output Board (Duplex)	ENOVADGX-VO-DX-LINK-SMF-D	4 LC Duplex	Yes	10 Km / 32,808 ft / 6.21 miles	10 Gbps	Yes	Yes, at DXLink Fiber RX
Single Mode Fiber Output Board (Simplex)	ENOVADGX-VO-DX-LINK-SMF-S	4 LC Simplex	Yes	10 Km / 32,808 ft / 6.21 miles	10 Gbps	n/a	Yes, at DXLink Fiber RX

*Features Input Equalization, adaptive up to 100F (30m) at 225 MHz (cable distance support dependent on cable type and signal format) **Features Input Equalization, adaptive up to 100F (30m) at 165 MHz (cable distance support dependent on cable type and signal format) ***Dependent on cable coupling and frequency

***For more details and helpful cabling information, please reference the MIX white paper titled "Cabling for Success with DXLink"

DIGITAL MEDIA SWITCHERS

Field Serviceable Fiber Modules

Easily remove and replace SFP modules in the field

HDCP Compliant

Distribute, convert, and scale HDMI signals with full HDCP compliance without interruption

Fiber Your Way

DXLink Fiber TX/RX and I/O Boards are available in single mode or multimode, simplex or duplex to meet the needs of any installation

Four green network equipment racks with labeled 'NEW' and 'N' indicators, no readable text or symbols on the racks themselves.

Secure and Isolated

Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environment

InstaGate Pro® Technology

Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays. No tools, no delays, and no key constraints – it just works

SmartScale Technology

Automatically outputs video that is perfectly scaled for each connected display, preventing inferior video quality which occurs when sources and displays have different supported resolutions.

NEW

AMD CDK200000000 CDK20000000 CDK2000000 CDK200000 CDK20000 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK1 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK2 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDK3 CDk

HX BOLINK FREE BOLINK FREE

FIBER

Great Distances at High Speeds

Use the Enova DGX DXLink Fiber Input and Output boards in conjunction with DXLink Fiber Transmitters and Receivers to send audio, video, control and Ethernet over fiber up to 10 Km at 10 Gpbs that's the fastest optical transport data rate in the industry. These DXLink Fiber solutions are available in single mode or multimode and simplex or duplex to provide exactly what any facility requires.

Compatible with all Enova DGX Enclosures including the 8, 16, 32 and 64 it's easier than ever to design and expand any system. The Enova DGX system provides end-to-end distribution of analog and digital AV (including pure, uncompressed HDMI with HDCP compliance) throughout any corporate or mission-critical campus. The compatible Enova DGX Digital Media Enclosures have integrated NetLinx, and the duplex versions of DXLink Fiber extend that native NetLinx to control end-point devices.

Key Features

• HDCP With Simplicity of Analog – Hassle free plug and play operation eliminates the need for time consuming cumbersome work around tools to deal with HDCP key constraints and resolution incompatibilities
• Campus-Wide Signal Distribution – Distribute video between buildings without constraints or quality loss
• MaximumSecurity – Attract customers who demand the enhanced security transport of fiber

Quick Facts DXLink Fiber Transmitters

DXLink Transport Connector	Video Connectors	Audio Connectors	Control Connectors	Video	Audio	Integrated Technologies
4 LC DUPLEX OR 4 LC SIMPLEX	HD-15, 2 HDMI (1 Input, 1 Local Out that Minors Transmitted Output)	3.5mm Stereo, RCA	2 Phoenix-style, 3.5mm Stereo, USB B, RJ-45	HDMI, DVI, DisplayPort++, RGBHV, Component, S-Video, Composite	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, L-PCM, Analog Stereo	HDCP Compliance, Embedded Ethernet Distribution, Embedded NetLinx Control

Quick Facts DXLink Fiber Receivers

DXLink Transport Connec-tor	Video Connectors	Audio Connec-tors	Control Connec-tors	Video	Audio	Integrated Technologies
4 LC DUPLEX OR 4 LC SIMPLEX	HDMI	3.5mm Stereo	2 Phoenix-style, 3.5mm Stereo, USB B, RJ-45	HDMI, DVI	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, L-PCM, Analog Stereo	SmartScale, Embedded Ethernet Distribution, Embedded NetLinx Control, HDCP Compliance

Quick Facts DXLink Fiber Input Boards

DXLink Transport Connector	Video Connectors	Audio Connectors
4 LC DUPLEX OR 4 LC SIMPLEX	Video from DXLink Fiber Transmitters	Audio from DXLink Fiber Transmitters

Quick Facts DXLink Fiber Output Boards

DXLink Transport Connector	Video Connectors	Audio Connectors
4 LC DUPLEX OR 4 LC SIMPLEX	Video to DXLink Fiber Recelvers	Audio to DXLink Fiber Recelvers

ENOVA

DXLINK FIBER

DIGITAL MEDIA SWITCHERS

Send HDMI signals up to 100 meters

Extend the reach of uncompressed HDMI signals far beyond the capabilities of typical HDMI cabling

Standard Twisted Pair

Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable

Hot Swappable Video Input / Output Boards

Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards

Exterior view of network equipment including AMX, power bank, and connected devices (no readable text or symbols)

USB Support

Pass keyboard and mouse USB signals to control a remote computer

Built-in Control Ports in the Transmitters and Receivers

Control the connected source or display using the built-in IR or RS-232 control ports

SmartScale Technology

Automatically outputs video that is perfectly scaled for each connected display, preventing inferior video quality which occurs when sources and displays have different supported resolutions

DXLINK MODI-1.0K DWLINK Multi-FORMAT-TK DXLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI-1.0K DWLINK MODI- DOWN VICKS C: 95° TYPE PASE WBS AVGUR VOTS AVGUR WINS MEOO

Only One Twisted Pair Cable

Use the Enova DGX DXLink Input and Output boards in conjunction with the DXLink Transmitters and Receivers to send audio, video, control, Ethernet and power over a single twisted pair cable up to 200m – 100m to the matrix switcher and 100m after the matrix switcher. Expand the Enova DGX input and output size by increments of 4 using the DXLink Input and Output boards. The Enova DGX system provides end-to-end distribution of analog, digital and HDMI/HDCP signals plus control signals throughout a residence or commercial facility. Ideal for environments that demand the highest quality video be shared between rooms or even buildings.

Key Features

• HDCP With Simplicity of Analog – Hassle free plug and play operation eliminates the need for time consuming cumbersome work around tools to deal with HDCP key constraints and resolution incompatibilities
• All-In-One Control and Distribution Solution – Power combination of modular matrix switcher, built-in controller, embedded Ethernet switch and video scaling on every output simplifies the end-to-end distribution and management of audio, video and control throughout multiple rooms
• Fast Easy Installation – When used with the DGX DXLink Input/Output boards, the DXLink Transmitters and Receivers are powered over the single category cable connection eliminating additional wiring hassles and need for additional power outlets.

Quick Facts DXLink HDMI Receiver

DXLink Transport Connec-tor	Video Con-nectors	Audio Connec-tors	Control Connec-tors	Video	Audio	Integrated Technologies
DXLINK RJ-45	HDMI	3.5mm Stereo	2 Phoenix-style, 3.5mm Stereo, USB A, RJ-45 Ethernet	HDMI, DVI	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, L-PCM, 2 CH though 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels	SmartScale®, DXLink Twisted Pair Distribution, Power over DXLink, Embedded Ethernet Distribution, Embedded NetLinx Control, HDCP Compliance

Quick Facts DXLink Multi-Format Transmitters

Video Con-nectors	Audio Con-nectors	Control Connec-tors	DXLink Transport Connector	Video	Audio	Integrated Technologies
HDMI, HD-15	3.5mm Stereo (TX Module also has RCA)	2 Phoenix-style, 3.5mm Stereo, USB B (TX Module also has RJ-45 Ethernet)	DXLink RJ-45	HDMI, DVI, DisplayPort++, RGBHV, Component, S-Video, Composite	Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, L-PCM, 2 CH though 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels	DXLink Twisted Pair Distribution, Power over DXLink, HDCP Compliance (TX Module also has Embedded Ethernet Distribution, Embedded NetLinx Control)

ENOVADXLINK

DIGITAL MEDIA SWITCHERS

Each powered output can distribute up to 30 watts of power, over 300 feet of twisted pair cable

Remote Power On/Off

Individual power on/off control capability for each remotely connected device

4 x RJ45

Four RJ45 ports are built into the enclosure

AMX PORT 1 ON DATA & POWER DATA PORT 2 ON DATA & POWER DATA 100-240V - 50/60Hz, 1.5A GND RELAY PORT 2 RELAY PORT 1 + 12V 100MHz

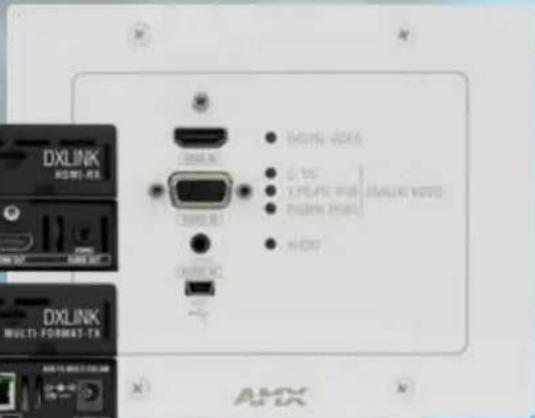

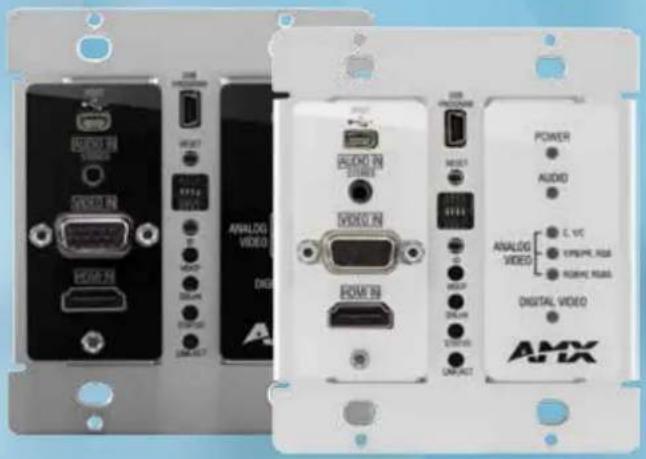

Decor Style DXLink

Multi-Format Wallplate Transmitters

= More Install Options

The DXLink Multi-Format Decor Style Wallplate Transmitter sends analog or digital video including HDMI/HDCP, along with embedded audio or supplemental analog audio up to 100 meters to an Enova DGX Digital Media Switcher, Enova DVX All-In-One Presentation Switcher (DVX-3155/3156HD/DVX-2155HD), or directly to a DXLink Receiver. It receives power over twisted pair cable from the Enova DGX, compatible Enova DVX (3155/3156HD or 2155HD), PS-POE-AT-TC High Power over Ethernet (PoE) Injector, or the new Dual Power Over DXLink Controller (PDXL-2). These wallplates feature a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

A single DXLink device can also be powered by the new DXLink-compatible PoE injector or up to 2 DXLink devices by the Dual Power over DXLink Controller. Note that, other third party PoE injectors are not supported for use with DXLink.

Key Features

• Only One Cable – Send audio and video, while passing power over one twisted pair cable
• Multi-Format Analog Port and HDMI Port – Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort++ and DVI signals
• Send HDMI signals up to 100 meters – Extend the reach of HDMI signals far beyond the capabilities of typical HDMI cabling

Electrifying Double Feature

Introducing the Dual Power

over DXLink™ Controller

The Dual Power over DXLink Controller (PDXL-2) allows for remote powering of any two DXLink twisted pair devices. It provides DC power for PoE-equipped devices by "injecting" DC power through a twisted pair cable. It also allows for I/O control from a NetLinx controller to power down any connected DXLink devices allowing them to be included in an overall room power savings mode.

The PDXL-2 allows for DXLink twisted pair devices to be powered over DXLink from a centralized location and eliminates the need for an AC outlet at each transmitter or receiver location. This enables a stand-alone point-to-point DXLink Transmitter to DXLink Receiver installation in a single room application.

Up to two DXLink twisted pair devices can be powered by the PDXL-2. Note that other third party PoE injectors are not supported for use with DXLink.

Key Features

• Simplifies Installation - Perfect for situations where a local power supply at the DXLink device would not be viable
• Provides Flexibility - Enables DXLink Wallplates to be used in a point-to-point solution
• Saves Energy - By allowing DXLink twisted pair devices to be powered down when environments are not in use

ENOVADXLINK

Bringing Enova to

There are often cost and installation challenges that can make implementation of a traditional Enova system challenging. To bring Enova to every space, here is a simple, cost-effective solution that offers all the benefits of a full Enova system. Using the Enova DXLink transmitter and receiver in this configuration means that a simple Novara ControlPad can be configured to control the display. The serial commands are passed from the DXLink transmitter to the receiver without the requirement for any additional control. Using DXLink technology, all the connections required for a typical laptop are connected between the table and the display using a single low-cost cable which means a much simpler, trouble-free installation. For an even better user experience, a Modero S

Every Space

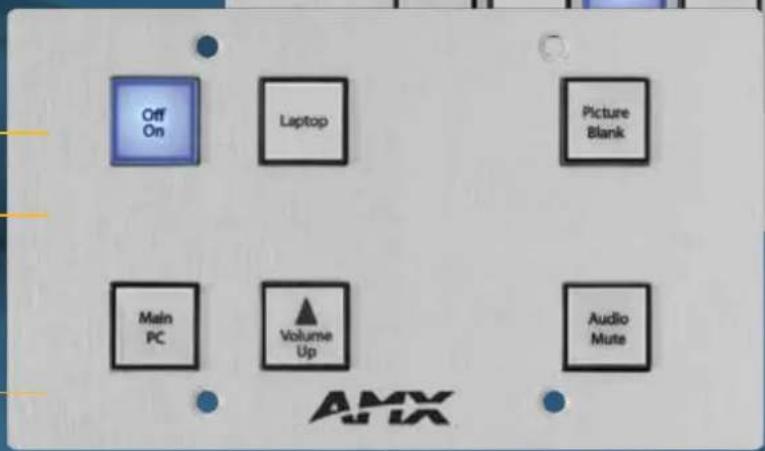

Series Touch Panel such as the MST-431 could be used in conjunction with a NetLinx processor.

To switch the system on, simply select the 'ON' button from the ControlPad. The ControlPad also provides the ability to adjust display volume and switch source inputs on the display. The DXLink Transmitter will conveniently auto switch between digital and analogue inputs, with the digital input always having priority. Thanks to AMX exclusive SmartScale technology, the image on the display will always look its best, regardless of the input type or resolution. And using our Rapid Project Maker configuration tool, there's never been an easier way to bring Enova to every space.

DXLink

Ethernet

HDMI

VGA

AUDIO

RS-232

enova

DISTRIBUTED AUDIO

NEW

ALERO POWER AMPLIFIER

For Discerning Audiophiles

Features the same amplification technology used by Bang & Olufsen, Aston Martin and the world's most discerning brands.

16 Channels at Your

Beck and Call

No matter how large or far reaching your property, you have 16 channels available for all kinds of zoning configurations.

More Room in the Rack

At just 1RU high, Alero offers you the ability to install more components in the same rack space.

Cool Running

Class D amplifier technology ensures efficient heat dissipation and low power consumption.

NEW

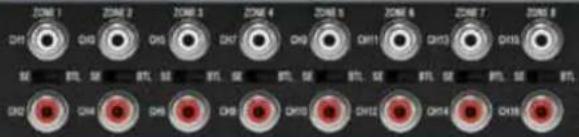

ALERO ALR-AMP-B

World Class Audiophile Quality in an Efficient, 1RU Footprint

To some, the quality of multi-room distributed audio is an afterthought. At AMX, we believe otherwise. Whether you are listening to music in your home theater, your kitchen or your bedroom, the experience should be the same – life changing. That's why we felt it important enough to equip our Alero Amplifier with the very same amplification technology used by some of the most discerning brands in the world - Bang & Olufsen, Aston Martin, Mercedes-Benz® and Bowers & Wilkins. And it's engineered to perform as well as it sounds. Alero features 16 distribution channels, 80 watts per channel of true, audiophile quality sound and highly efficient, heat-dissipating Class D power amplification – all smartly designed to fit into a compact 1RU chassis. And Alero perfectly complements the AMX Precis DSP for a completely unified, whole-home distributed audio source switching and amplification solution.

.Key Features

• 16 channels of world class, audiophile quality sound
- Compact 1RU size offers never-before-seen versatility and practically limitless installation options, even in confined, unventilated spaces
- Advanced heat dissipation technology ensures that internal components can run long and cool
- Class D power amplification efficiently manages power consumption, resulting in a smaller environmental footprint

QUICK FACTS ALERO ALR-AMP-8

Output Power	Frequency Response	S/N Ratio	Dynamic Range	Gain	Total Harmonic Distortion (THD)	I.M. Distortion (CCIF)	Dimensions (HWD)
40 watts per channel at 8 ohmswatts per channel at 8 ohms bridged	10Hz to 20kHz,+0/-0.4dB at 1 watt, 8 ohms	>110dB A-weighted	110dB	25.8dB	0.02% at full power	.0009%	1.7" x 16.7" x 12.4"(4.4 cm x 42.4 cm x 31.4 cm)(1RU)

Alero Power Amplifier Family

LOCATION:

Rack Mount, Shelf, Table

EXTERNAL BUTTONS:

1 Power Main Switch

CONFIGURATION:

8 dip switches to select if each of the individual 8 zones should be stereo or bridged mono

NETLINX NI-SERIES

CONTROLLERS

NI-700 Simple Solutions

Ideal for a smaller set of devices. Includes seven control ports plus Ethernet and AxLink connectivity - all in a 1/3 rack-style enclosure.

NI-700

NI-900 Smaller Single Room Solutions

Includes eight control ports including up to three third-party IR devices and one serial device, plus Ethernet and AxLink connectivity - all in a 1/3 rack-style enclosure.

NI-900

NI-2100 Medium-Size Room Solutions

Includes as many as 15 distinct control ports, Ethernet, AxLink and optional ICSNet connectivity.

NI-2100

ENOVA DVX-2100HD NetLinx Control and All-In-One Presentation Switching Combined

In addition to video matrix switching, audio amplification, audio mixing and more, this Enova All-In-One Presentation Switcher includes a fully functional, NI-2100 Controller onboard incorporating as many as 15 distinct control ports plus Ethernet and AxLink connectivity.

DVX-2100HD

NI-3100 & NI-3100/256 Larger, Multiple Room Solutions

Includes as many as 31 distinct control ports, Ethernet, AxLink and optional ICSNet connectivity. The NI-3100/256 also includes an upgraded 256 MB of onboard memory RAM.

NI-3100

NetLinx Control and All-In-One Presentation Switching

In addition to video matrix switching, audio amplification, audio mixing and more, these Enova All-In-One Presentation Switchers include a fully functional, NI-3100 Controller onboard, incorporating up to 31 distinct control ports (up to 15 in DVX-2150/2155HD models) plus Ethernet and AxLink connectivity.

DVX-3150HD

NI-3101-SIG Sleek, Stylish and Powerful

The ultra-slim 1U form factor with the stylish, shiny black faceplate and blue led bar set this controller apart. The 3101 also features extended depth for easier rack connections plus a USB programming port.

NI-3101-SIG

NI-4100 & NI-4100/256

Superior Functionality Solutions

Integrates up to 31 distinct control ports with the flexibility of four additional expansion card slots, plus Ethernet, AxLink and ICSNet connectivity - all in a 3U rack-style enclosure, The NI-4100/256 also includes an upgraded 256 MB of onboard memory RAM.

NI-4100

FEATURE NI-700 NI-900 NI-2100				DYX-2100HD	NI-3100/NI-3100/256	DYX-2150/2155/3150/3155/3156HD	NI-3101-SIG	NI-4100/NI-4100/256
Integrated NetLinx Master Yes Yes Yes Yes Yes
Integrated A/V Switcher/Scaler	No	No	No	Yes	No	Yes	No	No
Digital I/O Control Ports	4	4	4	4	8	4^* / 8^**	8	8
RS-232/RS-422/RS-485 Ports	2	1	3	3	7	3^* / 6^**	6	7
IR-Serial Output Ports	1	3	4	4	8	4^* / 8^**	8	8
Relay Ports	-	-	4	4	8	4^* / 8^**	8	8
IR Receiver Port	Yes	Yes	No	No	No	No	No	No
Programming via Serial Port/Ethernet	Yes/Yes	Yes/Yes	Yes/Yes	USB/Yes	Yes/Yes	Yes/Yes	USB/Yes	Yes/Yes
Processor Speed	304 MIPS	304 MIPS	404 MIPS	404 MIPS	404 MIPS	404 MIPS	404 MIPS	404 MIPS
On-Board Memory RAM	64 MB	64 MB	64 MB	64 MB/256 MB	256 MB	256 MB	64 MB	64 MB/256 MB
FLASH Memory	32 MB	32 MB	2 GB CF Card	256 MB	2 GB CF Card	256 MB	256 MB	2 GB CF Card
Non-Volatile RAM	512 KB	512 KB	1 MB	1 MB	1 MB	1 MB	1 MB	1 MB
Rack Space	1 RU x 1/3	1 RU x 1/3	2 RU	2 RU	2 RU	3 RU	1 RU	3 RU
AxLink Interface	Yes Yes Yes Yes Yes Yes Yes
ICSNet Interface	No	No	Optional	No	Optional	No	No	Yes
Expansion Card Slots	No	No	No	No	No	No	No	Yes

DVX 2150/2 55HD Models ^4 DVX 3150/3155/3156HD Models

CENTRAL CONTROLLERS

ICSLAN DEVICE CONTROL BOXES

Single Cable

Onboard Power over Ethernet (PoE) eliminates the need for a power source at the install location.

Programming Made Simple

Programming is identical to any other device ports on the controller.

Future Proof

Provides a future proof solution to add ports anywhere.

Easily Deployed

Configuration tools make ICSLan Device Control Boxes easy to deploy.

Sleek and Svelte

Compact design makes it easy to hide for a clean installation.

AHDX I/O: 47 OSUB DLB5 DB-RELI I/O: 47 OSUB DLB5 DB-RELI

EXB-REL8

EXB-MP1

Add Control Ports Anywhere All Over Ethernet

Ethernet is the industry standard for connecting devices and ICSlan Device Control Boxes make it easy to introduce control to projectors and other equipment that lack Ethernet connectivity. Oftentimes, these devices are located remote distances from the Controller or it may be necessary to expand the number of ports on a fully populated controller. ICSlan Device Control Boxes are ideal for a wide range of residential applications with devices that lack Ethernet connectivity.

Key Features

• New Markets – Offers a great opportunity to sell to markets that seemed previously unapproachable because of the cost of having a Controller in every room
• Larger Facilities – The ability to market to homeowners with larger residences with many rooms requiring control may now be available
• Cost Effective – Offers an extremely cost effective solution for users needing to expand their control capabilities

QUICK FACTS ICSLAN DEVICE CONTROL BOX

CONNECTIVITY OPTIONS

ICSLan Device Control Boxes are available in five models to meet the connectivity needs of just about any application. Just install the model that contains the appropriate connection type for your device, and you'll have complete control of it over your Ethernet network.

ICSLAN PRODUCT DETAILS

EXB-COM2	Serial Interface, 2 Ports
EXB-I/08	Input/Output Interface, 8 Channels
EXB-IRS4	IR/S Interface, 4 IR/S and 4 Inputs
EXB-REL8	Relay Interface, 8 Channels
EXB-MP1	Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX

NETLINX POWER DISTRIBUTION UNIT

Power Management of Connected Devices

Reduces standby energy usage (vampire power/phantom load),

Built-in Power Current

Sensing on Each AC Outlet Makes it easy to tell if a device is powered on or off.

Individually Controlled Outlets

Allows a remote reboot for devices in the rack reducing on-site service calls.

Switched and Monitored

AxLink Bus Strips Allows power and switching of AxLink or 12V powered devices (in banks of four).

NETLINX POWER MANAGEMENT

NXA-PDU-1580-8

RESET

Control and Reset Power Right from the Rack

The Power Distribution Unit (PDU) allows you to control the rack as well as control the room. With 8 individually monitored and controlled AC outlets, built-in 12 Volt power supply, 2 sets of 4 AxLink Bus Strips, and power monitoring for each outlet, the PDU adds a basic level of control by allowing remote reset of devices via a power cycle. With Native NetLinx control over AxLink, it's also easy to integrate with Resource Management Suite (RMS) software.

Key Features

• Introduces Control at the rack level for Dealers
- Combines power supply and power distribution into one device saving equipment and installation costs
- Provides easy method to add an environmentally friendly Green element to an installation
- AMX PDU now supported in RPM. Power on and shut off devices connected to the PDU outlets within the RPM macros.

QUICK FACTS NXA-PDU-1508-8

Dimensions (HWD) AC Ports AxLink Ports
1 3/16" x 17" x 9 11/16"(2.97cm x 43.18cm x 9.66cm)	1 INPUT - 110 - 220VAC8 OUTPUTS - 110-220VAC	1 AXLINK MASTER PORT8 AXLINK DEVICE PORTS(2 BANKS OF 4)

NetLinx Power Management Family

LOCATION:

Rack Mount, Shelf, Table

EXTERNAL BUTTONS:

1 Reset

CONFIGURATION:

8-position DIP switch sets the AxLink device address for the unit

AHX NETWORK POWER MANAGEMENT NETWORK POWER

NXA-PDU-1508-8 | 8 OUTLET PDU

SMART BUILDINGS

START WITH SMART AMX TECHNOLOGIES

Leveraging Seamless Integration with BMS/BAS systems, RMS, facility scheduling and Network Media for a holistic enterprise solution

Bridging the gap between technology and building/energy management systems, AMX Smart Building Solutions interface with building systems including access CCTV/security, fire safety, HVAC, digit signage, mass notification, lighting power management. Seamless integrated through industry-standard like KNX ^® ; protocol translators include Technologies ^® ; and open standards the hardware and software solutions owners, occupants, facility managers

Building-wide Resource Management/Scheduling – Our award winning Resource Management Suite software is the primary connection with the existing building management backbone to provide a seamless way to see and manage 'IT' all.

AV Room Automation – Our Enova DVX is a all-in-one presentation switcher designed to manage all the technologies in any space.

Video Distribution – Our Enova DGX delivers high definition digital video content throughout a facility.

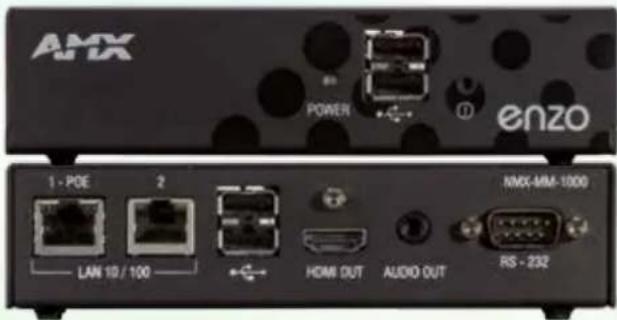

Network Media – Vision ^2 breaks through the distance barriers of AV infrastructures to share content around the world.

Fire / Life

Safety

Security /

Access Control

HVAC

Facility / Power

Management

Daylight

Management

Occupancy

Sensor

Lighting

BUILDING MANAGEMENT SYSTEM

Resource

Management

Suite

Signage

Scheduling

Monitoring

Control

3D illustration of a conference room with a large table, chairs, and two laptops (no text or symbols visible)

NEW

Smart Sensing

The Clear Connect

Occupancy Sensor

ensures maximum

energy efficiency by

accurately sensing when

someone is in the room

and when they're not

to turn lights on and off

accordingly

Lutron Close Close Off Close Off

CCD3-OCRB-P-WH | CLEAR CONNECT™ RADIO POWR SAVR™

CEILING MOUNT OCCUPANCY/VACANCY SENSOR

RMS ENTERPRISE

IS NOW IN THE CLOUD

Introducing the virtually maintenance-free, monthly subscription based RMS Enterprise solution hosted from the Cloud – all with seamless integration with RPM

RMS Enterprise provides IT-like remote management capabilities for AV assets and building systems and features a user-friendly dashboard making it easy to centralize the management and

monitoring of AV equipment, lights, HVAC and other building functions. End users can proactively maintain AV devices before a bulb burns out or receive immediate notification when a display goes offline. IT and AV managers can improve their response times and end users will reduce the amount of lost productivity while waiting for meeting room equipment to function.

Resource Management Suite

AMX SERVICES RMS ENTERPRISE Resource Management Customer Name Status Created On http://www.amxindustries.com/xxx/index.com Active 3/11/2018 http://www.atlinkindustries.com/mservice.com Deactivated 5/8/2013 http://www.ac.ukcorporation.com/mservice.com Funding 6/5/2013 ©2018 AMX SERVICE

The new AMX Services portal – manage all your RMS cloud hosted services.

• Visual Bar Graphs – Multicolor Graphics Elements with user defined stages for Device Status
• Hotlists – Priority Levels and System Filtering – Push important rooms and devices to the top of the list
• Energy Dashboard Widget – Display Energy Consumption over time for locations and assets by device type
• Reports – Pie Charts, Graphs with Multicolor Graphical Elements

RMS

NEW: Google Calendar Scheduling Support

ENTERPRISE

SERVER SOFTWARE

RMS Enterprise is especially ideal for managing conference rooms, auditoriums and data centers where IT and AV managers can benefit from a centralized remote management tool with multiple capabilities to monitor and manage equipment or provide reports on energy usage and maintenance schedules.

Alway Industries System 101 AHX 1:05 PM Wednesday, May 10, 2010 ALAX INDIA SYSTEMS Session 1 Next Meeting 2:00 PM - 12:00 PM AHC

RMS Enterprise supports a wide variety of external scheduling applications. With RMS 4, users can even grab an open meeting room via the touch panel outside – or even inside – the room.

• Extensive Calendar and Scheduling Support

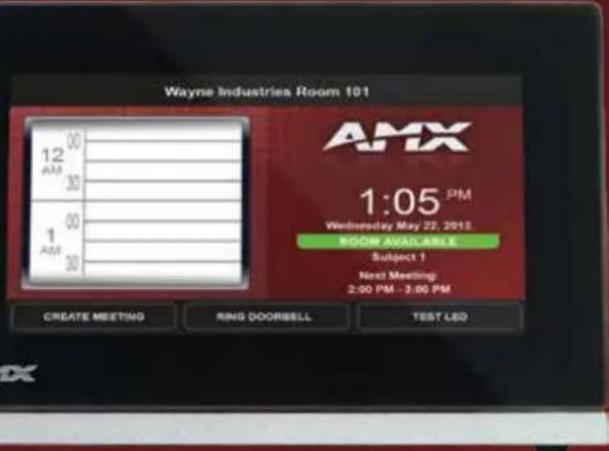

  • Display room appointments on an AMX touch panel
• Create, end or extend appointments from an AMX touch panel
• Now integrates with Google Calendar as well as Exchange, Lotus and other popular scheduling systems

Resource Management Suite

NEW

QRS Quick Response Scheduling

No Touch Panel? Use QRS Quick Response Scheduling to provide a view of the room schedule on any mobile device – simply by scanning the QR code mounted near the room entrance. This effective low-cost method is the perfect way to increase productivity for any room that lacks a scheduling panel.

Meeting Room 101 Scan for Schedule AHX Starting Room 101

Scan to learn more.

	PRICING FREE TRIAL		SOFTWARE MAINTENANCE & UPDATES		TECHNICAL SUPPORT	QR SCHEDULING SCHEDULING SNMP		AMX MANAGED SERVICES & UPDATES
RMS ENTERPRISE (SERVER SOFTWARE)	One-Time Purchase Installed on Your Server	90 days	Software Maintenance Available		1st Year Included	Integration with Exchange & Lotus Notes Included	Integration with Exchange & Lotus Notes Included	Full Support
RMS ENTERPRISE (HOSTED CLOUD SERVICE)	Monthly Subscription with No Contract	30 days	Software Maintenance and Updates Included		Included N/A N/A N/A Included

ROOM AUTOMATION CONFIGURATION SOFTWARE

NEW

AMX | RPM

RAPID PROJECT MAKER, Ver. 2.0

Design, Configure, Deploy

• Design, Configure, and Deploy AMX Systems in Less than an Hour
• Now Featuring Dual Room Configuration: Automate Two Rooms with a Single Enova DVX

AMD | RPM Select the devices in your system Defaulted Add the device must be used to include in any product. The new device includes suitable and unassessed devices by use as well as 100% capacity. Add the device must be used to include in any product. The new device includes suitable and unassessed devices by use as well as 100% capacity. Add the device must be used to include in any product. The new device includes suitable and unassessed devices by use as well as 100% capacity. Add the device must be used to include in any product. The new device includes suitable and unassessed devices by use as well as 100% Add the device must be used to include in any product. The new device includes suitable and unassessed devices by use as well as 100% capacity. Add the device must be used to include in any product. The new device includes suitable and unassessed devices by use as well as 100% capacity. Add the device must be used to include in any product. The new device includes suitable and unassessed devices by use as well as 100%. Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity: 100% Capacity:

Create the Perfect Meeting in Under an Hour

You need to create an environment to hold The Perfect Meeting – where your presentation material, video, audio and room control technology work together seamlessly to make your meeting a success.

But why do so many meetings fail? It's frequently because of difficulties with the technology that manages the crucial presentation material in your conference rooms and classrooms. The system is too complex, it's unreliable, or it's a nightmare to set up and configure in the first place.

Rapid Project Maker (RPM) is an application designed to eliminate your meeting room technology problems. AMX leveraged decades of experience to bring you a software system that guides you through the process of setting up all of your conference room or classroom technology quickly, easily and reliably - so that everything works perfectly from the start.

For complete details and to get started with RPM today, visit the RPM Portal at www.amxrpm.com.

WITHOUT RPM Automating a Conference Room is:	WITH RPM Automating a Conference Room is:
Difficult. Requires extensive programming skills.	Simple. No programming or sophisticated technical knowledge required.
Time Consuming. Takes days or weeks to program a system.	Fast. Set up a complete system in an hour or less that works perfectly from the start.
Expensive. Programming costs can consume a budget.	Affordable. RPM is free and eliminates expensive programming and integration costs.
Unreliable. Complex programming can lead to complex & unreliable installations, resulting in failed meetings.	Rock-Solid. RPM system designs and code are tested and backed by AMX; resulting in the Perfect Meeting.
Inconsistent. Custom programming is difficult to replicate.	Easy to Duplicate. Projects are saved to the AMX Cloud and can be deployed to any number of similar rooms.

FEATURES

NEW

Now Supporting Dual Room Configuration – Save up to 15% of a project budget by using a single DVX to automate two rooms with RPM.

Cloud-Based Tool – Design, configure and manage systems over the web – no software required.

No Programming Required – Dramatically simplifies configuration of an AMX control system.

Configure Systems in Less Than an Hour – With no programming required, complete multiple installations with greater consistency, reliability and efficiency.

READY, SET, DONE!

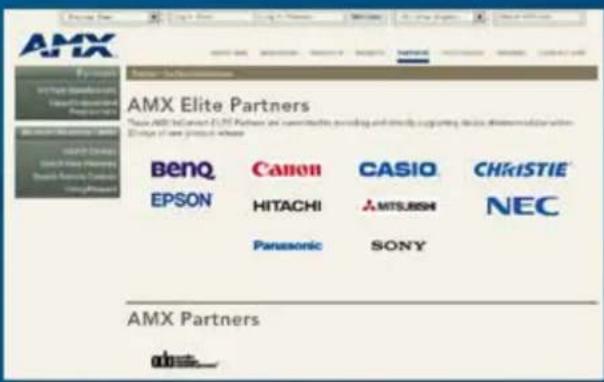

INCONCERT AMC ELITE PARTNER

Most Popular Electronics Manufacturers to Deliver Device Drivers/Modules Faster

INCONCERT AMX PARTNER

AMX is pleased to announce a new partnership level to the acclaimed InConcert Partner program called the ELITE Partner. This elite group of manufacturers are partnering with AMX and stepping up their commitment to getting device drivers/modules completed and delivered to ealers/integrators quicker and easier.

• Participating Elite Partners agree to post device drivers/modules within 30 days of product release
• Device drivers/modules will be created and supported by the manufacturer directly

AMX AMX Elite Partners This AMX is Canadian E.P.S. Partners and its affiliated, providing and directly supporting device information within the range of new product releases. BENQ EPSON Caenor HITACHI Panasonic CASIO A.MITSUBISHI SONY CHKISTIE NEC AMX Partners

BenQ Canon

CASIO. CHRISTIE

EPSON HITACHI

MITSUBISHI NEC

Panasonic SONY

AMX Partners AMX Device Partners Configuration Device Type: Select - Device Type: Resource Type: Select Cancel Cancel Tools OK Cancel Cancel Tools Import OFF and Show the device to setting, Active or Use All Hosts Use Open Window Device Use Open Window AMX Comp Status Next Step

Manufacturer Testimonials

"Driver Design allows our company to directly add AMX support to our projectors in a proactive fashion, giving us the tools to create an extensive library of supported products." — Christie

"I have never seen an application made so simple to develop drivers. Others require knowledge of a specific software language and a good understanding of how the control system works. AMX made it easy." – Sony

GLOBAL SHOWROOMS AND REGIONAL OFFICES

AMX EUROPEAN SHOW ROOMS AND MOREE

AMX | LONDON

AMX welcomes you to visit our Europe flagship headquarters, the AMX Europe Showroom in London. This fully interactive AMX Experience Center offers visitors the ability to experience an intimate demonstration of more than 350 AMX products and includes several examples of AMX technology at work. Additionally, the AMX Europe Showroom as well as our US showrooms in Dallas and New York include full-size, fully integrated boardrooms with video conferencing capabilities as well as a full-time AMX University Training.

Interior view of a modern meeting room with large display screens and seating areas (no visible text or symbols)

AMX | NETHERLANDS

Interior view of a modern living room with red sofa, TV, and wall art (no visible text or symbols)

AMX | FRANCE

Exterior view of a modern multi-story building with trees and roads (no visible signage or text)

AMX | GERMANY

Exterior view of a modern office building (no signage)

AMX | RUSSIA

Interior view of a modern retail or exhibition space with wooden walls, display screens, and framed wall art (no visible text or signage)

AMX | DALLAS

Interior view of a modern hotel lobby with reception desk, seating area, and digital signage (no readable text)

AMX | NEW YORK

In addition to our Showrooms, we also have a network of Global Regional Offices to support our integrators. A map and contact details are available in the following pages. Please contact these locations directly for hours of operation, to request a demonstration and tour, inquire about AMX University training, or schedule a meeting with your customers.

• See technology demonstrations
- Invite customers to see over 350+ products
• Schedule videoconference meetings
• Attend AMX University training

AMX SALES

Global Sales Offices Contact Information

AFRICA

North Africa

(Algeria, Morocco, Tunisia)

AMX France

+33.1.47.24.0501

www.amx.com

South Africa

(Republic of South Africa, Angola, Botswana,

Kenya, Lesotho, Malawi, Mozambique, Namibia.

Swaziland, Tanzania, Zambia, Zimbabwe)

Peripheral Vision CC

+27.11.840.0860

http://www.peripheralvision.co.za

ASIA & THE PACIFIC RIM

Australia and New Zealand

AMX Australia

+61.7.5531.3103

http://www.amx.com/aunz

AMX New Zealand

+64.9.415.2257

http://www.amx.com/aunz

North Asia

(China, Hong Kong, Korea, Taiwan)

AMX Asia Limited (Hong Kong)

+852.3422.8732/42

http://www.amxasia.com

AMX Asia Limited (China - Beijing)

+86.10.84464880

http://www.amxasia.com

AMX Asia Limited (China - GuangZhou)

+86.20.3758.2820

http://www.amxasia.com

AMX Asia Limited (China - Shanghai)

+86.21.5301.7233

http://www.amxasia.com

AMX Asia Limited (Korea)

+82.2.523.0771

http://www.amxasia.com

AMX Asia Limited (Taiwan)

+886.2.2721.5625

http://www.amxasia.com

Southeast Asia

(Singapore, Brunei, Cambodia, Indonesia,

Laos, Malaysia, Myanmar, Philippines,

Thailand, Vietnam)

AMX Asia Pacific Pte. Ltd.

+65.6846.7960

www.amx.com

India

AMX India

+91.80.4902.1000

www.amx.com

Japan

Electori Co. LTD.

[phone]

http://www.electori.co.jp

CANADA

AMX Canada

+1.514.695.4883

http://www.amx.ca

CARIBBEAN ISLANDS/CENTRAL AMERICA

(Anguilla, Antigua and Barbuda, Aruba,

the Bahamas, Barbados, British Virgin

Islands, Cayman Islands, Dominica,

Dominican Republic, Grenada, Guadeloupe,

Haiti, Jamaica, Martinique, Montserrat.

Netherlands Antilles, Puerto Rico, Saint

Barthelemy, Saint Kitts and Nevis, Saint

Lucia, Saint Martin, Saint Vincent and the

Grenadines, Trinidad and Tobago, Turks

and Caicos Islands, United States Virgin

Islands, El Salvador, Guatemala, Nicaragua.

and Honduras

Polaris Controls, Inc. (Sales Rep.)

+1.305.406.2488

http://www.polariscontrols.com

CENTRAL AMERICA

(Colombia, Costa Rica, Ecuador, Panama,

Venezuela)

SYNERC (Sales Rep.)

+571.400.964

http://www.synerc.com

SOUTH AMERICA

Argentina

Distecna S.A.

+54.11.5166.3400

www.distecna.com

EUROPE

Belgium, Luxembourg

AMX Belgium

+32.16.40.6999

www.amx.com

Czech Republic, Poland, Hungary, Slovakia

AMX Central Europe

+42.077.767.5 869

www.amx.com

France

AMX France

+33.1.47.24.0501

www.amx.com

Germany, Austria

AMX GmbH

+49.7024.4080.0

www.amx.de

Italy

Intermark Sistemi S.R.L.

+39.06.520.5835

http://www.intermark.it

The Netherlands

AMX Netherlands

+31.316.224.884

www.amx.com

Russia, Ukraine

AMX Russia

+74.95.797.2605

http://www.amx.ru

Spain, Portugal

AMX Iberia

+34.954.189.006

(England, Northern Ireland, Scotland, Wales,

Albania, Belarus, Bosnia and Herzegovina.

Bulgaria, Croatia, Czech Rep, Estonia, Greece,

Hungary, Kosovo, Latvia, Lithuania. Macedonia,

Moldavia, Montenegro, Poland, Romania,

Serbia, Slovakia, Slovenia, Turkey)

AMX Europe

+44.1.904.343.100

www.amx.com

AMX London

+44.207.652.9450

www.amx.com

Norway, Sweden, Denmark, Finland

AMX Nordic

+46.31.723.2123

www.amx.com

MEXICO

AMX Soluciones Tecnologicas, S.A. de C.V. d/b/a

AMX Mexico

+52.55.5280.4800

http://www.amxmexico.com

MIDDLE EAST

(Lebanon, United Arab Emirates,

Kingdom of Saudi Arabia, Kuwait, Qatar.

Oman, Yemen, Bahrain, Jordan, Egypt.

Pakistan)

AMX Middle East (AMX-me)

+971.4.204.5690

http://www.amxme.com

AMX Lebanon

+961.9.901120

http://www.amxme.com

For a map view of these offices, see pages 52 - 53.

For additional contact details, please visit

www.amx.com/contactamx For dealer information

and/or areas not represented by these offices

outside the US, contact [e-mail] or

+1.469.624.7400. For areas within the US, contact

[e-mail] or 1.800.222.0193

Global Sales Offices

AMX London European Headquarters AMX France AMX Belgium AMX Netherlands AMX Nordic AMX GmbH AMX Asia Ltd. (Korea) AMX Asia Ltd. (Shanghai) AMX Asia Ltd. (Beijing) AMX Asia Ltd. (GuangZhou)AROCOM AG AMX Asia Ltd. (GuangZhou)AROCOM AG AMX Canada AMX New York AMX Global Headquarters (USA) Intermark Sistemi S.R.L. Intermark Sistemi S.R.L. EMAX India AMX Russia AMX Middle East Peripheral Vision CC AMX Iberia Electori Co. Ltd. AMX Asia Ltd. (Taiwan) AMX Asia Ltd. (Hong Kong) AMX New Zealand AMX Australia Polaris Controls, Inc. SYNERC Distecna S.A.

AMX

INSTANT ACCESS TO YOUR WORLD

eNZO

SPRING 2014 POCKET GUIDE

Enzo....3-5

USER INTERFACES

Modero X Series Touch Panels: 4.3", 7", 10.1", 19.4", 20.3"....6-17

Modero S Series Touch Panels: 4.3", 7", 10.1"....18-25

Multi Preview / Multi Preview Live....26-27

Modero X / Modero S Comparison Chart 28-29

Modero X / Modero S Mounting Options 30-31

Modero ViewPoint Touch Panel: 9"....32-33

Virtual Modero / TPI-PRO-DVI 34-37

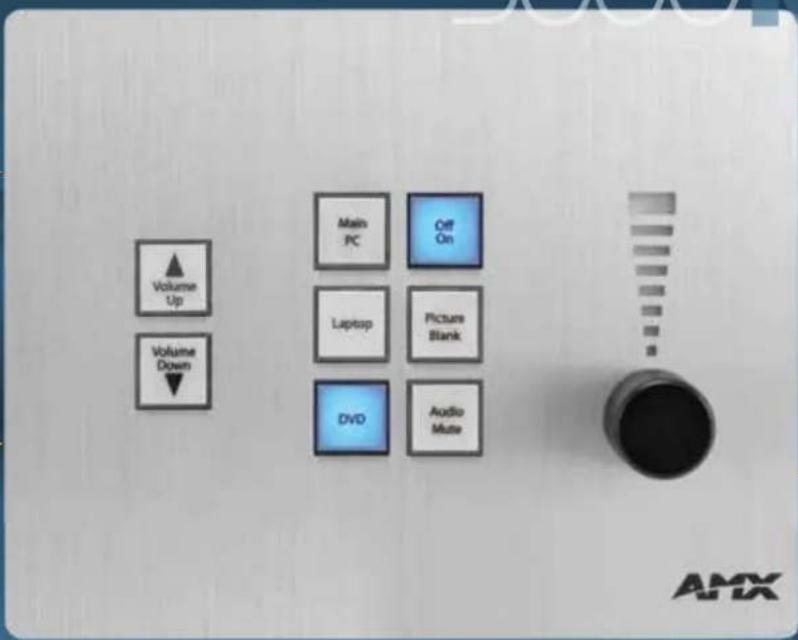

Novara 3000, 2000 & 1000 ControlPads....38-41

ENVIRONMENT ACCESSORIES

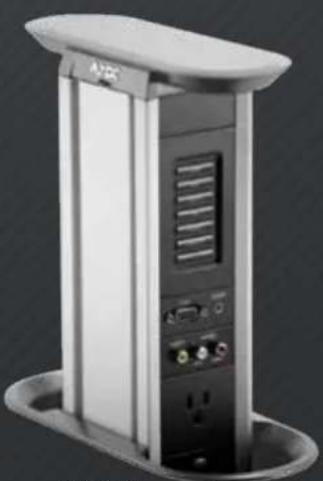

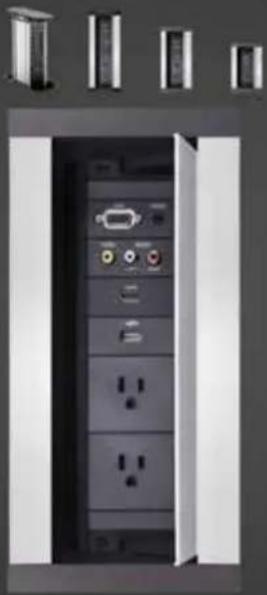

HydraPort Cable Connection System 42-47

DEVICE CONTROL

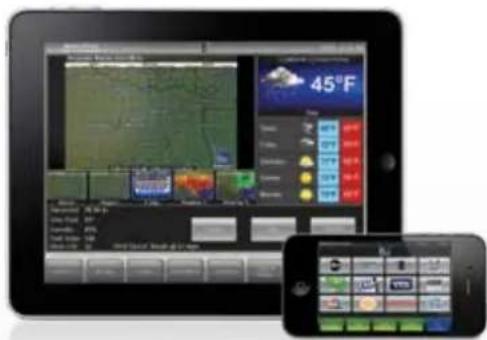

Control via Android, Apple and Windows 8....48-51

NETWORK MEDIA

Network Media....52-53

H.264 Encoders 54-55

Vision ^2 56-59

XPort 60-61

Inspired XPert, Inspired XPress 62-65

Consumer Electronics Association A sector of F&L

© 2014 AMX. All rights reserved. AMX does not assume responsibility for errors or omissions.

Alora, AMX. AMX Device Discovery; CatPro. DXLink, Enova, Eokia, HydroPort, InspiredSignage. InConcert, InstaGate Pro, Motrasu, Mo. Modero, Motaro X Series, Motaro B Series, NetLink, Network Media, Novara. Precis, Rapid Project Maker, Driver Design, Resource Management Suite. RMS, RMS Enterprise. SmartScale. SmoothTouch, Vicer's, XPort, XPort and XPress are trademarks/registered trademarks of MXX.

AIA, Android, Apple, Apple Part Proms and Post, Adrian Martin, Bang & O'Oran, Bang, BICSI, Power & Winkra, Canon, Cass, CFDA, CFA, Naval, Christie, Cisco, DENT PowerScout, Digital Signage Association, EPH Publishing, Exxon Field Server Technologies, Google, HBA, Hitachi, iCOSpec, InfoComm, Keringan, KNX, Infraan, Lufion Clear Connect, Mercedes-Benz, Microsoft, Microsoft Windows 3, XP and Visa, Mitsubishi NAO, NAHO, NEC, NSGA, Panasonic, Pane Associates, RedMine Technology, Ruice, Sony, Incuma, TouchPaneControl, TPC Control, USCDC and Zigmo are in compliance-regulated trademarks of their respective companies.

The product specifications/information provided specific to these designated products are not confirmed as of printing on 01-20-14 and are subject to change. The information included is solely intended as a basis for comparison and forecasting. AMX reserves the right to change said product specifications without prior notification.

INTRODUCES

NEW ENZO INTRODUCES™

Enzo is a meeting presentation system purposely designed for the collaboration space to easily access content and documents stored on USB, on the web, or in the cloud.

Ideal for any conference room Enzo is the simplest, fastest way to present and share information during a meeting or lecture.

AMX POWER enzo 1 - POE 2 LAN 10 / 100 HDMI OUT AUDIO OUT NMX-MM-1000 RS - 232

KEY FEATURES

• "Instant-On" File and Web Browsing – Access web content or USB thumb drive files within seconds of entering the room
• ITFriendly – Avoids OS updates, viruses and other PC related maintenance hassles and costs, and is enterprise manageable
  • End of session data purge – Eliminates disclosure of confidential information
• PoE, Pass-Through Ethernet and Small Form Factor – Easy to Install practically anywhere
• Native NetLinx Device – Managed and maintained through RMS

1 INSTANT ON

Silhouette of a person at a desk with a computer and mouse, next to a line chart on a screen (no text or symbols)

Walk in. Touch Any Button. You're On.

2 INSTANT CONTENT

Three icons: a folder, a globe with network lines, and a USB flash (no text or symbols)

Locate your content on Dropbox, the Web or USB.

3 INSTANT MEETING

Silhouette of a presentation with a presenter and audience, featuring a line chart on a screen (no text or symbols)

Open Your File and Go

4 INSTANT SHARE

Silhouette illustration of a presentation with a QR code on screen and audience (no text or symbols)

Others Want Your Presentation Materials?

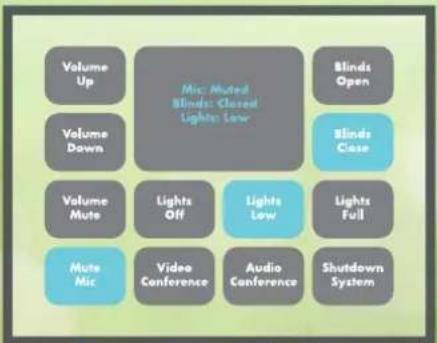

5 INSTANT CONTROL

Add Control of Lights, Volume, etc. via Enzo
(Requires separate AMX controller)

Enzo simplifies collaboration in a conference room

Learn more at: www.amx.com/enzo

enzo

MODERO TOUCH PANELS

NEW G5

modero

series

12:32PM The BG Buffet 12:45PM Google NEWS MIX 12:45PM 78 12:45PM Google NEWS MIX Google AT&T

Modero X Series G5 Evolves With...

More Power, More Functionality and More Speed

While many consider the Modero X Series family of touch panels to be leaps and bounds in design and functionality above anything else on the market, we knew it could be improved even further. And now it is! The all new Modero X Series has been significantly enhanced to include a new G5 Graphics Engine to provide faster and smoother animations and transitions for a UI that redefines simply beautiful, beautifully simple. While we were dropping a new graphics engine under the hood, we decided to quadruple the processing horsepower with a new

Quad Core Processor — the fastest in the industry. It launches and runs today's applications quicker than ever and has enough processing power on tap to run even more demanding applications to come in the future.

• New G5 Graphics Engine – renders graphics faster and smoother for an even better looking user experience
• New Quad Core Processor – provides improved processing power to run the most demanding applications today and for years to come
• Built-in Web Browser and Document Viewers – conveniently simplifies accessing and presenting documents during meetings
• More Mounting Options Including Flush Wall Mount and Secured Lectern/Table Mount – now available in a sleek, in-wall/lectern/table mounting solution for enhanced aesthetics and theft deterrence
• Deploy and Update Touch Panel Files from a network URL to simplify touch panel file management

Modero X Series G4 Touch Panels Also Available

Modero X Series G4 Touch Panels are also available for purchase. Additionally, Modero X Series G4 7", 10.1", 19.4" and 20.3" Touch Panels can be upgraded with the G5 Graphics Engine by purchasing the Modero X G4 to Modero X G5 (MXA-G5-UPG) Upgrade Kit.

MODERU TOUCH PANELS 20.3/19.4"

moderox PANORAMIC TABLES

NEW PANORAMIC TABLES Google NEW NEWS MIX 2012 WINNIE 2012 INAVATION ANNUALYSIS MODERO X SERIES 1901 | 19.4"

MODERO X SERIES 2001 | 20.3° PANORAMIC

MODERO X SERIES 1901 | 19.4" PANORAMIC

Putting an X in INNOVATION?

The unique panoramic control surface that lets the user interact with technology in a whole new way now has new features. Faster processing, simplified commissioning and enterprise touch panel file management, and built-in web browsing take multi-tasking to a whole new level. Take control of meetings with easy sophistication; control the room, surf the web, preview video and more on the touch panel with a frameless/bezel-less glass, capacitive, multi-touch control surface.

KEY FEATURES

• New Graphics Engine and the Fastest Processor in the Industry — Fast, smooth animations and transitions with the power to run applications today and for years to come
• Remote Updates to Touch Panel Files — Deploy and update touch panel files from a network URL
• New Mounting Options – Secured table mounts provide an added layer of theft deterrence
• Promote Future Technologies – The Modero X Series Touch Panels are hardware-

QUICK FACTS 20.3" PANORAMIC TABLE MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	12:5	1920 x 800	9 3/16" x 20 3/8" x 5 7/8"	YES	FULL MOTION	SDRAM: 2 GB FLASH: 16 GB	85%**

*See AMX.com for other 20.3" Widescreen Modero X Series model dimensions and all metric dimensions
^** Energy savings is an estimated value based on integration of RMS and Smart Programming

QUICK FACTS 19.4" PANORAMIC TABLE MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	18:5	1920 x 530	7" x 20 3/8" x 5 5/16"	YES	FULL MOTION	SDRAM: 2 GB FLASH: 16 GB	85%*

*See AMX.com for other 19.4" Widescreen Modern X Series model dimensions and all metric dimensions
**Energy savings is an estimated value based on integration of RMS and Smart Programming

ready to support Near Field Communication (NFC) technologies. NFC promises to provide a set of short-range wireless technologies that will deliver peer-to-peer communication by 'sharing, pairing and transaction' between RF devices — like exchanging data/identities.

- Add Calling Capability – The Bluetooth Handset (MXA-HST) expands the capabilities of the Modero X Series Touch Panels even further by transforming them into fully featured VoIP (Voice over Internet Protocol) telephones. Add wireless telephone calling to any room without having to install additional telephone wiring or other equipment.

MODERO X SERIES FAMILY

OPTIONS

ORIENTATION:

LANDSCAPE

LOCATION

TABLE

EXTRAS:

MULTI-TOUCH, LIGHT/MOTION SENSOR INTEGRATED CAMERA, SPEAKERS/MIC. BLUETOOTH SUPPORT, NFC-READY

COLOR

BLACK

Two laptops displaying Google's website interface with Chinese text and navigation icons

20.3" & 19.4" PANORAMIC TABLE

MODERO X SERIES BLUETOOTH HANDSET IN CHARGING STATION

20.3" & 19.4" SECURE TABLE MOUNTING KITS

MODERO TOUCH PANELS 20.3" / 19.4"

moderoX PANORAMIC WALLS

NEW

12:32PM Thursday NEW

NEW

The BG Bullet SEPTEMBER

Grid layout with labeled boxes and a watermark below, likely for digital display or web content.

MODERO X SERIES 2001

20.3' PANORAMIC

12:45PM Monday, May 28 NEWS MIX Google

NEW

NEW NEWS MIX ABC Company - 54 Meeting Stream Google

MODERO X SERIES 1901 | 19.4" PANORAMIC

QUICK FACTS 20.3" PANORAMIC WALL MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	12:5 (LANDSCAPE)	1920 x 800 (LANDSCAPE)	9 1/2" x 20 3/8" x 11/16" (LANDSCAPE)	YES	FULL MOTION	SDRAM: 2 GB FLASH: 16 GB	85%**
	5:12 (PORTRAIT)	800 x 1920 (PORTRAIT)	20 3/8" x 9 1/2" x 11/16" (PORTRAIT)

**Energy savings is an estimated value based on integration of RMS and Smart Programming.

QUICK FACTS 19.4" PANORAMIC WALL MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	18:5 (LANDSCAPE)	1920 x 530 (LANDSCAPE)	6 7/8" x 20 3/8" x 11/16" (LANDSCAPE)	YES	FULL MOTION	SDRAM: 2 GB FLASH: 16 GB	85%**
	5:18 (PORTRAIT)	530 x 1920 (PORTRAIT)	20 3/8" x 6 7/8" x 11/16" (PORTRAIT)

Energy savings is an estimated value based on integration of RMS and Smart Programming

MODERO X SERIES FAMILY

OPTIONS

ORIENTATION:

PORTRAIT AND LANDSCAPE

LOCATION:

WALL

EXTRAS

MULTI-TOUCH, LIGHT/MOTION SENSOR INTEGRATED CAMERA, SPEAKERS/MIC BLUETODITH SUPPORT, NFC-READY

COLOR

BLACK

Mobile app interface screenshot showing a grid of food-related content thumbnails and menu options

Screenshot of a web browser displaying Google's content pages with thumbnails and text overlays

20.3" & 19.4" PANORAMIC WALL20.3" & 19.4" PANORAMIC FLASH MOUNT KITS

MODERO TOUCH PANELS

10.1"17"

NEW

NEW

12:45 PM AHK NEW

12:45PM

Monday

moderox WIDESCREEN WALLS

WIDESCREEN WALLS

NEW

Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Teams AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AI Meeting Forum Microsoft Spaces AIAE

MODERO X SERIES 701 | 7" WIDESCREEN

MODERO X SERIES 1001 | 10.1" WIDESCREEN

Right at Home, Even in the Boardroom

The 7 and 10.1" Widescreen Modero X Series Touch Panels are available in landscape and portrait. Ideal for any control application including residential, education and commercial; whether controlling the whole-home or displaying scheduling outside a conference space the Modero X does it with brilliant graphics and a lighting fast processor.

KEY FEATURES

• Entryway to Education – These mid-size touch panels are just the right size for classrooms and podiums and offer dealers the right panel size to sell to K-12 and Higher Education
• Scheduling Assistant – Offers clients a simply beautiful and beautifully simple option for adding room scheduling capabilities outside conference rooms
• Rapid Project Maker (RPM) Compatible – Allows rooms to be installed and programmed using RPM, a quick and easy, wizard-based installation tool

QUICK FACTS 10.1" WIDESCREEN MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	16:9 (LANDSCAPE)9:16 (PORTRAIT)	1280 x 800 (LANDSCAPE)800 x 1280 (PORTRAIT)	6 11/16" x 9 7/8" x 2 5/8" (LANDSCAPE)9 7/8" x 6 11/16" x 2 5/8" (PORTRAIT)	YES	FULL MOTION	SDRAM: 2 GBFLASH: 16 GB	82%**

^Energy savings is an estimated value based on integration of RMS and Smart Programming

QUICK FACTS 7" WIDESCREEN MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	16:9 (LANDSCAPE)	1024 x 600 (LANDSCAPE)	4 13/16" x 7 5/16" x 2 1/2" (LANDSCAPE)	YES	FULL MOTION	SDRAM: 2 GB FLASH: 16 GB	82%**
	9:16 (PORTRAIT)	600 x 1024 (PORTRAIT)	7 5/16" x 4 13/16" x 2 1/2" (PORTRAIT)

*Energy savings is an estimated value based on integration of RMS and Smart Programming

MODERO X SERIES FAMILY

OPTIONS

ORIENTATION:

PORTRAIT AND LANDSCAPE

LOCATION:

WALL

EXTRAS

MULTI-TOUCH, LIGHT/MOTION SENSOR INTEGRATED CAMERA, SPEAKERS/MIC. BLUETOOTH SUPPORT, NFC-READY

COLOR

BLACK

Control panel interface with digital display showing 12.45V power and control buttons

12.45min 78

MODERO X SERIES 1001 MODERO X SERIES 1001" & 7" FLUSH MOUNT KITS

MODERO TOUCH PANELS

10.1" / 7"

moderoX WIDESCREEN TABLETOPS

NEW WIDESCREEN TABLETOPS NEW SVI SWEI ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV ALV

MODERO X SERIES 1001 | 10.1" WIDESCREEN

MODERO X SERIES 701 | 7" WIDESCREEN

The Perfect Compliment

The 7" and 10.1" Modero X Tabletop Touch Panels offer the same powerful graphics engine, industry leading processor speed and enhanced capabilities of the larger panels. Ideal for a second means of control in large spaces or the primary control interface in smaller spaces, these touch panels round out the Modero X Series Family.

KEY FEATURES

• Attract More Corporate Customers – The elegant design and simple beauty of the Modero X Series will create demand from both new and current customers
• Address Unique Requirements – With a long, low profile, edge-to-edge glass and capacitive touch, the Modero X Series Touch Panels provide dealers with a control surface that is unobtrusive and simple to use
• Rapid Project Maker (RPM) Compatible – Allows rooms to be installed and programmed using RPM, a quick and easy, wizard-based installation tool

QUICK FACTS 10.1" WIDESCREEN MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	16:9	1280 x 800	6 7/8" x 9 7/8" x 4 7/8"	YES	FULL MOTION	SDRAM: 2 GBFLASH: 16 GB	82%**

^a Energy savings is an estimated value based on integration of RMS and Smart Programming

QUICK FACTS 7" WIDESCREEN MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	16:9	1024 x 600	5" x 7 5/16" x 4 1/8"	YES	FULL MOTION	SDRAM: 2 GBFLASH: 16 GB	82%**

*Energy savings is an estimated value based on integration of R&S and Smart Programming

MODERO X SERIES FAMILY

OPTIONS

ORIENTATION:

LANDSCAPE

LOCATION:

TABLE

EXTRAS

MULTI-TOUCH. LIGHT/MOTION SENSOR

PoE ENABLED BLUETOOTH SUPPORT

NFC-READY

COLOR

BLACK

Modern digital tablet device with a screen displaying a video player interface (no visible text or symbols on the device body)

MODERO X SERIES 701 MODERO X SERIES 60100 & 7" SECURE TABLE KITS

MODERO TOUCH PANELS

4.3"

moderox WIDESCREEN WALLS

EARL28 12 PM 00 1 PM 00 2 PM 00 2 PM 00 LATER 12:45PM Monday, May 28 CD LIGHTS BLU-RAY CLIMATE PROJECTOR SECURITY AMX MODERO X SERIES 430 | 4.3" WID

Small and Mighty

Don't underestimate the smallest of the Modero X Touch Panels. This unique portrait Modero 4.3" Wall Mount Panel offers the same edge-to-edge capacitive touch glass and multi-touch capabilities as the larger Modero X panels. It enhances any residential architecture by fitting nicely into small spaces such as kitchens and hallways. The 4.3" is also ideal for education settings because it can be flush-mounted into a podium or wall-mounted outside classrooms and conference rooms for scheduling.

KEY FEATURES

• Expand Design Opportunities – Extend the beauty of Modero X touch panel control to more rooms and smaller spaces
• Differentiate Yourself – The Modero X Series offers design and technology features unmatched in the industry

QUICK FACTS 4.3" WIDESCREEN MODERO X SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	9:16	480 x 800	4 7/8" x 3 1/4" x 2 3/8"	YES	FULL MOTION	512 STD 4 GB FLASH	80%**

**Energy savings is an estimated value based on integration of RMS and Smart Programming

MODERO X SERIES FAMILY

OPTIONS

ORIENTATION:

PORTRAIT

LOCATION

WALL

EXTRAS

MULTI-TOUCH. LIGHT/MOTION SENSOR

PoE ENABLED BLUETOOTH SUPPORT

NFC-READY

COLOR

BLACK

MODERO X SERIES 430

430 FLUSH MOUNT KITS

MODERO TOUCH PANELS

modero

NEW

series

Product catalog image displaying multiple ARX devices with UI interfaces, status bar, and promotional text in Chinese.

Simply Beautiful, Beautifully Simple Scheduling and Control – Now In a Gorgeously Cost Effective New Touch Panel Family

Want to bring the same sleek styling, control and scheduling functionality of the award-winning Modero X Series into all your meeting space designs – even those with budget constraints? The new Modero S Series perfectly complements the design of the Modero X but is more applicable for cost sensitive installations such as smaller huddle spaces. It's also perfect for dedicated wall scheduling outside meeting rooms. Even though the Modero S is priced significantly less, you still get much of the core functionality that makes the Modero X so powerful, including beautiful 24 bit color depth, streaming video, and elegant low profile mounting options like surface/glass and secure lectern/tabletop. With the range of options available, the Modero S will enhance the sophistication of any architecture.

Architectural design consistency with both Modero S and X – available in 3", 7" and 10.1" in both table and wall mounts
Easily Schedule Rooms with Front & Side-Facing Room Availability LEDs – Our wall-mounted Modern S Series touch panels include front- and side-facing LEDs to make room scheduling and quick determination of room availability easy whether viewing straight-on, at an angle or from down the hall.
- Secure mounting options – Discourage theft with secure lectern/table mount options
- SmoothTouch™ Glass Overlay Technology – Combines resistive touch and glass into a single overlay that is more rugged and has a greater tolerance to electrical noise than capacitive touch glass overlays. SmoothTouch is also ideal for its ability to connect with the user via indirect touches like a gloved hand, stylus, or prosthetic.

MODERO TOUCH PANELS

CH PANELS 10.1" / 7"

moderos WIDESCREEN TABLETOPS

NEW

AMDX 22 AMDX

MODERO S SERIES 1001 | 10.1" WIDESCREEN

NEW

AHX 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

MODERO S SERIES 701 | 7" WIDESCREEN

Basic Beauty, Rugged Form

Now there's a tabletop Modero for even the most budget conscious basic meeting spaces. The Modero S 7" and 10.1" panels provide full room control, VoIP, brilliant 24-bit color depth, PoE connectivity, Bluetooth, USB and streaming video. With all this and new ruggedized plastic housing and secure mounting they have a place at every table.

KEY FEATURES

• Maintain Design Consistency on a Budget – No need to compromise style to meet budget, the new Modero S line perfectly complements the original Modero X
• Secure Table Mount Kits – Attract customers like higher education with this reassuring theft deterrent
• SmoothTouch™ Glass Overlay Technology – Combines resistive touch and glass into a single overlay that is more rugged and has a greater tolerance to electrical noise than capacitive touch glass overlays. SmoothTouch is also ideal for its ability to connect with the user via indirect touches like a gloved hand, stylus, or prosthetic

QUICK FACTS 10.1" WIDESCREEN MODERO S SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED 16:9	1280 x 800		6 3/16" x 10 3/8" x 4"	YES	FULL MOTION	512 MB RAM	82%**

*See AMX.com for other 10.1" Widescreen Modero S Series model dimensions and all metric dimensions
**Energy savings is an estimated value based on integration of RMS and Smart Programming

QUICK FACTS 7" WIDESCREEN MODERO S SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED 16:9	1024 x 600		4 1/2" x7 3/8" x3 3/16"	YES	FULL MOTION	512 MB RAM	82%**

*See AMX.com for other 7" Widescreen Modern S Series model dimensions and all metric dimensions **Energy savings is an estimated value based on integration of RMS and Smart Programming

MODERO S SERIES FAMILY

OPTIONS

ORIENTATION:

LANDSCAPE

LOCATION

TABLE

EXTRAS

STREAMING VIDEO, INTERCOM / VOIP

TELEPHONE, USB FOR KEYBOARD &

MOUSE, BLUETOOTH FOR AUDIO /

KEYBOARD & MOUSE

Screenshot of a media player interface with Chinese text and a video player on screen

MODERO S SERIES 1001 MODERO S SERIES 701

10.1" & 7" SECURE TABLE KITS

MODERO TOUCH PANELS

4.3"

moderos WIDESCREEN TABLETOPS

NEW

NEW

NEW AHX BLUE RAY DVR CD MUSIC SENSOR LIGHTS CLIMATE SECURITY PROJECTOR

NEW

Wayne Industries Room 101 AMX 1:05 PM Wednesday May 22, 2013 ROOM AVAILABLE Subject 1 Next Meeting: 2:00 PM - 3:00 PM CREATE MEETING RING DOORSELL TEST LED

MODERO S SERIES 431 | 4.3" WIDESCREEN

Bringing Touch Panel Control to the Kids' Table

The smallest of our Modero S tabletop touch panels, the Modero S 4.3" provides full room control, VoIP, brilliant 24-bit color depth, PoE connectivity, Bluetooth, USB and streaming video. With all this, new ruggedized plastic housing, budget price and secure table mounting even the smallest huddle space can afford the beauty and functionality of a touch panel.

KEY FEATURES

• Maintain Design Consistency on a Budget – No need to compromise style to meet budget, the new Modero S line perfectly complements the original Modero X
• Secure Table Mount Kits – Attract customers like higher education with this reassuring theft deterrent
• SmoothTouch™ Glass Overlay Technology – Combines resistive touch and glass into a single overlay that is more rugged and has a greater tolerance to electrical noise than capacitive touch glass overlays. SmoothTouch is also ideal for its ability to connect with the user via indirect touches like a gloved hand, stylus, or prosthetic

QUICK FACTS 4.3" WIDESCREEN MODERO S SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED 16:9	480 x 272		3 1/4" x 5 1/16" x 3 1/8"	YES M-JFEG	EG	512 MB RAM	80%**

*See AMX.com for other 4.3" Widescreen Modero S Series model dimensions and all metric dimensions
**Energy savings is an estimated value based on integration of RMS and Smart Programming

MODERO S SERIES FAMILY

OPTIONS

ORIENTATION:

LANDSCAPE

LOCATION

TABLE

EXTRAS

M-JPEG STREAMING VIDEO. INTERCOM / VOIP TELEPHONE. TABLETOP ONLY: USB FOR KEYBOARD & MOUSE. BLUETOOTH FOR AUDIO / KEYBOARD & MOUSE

AT&T 1.00

MODERO S SERIES 431

4.3" SECURE TABLE KITS

MODERO TOUCH PANELS

10.1", 7", 4.3"

moderos WIDESCREEN WALLS

NEW

NEW

12 Sep 20 1 Jan 20 Project Meeting New Meeting 7:30 PM - 4:30 PM AMX

MODERO S SERIES 1001 | 10.1" WIDESCREEN
MODERO S SERIES 701 | 7" WIDESCREEN

12 PM 30 00 1 PM 30 PROJECT MEETING Next Meeting: 1:00 PM - 1:00 PM START Cancel Preview Preview OK Cancel Preview Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETING Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEETICMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS Project MEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS ProjectMEATCMS

NEW

Engine Indicators Box 101 AMX 1:05 PM BANANA LEAVES & BANANA POWER CHAP LEMON BAR BANANA 12/03/2018 1:05 PM AUTO-LOCK AUTO-SHOLD AUTO-LOCK AUTO-LOCK

MODERO S SERIES 431 | 4,3" WIDESCREEN

Scheduling Can Be a Thing of Beauty

Is that meeting room available? Who's in there? When will they be done? Can I reserve the room yet? These are all very simple questions that can be surprisingly difficult to answer. Until now, Place a Modero S Series Wall Mount Touch Panel outside every meeting room to view the room schedule at a glance and even reserve it right there at the panel – and get all of this at a price that fits just about any installation budget.

KEY FEATURES

Front-facing and Side-Facing Room Availability LEDs for 180° Viewing – Front-and side-facing LEDs make viewing room availability visible from any angle. Easily glance down the hall and determine whether meeting spaces are occupied no matter if they are being viewed straight on or from the side.

• Architectural design consistency with both Modero S and X — available in 4.3", 7" and 10.1" in both table and wall mounts
• Stylish mounting options for any surface including glass – Use new Any Mount kits to install in any room with a light switch/gang box
• SmoothTouch™ Glass Overlay Technology – Combines resistive touch and glass into a single overlay that is more rugged and has a greater tolerance to electrical noise than capacitive touch glass overlays. SmoothTouch is also ideal for its ability to connect with the user via indirect touches like a gloved hand, stylus, or prosthetic

MODERO S SERIES FAMILY

OPTIONS

ORIENTATION:

LANDSCAPE

LOCATION

WALL

EXTRAS

STREAMING VIDEO, INTERCOM / VOIP TELEPHONE, USB FOR KEYBOARD & MOUSE, BLUETOOTH FOR AUDIO / KEYBOARD & MOUSE

Scanned screenshot of a Chinese software interface showing menu bar, toolbar, and status bar with text options

MODERO S SERIES 1001 MODERO S SERIES 431 MODERO S SERIES 701

QUICK FACTS 10.1" WIDESCREEN MODERO S SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	16:9	1280 x 800	6 3/16" x 10 3/8" x 2 5/16"	YES	FULL MOTION	512 MB RAM	82%**

*See AMX.com for other 10.1" Widescreen Modern S Series model dimensions and all metric dimensions
**Energy savings is an estimated value based on integration of RMS and Smart Programming

QUICK FACTS 7" WIDESCREEN MODERO S SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	16:9	1024 x 600	4 1/2" x 7 3/8" x 2 5/16"	YES	FULL MOTION	512 MB RAM	82%**

*See AMX.com for other 7" Widescreen Modero S Series model dimensions and all metric dimensions
**Energy savings is an estimated value based on integration of RMS and Smart Programming

QUICK FACTS 4.3" WIDESCREEN MODERO S SERIES

Wired / Wireless	Screen Ratio	Screen Resolution	Dimensions (HWD)	Intercom + Phone	Video Capability	Memory + Storage	ENERGY SAVINGS
WIRED	16:9	480 x 272	3 3/8" x 5 1/16" x 2 5/8"	YES	M-JPEG	512 MB RAM	80%**

*See AMX.com for other 4.3" Widescreen Modern S Series model dimensions and all metric dimensions
**Energy savings is an estimated value based on integration of RMS and Smart Programming

*See AMX.com for other 4.3" Widescreen Modern S Series model dimensions and all metric dimensions
**Energy savings is an estimated value based on integration of RMS and Smart Programming

10.1", 7" & 4.3" MULTI MOUNT KITS

MODERO TOUCH PANELS

multi preview accessories

moderoX/S

1 2 3 1 2

4 5 6 7 8 3 4 5 6 7 1 2 3 4 5 6 A3DC

Two stacked electronic devices labeled AMX, showing front panel and control buttons (no readable text or symbols beyond branding)

MODERO X/S SERIES MXA-MP | MULTI PREVIEW

MODERO X/S SERIES MXA-MPL | MULTI PREVIEW LIVE

Preview the Perfect Meeting: Visually Select from up to 10 Input Sources

The Multi Preview (MXA-MP) and Multi Preview Live (MXA-MPL) simplify the perfect meeting user experience by giving presenters an easy way of identifying and selecting the video they want from up to 10 source devices. Users no longer have to guess what video is being output from what source. Instead, they simply choose from a row of preview images (selected image can be converted to an HD video stream with the MXA-MPL) on their Modero X or Modero S Series touch panel. So instead of guessing what's on "PC1", they can touch an easily recognized source image and have it immediately show onscreen.

DEALER BENEFITS

• Perfect your clients' meeting presentations even further with a simple and more visually effective way of selecting video input sources for displaying during meetings
• For the most accurate preview point of source video being output the MXA-MPL offers the ability to view a live HD video stream being output from the source

MULTI PREVIEW FAMILY

OPTIONS

LOCATION:

RACK, TABLE

INPUTS:

I DVI-I MULTI-FORMAT VIDEO. 1 1/8TH-

INCH MINI-JACK AUDIO

OUTPUTS:

1 HDMI PREVIEW VIDEO

2-PIN 3.5 MM PHOENIX-STYLE

COLOR

BLACK

Front view of a network device with ports and connectors (no visible text or symbols)

Front view of an AMX network interface showing ports, connectors, and a power outlet (no readable text or symbols)

MODERO X/S SERIES MULTI PREVIEW MODERO X/S SERIES MULTI PREVIEW LIVE

modero comparison

Modero® Series Touch Panels

TOUCH PANELS SPECS / CAPABILITIES COMPARISON CHART

NEW

SOFTWARE HARDWARE MOUNTING OPTIONS COMMUNICATION CAPABILITIES

NOCOMM AVAILABLE1

SENSORS & CONTROL CAPABILITIES

MODEL

Graphics Engine (OSI)

Support for Android Apps

Processor

Memory

Casing Materials

Display Type

Side-Mounted Scheduling LEDs

Flush

Rock

Secure able

Glass/Multi-Surface

Multi-Preview/Multi-Preview Live Support

Steaming Video (M.P.EQ, MPEG 2, MPEG 4)

720 h HD Camera for video conferencing

Intercom/VoIP Telephone device

USB for mice / keyboards

Light / Motion Sensors for Smart Waking

NFC for Security

Blackboard for audio and mice/kyebonds

MODERO X with OS

MODERO X with OS

MXT-2001-PAN

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MXD-2001-PAN-L

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

*

MXD-2001-PAN-P

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MXT-1901-PAN

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MXD-1901-PAN-L

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

*

MXD-1901-PAN-P

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MXT-1001

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MXD-1001-L

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

*

MXD-1001-P

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MXT-701

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MXD-701-L

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

*

MXD-701-P

G5

*

Quad-core

2GB RAM

Aluminum Unisody

Multitouch Capacitive of PS

*

*

*

*

*

*

*

*

MODERO S

MODERO X with OS

MST-1001

G4

Single-core

512MB RAM

Ruggedged To yce borate

SmoothTouch resistive

*

*

*

*

*

*

MSD-1001-L

G4

Single-core

512MB RAM

Ruggedged To yce borate

SmoothTouch resistive

*

*

*

*

*

*

*

*

MST-701

G4

Single-core

512MB RAM

Ruggedged To yce borate

SmoothTouch resistive

*

*

*

*

*

*

MSD-701-L

G4

Single-core

512MB RAM

Ruggedged To yce borate

SmoothTouch resistive

*

*

*

*

*

*

*

*

MST-431

G4

Single-core

512MB RAM

Ruggedged To yce borate

SmoothTouch resistive

*

MP-PEG Only

*

*

*

MSD-431-L

G4

Single-core

512MB RAM

Ruggedged To yce borate

SmoothTouch resistive

*

*

MP-PEG Only

*

MODERO X with OS

MODERO X with OS

MXT-2000XL-PAN

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

*

MXD-2000XL-PAN-L

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

*

*

MXD-2000XL-PAN-P

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

MXT-1900L-PAN

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

*

MXD-1900L-PAN-L

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

*

*

MXD-1900L-PAN-P

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

MXT-1000

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

*

MXD-1000-L

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

*

*

MXD-1000-P

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

MXT-700

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

MXD-700-L

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

*

MXD-700-P

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

*

MXD-430

G4

Single-core

512MB RAM

Aluminum Unisody

Multitouch Capacitive of IPS

*

*

*

*

*

*

*

*

NEW

MODERO MOUNTING OPTIONS

mounting

options new modero

Secure Your Panels in Style

Make sure the most simply beautiful and beautifully simple touch panels stay safely where you put them with our variety of secure and stylish mounting options. These cost-effective, intelligently designed solutions provide the flexibility to solve any integration challenge.

24/7 SECURITY

New secure table mounting hardware is a beautifully styled plate that when attached to the Modero X or S 7", 10.1", 19.4", 20.3" or 4.3" Tabletop Touch Panels and secured with the under-table tamper resistant bolts will make it virtually theft proof. Need a solution that doesn't require the touch panel be mounted to the table? The secure mounting plate can be attached to the touch panel (but not the table) and then secured with a Kensington® Lock. You can even use both.

Exterior view of a modern office building (no signage)

MULTI MOUNT

The Modero S Touch Panels can be mounted to any smooth surface including glass, blending the beauty of Modero S with the ever growing trend towards glass surfaces in education and corporate facilities.

ANY MOUNT

Mount Modero S Series Touch Panels in any room with the new Any Mount kit. It's as simple as replacing a light switch.

TOTALLY FLUSH

All Modero X Wall Mount Touch Panels can now sit perfectly flush within the walls. Want access to the side buttons? Or, do you want to expose the speakers for better audio? Simply press on the touch panel and the spring-loaded mechanism allows the panel to sit slightly farther out.

BEAUTY IN THE SERVER ROOM

Modero X 7", 10.1", 19.4" and 20.3" Landscape Wall Mount Touch Panels, and Modero S 7" and 10.1" Wall Mount Touch Panels can

Screenshot of a digital video editing interface with Chinese text and a preview window showing three video frames.

be mounted directly to an equipment rack.

MODERO S SERIES TOUCH PANEL MOUNTING OPTIONS

MODEL ANY MOUNT RACK SECURE TABLE MULTI MOUNT
MSD-1001-L MSA-AMK-10 MSA-RMK-10		MSA-MMK-10
MST-1001 MSA-STMK-10
MSD-701-L	MSA-AMK-07 MSA-RMK-07 MSA-MMK-07
MST-701			MSA-STMK-07
MSD-431-L				MSA-MMK-43
MST-431			MSA-STMK-43

All Modern S Wall Mount Touch Panels ship with standard wall mount hardware

MODERO X SERIES TOUCH PANEL MOUNTING OPTIONS

MODEL	RACK	SECURE TABLE	FLUSH
MXT-2001-PAN / MXT-2000XL-PAN		MXA-STMK-20
MXD-2001-PAN-P / MXD-2000XL-PAN-P			MXA-FMK-20
MXD-2001-PAN-L / MXD-2000XL-PAN-L	MXA-RMK-20 MXA-FMK-20
MXT-1901-PAN / MXT-1900L-PAN		MXA-STMK-19
MXD-1901-PAN-P / MXD-1900L-PAN-P			MXA-FMK-19
MXD-1901-PAN-L / MXD-1900L-PAN-L	MXA-RMK-19 MXA-FMK-19
MXT-1001 / MXT-1000		MXA-STMK-10
MXD-1001-P / MXD-1000-P			MXA-FMK-10
MXD-1001-L / MXD-1000-L	MXA-RMK-10 MXA-FMK-10
MXT-701 / MXT-700		MXA-STMK-07
MXD-701-P / MXD-700-P			MXA-FMK-07
MXD-701-L / MXD-700-L	MXA-RMK-07 MXA-FMK-07
MXD-430			MXA-FMK-43

All Modern X Wall Mount Touch Panels ship with standard wall mount hardware

MODERO TOUCH PANELS

Cisco Certified Wireless

Features Cisco CCXv4

certified wireless security.

ideal for government.

financial and other secure

installations.

Compatible

You Make the Call

With integrated telephone

and intercom capability.

easily place and receive

telephone or intercom calls

down the hall or around

the globe.

9"modero

VANDEAY INCOMPUTS AUDIO CONFERENCE VIDEO CONFERENCE PRESENTATION HELP DESK 1,800,555,1212 1 2 3 4 5 6 7 8 9 • 0 # DIAL NANG-UP FRUITLY ON PRICE BOOK VIDEO CONFERENCE PREVIEW Can Be CONTROLS ADVANCED CONTROLS Thursday: January 21 12:31 PM 72

Touch and Go

The convenient capacitive

navigation pad offers

simplified up, down, right

and left navigation just by

touching the direction you

would like to go in.

The Whole Nine Yards

With a full nine inches of

touch screen real estate

and integrated full motion

video, multi-window

videoconferencing is easy to

see and control.

The MVP-9000i combines the speed and security of a Power over Ethernet (PoE) wired connection with the freedom of an 802.11 a/b/g wireless connection by simply removing the panel from the docking station. Integrated telephone/intercom calling, expansive 9" widescreen display and gesturing and page transitions make this one of our most versatile touch panels.

KEY FEATURES

• Leave your PC at home and easily update your customer's firmware or transfer new touch panel pages directly from a micro-SD or USB stick
• Antenna diversity improves wireless reliability by integrating two antennas that smartly switch to the strongest signal, which ultimately decreases the number of lost connections and unhappy end users
• Rough-in box (optional) can be mounted in drywall, concrete, brick and a variety of uneven or solid surfaces

*Metric dimensions available at 50% com
Energy savings in an estimated value based on integration of RMS and Smart Programming

A CLOSER LOOK

FLIP IT!

Now with a simple swipe of the screen, users can "gesture" from page to page, just like turning the pages of a book.

SPEAKING YOUR LANGUAGE

We added several international fonts to the user interface including right to left languages such as Arabic. A combination of language styles can be used and this enhancement is available now through a new firmware enhancement for the MVP-5000i, MVP-5900i and additional language cards will be available soon.

LAX 2013

9" MODERO FAMILY

TOUCH PANEL OPTIONS

ORIENTATION:

LANDSCAPE PORTRAIT

LOCATION:

HANDHELD TABLE WALL

EXTERNAL BUTTONS

2 PROGRAMMABLE IMPACTIVE BUTTONS

WITH DN-sensor fly out LABELS

公司提供信息请见公司网站查询

COLORS

投资范围

MODERO MVP-9000i

Front view of a dark rectangular electronic device with two small white dots on the top (no visible text or symbols)

WALL CHARGING STATION

TABLE CHARGING STATION

Also available in white Also available in white

MODERO TOUCH PANELS

Check the Hours Right from your laptop, you can check the number of remaining lamp hours on your client's pool lighting so you can change lights before they go out.

PC or Mac

With either a PC or Mac, simply navigate over the Internet to the NXV-300. Login with a username/password and your touch panel interface appears on the screen and is viewable in two resolutions. 800x480 and 480x272.

POOL & SPA Pool Light Power PO Heat Blower Heat POOL & SPA Outside Temperature: 98 3:07 p.m. POOL STATUS 82 SPA STATUS: 105 Heater Mode: Off Heater Mode: On Jets: 50% Spa Light Heater 88 Pump 106 Pump Jets AMX MODERO NXV-300 POWER STATUS JEEP CONNECTOR WAT CODE EThernet SPD / 100 LIA POS August 18, 2008 3:16 pm

Power and Functionality WITHOUT the Panel

When you need the intelligence and ease of use that only a touch panel can offer but from remote locations, this small rack-mountable device allows you to access NetLinx Control systems from any PC or Mac via Virtual Network Connection (VNC).

KEY FEATURES

• Provides ability to remotely control the AMX system for support
• Easy to Install – Rack Mountable
• Great way to introduce budget-sensitive customers to the possibilities of control.

*Metric dimensions available at A6X.com

A CLOSER LOOK

AMX MODERO NXV-300 Status LEDs Reset Button Ethernet Port

Why digital? Digital is a standard in computer video applications. Digital provides a brilliant picture every time by minimating the chance of blurred images, edges and loss of brightness due to common analog video bandwidth loss. And, inherently digital provides accurate transmission of source ge color information providing true colors every time.

Includes New & Improved

Take

Note!

anchised

Annotate directly over any video source including your PC—straight out of the box. No additional PC applications needed.

Scanned document with redacted text and a grid of red rectangular blocks, likely a form or table section

Scanned screenshot of a software interface showing two data panels with Chinese labels and numerical values.

Artikel 2007 Annual Comments

Action you have your to to return in the action of the action.

Scanned document page with Chinese text, a green header and a photo of a person, alongside a partial image of a book titled 'The New York Times' and 'T.S. Series'.

Interior view of a dimly lit room with purple lighting and two dark rectangular windows (no visible text or symbols)

TOTAL PRESENTATION INTERFACE | TPI-PRO-DVI-4

The Perfect Answer to Every Presenter's Dreams

The TPI-PRO-DVI is the perfect tool for any presentation whether it takes place in a boardroom, classroom, or any room in between. Preview up to four sources, select one to show full screen, control the source and annotate over the video from an AMX touch panel, or directly on a touch-enabled monitor.

KEY FEATURES

• Both Analog or Digital – Displays and converts multiple video sources (Composite, S-video, Component, RGB, and DVI)
• Flexible Video - Display video from up to four sources in windows of independent size and position alongside optional G4 touch panel controls

A CLOSER LOOK

Front view of a network switch device with multiple ports and connectors (no visible text or labels)

• Integrated KVM Switch – Route a single keyboard and mouse to up to four computers (both Macs and PCs)
• Embedded Annotation – with TakeNote Embedded™ you can annotate right over any video source (including your PC) without the need for any additional PC application. So presenters can write or draw on any of the live video images or a still picture, and annotations can be saved as JPEGs for later use

PRESENTATION INTERFACE FAMILY

OPTIONS

# OF INPUTS:

2OR4

EACH INPUT SUPPORTS:

COMPOSITE, S-VIDEO, COMPONENT, RGB AND DVI

(ON DVI-I CONNECTORS)

2 VIDEO OUTPUTS:

DVI AND RGB UP TO 1920X1200 AT 60 HZ

(ON DVI-I CONNECTORS)

Exterior view of two black electronic devices labeled 'AMD' (no visible text or symbols on the device body)

TPI-PRO-DVI-2 / TPI-PRO-DVI-4

NOVARA CONTROLPADS & KEYPADS

RMS Compatible

The built-in Ethernet port allows the ControlPad to communicate with AMX Resource Management quite Enterprise (RMS-ENT) software for enabling web-based remote diagnostics, room management and control of every room on the network.

Thousands Await

Works with AMX IR files – leverage thousands of pre-existing AMX IR files on AMX.com.

Volume Up Volume Down Main PC Off On Laptop Picture Blank DVD Audio Mute

NOVARA 3000 SERIES

QUICK FACTS NOVARA 3000 CONTROLPADS

Button Type Feedback Indicator		Size/Backbox Type	Dimensions (HWD)
PRINTED	BLUE BACKLIT BUTTONS(6-BUTTON)RGB BACKLIT BUTTONS(8 & 17-BUTTON)	SINGLE GANG(US, UK, EU.)TWO GANG (US, UK, EU),FOUR GANG (US)	VARIES BY MODEL

*Metric dimensions available at MAX.com

Onboard Ethernet = Cost Effective RMS Interface

Now featuring an integrated Ethernet Port, the Novara 3000 Series ControlPads are cost-effective user interfaces for classrooms and conference rooms that offer unprecedented levels of control and an instant interface with AMX Resource Management Suite Software. This gives users the ability to cost effectively control equipment and devices while also being able to monitor and maintain it and schedule connected rooms using RMS.

KEY FEATURES

• Complete Solution - Simply add the Novara 3000 ControlPad to an Enova AVX Cat5 Presentation Switcher for a complete A/V solution with a keypad/controller, A/V switching, microphone mixing and amplification
  • Simple device configuration
• Ethernet port allows device configuration from a central location and enables the ControlPad to be part of a larger RMS installation

FOR THE NOVARA 3000 SERIES

IR REMOTE CAPABILITY:

The new CP-RC01 infrared remote control offers convenient. in-room control of the 8- and 17-button Novara 3000 Series.

POWERED BY POE:

The new PS-PoE-EX0.9 Power Over Ethernet (PoE) Extractor simplifies Novara 3000 Series installs and eliminates long power cable runs. Power is extracted from the data cable coming from a PoE-enabled Switch such as the new AMX NXA-ENET8-2PoE Gigabit PoE Ethernet Switch.

PODIUM MOUNTING KITS:

Podium Mounting Kits are available for the CP-3008 8-Button and CP-3017-NA 17-Button ControlPads to provide a simple and elegant means for mounting ControlPads flush onto the top edge of a podium.

NOVARA 3000 SERIES FAMILY

OPTIONS

ORIENTATION:

PORTRAIT: LANDSCAPE (MODELS VARY)

LOCATION:

WALL. FLUSH-MOUNT, TABLE TOP

NAVIGATION:

6.8 OR 17 PUSHBUTTONS, ROTARY

VOLUME KNOB (8 & 17 BUTTONS)

COLORS:

BLACK. WHITE. ALUMINUM

Front view of a control panel with buttons and display (no readable text or symbols)

NOVARA 17-BTN+NAV+TR.
4-GANG CONTROLPAD

Scanned image of a control panel with labeled buttons and icons, including 'APDC' and 'OK'

NOVARA 17-BTN+NAV.
2-GANG CONTROLPAD

Front view of a beige electronic control panel with buttons and display icons (no readable text or symbols)

NOVARA 8 BUTTON
CONTROLPAD

NOVARA & BUTTON
CONTROLPAD

NOVARA CONTROLPADS & KEYPADS

2000/1000

NO'ARA

4 to 16 Buttons

Even more models to choose from with 4-, 6-, 8-, and 16-button panel layout options designed especially to support a variety of UK and EU mounting locations.

Port It Up

Includes 2 relay ports for relay control and 2 RS-232 ports including the X-port for connection to Novara IP Controllers.

Events Welcome

Each Novara 2000 ControlPad can execute up to 1315 events.

Off On Laptop Picture Blank Main PC Volume Up Audio Mute AMX

NOVARA 1000 SERIES

Buttons Your Way

Includes acetate sheet with 50 pre-cut button label inserts for easy, cost effective labeling.

Intuitive Operation

Blue, backlit buttons with programmable feedback for intuitive operation.

8 or 16

Extremely user-friendly ControlPads feature your choice of 8 or 16 assignable device/function buttons – perfect for simpler installations.

NOVARA 2000 SERIES

Simple, Cost Effective Device Control

Looking for simplified device control that combines just the right mix of ease of use, programming simplicity and cost effectiveness? You've found it with Novara 1000 and 2000 Series ControlPads, which are ideal for education, government and other cost-sensitive markets that need functional and reliable device and room control. Novara offers the ability to easily control presentation devices such as projectors, projection screens, video displays and other audio visual equipment, as well as a variety of serial or IR-controllable devices like lighting and window treatments.

KEY FEATURES

• Ideal for attracting customers needing a cost-effective interface with onboard device control
  • Straightforward installation offers many mounting locations
  • Simple programming consumes less dealer resources

QUICK FACTS NOVARA 2000 CONTROLPADS

Button Type Feedback Indicator Compatible Bond Rates			Dimensions (HWD)
PRINTED	BLUE BACKLIT BUTTONS WITH PROGRAMMABLE FEEDBACK	1200 - 115200 VARIES BY MODEL

*Metric dimensions available at AMX.com

NOVARA 1000 SERIES FAMILY

OPTIONS

ORIENTATION.

PORTRAIT. LANDSCAPE (MODELS VARY)

LOCATION:

WALL FLUSH-MOUNT TABLE TOP

NAVIGATION:

4.6.8.AND 16 PUSHBUTTONS

COLORS:

BLACK, WHITE, BRUSHED ALUMINUM

CP-1016-TR UK

CP-2008 UKCP-2006 EU

CP-2016-TR

hydraport

ARCHITECTURAL CONNECTION PORT

Base Assemblies

Exterior view of a modern office building (no signage)

HPX-1600-BL
Black Anodized Aluminum Base
Assembly with Power Inlet

Exterior view of a modern office building (no signage)

HPX-1600-SL
Silver Anodized Aluminum Base
Assembly with Power Inlet

Exterior view of a server rack unit with multiple ports and connectors (no visible text or labels)

HPX-600SL
HydraPort 6 Module Connection
Port Silver nnodized Aluminum Base
HPX-600BL
HydraPort 6 Module Connection
Port Black Anodized Aluminum Base

Interior view of a server rack with multiple drive units and ventilation grilles (no visible text or labels)

HPX-900SL
HydraPort 9 Module Connection
Port Silver Anodized Aluminum Base
HPX-900BL
HydraPort 9 Module Connection
Port Black Anodized Aluminum Base

Interior view of a server rack unit with multiple ports and connectors (no visible text or labels)

HPX-1200SL
HydraPort 12 Module Connection
Port Silver Anodized Aluminum Base
HPX-1200BL
HydraPort 12 Module Connection
Port Black Anodized Aluminum Base

Introducing

Retractable Cable

Modules & Flat Cables

Retractable Cable Modules

Simple, compact

design is 85% smaller

than the competition

Close-up of a black electrical switch component with mounting holes and a metallic connector (no visible text or symbols)

HPX-AV101-HDMI-R
Single HDMI Module
with Retractable
Cable

HPX-AV102-RGB+A-R
RGBHV Video with
Stereo Module with
Retractable Cable

HPX-AV101-DP-R
DisplayPort Module
with Retractable
Cable

HPX-N101-ETH-R
Single Ethernet RJ45
with Retractable
Cable

Flat Cables

Black cable with two connectors, no visible text or symbols on the cable itself

CBL-HDMI-FL-16
HDMI High Speed Flat Cable with
RedMere® Technology, 16° 5" (5 m)

Black cable with two connectors, no visible text or symbols on the cable itself

CBL-DP-FL-16
DisplayPort to HDMI Flat Cable with
RedMere® Technology, 16' 5" (5 m)

CBL-ETH-FL-16
Ethernet Flat Cable.
16' 5" (5 m)

Two black USB connectors with metallic leads, shown against a dark background (no text or symbols visible)

CBL-RGB+A-FL-16
RGB with Audio Flat Cable.
16' 5" (5 m)

ARCHITECTURAL CONNECTION PORT

Control Modules

HPX-U400-MET-6N Metreau-6N Keypad Kit - 6-Button with Navigation (with HPX Carrier) for HPX-1600

HPX-U400-R-MET-6N Metreau -6N Keypad Ramp Mount Kit (with HPX Carrier) for HPX-600, 900 & 1200

Close-up of a black rectangular electronic component with a grid of metallic pins (no visible text or symbols)

HPX-U400-MET-13 Metreau-13 Keypad Kit - 13-button (with HPX Carrier) for HPX-1600

HPX-U400-R-MET-13 Metreau -13 Keypad Ramp Mount Kit (with HPX Carrier) for HPX-600, 900 & 1200

FANER HOLD LARGE TARE E-RATE CAPRIT

HPX-U400-MET-7 Melreau-7 Keypad Kit - 7-Button (with HPX Carrier) for HPX-1600

HPX-U400-R-MET-7 Metreau -7 Keypad Ramp Mount Kit (with HPX Carrier) for HPX-600, 900 & 1200

HPX-U400-SP-08-AX Novara KeyPad with AxLink - 8-Button

HPX-U400-CP-1008 Novara ControlPad - 8-Button

HPX-U100-BTN Single Button Module with LED

Audio/Video Modules

HPX-AV101-HDMI-R Single HDMI Module Retractable Cable Version

HPX-AV101-HDMI Single HDMI Module

HPX-AV102-RGB+A-R RGBHV Video with Stereo Audio Retractable Cable Version

HPX-AV100-RGB+A RGBHV Video with Stereo Audio

Networking Modules

HPX-N101-ETH-R Single Ethernet RM5 Retractable Cable Version

HPX-N102-USB-PC Dual USB Module with Printed Charging Symbol, Includes Power Source

HPX-N100-RJ45 Single Ethernet RJ45

HPX-N102-USB Dual USB Module with Printed USB Symbol

HPX-N102-RJ45 Dual Ethernet RJ45

HPX-N100-USB Single USB

Power Modules

HPX-P200-EU (for HPX-1600) HPX-P250-PC-EU (for HPX-600, 900 & 1200) Power Outlet Modules (EU)

HPX-P200-UK (for HPX-1600) HPX-P250-PC-UK (for HPX-600, 900 & 1200) Power Outlet Modules (UK)

HPX-P200-AU (for HPX-1600) HPX-P250-PC-AU (for HPX-600, 900 & 1200)

HPX-P200-IN (for HPX-1600) HPX-P250-PC-IN (for HPX-600, 900 & 1200) Power Outlet Modules (IN)

HPX-P200-US (for HPX-1600) HPX-P250-PC-US (for HPX-600, 900 & 1200) Power Outlet Modules (US)

HPX-N102-USB-PC Dual USB Module with Printed Charging Symbol. Includes Power Source

The HPX-1600 compatible modules have discrete hot, neutral and ground wires that connect to a header on the power inlet assembly. The HPX-600/900/1200 compatible modules have individual IEC sockets for connecting to power.

Module Blanks & Cable Pass-Thru Modules

HPX-B200 Blank - 2 Module space

HPX-CPT200 Cable Pass-Thru Module for HPX-1600

HPX-CPT200-W Cable Pass-Thru Module for HPX-600, 900 & 1200

HYDRAPORT

GROMMETS

The HPG-20 and HPG-10 HydraPort Grommets provide an elegant cable management solution for smaller tables or special locations on larger tables.

Close-up of two black cable connectors with green and white tags, mounted on a circular base (no text or symbols visible)

HPG-10 3/4" Mini-Grommet

Stack of circular metallic or reflective objects with varying shades of gray and white, arranged vertically (no text or symbols)

HPG-20B-GB 2" Grommet Gloss Black in Black Metal

HPG-20B-MB 2" Grommet Matte Black in Black Metal

HPG-20B-GS 2" Grammet Gloss Silver in Black Metal

HPG-20B-FG 2" Grommet Frosted in Black Metal

HPG-20S-GB 2" Grammet Gloss Black in Silver Metal

HPG-20S-MB 2" Grammet Matte Black in Silver Metal

HPG-20S-GS 2" Grommet Gloss Silver in Silver Metal

HPG-20S-FG 2" Grammet Frosted in Silver Metal

HPG-20-SL 2" Grommet Matte Silver Plastic

hydraport

connection preview

hydraport
connection preview

Search Settings Analysis Modifiers Control Network Audio/Video Composite with Shares I2PX EAT3 Kit with I2PX carrier Power Blocks/Labels Current Windows United States 44 Design Version

Interior view of a server rack unit with multiple connected ports and connectors (no visible text or labels)

Module Details Racker Composite with terms to CAF Module Roach HP 00052 TG Number POLEZ PDB ID Descriptions the JME DREAM CE1A inline software Customs color and dramers colors comorbidity to the other/other classes and other press. PREF: $320.00 Side View Back View More Info Add to Design Complete 9-7

Hudroport Control Lamps 1) Install Step Power Standard 2) Control Lamps Control Lamps 3) Control Limits

Select from
standard
configurations of
the most popular
modules to ensure
you have the right
connections.

Two black industrial control device components with no visible text or symbols

Print both sides of your connection port for reference, to accompany a sales order, for your records or to show your customer.

BUILD TO SUIT

HydraPort Preview is a web application on AMX.com designed to help you build the perfect connection port for all your AV, control, network, and power requirements. Select the appropriate base (HPX-600, HPX-900, HPX-1200 or HPX-1600), then simply select the modules you'd like to include. When you are done, enter the job details and print a color preview of your custom designed configuration as a visual reference for

HydraPort Standard Configuration Layouts

are pre-designed common

connectivity layouts available

in the HydraPort Connection

Preview web application.

NetLinx Control

Cat5Novara Control

Vertical panel with four electronic components and icons, no visible text or symbols

ConnectivitySimple. Control

your customer or as a double check for yourself. You can also print a parts list and eliminate the hassles of looking up part numbers, verifying the details PLUS you can save the information for instant retrieval. And don't worry, this intuitive interface monitors module space allocation and won't let you overload a side. It's like having a little connection device angel on your shoulder.

NEW

AMX EUROPEAN HYDRAPORT KITS

AVAILABLE FOR PURCHASE THROUGH AMX EUROPE ONLY

Each of these solutions uses retractable cables to avoid typical table top connectivity issues. These solutions are ordered under a single part number but are delivered un-assembled to allow for the addition of other modules. Available in black or silver and UK or European power sockets where applicable. For a complete listing of all available Kits, please email or call AMX Europe at: [e-mail] or: +44 (0) 1.904.343.100.

HPX-9-SL/BL-VHEDAC/EU
No matter what connection is required, we're over
Is required, you're covered. Includes support for HDMI
Includes Support for HDMI, VGA, DisplayPort, Ethernet and Power
HPX-6-SL/BL-VHAC/EU
Great for situations where a
wireless network is available.
Includes support for HDMI, VGA and Power.

HPX-9-SL/BL-VHEAC/EU
Ideal for connecting to the DXLink
Multi-Format Transmitter module.
Includes support for HDMI, VGA, Ethernet and Power.
HPX-6-SL/BL-VHPT
Frees users from having to bring
a power supply to the meeting.
Includes support for HDMI, VGA and Cable Pass-Thru.

Android ^TM , Apple ^® & Windows 8 ^®

TPControl Apps Now Include Windows Support

Include Windows Support Text Access Windows 7.0.1.2.1.3.1.4.1.5.1.6.1.7.1.8.1.9.2.0.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.

8:45 am NOW PLAYING 97.1 FM Preset 04 Tuning Favorites Preset 1 Preset 2 TUBE Preset 3 Preset 4 Volume Preset 5 Preset 6 BAND Preset 7 Preset 8 MUTE Volume

TPControl Features Including Voice Control

Touch Panel Control, the only AMX authorized product partner to provide touch panel functionality from Apple®, Android™ or Windows 8® devices, has added several exciting enhancements, including the ability to verbally, "voice-activate" control functions. Now you can simply say "adjust lights to daytime setting" and TPControl will do the rest - instructing your AMX control system to execute the requested action and confirm with the audio response "the lights have been adjusted to 50% of full brightness." Check out a spotlight of the enhanced TPControl features listed below.

• VoiceControl - Using Speech-to-Text and Text-to-Speech functionality within TPControl allows you to talk to your control system and have it talk to you.
• AppControl - Launch installed applications directly from TPControl; start an SMS, launch an email client, web pages and much more without leaving the TPControl environment
• Multi-Profiles - Dynamically and instantly change connection profiles such as office or home, connecting seamlessly to different control systems from the same device
• Intercom - Converse from TPControl to devices such as the AMX Metreau Communicator, AMX Intercom enabled touch panels, and other TPControl enabled devices
• TPCloud - Cloud power lets you update TP4 files, change device settings or even apply tokens to TPControl devices, right from the My Account section of the Touch Panel Control website
• eICSP - Encrypt, verify and secure ICSP data for your local and remote connections

touchpanelcontrol tpcontrol The Authorized ACCESS Touch Panel Applicable for iPhone, iPod Touch, iPad/Pad mixl, Android™ and Windows 8 devices iPhone / iPod Touch iPad / iPad mini You can be offered to administer and control of your customers, making and freemark computers. This dot represents TPI's support is available, one device (a can't be available) environmentally friendly and suitable for which media administration and support is closed. On a pack UTC - image Android™ Smartphones Android™ Tablets How do TPI's support is available Windows 6 PCs / Tablets Windows 8 Hi-thi have a platform supporting enterprise, analytics, analytics as an iOS customer service. It is also TP4 File Slot KEY Windows 8 PCs / Tablets

www.touchpanelcontrol.com

Two digital tablets displaying a futuristic scene with a character in motion (no visible text or symbols)

AMX on Android

TPControl Apps are available for Android Phones and Tablets and work seamlessly no matter which device you are using. All Android Apps are available for a free, fully-functional, 21-day trial download. For detailed information, download instructions and support, visit touchpanelcontrol.com. Contact your AMX Representative to purchase Android App licenses.

Screenshot of a tablet displaying weather data and a smartphone interface with a weather map and temperature display.

AMX on Apple

TPControl Apps are available for Apple iPads, iPhones and iPod Touches and work seamlessly no matter which device you are using. All Apple Apps are available for a free, fully-functional, 21-day trial download. For detailed information, download instructions and support, visit touchpanelcontrol.com. Contact your AMX Representative to purchase Apple App licenses.

Black tablet device with green screen displaying app icons, no visible text or symbols on the device itself

AMX on Windows 8® / RT

You wanted it – you got it!

The demand for a Windows 8 ^® TPControl App was incredible so the team at Touch Panel Control went to work and now

it's here. TPControl enables Windows 8 PCs and tablet devices to transform into a fully functional touch panel for controlling AMX system platforms. This easy-to-use application provides real-time, touch control of AV systems,

Tablet screen displaying Android app interface with green UI elements and a virtual scene preview

lighting, shades, room temperatures and more. These Windows 8/RT devices can communicate remotely with an AMX control system via WiFi or Wired Ethernet. Supported devices include: Windows 8 PCs, Windows 8 Tablets and Windows RT Tablets.

A WHOLE NEW WAY OF THINKING

OPEN THE WORLD WITH

NETWORK MEDIA™

Illustration of a person climbing a wall with a camera, surrounded by spheres (no text or symbols)

Vertical stack of app icons including Windows, Google, and RSS feed on a blue background (no text or symbols)

BREAKING NEWS

Network Media breaks through the distance boundaries of audiovisual infrastructure. Bridge room AV to the globe – share live / pre-recorded / broadcast

video, data, presentations and more around the globe while capturing and presenting it in exiting and flexible ways to maximize impact.

VIDEO ENCODERS

NEW

NETWORK MEDIA

H.264 ENCODERS

The On-Ramp to NETWORK MEDIA

If you have a PC, camera or set top box that you want to stream on a network, you need an encoder to convert the audio and video outputs of those sources to a format that can be streamed. The AMX H.264 Encoder offers standardized, bandwidth-efficient encoding for SD and HD sources.

• Multi-format video input for encode of analog and digital video signals
• SDI input for encode of SD-SDI, HD-SDI, and 3G-SDI
- Audio/video pass-through outputs allow you to daisy chain encoders together for low and high bandwidth streams, or to monitor your encoded source
• Encoded video can be recorded for on-demand playback
- Built-in managed Ethernet switch allows for installation of one or more encoders in a location without having to run additional Ethernet cables
- Audio level meter on front of unit makes it easy to validate that user audio is being picked up

NEW

AMX SPREAD 40 VIDEO 40 POWER 40 AUDIO 50 USB

Front panel of a network device showing ports, connectors, and indicator lights (no readable text or symbols)

NMX-ENC-1105 H.264 ENCODER MULTI-FORMAT + SDI

NEW

AMX EVEAR 40 VIDEO 40 POWER 40 AUDIO 50 USB +3.5V +2.5V

Back panel of a network device showing ports and connectors (no visible text or labels)

NMX-ENC-1100 | H.264 ENCODER MULTI-FORMAT

Quick Facts H.264 ENCODERS

Model Video Inputs Video Codec Audio Codec Streaming Maximum Resolution
NMX-ENC-1100	Multi-Format	H.264 (MPEG-4 Part 10)	AAC-LC ADTS		MPEG-2 TS over UDP, RTP	1080p30
NMX-ENC-1105	Multi-Format, SDI	H.264 (MPEG-4 Part 10)	AAC-LC ADTS		MPEG-2 TS over UDP, RTP	1080p30

VIDEO STREAMING

NETWORK MEDIA

NETWORK MEDIA VISION²

use Vision ^2 to stream live to multiple viewers

Vision ^2 allows you to leverage your corporate infrastructure to stream live events such as all hands meetings, sales conferences or training classes to any number of destinations staff located around the globe – while effectively managing network impact. With a simple button press, a live event can be captured and streamed to employees watching on displays in a

cafeteria, PCs at a desk or on a laptop when working remotely. As video viewing on mobile devices grows in popularity, AMX has a solution by proving a user interface that makes it simple to watch while on the go. Whether it's an iPhone, iPad or Android device, Vision ^2 can provide a beautiful quality video that will enhance communication within an organization.

ON DEMAND VIDEO

NETWORK MEDIA

NETWORK MEDIA VISION²

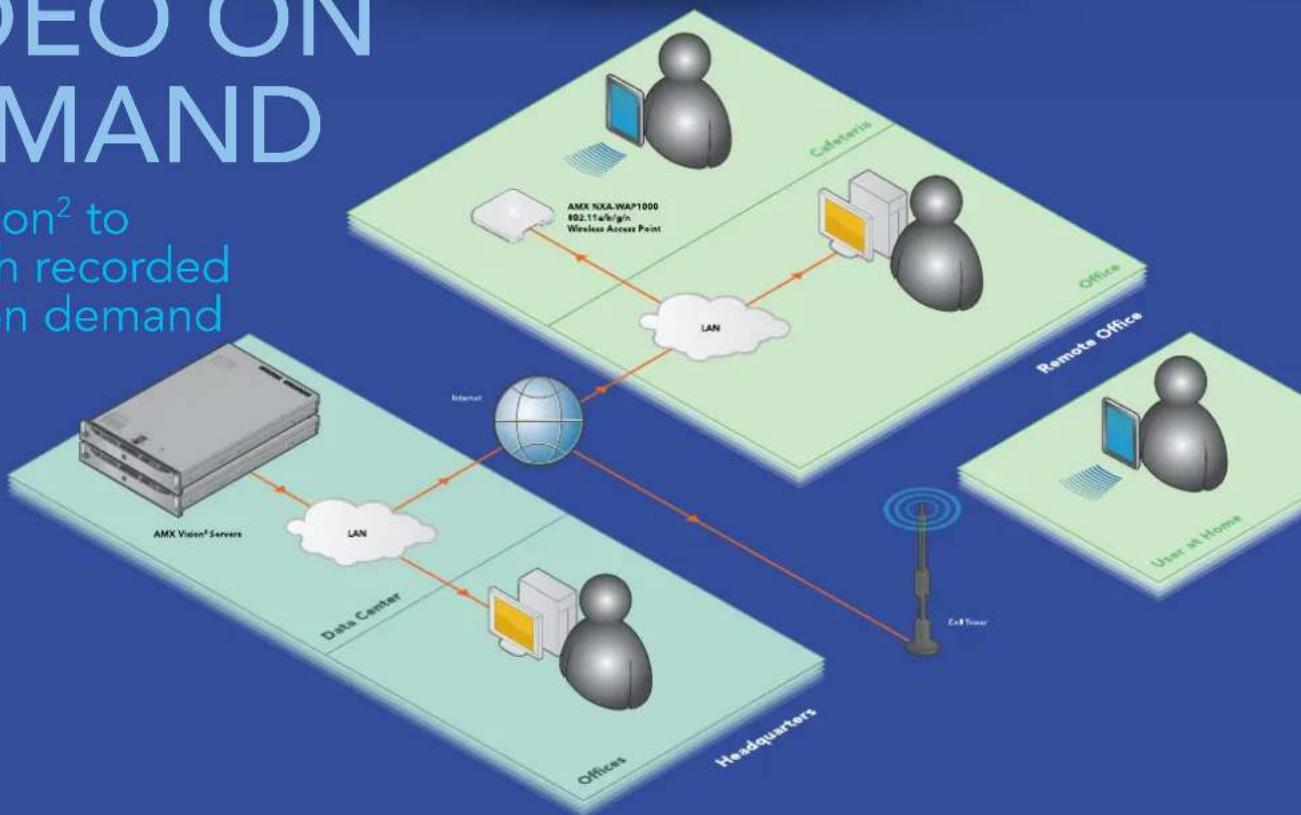

VIDEO ON DEMAND

use Vision ^2 to watch recorded video on demand

Vision ^2 makes it beautifully simple to watch recorded digital videos anywhere, anytime. During the record and store process, videos can be meta-tagged with information that makes it easy to search for them later by keyword, subject or other metadata.

Global organizations can benefit from video playback as some events and activities can only take place during specific timeframes. And unique applications

can be enabled such as recording a medical procedure for review with a patient or student.

Vision ^2 now integrates with NAS (Network Attached Storage) and SAN (Storage Area Network) to easily integrate with existing infrastructure and backup procedures, and has enhanced roles and privileges allowing ownership delegation to various groups within a corporation.

DATA INTEGRATION SOFTWARE

NETWORK MEDIA

XPORT

Now You Can XPort Your Data Exactly the Way You Want!

With XPort Data Integration Software, you can pull data from a variety of sources and distribute it to touch panels, digital signage and mobile devices. It provides an easy and secure method to manage internal and external data feeds.

• Simple intuitive software gives anyone the ability to create custom feeds
  • Offers mobile friendly HTML output
  • Deliver content to touch panels, digital signage and mobile devices

A25K Google Touch Panels.

AMX DVX-31800-SP Why Are Meetings So Anful!" and More Imperently What Can Be Done? David Wageser's "C" (2016). AMX Guidance Answer Community must be used to serve Monday. than "Buy Sun Highlights So Anful!" and now. DVD Master Answer will use them.

Digital Signage

Screenshot of a weather monitoring system showing a tablet displaying weather data and a smartphone displaying weather charts.

Mobile Devices

NETWORK MEDIA

INSPIRED XPERT

Sophisticated Digital Signage in an Easy-To-Use Solution

Inspired XPert provides digital signage with the industry's best content tools to make creating and managing digital messages simple.

• The IS-XPT-2100 is a compact player that can be mounted behind displays and features high resolution 1080p processing power to support HD video, images, text, and internet feeds
• Addresses customer's content challenges with the availability of professionally designed, easy-to-use message templates
• Enables groups to manage their own content, while allowing a review and approval cycle before it is published to displays
• With no on-going software license fees, Inspired XPert is more cost effective than subscription-based solutions
• Supports display of internal and external data sources using XPort Data Integration Software
• NetLinx integration provides the ability to combine Inspired XPert with AMX Control systems to create messaging solutions that incorporate the entire environment
• Native integration with RMS Enterprise allows system administrators to monitor and control the signage player and its connected display device

COMPOSER SOFTWARE

• Permissions-based workflow management enables an approval process for created content
• Software installed on a user's server enables updates to content by multiple users
  • Supports LDAP authentication
  • Part of the Inspired XPert Management Suite

Screenshot of a web interface with Chinese text, showing a search bar, search options, and a confirmation dialog box.

NEW

PLAYER (IS-XPT-2100)

• Generates high-res images up to 1080p at 30 frames per second
• Compact player can be mounted behind display
• NetLinx integration allows for content control from a NetLinx system

AHX INSPIRED SIGNAGE 16800 2180

AVAILABLE TEMPLATE PAKS

• Corporate Template Pak includes designs relevant to business
• Education Template Pak includes designs relevant to schools

SAFETY ANNOUNCEMENT NO RUI IN THE SAFETY ANNOUNCEMENT TORNADO WARNING WILL DONE BOARD

AVAILABLE CUSTOM CONTENT

• Our experienced team of graphics designers work directly with customers to develop a custom set of templates

Whatever your business, we've got the landline

DIGITAL SIGNAGE

NETWORK MEDIA

INSPIRED XPRESS

AMX KDO NETWORK RESET IS-SPX-1300

A Small Giant!

Don't let its compact size fool you. While it has no moving parts and uses a mere three watts of power the IS-SPX-1300 has an embedded web server, metric collection capability and HDMI/VGA video outputs.

• View Content Being Played From the IS-SPX-1300 embedded web server an administrator can take a snapshot showing exactly what is playing on the connected display for status or reporting purposes
• HDMI and VGA Outputs The IS-SPX-1300 features 2 simultaneous, independent, active video output connections, one digital and one analog
• Powerful Compact Player This tiny player is small, light, with no moving parts, yet is packed with capabilities that most PC-based solutions can't match like live video and video wall support
  • Green The player uses only 3 watts of power

Quick Facts IS XPRESS SPX-1300

Maximum Resolution Video Output Audio Codecs Enclosure Size (HWD)
1280 x 720 (16:9),1024 x 640 (16:10),1024 x 758 (4:3)	720P (HD-READY),576P, 480P, VGA;50 OR 60 FPS	MPEG AUDIO LAYER1/2/3, ITU G.711,G.722, G.729,PCM,MICROSOFT WMA,REAL AUDIO	1" x 61/4" x 3 1/4"1 RU

A Dynamic Software Solution

Inspired XPress is ideal for delivering dynamic information to customers of retailers, hotels, banks, event venues and other public spaces in multiple languages. Content design is fluid, similar to a web page. Inspired XPress allows staff to create templates and content, and publish that content to IS XPress players.

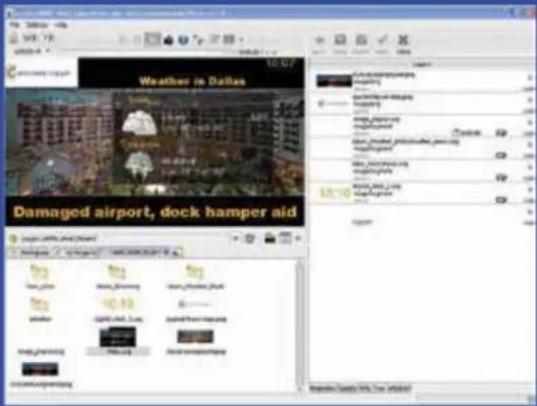

Weather in Dallas Damaged airport, dock hamper aid

• Easy-To-Use Inspired XPress software allows administrators to very easily create and manage their content and distribution.
• Standards Based Architecture Technology such as Scalable Vector Graphics (SVG) and XML produce graphics that are smaller, transmit more quickly, and are scalable without resolution loss.
• Wide Variety of Graphics Supported The design aspect of IS XPress software allows for the use of content already developed such as JPEG, PNG, GIF, and SVG for still image format and MPEG-2, MPEG-4, H.264, WMV 9 for SD motion video as well as importation of PowerPoint presentations.
