Product Type	VGA + Audio Extender over single CAT5/6/7
Brand	Atlona
Model	AT-RGB45SR
Transmission Distance	Up to 150 ft (45 m) over CAT6
Supported Resolutions	VGA to WUXGA (640x480 to 1920x1200)
Video Input	1 x VGA (HD15)
Video Output	1 x VGA (HD15)
Audio Input	1 x 3.5 mm stereo jack (transmitter)
Audio Output	1 x 3.5 mm stereo jack (receiver)
DDC / EDID Support	Yes
Hot Plug Detect	Yes
Power Supply	2 x 5V DC / 2.6A (100~240V AC adapters included)
Power Consumption	1W per unit (transmitter + receiver)
Dimensions (each unit)	3.1 x 3.58 x 1.18 in (78.7 x 90.9 x 30 mm)
Weight (each unit)	0.5 lb (227 g)
Chassis Material	Aluminum
Operating Temperature	32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity	20~90% RH (non-condensing)
ESD Protection	±8 kV air-gap discharge, ±4 kV contact discharge
Warranty	3 years limited warranty
Package Contents	Transmitter, Receiver, 2x power supplies, manual
Cleaning Instructions	Unplug device; clean with a damp cloth only; avoid liquids and aerosols
Safety	Keep away from moisture; use only included power supply; do not open casing

Frequently Asked Questions - AT-RGB45SR Atlona

What is the maximum transmission distance of the AT-RGB45SR?

The AT-RGB45SR can extend video and audio up to 150 feet (45 meters) over a single CAT5/6/7 cable.

What resolutions does the AT-RGB45SR support?

It supports resolutions from VGA (640x480) up to WUXGA (1920x1200) including common formats like 1080p.

Does the AT-RGB45SR support audio?

Yes, it transmits stereo audio alongside video. The transmitter has a 3.5mm audio input and the receiver has a 3.5mm audio output.

Do I need to use a specific type of CAT cable?

Atlona recommends using CAT6 UTP (solid) cables, but the extender works with CAT5, CAT5e, CAT6, and CAT7 cables.

How do I connect the AT-RGB45SR?

Connect your PC's VGA and audio outputs to the transmitter. Run a single CAT cable from the transmitter's RJ45 output to the receiver's RJ45 input. Then connect the receiver's VGA and audio outputs to your display or projector.

Does the extender require external power?

Yes, both the transmitter and receiver need power. Two 5V DC power supplies are included in the package.

What is DDC/EDID support and why is it important?

DDC (Display Data Channel) allows the video card to read the EDID of the connected display, ensuring correct resolution and settings. The AT-RGB45SR supports DDC, which is crucial for proper video output.

Can I use the AT-RGB45SR with component video?

Yes, with appropriate VGA-to-component adapters, the AT-RGB45SR can transmit component video signals.

What should I do if the device stops working?

First, unplug both units and plug them back in. If the issue persists, check cable connections, power supplies, and ensure the display is powered on. Electrostatic discharge may cause automatic shutdown; simply power cycle the units.

How long is the warranty for the AT-RGB45SR?

Atlona provides a 3-year limited warranty from the date of receipt. Registration is recommended but not required for warranty.

USER MANUAL AT-RGB45SR Atlona

KIT OVER SINGLE CAT5/6/7

WITH DDC SUPPORT

AT-RGB45SR

TABLE OF CONTENTS

1. Introduction 2
2. Applications 2
3. Package Contents 2
4. Features 2
5. Specification 3
6. Hardware Description 4

6.1. Front Panel 4

6.2. Rear Panel 4

1. Connection and Installation 5
2. Safety Information 6
3. Warranty 7
4. Atlona Product Registration 8

INTRODUCTION

The Atlona AT-RGB45SR (transmitter and Receiver) Extender units with stereo Audio allow users to extend Video signal with resolutions VGA\~WUXGA (640x480\~1920x1200) up to 150ft (45m). The RGB45SR is designed to extender both audio and video on a single low cost CAT5, 6 or 7 Cable. The extenders are featured with DDC (EDID) support, which is needed for video cards to know what the display capabilities are. The AT-RGB45SR extenders transfer signal in real time with less than 2ms of delay.

Note: The AT-RGB45SR is capable of sending Component Video signal via VGA/Component adapters.

APPLICATIONS

• Office Workstation: PC to Monitor Extension allows extending video and audio up to 150ft away from the workstation.
• Conference Room or Boardroom: PC to Projector Extension allows extending video signal over long distance utilizing existing CAT5, 6 or 7 cables. This solution is perfect for Schools and Universities.
• Computer/Monitor Testing: Since the AT-RGB45SR are capable of supporting DDC (EDID), it would make it easy for QA department to test Displays/computers which are further away from the testing area.
• Airport/Train Station: The RGB45SR's are based on low power chip-set which is designed to work for many years without a need to reboot/reset.

PACKAGE CONTENTS

• AT-RGB45SR (transmitter and Receiver are included)
• 5V DC power supply x 2
• Operation Manual

FEATURES

• Transmits real time Video and Audio up to 150ft
• Supports extremely high resolutions up to WUXGA (1920x1200)
• Supports DDC (EDID), allows video card to know what the display capabilities are.
- Based on the low power chip-set, therefore can last many years without reboot/reset
- Designed to transmit both Video and Audio on low cost CAT5/6/7 Cable
• Support Hot Plug Detect

SPECIFICATION

Input PortT	ransmitter1 x VGA, 1 x 1/8-inch (3.5mm) jack
	Receiver 1 x RJ45
Output PortT	transmitter1 x RJ45
	Receiver 1 x VGA, 1 x 1/8-inch (3.5mm) jack
CAT6 Cable* 150ft (45m)
Support resolution 640x480@60/72/75/85, 720x400@70,800x600@56/60/72/75/85, 1024x768@60/70/75,1280x720@60,1280x768@60, 1280x800@60RB/60, 1280x960@60,1280x1024@60/75, 1366x768@60RB/60,1440x900@60RB/60/75, 1680x1050@60, 1600x1200@60,1920x1080@60p,1920x1200@60RB
ESD ProtectionH uman body model: ± 8kV (air-gap discharge)± 4kV (contact discharge)
Dimensions (inch) 3.1(W) x 3.58(D) x 1.18(H)
Power Supply 2x5V DC / 2.6A (100~240V)
Weight (lb) 0.5 each unit
Chassis Material Aluminum
Power ConsumptionT ransmitter: 1W, Receiver: 1W
Operating Temperature	0°C~40°C / 32°F ~ 104°F
Storage Temperature	-20°C~60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

* Atlona recommends using CAT6 UTP (solid) cables; however the RGB45SR unit can work with standard Cat5, Cat5e, Cat6, and Cat7 cables.

HARDWARE DESCRIPTION

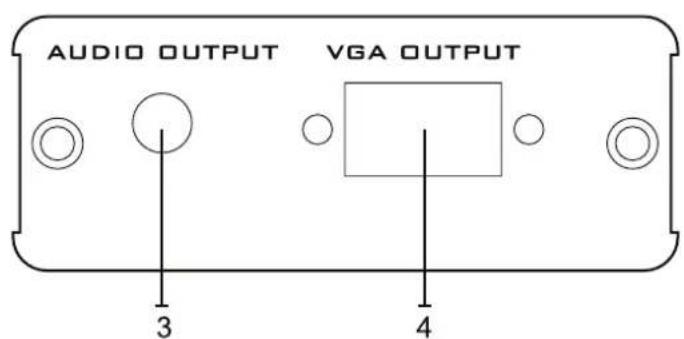

6.1. Front Panel

Transmitter

Receiver

1. AUDIO INPUT: This input is for connecting audio output from the sound card of the computer. For audio to be transferred, video signal in the VGA INPUT is required.
2. VGA INPUT: This input is for connecting VGA (HD15) output of the computer.
3. AUDIO OUTPUT: This output is for connecting audio output from receiver module to a set of powered speakers or monitor with speakers.
4. VGA OUTPUT: This output is for connecting video output from receiver module to VGA (HD15) input on the computers monitor/projector.

USB202 Installation

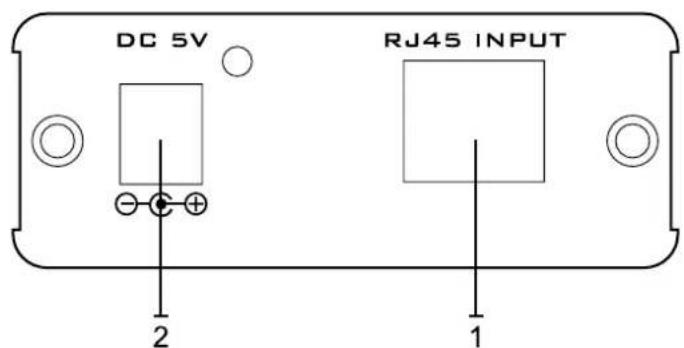

6.2. Rear Panel

Transmitter

Receiver

1. RJ-45 OUTPUT / INPUT: Connect CAT5, 6 or 7 cable up to 150ft
2. DC 5V: Connect with supplied power supplies

CONNECTION AND INSTALLATION

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-RGB45SR. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

WARRANTY

Limited Warranty

Atlona Technologies warrants that (a) its products (the AT-RGB45SR) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
