Product Type	HDMI over 5-Wire Extender with Bi-directional IR
Brand	Atlona
Model	AT-HD-RG100SR
Dimensions (Transmitter/Receiver)	93 x 128 x 27 mm (3.6" x 5" x 1.1")
Package Dimensions	175 x 270 x 80 mm (6.9" x 10.6" x 3.1")
Net Weight (per module)	560 g (1.2 lbs)
Package Weight	1350 g (3.0 lbs)
Power Supply	+5V 2A DC (included)
Power Consumption	3 Watts max
HDMI Compliance	HDMI 1.3c, HDCP 2.0 compliant
Maximum Transmission Range	100 m (330 ft) at 1080p 24-bit color; 50 m (165 ft) at 1080p 36-bit color
Supported Resolutions	480i/p, 720p, 1080i/p60, 1920x1200@75Hz, 2560x1600@60Hz (WQXGA)
3D Support	Yes (all 7 formats)
Audio Support	7.1 channel DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, etc.
Video Bandwidth	Single-link 340 MHz (10.2 Gbps)
IR Pass-through	Bi-directional, 20-60 kHz carrier frequency
Connectors (Transmitter)	1x HDMI input, 5x BNC output, 2x 3.5mm IR sockets
Connectors (Receiver)	5x BNC input, 1x HDMI output, 2x 3.5mm IR sockets
Included Accessories	1x IR blaster, 1x IR receiver, 2x 5V power supply, 10x BNC/RCA adapters, user manual
Housing Material	Metal enclosure
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	20% to 90% (non-condensing)
Care Instructions	Unplug before cleaning; use a damp cloth; do not use cleaning fluids or aerosols
Safety Notes	Avoid moisture, use only supplied power supply, do not open unit (voids warranty)
Repairability / Spare Parts	No user-serviceable parts; warranty void if opened; contact authorized reseller for service

Frequently Asked Questions - AT-HD-RG100SR Atlona

What is the maximum transmission distance of the AT-HD-RG100SR?

The extender can transmit up to 330 ft (100 m) at 1080p 24-bit color depth, and up to 165 ft (50 m) at 1080p 36-bit color depth.

Does the AT-HD-RG100SR support 3D video?

Yes, it supports all 7 formats of 3D video.

What types of cables can be used with this extender?

It works with existing RGBHV or RG-6 coaxial cables, as well as original Component + Audio cables. BNC/RCA adapters are included.

Can I control my source device from the display location?

Yes, the extender features bi-directional IR pass-through. You can plug an IR receiver into the display side and an IR blaster near the source to send commands back.

What audio formats are supported?

It supports up to 7.1-channel surround sound including Dolby TrueHD, DTS-HD Master Audio, and standard digital audio.

Is the AT-HD-RG100SR HDCP compliant?

Yes, it is HDCP 2.0 compliant, ensuring compatibility with protected content.

What power supply is required?

Each module requires a +5V 2A DC power supply. Two units are included in the package.

How do I clean the device?

Unplug the device before cleaning. Use a damp cloth for cleaning; do not use cleaning fluids or aerosols.

What should I do if the device stops working due to electrostatic discharge?

If the device turns off unexpectedly, unplug it and plug it back in to reset. This is normal behavior.

Can I repair the unit myself?

No, there are no user-serviceable parts inside. Opening the unit will void the warranty. Contact your authorized Atlona reseller for service.

USER MANUAL AT-HD-RG100SR Atlona

HDMITM Extender over 5-Wire (RGBHV or 5 x RCA) up to 330ft with Bi-directional IR AT-HD-RG100SR

Receiver

Sender

User Manual

TABLE OF CONTENTS

1. Introduction 2

2. Package Contents 2

3. Features 2

4. Specification 3

5. Panel Descriptions 4

5.1. Transmitting Module 4

5.1.1. Front Panel 4

5.1.2. Rear Panel 4

5.2. Receiving Module 4

5.2.1. Front Panel 4

5.2.2. Rear Panel 5

1. IR Pass-through 5

6.1. IR Extenders 5

6.2. IR Sockets 5

6.3. Definition of IR Earphone Jack 6

6.4. Supported IR Data Format 6

1. HDMI™ Pin Definition 7

2. Coaxial Cable 7

3. Safety Information 8

4. Warranty 9

5. Atlona Product Registration 10

INTRODUCTION

The AT-HD-RG100SR HDMI™ over 5-Wire Extender with Bi-Directional IR allows user to extend HDMI™ transmission range up to 330ft (100m) with resolutions as high as 1080p 50/60Hz and also supports 3D. AT-HD-RG100SR is extremely easy to install and works perfectly with existing RGBHV or RG-6 coaxial cables, even original Component + Audio cables will work, which makes it perfect to retrofit those extenders to the current technology. Built with Bi-Directional IR pass-through extension, users can control the remote HDMI™ source devices such as Blu-ray players, Cable/Sat Boxes, Video Game consoles, etc... instantly at the display site. The Bi-Directional IR also gives advantage to user to control display via Control System by sending commands (such as on/off, input change, etc...) from Control System to Display.

The AT-HD-RG100SR comes with one transmitting module and one receiving module. Both transmitter modules are based on the HDMI™ 1.3C and HDCP 2.0 and therefore are compatible with:

- All latest video formats such as 1920x1200 or 1080p

• 3D Compatible (all 7 formats)

- EDID pass-though (very important if user would want to connect sources such as computers, 3D players, latest Satellite receivers).

• Supports all latest Audio formats such as Dolby True HD, DTS-master, etc...

- HDCP compatible

FEATURES

- 3D capable

• HDMI™ 1.3c and DVI 1.0 compliant

- HDCP compliant

• Supports 7.1-channel DTS-HD Master Audio and Dolby TrueHD high bitrate audio

• Supports Deep Color and x.v.Color (xvYCC)

- Extends the transmission range up to 330ft (100m) at full 1080p 24-bit color depth; and up to 165ft (50m) at full 1080p 36-bit color depth

• Supports bi-directional IR pass-through (0\~60Khz) and Consumer Electronics Control (CEC) channel

• Supports Video resolutions up to WQXGA (2560x1600@60Hz or 1920x1200@75Hz) or 1080p

• Supports VESA DDC and Hot-Plug Detect (HPD)

PACKAGE CONTENT

• 1x AT-HD-RG100SR

- 1x IR blaster

- 1x IR receiver

• 2x 5V power supply unit

• 1x User's manual

• 10 x BNC/RCA adapters

SPECIFICATIONS

Technical Transmitter Receiver
3D Support Yes Yes
HDMITM compliance HDMI 1.3c
HDCP compliance Yes
Video bandwidth Single-link 340MHz [10.2Gbps]
Video Support 480i / 480p / 720p / 1080i / 1080p60 / 1920x1200@75 / 2560x1600@60
Audio Support Surround sound (up to 7.1ch) or stereo digital audio
HDMITM over Coax transmission range		Full HD [1080p 24-bit color] @ 330ft (100m)Deep Color Full HD [1080p 36-bit color] - 165ft (50m)
HDMITM equalization N/A Auto
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection		[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge][2] Core chipset — ±8kV
PCB stack-up		4-layer board [impedance control — differential 100 Ω; single 50 Ω]
Input 1x HDMI		TM1x IR socket for IR receiver	5x BNC1x IR socket for IR receiver
Output		5x BNC1x IR socket for IR blaster	1x HDMITM1x IR socket for IR blaster
IR remote control		Electro-optical characteristics: t = 25 ° / Carrier frequency: 20-60kHz
HDMITM connector		Type A [19-pin female]
BNC connector		75 Ω interlocking socket
3.5mm connector		Earphone jack for IR blaster and IR receiver
Mechanical
Housing		Metal enclosure
Dimensions(L x W x H)	Model	[TX/RX] - 93 x 128 x 27mm [3.6" x 5" x 1.1"]
	Package	175 x 270 x 80mm [6.9" x 10.6" x 3.1"]
	Carton	450 x 370 x 300mm [1'6" x 1'3" x 1']
Weight	Model 560g [1.2 lbs]
	Package 1350g [3.0 lbs]
Fixedness		Interlocking power supply & wall-mount case with screws
Power supply		+5V 2A DC
Power consumption		3 Watts [max]
Operation temperature		0~40°C [32~104°F]
Storage temperature		-20~60°C [-4~140°F]
Relative humidity		20~90% RH [no condensation]

PANEL DESCRIPTIONS

1. Transmitting Module 1.1. Front Panel

1. IR Receiver: 3.5mm socket for plugging in the extension cable of IR receiver
2. IR Blaster: 3.5mm socket for plugging in the extension cable of IR blaster
3. HDMITM IN: connect to a HDMITM source device with a HDMITM male-male cable here
4. +5V DC: connect to 5V DC power supply unit

1.2. Rear Panel

1. Receiving Module 2.1. Front Panel

1. IR Receiver: 3.5mm socket for plugging in the extension cable of IR receiver
2. IR Blaster: 3.5mm socket for plugging in the extension cable of IR blaster
3. HDMITM OUT: connect to a HDMITM display with a HDMITM male-male cable
4. +5V DC: connect to 5V DC power supply unit

2.2. Rear Panel

IR PASS-THROUGH

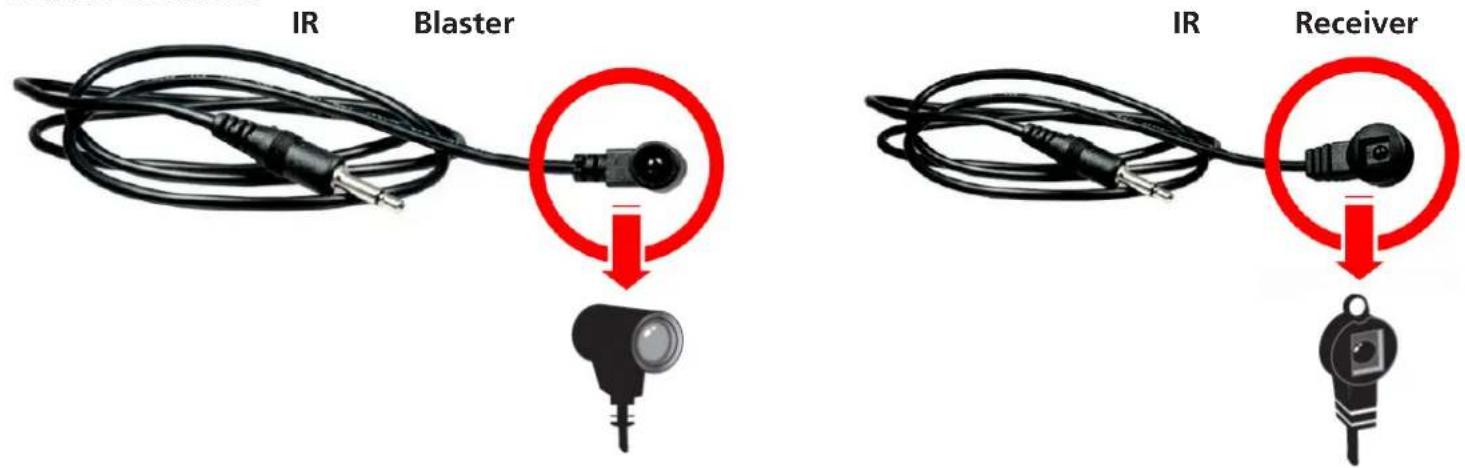

6.1. IR Extenders.

6.2. IR Sockets

IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other enf to control the devices corresponding to the IR signals.

IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices.

CAUTION!

Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets. Warranty will not cover the damage.

6.3. Definition of IR Earphone Jack.

IR
Blaster

IR
Receiver

1. Power
2. IR Signal (60KHz)
3. Grounding

6.4. Supported IR Data Format.

Data Format Suitable Not Recommended

NEC v
RC5 v
TOSHIBA MICOM CODE v
GRUNDIG CODE v
SONY 12 BIT CODE v
SONY 15 BIT CODE v
SONY 20 BIT CODE v
RCA CODE v
RCM CODE v
MATSUSHITA CODE v
MITSUBISHI CODE v
ZENITH CODE v
JVC CODE v
M50560-001P	v
MN6125H v
MN6125L	v
MN6014_C5D7	v
MN6014_C6D6	v
MC14457P	v
LC7464(AHEA)	v
GEMINI_CM	v

HDMI™ PIN DEFINITION

Type A (Receptacle) HDMI

Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 SCL
Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0- Pin 16 SDA
Pin 3 TMDS Data2- Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground
Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield Pin 18 +5 V Power
Pin 5 TMDS Data1 Shield Pin 12 TMDS Clock- Pin 19 Hot Plug Detect
Pin 6 TMDS Data1- Pin 13 CEC
Pin 7 TMDS Data0+ Pin 14 Reserved (N.C. on device)

COAXIAL CABLE

Reference for Coaxial Cables 50Ω Coaxial cable

MHz dB loss per 100ft dB loss per 330ft
30 0.105 0.346
50 0.243 0.799
450 0.439 1.440
1500 0.855 2.840
2000 1.020 3.360
2500 1.170 3.840

75Ω Coaxial cable

MHz dB loss per 100ft dB loss per 330ft
50	1.45	4.756
100 2.02	0.799
200 2.83	1.440
400 4.05	2.840
700 5.60	3.360
800 6.23
1000 6.59
1200 7.50
1450 8.10
1800 8.95
2200 9.98	3.840

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture void the warranty and safety features. Do not modify the wall plug. Doing so will

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket. be easily accessible in the case it requires this equipment should be installed near the socket outlet and the device should disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.

Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD-RG100SR. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Atlona, Inc. ("Atlona") Limited Product Warranty Policy

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping OR

B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products

OR

C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona's products is the purchaser's exclusive remedy and Atlona's liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona's products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona's Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013

• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013

• Lifetime Limited Product Warranty for all cable products

Limited Product Warranty Terms – Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packing or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

- Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

- Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).

- Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com .

Atlona, Inc Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
