USER MANUAL X5260 LENOVO

Dual-Core Intel® Xeon® Processor 5200 Series

Datasheet

August 2008

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, or life sustaining applications.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

The Dual-Core Intel® Xeon® Processor 5200 Series may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. Consult with your system vendor for more information.

Intel® Virtualization Technology requires a computer system with an enabled Intel® processor, BIOS, virtual machine monitor (VMM) and, for some uses, certain computer system software enabled for it. Functionality, performance or other benefits will vary depending on hardware and software configurations and may require a BIOS update. Software applications may not be compatible with all operating systems. Please check with your application vendor.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Intel, Pentium, Intel Xeon, Intel SpeedStep Technology, Intel Core, and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

* Other names and brands may be claimed as the property of others.

Copyright © 2007-2008, Intel Corporation.

Contents

1 Introduction....9

1.1 Terminology 10
1.2 State of Data.... 13
1.3 References....13

2 Dual-Core Intel® Xeon® Processor 5200 Series Electrical Specifications....15

2.1 Front Side Bus and GTLREF 15
2.2 Power and Ground Lands.... 15
2.3 Decoupling Guidelines.... 16

2.3.1 VCC Decoupling.... 16
2.3.2 VTT Decoupling.... 16
2.3.3 Front Side Bus AGTL+ Decoupling 16

2.4 Front Side Bus Clock (BCLK[1:0]) and Processor Clocking 17

2.4.1 Front Side Bus Frequency Select Signals (BSEL[2:0]) 17
2.4.2 PLL Power Supply.... 18

2.5 Voltage Identification (VID) 18

2.6 Reserved, Unused, and Test Signals.... 21
2.7 Front Side Bus Signal Groups.... 22
2.8 CMOS Asynchronous and Open Drain Asynchronous Signals 24
2.9 Test Access Port (TAP) Connection 24

2.10 Platform Environmental Control Interface (PECI) DC Specifications....24

2.10.1 DC Characteristics 24
2.10.2 Input Device Hysteresis 25

2.11 Mixing Processors.... 26

2.12 Absolute Maximum and Minimum Ratings 26
2.13 Processor DC Specifications 27

2.13.1 Flexible Motherboard Guidelines (FMB) 27
2.13.2 VCC Overshoot Specification 35
2.13.3 Die Voltage Validation.... 35

2.14 AGTL+ FSB Specifications.... 36

3 Mechanical Specifications 39

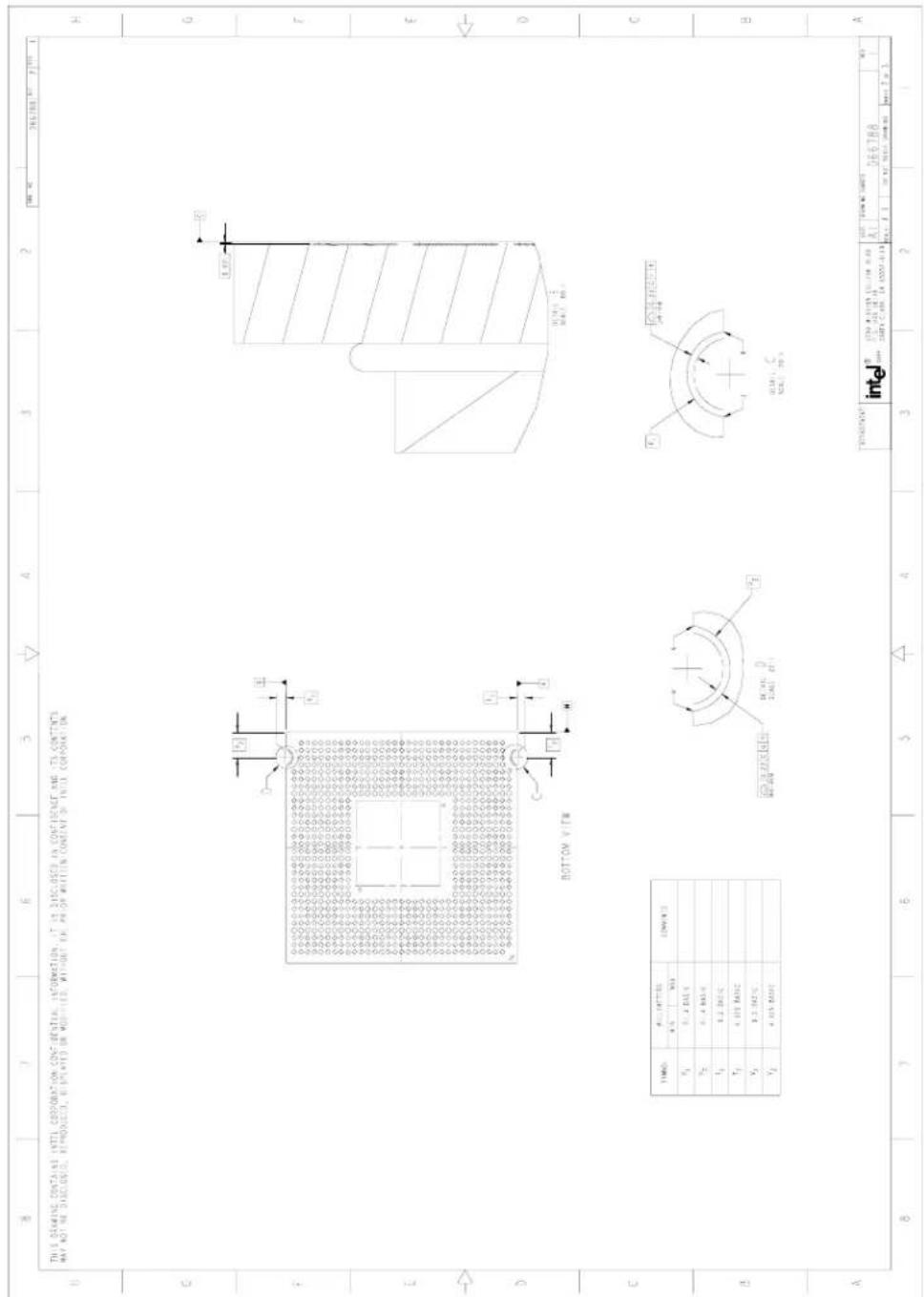

3.1 Package Mechanical Drawings 39
3.2 Processor Component Keepout Zones 43
3.3 Package Loading Specifications 43
3.4 Package Handling Guidelines.... 44
3.5 Package Insertion Specifications.... 44
3.6 Processor Mass Specifications 44
3.7 Processor Materials.... 44
3.8 Processor Markings.... 44
3.9 Processor Land Coordinates 45

4 Land Listing 47

4.1 Dual-Core Intel® Xeon® Processor 5200 Series Pin Assignments ...... 47

4.1.1 Land Listing by Land Name 47
4.1.2 Land Listing by Land Number.... 57

5 Signal Definitions 67

5.1 Signal Definitions 67

6 Thermal Specifications 75

6.1 Package Thermal Specifications.... 75

6.1.1 Thermal Specifications 75
6.1.2 Thermal Metrology 84

6.2 Processor Thermal Features....85

intel®

6.2.1 Intel ® Thermal Monitor Features....85
6.2.2 On-Demand Mode....87
6.2.3 PROCHOT# Signal 88
6.2.4 FORCEPR# Signal 88
6.2.5 THERMTRIP# Signal.....88

6.3 Platform Environment Control Interface (PECI) 89

6.3.1 Introduction....89
6.3.2 PECI Specifications 90

7 Features 93

7.1 Power-On Configuration Options 93
7.2 Clock Control and Low Power States....93

7.2.1 Normal State 94
7.2.2 HALT or Extended HALT State....94
7.2.3 Stop-Grant State 96
7.2.4 Extended HALT Snoop or HALT Snoop State, Stop Grant Snoop State....96

7.3 Enhanced Intel SpeedStep® Technology....97

8 Boxed Processor Specifications....99

8.1 Introduction....99
8.2 Mechanical Specifications....101

8.2.1 Boxed Processor Heat Sink Dimensions (CEK)....101
8.2.2 Boxed Processor Heat Sink Weight....109
8.2.3 Boxed Processor Retention Mechanism and Heat Sink Support (CEK)....109

8.3 Electrical Requirements ....109

8.3.1 Fan Power Supply (Active CEK)....109
8.3.2 Boxed Processor Cooling Requirements....110

8.4 Boxed Processor Contents....111

9 Debug Tools Specifications 113

9.1 Debug Port System Requirements....113
9.2 Target System Implementation....113

9.2.1 System Implementation....113

9.3 Logic Analyzer Interface (LAI) 113

9.3.1 Mechanical Considerations 114
9.3.2 Electrical Considerations....114

Figures

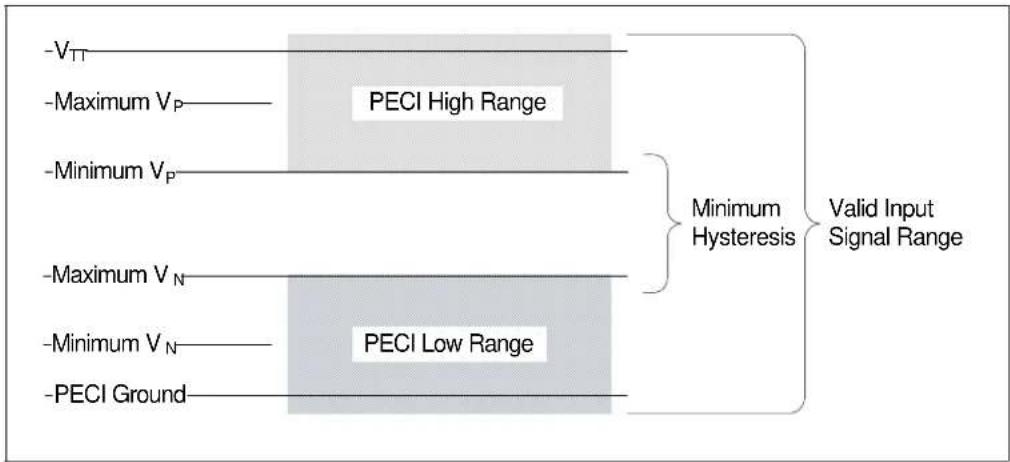

2-1 Input Device Hysteresis 25

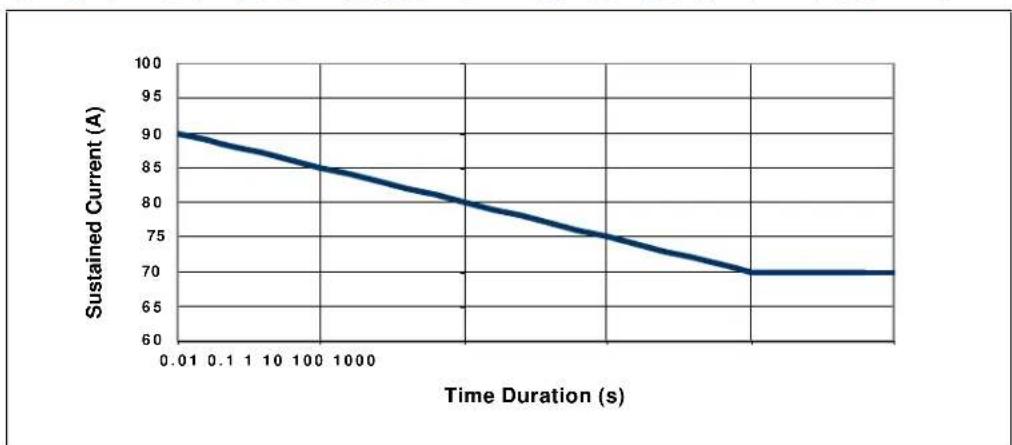

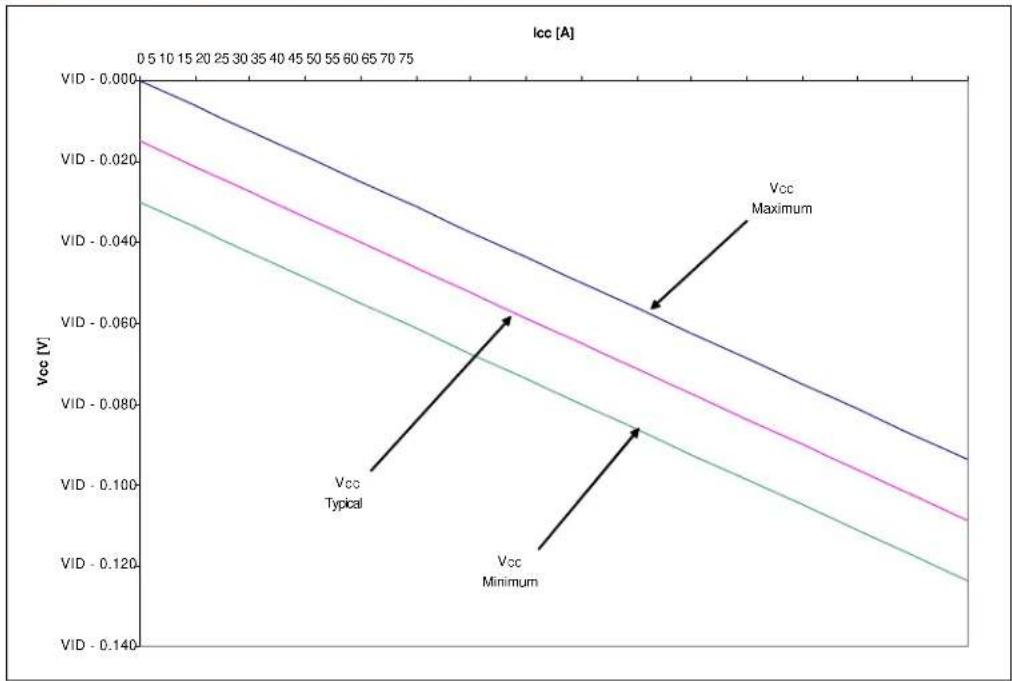

2-2 Dual-Core Intel® Xeon® Processor E5200 Series Load Current versus Time...... 30

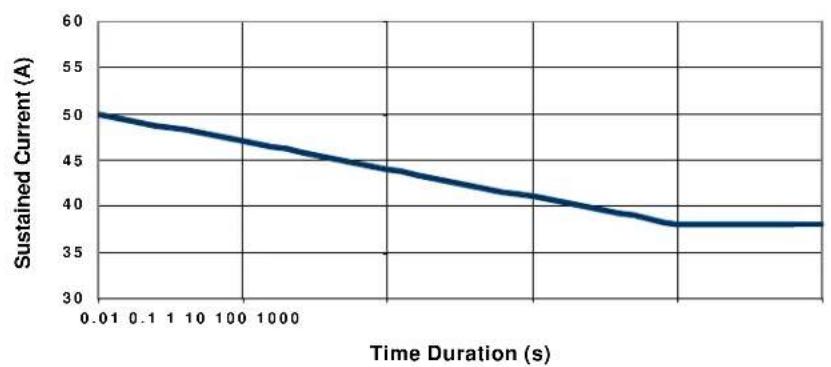

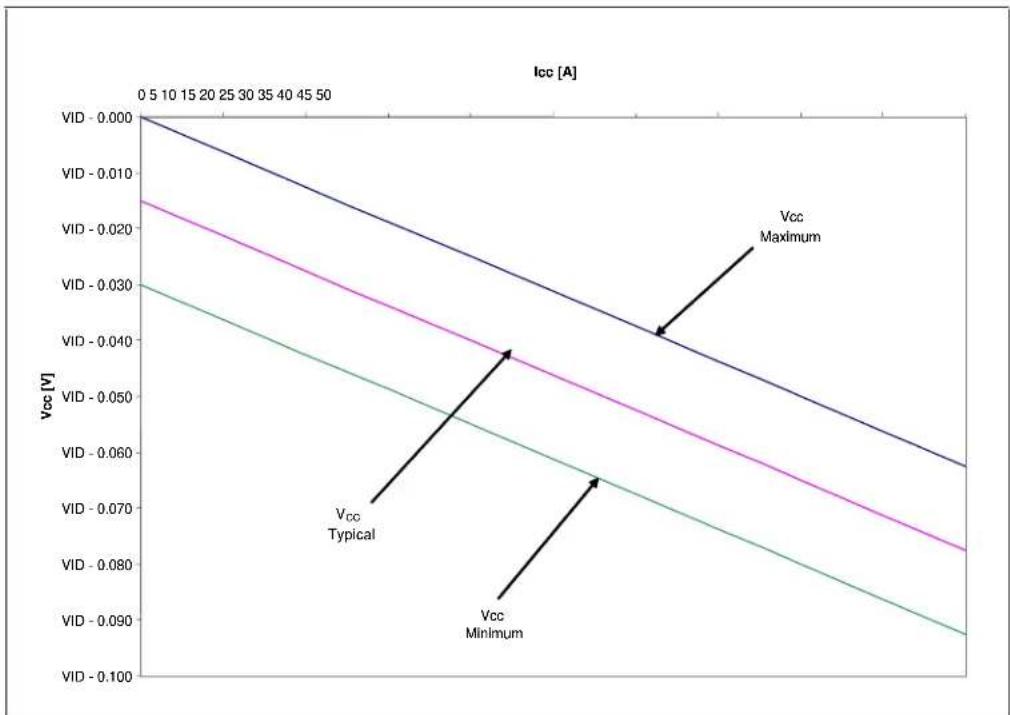

2-3 Dual-Core Intel® Xeon® Processor X5200 Series Load Current versus Time 30

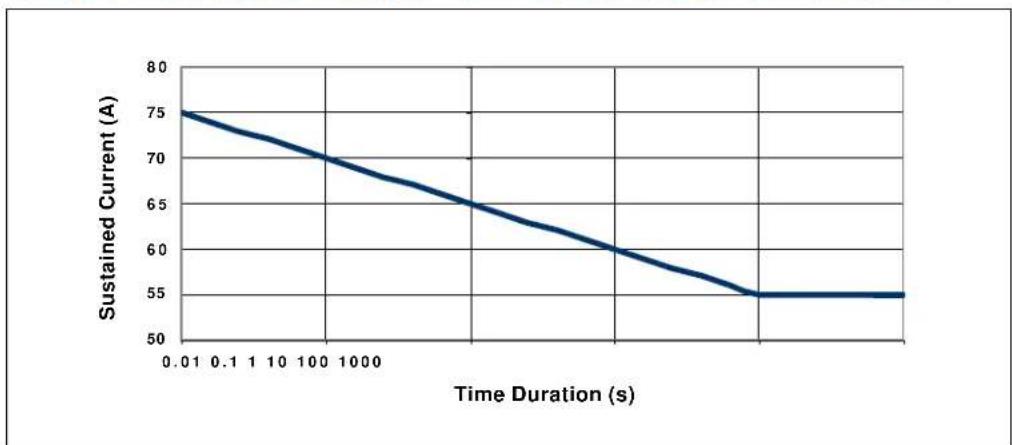

2-4 Dual-Core Intel® Xeon® Processor L5200 Series Load Current versus Time...... 31

2-5 Dual-Core Intel® Xeon® Processor E5200 Series VCC Static and Transient Tolerance Load Lines 32

2-6 Dual-Core Intel® Xeon® Processor X5200 Series VCC Static and Transient Tolerance Load Lines 33

2-7 Dual-Core Intel® Xeon® Processor L5200 Series VCC Static and Transient Tolerance Load Lines 33

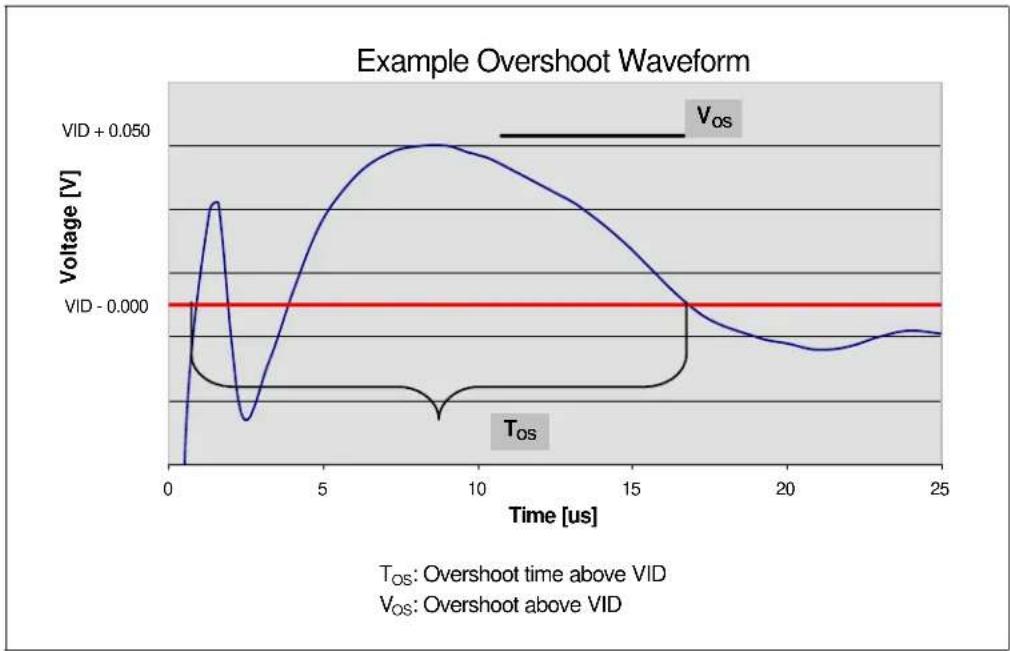

2-8 VCC Overshoot Example Waveform.... 35

2-9 Electrical Test Circuit 37

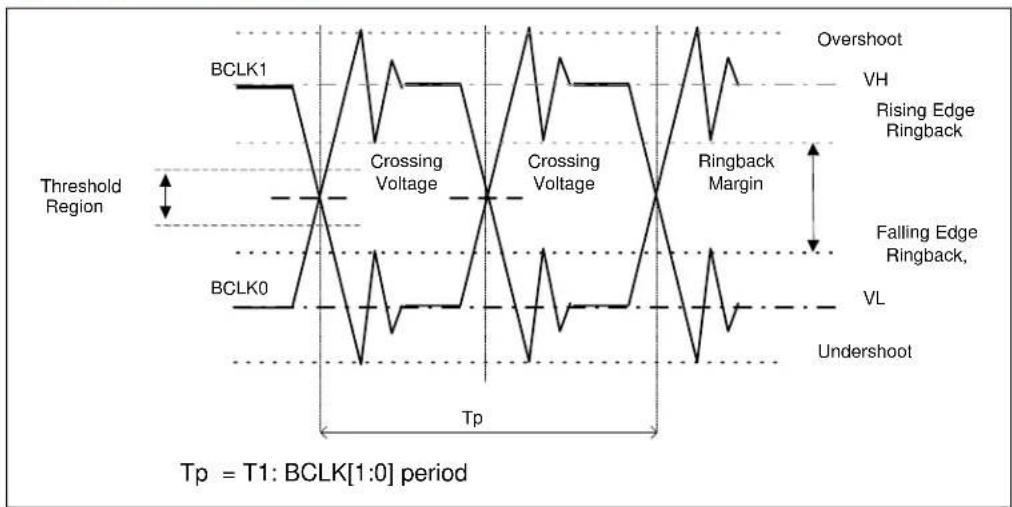

2-10 Differential Clock Waveform.... 38

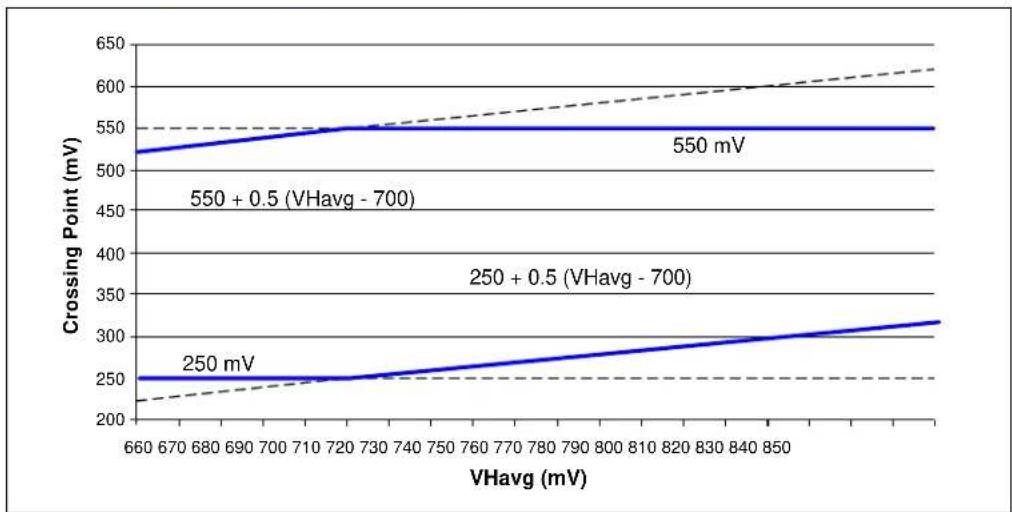

2-11 Differential Clock Crosspoint Specification 38

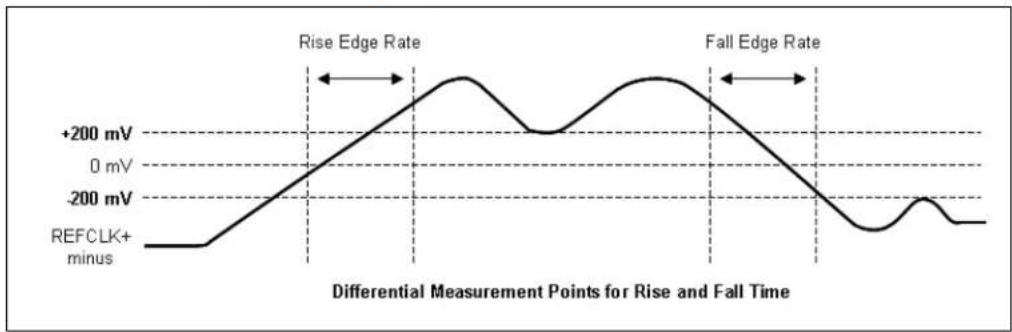

2-12 Differential Rising and Falling Edge Rates 38

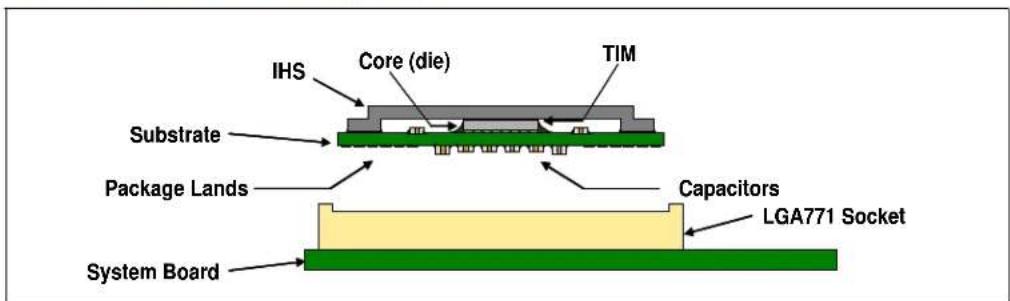

3-1 Processor Package Assembly Sketch 39

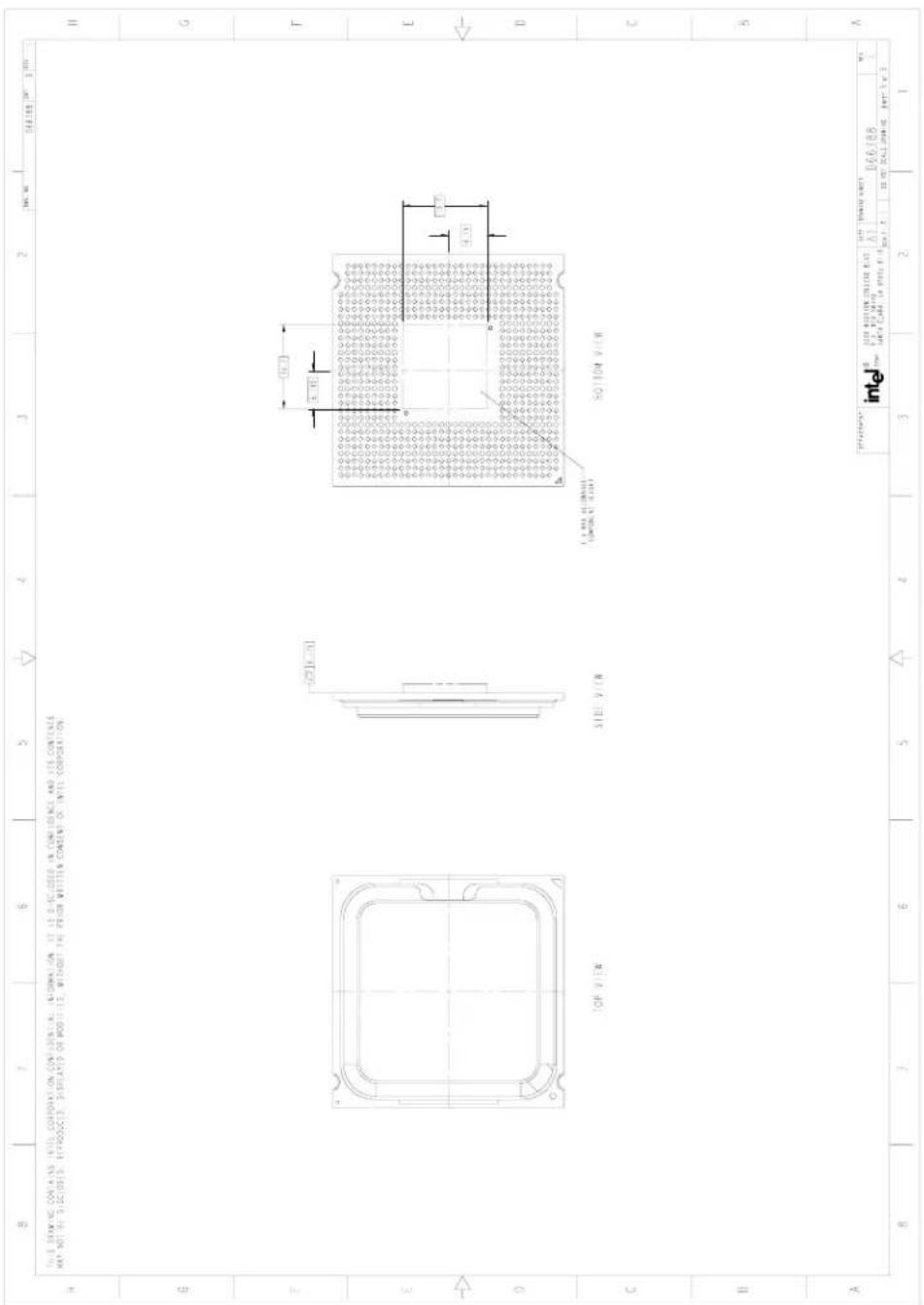

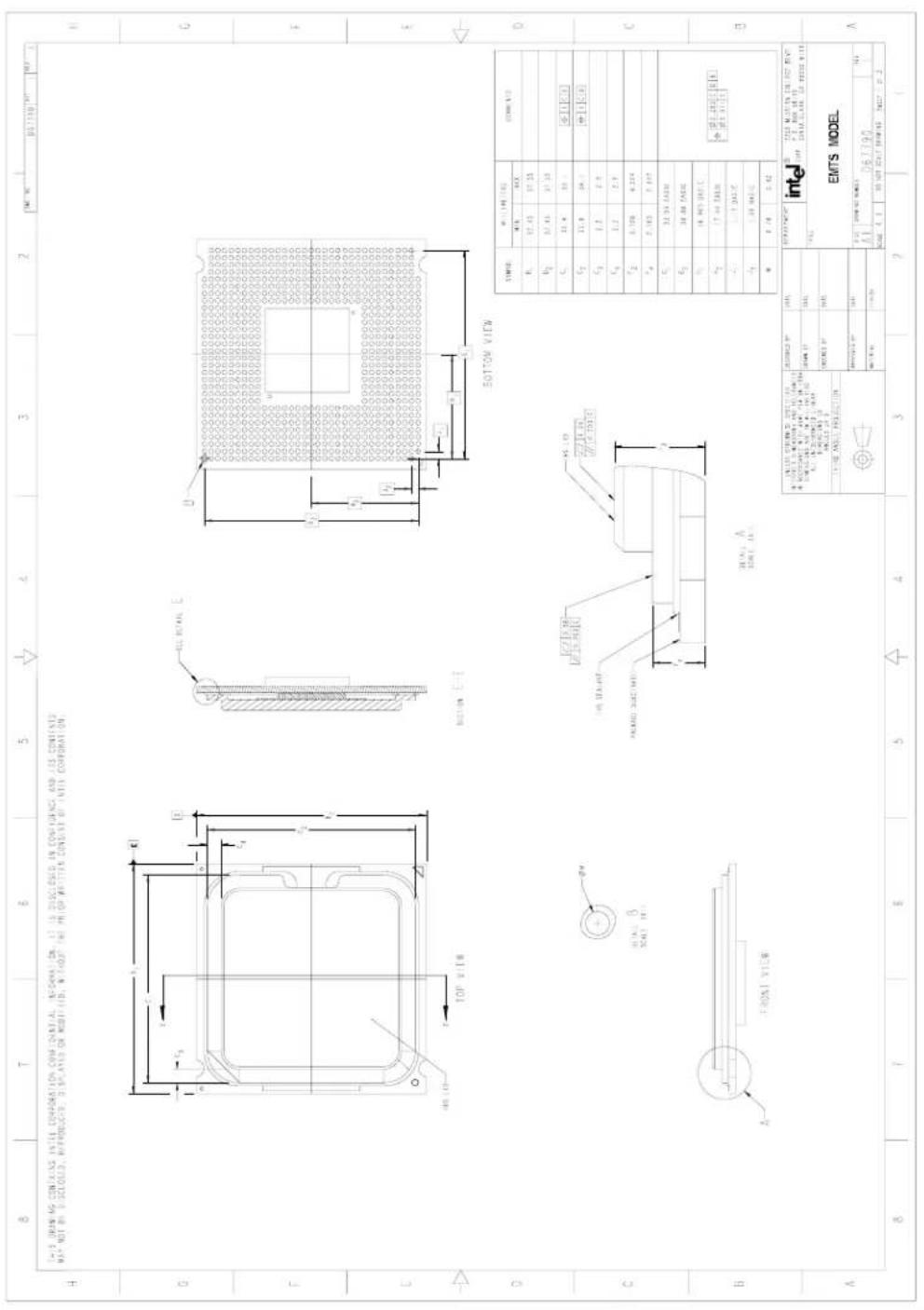

3-2 Dual-Core Intel® Xeon® Processor 5200 Series Package Drawing (Sheet 1 of 3)......40

3-3 Dual-Core Intel® Xeon® Processor 5200 Series Package Drawing (Sheet 2 of 3)......41

3-4 Dual-Core Intel® Xeon® Processor 5200 Series Package Drawing (Sheet 3 of 3)...... 42

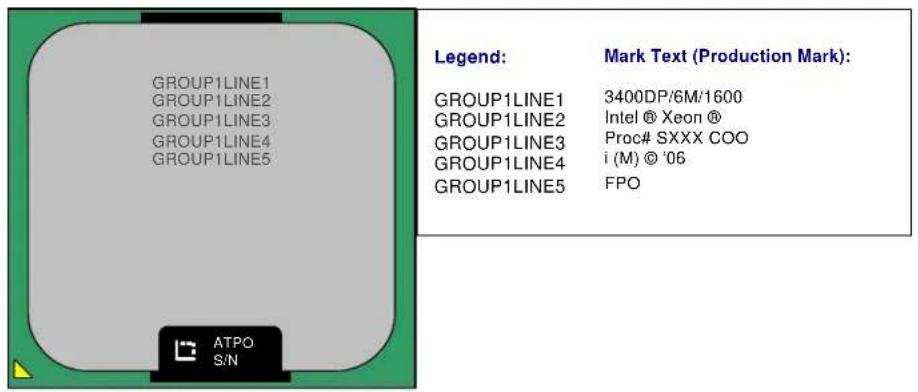

3-5 Processor Top-side Markings (Example) 45

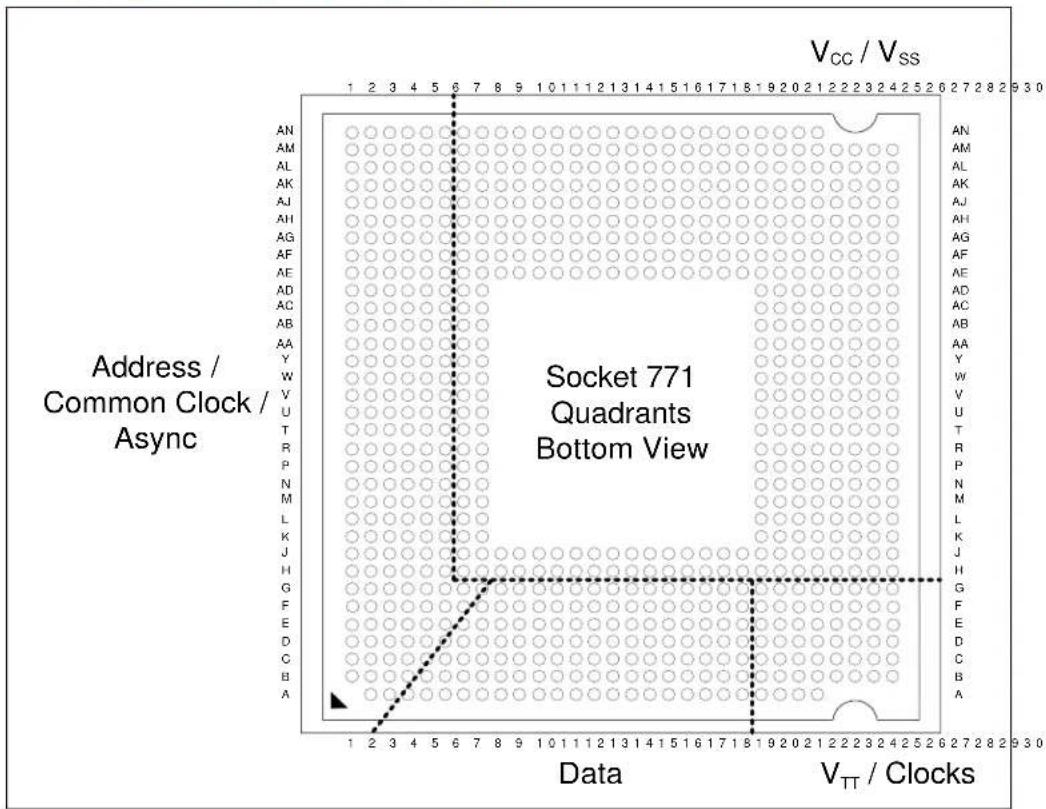

3-6 Processor Land Coordinates, Top View 45

3-7 Processor Land Coordinates, Bottom View 46

6-1 Dual-Core Intel® Xeon® Processor E5200 Series Thermal Profile 77

6-2 Dual-Core Intel® Xeon® Processor X5200 Series Thermal Profiles A and B 79

6-3 Dual-Core Intel® Xeon® Processor L5200 Series Thermal Profile.... 81

6-4 Dual-Core Intel® Xeon® Processor L5238 Thermal Profile 82

6-5 Dual-Core Intel® Xeon® Processor L5215 Thermal Profile 83

6-6 Case Temperature (TCASE) Measurement Location 85

6-7 Intel® Thermal Monitor 2 Frequency and Voltage Ordering 87

6-8 Dual-Core Intel® Xeon® Processor 5200 Series PECI Topology 89

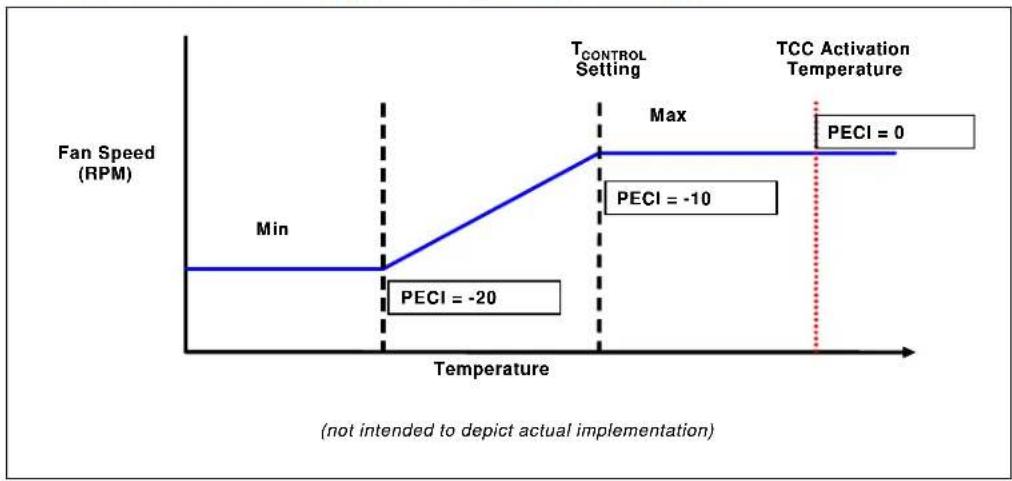

6-9 Conceptual Fan Control Diagram of PECI-based Platforms 90

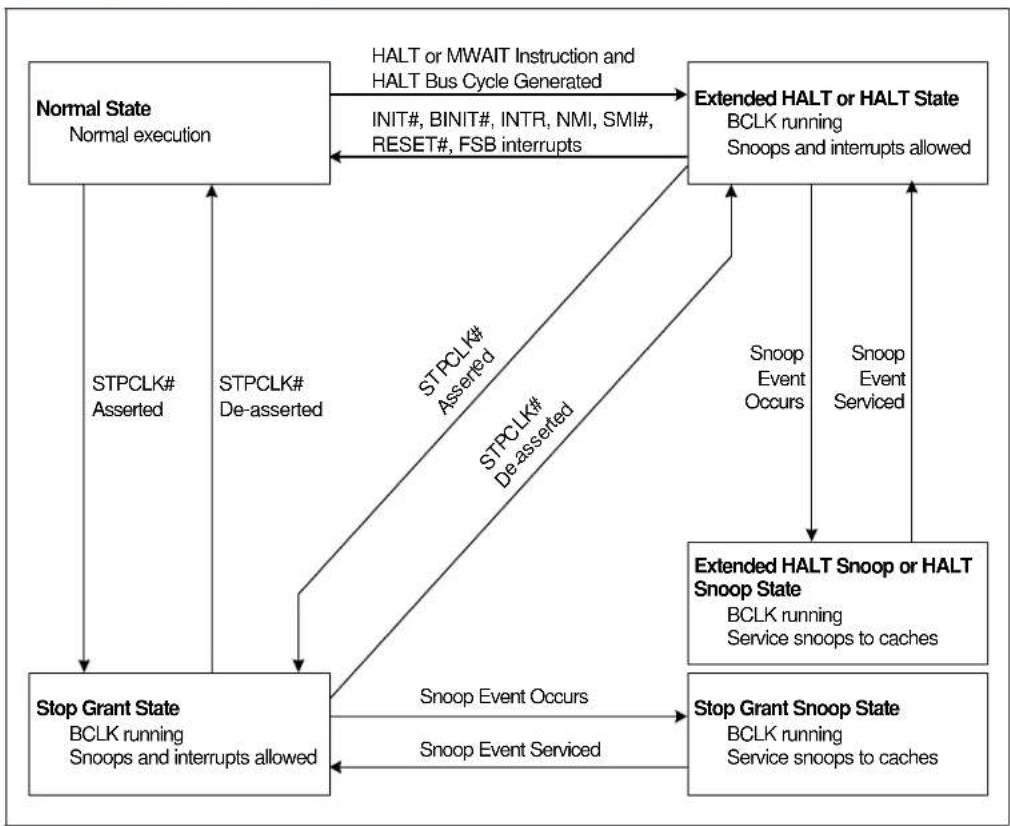

7-1 Stop Clock State Machine 95

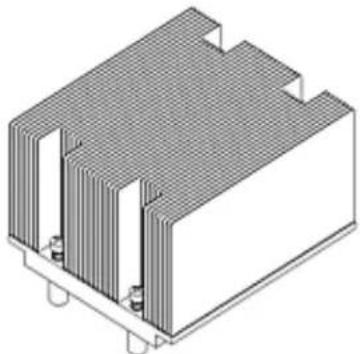

8-1 Boxed Dual-Core Intel® Xeon® Processor 5200 Series 1U Passive/3U+ Active Combination Heat Sink (With Removable Fan) .... 100

8-2 Boxed Dual-Core Intel® Xeon® Processor 5200 Series 2U Passive Heat Sink ...... 100

8-3 2U Passive Dual-Core Intel® Xeon® Processor 5200 Series Thermal Solution (Exploded View) 101

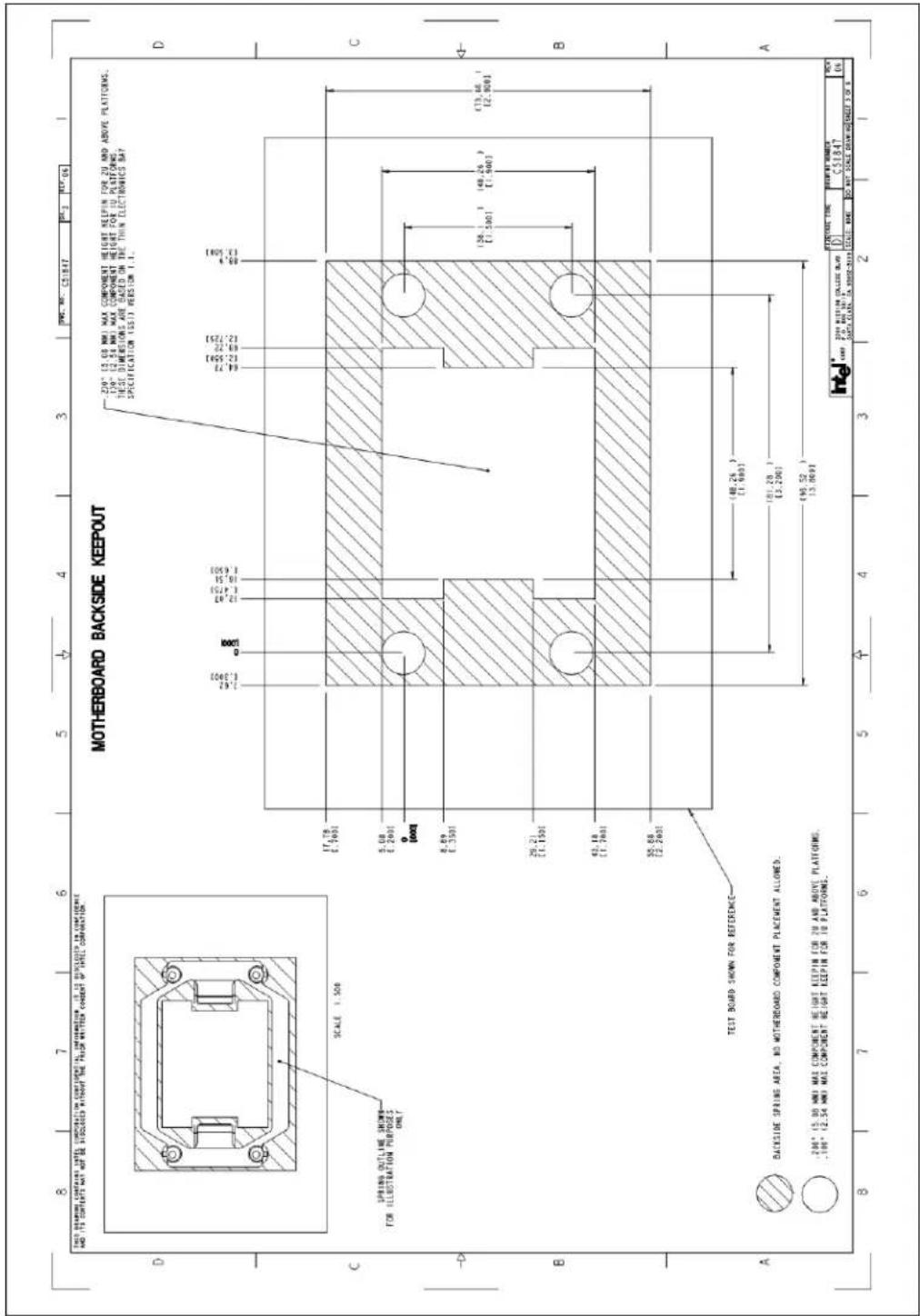

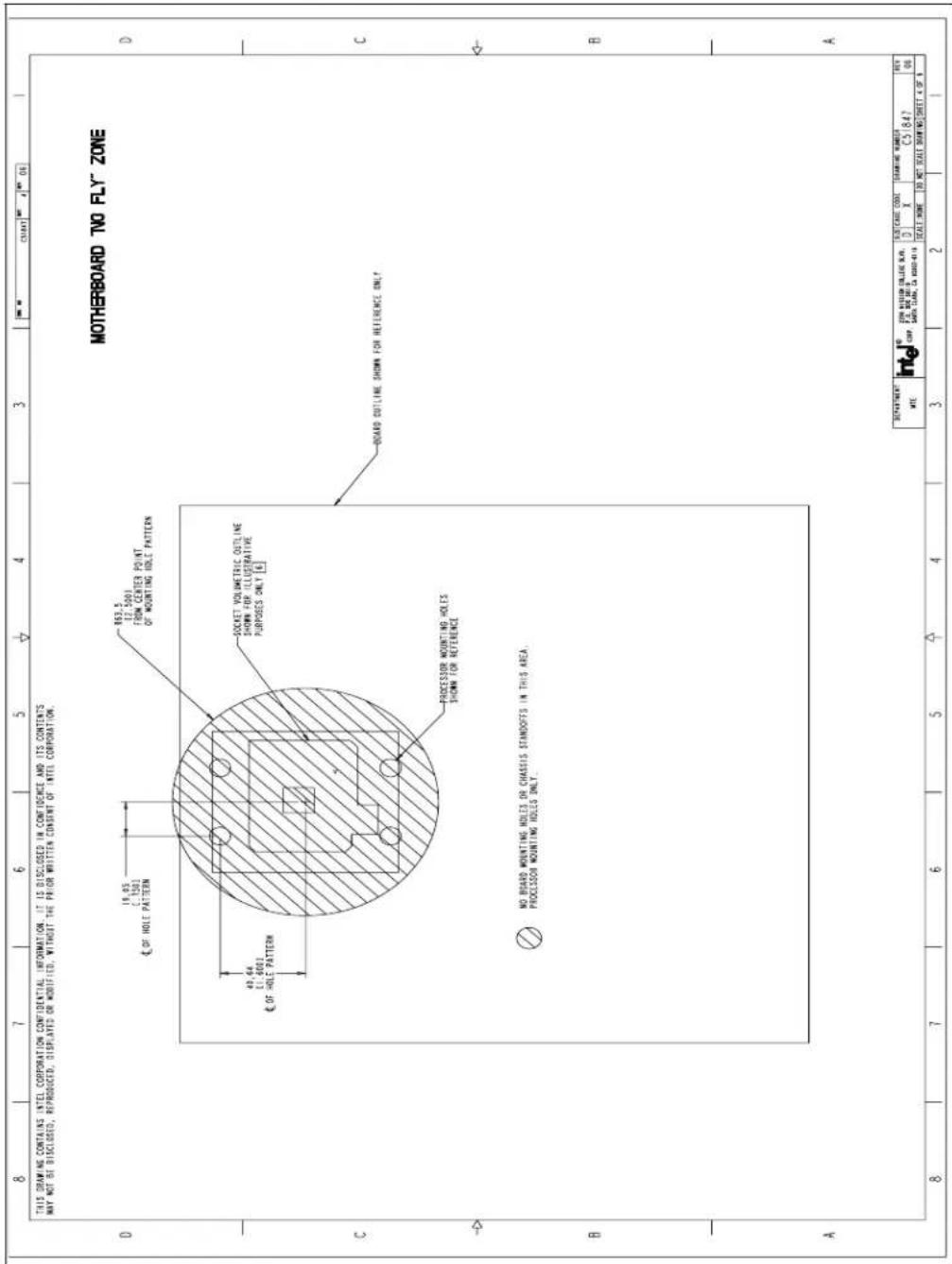

8-4 Top Side Board Keepout Zones (Part 1).... 102

8-5 Top Side Board Keepout Zones (Part 2)....103

8-6 Bottom Side Board Keepout Zones.... 104

8-7 Board Mounting-Hole Keepout Zones 105

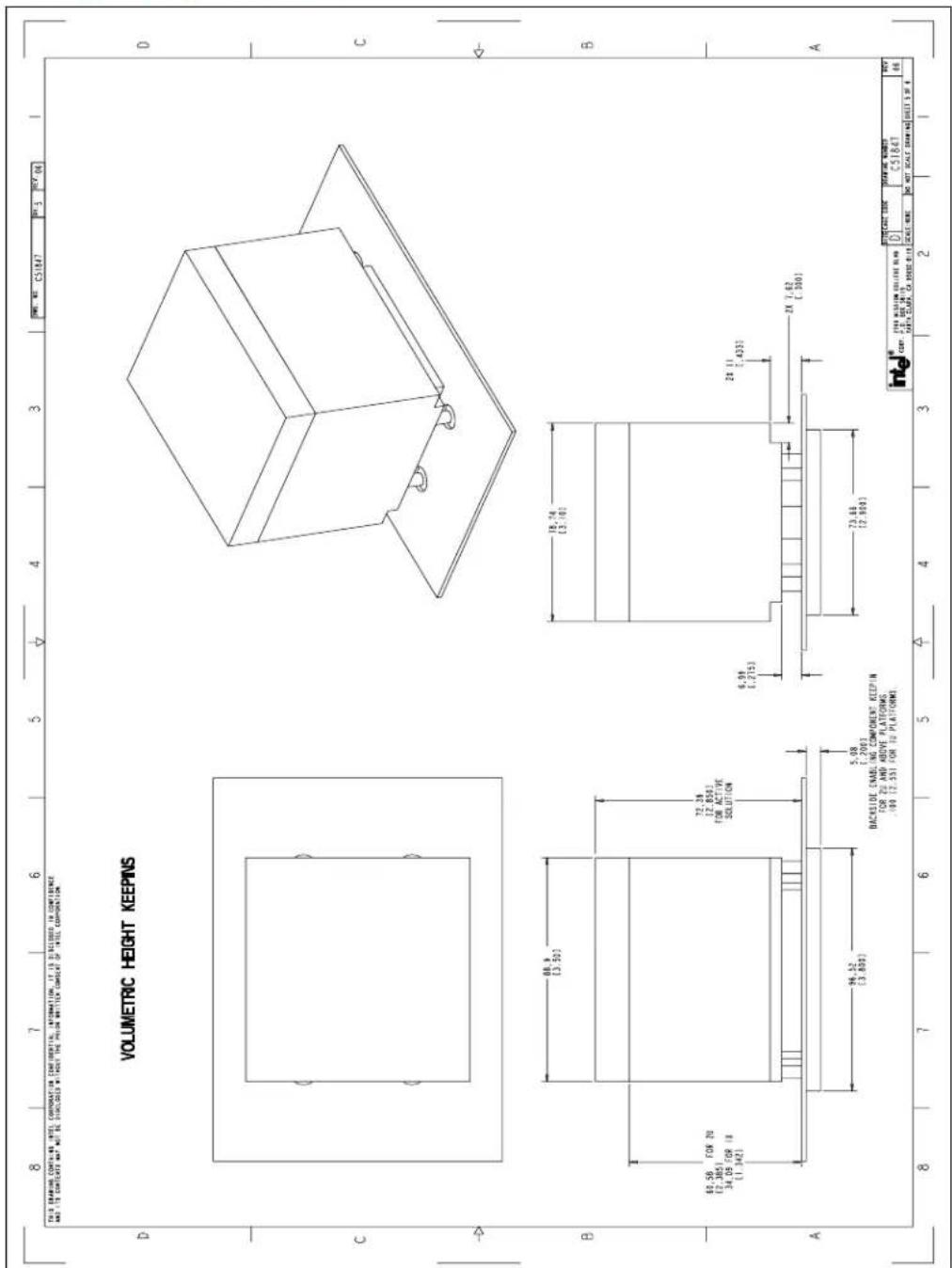

8-8 Volumetric Height Keep-Ins 106

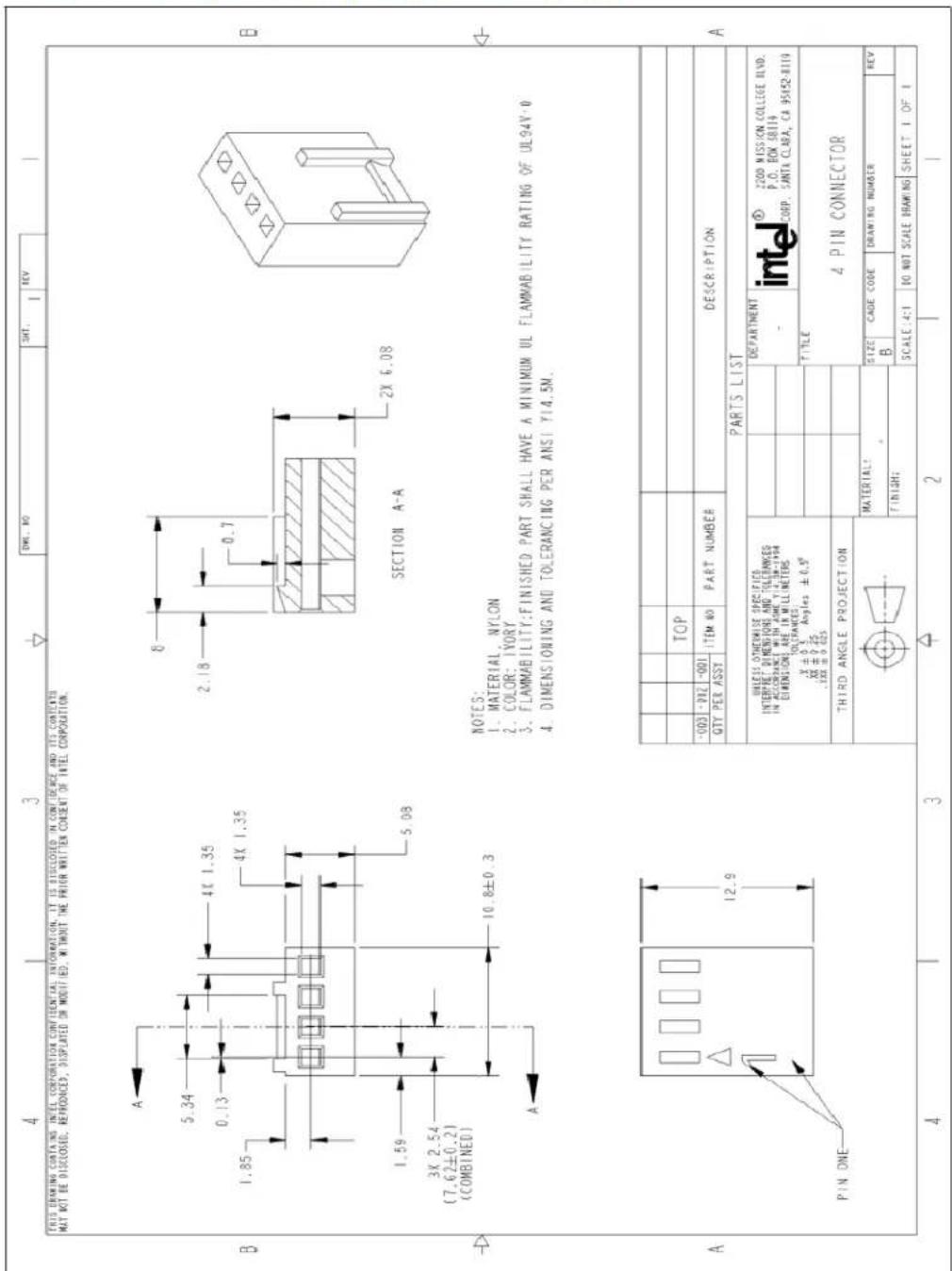

8-9 4-Pin Fan Cable Connector (For Active CEK Heat Sink) 107

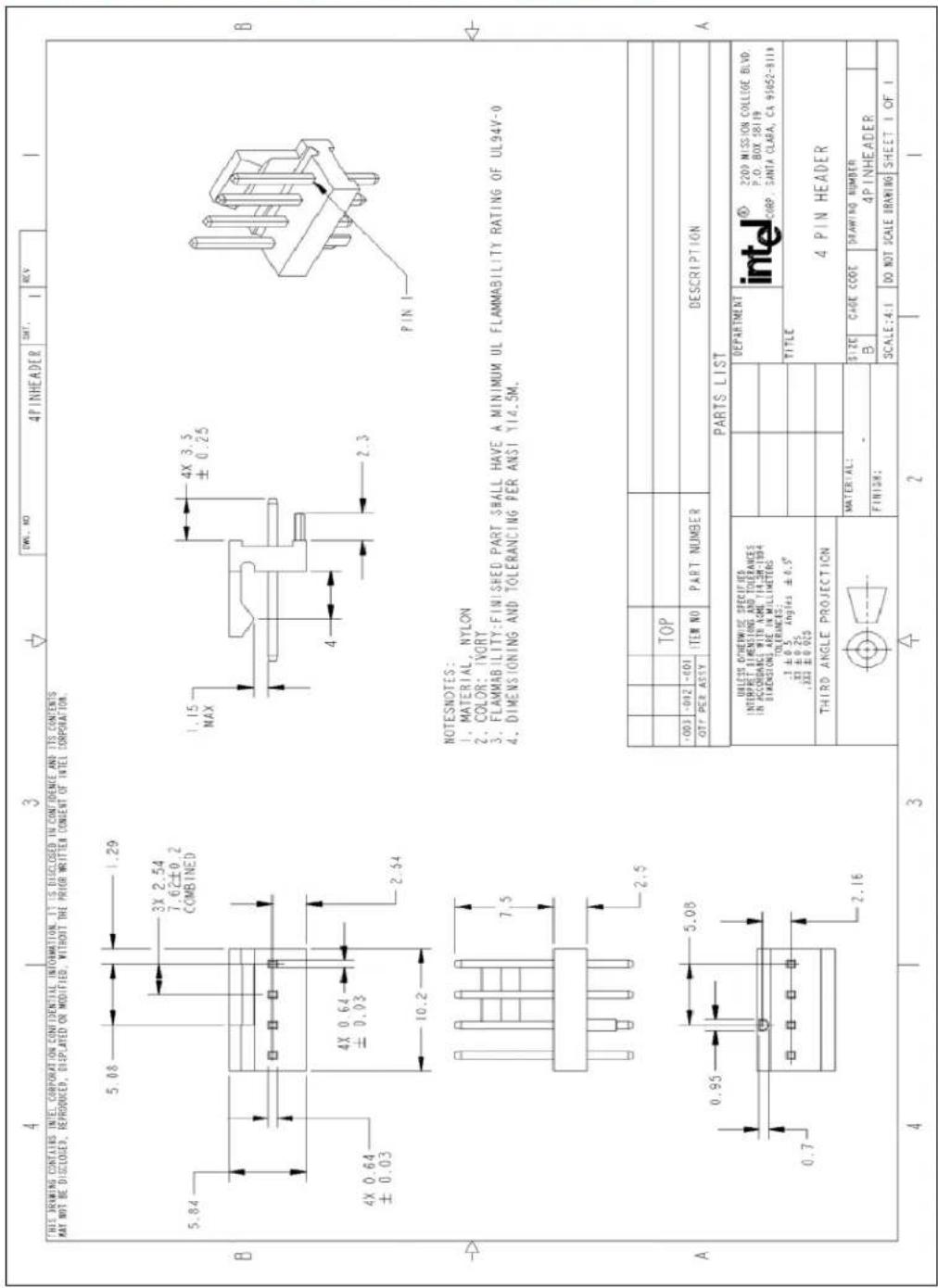

8-10 4-Pin Base Board Fan Header (For Active CEK Heat Sink).... 108

8-11 Fan Cable Connector Pin Out for 4-Pin Active CEK Thermal Solution 110

intel®

Tables

1-1 Dual-Core Intel® Xeon® Processor 5200 Series 10

2-1 Core Frequency to FSB Multiplier Configuration....17

2-2 BSEL[2:0] Frequency Table....18

2-3 Voltage Identification Definition 20

2-4 Loadline Selection Truth Table for LL_ID[1:0] 21

2-5 Market Segment Selection Truth Table for MS_ID[1:0] 21

2-6 FSB Signal Groups 22

2-7 AGTL+ Signal Description Table....23

2-8 Non AGTL+ Signal Description Table....23

2-9 Signal Reference Voltages....23

2-10 PECI DC Electrical Limits....25

2-11 Processor Absolute Maximum Ratings 27

2-12 Voltage and Current Specifications 28

2-13 Dual-Core Intel® Xeon® Processor E5200 Series and Dual-Core Intel® Xeon® Processor X5200 Series and Dual-Core Intel® Xeon® Processor L5200 Series VCC Static and Transient Tolerance....

2-14 AGTL+ Signal Group DC Specifications....34

2-15 CMOS Signal Input/Output Group and TAP Signal Group DC Specifications....34

2-16 Open Drain Output Signal Group DC Specifications....34

2-17 VCC Overshoot Specifications 35

2-18 AGTL+ Bus Voltage Definitions 36

2-19 FSB Differential BCLK Specifications 36

3-1 Package Loading Specifications....43

3-2 Package Handling Guidelines 44

3-3 Processor Materials 44

4-1 Land Listing by Land Name 47

4-2 Land Listing by Land Number 57

5-1 Signal Definitions....67

6-1 Dual-Core Intel® Xeon® Processor E5200 Series Thermal Specifications....77

6-2 Dual-Core Intel® Xeon® Processor E5200 Series Thermal Profile Table 78

6-3 Dual-Core Intel® Xeon® Processor X5200 Series Thermal Specifications .....78

6-4 Dual-Core Intel® Xeon® Processor X5200 Series Thermal A Profile Table ....79

6-5 Dual-Core Intel® Xeon® Processor X5200 Series Thermal B Profile Table 80

6-6 Dual-Core Intel® Xeon® Processor L5200 Series Thermal Specifications....80

6-7 Dual-Core Intel® Xeon® Processor L5200 Series Thermal Profile Table....81

6-8 Dual-Core Intel® Xeon® Processor L5238 Thermal Specifications 82

6-9 Dual-Core Intel® Xeon® Processor L5238 Thermal Profile Table 83

6-10 Dual-Core Intel® Xeon® Processor L5215 Thermal Specifications 83

6-11 Dual-Core Intel® Xeon® Processor L5215 Thermal Profile Table 84

6-12 GetTemp0() Error Codes....91

7-1 Power-On Configuration Option Lands....93

7-2 Extended HALT Maximum Power 94

8-1 PWM Fan Frequency Specifications for 4-Pin Active CEK Thermal Solution....110

8-2 Fan Specifications for 4-Pin Active CEK Thermal Solution....110

8-3 Fan Cable Connector Pin Out for 4-Pin Active CEK Thermal Solution....110

Revision History

Revision Description Date
001 Initial	release November 2007
002	Added product information for Dual-Core Intel® Xeon® Processor L5238.	March 2008
003	Added product information for Dual-Core Intel® Xeon® Processor L5200 Series.	April 2008
004	Corrected L1 cache sizeExposed L5215	August 2008
005	Rev to keep in sync with Quad-Core Intel® Xeon® Processor 5400 Series DatasheetNo content changes	August 2008

1 Introduction

The Dual-Core Intel® Xeon® Processor 5200 Series is a server/workstation processor utilizing two 45-nm Hi-k next generation Intel® Core™ microarchitecture cores. The processor is manufactured on Intel's 45 nanometer process technology combining high performance with the power efficiencies of a low-power microarchitecture. The Dual-Core Intel® Xeon® Processor 5200 Series maintains the tradition of compatibility with IA-32 software. Some key features include on-die, primary 32-kB instruction cache and 32-kB write-back data cache in each core and 6 MB Level 2 cache with Intel® Advanced Smart Cache architecture. The processors' Data Prefetch Logic speculatively fetches data to the L2 cache before an L1 cache requests occurs, resulting in reduced effective bus latency and improved performance. The 1333 MHz Front Side Bus (FSB) is a quad-pumped bus running off a 333 MHz system clock making 10.66 GBytes per second data transfer rates possible. The 1600 MHz Front Side Bus (FSB) is a quad-pumped bus running off a 400 MHz system clock making 12.80 GBytes per second data transfer rates possible.

Enhanced thermal and power management capabilities are implemented including Intel® Thermal Monitor 1, Intel® Thermal Monitor 2 and Enhanced Intel SpeedStep® Technology. These technologies are targeted for dual processor configurations in enterprise environments. Intel® Thermal Monitor 1 and Intel® Thermal Monitor provide efficient and effective cooling in high temperature situations. Enhanced Intel SpeedStep Technology provides power management capabilities to servers and workstations.

Dual-Core Intel® Xeon® Processor 5200 Series features include Intel® Wide Dynamic Execution, enhanced floating point and multi-media units, Streaming SIMD Extensions 2 (SSE2), Streaming SIMD Extensions 3 (SSE3), and Streaming SIMD Extensions 4.1 (SSE4.1). Advanced Dynamic Execution improves speculative execution and branch prediction internal to the processor. The floating point and multi-media units include 128-bit wide registers and a separate register for data movement. SSE3 instructions provide highly efficient double-precision floating point, SIMD integer, and memory management operations.

The Dual-Core Intel® Xeon® Processor 5200 Series support Intel® 64 Architecture as an enhancement to Intel's IA-32 architecture. This enhancement allows the processor to execute operating systems and applications written to take advantage of the 64-bit extension technology. Further details on Intel® 64 Architecture and its programming model can be found in the Intel® 64 and IA-32 Architectures Software Developer's Manual, at http://www.intel.com/products/processor/manuals/.

In addition, the Dual-Core Intel® Xeon® Processor 5200 Series supports the Execute Disable Bit functionality. When used in conjunction with a supporting operating system, Execute Disable allows memory to be marked as executable or non executable. This feature can prevent some classes of viruses that exploit buffer overrun vulnerabilities and can thus help improve the overall security of the system. Further details on Execute Disable can be found at http://www.intel.com/cd/ids/developer/asma-na/eng/149308.htm.

The Dual-Core Intel® Xeon® Processor 5200 Series support Intel® Virtualization Technology for hardware-assisted virtualization within the processor. Intel Virtualization Technology is a set of hardware enhancements that can improve virtualization solutions. Intel Virtualization Technology is used in conjunction with Virtual Machine

Monitor software enabling multiple, independent software environments inside a single platform. Further details on Intel Virtualization Technology can be found at http://developer.intel.com/technology/platform-technology/virtualization/index.htm.

The Dual-Core Intel® Xeon® Processor 5200 Series is intended for high performance server and workstation systems. The Dual-Core Intel® Xeon® Processor 5200 Series supports a Dual Independent Bus (DIB) architecture with one processor on each bus, up to two processor sockets in a system. The DIB architecture provides improved performance by allowing increased FSB speeds and bandwidth. The Dual-Core Intel® Xeon® Processor 5200 Series will be packaged in an FC-LGA Land Grid Array package with 771 lands for improved power delivery. It utilizes a surface mount LGA771 socket that supports Direct Socket Loading (DSL).

Table 1-1. Dual-Core Intel® Xeon® Processor 5200 Series

# of Processor Cores	L1 Cache	L2 Advanced Cache	Front Side Bus Frequency	Package
2	32 KB instruction per core32 KB data per core	6 MB shared 1600 MHz	1333 MHz1066 MHz	FC-LGA771 Lands

The Dual-Core Intel® Xeon® Processor 5200 Series-based platforms implement independent core voltage ( V_CC ) power planes for each processor. FSB termination voltage ( V_TT ) is shared and must connect to all FSB agents. The processor core voltage utilizes power delivery guidelines specified by VRM/EVRD 11.0 and its associated load line (see Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 11.0 Design Guidelines for further details). VRM/EVRD 11.0 will support the power requirements of all frequencies of the Dual-Core Intel® Xeon® Processor 5200 Series including Flexible Motherboard Guidelines (FMB) (see Section 2.13.1). Refer to the appropriate platform design guidelines for implementation details.

The Dual-Core Intel® Xeon® Processor 5200 Series supports either 1333 MHz, or 1600 MHz Front Side Bus operations. The FSB utilizes a split-transaction, deferred reply protocol and Source-Synchronous Transfer (SST) of address and data to improve performance. The processor transfers data four times per bus clock (4X data transfer rate, as in AGP 4X). Along with the 4X data bus, the address bus can deliver addresses two times per bus clock and is referred to as a 'double-clocked' or a 2X address bus. In addition, the Request Phase completes in one clock cycle. The FSB is also used to deliver interrupts.

Signals on the FSB use Assisted Gunning Transceiver Logic (AGTL+) level voltages. Section 2.1 contains the electrical specifications of the FSB while implementation details are fully described in the appropriate platform design guidelines (refer to Section 1.3).

1.1 Terminology

A ‘#’ symbol after a signal name refers to an active low signal, indicating a signal is in the asserted state when driven to a low level. For example, when RESET# is low, a reset has been requested. Conversely, when NMI is high, a nonmaskable interrupt has occurred. In the case of signals where the name does not imply an active state but describes part of a binary sequence (such as address or data), the ‘#’ symbol implies that the signal is inverted. For example, D[3:0] = ‘HLHL’ refers to a hex ‘A’, and D[3:0]# = ‘LHLH’ also refers to a hex ‘A’ (H= High logic level, L= Low logic level).

Commonly used terms are explained here for clarification:

- Dual-Core Intel® Xeon® Processor 5200 Series - Intel 64-bit microprocessor intended for dual processor servers and workstations based on Intel's 45 nanometer process, in the PC-LGA 771 package with two processor cores. For this document "processors" is used as the generic term for the "Dual-Core Intel® Xeon® Processor 5200 Series processor". The term 'processors' and "Dual-Core Intel® Xeon® Processor 5200 Series processor" are inclusive of Dual-Core Intel® Xeon® Processor X5200 Series, Dual-Core Intel® Xeon® Processor E5200 Series, and Dual-Core Intel® Xeon® Processor L5200 Series.

- Dual-Core Intel® Xeon® Processor 5200 Series - Intel 64-bit microprocessor intended for dual processor servers and workstations based on Intel's 45 nanometer process, in the PC-LGA 771 package with two processor cores. For this document "processors" is used as the generic term for the "Dual-Core Intel® Xeon® Processor 5200 Series processor". The term 'processors' and "Dual-Core Intel® Xeon® Processor 5200 Series processor" are inclusive of Dual-Core Intel® Xeon® Processor X5200 Series, Dual-Core Intel® Xeon® Processor E5200 Series, and Dual-Core Intel® Xeon® Processor L5200 Series.

- Dual-Core Intel® Xeon® Processor X5200 Series - An accelerated performance version of the Dual-Core Intel® Xeon® Processor 5200 Series processor. For this document "Dual-Core Intel® Xeon® Processor X5200 Series" is used to call out specifications that are unique to the Dual-Core Intel® Xeon® Processor X5200 Series SKU.

- Dual-Core Intel® Xeon® Processor E5200 Series – A mainstream performance version of the Dual-Core Intel® Xeon® Processor 5200 Series processor. For this document “Dual-Core Intel® Xeon® Processor E5200 Series” is used to call out specifications that are unique to the Dual-Core Intel® Xeon® Processor E5200 Series SKU.

- Dual-Core Intel® Xeon® Processor L5200 Series - Intel 64-bit microprocessor intended for dual processor server blades and embedded servers. The Dual-Core Intel® Xeon® Processor L5200 Series is a lower voltage and lower power version of the Dual-Core Intel® Xeon® Processor 5200 Series. For this document "Dual-Core Intel® Xeon® Processor L5200 Series" is used to call out specifications that are unique to the Dual-Core Intel® Xeon® Processor L5200 Series SKU.

- Dual-Core Intel® Xeon® Processor L5238 - Intel 64-bit microprocessor intended for dual processor server blades and embedded servers. The Dual-Core Intel® Xeon® Processor L5238 is a lower voltage and lower power version of the Dual-Core Intel® Xeon® Processor L5200 Series supporting higher case temperatures. It supports a Thermal Profile with nominal and short-term conditions designed to meet Network Equipment Building System (NEBS) level 3 compliance. For this document "Dual-Core Intel® Xeon® Processor L5238" is used to call out specifications that are unique to the Dual-Core Intel® Xeon® Processor L5238 SKU.

- Dual-Core Intel® Xeon® Processor L5215 - Intel 64-bit microprocessor intended for dual processor server blades and embedded servers. The Dual-Core Intel® Xeon® Processor L5215 is a lower voltage and lower power version of the Dual-Core Intel® Xeon® Processor L5200 Series supporting higher case temperatures. It supports a Thermal Profile with nominal and short-term conditions designed to meet Network Equipment Building System (NEBS) level 3 compliance. For this document "Dual-Core Intel® Xeon® Processor L5215" is used to call out specifications that are unique to the Dual-Core Intel® Xeon® Processor L5215 SKU.

- FC-LGA (Flip Chip Land Grid Array) Package – The Dual-Core Intel® Xeon® Processor 5200 Series package is a Land Grid Array, consisting of a processor core

mounted on a pinless substrate with 771 lands, and includes an integrated heat spreader (IHS).

- LGA771 socket – The Dual-Core Intel® Xeon® Processor 5200 Series interfaces to the baseboard through this surface mount, 771 Land socket. See the LGA771 Socket Design Guidelines for details regarding this socket.

- Processor core – Processor core with integrated L1 cache. L2 cache and system bus interface are shared between the two cores on the die. All AC timing and signal integrity specifications are at the pads of the system bus interface.

- Front Side Bus (FSB) – The electrical interface that connects the processor to the chipset. Also referred to as the processor system bus or the system bus. All memory and I/O transactions, as well as interrupt messages, pass between the processor and chipset over the FSB.

- Dual Independent Bus (DIB) – A front side bus architecture with one processor on each of several processor buses, rather than a processor bus shared between two processor agents. The DIB architecture provides improved performance by allowing increased FSB speeds and bandwidth.

- Flexible Motherboard Guidelines (FMB) – Estimate of the maximum values the Dual-Core Intel® Xeon® Processor 5200 Series will have over certain time periods. Actual specifications for future processors may differ.

- Functional Operation – Refers to the normal operating conditions in which all processor specifications, including DC, AC, FSB, signal quality, mechanical and thermal are satisfied.

- Storage Conditions – Refers to a non-operational state. The processor may be installed in a platform, in a tray, or loose. Processors may be sealed in packaging or exposed to free air. Under these conditions, processor lands should not be connected to any supply voltages, have any I/Os biased or receive any clocks. Upon exposure to “free air” (that is, unsealed packaging or a device removed from packaging material) the processor must be handled in accordance with moisture sensitivity labeling (MSL) as indicated on the packaging material.

- Priority Agent – The priority agent is the host bridge to the processor and is typically known as the chipset.

- Symmetric Agent – A symmetric agent is a processor which shares the same I/O subsystem and memory array, and runs the same operating system as another processor in a system. Systems using symmetric agents are known as Symmetric Multiprocessing (SMP) systems.

- Integrated Heat Spreader (IHS) – A component of the processor package used to enhance the thermal performance of the package. Component thermal solutions interface with the processor at the IHS surface.

- Thermal Design Power (TDP) – Processor thermal solutions should be designed to meet this target. It is the highest expected sustainable power while running known power intensive applications. TDP is not the maximum power that the processor can dissipate.

- Intel®64 Architecture – An enhancement to Intel's IA-32 architecture that allows the processor to execute operating systems and applications written to take advantage of the 64-bit extension technology.

- Enhanced Intel SpeedStep® Technology – Technology that provides power management capabilities to servers and workstations.

- Platform Environment Control Interface (PECI) – A proprietary one-wire bus interface that provides a communication channel between Intel processor and external thermal monitoring devices, for use in fan speed control. PECI

communicates readings from the processor's digital thermometer. PECI replaces the thermal diode available in previous processors.

• Intel® Virtualization Technology – Processor virtualization, which when used in conjunction with Virtual Machine Monitor software enables multiple, robust independent software environments inside a single platform.
• VRM (Voltage Regulator Module) – DC-DC converter built onto a module that interfaces with a card edge socket and supplies the correct voltage and current to the processor based on the logic state of the processor VID bits.
• EVRD (Enterprise Voltage Regulator Down) – DC-DC converter integrated onto the system board that provides the correct voltage and current to the processor based on the logic state of the processor VID bits.
• V_cc - The processor core power supply.
• V_ss - The processor ground.
• V_TT - FSB termination voltage.

1.2 State of Data

The data contained within this document is the most accurate information available by the publication date of this document.

1.3 References

Material and concepts available in the following documents may be beneficial when reading this document:

Document	Document Number^1	Notes
AP-485, Intel® Processor Identification and the CPUID Instruction 241618 2
Intel® 64 and IA-32 Architectures Software Developer's Manual, Volume 1	253665	2
Intel® 64 and IA-32 Architectures Software Developer's Manual, Volume 2A	253666
Intel® 64 and IA-32 Architectures Software Developer's Manual, Volume 2B	253667
Intel® 64 and IA-32 Architectures Software Developer's Manual, Volume 3A	253668
Intel® 64 and IA-32 Architectures Software Developer's Manual, Volume 3B	253669
Intel® 64 and IA-32 Intel® Architectures Optimization Reference Manual 248966 2
Intel® 64 and IA-32 Intel® Architectures Software Developer's Manual Documentation Changes	252046 2
Dual-Core Intel® Xeon® Processor 5200 Series Specification Update	318586	2
Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 11.0 Design Guidelines	315889 2
Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG)	318675 2
Dual-Core Intel® Xeon® Processor 5200 Series in Embedded Thermal/Mechanical Design Guidelines (TMDG)		1
LGA771 Socket Mechanical Design Guide 313871 2
Dual-Core Intel® Xeon® Processor 5200 Series Boundary Scan Description Language (BSDL) Model	318588 2

Notes:
1. Contact your Intel representative for the latest revision of these documents
2. Document is available publicly at http://developer.intel.com.

2 Dual-Core Intel® Xeon® Processor 5200 Series Electrical Specifications

2.1 Front Side Bus and GTLREF

Most Dual-Core Intel® Xeon® Processor 5200 Series FSB signals use Assisted Gunning Transceiver Logic (AGTL+) signaling technology. This technology provides improved noise margins and reduced ringing through low voltage swings and controlled edge rates. AGTL+ buffers are open-drain and require pull-up resistors to provide the high logic level and termination. AGTL+ output buffers differ from GTL+ buffers with the addition of an active PMOS pull-up transistor to “assist” the pull-up resistors during the first clock of a low-to-high voltage transition. Platforms implement a termination voltage level for AGTL+ signals defined as V_TT . Because platforms implement separate power planes for each processor (and chipset), separate V_CC and V_TT supplies are necessary. This configuration allows for improved noise tolerance as processor frequency increases. Speed enhancements to data and address buses have made signal integrity considerations and platform design methods even more critical than with previous processor families. Design guidelines for the processor FSB are detailed in the appropriate platform design guidelines (refer to Section 1.3).

The AGTL+ inputs require reference voltages (GTLREF_DATA and GTLREF_ADD) which are used by the receivers to determine if a signal is a logical 0 or a logical 1. GTLREF_DATA is used for the 4X front side bus signaling group and GTLREF_ADD is used for the 2X and common clock front side bus signaling groups. Both GTLREF_DATA and GTLREF_ADD must be generated on the baseboard (See Table 2-18 for GTLREF_DATA and GTLREF_ADD specifications). Refer to the applicable platform design guidelines for details. Termination resistors ( R_TT ) for AGTL+ signals are provided on the processor silicon and are terminated to V_TF . The on-die termination resistors are always enabled on the Dual-Core Intel® Xeon® Processor 5200 Series to control reflections on the transmission line. Intel chipsets also provide on-die termination, thus eliminating the need to terminate the bus on the baseboard for most AGTL+ signals.

Some FSB signals do not include on-die termination ( R_TT ) and must be terminated on the baseboard. See Table 2-8 for details regarding these signals.

The AGTL+ bus depends on incident wave switching. Therefore, timing calculations for AGTL+ signals are based on flight time as opposed to capacitive deratings. Analog signal simulation of the FSB, including trace lengths, is highly recommended when designing a system. Contact your Intel Field Representative to obtain the Dual-Core Intel® Xeon® Processor 5200 Series signal integrity models, which includes buffer and package models.

2.2 Power and Ground Lands

For clean on-chip processor core power distribution, the processor has 223 V CC (power) and 273 V SS (ground) inputs. All V CC lands must be connected to the processor power plane, while all V SS lands must be connected to the system ground plane. The processor V _CC lands must be supplied with the voltage determined by the processor Voltage IDentification (VID) signals. See Table 2-3 for VID definitions.

Twenty two lands are specified as V_TT , which provide termination for the FSB and provides power to the I/O buffers. The platform must implement a separate supply for these lands which meets the V_TT specifications outlined in Table 2-12.

2.3 Decoupling Guidelines

Due to its large number of transistors and high internal clock speeds, the Dual-Core Intel® Xeon® Processor 5200 Seriesis capable of generating large average current swings between low and full power states. This may cause voltages on power planes to sag below their minimum values if bulk decoupling is not adequate. Larger bulk storage ( C_BULK ), such as electrolytic capacitors, supply voltage during longer lasting changes in current demand by the component, such as coming out of an idle condition. Similarly, they act as a storage well for current when entering an idle condition from a running condition. Care must be taken in the baseboard design to ensure that the voltage provided to the processor remains within the specifications listed in Table 2-12. Failure to do so can result in timing violations or reduced lifetime of the component. For further information and guidelines, refer to the appropriate platform design guidelines.

2.3.1 V cc Decoupling

Vcc regulator solutions need to provide bulk capacitance with a low Effective Series Resistance (ESR), and the baseboard designer must assure a low interconnect resistance from the regulator (EVRD or VRM pins) to the LGA771 socket. Bulk decoupling must be provided on the baseboard to handle large voltage swings. The power delivery solution must insure the voltage and current specifications are met (as defined in Table 2-12). For further information regarding power delivery, decoupling and layout guidelines, refer to the appropriate platform design guidelines.

2.3.2 V TT Decoupling

Bulk decoupling must be provided on the baseboard. Decoupling solutions must be sized to meet the expected load. To insure optimal performance, various factors associated with the power delivery solution must be considered including regulator type, power plane and trace sizing, and component placement. A conservative decoupling solution consists of a combination of low ESR bulk capacitors and high frequency ceramic capacitors. For further information regarding power delivery, decoupling and layout guidelines, refer to the appropriate platform design guidelines.

2.3.3 Front Side Bus AGTL+ Decoupling

The Dual-Core Intel® Xeon® Processor 5200 Series integrates signal termination on the die, as well as a portion of the required high frequency decoupling capacitance on the processor package. However, additional high frequency capacitance must be added to the baseboard to properly decouple the return currents from the FSB. Bulk decoupling must also be provided by the baseboard for proper AGTL+ bus operation. Decoupling guidelines are described in the appropriate platform design guidelines.

2.4 Front Side Bus Clock (BCLK[1:0]) and Processor Clocking

BCLK[1:0] directly controls the FSB interface speed as well as the core frequency of the processor. As in previous processor generations, the Dual-Core Intel® Xeon® Processor 5200 Series core frequency is a multiple of the BCLK[1:0] frequency. The processor bus ratio multiplier is set during manufacturing. The default setting is for the maximum speed of the processor. It is possible to override this setting using software (see the Intel® 64 and IA-32 Architectures Software Developer's Manual). This permits operation at lower frequencies than the processor's tested frequency.

The processor core frequency is configured during reset by using values stored internally during manufacturing. The stored value sets the highest bus fraction at which the particular processor can operate. If lower speeds are desired, the appropriate ratio can be configured via the CLOCK_FLEX_MAX MSR. For details of operation at core frequencies lower than the maximum rated processor speed, refer to the Intel® 64 and Intel® 64 and IA-32 Architectures Software Developer's Manual.

Clock multiplying within the processor is provided by the internal phase locked loop (PLL), which requires a constant frequency BCLK[1:0] input, with exceptions for spread spectrum clocking. Processor DC specifications for the BCLK[1:0] inputs are provided in Table 2-19. These specifications must be met while also meeting signal integrity requirements as outlined in Table 2-19. The Dual-Core Intel® Xeon® Processor 5200 Series utilizes differential clocks. Table 2-1 contains processor core frequency to FSB multipliers and their corresponding core frequencies.

Table 2-1. Core Frequency to FSB Multiplier Configuration

Core Frequency to FSB Multiplier	Core Frequency with 400.000 MHz Bus Clock	Core Frequency with 333.333 MHz Bus Clock	Core Frequency with 266.666 MHz Bus Clock	Notes
1/6 2.40 GHz	2 GHz 1.60 GHz 1,	2, 3, 4
1/7 2.80 GHz	2.33 GHz 1.87 GHz	1, 2, 3
1/7.5	3 GHz 2.50 GHz	1, 2, 3
1/8 3.20 GHz	2.66 GHz 2.13 GHz	1, 2, 3
1/8.5	3.40 GHz 2.83	GHz 2.27 GHz 1, 2, 3
1/9 3.60 GHz	3 GHz 2.40 GHz 1,	2, 3
1/9.5	3.80 GHz 3.16	GHz 2.53 GHz 1, 2, 3

Notes:

1. Individual processors operate only at or below the frequency marked on the package.
2. Listed frequencies are not necessarily committed production frequencies.
3. For valid processor core frequencies, see Dual-Core Intel® Xeon® Processor 5200 Series Specification Update.
4. The lowest bus ratio supported by the Dual-Core Intel® Xeon® Processor 5200 Series is 1/6.

2.4.1 Front Side Bus Frequency Select Signals (BSEL[2:0])

Upon power up, the FSB frequency is set to the maximum supported by the individual processor. BSEL[2:0] are CMOS outputs which must be pulled up to V_TT , and are used to select the FSB frequency. Please refer to Table 2-14 for DC specifications. Table 2-2 defines the possible combinations of the signals and the frequency associated with each combination. The frequency is determined by the processor(s), chipset, and clock synthesizer. All FSB agents must operate at the same core and FSB frequency. See the appropriate platform design guidelines for further details.

Table 2-2. BSEL[2:0] Frequency Table

BSEL2 BSEL1	BSEL0 Bus Clock	Frequency
0 0 0 266.66 MHz
0	0	1	Reserved
0	1	0	Reserved
0	1	1	Reserved
1 0 0 333.33 MHz
1	0	1	Reserved
1 1 0	400 MHz
1	1	1	Reserved

2.4.2 PLL Power Supply

An on-die PLL filter solution is implemented on the Dual-Core Intel® Xeon® Processor 5200 Series. The V_CCPLL input is used for this configuration in Dual-Core Intel® Xeon® Processor 5200 Series-based platforms. Please refer to Table 2-12 for DC specifications. Refer to the appropriate platform design guidelines for decoupling and routing guidelines.

2.5 Voltage Identification (VID)

The Voltage Identification (VID) specification for the Dual-Core Intel® Xeon® Processor 5200 Series is defined by the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 11.0 Design Guidelines. The voltage set by the VID signals is the reference VR output voltage to be delivered to the processor Vcc pins. VID signals are open drain outputs, which must be pulled up to V_TT . Please refer to Table 2-15 for the DC specifications for these signals. A voltage range is provided in Table 2-12 and changes with frequency. The specifications have been set such that one voltage regulator can operate with all supported frequencies.

Individual processor VID values may be calibrated during manufacturing such that two devices at the same core frequency may have different default VID settings. This is reflected by the VID range values provided in Table 2-3.

The Dual-Core Intel® Xeon® Processor 5200 Series uses six voltage identification signals, VID[6:1], to support automatic selection of power supply voltages. Table 2-3 specifies the voltage level corresponding to the state of VID[6:1]. A '1' in this table refers to a high voltage level and a '0' refers to a low voltage level. If the processor socket is empty (VID[6:1] = 111111), or the voltage regulation circuit cannot supply the voltage that is requested, the voltage regulator must disable itself. See the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 11.0 Design Guidelines for further details.

Although the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 11.0 Design Guidelines defines VID[7:0], VID7 and VID0 are not used on the Dual-Core Intel® Xeon® Processor 5200 Series; VID7 is always hard wired low at the voltage regulator.

The Dual-Core Intel® Xeon® Processor 5200 Series provides the ability to operate while transitioning to an adjacent VID and its associated processor core voltage (VCC). This will represent a DC shift in the load line. It should be noted that a low-to-high or high-to-low voltage state change may result in as many VID transitions as necessary to reach the target core voltage. Transitions above the specified VID are not permitted. Table 2-12 includes VID step sizes and DC shift ranges. Minimum and maximum voltages must be maintained as shown in Table 2-13

The VRM or EVRD utilized must be capable of regulating its output to the value defined by the new VID. DC specifications for dynamic VID transitions are included in Table 2-12 and Table 2-13. Refer to the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 11.0 Design Guidelines for further details.

Power source characteristics must be guaranteed to be stable whenever the supply to the voltage regulator is stable.

Table 2-3. Voltage Identification Definition

HEX	VID6	VID5	VID4	VID3	VID2	VID1	V		CC_MAX		HEX	VID6	VID5	VID4	VID3	VID2	VID1	V		CC_MAX
7A	1		1		1		0		1		0.8500		3C		0		1		1
78	1		1		1		0		0		0.8625		3A		0		1		1
76	1		1		0		1		1		0.8750		38		0		1		1
74	1		1		0		1		0		0.8875		36		0		1		1
72	1		1		0		0		1		0.9000		34		0		1		0
70	1		1		0		0		0		0.9125		32		0		1		0
6E	1		1		0		1		1		0.9250		30		0		1		0
6C	1		1		0		1		0		0.9375		2E		0		1		1
6A	1		1		0		1		0		0.9500		2C		0		1		1
68	1		1		0		1		0		0.9625		2A		0		1		0
66	1		1		0		0		1		0.9750		28		0		1		0
64	1		1		0		0		1		0.9875		26		0		1		1
62	1		1		0		0		1		1.0000		24		0		1		0
60 1	1 0 0 0		0 1.01		25 22 0		1 0 0 0		1 1.4000
5E 1	0 1 1 1		1 1.02		50 20 0		1 0 0 0		0 1.4125
5C	1		0		1		1		0		1.0375		1E		0		0		1
5A	1		0		1		1		0		1.0500		1C		0		0		1
58	1		0		1		1		0		1.0625		1A		0		0		1
56 1	0 1 0 1		1 1.07		50 18 0		0 1 1 0		0 1.4625
54 1	0 1 0 1		0 1.08		75 16 0		0 1 0 1		1 1.4750
52	1		0		1		0		0		1.1000		14		0		0		0
50	1		0		1		0		0		1.1125		12		0		0		1
4E	1		0		0		1		1		1.1250		10		0		0		0
4C 1	0 0 1 1		0 1.13		75 0E 0		0 0 1 1		1 1.5250
4A 1	0 0 1 0		1 1.15		00 0C 0		0 0 1 1		0 1.5375
48	1		0		0		1		0		1.1625		0A		0		0		1
46	1		0		0		0		1		1.1750		08		0		0		0
44	1		0		0		0		1		1.1875		06		0		0		1
42 1	0 0 0 0		1 1.20		00 04 0		0 0 0 1		0 1.5875
40 1	0 0 0 0		0 1.21		25 02 0		0 0 0 0		1 1.6000
3E	0		1		1		1		1		1.2250		00		0		0		0

Notes:
1. When the "111111" VID pattern is observed, the voltage regulator output should be disabled.
2. Shading denotes the expected VID range of the Dual-Core Intel® Xeon® Processor 5200 Series .
3. The VID range includes VID transitions that may be initiated by thermal events, assertion of the FORCEPR# signal (see Section 6.2.4), Extended HALT state transitions (see Section 7.2.2), or Enhanced Intel SpeedStep® Technology transitions (see Section 7.3). The Extended HALT state must be enabled for the processor to remain within its specifications
4. Once the VRM/EVRD is operating after power-up, if either the Output Enable signal is de-asserted or a specific VID off code is received, the VRM/EVRD must turn off its output (the output should go to high impedance) within 500 ms and latch off until power is cycled. Refer to Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 11.0 Design Guidelines.

Table 2-4. Loadline Selection Truth Table for LL_ID[1:0]

LL_ID1 LL_ID0 Description
0	0	R	e	s e
0	1	D® Xeon® Processor 5100 series, Dual-Core Intel® | Xeon® Processor 5200 Series, and Quad-Core Intel® Xeon® Processor 5400 Series
1	0	R	e	s e
1	1	Q® Xeon® processor 5300 series a		d

Note: The LL_ID[1:0] signals are used to select the correct loadline slope for the processor.

Table 2-5. Market Segment Selection Truth Table for MS_ID[1:0]

MS_ID1	MS_ID0	Description
0	0	Dual-Core Intel® Xeon® Processor 5200 Series
0	1	Dual-Core Intel® Xeon® Processor 5100 series
1	0	Quad-Core Intel® Xeon® Processor 5300 series
1	1	Quad-Core Intel® Xeon® Processor 5400 Series

Note: The MS_ID[1:0] signals are provided to indicate the Market Segment for the processor and may be used for future processor compatibility or for keying.

2.6 Reserved, Unused, and Test Signals

All Reserved signals must remain unconnected. Connection of these signals to V_CC , V_TF , V_SS , or to any other signal (including each other) can result in component malfunction or incompatibility with future processors. See Chapter 4 for a land listing of the processor and the location of all Reserved signals.

For reliable operation, always connect unused inputs or bidirectional signals to an appropriate signal level. Unused active high inputs should be connected through a resistor to ground ( V_SS ). Unused outputs can be left unconnected; however, this may interfere with some TAP functions, complicate debug probing, and prevent boundary scan testing. A resistor must be used when tying bidirectional signals to power or ground. When tying any signal to power or ground, a resistor will also allow for system testability. Resistor values should be within ± 20% of the impedance of the baseboard trace for FSB signals, unless otherwise noted in the appropriate platform design guidelines. For unused AGTL+ input or I/O signals, use pull-up resistors of the same value as the on-die termination resistors ( R_TT ). For details see Table 2-18.

TAP, CMOS Asynchronous inputs, and CMOS Asynchronous outputs do not include on-die termination. Inputs and utilized outputs must be terminated on the baseboard. Unused outputs may be terminated on the baseboard or left unconnected. Note that leaving unused outputs unterminated may interfere with some TAP functions, complicate debug probing, and prevent boundary scan testing. Signal termination for these signal types is discussed in the appropriate platform design guidelines.

The TESTHI signals must be tied to the processor V_TT using a matched resistor, where a matched resistor has a resistance value within ±20% of the impedance of the board transmission line traces. For example, if the trace impedance is 50 , then a value between 40 and 60 is required.

The TESTHI signals must use individual pull-up resistors as detailed below. A matched resistor must be used for each signal:

• TESTHI8 - cannot be grouped with other TESTHI signals
• TESTHI9 - cannot be grouped with other TESTHI signals
• TESTHI10 – cannot be grouped with other TESTHI signals
• TESTHI11 – cannot be grouped with other TESTHI signals
• TESTHI12 - cannot be grouped with other TESTHI signals

2.7 Front Side Bus Signal Groups

The FSB signals have been combined into groups by buffer type. AGTL+ input signals have differential input buffers, which use GTLREF_DATA and GTLREF_ADD as reference levels. In this document, the term "AGTL+ Input" refers to the AGTL+ input group as well as the AGTL+ I/O group when receiving. Similarly, "AGTL+ Output" refers to the AGTL+ output group as well as the AGTL+ I/O group when driving. AGTL+ asynchronous outputs can become active anytime and include an active PMOS pull-up transistor to assist during the first clock of a low-to-high voltage transition.

With the implementation of a source synchronous data bus comes the need to specify two sets of timing parameters. One set is for common clock signals whose timings are specified with respect to rising edge of BCLK0 (ADS#, HIT#, HITM#, and so forth) and the second set is for the source synchronous signals which are relative to their respective strobe lines (data and address) as well as rising edge of BCLK0.

Asynchronous signals are still present (A20M#, IGNNE#, and so forth) and can become active at any time during the clock cycle. Table 2-6 identifies which signals are common clock, source synchronous and asynchronous.

Table 2-6. FSB Signal Groups (Sheet 1 of 2)

Signal Group Type Signals		1
AGTL+ Common Clock Input Synchronous to BCLK[1:0]		BPRI#, DEFER#, RESET#, RS[2:0]#, RSP#, TRDY#;
AGTL+ Common Clock Output Synchronous to BCLK[1:0]		BPM4#, BPM[2:1]#
AGTL+ Common Clock I/O Synchronous to BCLK[1:0]		ADS#, AP[1:0]#, BINIT# ^2 , BNR# ^2 , BPM5#, BPM3#, BPM0#, BR[1:0]#, DBSY#, DP[3:0]#, DRDY#, HIT# ^2 , HITM# ^2 , LOCK#, MCERR# ^2
AGTL+ Source Synchronous I/O	Synchronous to assoc. strobe
		Signals Associated Strobe
		REQ[4:0]#, A[16:3]#, A[37:36]#	ADSTB0#
		A[35:17]#	ADSTB1#
		D[15:0]#, DBI0#	DSTBP0#, DSTBN0#
		D[31:16]#, DBI1#	DSTBP1#, DSTBN1#
		D[47:32]#, DBI2#	DSTBP2#, DSTBN2#
		D[63:48]#, DBI3#	DSTBP3#, DSTBN3#
AGTL+ Strobes I/O Synchronous to BCLK[1:0]		ADSTB[1:0]#, DSTBP[3:0]#, DSTBN[3:0]#
Open Drain Output Asynchronous FERR#/PBE#, IERR#, PROCHOT#, THERMTRIP#, TDO

Table 2-6. FSB Signal Groups (Sheet 2 of 2)

Signal Group	Type	Signals ^1
CMOS Asynchronous Input Asyn	chronous A20M#, FORCEPR#	, IGNNE#, INIT#, LINT0/INTR, LINT1/NMI, PWRGOOD, SMI#, STPCLK#
CMOS Asynchronous Output As	ynchronous BSEL[2:0], VID[6:1]
FSB Clock Clock BCLK[1:0]
TAP Input Synchronous to TCK T	CK, TDI, TMS, TRST#
TAP Output Synchronous to TCK	TDO
Power/Other Power/Other	GTLREF_ADD, GTLR	REF_DATA, LL_ID[1:0], MS_ID[1:0], PECI, RESERVED, SKTOCC#, TESTHI[12:8], Vcc, VCC_DIE_SENSE, VCC_DIE_SENSE2, VCCPLL, VID_SELECT, VSS_DIE_SENSE, VSS_DIE_SENSE2, Vss, Vtt, VTT_OUT, VTT_SEL

Notes:

1. Refer to Chapter 5 for signal descriptions.
2. These signals may be driven simultaneously by multiple agents (Wired-OR).

Table 2-7 outlines the signals which include on-die termination (R _TT ). Table 2-8 outlines non AGTL+ signals including open drain signals. Table 2-9 provides signal reference voltages.

Table 2-7. AGTL+ Signal Description Table

AGTL+ signals with R_TT	AGTL+ signals with no R_TT
A[37:3]#, ADS#, ADSTB[1:0]#, AP[1:0]#, BINIT#, BNR#, BPRI#, D[63:0]#, DBI[3:0]#, DBSY#, DEFER#, DP[3:0]#, DRDY#, DSTBN[3:0]#, DSTBP[3:0]#, HIT#, HITM#, LOCK#, MCERR#, REQ[4:0]#, RS[2:0]#, RSP#, TRDY#	BPM[5:0]#, RESET#, BR[1:0]#

Table 2-8. Non AGTL+ Signal Description Table

Signals with R_TT	Signals with no R_TT
FORCEPR#1, PROCHOT#2	A20M#, BCLK[1:0], BSEL[2:0], FERR#/PBE#, GTLREF_ADD, GTLREF_DATA, IERR#, IGNNE#, INIT#, LINT0/INTR, LINT1/NMI, LL_ID[1:0], MS_ID[1:0], PECI, PWRGOOD, SKTOCC#, SMI#, STPCLK#, TCK, TDI, TDO, TESTHI[12:8], THERMTRIP#, TMS, TRDY#, TRST#, VCC_DIE_SENSE, VCC_DIE_SENSE2, VID[6:1], VID_SELECT, VSS_DIE_SENSE, VSS_DIE_SENSE2, VTT_SEL

Notes:

1. These signals have RTT in the package with a 80 Ω pullup to VTT
2. These signals have RTT in the package with a 50 Ω pullup to VTT

Table 2-9. Signal Reference Voltages

GTLREF	CMOS
A[37:3]#, ADS#, ADSTB[1:0]#, AP[1:0]#, BINIT#, BNR#, BPM[5:0]#, BPRI#, BR[1:0]#, D[63:0]#, DBI[3:0]#, DBSY#, DEFER#, DP[3:0]#, DRDY#, DSTBN[3:0]#, DSTBP[3:0]#, FORCEPR#, HIT#, HITM#, LOCK#, MCERR#, RESET#, REQ[4:0]#, RS[2:0]#, RSP#, TRDY#	A20M#, LINT0/INTR, LINT1/NMI, IGNNE#, INIT#, PWRGOOD, SMI#, STPCLK#, TCK, TDI, TMS, TRST#

2.8 CMOS Asynchronous and Open Drain Asynchronous Signals

Legacy input signals such as A20M#, IGNNE#, INIT#, SMI#, and STPCLK# utilize CMOS input buffers. Legacy output signals such as FERR#/PBE#, IERR#, PROCHOT#, and THERMTRIP# utilize open drain output buffers. All of the CMOS and Open Drain signals are required to be asserted/deasserted for at least eight BCLKs in order for the processor to recognize the proper signal state. See Section 2.13 for the DC specifications. See Chapter 6 for additional timing requirements for entering and leaving the low power states.

2.9 Test Access Port (TAP) Connection

Due to the voltage levels supported by other components in the Test Access Port (TAP) logic, it is recommended that the processor(s) be first in the TAP chain followed by any other components within the system. A translation buffer should be used to connect to the rest of the chain unless one of the other components is capable of accepting an input of the appropriate voltage. Similar considerations must be made for TCK, TDO, TMS, and TRST#. Two copies of each signal may be required with each driving a different voltage level.

2.10 Platform Environmental Control Interface (PECI) DC Specifications

PECI is an Intel proprietary one-wire interface that provides a communication channel between Intel processors and chipset components to external thermal monitoring devices. The Dual-Core Intel® Xeon® Processor 5200 Series contains Digital Thermal Sensor (DTS) sprinkled both inside and outside the cores in a die. These sensors are implemented as analog-to-digital converters calibrated at the factory for reasonable accuracy to provide a digital representation of relative processor temperature. PECI provides an interface to relay the highest DTS temperature within a die to external devices for thermal/fan speed control. More detailed information may be found in the Platform Environment Control Interface (PECI) Specification.

2.10.1 DC Characteristics

The PECI interface operates at a nominal voltage set by V_TT . The set of DC electrical specifications shown in Table 2-10 is used with devices normally operating from a V_TT interface supply. V_TT nominal levels will vary between processor families. All PECI devices will operate at the V_TT level determined by the processor installed in the system. For specific nominal V_TT levels, refer to the appropriate processor EMTS.

Table 2-10. PECI DC Electrical Limits

Symbol Definition and Conditions Min Max Units Notes					1
V_in	Input Voltage Range -0.150 V		TT	V
V_hysteresis	Hysteresis 0.1 * V	TT	N/A V
V_n	Negative-edge threshold voltage	0.275 * V_TT	0.500 * V_TT	V
V_p	Positive-edge threshold voltage	0.550 * V_TT	0.725 * V_TT	V
I_source	High level output source ( V_OH = 0.75 * V_TT )	-6.0 N/A mA
I_sink	Low level output sink ( V_OL = 0.25 * V_TT )	0.5	1.0	mA
I_leak+	High impedance state leakage to V_TT ( V_leak = V_OL )	N/A	50 μA	2
I_leak-	High impedance leakage to GND( V_leak = V_OH )	N/A	10 μA	2
C_bus	Bus capacitance per node	N/A	10	pF 3
V_noise	Signal noise immunity above 300 MHz	0.1 * V_TT	N/A	V_p-p

Note:
1. VTT supplies the PECI interface. PECI behavior does not affect VTT min/max specifications.
2. The leakage specification applies to powered devices on the PECI bus.
3. One node is counted for each client and one node for the system host. Extended trace lengths might appear as additional nodes.

2.10.2 Input Device Hysteresis

The input buffers in both client and host models must use a Schmitt-triggered input design for improved noise immunity. Use Figure 2-1 as a guide for input buffer design.

Figure 2-1. Input Device Hysteresis

-VTT -Maximum Vp ———— PECI High Range -Minimum Vp ———— -Maximum VN ———— -Minimum VN ———— PECI Low Range -PECI Ground ———— Minimum Hysteresis Valid Input Signal Range

2.11 Mixing Processors

Intel supports and validates dual processor configurations only in which both processors operate with the same FSB frequency, core frequency, power segments, and have the same internal cache sizes. Mixing components operating at different internal clock frequencies is not supported and will not be validated by Intel. Combining processors from different power segments is also not supported.

Note:

Processors within a system must operate at the same frequency per bits [12:8] of the CLOCK_FLEX_MAX MSR; however this does not apply to frequency transitions initiated due to thermal events, Extended HALT, Enhanced Intel SpeedStep Technology transitions, or assertion of the FORCEPR# signal (See Chapter 6).

Not all operating systems can support dual processors with mixed frequencies. Mixing processors of different steppings but the same model (as per CPUID instruction) is supported. Details regarding the CPUID instruction are provided in the AP-485 Intel® Processor Identification and the CPUID Instruction application note.

2.12 Absolute Maximum and Minimum Ratings

Table 2-11 specifies absolute maximum and minimum ratings only, which lie outside the functional limits of the processor. Only within specified operation limits, can functionality and long-term reliability be expected.

At conditions outside functional operation condition limits, but within absolute maximum and minimum ratings, neither functionality nor long-term reliability can be expected. If a device is returned to conditions within functional operation limits after having been subjected to conditions outside these limits, but within the absolute maximum and minimum ratings, the device may be functional, but with its lifetime degraded depending on exposure to conditions exceeding the functional operation condition limits.

At conditions exceeding absolute maximum and minimum ratings, neither functionality nor long-term reliability can be expected. Moreover, if a device is subjected to these conditions for any length of time then, when returned to conditions within the functional operating condition limits, it will either not function or its reliability will be severely degraded.

Although the processor contains protective circuitry to resist damage from static electric discharge, precautions should always be taken to avoid high static voltages or electric fields.

Table 2-11. Processor Absolute Maximum Ratings

Symbol Parameter Min Max Unit Notes					1,2
V_CC	Core voltage with respect to V_SS	-0.30	1.35	V
V_TT	FSB termination voltage with respect to V_SS	-0.30	1.45	V
T_CASE	Processor case temperature	See Chapter 6	See Chapter 6	°C
T_STORAGE	Storage temperature	-40	85	°C	3,4,5

Notes:

1. For functional operation, all processor electrical, signal quality, mechanical and thermal specifications must be satisfied.
2. Overshoot and undershoot voltage guidelines for input, output, and I/O signals are outlined in Chapter 3. Excessive overshoot or undershoot on any signal will likely result in permanent damage to the processor.
3. Storage temperature is applicable to storage conditions only. In this scenario, the processor must not receive a clock, and no lands can be connected to a voltage bias. Storage within these limits will not affect the long-term reliability of the device. For functional operation, please refer to the processor case temperature specifications.
4. This rating applies to the processor and does not include any tray or packaging.
5. Failure to adhere to this specification can affect the long-term reliability of the processor.

2.13 Processor DC Specifications

The processor DC specifications in this section are defined at the processor die (pads) unless noted otherwise. See Chapter 4 for the Dual-Core Intel® Xeon® Processor 5200 Series land listings and Chapter 5 for signal definitions. Voltage and current specifications are detailed in Table 2-12. For platform planning refer to Table 2-13, which provides V CC static and transient tolerances. This same information is presented graphically in Figure 2-5 and Figure 2-6.

The FSB clock signal group is detailed in Table 2-19. BSEL[2:0] and VID[6:1] signals are specified in Table 2-14. The DC specifications for the AGTL+ signals are listed in Table 2-15. Legacy signals and Test Access Port (TAP) signals follow DC specifications similar to GTL+. The DC specifications for the PWRGOOD input and TAP signal group are listed in Table 2-15.

Table 2-12 through Table 2-17 list the DC specifications for the processor and are valid only while meeting specifications for case temperature ( T_CASE as specified in Chapter 6, "Thermal Specifications"), clock frequency, and input voltages. Care should be taken to read all notes associated with each parameter.

2.13.1 Flexible Motherboard Guidelines (FMB)

The Flexible Motherboard (FMB) guidelines are estimates of the maximum values the Dual-Core Intel® Xeon® Processor 5200 Series will have over certain time periods. The values are only estimates and actual specifications for future processors may differ. Processors may or may not have specifications equal to the FMB value in the foreseeable future. System designers should meet the FMB values to ensure their systems will be compatible with future Dual-Core Intel® Xeon® Processor 5200 Series.

Table 2-12. Voltage and Current Specifications (Sheet 1 of 2)

Symbol Parameter Min Typ Max Unit Notes						1, 11
VID VID range 0.850 1.3500 V
VCC	VCC for processor coreLaunch - FMB	See Table 2-13 and Figure 2-5,Figure 2-6, and Figure 2-6,			V	2, 3, 4, 6, 9
Vcc_boot	Default VCC Voltage for initial power up		1.10		V	2
VVID_STEP	VID step size during a transition			±12.5	mV
VVID_SHIFT	Total allowable DC load line shift from VID steps			450 mV	10
VTT	FSB termination voltage (DC + AC specification)	1.045	1.10	1.155 V	8,13
VCCPLL	PLL supply voltage (DC + AC specification)	1.455	1.500 1	605 V 12
Icc	Icc for Dual-Core Intel®Xeon® Processor X5200 Series with multiple VID Launch - FMB			90	A	4, 5, 6, 9
Icc	Icc for Dual-Core Intel®Xeon® Processor E5200 Series with multiple VID Launch - FMB			75	A	4, 5, 6, 9
Icc	Icc for Dual-Core Intel®Xeon® Processor L5200 Series with multiple VID Launch - FMB			50	A	4, 5, 6, 9
Icc	Icc for Dual-Core Intel®Xeon® Processor L5238 with multiple VID Launch - FMB			42	A	4, 5, 6, 9
Icc_RESET	Icc_RESET for Dual-CoreIntel® Xeon® ProcessorX5200 Series with multiple VID Launch - FMB			90	A	17
Icc_RESET	Icc_RESET for Dual-CoreIntel® Xeon® ProcessorE5200 Series with multiple VID Launch - FMB			75	A	17
Icc_RESET	Icc_RESET for Dual-CoreIntel® Xeon® ProcessorL5200 Series with multiple VID Launch - FMB			50	A	17
Icc_RESET	Icc_RESET for Dual-CoreIntel® Xeon® ProcessorL5238 with multiple VID Launch - FMB			42	A	17
ITT	Icc for VTT supply before Vcc stableIcc for VTT supply after Vcc stable			4.54.6	A	15

Table 2-12. Voltage and Current Specifications (Sheet 2 of 2)

Symbol Parameter Min Typ Max Unit Notes					1, 11
I_CC\_TDC	Thermal Design Current (TDC) Dual-Core Intel® Xeon® Processor X5200 Series Launch - FMB		70 A 6,14
I_CC\_TDC	Thermal Design Current (TDC) Dual-Core Intel® Xeon® Processor E5200 Series Launch - FMB		60 A 6,14
I_CC\_TDC	Thermal Design Current (TDC) Dual-Core Intel® Xeon® Processor L5200 Series Launch - FMB		38 A 6,14
I_CC\_TDC	Thermal Design Current (TDC) Dual-Core Intel® Xeon® Processor L5238 Launch - FMB		35 A 6,14
I_CC\_VTT\_OUT	DC current that may be drawn from V_TT\_OUT per land		580 mA 16
I_CC\_GTLREF	I_CC for GTLREF_DATA and GTLREF_ADD		200 μA 7
I_CC\_VCCPLL	I_CC for PLL supply 130 mA 12
I_TCC	I_CC for Dual-Core Intel® Xeon® Processor X5200 Series during active thermal control circuit (TCC)		90	A
I_TCC	I_CC for Dual-Core Intel® Xeon® Processor E5200 Series during active thermal control circuit (TCC)		75	A
I_TCC	I_CC for Dual-Core Intel® Xeon® Processor L5200 Series during active thermal control circuit (TCC)		50	A
I_TCC	I_CC for Dual-Core Intel® Xeon® Processor L5238 during active thermal control circuit (TCC)		42	A

Notes:

1. Unless otherwise noted, all specifications in this table are based on final silicon characterization data.

2. These voltages are targets only. A variable voltage source should exist on systems in the event that a different voltage is required. See Section 2.5 for more information.

3. The voltage specification requirements are measured across the VCC_DIE_SENSE and VSS_DIE_SENSE lands and across the VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands with an oscilloscope set to 100 MHz bandwidth, 1.5 pF maximum probe capacitance, and 1 MΩ minimum impedance. The maximum length of ground wire on the probe should be less than 5 mm. Ensure external noise from the system is not coupled in the scope probe.

4. The processor must not be subjected to any static V CC level that exceeds the V CC_MAX associated with any particular current. Failure to adhere to this specification can shorten processor lifetime.

5. I_CC_MAX specification is based on maximum V_CC loadline. Refer to Figure 2-5, Figure 2-6, and Figure 2-11 for details. The processor is capable of drawing I_CC_MAX for up to 10 ms. Refer to Figure 2-1 for further details on the average processor current draw over various time durations.

6. FMB is the flexible motherboard guideline. These guidelines are for estimation purposes only. See Section 2.13.1 for further details on FMB guidelines.

7. This specification represents the total current for GTLREF DATA and GTLREF ADD.

8. VTT must be provided via a separate voltage source and must not be connected to VCC. This specification is measured at the land.

9. Minimum V cc and maximum I cc are specified at the maximum processor case temperature (TCASE) shown in Figure 6-1 and Figure 6-2.

10. This specification refers to the total reduction of the load line due to VID transitions below the specified VID.

11. Individual processor VID values may be calibrated during manufacturing such that two devices at the same frequency may have different VID settings.
12. This specification applies to the VCCPLL land.
13. Baseboard bandwidth is limited to 20 MHz.
14. I CC_TDC is the sustained (DC equivalent) current that the processor is capable of drawing indefinitely and should be used for the voltage regulator temperature assessment. The voltage regulator is responsible for monitoring its temperature and asserting the necessary signal to inform the processor of a thermal excursion. Please see the applicable design guidelines for further details. The processor is capable of drawing ICC_TDC indefinitely. Refer to Figure 2-1 for further details on the average processor current draw over various time durations. This parameter is based on design characterization and is not tested.
15. This is the maximum total current drawn from the V_TT plane by only one processor with R_TT enabled. This specification does not include the current coming from on-board termination ( R_TT ), through the signal line. Refer to the appropriate platform design guide and the Voltage Regulator Design Guidelines to determine the total I_TT drawn by the system. This parameter is based on design characterization and is not tested.
16. I cc vTT out is specified at 1.1 V.
17. I cc RESET is specified while PWRGOOD and RESET# are asserted.

Figure 2-2. Dual-Core Intel® Xeon® Processor E5200 Series Load Current versus Time

Notes:

1. Processor or Voltage Regulator thermal protection circuitry should not trip for load currents greater than ICC_TDC.
2. Not 100% tested. Specified by design characterization.

Figure 2-3. Dual-Core Intel® Xeon® Processor X5200 Series Load Current versus Time

Notes:

1. Processor or Voltage Regulator thermal protection circuitry should not trip for load currents greater than ICC_TDC.
2. Not 100% tested. Specified by design characterization.

Figure 2-4. Dual-Core Intel® Xeon® Processor L5200 Series Load Current versus Time

Notes:

1. Processor or Voltage Regulator thermal protection circuitry should not trip for load currents greater than I_CC_TDC .
2. Not 100% tested. Specified by design characterization.

Table 2-13. Dual-Core Intel® Xeon® Processor E5200 Series and Dual-Core Intel® Xeon® Processor X5200 Series and Dual-Core Intel® Xeon® Processor L5200 Series Vcc Static and Transient Tolerance

I_CC(A)V	CC\_Max(V)V	CC\_Typ(V)	V_CC\_Min(V)	Notes 1,2,3
0	VID - 0.000 VID - 0.015 VID - 0.030
5	VID - 0.006 VID - 0.021 VID - 0.036
10 VID - 0.013	VID - 0.028 VID - 0.043
15	VID - 0.019 VID - 0.034 VID - 0.049
20	VID - 0.025 VID - 0.040 VID - 0.055
25	VID - 0.031 VID - 0.046 VID - 0.061
30	VID - 0.038 VID - 0.053 VID - 0.068
35	VID - 0.044 VID - 0.059 VID - 0.074
40	VID - 0.050 VID - 0.065 VID - 0.080
45	VID - 0.056	VID - 0.071	VID - 0.086	6
50	VID - 0.063	VID - 0.077	VID - 0.093	6
55	VID - 0.069	VID - 0.084	VID - 0.099	5, 6
60	VID - 0.075	VID - 0.090	VID - 0.105	5, 6
65	VID - 0.081	VID - 0.096	VID - 0.111	5, 6
70	VID - 0.087	VID - 0.103	VID - 0.118	5, 6
75	VID - 0.094	VID - 0.109	VID - 0.124	5, 6
80	VID - 0.100	VID - 0.115	VID - 0.130	4, 5, 6
85	VID - 0.106	VID - 0.121	VID - 0.136	4, 5, 6
90	VID - 0.113	VID - 0.128	VID - 0.143	4, 5, 6

Notes:

1. The V CC_MIN and VCC_MAX loadlines represent static and transient limits. Please see Section 2.13.2 for Vcc overshoot specifications.

2. This table is intended to aid in reading discrete points on Figure 2-5 and Figure 2-6.

3. The loadlines specify voltage limits at the die measured at the VCC_DIE_SENSE and VSS_DIE_SENSE lands and across the VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Voltage regulation feedback for voltage regulator circuits must also be taken from processor VCC_DIE_SENSE and VSS_DIE_SENSE lands and VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Refer to the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator Down (EVRD) 11.0 Design Guidelines for socket load line guidelines and VR implementation. Please refer to the appropriate platform design guide for details on VR implementation.

4. Icc values greater than 75A are not applicable for the Dual-Core Intel® Xeon® Processor E5200 Series.
5. Icc values greater than 50A are not applicable for the Dual-Core Intel® Xeon® Processor L5200 Series.
6. Icc values greater than 42A are not applicable for the Dual-Core Intel® Xeon® Processor L5238.

Figure 2-5. Dual-Core Intel® Xeon® Processor E5200 Series V CC Static and Transient Tolerance Load Lines

Figure 2-6. Dual-Core Intel® Xeon® Processor X5200 Series V CC Static and Transient Tolerance Load Lines

Figure 2-7. Dual-Core Intel® Xeon® Processor L5200 Series V CC Static and Transient Tolerance Load Lines

Notes:

1. The V CC_MIN and VCC_MAX loadlines represent static and transient limits. Please see Section 2.13.2 for VCC overshoot specifications.

2. Refer to Table 2-12 for processor VID information.

3. Refer to Table 2-13 for V ccStatic and Transient Tolerance

4. The load lines specify voltage limits at the die measured at the VCC_DIE_SENSE and VSS_DIE_SENSE lands and the VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Voltage regulation feedback for voltage regulator circuits must also be taken from processor VCC_DIE_SENSE and VSS_DIE_SENSE lands and VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Refer to the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator Down (EVRD) 11.0 Design Guidelines for socket load line guidelines and VR implementation. Please refer to the appropriate platform design guide for details on VR implementation.

Table 2-14. AGTL+ Signal Group DC Specifications

Symbol	Parameter Min Typ Max Units Notes					1
V_IL	Input Low Voltage	-0.10	0	GTLREF-0.10	V	2,4,6
V_IH	Input High Voltage	GTLREF+0.10	V_TT	V_TT+0.10	V	3,6
V_OH	Output High Voltage	V_TT-0.10	N/A	V_TT	V	4,6
R_ON	Buffer On Resistance	8.25	10.25	12.25	Ω	5
I_LI	Input Leakage Current	N/A N/A		±100	μA	7

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.

2. V_IL is defined as the maximum voltage level at a receiving agent that will be interpreted as a logical low value.

3. V_IH is defined as the minimum voltage level at a receiving agent that will be interpreted as a logical high value.

4. V_IH and V_OH may experience excursions above V_TT . However, input signal drivers must comply with the signal quality specifications.

5. This is the pull down driver resistance. Refer to processor I/O Buffer Models for I/V characteristics. Measured at 0.31* VTT. RON(min) = 0.158* RTT. RON(typ) = 0.167* RTT. RON(max) = 0.175* RTT.

6. GTLREF should be generated from V TT with a 1% tolerance resistor divider. The V TT referred to in these specifications is the instantaneous V _TT .

7. Specified when on-die R and R_ON are turned off. V_IN between 0 and V_TT

Table 2-15. CMOS Signal Input/ Output Group and TAP Signal Group DC Specifications

Symbol	Parameter	Min	Typ	Max	Units	Notes1
V_IL	Input Low Voltage	-0.10	0.00	0.3 * V_TT	V	2,3
V_IH	Input High Voltage	0.7 * V_TT	V_TT	V_TT + 0.1	V 2
V_OL	Output Low Voltage	-0.10 0	0.1	* V _TT	V	2
V_OH	Output High Voltage	0.9 * V_TT	V_TT	V_TT + 0.1	V 2
I_OL	Output Low Current	1.70	N/A	4.70	mA	4
I_OH	Output High Current	1.70	N/A	4.70	mA	5
I_LI	Input Leakage Current	N/A	N/A	± 100	μA	6

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.

2. The V referred to in these specifications refers to instantaneous V _TT .

3. Refer to the processor I/O Buffer Models for I/V characteristics.

4. Measured at 0.1* V π.

5. Measured at 0.9* V π.

6. For Vin between 0 V and V TT Measured when the driver is tristated.

Table 2-16. Open Drain Output Signal Group DC Specifications

Symbol	Parameter	Min	Typ	Max	Units	Notes ^1
V_OL	Output Low Voltage 0	N/A	0.20*V		V
V_OH	Output High Voltage	0.95* V_TT	V_TT	1.05* V_TT	V	3
I_OL	Output Low Current	16	N/A	50	mA	2
I_LO	Leakage Current	N/A	N/A	±200	A	4

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.
2. Measured at 0.2*V π.
3. V_OH is determined by value of the external pullup resistor to V_TT . Refer to platform design guide for details.
4. For V IN between 0 V and VOH.

2.13.2 V CC Overshoot Specification

The Dual-Core Intel® Xeon® Processor 5200 Series can tolerate short transient overshoot events where V_CC exceeds the VID voltage when transitioning from a high-to-low current load condition. This overshoot cannot exceed VID + V_OS_MAX ( V_OS_MAX is the maximum allowable overshoot above VID). These specifications apply to the processor die voltage as measured across the VCC_DIE_SENSE and VSS_DIE_SENSE lands and across the VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands.

Table 2-17. V CC Overshoot Specifications

Symbol	Parameter Min Max Units Figure Notes
V_OS\_MAX	Magnitude of V_CC overshoot above VID 50 m	V 2-8
T_OS\_MAX	Time duration of V_CC overshoot above VID		25	μs 2-8

Figure 2-8. Vcc Overshoot Example Waveform

Notes:

1. VOS is the measured overshoot voltage.
2. TOS is the measured time duration above VID.

2.13.3 Die Voltage Validation

Core voltage (VCC) overshoot events at the processor must meet the specifications in Table 2-17 when measured across the VCC_DIE_SENSE and VSS_DIE_SENSE lands and across the VCC_DIE_SENSE2 and VSS_DIE_SENSE2 lands. Overshoot events that are < 10 ns in duration may be ignored. These measurements of processor die level overshoot should be taken with a 100 MHz bandwidth limited oscilloscope.

2.14 AGTL+ FSB Specifications

Routing topologies are dependent on the processors supported and the chipset used in the design. Please refer to the appropriate platform design guidelines for specific implementation details. In most cases, termination resistors are not required as these are integrated into the processor silicon. See Table 2-8 for details on which signals do not include on-die termination. Please refer to Table 2-18 for R_TT values.

Valid high and low levels are determined by the input buffers via comparing with a reference voltage called GTLREF_DATA and GTLREF_ADD. GTLREF_DATA is the reference voltage for the FSB 4X data signals, GTLREF_ADD is the reference voltage for the FSB 2X address signals and common clock signals. Table 2-18 lists the GTLREF_DATA and GTLREF_ADD specifications.

The AGTL+ reference voltages (GTLREF_DATA and GTLREF_ADD) must be generated on the baseboard using high precision voltage divider circuits. Refer to the appropriate platform design guidelines for implementation details.

Table 2-18. AGTL+ Bus Voltage Definitions

Symbol Parameter Min Typ Max		Units Notes				1
GTLREF_DATA	Data Bus Reference Voltage	0.98 * 0.667 * VTT	0.667 * VTT	1.02* 0.667 * VTT	V	2,3
GTLREF_ADD Address	Bus Reference Voltage	0.98 * 0.667 * VTT	0.667 * VTT	1.02* 0.667 * VTT	V	2,3
RTT	Termination Resistance (pull up) for Data Signals	43	49	55	Ω	4,5
RTT	Termination Resistance (pull up) for Common Clock and Address Signals	40	49	58	Ω	4,6

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.
2. The tolerances for this specification have been stated generically to enable system designer to calculate the minimum values across the range of V_TT .
3. GTLREF_DATA and GTLREF_ADD is generated from V TT on the baseboard by a voltage divider of 1% resistors. The minimum and maximum specifications account for this resistor tolerance. Refer to the appropriate platform design guidelines for implementation details. The V TT referred to in these specifications is the instantaneous V _TT
4. R_TT is the on-die termination resistance measured at V_OL of the AGTL+ output driver. Measured at 0.31^*V_TT . R_TT is connected to V_TT on die. Refer to processor I/O Buffer Models for I/V characteristics.
5. This specified range is also applicable for the DP[3:0]# and DRDY# Common Clock signals. Refer to Table 2-6 and Table 2-7 for AGTL+ signal grouping and details on signals that include on-die termination
6. The DP[3:0]# and DRDY# Common Clock signals are not included in this range. Refer to Table 2-6 and Table 2-7 for AGTL+ signal grouping and details on signals that include on-die termination.

Table 2-19. FSB Differential BCLK Specifications (Sheet 1 of 2)

Symbol	Parameter	Min	Typ	Max	Unit	Figure	Notes ^1
V_L	Input Low Voltage	-0.150	0.0	0.150	V	2-10
V_H	Input High Voltage	0.660	0.710	0.850	V	2-10
V_CROSS(abs)	Absolute Crossing Point	0.250	0.350	0.550	V	2-10, 2-11	2,9
V_CROSS(rol)	Relative Crossing Point	0.250 + 0.5 * (V _Havg - 0.700)	N/A	0.550 + 0.5 * (V _Havg - 0.700)	V	2-10, 2-11	3,8,9,11
VCROSS	Range of Crossing Points	N/A	N/A	0.140	V	2-10, 2-11

Table 2-19. FSB Differential BCLK Specifications (Sheet 2 of 2)

Symbol	Parameter	Min	Typ	Max	Unit	Figure	Notes ^1
V_OS	Overshoot N/A N/A 1.150	V 2-10 4
V_US	Undershoot -0.300 N/A N/A V 2-10 5
V_RBM	Ringback Margin 0.200 N/A N/A V 2-10 6
V_TR	Threshold Region	V_CROSS-0.100	N/A	V_CROSS+0.100	V 2-10 7
I_LI	Input Leakage Current	N/A	N/A	± 100	μA		10
ERRefclk-diffRrise ERRefclk-diff-Fall	Differential Rising and falling edge rates	0.6		4	V/ns	2-12	12

Notes:

1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.
2. Crossing Voltage is defined as the instantaneous voltage value when the rising edge of BCLK0 is equal to the falling edge of BCLK1.
3. V_Havg is the statistical average of the V_H measured by the oscilloscope.
4. Overshoot is defined as the absolute value of the maximum voltage.
5. Undershoot is defined as the absolute value of the minimum voltage.
6. Ringback Margin is defined as the absolute voltage difference between the maximum Rising Edge Ringback and the maximum Falling Edge Ringback.
7. Threshold Region is defined as a region entered around the crossing point voltage in which the differential receiver switches. It includes input threshold hysteresis.
8. The crossing point must meet the absolute and relative crossing point specifications simultaneously.
9. VHavg can be measured directly using "Vtop" on Agilent and "High" on Tektronix oscilloscopes.
10. For V IN between 0 V and VH.
11. V CROSS is defined as the total variation of all crossing voltages as defined in note 3.
12. Measured from -200 mV to +200 mV on the differential waveform (derived from REFCLK+ minus REFCLK-). The signal must be monotonic through the measurement region for rise and fall time. The 400 mV measurement window is centered on the differential zero crossing. See Figure 2-12.

Figure 2-9. Electrical Test Circuit

Vtt Buffer 55 Ohms, 160 ps/in, 600 mils Long Package AC Timings specified at this point (@ Buffer pad) 0.3nH 0.9nH 1.3pF 0.2pF 0.6nH Rt = 55 Ohms Vtt RLoad

Figure 2-10. Differential Clock Waveform

Figure 2-11. Differential Clock Crosspoint Specification

Figure 2-12. Differential Rising and Falling Edge Rates

3 Mechanical Specifications

The Dual-Core Intel® Xeon® Processor 5200 Series is packaged in a Flip Chip Land Grid Array (FC-LGA) package that interfaces to the baseboard via a LGA771 socket. The package consists of a processor core mounted on a pinless substrate with 771 lands. An integrated heat spreader (IHS) is attached to the package substrate and core and serves as the interface for processor component thermal solutions such as a heatsink.

Figure 3-1 shows a sketch of the processor package components and how they are assembled together. Refer to the LGA771 Socket Design Guidelines for complete details on the LGA771 socket.

The package components shown in Figure 3-1 include the following:

• Integrated Heat Spreader (IHS)
• Thermal Interface Material (TIM)
- Processor Core (die)
- Package Substrate
- Landside capacitors
• Package Lands

Figure 3-1. Processor Package Assembly Sketch

IHS Core (die) TIM Substrate Package Lands Capacitors LGA771 Socket System Board

Note: This drawing is not to scale and is for reference only.

3.1 Package Mechanical Drawings

The package mechanical drawings are shown in Figure 3-2 through Figure 3-4. The drawings include dimensions necessary to design a thermal solution for the processor including:

• IHS parallelism and tilt
- Land dimensions
- Top-side and back-side component keepout dimensions
• Reference datums

- Package reference and tolerance dimensions (total height, length, width, and so forth)

Note: All drawing dimensions are in mm [in.].

Figure 3-2. Dual-Core Intel® Xeon® Processor 5200 Series Package Drawing (Sheet 1 of 3)

T 6 5 4 3 2 1 RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT LEFT TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 700 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618 TOP 618

Note: Guidelines on potential IHS flatness variation with socket load plate actuation and installation of the cooling solution is available in the processor Thermal/Mechanical Design Guidelines.

Figure 3-3. Dual-Core Intel® Xeon® Processor 5200 Series Package Drawing (Sheet 2 of 3)

THIS DRAWING PROCESSED INTEL CORPORATION CONC. REGINA, INFORMATION, IT IS DISCLOSED IN CONDITION AND ITS CONTRACTS MAY NOT BE DISCLOSED. REPROVED OR MOUNTED. WITHOUT IF ANY OR WRITTEN COMMAND BY THIS CORPORATION BOTTOM VIEW 10000 4.2 FUTURES 0.75 NO. 100 W/10 T1 0.2 DANS T2 0.4 BANS T3 0.5 BANS T4 0.6 BANS T5 0.7 BANS T6 0.8 BANS T7 0.9 BANS T8 1.0 BANS T9 1.1 BANS T10 1.2 BANS T11 1.3 BANS T12 1.4 BANS T13 1.5 BANS T14 1.6 BANS T15 1.7 BANS T16 1.8 BANS T17 1.9 BANS T18 2.0 BANS T19 2.1 BANS T20 2.2 BANS T21 2.3 BANS T22 2.4 BANS T23 2.5 BANS T24 2.6 BANS T25 2.7 BANS T26 2.8 BANS T27 2.9 BANS T28 3.0 BANS T29 3.1 BANS T30 3.2 BANS T31 3.3 BANS T32 3.4 BANS T33 3.5 BANS T34 3.6 BANS T35 3.7 BANS T36 3.8 BANS T37 3.9 BANS T38 4.0 BANS T39 4.1 BANS T40 4.2 BANS T41 4.3 BANS T42 4.4 BANS T43 4.5 BANS T44 4.6 BANS T45 4.7 BANS T46 4.8 BANS T47 4.9 BANS T48 5.0 BANS T49 5.1 BANS T50 5.2 BANS T51 5.3 BANS T52 5.4 BANS

Figure 3-4. Dual-Core Intel® Xeon® Processor 5200 Series Package Drawing (Sheet 3 of 3)

THIS DRAWING CONTAINS: Intel CORPORATION COMPONENTS. INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONTENTS. HAY NOT BE DISCLOSED. RETRODUCTS. DISPLAYS OF MODIFICATIONS. WITHOUT THE PRIOR WRITTEN CONSENT OF INTEL CORPORATION. TOP VIEW SIDE VIEW BOTTOM VIEW 10.7 6.48 4.35 8 1 2 3 4 5 6 7 8 9 10 11 G F E D C B A inTEL 10.7 (TOP VIEW CORRECT FOR) A1 D66188 10.7 (TOP VIEW CORRECT FOR) A1 D66188 10.7 (TOP VIEW CORRECT FOR) A1 D66188 10.7 (TOP VIEW CORRECT FOR) A1 D66188 10.7 (TOP VIEW CORRECT FOR) A1 D66188 10.7 (TOP VIEW CORRECT FOR) A1 D6618B 10.7 (TOP VIEW CORRECT FOR) A1 D6618B 10.7 (TOP VIEW CORRECT FOR) A1 D6618B 10.7 (TOP VIEW CORRECT FOR) A1 D6618B 10.7 (TOP VIEW CORRECT FOR) A1 D6618B 10.7 (TOP VIEW CORRECT FOR) A1 D66188 10.7 (TOP VIEW CORRECT FOR) A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 A1 D66188 a 2 3

3.2 Processor Component Keepout Zones

The processor may contain components on the substrate that define component keepout zone requirements. Decoupling capacitors are typically mounted to either the topside or landside of the package substrate. See Figure 3-4 for keepout zones.

3.3 Package Loading Specifications

Table 3-1 provides dynamic and static load specifications for the processor package. These mechanical load limits should not be exceeded during heatsink assembly, mechanical stress testing or standard drop and shipping conditions. The heatsink attach solutions must not include continuous stress onto the processor with the exception of a uniform load to maintain the heatsink-to-processor thermal interface. Also, any mechanical system or component testing should not exceed these limits. The processor package substrate should not be used as a mechanical reference or load-bearing surface for thermal or mechanical solutions.

Table 3-1. Package Loading Specifications

Parameter	Board Thickness	Min Max	Unit Notes
Static Compressive Load	1.57 mm0.062"	8018	31170	Nlbf	1,2,3,9
	2.16 mm0.085"	11125	31170	Nlbf
	2.54 mm0.100"	13330	31170	Nlbf
Dynamic Compressive Load	NA NA		311 N (max static compressive load)+ 222 N dynamic loading70 lbf (max static compressive load)+ 50 lbf dynamic loading	Nlbf	1,3,4,5,6
Transient Bend Limits	1.57 mm0.062"	NA 750	me 1,3,7,8

Notes:

1. These specifications apply to uniform compressive loading in a direction perpendicular to the IHS top surface.
2. This is the minimum and maximum static force that can be applied by the heatsink and retention solution to maintain the heatsink and processor interface.
3. These specifications are based on limited testing for design characterization. Loading limits are for the LGA771 socket.
4. Dynamic compressive load applies to all board thickness.
5. Dynamic loading is defined as an 11 ms duration average load superimposed on the static load requirement.
6. Test condition used a heatsink mass of 1 lbm with 50 g acceleration measured at heatsink mass. The dynamic portion of this specification in the product application can have flexibility in specific values, but the ultimate product of mass times acceleration should not exceed this dynamic load.
7. Transient bend is defined as the transient board deflection during manufacturing such as board assembly and system integration. It is a relatively slow bending event compared to shock and vibration tests.
8. For more information on the transient bend limits, please refer to the MAS document titled Manufacturing with Intel® components using 771-land LGA package that interfaces with the motherboard via a LGA771 socket.
9. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) for information on heatsink clip load metrology.

3.4 Package Handling Guidelines

Table 3-2 includes a list of guidelines on a package handling in terms of recommended maximum loading on the processor IHS relative to a fixed substrate. These package handling loads may be experienced during heatsink removal.

Table 3-2. Package Handling Guidelines

Parameter Maximum Recommended Units Notes
Shear 311	70	Nlbf	1,4,5
Tensile 111	25	Nlbf	2,4,5
Torque 3.95	35	N·mLBF-in	3,4,5

Notes:

1. A shear load is defined as a load applied to the IHS in a direction parallel to the IHS top surface.
2. A tensile load is defined as a pulling load applied to the IHS in a direction normal to the IHS surface.
3. A torque load is defined as a twisting load applied to the IHS in an axis of rotation normal to the IHS top surface.
4. These guidelines are based on limited testing for design characterization and incidental applications (one time only).
5. Handling guidelines are for the package only and do not include the limits of the processor socket.

3.5 Package Insertion Specifications

The Dual-Core Intel® Xeon® Processor 5200 Series can be inserted and removed 15 times from an LGA771 socket, which meets the criteria outlined in the LGA771 Socket Design Guidelines.

3.6 Processor Mass Specifications

The typical mass of the Dual-Core Intel® Xeon® Processor 5200 Series is 21.5 grams [0.76 oz.]. This includes all components which make up the entire processor product.

3.7 Processor Materials

The Dual-Core Intel® Xeon® Processor 5200 Series is assembled from several components. The basic material properties are described in Table 3-3.

Table 3-3. Processor Materials

Component Material
Integrated Heat Spreader (IHS)	Nickel over copper
Substrate	Fiber-reinforced resin
Substrate Lands	Gold over nickel

3.8 Processor Markings

Figure 3-5 shows the topside markings on the processor. This diagram aids in the identification of the Dual-Core Intel® Xeon® Processor 5200 Series.

Figure 3-5. Processor Top-side Markings (Example)

GROUP1LINE1 GROUP1LINE2 GROUP1LINE3 GROUP1LINE4 GROUP1LINE5 ATPO S/N Legend: Mark Text (Production Mark): GROUP1LINE1 3400DP/6M/1600 GROUP1LINE2 Intel ® Xeon ® GROUP1LINE3 Proc# SXXX COO GROUP1LINE4 i (M) © '06 GROUP1LINE5 FPO

Note: 2D matrix is required for engineering samples only (encoded with ATPO-S/N).

3.9 Processor Land Coordinates

Figure 3-6 and Figure 3-7 show the top and bottom view of the processor land coordinates, respectively. The coordinates are referred to throughout the document to identify processor lands.
Figure 3-6. Processor Land Coordinates, Top View

VCC / VSS 101112131415161718192021222345678627282930 AN AM AL AK AJ AH AG AF AE AD AC AB AA Y W V U T R P N M L K J H G F E D C B A Socket 771 Quadrants Top View Address / Common Clock / Async VTT / Clocks Data 123456789101112131415161718192021222324252627282930

Figure 3-7. Processor Land Coordinates, Bottom View

4 Land Listing

4.1 Dual-Core Intel® Xeon® Processor 5200 Series Pin Assignments

This section provides sorted land list in Table 4-1 and Table 4-2. Table 4-1 is a listing of all processor lands ordered alphabetically by land name. Table 4-2 is a listing of all processor lands ordered by land number.

4.1.1 Land Listing by Land Name

Table 4-1. Land Listing by Land Name (Sheet 1 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
A03# M5 Source Sync	Input/Output
A04# P6 Source Sync	Input/Output
A05# L5 Source Sync	Input/Output
A06# L4 Source Sync	Input/Output
A07# M4 Source Sync	Input/Output
A08# R4 Source Sync	Input/Output
A09# T5 Source Sync	Input/Output
A10# U6 Source	Sync Input/Output
A11# T4 Source Sync	Input/Output
A12# U5 Source	Sync Input/Output
A13# U4 Source	Sync Input/Output
A14# V5 Source Sync	Input/Output
A15# V4 Source Sync	Input/Output
A16# W5 Source	Sync Input/Output
A17# AB6 Source	Sync Input/Output
A18# W6 Source	Sync Input/Output
A19# Y6 Source Sync	Input/Output
A20# Y4 Source Sync	Input/Output
A20M#	K3 CMOS ASync Input
A21# AA4 Source	Sync Input/Output
A22# AD6 Source Sync	Sync Input/Output
A23# AA5 Source	Sync Input/Output
A24# AB5 Source	Sync Input/Output
A25# AC5 Source	Sync Input/Output
A26# AB4 Source	Sync Input/Output
A27# AF5 Source	Sync Input/Output
A28# AF4 Source	Sync Input/Output
A29# AG6 Source Sync	Input/Output
A30# AG4 Source Sync	Input/Output

Table 4-1. Land Listing by Land Name (Sheet 2 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
A31# AG5 Source Sync Input/Output
A32# AH4 Source Sync Input/Output
A33# AH5 Source Sync Input/Output
A34# AJ5 Source Sync Input/Output
A35# AJ6 Source Sync Input/Output
A36# N4 Source Sync Input/Output
A37# P5 Source Sync Input/Output
ADS#	D2	Common Clk	Input/Output
ADSTB0#	R6	Source Sync	Input/Output
ADSTB1#	AD5	Source Sync	Input/Output
AP0#	U2	Common Clk	Input/Output
AP1#	U3	Common Clk	Input/Output
BCLK0	F28	Clk	Input
BCLK1	G28 Clk	Input
BINIT#	AD3	Common Clk	Input/Output
BNR#	C2	Common Clk	Input/Output
BPM0#	AJ2	Common Clk	Input/Output
BPM1#	AJ1	Common Clk	Output
BPM2#	AD2 Common Clk Output
BPM3#	AG2	Common Clk	Input/Output
BPM4#	AF2	Common Clk	Output
BPM5#	AG3	Common Clk	Input/Output
BPRI#	G8	Common Clk	Input
BR0#	F3 Common Clk Input/Output
BR1#	H5	Common Clk	Input
BSEL0	G29 CMOS ASync Output
BSEL1	H30	CMOS ASync	Output
BSEL2	G30	CMOS Async	Output
D00#	B4	Source Sync	Input/Output

Table 4-1. Land Listing by Land Name (Sheet 3 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
D01# C5 Source Sync	Input/C	Output
D02# A4 Source Sync	Input/C	Output
D03# C6 Source Sync	Input/C	Output
D04# A5 Source Sync	Input/C	Output
D05# B6 Source Sync	Input/C	Output
D06# B7 Source Sync	Input/C	Output
D07# A7 Source Sync	Input/C	Output
D08# A10 Source Sync	Input/C	Output
D09# A11 Source Sync	Input/C	Output
D10# B10 Source Sync	Input/C	Output
D11# C11 Source Sync	Input/C	Output
D12# D8 Source Sync	Input/C	Output
D13# B12 Source Sync	Input/C	Output
D14# C12 Source Sync	Input/C	Output
D15# D11 Source Sync	Input/C	Output
D16# G9 Source Sync	Input/C	Output
D17# F8 Source Sync	Input/C	Output
D18# F9 Source Sync	Input/C	Output
D19# E9 Source Sync	Input/C	Output
D20# D7 Source Sync	Input/C	Output
D21# E10 Source Sync	Input/C	Output
D22# D10 Source Sync	Input/C	Output
D23# F11 Source Sync	Input/C	Output
D24# F12 Source Sync	Input/C	Output
D25# D13 Source Sync	Input/C	Output
D26# E13 Source Sync	Input/C	Output
D27# G13 Source Sync	Input/C	Output
D28# F14 Source Sync	Input/C	Output
D29# G14 Source Sync	Input/C	Output
D30# F15 Source Sync	Input/C	Output
D31# G15 Source Sync	Input/C	Output
D32# G16 Source Sync	Input/C	Output
D33# E15 Source Sync	Input/C	Output
D34# E16 Source Sync	Input/C	Output
D35# G18 Source Sync	Input/C	Output
D36# G17 Source Sync	Input/C	Output
D37# F17 Source Sync	Input/C	Output
D38# F18 Source Sync	Input/C	Output
D39# E18 Source Sync	Input/C	Output
D40# E19 Source Sync	Input/C	Output

Table 4-1. Land Listing by Land Name (Sheet 4 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
D41# F20 Source Sync Input/	Output
D42# E21 Source Sync Input/	Output
D43# F21 Source Sync Input/	Output
D44# G21 Source Sync Input/	Output
D45# E22 Source Sync Input/	Output
D46# D22 Source Sync Input/	Output
D47# G22 Source Sync Input/	Output
D48# D20 Source Sync Input/	Output
D49# D17 Source Sync Input/	Output
D50# A14 Source Sync Input/	Output
D51# C15 Source Sync Input/	Output
D52# C14 Source Sync Input/	Output
D53# B15 Source Sync Input/	Output
D54# C18 Source Sync Input/	Output
D55# B16 Source Sync Input/	Output
D56# A17 Source Sync Input/	Output
D57# B18 Source Sync Input/	Output
D58# C21 Source Sync Input/	Output
D59# B21 Source Sync Input/	Output
D60# B19 Source Sync Input/	Output
D61# A19 Source Sync Input/	Output
D62# A22 Source Sync Input/	Output
D63# B22 Source Sync Input/	Output
DBI0# A8 Source Sync Input/	Output
DBI1# G11 Source Sync Input/	Output
DBI2# D19 Source Sync Input/	Output
DBI3# C20 Source Sync Input/	Output
DBR# AC2 Power/Other Output
DBSY# B2 Common Clk Input/Output
DEFER#	G7 Common Clk Input
DP0# J16 Common Clk	Input/Output
DP1# H15 Common Clk	Input/Output
DP2# H16 Common Clk	Input/Output
DP3# J17 Common Clk	Input/Output
DRDY#	C1 Common Clk Input/Output
DSTBN0#	C8 Source Sync Input/Output
DSTBN1#	G12 Source Sync Input/Output
DSTBN2#	G20 Source Sync Input/Output
DSTBN3#	A16 Source Sync Input/Output
DSTBP0#	B9 Source Sync Input/Output

Table 4-1. Land Listing by Land Name (Sheet 5 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
DSTBP1# E12 Source	Sync Input/Output
DSTBP2# G19 Source	Sync Input/Output
DSTBP3# C17 Source	Sync Input/Output
FERR#/PBE# R3 Open	Drain Output
FORCEPR# AK6 CMOS	ASync Input
GTLREF_ADD H2 Power	Other Input
GTLREF_DATA H1 Power	Other Input
HIT#	D4 Common Clk Input/Output
HITM#	E4 Common Clk Input/Output
IERR#	AB2 Open Drain Output
IGNNE#	N2 CMOS ASync Input
INIT#	P3 CMOS ASync Input		Input
LINT0	K1 CMOS ASync Input
LINT1	L1 CMOS ASync Input
LL_ID0	V2 Power/Other Output
LL_ID1	AA2 Power/Other Output
LOCK#	C3 Common Clk Input/Output
MCERR#	AB3 Common Clk Input/Output
MS_ID0	W1 Power/Other Output
MS_ID1	V1 Power/Other Output
PECI	G5 Power/Other Input/Output
PROCHOT#	AL2 Open Drain Output
PWRGOOD	N1 CMOS ASync Input
REQ0#	K4 Source Sync Input/Output
REQ1#	J5 Source Sync Input/Output
REQ2#	M6 Source Sync Input/Output
REQ3#	K6 Source Sync Input/Output
REQ4#	J6 Source Sync Input/Output
RESERVED	AM6
RESERVED	A13
RESERVED	A20
RESERVED	A23
RESERVED	AC4
RESERVED	AE4
RESERVED	AE6
RESERVED	AH2
RESERVED	AJ3
RESERVED	AK3
RESERVED	AM2
RESERVED	AN5

Table 4-1. Land Listing by Land Name (Sheet 6 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
RESERVED	AN6
RESERVED	B13
RESERVED	B23
RESERVED	C9
RESERVED	C23
RESERVED	D1
RESERVED	D14
RESERVED	D16
RESERVED	E1
RESERVED	E23
RESERVED	E24
RESERVED	E5
RESERVED	E6
RESERVED	E7
RESERVED	F2
RESERVED	F23
RESERVED	F29
RESERVED	F6
RESERVED	G10
RESERVED	G2
RESERVED	G6
RESERVED	J2
RESERVED	J3
RESERVED	N5
RESERVED	R1
RESERVED	T1
RESERVED	T2
RESERVED	W2
RESERVED	Y1
RESERVED	Y3
RESERVED	AL1
RESERVED	AK1
RESERVED	G27
RESERVED	G26
RESERVED	G24
RESERVED	F24
RESERVED	F26
RESERVED	F25
RESERVED	G25
RESERVED	W3

Table 4-1. Land Listing by Land Name (Sheet 7 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
RESERVED AM2
RESET# G23 Common Clk Input
RS0# B3 Common Clk Input
RS1# F5 Common Clk Input
RS2# A3 Common Clk Input
RSP# H4 Common Clk Input
SKTOCC# AE8 Power/ Other Output
SMI# P2 CMOS ASync Input
STPCLK# M3 CMOS ASync Input
TCK AE1 TAP Input
TDI	AD1	TAP	Input
TDO	AF1	TAP	Output
TESTHI08	G3	Power/Other Input
TESTHI09	G4	Power/Other Input
TESTHI10	P1 Power/Other Input
TESTHI11	L2 Power/Other Input
TESTHI12 AE3 Power/ Other Input
THERMTRIP#	M2 Open Drain Output
TMS	AC1 TAP Input
TRDY#	E3	Common Clk Input
TRST#	AG1	TAP	Input
VCC	AA8 Power/Other
VCC	AB8 Power/Other
VCC	AC23	Power/Other
VCC	AC24	Power/Other
VCC	AC25	Power/Other
VCC	AC26	Power/Other
VCC	AC27	Power/Other
VCC	AC28	Power/Other
VCC	AC29	Power/Other
VCC	AC30	Power/Other
VCC	AC8 Power/Other
VCC	AD23	Power/Other
VCC	AD24	Power/Other
VCC	AD25	Power/Other
VCC	AD26	Power/Other
VCC	AD27	Power/Other
VCC	AD28	Power/Other
VCC	AD29	Power/Other
VCC	AD30	Power/Other

Table 4-1. Land Listing by Land Name (Sheet 8 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VCC	AD8	Power/Other
VCC	AE11	Power/Other
VCC	AE12	Power/Other
VCC	AE14	Power/Other
VCC	AE15	Power/Other
VCC	AE18	Power/Other
VCC	AE19	Power/Other
VCC	AE21	Power/Other
VCC	AE22	Power/Other
VCC	AE23	Power/Other
VCC	AE9 Power/Other
VCC	AF11	Power/Other
VCC	AF12	Power/Other
VCC	AF14	Power/Other
VCC	AF15	Power/Other
VCC	AF18	Power/Other
VCC	AF19	Power/Other
VCC	AF21	Power/Other
VCC	AF22	Power/Other
VCC	AF8	Power/Other
VCC	AF9	Power/Other
VCC	AG11	Power/Other
VCC	AG12	Power/Other
VCC	AG14	Power/Other
VCC	AG15	Power/Other
VCC	AG18	Power/Other
VCC	AG19	Power/Other
VCC	AG21	Power/Other
VCC	AG22	Power/Other
VCC	AG25	Power/Other
VCC	AG26	Power/Other
VCC	AG27	Power/Other
VCC	AG28	Power/Other
VCC	AG29	Power/Other
VCC	AG30	Power/Other
VCC	AG8	Power/Other
VCC	AG9	Power/Other
VCC	AH11	Power/Other
VCC	AH12	Power/Other
VCC	AH14	Power/Other

Table 4-1. Land Listing by Land Name (Sheet 9 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VCC AH15 Power/Other
VCC AH18 Power/Other
VCC AH19 Power/Other
VCC AH21 Power/Other
VCC AH22 Power/Other
VCC AH25 Power/Other
VCC AH26 Power/Other
VCC AH27 Power/Other
VCC AH28 Power/Other
VCC AH29 Power/Other
VCC AH30 Power/Other
VCC AH8 Power/Other
VCC AH9 Power/Other
VCC AJ11 Power/Other
VCC AJ12 Power/Other
VCC AJ14 Power/Other
VCC AJ15 Power/Other
VCC AJ18 Power/Other
VCC AJ19 Power/Other
VCC AJ21 Power/Other
VCC AJ22 Power/Other
VCC AJ25 Power/Other
VCC AJ26 Power/Other
VCC AJ8 Power/Other
VCC AJ9 Power/Other
VCC AK11 Power/Other
VCC AK12 Power/Other
VCC AK14 Power/Other
VCC AK15 Power/Other
VCC AK18 Power/Other
VCC AK19 Power/Other
VCC AK21 Power/Other
VCC AK22 Power/Other
VCC AK25 Power/Other
VCC AK26 Power/Other
VCC AK8 Power/Other
VCC AK9 Power/Other
VCC AL11 Power/Other
VCC AL12 Power/Other
VCC AL14 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 10 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VCC AL15 Power/Other
VCC AL18 Power/Other
VCC AL19 Power/Other
VCC AL21 Power/Other
VCC AL22 Power/Other
VCC AL25 Power/Other
VCC AL26 Power/Other
VCC AL29 Power/Other
VCC AL30 Power/Other
VCC AL9 Power/Other
VCC AM11 Power/Other
VCC AM12 Power/Other
VCC AM14 Power/Other
VCC AM15 Power/Other
VCC AM18 Power/Other
VCC AM19 Power/Other
VCC AM21 Power/Other
VCC AM22 Power/Other
VCC AM25 Power/Other
VCC AM26 Power/Other
VCC AM29 Power/Other
VCC AM30 Power/Other
VCC AM8 Power/Other
VCC AM9 Power/Other
VCC AN11 Power/Other
VCC AN12 Power/Other
VCC AN14 Power/Other
VCC AN15 Power/Other
VCC AN18 Power/Other
VCC AN19 Power/Other
VCC AN21 Power/Other
VCC AN22 Power/Other
VCC AN25 Power/Other
VCC AN26 Power/Other
VCC AN8 Power/Other
VCC AN9 Power/Other
VCC J10 Power/Other
VCC J11 Power/Other
VCC J12 Power/Other
VCC J13 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 11 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VCC J14 Power/Other
VCC J15 Power/Other
VCC J18 Power/Other
VCC J19 Power/Other
VCC J20 Power/Other
VCC J21 Power/Other
VCC J22 Power/Other
VCC J23 Power/Other
VCC J24 Power/Other
VCC J25 Power/Other
VCC J26 Power/Other
VCC J27 Power/Other
VCC J28 Power/Other
VCC J29 Power/Other
VCC J30 Power/Other
VCC J8 Power/Other
VCC J9 Power/Other
VCC K23 Power/Other
VCC K24 Power/Other
VCC K25 Power/Other
VCC K26 Power/Other
VCC K27 Power/Other
VCC K28 Power/Other
VCC K29 Power/Other
VCC K30 Power/Other
VCC K8 Power/Other
VCC L8 Power/Other
VCC M23 Power/Other
VCC M24 Power/Other
VCC M25 Power/Other
VCC M26 Power/Other
VCC M27 Power/Other
VCC M28 Power/Other
VCC M29 Power/Other
VCC M30 Power/Other
VCC M8 Power/Other
VCC N23 Power/Other
VCC N24 Power/Other
VCC N25 Power/Other
VCC N26 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 12 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VCC N27 Power/Other
VCC N28 Power/Other
VCC N29 Power/Other
VCC N30 Power/Other
VCC N8 Power/Other
VCC P8 Power/Other
VCC R8 Power/Other
VCC T23 Power/Other
VCC T24 Power/Other
VCC T25 Power/Other
VCC T26 Power/Other
VCC T27 Power/Other
VCC T28 Power/Other
VCC T29 Power/Other
VCC T30 Power/Other
VCC T8 Power/Other
VCC U23 Power/Other
VCC U24 Power/Other
VCC U25 Power/Other
VCC U26 Power/Other
VCC U27 Power/Other
VCC U28 Power/Other
VCC U29 Power/Other
VCC U30 Power/Other
VCC U8 Power/Other
VCC V8 Power/Other
VCC W23 Power/Other
VCC W24 Power/Other
VCC W25 Power/Other
VCC W26 Power/Other
VCC W27 Power/Other
VCC W28 Power/Other
VCC W29 Power/Other
VCC W30 Power/Other
VCC W8 Power/Other
VCC Y23 Power/Other
VCC Y24 Power/Other
VCC Y25 Power/Other
VCC Y26 Power/Other
VCC Y27 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 13 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VCC Y28 Power/Other
VCC Y29 Power/Other
VCC Y30 Power/Other
VCC Y8 Power/Other
VCC_DIE_SENSE AN3	Power/Other Output
VCC_DIE_SENSE2 AL3	Power/Other Output
VCCPLL D23 Power/Other Input
VID_SELECT AN7 Power/Other Output
VID1 AL5 CMOS Async Output
VID2 AM3 CMOS Async Output
VID3 AL6 CMOS Async Output
VID4 AK4 CMOS Async Output
VID5 AL4 CMOS Async Output
VID6 AM5 CMOS Async Output
VSS A12 Power/Other
VSS A15 Power/Other
VSS A18 Power/Other
VSS A2 Power/Other
VSS A21 Power/Other
VSS A24 Power/Other
VSS A6 Power/Other
VSS A9 Power/Other
VSS AA23 Power/Other
VSS AA24 Power/Other
VSS AA25 Power/Other
VSS AA26 Power/Other
VSS AA27 Power/Other
VSS AA28 Power/Other
VSS AA29 Power/Other
VSS AA3 Power/Other
VSS AA30 Power/Other
VSS AA6 Power/Other
VSS AA7 Power/Other
VSS AB1 Power/Other
VSS AB23 Power/Other
VSS AB24 Power/Other
VSS AB25 Power/Other
VSS AB26 Power/Other
VSS AB27 Power/Other
VSS AB28 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 14 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VSS	AB29 Power/Other
VSS	AB30 Power/Other
VSS	AB7 Power/Other
VSS AC3 Power/Other
VSS AC6 Power/Other
VSS AC7 Power/Other
VSS	AD4	Power/Other
VSS	AD7	Power/Other
VSS	AE10 Power/Other
VSS	AE13 Power/Other
VSS	AE16 Power/Other
VSS	AE17 Power/Other
VSS AE2 Power/Other
VSS	AE20 Power/Other
VSS	AE24 Power/Other
VSS	AE25 Power/Other
VSS	AE26 Power/Other
VSS	AE27 Power/Other
VSS	AE28 Power/Other
VSS	AE29 Power/Other
VSS	AE30 Power/Other
VSS AE5 Power/Other
VSS AE7 Power/Other
VSS	AF7 Power/Other
VSS AF10 Power/Other
VSS AF13 Power/Other
VSS AF16 Power/Other
VSS AF17 Power/Other
VSS AF20 Power/Other
VSS AF23 Power/Other
VSS AF24 Power/Other
VSS AF25 Power/Other
VSS AF26 Power/Other
VSS AF27 Power/Other
VSS AF28 Power/Other
VSS AF29 Power/Other
VSS	AF3 Power/Other
VSS AF30 Power/Other
VSS	AF6 Power/Other
VSS AG10 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 15 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VSS AG13 Power/Other
VSS AG16 Power/Other
VSS AG17 Power/Other
VSS AG20 Power/Other
VSS AG23 Power/Other
VSS AG24 Power/Other
VSS AG7 Power/Other
VSS AH1 Power/Other
VSS AH10 Power/Other
VSS AH13 Power/Other
VSS AH16 Power/Other
VSS AH17 Power/Other
VSS AH20 Power/Other
VSS AH23 Power/Other
VSS AH24 Power/Other
VSS AH3 Power/Other
VSS AH6 Power/Other
VSS AH7 Power/Other
VSS AJ10 Power/Other
VSS AJ13 Power/Other
VSS AJ16 Power/Other
VSS AJ17 Power/Other
VSS AJ20 Power/Other
VSS AJ23 Power/Other
VSS AJ24 Power/Other
VSS AJ27 Power/Other
VSS AJ28 Power/Other
VSS AJ29 Power/Other
VSS AJ30 Power/Other
VSS AJ4 Power/Other
VSS AJ7 Power/Other
VSS AK10 Power/Other
VSS AK13 Power/Other
VSS AK16 Power/Other
VSS AK17 Power/Other
VSS AK2 Power/Other
VSS AK20 Power/Other
VSS AK23 Power/Other
VSS AK24 Power/Other
VSS AK27 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 16 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VSS AK28 Power/Other
VSS AK29 Power/Other
VSS AK30 Power/Other
VSS AK5 Power/Other
VSS AK7 Power/Other
VSS AL10 Power/Other
VSS AL13 Power/Other
VSS AL16 Power/Other
VSS AL17 Power/Other
VSS AL20 Power/Other
VSS AL23 Power/Other
VSS AL24 Power/Other
VSS AL27 Power/Other
VSS AL28 Power/Other
VSS AL3 Power/Other
VSS AM1 Power/Other
VSS AM10 Power/Other
VSS AM13 Power/Other
VSS AM16 Power/Other
VSS AM17 Power/Other
VSS AM20 Power/Other
VSS AM23 Power/Other
VSS AM24 Power/Other
VSS AM27 Power/Other
VSS AM28 Power/Other
VSS AM4 Power/Other
VSS AM7 Power/Other
VSS AN1 Power/Other
VSS AN10 Power/Other
VSS AN13 Power/Other
VSS AN16 Power/Other
VSS AN17 Power/Other
VSS AN2 Power/Other
VSS AN20 Power/Other
VSS AN23 Power/Other
VSS AN24 Power/Other
VSS B1 Power/Other
VSS B11 Power/Other
VSS B14 Power/Other
VSS B17 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 17 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VSS B20 Power/Other
VSS B24 Power/Other
VSS B5 Power/Other
VSS B8 Power/Other
VSS C10 Power/Other
VSS C13 Power/Other
VSS C16 Power/Other
VSS C19 Power/Other
VSS C22 Power/Other
VSS C24 Power/Other
VSS C4 Power/Other
VSS C7 Power/Other
VSS D12 Power/Other
VSS D15 Power/Other
VSS D18 Power/Other
VSS D21 Power/Other
VSS D24 Power/Other
VSS D3 Power/Other
VSS D5 Power/Other
VSS D6 Power/Other
VSS D9 Power/Other
VSS E11 Power/Other
VSS E14 Power/Other
VSS E17 Power/Other
VSS E2 Power/Other
VSS E20 Power/Other
VSS E25 Power/Other
VSS E26 Power/Other
VSS E27 Power/Other
VSS E28 Power/Other
VSS E29 Power/Other
VSS E8 Power/Other
VSS F1 Power/Other
VSS F10 Power/Other
VSS F13 Power/Other
VSS F16 Power/Other
VSS F19 Power/Other
VSS F22 Power/Other
VSS F4 Power/Other
VSS F7 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 18 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VSS G1 Power/Other
VSS H10 Power/Other
VSS H11 Power/Other
VSS H12 Power/Other
VSS H13 Power/Other
VSS H14 Power/Other
VSS H17 Power/Other
VSS H18 Power/Other
VSS H19 Power/Other
VSS H20 Power/Other
VSS H21 Power/Other
VSS H22 Power/Other
VSS H23 Power/Other
VSS H24 Power/Other
VSS H25 Power/Other
VSS H26 Power/Other
VSS H27 Power/Other
VSS H28 Power/Other
VSS H29 Power/Other
VSS H3 Power/Other
VSS H6 Power/Other
VSS H7 Power/Other
VSS H8 Power/Other
VSS H9 Power/Other
VSS J4 Power/Other
VSS J7 Power/Other
VSS K2 Power/Other
VSS K5 Power/Other
VSS K7 Power/Other
VSS L23 Power/Other
VSS L24 Power/Other
VSS L25 Power/Other
VSS L26 Power/Other
VSS L27 Power/Other
VSS L28 Power/Other
VSS L29 Power/Other
VSS L3 Power/Other
VSS L30 Power/Other
VSS L6 Power/Other
VSS L7 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 19 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VSS M1 Power/Other
VSS M7 Power/Other
VSS N3 Power/Other
VSS N6 Power/Other
VSS N7 Power/Other
VSS P23 Power/Other
VSS P24 Power/Other
VSS P25 Power/Other
VSS P26 Power/Other
VSS P27 Power/Other
VSS P28 Power/Other
VSS P29 Power/Other
VSS P30 Power/Other
VSS P4 Power/Other
VSS P7 Power/Other
VSS R2 Power/Other
VSS R23 Power/Other
VSS R24 Power/Other
VSS R25 Power/Other
VSS R26 Power/Other
VSS R27 Power/Other
VSS R28 Power/Other
VSS R29 Power/Other
VSS R30 Power/Other
VSS R5 Power/Other
VSS R7 Power/Other
VSS T3 Power/Other
VSS T6 Power/Other
VSS T7 Power/Other
VSS U1 Power/Other
VSS U7 Power/Other
VSS V23 Power/Other
VSS V24 Power/Other
VSS V25 Power/Other
VSS V26 Power/Other
VSS V27 Power/Other
VSS V28 Power/Other
VSS V29 Power/Other
VSS V3 Power/Other
VSS V30 Power/Other

Table 4-1. Land Listing by Land Name (Sheet 20 of 20)

Pin Name	Pin No.	Signal Buffer Type	Direction
VSS V6 Power/Other
VSS V7 Power/Other
VSS W4 Power/Other
VSS W7 Power/Other
VSS Y2 Power/Other
VSS Y5 Power/Other
VSS Y7 Power/Other
VSS_DIE_SENSE AN4	Power/Other Output
VSS_DIE_SENSE2 AL7	Power/Other Output
VTT A25 Power/Other
VTT A26 Power/Other
VTT B25 Power/Other
VTT B26 Power/Other
VTT B27 Power/Other
VTT B28 Power/Other
VTT B29 Power/Other
VTT B30 Power/Other
VTT C25 Power/Other
VTT C26 Power/Other
VTT C27 Power/Other
VTT C28 Power/Other
VTT C29 Power/Other
VTT C30 Power/Other
VTT D25 Power/Other
VTT D26 Power/Other
VTT D27 Power/Other
VTT D28 Power/Other
VTT D29 Power/Other
VTT D30 Power/Other
VTT E30 Power/Other
VTT F30 Power/Other
VTT_OUT	AA1 Power/Other Output
VTT_OUT	J1	Power/Other	Output
VTT_SEL	F27	Power/Other Output

4.1.2 Land Listing by Land Number

Table 4-2. Land Listing by Land Number (Sheet 1 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
A10 D08#	Source Sync Input/Output
A11 D09#	Source Sync Input/Output
A12 VSS	Power/Other
A13 RESERVED
A14 D50#	Source Sync Input/Output
A15 VSS	Power/Other
A16 DSTBN3#	Source Sync Input/Output
A17 D56#	Source Sync Input/Output
A18 VSS	Power/Other
A19 D61#	Source Sync Input/Output
A2 VSS	Power/Other
A20 RESERVED
A21 VSS	Power/Other
A22 D62#	Source Sync Input/Output
A23 RESERVED
A24 VSS	Power/Other
A25 VTT	Power/Other
A26 VTT	Power/Other
A3 RS2#	Common Clk Input
A4 D02#	Source Sync Input/Output
A5 D04#	Source Sync Input/Output
A6 VSS	Power/Other
A7 D07#	Source Sync Input/Output
A8 DBI0#	Source Sync Input/Output
A9 VSS	Power/Other
AA1 VTT_	OUT Power/Other Output
AA2 LL_ID1		Power/Other Output
AA23	VSS Power/Other
AA24	VSS Power/Other
AA25	VSS Power/Other
AA26	VSS Power/Other
AA27	VSS Power/Other
AA28	VSS Power/Other
AA29	VSS Power/Other
AA3 VSS	Power/Other
AA30	VSS Power/Other
AA4 A21#	Source Sync Input/Output
AA5 A23#	Source Sync Input/Output
AA6 VSS	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 2 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AA7 VSS	Power/Other
AA8 VCC	Power/Other
AB1 VSS	Power/Other
AB2 IERP#	Open Drain Output
AB23	VSS	Power/Other
AB24	VSS	Power/Other
AB25	VSS	Power/Other
AB26	VSS	Power/Other
AB27	VSS	Power/Other
AB28	VSS	Power/Other
AB29	VSS	Power/Other
AB3 MCERR#	Common Clk Input/Output
AB30	VSS	Power/Other
AB4 A26#	Source Sync Input/Output
AB5 A24#	Source Sync Input/Output
AB6 A17#	Source Sync Input/Output
AB7 VSS	Power/Other
AB8 VCC	Power/Other
AC1 TMS	TAP	Input
AC2 DBR#	Power/Other Output
AC23	VCC	Power/Other
AC24	VCC	Power/Other
AC25	VCC	Power/Other
AC26	VCC	Power/Other
AC27	VCC	Power/Other
AC28	VCC	Power/Other
AC29	VCC	Power/Other
AC3 VSS	Power/Other
AC30	VCC	Power/Other
AC4 RESERVED
AC5 A25#	Source Sync Input/Output
AC6 VSS	Power/Other
AC7 VSS	Power/Other
AC8 VCC	Power/Other
AD1	TDI	TAP	Input
AD2	BPM2#	Common Clk	Output
AD23	VCC	Power/Other
AD24	VCC	Power/Other
AD25	VCC	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 3 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AD26 VCC	Power/Other
AD27 VCC	Power/Other
AD28 VCC	Power/Other
AD29 VCC	Power/Other
AD3 BINIT	Common Clk Input/Output
AD30 VCC	Power/Other
AD4 VSS	Power/Other
AD5 ADS	TB1# Source Sync Input/Output
AD6 A22#	Source Sync Input/Output
AD7 VSS	Power/Other
AD8 VCC	Power/Other
AE1 TCK	TAP Input
AE10 VSS	Power/Other
AE11 VCC	Power/Other
AE12 VCC	Power/Other
AE13 VSS	Power/Other
AE14 VCC	Power/Other
AE15 VCC	Power/Other
AE16 VSS	Power/Other
AE17 VSS	Power/Other
AE18 VCC	Power/Other
AE19 VCC	Power/Other
AE2 VSS	Power/Other
AE20 VSS	Power/Other
AE21 VCC	Power/Other
AE22 VCC	Power/Other
AE23 VCC	Power/Other
AE24 VSS	Power/Other
AE25 VSS	Power/Other
AE26 VSS	Power/Other
AE27 VSS	Power/Other
AE28 VSS	Power/Other
AE29 VSS	Power/Other
AE3 TEST	THI12 Power/Other Input
AE30 VSS	Power/Other
AE4 RESERVED
AE5 VSS	Power/Other
AE6 RESERVED
AE7 VSS	Power/Other
AE8 SKTOCC#	Power/Other Output

Table 4-2. Land Listing by Land Number (Sheet 4 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AE9 VCC	Power/Other
AF1	TDO TAP Output
AF10	VSS Power/Other
AF11	VCC Power/Other
AF12	VCC Power/Other
AF13	VSS Power/Other
AF14	VCC Power/Other
AF15	VCC Power/Other
AF16	VSS Power/Other
AF17	VSS Power/Other
AF18	VCC Power/Other
AF19	VCC Power/Other
AF2	BPM4#	Common Clk Output
AF20	VSS Power/Other
AF21	VCC Power/Other
AF22	VCC Power/Other
AF23	VSS Power/Other
AF24	VSS Power/Other
AF25	VSS Power/Other
AF26	VSS Power/Other
AF27	VSS Power/Other
AF28	VSS Power/Other
AF29	VSS Power/Other
AF3	VSS Power/Other
AF30	VSS Power/Other
AF4	A28# Source Sync Input/Output
AF5	A27# Source Sync Input/Output
AF6	VSS Power/Other
AF7	VSS Power/Other
AF8	VCC Power/Other
AF9	VCC Power/Other
AG1 TRST# TAP Input
AG10 VSS Power/Other
AG11 VCC Power/Other
AG12 VCC Power/Other
AG13 VSS Power/Other
AG14 VCC Power/Other
AG15 VCC Power/Other
AG16 VSS Power/Other
AG17 VSS Power/Other

Table 4-2. Land Listing by Land Number (Sheet 5 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AG18 VCC	Power/Other
AG19 VCC	Power/Other
AG2 BPM3#	Common Clk Input/Output
AG20 VSS	Power/Other
AG21 VCC	Power/Other
AG22 VCC	Power/Other
AG23 VSS	Power/Other
AG24 VSS	Power/Other
AG25 VCC	Power/Other
AG26 VCC	Power/Other
AG27 VCC	Power/Other
AG28 VCC	Power/Other
AG29 VCC	Power/Other
AG3 BPM5#	Common Clk Input/Output
AG30 VCC	Power/Other
AG4 A30#	Source Sync Input/Output
AG5 A31#	Source Sync Input/Output
AG6 A29#	Source Sync Input/Output
AG7 VSS	Power/Other
AG8 VCC	Power/Other
AG9 VCC	Power/Other
AH1 VSS	Power/Other
AH10 VSS	Power/Other
AH11 VCC	Power/Other
AH12 VCC	Power/Other
AH13 VSS	Power/Other
AH14 VCC	Power/Other
AH15 VCC	Power/Other
AH16 VSS	Power/Other
AH17 VSS	Power/Other
AH18 VCC	Power/Other
AH19 VCC	Power/Other
AH2 RESERVED
AH20 VSS	Power/Other
AH21 VCC	Power/Other
AH22 VCC	Power/Other
AH23 VSS	Power/Other
AH24 VSS	Power/Other
AH25 VCC	Power/Other
AH26 VCC	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 6 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AH27 VCC	Power/Other
AH28 VCC	Power/Other
AH29 VCC	Power/Other
AH3 VSS	Power/Other
AH30 VCC	Power/Other
AH4 A32#	Source Sync Input/Output
AH5 A33#	Source Sync Input/Output
AH6 VSS	Power/Other
AH7 VSS	Power/Other
AH8 VCC	Power/Other
AH9 VCC	Power/Other
AJ1 BPM1	# Common Clk Output
AJ10 VSS	Power/Other
AJ11 VCC	Power/Other
AJ12 VCC	Power/Other
AJ13 VSS	Power/Other
AJ14 VCC	Power/Other
AJ15 VCC	Power/Other
AJ16 VSS	Power/Other
AJ17 VSS	Power/Other
AJ18 VCC	Power/Other
AJ19 VCC	Power/Other
AJ2 BPM0	# Common Clk Input/Output
AJ20 VSS	Power/Other
AJ21 VCC	Power/Other
AJ22 VCC	Power/Other
AJ23 VSS	Power/Other
AJ24 VSS	Power/Other
AJ25 VCC	Power/Other
AJ26 VCC	Power/Other
AJ27 VSS	Power/Other
AJ28 VSS	Power/Other
AJ29 VSS	Power/Other
AJ3 RESERVED
AJ30 VSS	Power/Other
AJ4 VSS	Power/Other
AJ5 A34#	Source Sync Input/Output
AJ6 A35#	Source Sync Input/Output
AJ7 VSS	Power/Other
AJ8 VCC	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 7 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AJ9 VCC	Power/Other
AK1	RESERVED
AK10 VSS	Power/Other
AK11 VCC	Power/Other
AK12 VCC	Power/Other
AK13 VSS	Power/Other
AK14 VCC	Power/Other
AK15 VCC	Power/Other
AK16 VSS	Power/Other
AK17 VSS	Power/Other
AK18 VCC	Power/Other
AK19 VCC	Power/Other
AK2 VSS	Power/Other
AK20 VSS	Power/Other
AK21 VCC	Power/Other
AK22 VCC	Power/Other
AK23 VSS	Power/Other
AK24 VSS	Power/Other
AK25 VCC	Power/Other
AK26 VCC	Power/Other
AK27 VSS	Power/Other
AK28 VSS	Power/Other
AK29 VSS	Power/Other
AK3	RESERVED
AK30 VSS	Power/Other
AK4 VID4	CMOS Async Output
AK5 VSS	Power/Other
AK6 FORCEPR#	CMOS Async Input
AK7 VSS	Power/Other
AK8 VCC	Power/Other
AK9 VCC	Power/Other
AL1	RESERVED
AL10 VSS	Power/Other
AL11 VCC	Power/Other
AL12 VCC	Power/Other
AL13 VSS	Power/Other
AL14 VCC	Power/Other
AL15 VCC	Power/Other
AL16 VSS	Power/Other
AL17 VSS	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 8 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AL18 VCC	Power/Other
AL19 VCC	Power/Other
AL2 PROCHOT# Open Drain Output
AL20 VSS	Power/Other
AL21 VCC	Power/Other
AL22 VCC	Power/Other
AL23 VSS	Power/Other
AL24 VSS	Power/Other
AL25 VCC	Power/Other
AL26 VCC	Power/Other
AL27 VSS	Power/Other
AL28 VSS	Power/Other
AL29 VCC	Power/Other
AL3 VSS	Power/Other
AL30 VCC	Power/Other
AL4 VID5	CMOS Async Output
AL5 VID1	CMOS Async Output
AL6 VID3	CMOS Async Output
AL7 VSS	DIE_SENSE2	Power/Other
AL8 VCC	DIE_SENSE2	Power/Other
AL9 VCC	Power/Other
AM1	VSS Power/Other
AM10	VSS Power/Other
AM11	VCC Power/Other
AM12	VCC Power/Other
AM13	VSS Power/Other
AM14	VCC Power/Other
AM15	VCC Power/Other
AM16	VSS Power/Other
AM17	VSS Power/Other
AM18	VCC Power/Other
AM19	VCC Power/Other
AM2	RESERVED
AM20	VSS Power/Other
AM21	VCC Power/Other
AM22	VCC Power/Other
AM23	VSS Power/Other
AM24	VSS Power/Other
AM25	VCC Power/Other

Table 4-2. Land Listing by Land Number (Sheet 9 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
AM26 VCC	Power/Other
AM27 VSS	Power/Other
AM28 VSS	Power/Other
AM29 VCC	Power/Other
AM3 VID2	CMOS Async Output
AM30 VCC	Power/Other
AM4 VSS	Power/Other
AM5 VID6	CMOS Async Output
AM6 RESERVED
AM7 VSS	Power/Other
AM8 VCC	Power/Other
AM9 VCC	Power/Other
AN1 VSS	Power/Other
AN10 VSS	Power/Other
AN11 VCC	Power/Other
AN12 VCC	Power/Other
AN13 VSS	Power/Other
AN14 VCC	Power/Other
AN15 VCC	Power/Other
AN16 VSS	Power/Other
AN17 VSS	Power/Other
AN18 VCC	Power/Other
AN19 VCC	Power/Other
AN2 VSS	Power/Other
AN20 VSS	Power/Other
AN21 VCC	Power/Other
AN22 VCC	Power/Other
AN23 VSS	Power/Other
AN24 VSS	Power/Other
AN25 VCC	Power/Other
AN26 VCC	Power/Other
AN3 VCC	DIE_SENSE	Power/Other Output
AN4 VSS	DIE_SENSE	Power/Other Output
AN5 RESERVED
AN6 RESERVED
AN7 VID_	SELECT Power/Other Output
AN8 VCC	Power/Other
AN9 VCC	Power/Other
B1 VSS	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 10 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
B10 D10#	Source Sync Input/Output
B11 VSS	Power/Other
B12 D13#	Source Sync Input/Output
B13 RESERVED
B14 VSS	Power/Other
B15 D53#	Source Sync Input/Output
B16 D55#	Source Sync Input/Output
B17 VSS	Power/Other
B18 D57#	Source Sync Input/Output
B19 D60#	Source Sync Input/Output
B2 DBSY#	Common Clk Input/Output
B20 VSS	Power/Other
B21 D59#	Source Sync Input/Output
B22 D63#	Source Sync Input/Output
B23 RESERVED
B24 VSS	Power/Other
B25 VTT	Power/Other
B26 VTT	Power/Other
B27 VTT	Power/Other
B28 VTT	Power/Other
B29 VTT	Power/Other
B3 RS0#	Common Clk Input
B30 VTT	Power/Other
B4 D00#	Source Sync Input/Output
B5 VSS	Power/Other
B6 D05#	Source Sync Input/Output
B7 D06#	Source Sync Input/Output
B8 VSS	Power/Other
B9 DSTBP0#	Source Sync Input/Output
C1 DRDY#	Common Clk Input/Output
C10 VSS	Power/Other
C11 D11#	Source Sync Input/Output
C12 D14#	Source Sync Input/Output
C13 VSS	Power/Other
C14 D52#	Source Sync Input/Output
C15 D51#	Source Sync Input/Output
C16 VSS	Power/Other
C17 DSTBP3#	Source Sync Input/Output
C18 D54#	Source Sync Input/Output
C19 VSS	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 11 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
C2 BNR#	Common Clk Input/Output
C20 DBI3	# Source Sync Input/Output
C21 D58#	Source Sync Input/Output
C22 VSS	Power/Other
C23 RESERVED
C24 VSS	Power/Other
C25 VTT	Power/Other
C26 VTT	Power/Other
C27 VTT	Power/Other
C28 VTT	Power/Other
C29 VTT	Power/Other
C3 LOCK#	Common Clk Input/Output
C30 VTT	Power/Other
C4 VSS	Power/Other
C5 D01#	Source Sync Input/Output
C6 D03#	Source Sync Input/Output
C7 VSS	Power/Other
C8 DSTBN0#	Source Sync Input/Output
C9 RESERVED
D1 RESERVED
D10 D22#	Source Sync Input/Output
D11 D15#	Source Sync Input/Output
D12 VSS	Power/Other
D13 D25#	Source Sync Input/Output
D14 RESERVED
D15 VSS	Power/Other
D16 RESERVED
D17 D49#	Source Sync Input/Output
D18 VSS	Power/Other
D19 DBI2#	Source Sync Input/Output
D2 ADS#	Common Clk Input/Output
D20 D48#	Source Sync Input/Output
D21 VSS	Power/Other
D22 D46#	Source Sync Input/Output
D23 VCC	PLL Power/Other Input
D24 VSS	Power/Other
D25 VTT	Power/Other
D26 VTT	Power/Other
D27 VTT	Power/Other
D28 VTT	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 12 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
D29 VTT	Power/Other
D3 VSS	Power/Other
D30 VTT	Power/Other
D4 HIT#	Common Clk Input/Output
D5 VSS	Power/Other
D6 VSS	Power/Other
D7 D20#	Source Sync Input/Output
D8 D12#	Source Sync Input/Output
D9 VSS	Power/Other
E1	RESERVED	Power/Other
E10	D21# Source Sync Input/Output
E11	VSS	Power/Other
E12	DSTBP1#	Source Sync Input/Output
E13	D26# Source Sync Input/Output
E14	VSS	Power/Other
E15	D33# Source Sync Input/Output
E16	D34# Source Sync Input/Output
E17	VSS	Power/Other
E18	D39# Source Sync Input/Output
E19	D40# Source Sync Input/Output
E2	VSS	Power/Other
E20	VSS	Power/Other
E21	D42# Source Sync Input/Output
E22	D45# Source Sync Input/Output
E23	RESERVED
E24	RESERVED
E25	VSS	Power/Other
E26	VSS	Power/Other
E27	VSS	Power/Other
E28	VSS	Power/Other
E29	VSS	Power/Other
E3	TRDY#	Common Clk Input
E30	VTT Power/Other
E4	HITM#	Common Clk Input/Output
E5	RESERVED
E6	RESERVED
E7	RESERVED
E8	VSS	Power/Other
E9	D19# Source Sync Input/Output
F1	VSS	Power/Other

Table 4-2. Land Listing by Land Number (Sheet 13 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
F10 VSS	Power/Other
F11 D23#	Source Sync Input/Output
F12 D24#	Source Sync Input/Output
F13 VSS	Power/Other
F14 D28#	Source Sync Input/Output
F15 D30#	Source Sync Input/Output
F16 VSS	Power/Other
F17 D37#	Source Sync Input/Output
F18 D38#	Source Sync Input/Output
F19 VSS	Power/Other
F2 RESERVED
F20 D41#	Source Sync Input/Output
F21 D43#	Source Sync Input/Output
F22 VSS	Power/Other
F23 RESERVED
F24 RESERVED
F25 RESERVED
F26 RESERVED
F27 VTT_	SEL Power/Other Output
F28 BCLK0	Clk Input
F29 RESERVED
F3 BR0#	Common Clk Input/Output
F30 VTT	Power/Other
F4 VSS	Power/Other
F5 RS1#	Common Clk Input
F6 RESERVED
F7 VSS	Power/Other
F8 D17#	Source Sync Input/Output
F9 D18#	Source Sync Input/Output
G1 VSS	Power/Other
G10 RESERVED
G11 DBI1#	Source Sync Input/Output
G12 DSTBN1#	Source Sync Input/Output
G13 D27#	Source Sync Input/Output
G14 D29#	Source Sync Input/Output
G15 D31#	Source Sync Input/Output
G16 D32#	Source Sync Input/Output
G17 D36#	Source Sync Input/Output
G18 D35#	Source Sync Input/Output
G19 DSTBP2#	Source Sync Input/Output

Table 4-2. Land Listing by Land Number (Sheet 14 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
G2 RESERVED
G20 DSTBN2# Source Sync Input/Output
G21 D44# Source Sync Input/Output
G22 D47# Source Sync Input/Output
G23 RESET# Common Clk Input
G24 RESERVED
G25 RESERVED
G26 RESERVED
G27 RESERVED
G28 BCLK1 Clk Input
G29 BSEL0 CMOS Async Output
G3 TESTHI08 Power/Other Input
G30 BSEL2 CMOS Async Output
G4 TESTHI09 Power/Other Input
G5 PECI Power/Other Input/Output
G6 RESERVED
G7 DEFER# Common Clk Input
G8 BPRI# Common Clk Input
G9 D16# Source Sync Input/Output
H1 GTLREF_DATA Power/Other Input
H10 VSS Power/Other
H11 VSS Power/Other
H12 VSS Power/Other
H13 VSS Power/Other
H14 VSS Power/Other
H15 DP1#	Common Clk Input/Output
H16 DP2#	Common Clk Input/Output
H17 VSS Power/Other
H18 VSS Power/Other
H19 VSS Power/Other
H2 GTLREF_ADD Power/Other Input
H20 VSS Power/Other
H21 VSS Power/Other
H22 VSS Power/Other
H23 VSS Power/Other
H24 VSS Power/Other
H25 VSS Power/Other
H26 VSS Power/Other
H27 VSS Power/Other
H28 VSS Power/Other

Table 4-2. Land Listing by Land Number (Sheet 15 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
H29 VSS	Power/Other
H3 VSS	Power/Other
H30 BSEL	1 CMOS Async Output
H4 RSP#	Common Clk Input
H5 BR1#	Common Clk Input
H6 VSS	Power/Other
H7 VSS	Power/Other
H8 VSS	Power/Other
H9 VSS	Power/Other
J1 VTT_OUT	Power/Other Output
J10 VCC	Power/Other
J11 VCC	Power/Other
J12 VCC	Power/Other
J13 VCC	Power/Other
J14 VCC	Power/Other
J15 VCC	Power/Other
J16 DP0#	Common Clk Input/Output
J17 DP3#	Common Clk Input/Output
J18 VCC	Power/Other
J19 VCC	Power/Other
J2 RESERVED
J20 VCC	Power/Other
J21 VCC	Power/Other
J22 VCC	Power/Other
J23 VCC	Power/Other
J24 VCC	Power/Other
J25 VCC	Power/Other
J26 VCC	Power/Other
J27 VCC	Power/Other
J28 VCC	Power/Other
J29 VCC	Power/Other
J3 RESERVED
J30 VCC	Power/Other
J4 VSS	Power/Other
J5 REQ1#	Source Sync Input/Output
J6 REQ4#	Source Sync Input/Output
J7 VSS	Power/Other
J8 VCC	Power/Other
J9 VCC	Power/Other
K1 LINT0	CMOS Async Input

Table 4-2. Land Listing by Land Number (Sheet 16 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
K2 VSS Power/Other
K23	VCC Power/Other
K24	VCC Power/Other
K25	VCC Power/Other
K26	VCC Power/Other
K27	VCC Power/Other
K28	VCC Power/Other
K29	VCC Power/Other
K3 A20M# CMOS Async Input
K30	VCC Power/Other
K4 REQ0# Source Sync Input/Output
K5 VSS Power/Other
K6 REQ3# Source Sync Input/Output
K7 VSS Power/Other
K8 VCC Power/Other
L1	LINT1 CMOS Async Input
L2	TESTHI11 Power/Other Input
L23	VSS Power/Other
L24	VSS Power/Other
L25	VSS Power/Other
L26	VSS Power/Other
L27	VSS Power/Other
L28	VSS Power/Other
L29	VSS Power/Other
L3	VSS Power/Other
L30	VSS Power/Other
L4	A06#	Source Sync Input/Output
L5	A05#	Source Sync Input/Output
L6	VSS Power/Other
L7	VSS Power/Other
L8	VCC Power/Other
M1	VSS Power/Other
M2	THERMTRIP#	Open Drain	Output
M23	VCC Power/Other
M24	VCC Power/Other
M25	VCC Power/Other
M26	VCC Power/Other
M27	VCC Power/Other
M28	VCC Power/Other
M29	VCC Power/Other

Table 4-2. Land Listing by Land Number (Sheet 17 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
M3 STPCLK#	CMOS Async Input
M30 VCC	Power/Other
M4 A07#	Source Sync Input/Output
M5 A03#	Source Sync Input/Output
M6 REQ2#	Source Sync Input/Output
M7 VSS Power	Power/Other
M8 VCC Power	Power/Other
N1 PWRG	OOD Power/Other Input
N2 IGNNE#	CMOS Async Input
N23 VCC	Power/Other
N24 VCC	Power/Other
N25 VCC	Power/Other
N26 VCC	Power/Other
N27 VCC	Power/Other
N28 VCC	Power/Other
N29 VCC	Power/Other
N3 VSS Power	Power/Other
N30 VCC	Power/Other
N4 A36#	Source Sync Input/Output
N5 RESERVED
N6 VSS Power	Power/Other
N7 VSS Power	Power/Other
N8 VCC Power	Power/Other
P1 TESTH	I10 Power/Other Input
P2 SMI#	CMOS Async Input
P23	VSS Power/Other
P24	VSS Power/Other
P25	VSS Power/Other
P26	VSS Power/Other
P27	VSS Power/Other
P28	VSS Power/Other
P29	VSS Power/Other
P3 INIT#	CMOS Async Input
P30	VSS Power/Other
P4 VSS Power	Power/Other
P5 A37#	Source Sync Input/Output
P6 A04#	Source Sync Input/Output
P7 VSS Power	Power/Other
P8 VCC Power	Power/Other
R1	RESERVED

Table 4-2. Land Listing by Land Number (Sheet 18 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
R2	VSS	Power/Other
R23	VSS Power/Other
R24	VSS Power/Other
R25	VSS Power/Other
R26	VSS Power/Other
R27	VSS Power/Other
R28	VSS Power/Other
R29	VSS Power/Other
R3	FERR#/PBE# Open Drain Output
R30	VSS Power/Other
R4	A08# Source Sync Input/Output
R5	VSS	Power/Other
R6	ADSTB0# Source Sync Input/Output
R7	VSS	Power/Other
R8	VCC Power/Other
T1	RESERVED
T2	RESERVED
T23	VCC	Power/Other
T24	VCC	Power/Other
T25	VCC	Power/Other
T26	VCC	Power/Other
T27	VCC	Power/Other
T28	VCC	Power/Other
T29	VCC	Power/Other
T3	VSS Power/Other
T30	VCC	Power/Other
T4	A11# Source Sync Input/Output
T5	A09# Source Sync Input/Output
T6	VSS Power/Other
T7	VSS Power/Other
T8	VCC Power/Other
U1	VSS Power/Other
U2	AP0# Common Clk Input/Output
U23	VCC Power/Other
U24	VCC Power/Other
U25	VCC Power/Other
U26	VCC Power/Other
U27	VCC Power/Other
U28	VCC Power/Other
U29	VCC Power/Other

Table 4-2. Land Listing by Land Number (Sheet 19 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
U3 AP1#	Common Clk Input/Output
U30 VCC	Power/Other
U4 A13#	Source Sync Input/Output
U5 A12#	Source Sync Input/Output
U6 A10#	Source Sync Input/Output
U7 VSS	Power/Other
U8 VCC	Power/Other
V1 MS_ID1	Power/Other Output
V2 LL_ID0	Power/Other Output
V23 VSS	Power/Other
V24 VSS	Power/Other
V25 VSS	Power/Other
V26 VSS	Power/Other
V27 VSS	Power/Other
V28 VSS	Power/Other
V29 VSS	Power/Other
V3 VSS	Power/Other
V30 VSS	Power/Other
V4 A15#	Source Sync Input/Output
V5 A14#	Source Sync Input/Output
V6 VSS	Power/Other
V7 VSS	Power/Other
V8 VCC	Power/Other
W1 MS_ID0	Power/Other Output
W2 RESERVED
W23 VCC	Power/Other
W24 VCC	Power/Other
W25 VCC	Power/Other
W26 VCC	Power/Other
W27 VCC	Power/Other
W28 VCC	Power/Other
W29 VCC	Power/Other
W3 RESERVED
W30 VCC	Power/Other
W4 VSS	Power/Other
W5 A16#	Source Sync Input/Output
W6 A18#	Source Sync Input/Output
W7 VSS	Power/Other
W8 VCC	Power/Other
Y1	RESERVED

Table 4-2. Land Listing by Land Number (Sheet 20 of 20)

Pin No.	Pin Name	Signal Buffer Type	Direction
Y2	VSS	Power/Other
Y23	VCC Power/Other
Y24	VCC Power/Other
Y25	VCC Power/Other
Y26	VCC Power/Other
Y27	VCC Power/Other
Y28	VCC Power/Other
Y29	VCC Power/Other
Y3	RESERVED
Y30	VCC Power/Other
Y4	A20# Source Sync Input/Output
Y5	VSS	Power/Other
Y6	A19# Source Sync Input/Output
Y7	VSS	Power/Other
Y8	VCC Power/Other

§

5 Signal Definitions

5.1 Signal Definitions

Table 5-1. Signal Definitions (Sheet 1 of 8)

Name Type Description Notes
A[37:3]# I/O A[37:3]# (Address) define a 2 ^38 -byte physical memory address space. In sub-phase 1 of the address phase, these signals transmit the address of a transaction. In sub-phase 2, these signals transmit transaction type information. These signals must connect the appropriate pins of all agents on the FSB. A[37:3]# are protected by parity signals AP[1:0]#. A[37:3]# are source synchronous signals and are latched into the receiving buffers by ADSTB[1:0]#. On the active-to-inactive transition of RESET#, the processors sample a subset of the A[37:3]# lands to determine their power-on configuration. See Section 7.1.				3
A20M# I If A20M# (Address-20 Mask) is asserted, the processor masks physical address bit 20 (A20#) before looking up a line in any internal cache and before driving a read/write transaction on the bus. Asserting A20M# emulates the 8086 processor's address wrap-around at the 1 MB boundary. Assertion of A20M# is only supported in real mode.A20M# is an asynchronous signal. However, to ensure recognition of this signal following an I/O write instruction, it must be valid along with the TRDY# assertion of the corresponding I/O write bus transaction.				2
ADS# I/O ADS# (Address Strobe) is asserted to indicate the validity of the transaction address on the A[37:3]# lands. All bus agents observe the ADS# activation to begin parity checking, protocol checking, address decode, internal snoop, or deferred reply ID match operations associated with the new transaction. This signal must be connected to the appropriate pins on all Dual-Core Intel® Xeon® Processor 5200 Series FSB agents.				3
ADSTB[1:0]# I/O Address strobes are used to latch A[37:3]# and REQ[4:0]# on their rising and falling edge. Strobes are associated with signals as shown below.				3
AP[1:0]# I/O AP[1:0]# (Address Parity) are driven by the request initiator along with ADS#, A[37:3]#, and the transaction type on the REQ[4:0]# signals. A correct parity signal is high if an even number of covered signals are low and low if an odd number of covered signals are low. This allows parity to be high when all the covered signals are high. AP[1:0]# must be connected to the appropriate pins of all Dual-Core Intel® Xeon® Processor 5200 Series FSB agents. The following table defines the coverage model of these signals.				3

Table 5-1. Signal Definitions (Sheet 2 of 8)

Name	Type	Description	Notes
BCLK[1:0] I The differential bus clock pair BCLK[1:0] (Bus Clock) determines the FSB frequency. All processor FSB agents must receive these signals to drive their outputs and latch their inputs.All external timing parameters are specified with respect to the rising edge of BCLK0 crossing Vcross.			3
BINIT# I/O BINIT# (Bus Initialization) may be observed and driven by all processor FSB agents and if used, must connect the appropriate pins of all such agents. If the BINIT# driver is enabled during power on configuration, BINIT# is asserted to signal any bus condition that prevents reliable future operation.If BINIT# observation is enabled during power-on configuration (see Section 7.1) and BINIT# is sampled asserted, symmetric agents reset their bus LOCK# activity and bus request arbitration state machines. The bus agents do not reset their I/O Queue (IOQ) and transaction tracking state machines upon observation of BINIT# assertion. Once the BINIT# assertion has been observed, the bus agents will re-arbitrate for the FSB and attempt completion of their bus queue and IOQ entries.If BINIT# observation is disabled during power-on configuration, a priority agent may handle an assertion of BINIT# as appropriate to the error handling architecture of the system.			3
BNR# I/O BNR# (Block Next Request) is used to assert a bus stall by any bus agent who is unable to accept new bus transactions. During a bus stall, the current bus owner cannot issue any new transactions.Since multiple agents might need to request a bus stall at the same time, BNR# is a wired-OR signal which must connect the appropriate pins of all processor FSB agents. In order to avoid wired-OR glitches associated with simultaneous edge transitions driven by multiple drivers, BNR# is activated on specific clock edges and sampled on specific clock edges.			3
BPM5#BPM4#BPM3#BPM[2:1]#BPM0#	I/OO/I/OO/I/O	BPM[5:0]# (Breakpoint Monitor) are breakpoint and performance monitor signals. They are outputs from the processor which indicate the status of breakpoints and programmable counters used for monitoring processor performance. BPM[5:0]# should connect the appropriate pins of all FSB agents.BPM4# provides PRDY# (Probe Ready) functionality for the TAP port. PRDY# is a processor output used by debug tools to determine processor debug readiness.BPM5# provides PREQ# (Probe Request) functionality for the TAP port. PREQ# is used by debug tools to request debug operation of the processors.BPM[5:4]# must be bussed to all bus agents. Please refer to the appropriate platform design guidelines for more detailed information.	2
BPRI# I BPRI# (Bus Priority Request) is used to arbitrate for ownership of the processor FSB. It must connect the appropriate pins of all processor FSB agents. Observing BPRI# active (as asserted by the priority agent) causes all other agents to stop issuing new requests, unless such requests are part of an ongoing locked operation. The priority agent keeps BPRI# asserted until all of its requests are completed, then releases the bus by deasserting BPRI#.			3
BR[1:0]# I/O The BR[1:0]# signals are sampled on the active-to-inactive transition of RESET#. The signal which the agent samples asserted determines its agent ID. BR0# drives the BREQ0# signal in the system and is used by the processor to request the bus.These signals do not have on-die termination and must be terminated.			3
BSEL[2:0] O The BCLK[1:0] frequency select signals BSEL[2:0] are used to select the processor input clock frequency. Table 2-2 defines the possible combinations of the signals and the frequency associated with each combination. The required frequency is determined by the processors, chipset, and clock synthesizer. All FSB agents must operate at the same frequency. For more information about these signals, including termination recommendations, refer to the appropriate platform design guideline.

Table 5-1. Signal Definitions (Sheet 3 of 8)

Name Type Description Notes
D[63:0]# I/O D[63:0]# (Data) are the data signals. These signals provide a 64-bit data path between the processor FSB agents, and must connect the appropriate pins on all such agents. The data driver asserts DRDY# to indicate a valid data transfer.D[63:0]# are quad-pumped signals, and will thus be driven four times in a common clock period. D[63:0]# are latched off the falling edge of both DSTBP[3:0]# and DSTBN[3:0]#. Each group of 16 data signals correspond to a pair of one DSTBP# and one DSTBN#. The following table shows the grouping of data signals to strobes and DBI#.				3

Table 5-1. Signal Definitions (Sheet 4 of 8)

Name	Type	Description		Notes
DRDY# I/O DRDY# (Data Ready) is asserted by the data driver on each data transfer, indicating valid data on the data bus. In a multi-common clock data transfer, DRDY# may be deasserted to insert idle clocks. This signal must connect the appropriate pins of all processor FSB agents.				3
DSTBN[3:0]# I/O Data strobe used to latch in D[63:0]#. 3
DSTBP[3:0]# I/O Data strobe used to latch in D[63:0]#. 3
FERR#/PBE# O FERR# /PBE# (floating-point error/pending break event) is a multiplexed signal and its meaning is qualified by STPCLK#. When STPCLK# is not asserted, FERR#/PBE# indicates a floating-point error and will be asserted when the processor detects an unmasked floating-point error. When STPCLK# is not asserted, FERR#/PBE# is similar to the ERROR# signal on the Intel387 coprocessor, and is included for compatibility with systems using MS-DOS*-type floating-point error reporting. When STPCLK# is asserted, an assertion of FERR#/PBE# indicates that the processor has a pending break event waiting for service. The assertion of FERR#/PBE# indicates that the processor should be returned to the Normal state. For additional information on the pending break event functionality, including the identification of support of the feature and enable/disable information, refer to Vol. 3 of the Intel® 64 and IA-32 Architectures Software Developer's Manual and the Intel Processor Identification and the CPUID Instruction application note.				2
FORCEPR# | The FORCEPR# (force power reduction) input can be used by the platform to cause the Dual-Core Intel® Xeon® Processor 5200 Series to activate the Thermal Control Circuit (TCC).
GTLREF_ADD | GTLREF_ADD determines the signal reference level for AGTL+ address and common clock input lands. GTLREF_ADD is used by the AGTL+ receivers to determine if a signal is a logical 0 or a logical 1. Please refer to Table 2-18 and the appropriate platform design guidelines for additional details.
GTLREF_DATA	I	GTLREF_DATA determines the signal reference level for AGTL+ data input lands. GTLREF_DATA is used by the AGTL+ receivers to determine if a signal is a logical 0 or a logical 1. Please refer to Table 2-18 and the appropriate platform design guidelines for additional details.
HIT# HITM#	I/O I/O	HIT# (Snoop Hit) and HITM# (Hit Modified) convey transaction snoop operation results. Any FSB agent may assert both HIT# and HITM# together to indicate that it requires a snoop stall, which can be continued by reasserting HIT# and HITM# together.		3

Table 5-1. Signal Definitions (Sheet 5 of 8)

Name	Type	Description	Notes
IERR# O IERR# (Internal Error)		is asserted by a processor as the result of an internal error. Assertion of IERR# is usually accompanied by a SHUTDOWN transaction on the processor FSB. This transaction may optionally be converted to an external error signal (e.g., NMI) by system core logic. The processor will keep IERR# asserted until the assertion of RESET#.This signal does not have on-die termination.	2
IGNNE# I IGNNE# (Ignore Num eric Error) is asserted to force the processor to ignore a numeric error and continue to execute noncontrol floating-point instructions. If IGNNE# is deasserted, the processor generates an exception on a noncontrol floating-point instruction if a previous floating-point instruction caused an error. IGNNE# has no effect when the NE bit in control register 0 (CR0) is set.IGNNE# is an asynchronous signal. However, to ensure recognition of this signal following an I/O write instruction, it must be valid along with the TRDY# assertion of the corresponding I/O write bus transaction.	2
INIT# I INIT# (Initialization), when asserted, resets integer registers inside all processors without affecting their internal caches or floating-point registers. Each processor then begins execution at the power-on Reset vector configured during power-on configuration. The processor continues to handle snoop requests during INIT# assertion. INIT# is an asynchronous signal and must connect the appropriate pins of all processor FSB agents.	2
LINT[1:0] I LINT[1:0] (Local APIC Interrupt) must connect the appropriate pins of all FSB agents. When the APIC functionality is disabled, the LINT0/INTR signal becomes INTR, a maskable interrupt request signal, and LINT1/NMI becomes NMI, a nonmaskable interrupt. INTR and NMI are backward compatible with the signals of those names on the Pentium® processor. Both signals are asynchronous.These signals must be software configured via BIOS programming of the APIC register space to be used either as NMI/INTR or LINT[1:0]. Because the APIC is enabled by default after Reset, operation of these pins as LINT[1:0] is the default configuration.	2
LL_ID[1:0] O The LL_ID[1:0] signals are used to select the correct loadline slope for the processor. These signals are not connected to the processor die.
LOCK# I/O LOCK# indicates to the system that a transaction must occur atomically. This signal must connect the appropriate pins of all processor FSB agents. For a locked sequence of transactions, LOCK# is asserted from the beginning of the first transaction to the end of the last transaction.When the priority agent asserts BPRI# to arbitrate for ownership of the processor FSB, it will wait until it observes LOCK# deasserted. This enables symmetric agents to retain ownership of the processor FSB throughout the bus locked operation and ensure the atomicity of lock.	3
MCERR# I/O MCERR# (Machine Check Error) is asserted to indicate an unrecoverable error without a bus protocol violation. It may be driven by all processor FSB agents.MCERR# assertion conditions are configurable at a system level. Assertion options are defined by the following options:Enabled or disabled.Asserted, if configured, for internal errors along with IERR#.Asserted, if configured, by the request initiator of a bus transaction after it observes an error.Asserted by any bus agent when it observes an error in a bus transaction.For more details regarding machine check architecture, refer to the Intel® 64 and IA-32 Architectures Software Developer's Manual. Volume 3.

Table 5-1. Signal Definitions (Sheet 6 of 8)

Name	Type	Description	Notes
MS_ID[1:0] O These signals are provided to indicate the Market Segment for the processor and may be used for future processor compatibility or for keying. These signals are not connected to the processor die. Both the bits 0 and 1 are logic 0 and pulled to ground on the Dual-Core Intel® Xeon® Processor 5200 Series package.
PROCHOT# O PROCHOT# (Processor Hot) will go active when the processor's temperature monitoring sensor detects that the processor has reached its maximum safe operating temperature. This indicates that the Thermal Control Circuit (TCC) has been activated, if enabled. The TCC will remain active until shortly after the processor deasserts PROCHOT#. See Section 6.2.3 for more details.
PWRGOOD I PWRGOOD (Power Good) is an input. The processor requires this signal to be a clean indication that all processor clocks and power supplies are stable and within their specifications. "Clean" implies that the signal will remain low (capable of sinking leakage current), without glitches, from the time that the power supplies are turned on until they come within specification. The signal must then transition monotonically to a high state. PWRGOOD can be driven inactive at any time, but clocks and power must again be stable before a subsequent rising edge of PWRGOOD. It must also meet the minimum pulse width specification in Table 2-17, and be followed by a 1-10 ms RESET# pulse.The PWRGOOD signal must be supplied to the processor; it is used to protect internal circuits against voltage sequencing issues. It should be driven high throughout boundary scan operation.			2
REQ[4:0]# I/O REQ[4 0]# (Request Command) must connect the appropriate pins of all processor FSB agents. They are asserted by the current bus owner to define the currently active transaction type. These signals are source synchronous to ADSTB[1:0]#. Refer to the AP[1:0]# signal description for details on parity checking of these signals.			3
RESET# I Asserting the RESET# signal resets all processors to known states and invalidates their internal caches without writing back any of their contents. For a power-on Reset, RESET# must stay active for at least 1 ms after Vcc and BCLK have reached their proper specifications. On observing active RESET#, all FSB agents will deassert their outputs within two clocks. RESET# must not be kept asserted for more than 10 ms while PWRGOOD is asserted.A number of bus signals are sampled at the active-to-inactive transition of RESET# for power-on configuration. These configuration options are described in the Section 7.1.This signal does not have on-die termination and must be terminated on the system board.			3
RS[2:0]# I RS[2:0]# (Response Status) are driven by the response agent (the agent responsible for completion of the current transaction), and must connect the appropriate pins of all processor FSB agents.			3
RSP# I RSP# (Response Parity) is driven by the response agent (the agent responsible for completion of the current transaction) during assertion of RS[2:0]#, the signals for which RSP# provides parity protection. It must connect to the appropriate pins of all processor FSB agents.A correct parity signal is high if an even number of covered signals are low and low if an odd number of covered signals are low. While RS[2:0]# = 000, RSP# is also high, since this indicates it is not being driven by any agent guaranteeing correct parity.			3
SKTOCC#	O	SKTOCC# (Socket occupied) will be pulled to ground by the processor to indicate that the processor is present. There is no connection to the processor silicon for this signal.
SMI#	I SMI# (System Management Interrupt) is asserted asynchronously by system logic. On accepting a System Management Interrupt, processors save the current state and enter System Management Mode (SMM). An SMI Acknowledge transaction is issued, and the processor begins program execution from the SMM handler.If SMI# is asserted during the deassertion of RESET# the processor will tri-state its outputs. See Section 7.1.	2

Table 5-1. Signal Definitions (Sheet 7 of 8)

Name	Type	Description	Notes
STPCLK# I STPCLK#	(Stop Clock), when asserted, causes processors to enter a low power Stop-Grant state. The processor issues a Stop-Grant Acknowledge transaction, and stops providing internal clock signals to all processor core units except the FSB and APIC units. The processor continues to snoop bus transactions and service interrupts while in Stop-Grant state. When STPCLK# is deasserted, the processor restarts its internal clock to all units and resumes execution. The assertion of STPCLK# has no effect on the bus clock; STPCLK# is an asynchronous input.	2
TCK I TCK (Test Clock)	provides the clock input for the processor Test Bus (also known as the Test Access Port).
TDI I TDI (Test Data In)	transfers serial test data into the processor. TDI provides the serial input needed for JTAG specification support.
TDO O TDO (Test Data Out)	transfers serial test data out of the processor. TDO provides the serial output needed for JTAG specification support.
TESTHI[12:8] I TESTHI	[12:8] must be connected to a VTT power source through a resistor for proper processor operation. Refer to Section 2.6 for TESTHI grouping restrictions.
THERMTRIP# O Assertion of T	THERMTRIP# (Thermal Trip) indicates the processor junction temperature has reached a temperature beyond which permanent silicon damage may occur. Measurement of the temperature is accomplished through an internal thermal sensor. Upon assertion of THERMTRIP#, the processor will shut off its internal clocks (thus halting program execution) in an attempt to reduce the processor junction temperature. To protect the processor its core voltage (VCC) must be removed following the assertion of THERMTRIP#. Intel also recommends the removal of VTT when THERMTRIP# is asserted.Driving of the THERMTRIP# signals is enabled within 10 μs of the assertion of PWRGOOD and is disabled on de-assertion of PWRGOOD. Once activated, THERMTRIP# remains latched until PWRGOOD is de-asserted. While the de-assertion of the PWRGOOD signal will de-assert THERMTRIP#, if the processor's junction temperature remains at or above the trip level, THERMTRIP# will again be asserted within 10 μs of the assertion of PWRGOOD.	1
TMS I TMS (Test Mode Select)	is a JTAG specification support signal used by debug tools.See the Debug Port Design Guide for Intel® 5000 Series Chipset Memory Controller Hub (MCH) Systems (External Version) for further information.
TRDY# I TRDY# (Target Ready)	is asserted by the target to indicate that it is ready to receive a write or implicit writeback data transfer. TRDY# must connect the appropriate pins of all FSB agents.
TRST# I TRST# (Test Reset)	resets the Test Access Port (TAP) logic. TRST# must be driven low during power on Reset.
VCCPLL	I The Dual-Core Intel® Xeon® Processor 5200 Series implements an on-die PLL filter solution. The VCCPLL input is used as a PLL supply voltage.
VCC_DIE_SENSE VCC_DIE_SENSE2	O VCC_DIE_SENSE and VCC_DIE_SENSE2 provides an isolated, low impedance connection to the processor core power and ground. This signal should be connected to the voltage regulator feedback signal, which insures the output voltage (that is, processor voltage) remains within specification. Please see the applicable platform design guide for implementation details.
VID[6:1] O VID[6:1] (Voltage ID) pins are used to support automatic selection of power supply voltages (VCC). These are CMOS signals that are driven by the processor and must be pulled up through a resistor. Conversely, the voltage regulator output must be disabled prior to the voltage supply for these pins becomes invalid. The VID pins are needed to support processor voltage specification variations. See Table 2-4 for definitions of these pins. The VR must supply the voltage that is requested by these pins, or disable itself.

Table 5-1. Signal Definitions (Sheet 8 of 8)

Name Type Description		Notes
VID_SELECT O VID_SELECT is an output from the processor which selects the appropriate VID table for the Voltage Regulator. This signal is not connected to the processor die. This signal is a no-connect on the Dual-Core Intel® Xeon® Processor 5200 Series package.
VSS_DIE_SENSE VSS_DIE_SENSE2	O VSS_DIE_SENSE and VSS_DIE_SENSE2 provides an isolated, low impedance connection to the processor core power and ground. This signal should be connected to the voltage regulator feedback signal, which insures the output voltage (that is, processor voltage) remains within specification. Please see the applicable platform design guide for implementation details.
VTT	P	The FSB termination voltage input pins. Refer to Table 2-12 for further details.
VTT_OUT O The VTT_OUT signals are included in order to provide a local V _TT for some signals that require termination to V_TT on the motherboard.
VTT_SEL O The VTT_SEL signal is used to select the correct V _TT voltage level for the processor. VTT_SEL is connected to VSS on the Dual-Core Intel® Xeon® Processor 5200 Series package.

Notes:

1. For this processor land on the Dual-Core Intel® Xeon® Processor 5200 Series, the maximum number of symmetric agents is one. Maximum number of priority agents is zero.

2. For this processor land on the Dual-Core Intel® Xeon® Processor 5200 Series, the maximum number of symmetric agents is two. Maximum number of priority agents is zero.

3. For this processor land on the Dual-Core Intel® Xeon® Processor 5200 Series, the maximum number of symmetric agents is two. Maximum number of priority agents is one.

6 Thermal Specifications

6.1 Package Thermal Specifications

The Dual-Core Intel® Xeon® Processor 5200 Series requires a thermal solution to maintain temperatures within its operating limits. Any attempt to operate the processor outside these operating limits may result in permanent damage to the processor and potentially other components within the system. As processor technology changes, thermal management becomes increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to reliable, long-term system operation.

A complete solution includes both component and system level thermal management features. Component level thermal solutions can include active or passive heatsinks attached to the processor integrated heat spreader (IHS). Typical system level thermal solutions may consist of system fans combined with ducting and venting.

This section provides data necessary for developing a complete thermal solution. For more information on designing a component level thermal solution, refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG).

Note: The boxed processor will ship with a component thermal solution. Refer to Chapter 8 for details on the boxed processor.

6.1.1 Thermal Specifications

To allow the optimal operation and long-term reliability of Intel processor-based systems, the processor must remain within the minimum and maximum case temperature (TCASE) specifications as defined by the applicable thermal profile (see Table 6-1 and Figure 6-1 for the Dual-Core Intel® Xeon® Processor E5200 Series, Table 6-3 and Figure 6-2 for the Dual-Core Intel® Xeon® Processor X5200 Series, Table 6-6 and Figure 6-3 for the Dual-Core Intel® Xeon® Processor L5200 Series, and Table 6-8, and Figure 6-4 for the Dual-Core Intel® Xeon® Processor L5238. Thermal solutions not designed to provide this level of thermal capability may affect the long-term reliability of the processor and system. For more details on thermal solution design, please refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG).

The Dual-Core Intel® Xeon® Processor 5200 Series implements a methodology for managing processor temperatures which is intended to support acoustic noise reduction through fan speed control and to assure processor reliability. Selection of the appropriate fan speed is based on the relative temperature data reported by the processor's Platform Environment Control Interface (PECI) bus as described in Section 6.3. If the value reported via PECI is less than T_CONTROL , then the case temperature is permitted to exceed the Thermal Profile. If the value reported via PECI is greater than or equal to T_CONTROL , then the processor case temperature must remain at or below the temperature as specified by the thermal profile. The temperature reported over PECI is always a negative value and represents a delta below the onset of thermal control circuit (TCC) activation, as indicated by PROCHOT# (see Section 6.2, Processor Thermal Features). Systems that implement fan speed control must be designed to use this data. Systems that do not alter the fan speed only need to guarantee the case temperature meets the thermal profile specifications.

The Dual-Core Intel® Xeon® Processor E5200 Series and Dual-Core Intel® Xeon® Processor L5200 Series supports a single Thermal Profile (see Figure 6-1; Table 6-1Table 6-6). With this Thermal Profile, it is expected that the Thermal Control Circuit (TCC) would only be activated for very brief periods of time when running the most power-intensive applications. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) for details on system thermal solution design, thermal profiles and environmental considerations.

The Dual-Core Intel® Xeon® Processor L5238 supports a Thermal Profile with nominal and short-term conditions designed to meet NEBS level 3 compliance (see Figure 6-4). Operation at either thermal profile should result in virtually no TCC activation. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series in Embedded Thermal/Mechanical Design Guidelines (TMDG).

The Dual-Core Intel® Xeon® Processor X5200 Series supports a dual Thermal Profile, either of which can be implemented. Both ensure adherence to the Intel reliability requirements. Thermal Profile A (see Figure 6-2; Table 6-4) is representative of a volumetrically unconstrained thermal solution (that is, industry enabled 2U heatsink). In this scenario, it is expected that the Thermal Control Circuit (TCC) would only be activated for very brief periods of time when running the most power intensive applications. Thermal Profile B (see Figure 6-2; Table 6-5) is indicative of a constrained thermal environment (that is, 1U form factor). Because of the reduced cooling capability represented by this thermal solution, the probability of TCC activation and performance loss is increased. Additionally, utilization of a thermal solution that does not meet Thermal Profile B will violate the thermal specifications and may result in permanent damage to the processor. Intel has developed these thermal profiles to allow customers to choose the thermal solution and environmental parameters that best suit their platform implementation. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) for details on system thermal solution design, thermal profiles and environmental considerations.

The upper point of the thermal profile consists of the Thermal Design Power (TDP) defined in Table 6-1 for the Dual-Core Intel® Xeon® Processor E5200 Series, Table 6-3 for the Dual-Core Intel® Xeon® Processor X5200 Series, and Table 6-6 for the Dual-Core Intel® Xeon® Processor L5200 Series and the associated T_CASE values. The lower point of the thermal profile is the T_CASE_MAX at 0 W power (or no power draw).

Analysis indicates that real applications are unlikely to cause the processor to consume maximum power dissipation for sustained time periods. Intel recommends that complete thermal solution designs target the Thermal Design Power (TDP) indicated in Table 6-2 for the Dual-Core Intel® Xeon® Processor E5200 Series, Table 6-4 and Table 6-5 for the Dual-Core Intel® Xeon® Processor X5200 Series, for the Dual-Core Intel® Xeon® Processor L5200 Series instead of the maximum processor power consumption. The Thermal Monitor feature is intended to help protect the processor in the event that an application exceeds the TDP recommendation for a sustained time period. For more details on this feature, refer to Section 6.2. To ensure maximum flexibility for future requirements, systems should be designed to the Flexible Motherboard (FMB) guidelines, even if a processor with lower power dissipation is currently planned. Intel® Thermal Monitor 1 and Intel® Thermal Monitor 2 feature must be enabled for the processor to remain within its specifications.

Table 6-1. Dual-Core Intel® Xeon® Processor E5200 Series Thermal Specifications

Core Frequency	Thermal Design Power (W)	Minimum T_CASE (°C)	Maximum T_CASE (°C)	Notes
Launch to FMB	65	5	See Figure 6-1; Table 6-2;	1, 2, 3, 4, 5

Notes:

1. These values are specified at V_CC_MAX for all processor frequencies. Systems must be designed to ensure the processor is not to be subjected to any static V_CC and I_CC combination wherein V_CC exceeds V_CC_MAX at specified ICC. Please refer to the loadline specifications in Chapter 2.13.1.
2. Thermal Design Power (TDP) should be used for the processor thermal solution design targets. TDP is not the maximum power that the processor can dissipate. TDP is measured at maximum T_CASE .
3. These specifications are based on silicon characterization.
4. Power specifications are defined at all VIDs found in Table 2-3. The Dual-Core Intel® Xeon® Processor E5200 Series may be shipped under multiple VIDs for each frequency.
5. FMB, or Flexible Motherboard, guidelines provide a design target for meeting all planned processor frequency requirements.

Figure 6-1. Dual-Core Intel® Xeon® Processor E5200 Series Thermal Profile

Notes:

1. Please refer to Table 6-2 for discrete points that constitute the thermal profile.
2. Implementation of the Dual-Core Intel® Xeon® Processor E5200 Series Thermal Profile should result in virtually no TCC activation. Furthermore, utilization of thermal solutions that do not meet the processor Thermal Profile will result in increased probability of TCC activation and may incur measurable performance loss.
3. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) for system and environmental implementation details

Table 6-2. Dual-Core Intel® Xeon® Processor E5200 Series Thermal Profile Table

Power (W) T	CASE_MAX (°C)
0 43.0
5 44.8
10 46.5
15 48.3
20 50.1
25 51.9
30 53.6
35 55.4
40 57.2
45 58.9
50 60.7
55 62.5
60 64.2
65 66.0

Table 6-3. Dual-Core Intel® Xeon® Processor X5200 Series Thermal Specifications

Core Frequency	Thermal Design Power (W)	Minimum T_CASE (°C)	Maximum T_CASE (°C)	Notes
Launch to FMB	80	5	See Figure 6-2; Table 6-4 and Table 6-5	1, 2, 3, 4, 5

Notes:

1. These values are specified at V CC MAX for all processor frequencies. Systems must be designed to ensure the processor is not to be subjected to any static VCC and ICC combination wherein VCC exceeds VCC MAX at specified ICC. Please refer to the loadline specifications in Section 2.13.

2. Thermal Design Power (TDP) should be used for the processor thermal solution design targets. TDP is not the maximum power that the processor can dissipate. TDP is measured at maximum T_CASE .

3. These specifications are based on silicon characterization.

4. Power specifications are defined at all VIDs found in Table 2-12. The Dual-Core Intel® Xeon® Processor X5200 Series may be shipped under multiple VIDs for each frequency.

5. FMB, or Flexible Motherboard, guidelines provide a design target for meeting all planned processor frequency requirements.

Figure 6-2. Dual-Core Intel® Xeon® Processor X5200 Series Thermal Profiles A and B

Notes:

1. The Dual-Core Intel® Xeon® Processor X5200 Series Thermal Profile is representative of a volumetrically constrained platform. Please refer to Table 6-4 and Table 6-5 for discrete points that constitute the thermal profile.
2. Implementation of the Dual-Core Intel® Xeon® Processor X5200 Series Thermal Profile should result in virtually no TCC activation. Furthermore, utilization of thermal solutions that do not meet the processor Thermal Profile will result in increased probability of TCC activation and may incur measurable performance loss. (See Section 6.2 for details on TCC activation).
3. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) for system and environmental implementation details.

Table 6-4. Dual-Core Intel® Xeon® Processor X5200 Series Thermal A Profile Table (Sheet 1 of 2)

Power (W) T	CASE_MAX (°C)
0 42.2
5 43.4
10 44.6
15 45.7
20 46.9
25 48.1
30 49.3
35 50.4
40 51.6
45 52.3

Table 6-4. Dual-Core Intel® Xeon® Processor X5200 Series Thermal A Profile Table (Sheet 2 of 2)

Power (W) T	CASE_MAX (°C)
50 54.0
55 55.1
60 56.3
65 57.5
70 58.7
75 59.8
80 61.0

Table 6-5. Dual-Core Intel® Xeon® Processor X5200 Series Thermal B Profile Table

Power (W) T	CASE_MAX (°C)
0 42.9
5 44.3
10 45.8
15 47.2
20 48.7
25 50.1
30 51.6
35 53.0
40 54.5
45 55.9
50 57.4
55 58.8
60 60.2
65 61.7
70 63.1
75 64.6
80 66.0

Table 6-6. Dual-Core Intel® Xeon® Processor L5200 Series Thermal Specifications

Core Frequency	Thermal Design Power (W)	Minimum T_CASE (°C)	Maximum T_CASE (°C)	Notes
Launch to FMB	40	5	See Figure 6-3; Table 6-7	1, 2, 3, 4, 5

Notes:

1. These values are specified at V_CC_MAX for all processor frequencies. Systems must be designed to ensure the processor is not to be subjected to any static VCC and ICC combination wherein VCC exceeds V_CC_MAX at specified ICC. Please refer to the loadline specifications in Section 2.13.
2. Thermal Design Power (TDP) should be used for processor thermal solution design targets. TDP is not the maximum power that the processor can dissipate. TDP is measured at maximum T_CASE .
3. These specifications are based pre-silicon estimates and simulations. These specifications will be updated with characterized data from silicon measurements in a future release of this document.
4. Power specifications are defined at all VIDs found in Table 2-12. The Dual-Core Intel® Xeon® Processor L5200 Series may be shipped under multiple VIDs for each frequency.
5. FMB, or Flexible Motherboard, guidelines provide a design target for meeting all planned processor frequency requirements.

Figure 6-3. Dual-Core Intel® Xeon® Processor L5200 Series Thermal Profile

Notes:

1. Dual-Core Intel® Xeon® Processor L5200 Series Thermal Profile is representative of a volumetrically constrained platform. Please refer to Table 6-7 for discrete points that constitute the thermal profile.
2. Implementation of the Dual-Core Intel® Xeon® Processor L5200 Series Thermal Profile should result in virtually no TCC activation. Furthermore, utilization of thermal solutions that do not meet the processor Thermal Profile will result in increased probability of TCC activation and may incur measurable performance loss. (See Section 6.2 for details on TCC activation).
3. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) for system and environmental implementation details.

Table 6-7. Dual-Core Intel® Xeon® Processor L5200 Series Thermal Profile Table

Power (W) T	CASE_MAX (°C)
0 41.8
5 43.6
10 45.3
15 47.1
20 48.9
25 50.7
30 52.4
35 54.2
40 56.0

Table 6-8. Dual-Core Intel® Xeon® Processor L5238 Thermal Specifications

Core Frequency	Thermal Design Power (W)	Minimum T_CASE (°C)	Maximum T_CASE (°C)	Notes
Launch to FMB	35	5	See Figure 6-4; Table 6-8	1, 2, 3, 4, 5

Notes:

1. These values are specified at V CC_MAX for all processor frequencies. Systems must be designed to ensure the processor is not to be subjected to any static VCC and ICC combination wherein VCC exceeds V CC_MAX at specified ICC. Please refer to the loadline specifications in Section 2.13.
2. Thermal Design Power (TDP) should be used for processor thermal solution design targets. TDP is not the maximum power that the processor can dissipate. TDP is measured at maximum T_CASE .
3. These specifications are based pre-silicon estimates and simulations. These specifications will be updated with characterized data from silicon measurements in a future release of this document.
4. Power specifications are defined at all VIDs found in Table 2-12. The Dual-Core Intel® Xeon® Processor L5238 may be shipped under multiple VIDs for each frequency.
5. FMB, or Flexible Motherboard, guidelines provide a design target for meeting all planned processor frequency requirements.

Figure 6-4. Dual-Core Intel® Xeon® Processor L5238 Thermal Profile

Notes:

1. Dual-Core Intel® Xeon® Processor L5238 Thermal Profile is representative of a volumetrically constrained platform. Please refer to Table 6-9 for discrete points that constitute the thermal profile.
2. Implementation of the Dual-Core Intel® Xeon® Processor L5238 Thermal Profile should result in virtually no TCC activation. Furthermore, utilization of thermal solutions that do not meet the processor Thermal Profile will result in increased probability of TCC activation and may incur measurable performance loss. (See Section 6.2 for details on TCC activation).
3. The Nominal Thermal Profile must be used for all normal operating conditions, or for products that do not require NEBS Level 3 compliance.
4. The Short-Term Thermal Profile may only be used for short-term excursions to higher ambient operating temperatures, not to exceed 96 hours per instance, 360 hours per year, and a maximum of 15 instances per year, as compliant with NEBS Level 3.
5. Utilization of a thermal solution that exceeds the Short-Term Thermal Profile, or which operates at the Short-Term Thermal Profile for a duration longer than the limits specified in Note 4 above, do not meet the processor thermal specifications and may result in permanent damage to the processor.
6. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series in Embedded Thermal/Mechanical Design Guidelines (TMDG) for system and environmental implementation details.

Table 6-9. Dual-Core Intel® Xeon® Processor L5238 Thermal Profile Table

Power (W) Nominal T	CASE_MAX (°C) Short-term T	CASE_MAX (°C)
0	4	5
5	4	9
10 52 67
15 56 71
20 60 75
25 64 79
30 67 82
35 71 86

6

6

Table 6-10. Dual-Core Intel® Xeon® Processor L5215 Thermal Specifications

Core Frequency	Thermal Design Power (W)	Minimum T_CASE (°C)	Maximum T_CASE (°C)	Notes
Launch to FMB	20	5	See Figure 6-5; Table 6-11	1, 2, 3, 4, 5

Notes:

1. These values are specified at V CC_MAX for all processor frequencies. Systems must be designed to ensure the processor is not to be subjected to any static VCC and ICC combination wherein VCC exceeds VCC_MAX at specified ICC. Please refer to the loadline specifications in Section 2.13.
2. Thermal Design Power (TDP) should be used for processor thermal solution design targets. TDP is not the maximum power that the processor can dissipate. TDP is measured at maximum T_CASE .
3. These specifications are based pre-silicon estimates and simulations. These specifications will be updated with characterized data from silicon measurements in a future release of this document.
4. Power specifications are defined at all VIDs found in Table 2-12. The Dual-Core Intel® Xeon® Processor L5215 may be shipped under multiple VIDs for each frequency.
5. FMB, or Flexible Motherboard, guidelines provide a design target for meeting all planned processor frequency requirements.

Figure 6-5. Dual-Core Intel® Xeon® Processor L5215 Thermal Profile

Notes:

1. Dual-Core Intel® Xeon® Processor L5215 Thermal Profile is representative of a volumetrically constrained platform. Please refer to Table 6-11 for discrete points that constitute the thermal profile.

2. Implementation of the Dual-Core Intel® Xeon® Processor L5215 Thermal Profile should result in virtually no TCC activation. Furthermore, utilization of thermal solutions that do not meet the processor Thermal Profile will result in increased probability of TCC activation and may incur measurable performance loss. (See Section 6.2 for details on TCC activation).

3. The Nominal Thermal Profile must be used for all normal operating conditions, or for products that do not require NEBS Level 3 compliance.
4. The Short-Term Thermal Profile may only be used for short-term excursions to higher ambient operating temperatures, not to exceed 96 hours per instance, 360 hours per year, and a maximum of 15 instances per year, as compliant with NEBS Level 3.
5. Utilization of a thermal solution that exceeds the Short-Term Thermal Profile, or which operates at the Short-Term Thermal Profile for a duration longer than the limits specified in Note 4 above, do not meet the processor thermal specifications and may result in permanent damage to the processor.
6. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series in Embedded Thermal/Mechanical Design Guidelines (TMDG) for system and environmental implementation details.

Table 6-11. Dual-Core Intel® Xeon® Processor L5215 Thermal Profile Table

Power (W) Nominal T	CASE_MAX (°C) Short-term T	CASE_MAX (°C)
0	4	5
2	4	8
4	5	1
6	5	4
8	5	7
10 60 75
12 63 78
14 66 81
16 69 84
18 72 87
20 75 90

6.1.2 Thermal Metrology

The minimum and maximum case temperatures ( T_CASE ) are specified in Table 6-2, Table 6-4, Table 6-5, Table 6-7, and Table 6-9 are measured at the geometric top center of the processor integrated heat spreader (IHS). Figure 6-6 illustrates the location where T_CASE temperature measurements should be made. For detailed guidelines on temperature measurement methodology, refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG).

Figure 6-6. Case Temperature (T CASE) Measurement Location

Measure from the edge of the top surface of processor IHS 14.75mm 14.75mm Measure Tcase (geometric center of the top surface of the IHS) 37.5 mm x 37.5mm Substrate

Note: Figure is not to scale and is for reference only.

6.2 Processor Thermal Features

6.2.1 Intel ® Thermal Monitor Features

Dual-Core Intel® Xeon® Processor 5200 Series provides two thermal monitor features, Intel® Thermal Monitor 1 and Intel® Thermal Monitor 2. The Intel® Thermal Monitor 1 and Intel® Thermal Monitor 2 must both be enabled in BIOS for the processor to be operating within specifications. When both are enabled, Intel® Thermal Monitor 2 will be activated first and Intel® Thermal Monitor 1 will be added if Intel® Thermal Monitor 2 is not effective.

6.2.1.1 Intel® Thermal Monitor 1

The Intel® Thermal Monitor 1 feature helps control the processor temperature by activating the Thermal Control Circuit (TCC) when the processor silicon reaches its maximum operating temperature. The TCC reduces processor power consumption as needed by modulating (starting and stopping) the internal processor core clocks. The temperature at which the Intel® Thermal Monitor 1 activates the thermal control circuit is not user configurable and is not software visible. Bus traffic is snooped in the normal manner, and interrupt requests are latched (and serviced during the time that the clocks are on) while the TCC is active.

When the Intel® Thermal Monitor 1 is enabled, and a high temperature situation exists (that is, TCC is active), the clocks will be modulated by alternately turning the clocks off and on at a duty cycle specific to the processor (typically 30 - 50%). Cycle times are processor speed dependent and will decrease as processor core frequencies increase. A small amount of hysteresis has been included to prevent rapid active/inactive transitions of the TCC when the processor temperature is near its maximum operating temperature. Once the temperature has dropped below the maximum operating temperature, and the hysteresis timer has expired, the TCC goes inactive and clock modulation ceases.

With thermal solutions designed to the Dual-Core Intel® Xeon® Processor E5200 Series, Dual-Core Intel® Xeon® Processor L5200 Series and Dual-Core Intel® Xeon® Processor X5200 Series Thermal Profile, it is anticipated that the TCC would only be activated for very short periods of time when running the most power intensive applications. The processor performance impact due to these brief periods of TCC activation is expected to be so minor that it would be immeasurable. Refer to the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) for information on designing a thermal solution.

The duty cycle for the TCC, when activated by the Intel® Thermal Monitor 1, is factory configured and cannot be modified. The Intel® Thermal Monitor 1 does not require any additional hardware, software drivers, or interrupt handling routines.

6.2.1.2 Intel® Thermal Monitor 2

The Dual-Core Intel® Xeon® Processor 5200 Series adds supports for an Enhanced Thermal Monitor capability known as Intel® Thermal Monitor 2). This mechanism provides an efficient means for limiting the processor temperature by reducing the power consumption within the processor. Intel® Thermal Monitor 2 requires support for dynamic VID transitions in the platform.

Note:

Not all Dual-Core Intel® Xeon® Processor 5200 Series are capable of supporting Intel® Thermal Monitor 2. More detail on which processor frequencies will support Intel® Thermal Monitor 2 will be provided in future releases of the Dual-Core Intel® Xeon® Processor 5200 Series Thermal/Mechanical Design Guidelines (TMDG) when available. For more details also refer to the Intel® 64 and IA-32 Architectures Software Developer's Manual.

When Intel® Thermal Monitor 2 is enabled, and a high temperature situation is detected, the Thermal Control Circuit (TCC) will be activated for both processor cores. The TCC causes the processor to adjust its operating frequency (via the bus multiplier) and input voltage (via the VID signals). This combination of reduced frequency and VID results in a reduction to the processor power consumption.

A processor enabled for Intel® Thermal Monitor 2 includes two operating points, each consisting of a specific operating frequency and voltage, which is identical for both processor cores. The first operating point represents the normal operating condition for the processor. Under this condition, the core-frequency-to-system-bus multiplier utilized by the processor is that contained in the CLOCK_FLEX_MAX MSR and the VID that is specified in Table 2-3.

The second operating point consists of both a lower operating frequency and voltage. The lowest operating frequency is determined by the lowest supported bus ratio (1/6 for the Dual-Core Intel® Xeon® Processor 5200 Series). When the TCC is activated, the processor automatically transitions to the new frequency. This transition occurs rapidly, on the order of 5 s . During the frequency transition, the processor is unable to

service any bus requests, and consequently, all bus traffic is blocked. Edge-triggered interrupts will be latched and kept pending until the processor resumes operation at the new frequency.

Once the new operating frequency is engaged, the processor will transition to the new core operating voltage by issuing a new VID code to the voltage regulator. The voltage regulator must support dynamic VID steps in order to support Intel® Thermal Monitor 2. During the voltage change, it will be necessary to transition through multiple VID codes to reach the target operating voltage. Each step will be one VID table entry (see Table 2-3). The processor continues to execute instructions during the voltage transition. Operation at the lower voltage reduces the power consumption of the processor.

A small amount of hysteresis has been included to prevent rapid active/inactive transitions of the TCC when the processor temperature is near its maximum operating temperature. Once the temperature has dropped below the maximum operating temperature, and the hysteresis timer has expired, the operating frequency and voltage transition back to the normal system operating point. Transition of the VID code will occur first, in order to insure proper operation once the processor reaches its normal operating frequency. Refer to Figure 6-7 for an illustration of this ordering.

Figure 6-7. Intel® Thermal Monitor 2 Frequency and Voltage Ordering

The PROCHOT# signal is asserted when a high temperature situation is detected, regardless of whether Intel® Thermal Monitor 1 or Intel® Thermal Monitor 2 is enabled.

6.2.2 On-Demand Mode

The processor provides an auxiliary mechanism that allows system software to force the processor to reduce its power consumption. This mechanism is referred to as "On-Demand" mode and is distinct from the Intel® Thermal Monitor 1 and Intel® Thermal Monitor 2 features. On-Demand mode is intended as a means to reduce system level power consumption. Systems utilizing the Dual-Core Intel® Xeon® Processor 5200 Series must not rely on software usage of this mechanism to limit the processor temperature. If bit 4 of the IA32_CLOCK_MODULATION MSR is set to a '1', the processor will immediately reduce its power consumption via modulation (starting and stopping) of the internal core clock, independent of the processor temperature. When using On-Demand mode, the duty cycle of the clock modulation is programmable via

bits 3:1 of the same IA32_CLOCK_MODULATION MSR. In On-Demand mode, the duty cycle can be programmed from 12.5% on/87.5% off to 87.5% on/12.5% off in 12.5% increments. On-Demand mode may be used in conjunction with the Thermal Monitor; however, if the system tries to enable On-Demand mode at the same time the TCC is engaged, the factory configured duty cycle of the TCC will override the duty cycle selected by the On-Demand mode.

6.2.3 PROCHOT# Signal

An external signal, PROCHOT# (processor hot) is asserted when the processor die temperature of any processor cores reaches its factory configured trip point. If Thermal Monitor is enabled (note that Thermal Monitor must be enabled for the processor to be operating within specification), the TCC will be active when PROCHOT# is asserted. The processor can be configured to generate an interrupt upon the assertion or de-assertion of PROCHOT#. Refer to the Intel® 64 and IA-32 Architectures Software Developer's Manual for specific register and programming details.

PROCHOT# is designed to assert at or a few degrees higher than maximum T CASE when dissipating TDP power, and cannot be interpreted as an indication of processor case temperature. This temperature delta accounts for processor package, lifetime and manufacturing variations and attempts to ensure the Thermal Control Circuit is not activated below maximum T CASE when dissipating TDP power. There is no defined or fixed correlation between the PROCHOT# trip temperature, or the case temperature. Thermal solutions must be designed to the processor specifications and cannot be adjusted based on experimental measurements of T _CASE , or PROCHOT#.

6.2.4 FORCEPR# Signal

The FORCEPR# (force power reduction) input can be used by the platform to cause the Dual-Core Intel® Xeon® Processor 5200 Series to activate the TCC. If the Thermal Monitor is enabled, the TCC will be activated upon the assertion of the FORCEPR# signal. Assertion of the FORCEPR# signal will activate TCC for all processor cores. The TCC will remain active until the system deasserts FORCEPR#. FORCEPR# is an asynchronous input. FORCEPR# can be used to thermally protect other system components. To use the VR as an example, when FORCEPR# is asserted, the TCC circuit in the processor will activate, reducing the current consumption of the processor and the corresponding temperature of the VR.

It should be noted that assertion of FORCEPR# does not automatically assert PROCHOT#. As mentioned previously, the PROCHOT# signal is asserted when a high temperature situation is detected. A minimum pulse width of 500 s is recommended when FORCEPR# is asserted by the system. Sustained activation of the FORCEPR# signal may cause noticeable platform performance degradation.

Refer to the appropriate platform design guidelines for details on implementing the FORCEPR# signal feature.

6.2.5 THERMTRIP# Signal

Regardless of whether or not Intel® Thermal Monitor 1 or Intel® Thermal Monitor 2 is enabled, in the event of a catastrophic cooling failure, the processor will automatically shut down when the silicon has reached an elevated temperature (refer to the THERMTRIP# definition in Table 5-1). At this point, the FSB signal THERMTRIP# will go active and stay active as described in Table 5-1. THERMTRIP# activation is independent of processor activity and does not generate any bus cycles. Intel also recommends the removal of V_TT .

6.3 Platform Environment Control Interface (PECI)

6.3.1 Introduction

PECI offers an interface for thermal monitoring of Intel processor and chipset components. It uses a single wire, thus alleviating routing congestion issues. Figure 6-8 shows an example of the PECI topology in a system with Dual-Core Intel® Xeon® Processor 5200 Series. PECI uses CRC checking on the host side to ensure reliable transfers between the host and client devices. Also, data transfer speeds across the PECI interface are negotiable within a wide range (2Kbps to 2Mbps). The PECI interface on the Dual-Core Intel® Xeon® Processor 5200 Series is disabled by default and must be enabled through BIOS.

Figure 6-8. Dual-Core Intel® Xeon® Processor 5200 Series PECI Topology

6.3.1.1 T CONTROL and TCC Activation on PECI-based Systems

Fan speed control solutions based on PECI utilize a T_CONTROL value stored in the processor IA32_TEMPERATURE_TARGET MSR. The T_CONTROL MSR uses the same offset temperature format as PECI though it contains no sign bit. Thermal management devices should infer the T_CONTROL value as negative. Thermal management algorithms should utilize the relative temperature value delivered over PECI in conjunction with the T_CONTROL MSR value to control or optimize fan speeds. Figure 6-9 shows a conceptual fan control diagram using PECI temperatures.

The relative temperature value reported over PECI represents the data below the onset of thermal control circuit (TCC) activation as needed by PROCHOT# assertions. As the temperature approaches TCC activation, the PECI value approaches zero. TCC activates at a PECI count of zero.

Figure 6-9. Conceptual Fan Control Diagram of PECI-based Platforms

6.3.1.2 Processor Thermal Data Sample Rate and Filtering

The Digital Thermal Sensor (DTS) provides an improved capability to monitor device hot spots, which inherently leads to more varying temperature readings over short time intervals. The DTS sample interval range can be modified, and a data filtering algorithm can be activated to help moderate this. The DTS sample interval range is 82us (default) to 20 ms (max). This value can be set in BIOS.

To reduce the sample rate requirements on PECI and improve thermal data stability vs. time the processor DTS also implements an averaging algorithm that filters the incoming data. This is an alpha-beta filter with coefficients of 0.5, and is expressed mathematically as: Current_filtered_temp = (Previous_filtered_temp / 2) + (new_sensor_temp / 2). This filtering algorithm is fixed and cannot be changed. It is on by default and can be turned off in BIOS.

Host controllers should utilize the min/max sample times to determine the appropriate sample rate based on the controller's fan control algorithm and targeted response rate. The key items to take into account when settling on a fan control algorithm are the DTS sample rate, whether the temperature filter is enabled, how often the PECI host will poll the processor for temperature data, and the rate at which fan speed is changed. Depending on the designer's specific requirements the DTS sample rate and alpha-beta filter may have no effect on the fan control algorithm.

6.3.2 PECI Specifications

6.3.2.1 PECI Device Address

The PECI device address for socket 0 is 0x30 and socket 1 is 0x31. Please note that each address also supports two domains (Domain0 and Domain1). For more information on PECI domains, please refer to the Platform Environment Control Interface (PECI) Specification.

6.3.2.2 PECI Command Support

PECI command support is covered in detail in Platform Environment Control Interface Specification. Please refer to this document for details on supported PECI command function and codes.

6.3.2.3 PECI Fault Handling Requirements

PECI is largely a fault tolerant interface, including noise immunity and error checking improvements over other comparable industry standard interfaces. The PECI client is as reliable as the device that it is embedded in, and thus given operating conditions that fall under the specification, the PECI will always respond to requests and the protocol itself can be relied upon to detect any transmission failures. There are, however, certain scenarios where PECI is known to be unresponsive.

Prior to a power on RESET# and during RESET# assertion, PECI is not guaranteed to provide reliable thermal data. System designs should implement a default power-on condition that ensures proper processor operation during the time frame when reliable data is not available via PECI.

To protect platforms from potential operational or safety issues due to an abnormal condition on PECI, the Host controller should take action to protect the system from possible damage. It is recommended that the PECI host controller take appropriate action to protect the client processor device if valid temperature readings have not been obtained in response to three consecutive gettemp()s or for a one second time interval. The host controller may also implement an alert to software in the event of a critical or continuous fault condition.

6.3.2.4 PECI GetTemp0() Error Code Support

The error codes supported for the processor GetTemp0() command are listed in Table 6-12 below:

Table 6-12. GetTemp0() Error Codes

Error Code Description
0x8000h General sensor error
0x8002h	Sensor is operational, but has detected a temperature below its operational range (underflow).

7 Features

7.1 Power-On Configuration Options

Several configuration options can be configured by hardware. The Dual-Core Intel® Xeon® Processor 5200 Series samples its hardware configuration at reset, on the active-to-inactive transition of RESET#. For specifics on these options, please refer to Table 7-1.

The sampled information configures the processor for subsequent operation. These configuration options cannot be changed except by another reset. All external resets reconfigure the processor, for configuration purposes, the processor does not distinguish between a "warm" reset (PWRGOOD signal remains asserted) and a "power-on" reset.

Table 7-1. Power-On Configuration Option Lands

Configuration Option Land Name Notes
Output tri state SMI# 1,2
Execute BIST (Built-In Self Test) A3# 1,2
Disable MCERR# observation	A9# 1,2
Disable BINIT# observation	A10# 1,2
Symmetric agent arbitration ID	BR[1:0]#	1,2

Notes:

1. Asserting this signal during RESET# will select the corresponding option.
2. Address lands not identified in this table as configuration options should not be asserted during RESET#.

Disabling of any of the cores within the Dual-Core Intel® Xeon® Processor 5200 Series must be handled by configuring the EXT_CONFIG Model Specific Register (MSR). This MSR will allow for the disabling of a single core per die within the package.

7.2 Clock Control and Low Power States

The Dual-Core Intel® Xeon® Processor 5200 Series supports the Extended HALT state (also referred to as C1E) in addition to the HALT state and Stop-Grant state to reduce power consumption by stopping the clock to internal sections of the processor, depending on each particular state. See Figure 7-1 for a visual representation of the processor low power states. The Extended HALT state is a lower power state than the HALT state or Stop Grant state.

The Extended HALT state must be enabled via the BIOS for the processor to remain within its specifications. For processors that are already running at the lowest bus to core frequency ratio for its nominal operating point, the processor will transition to the HALT state instead of the Extended HALT state.

The Stop Grant state requires chipset and BIOS support on multiprocessor systems. In a multiprocessor system, all the STPCLK# signals are bussed together, thus all processors are affected in unison. When the STPCLK# signal is asserted, the processor enters the Stop Grant state, issuing a Stop Grant Special Bus Cycle (SBC) for each processor die. The chipset needs to account for a variable number of processors asserting the Stop Grant SBC on the bus before allowing the processor to be transitioned into one of the lower processor power states.

7.2.1 Normal State

This is the normal operating state for the processor.

7.2.2 HALT or Extended HALT State

The Extended HALT state (C1E) is enabled via the BIOS. The Extended HALT state must be enabled for the processor to remain within its specifications. The Extended HALT state requires support for dynamic VID transitions in the platform.

7.2.2.1 HALT State

HALT is a low power state entered when the processor have executed the HALT or MWAIT instruction. When one of the processor cores execute the HALT or MWAIT instruction, that processor core is halted; however, the other processor continues normal operation. The processor will transition to the Normal state upon the occurrence of SMI#, BINIT#, INIT#, LINT[1:0] (NMI, INTR), or an interrupt delivered over the front side bus. RESET# will cause the processor to immediately initialize itself.

The return from a System Management Interrupt (SMI) handler can be to either Normal Mode or the HALT state. See the Intel® 64 and IA-32 Architecture Software Developer's Manual.

The system can generate a STPCLK# while the processor is in the HALT state. When the system deasserts STPCLK#, the processor will return execution to the HALT state.

While in HALT state, the processor will process front side bus snoops and interrupts.

7.2.2.2 Extended HALT State

Extended HALT state is a low power state entered when all processor cores have executed the HALT or MWAIT instructions and Extended HALT state has been enabled via the BIOS. When one of the processor cores executes the HALT instruction, that processor core is halted; however, the other processor core continues normal operation. The Extended HALT state is a lower power state than the HALT state or Stop Grant state. The Extended HALT state must be enabled for the processor to remain within its specifications.

The processor will automatically transition to a lower core frequency and voltage operating point before entering the Extended HALT state. Note that the processor FSB frequency is not altered; only the internal core frequency is changed. When entering the low power state, the processor will first switch to the lower bus to core frequency ratio and then transition to the lower voltage (VID).

While in the Extended HALT state, the processor will process bus snoops.

Table 7-2. Extended HALT Maximum Power (Sheet 1 of 2)

Symbol Parameter	Min Typ Max Unit Notes 1
PEXTENDED_HALTDual-Core Intel® Xeon® Processor E5205	Extended HALT State Power		12 W 2
PEXTENDED_HALTDual-Core Intel® Xeon® Processor X5200 Series	Extended HALT State Power		8	W	2
PEXTENDED_HALTDual-Core Intel® Xeon® Processor E5230	Extended HALT State Power		12 W 2

Table 7-2. Extended HALT Maximum Power (Sheet 2 of 2)

Symbol Parameter Min Typ Max Unit Notes 1
PEXTENDED_HALTDual-Core Intel® Xeon® Processor E5240	Extended HALT State Power		8	W	2
PEXTENDED_HALTDual-Core Intel® Xeon® Processor L5200 Series	Extended HALT State Power		6	W	2
PEXTENDED_HALTDual-Core Intel® Xeon® Processor L5238	Extended HALT State Power		6	W	3

Notes:

1. Processors running in the lowest bus ratio supported as shown in Table 2-1, will enter the HALT State when the processor has executed the HALT or MWAIT instruction since the processor is already operating in the lowest core frequency and voltage operating point.
2. The specification is at Tcase = 38 °C and nominal Vcc. The VID setting represents the maximum expected VID when running in HALT state.
3. The specification is at Tcase = 40 °C and nominal Vcc. The VID setting represents the maximum expected VID when running in HALT state.

The processor exits the Extended HALT state when a break event occurs. When the processor exits the Extended HALT state, it will first transition the VID to the original value and then change the bus to core frequency ratio back to the original value.

Figure 7-1. Stop Clock State Machine

7.2.3 Stop-Grant State

When the STPCLK# pin is asserted, the Stop-Grant state of the processor is entered no later than 20 bus clocks after the response phase of the processor issued Stop Grant Acknowledge special bus cycle. Once the STPCLK# pin has been asserted, it may only be deasserted once the processor is in the Stop Grant state. All processor cores will enter the Stop-Grant state once the STPCLK# pin is asserted. Additionally, all processor cores must be in the Stop Grant state before the deassertion of STPCLK#.

Since the AGTL+ signal pins receive power from the front side bus, these pins should not be driven (allowing the level to return to V_TT ) for minimum power drawn by the termination resistors in this state. In addition, all other input pins on the front side bus should be driven to the inactive state.

BINIT# will not be serviced while the processor is in Stop-Grant state. The event will be latched and can be serviced by software upon exit from the Stop Grant state.

RESET# will cause the processor to immediately initialize itself, but the processor will stay in Stop-Grant state. A transition back to the Normal state will occur with the de-assertion of the STPCLK# signal.

A transition to the Grant Snoop state will occur when the processor detects a snoop on the front side bus (see Section 7.2.4.1).

While in the Stop-Grant state, SMI#, INIT#, BINIT# and LINT[1:0] will be latched by the processor, and only serviced when the processor returns to the Normal state. Only one occurrence of each event will be recognized upon return to the Normal state.

While in Stop-Grant state, the processor will process snoops on the front side bus and it will latch interrupts delivered on the front side bus.

The PBE# signal can be driven when the processor is in Stop-Grant state. PBE# will be asserted if there is any pending interrupt latched within the processor. Pending interrupts that are blocked by the EFLAGS. IF bit being clear will still cause assertion of PBE#. Assertion of PBE# indicates to system logic that it should return the processor to the Normal state.

7.2.4 Extended HALT Snoop or HALT Snoop State, Stop Grant Snoop State

The Extended HALT Snoop state is used in conjunction with the Extended HALT state. If the Extended HALT state is not enabled in the BIOS, the default Snoop state entered will be the HALT Snoop state. Refer to the sections below for details on HALT Snoop state, Stop Grant Snoop state and Extended HALT Snoop state.

7.2.4.1 HALT Snoop State, Stop Grant Snoop State

The processor will respond to snoop or interrupt transactions on the front side bus while in Stop-Grant state or in HALT state. During a snoop or interrupt transaction, the processor enters the HALT/Grant Snoop state. The processor will stay in this state until the snoop on the front side bus has been serviced (whether by the processor or another agent on the front side bus) or the interrupt has been latched. After the snoop is serviced or the interrupt is latched, the processor will return to the Stop-Grant state or HALT state, as appropriate.

7.2.4.2 Extended HALT Snoop State

The Extended HALT Snoop state is the default Snoop state when the Extended HALT state is enabled via the BIOS. The processor will remain in the lower bus to core frequency ratio and VID operating point of the Extended HALT state.

While in the Extended HALT Snoop state, snoops and interrupt transactions are handled the same way as in the HALT Snoop state. After the snoop is serviced or the interrupt is latched, the processor will return to the Extended HALT state.

7.3 Enhanced Intel SpeedStep ® Technology

Dual-Core Intel® Xeon® Processor 5200 Series supports Enhanced Intel SpeedStep® Technology. This technology enables the processor to switch between multiple frequency and voltage points, which results in platform power savings. Enhanced Intel SpeedStep Technology requires support for dynamic VID transitions in the platform. Switching between voltage/frequency states is software controlled. For more configuration details also refer to the Intel® 64 and IA-32 Architectures Software Developer's Manual.

Note: Not all Dual-Core Intel® Xeon® Processor 5200 Series are capable of supporting Enhanced Intel SpeedStep Technology. More details on which processor frequencies will support this feature will be provided in the Dual-Core Intel® Xeon® Processor 5200 Series Specification Update.

Enhanced Intel SpeedStep Technology creates processor performance states (P-states) or voltage/frequency operating points which are lower power capability states within the Normal state (see Figure 7-1 for the Stop Clock State Machine for supported P-states). Enhanced Intel SpeedStep Technology enables real-time dynamic switching between frequency and voltage points. It alters the performance of the processor by changing the bus to core frequency ratio and voltage. This allows the processor to run at different core frequencies and voltages to best serve the performance and power requirements of the processor and system. The Dual-Core Intel® Xeon® Processor 5200 Series has hardware logic that coordinates the requested voltage (VID) between the processor cores. The highest voltage that is requested for either of the processor cores is selected for that processor package. Note that the front side bus is not altered; only the internal core frequency is changed. In order to run at reduced power consumption, the voltage is altered in step with the bus ratio.

The following are key features of Enhanced Intel SpeedStep Technology:

• Multiple voltage/frequency operating points provide optimal performance at reduced power consumption.
• Voltage/frequency selection is software controlled by writing to processor MSR's (Model Specific Registers), thus eliminating chipset dependency.
  — If the target frequency is higher than the current frequency, V_CC is incremented in steps (+12.5 mV) by placing a new value on the VID signals and the processor shifts to the new frequency. Note that the top frequency for the processor can not be exceeded.
  — If the target frequency is lower than the current frequency, the processor shifts to the new frequency and V_CC is then decremented in steps (-12.5 mV) by changing the target VID through the VID signals.

8 Boxed Processor Specifications

8.1 Introduction

Intel boxed processors are intended for system integrators who build systems from components available through distribution channels. The Dual-Core Intel® Xeon® Processor 5200 Series will be offered as an Intel boxed processor.

Intel will offer the Dual-Core Intel® Xeon® Processor 5200 Series with two heat sink configurations available for each processor frequency: 1U passive/3U+ active combination solution and a 2U passive only solution. The 1U passive/3U+ active combination solution is based on a 1U passive heat sink with a removable fan that will be pre-attached at shipping. This heat sink solution is intended to be used as either a 1U passive heat sink, or a 3U+ active heat sink. Although the active combination solution with removable fan mechanically fits into a 2U keepout, its use is not recommended in that configuration.

Dual-Core Intel® Xeon® Processor X5200 Series will include a copper 1U passive/3U+ active combination solution or a copper 2U passive heatsink. The Dual-Core Intel® Xeon® Processor E5200 Series and Dual-Core Intel® Xeon® Processor L5200 Series with 65W and lower TDPs will include an aluminum extruded 1U passive/3U+ active combination solution or an aluminum extruded 2U passive heatsink.

The 1U passive/3U+ active combination solution in the active fan configuration is primarily designed to be used in a pedestal chassis where sufficient air inlet space is present and strong side directional airflow is not an issue. The 1U passive/3U+ active combination solution with the fan removed and the 2U passive thermal solution require the use of chassis ducting and are targeted for use in rack mount or pedestal servers. The retention solution used for these products is called the Common Enabling Kit, or CEK. The CEK base is compatible with both thermal solutions and uses the same hole locations as the Intel® Xeon® processor with 800 MHz system bus.

The 1U passive/3U+ active combination solution will utilize a removable fan capable of 4-pin pulse width modulated (PWM) control. Use of a 4-pin PWM controlled active thermal solution helps customers meet acoustic targets in pedestal platforms through the motherboards's ability to directly control the RPM of the processor heat sink fan. See Section 8.3 for more details on fan speed control, and see Section 6.3 for more on the PWM and PECI interface along with Digital Thermal Sensors (DTS). Figure 8-1 through Figure 8-3 are representations of the two heat sink solutions.

Figure 8-1. Boxed Dual-Core Intel® Xeon® Processor 5200 Series 1U Passive/3U+ Active Combination Heat Sink (With Removable Fan)

Technical line drawing of a computer fan or cooling unit with heatsink and mounting base (no text or symbols)

Figure 8-2. Boxed Dual-Core Intel® Xeon® Processor 5200 Series 2U Passive Heat Sink

Isometric view of a heat sink or heat exchanger component with cooling fins and mounting feet (no text or symbols)

Figure 8-3. 2U Passive Dual-Core Intel® Xeon® Processor 5200 Series Thermal Solution (Exploded View)

Heat sink screws Heat sink screw springs Heat sink heat sink standoffs Thermal Interface Material Motherboard and processor Protective Tape CEK spring Chassis pan

Notes:

1. The heat sinks represented in these images are for reference only, and may not represent the final boxed processor heat sinks.
2. The screws, springs, and standoffs will be captive to the heat sink. This image shows all of the components in an exploded view.
3. It is intended that the CEK spring will ship with the base board and be pre-attached prior to shipping.

8.2 Mechanical Specifications

This section documents the mechanical specifications of the boxed processor.

8.2.1 Boxed Processor Heat Sink Dimensions (CEK)

The boxed processor will be shipped with an unattached thermal solution. Clearance is required around the thermal solution to ensure unimpeded airflow for proper cooling. The physical space requirements and dimensions for the boxed processor and assembled heat sink are shown in Figure 8-4 through Figure 8-8. Figure 8-9 through Figure 8-10 are the mechanical drawings for the 4-pin board fan header and 4-pin connector used for the active CEK fan heat sink solution.

Figure 8-4. Top Side Board Keepout Zones (Part 1)

8 7 6 5 4 3 1 THIS DRAWING CONTAINS INTEL CORPORATION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONTENTS MAY NOT BE DISCLOSED, REPROVOCED, DISPLATED OR MODIFIED, WITHOUT THE PRIOR WRITTEN CONSENT OF INTEL CORPORATION. PRIMARY SIDE AIRFLOW NOTES: 1. THIS DRAWING TO BE USED IN CONRELATION WITH SUPPLIED 3D DATABASE FILE, ALL DIMENSIONS AND TOLERANCES ON TRID DRAWING RAGE PRECISION (NEW SUPPLIED FILE, ALL DIMENSION AND TOLERANCES PER ANSI V14.5-1994. 2. PRIMARY DIMENSIONS STATED IN MILLIMETERS, [BRACKETED] DIMENSIONS STATED IN IMGES. 4. THIS DIMENSION LOCATES THE SOCKET M.R.T. SOLBER BALL #1 AND THE CEN MOUNTING HOLES. PLEASE REFER TO NOTE [E]. 5. INTEGRATED VOLTAGE REGULATION KEEPOUT WILL BE SHOWN ON SEPARATE DOCUMENT. 6. SOCKET KEEPOUT DIMENSIONS SHOWN FOR REFERENCE ONLY. PLEASE REFER TO THE SOCKET J KEEPOUT / KEEPIN DRAWING FOR EXACT DIMENSIONS. HEATSINK DISASSEMBLY OUTLINE SEE SHT 2 FOR DIMS HEATSINK OUTLINE SEE SHT 2 FOR DIMS SOCKET SOLBER BALL PERIMETER SOLBER BALL #1 TEST BOARD SHOWN FOR REFERENCE 0.375° HEIGHT RESTRICTION 36.01 (1.403) 39.1 (1.500) SOCKET J BOUNDARY FOR ILLUSTRATIVE PURPOSES ONLY. 5 LEGEND: 0.115° (3.0 MM) MAX COMPONENT HEIGHT RESTRICTION. HEATSINK AREA, 0.275° (7.0 MM) MAX COMPONENT HEIGHT RESTRICTION. HEATSINK DISASSEMBLY AREA, 0.275° (7.0 MM) MAX COMPONENT HEIGHT RESTRICTION. NO MOTHERBOARD COMPONENT PLACEMENT ALLOWED. 0.433° (11MM) MAX MOTHERBOARD COMPONENT HEIGHT RESTRICTION. CEK SPRING BOARD FINGER KEEPOUT, NO MOTHERBOARD COMPONENTS ALLOWED. BEY UNITED BY: DATE DESCRIPTION: INTEL® COOK RESITEMS NO. ITEMS: 1/4 NO. CHECKED BY: DATE DESCRIPTION BY: DATE ITEMS: TITLE: DRAWN NO: NO. SCALE: 100 MPD SCALE SHEET 1 OF 4

Figure 8-5. Top Side Board Keepout Zones (Part 2)

Figure 8-6. Bottom Side Board Keepout Zones

MOTHERBOARD BACKSIDE KEEPOUT 200" 15.00 MNI MAX COMPONENT HEIGHT KEEPIN FOR 20 AND ABOVE PLATTORS. 120" 12.54 MNI MAX COMPONENT HEIGHT FOR 10 PLATTORS. THIS DIMENSIONS ARE BASED ON THE THIN ELECTRONICS BAY SPECIFICATION (SS3) VERSION 1.1. SCALE: 1.500 SPRING OUTLINE SHOWN FOR ILLUSTRATION PURPOSES ONLY 17.78 E. 7.9001 5.08 E. 2.0001 0 [000] 8.89 E. 3.5001 26.21 [1.1501] 43.18 [1.7801] 55.88 [2.2601] TEST BOARD SHOWN FOR REFERENCE BACKSIDE SPRING AREA, NO MOTHERBOARD COMPONENT PLACEMENT ALLOWED. .200" 15.00 MNI MAX COMPONENT HEIGHT KEEPIN FOR 20 AND ABOVE PLATTORS. .190" 12.54 MNI MAX COMPONENT HEIGHT KEEPIN FOR 10 PLATTORS. (48.26) [1.6803] (81.20) [3.2903] (90.52) 13.0693 (13.66) [2.908] (13.66) C D B A 25TH REVISION COLLEGE SLAVES C51847 SCALE: 8MM D/O PART SCALE DRAWINGS 3 OF 6 INTe® C25TH REVISION COLLEGE SLAVES C51847 STANDARD TINIC DRAWN BY NUMBER D C SHEET NAME: C25TH REVISION COLLEGE SLAVES SHEET NAME: C25TH REVISION COLLEGE SLAVES SCALE: 8MM D/O PART SCALE DRAWINGS 3 OF 6

Figure 8-7. Board Mounting-Hole Keepout Zones

THIS DRAWING CONTAINS INTEL CORPORATION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONTENTS WAY NOT BE DISCLOSED, REPRODUCED, DISPLAYED OR MODIFIED, WITHOUT THE PRIOR WRITTEN CONSENT OF INTEL CORPORATION. MOTHERBOARD "NO FLY" ZONE D C B A 8 7 6 5 4 3 2 1 19.05 (1.150) OF HOLE PATTERN 863.5 (2.500) FROM CENTER POINT OF MOUNTING HOLE PATTERN SOCKET VOLUMETRIC OUTLINE SHOWN FOR ILLUSTRATIVE PURPOSES ONLY [6] 49.64 (1.600) OF HOLE PATTERN PROCESSOR MOUNTING HOLES SHOWN FOR REFERENCE BOARD OUTLINE SHOWN FOR REFERENCE ONLY NO BOARD MOUNTING HOLES OR CHASSIS STANDOFFS IN THIS AREA, PROCESSOR MOUNTING HOLES ONLY. DEPARTMENT WIE: Intel Coop Design Division Plan, P.D. Box 20-13 SARX CLARK, CA 2020-01-14 SUB-CARD CODE: D X SCALE NAME DO NOT SCALE DRAWING SHEET 4 OF 4 KEY 00

Figure 8-8. Volumetric Height Keep-Ins

8 7 6 5 4 3 THIS DRAWING CONTAINS INTEL CORPORATION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFERENCE AND ITS CONTENTS ARE NOT BE DISCLOSED WITHOUT THE PRIOR WRITTEN CONSENT OF INTEL CORPORATION. VOLUMETRIC HEIGHT KEEPINS C B A 80.9 (3.92) 80.58 FOR ZU (2.385 FOR I8 (1.342) 72.28 (2.850) FOR ACTIVE SOLUTION 96.52 (3.800) 5.08 (1.206) BACKSIDE CABLEING COMPONENT KEEPIN FOR ZU AND ABOVE PLATFORMS 190 (2.551 FOR TO PLATFORMS) 18.74 (3.101) 6.98 (1.275) 73.84 (2.904) 18 (1) 28 (1) 2X (1,62) (3,000) INTe® COM: ITEM MEDIUM COLLIVE BLNG P.O. SIZE 14" X" PARTY CLIPA, CA 8900-819 SCALE: NONE DO NOT SCALE DRAWINGS SHEET 5 BY 6 CS184T CS184T D: 86

Figure 8-9. 4-Pin Fan Cable Connector (For Active CEK Heat Sink)

THIS DRAWING CONTAINS INTEL CORPORATION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONTENTS MAT NOT BE DISCLOSED, REPRODUCED, DISPLATED OR MODIFIED, WITHOUT THE PRIOR WRITTEN CONSENT OF INTEL CORPORATION. SECTION A-A A 5.34 0.13 4X 1.35 4X 1.35 1.85 1.59 3X 2.54 (7.62±0.2) (COMBINED) 10.8±0.3 A 12.9 A PIN ONE NOTES: 1. MATERIAL, NYLON 2. COLOR: IYORY 3. FLAMMABILITY: FINISHED PART SHALL HAVE A MINIMUM UL FLAMMABILITY RATING OF UL94V-0 4. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M. TOP -003 -012 -001 ITEM NO PART NUMBER DESCRIPTION PARTS LIST UNLESS OTHERWISE SPECIFICIES INTERPRET DIMENSIONS AND TOLERANCES IN ACCORDANCE WITH ASME Y14.5M-1994 DIMENSIONS ARE IN MILLIMETERS TOLERANCES X ± 0.5 Angles ± 0.5° XX ± 0.25 XXX ± 0.025 TITLE 4 PIN CONNECTOR THIRD ANGLE PROJECTION MATERIAL: FINISH: SIZE CAGE CODE DRAWING NUMBER REV SCALE: 4:1 DO NOT SCALE DRAWING SHEET 1 OF 1

Figure 8-10. 4-Pin Base Board Fan Header (For Active CEK Heat Sink)

THIS DRAWING CONTAINS INTEL CORPORATION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONTENTS MAY NOT BE DISCLOSED, REPRODUCED, DISPLAYED OR MODIFIED, WITHOUT THE PRIOR WRITTEN CONSENT OF INTEL CORPORATION. B 5.84 1.29 3X 2.54 7.62±0.2 COMBINED 4X 0.64 ±0.03 2.34 10.2 1.15 MAX 4X 3.5 ±0.25 4 2.3 PIN 1 NOTESNOTES: 1. MATERIAL, NYLON 2. COLOR: IVORY 3. FLAMMABILITY: FINISHED PART SHALL HAVE A MINIMUM UL FLAMMABILITY RATING OF UL94V-0 4. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M. A 7.5 2.5 0.95 5.08 0.7 2.16 TOP ITEM NO PART NUMBER DESCRIPTION PARTS LIST UNLESS OTHERWISE SPECIFIES INTERPRET DIMENSIONS AND TOLERANCES IN ACCORDABLE WITH ARM 114.DN-1994 DIMENSIONS ARE IN MILLIMETERS TOLERANCES: .1 ±0.5 Angles ±0.5" .81 ±0.25 .331 ±0.025 TITLE 4 PIN HEADER THIRD ANGLE PROJECTION MATERIAL: - FINISH: SIZE CAGE CODE DRAWING NUMBER B 4PINHEADER SCALE:4:1 DO NOT SCALE DRAWING SHEET 1 OF 1 4 1 3 2 1

8.2.2 Boxed Processor Heat Sink Weight

8.2.2.1 Thermal Solution Weight

The 1U passive/3U+ active combination heat sink solution and the 2U passive heat sink solution will not exceed a mass of 1050 grams. Note that this is per processor, a dual processor system will have up to 2010 grams total mass in the heat sinks. This large mass will require a minimum chassis stiffness to be met in order to withstand force during shock and vibration.

See Chapter 3 for details on the processor weight.

8.2.3 Boxed Processor Retention Mechanism and Heat Sink Support (CEK)

Baseboards and chassis designed for use by a system integrator should include holes that are in proper alignment with each other to support the boxed processor. Refer to the Server System Infrastructure Specification (SSI-EEB 3.6, TEB 2.1 or CEB 1.1). These specification can be found at: http://www.ssiforum.org.

Figure 8-3 illustrates the Common Enabling Kit (CEK) retention solution. The CEK is designed to extend air-cooling capability through the use of larger heat sinks with minimal airflow blockage and bypass. CEK retention mechanisms can allow the use of much heavier heat sink masses compared to legacy limits by using a load path directly attached to the chassis pan. The CEK spring on the secondary side of the baseboard provides the necessary compressive load for the thermal interface material. The baseboard is intended to be isolated such that the dynamic loads from the heat sink are transferred to the chassis pan via the stiff screws and standoffs. The retention scheme reduces the risk of package pullout and solder joint failures.

All components of the CEK heat sink solution will be captive to the heat sink and will only require a Phillips screwdriver to attach to the chassis pan. When installing the CEK, the CEK screws should be tightened until they will no longer turn easily. This should represent approximately 6-8 inch-pounds of torque. More than that may damage the retention mechanism components.

8.3 Electrical Requirements

8.3.1 Fan Power Supply (Active CEK)

The 4-pin PWM controlled thermal solution is being offered to help provide better control over pedestal chassis acoustics. This is achieved though more accurate measurement of processor die temperature through the processor's Digital Thermal Sensors. Fan RPM is modulated through the use of an ASIC located on the baseboard, that sends out a PWM control signal to the 4th pin of the connector labeled as Control. This thermal solution requires a constant +12 V supplied to pin 2 of the active thermal solution and does not support variable voltage control or 3-pin PWM control. See Table 8-2 for details on the 4-pin active heat sink solution connectors.

If the 4-pin active fan heat sink solution is connected to an older 3-pin baseboard CPU fan header it will default back to a thermistor controlled mode, allowing compatibility with legacy 3-wire designs. When operating in thermistor controlled mode, fan RPM is automatically varied based on the TINLET temperature measured by a thermistor located at the fan inlet of the heat sink solution.

The fan power header on the baseboard must be positioned to allow the fan heat sink power cable to reach it. The fan power header identification and location must be documented in the suppliers platform documentation, or on the baseboard itself. The baseboard fan power header should be positioned within 177.8 mm [7 in.] from the center of the processor socket.

Table 8-1. PWM Fan Frequency Specifications for 4-Pin Active CEK Thermal Solution

Description Min	Frequency Nominal Frequency	Max Frequency Unit
PWM Control Frequency Range	21,000 25,000 28	,000 Hz

Table 8-2. Fan Specifications for 4-Pin Active CEK Thermal Solution

Description Min		Typ Steady	Max Steady	Max Startup	Unit
+12 V: 12 volt fan power supply 10.8 12 12		13.2	V
IC: Fan Current Draw	N/A	1	1.25	1.5	A
SENSE: SENSE frequency	2	2	2	2	Pulses per fan revolution

Figure 8-11. Fan Cable Connector Pin Out for 4-Pin Active CEK Thermal Solution

PIN 3 PIN 4 PIN 2 PIN 1 WIRE

Table 8-3. Fan Cable Connector Pin Out for 4-Pin Active CEK Thermal Solution

Pin Number	Signal	Color
1	Ground	Black
2	Power: (+12 V)	Yellow
3	Sense: 2 pulses per revolution	Green
4	Control: 21 KHz-28 KHz	Blue

8.3.2 Boxed Processor Cooling Requirements

As previously stated the boxed processor will be available in two product configurations. Each configuration will require unique design considerations. Meeting the processor's temperature specifications is also the function of the thermal design of the entire system, and ultimately the responsibility of the system integrator. The processor temperature specifications are found in Chapter 6 of this document.

8.3.2.1 1U Passive/ 3U+ Active Combination Heat Sink Solution (1U Rack Passive)

In the 1U configuration it is assumed that a chassis duct will be implemented to provide a minimum airflow of 15 cfm at 0.38 in. H_2O (25.5 m ^3 /hr at 94.6 Pa) of flow impedance. The duct should be carefully designed to minimize the airflow bypass

around the heatsink. It is assumed that a 40°C T LA is met. This requires a superior chassis design to limit the T RISE at or below 5°C with an external ambient temperature of 35°C. These specifications apply to both copper and aluminum heatsink solutions. Following these guidelines allows the designer to meet Dual-Core Intel® Xeon® Processor 5200 Series Thermal Profile and conform to the thermal requirements of the processor.

8.3.2.2 1U Passive/ 3U+ Active Combination Heat Sink Solution (Pedestal Active)

The active configuration of the combination solution is designed to help pedestal chassis users to meet the thermal processor requirements without the use of chassis ducting. It may be still be necessary to implement some form of chassis air guide or air duct to meet the T_LA temperature of 40^ depending on the pedestal chassis layout. Also, while the active thermal solution design will mechanically fit into a 2U volumetric, it may not provide adequate airflow. This is due to the requirement of additional space at the top of the thermal solution to allow sufficient airflow into the heat sink fan. Use of the active configuration in a 2U rackmount chassis is not recommended.

It is recommended that the ambient air temperature outside of the chassis be kept at or below 35^ C. The air passing directly over the processor thermal solution should not be preheated by other system components. Meeting the processor's temperature specification is the responsibility of the system integrator.

8.3.2.3 2U Passive Heat Sink Solution (2U+ Rack or Pedestal)

In the 2U+ passive configuration, it is assumed that a chassis duct will be implemented to provide a minimum airflow of 27 cfm at 0.182 in. H₂O (45.9 m³/hr at 45.3 Pa) of flow impedance. The duct should be carefully designed to minimize the airflow bypass around the heatsink. These specifications apply to both copper and aluminum heatsink solutions. The Tₐ temperature of 40°C should be met. This may require the use of superior design techniques to keep TRISE at or below 5°C based on an ambient external temperature of 35°C.

8.4 Boxed Processor Contents

A direct chassis attach method must be used to avoid problems related to shock and vibration. The board must not bend beyond specification in order to avoid damage. The boxed processor contains the components necessary to solve both issues. The boxed processor will include the following items:

• Dual-Core Intel® Xeon® Processor 5200 Series
• Unattached heat sink solution
- Four screws, four springs, and four heat sink standoffs (all captive to the heat sink)
- Foam air bypass pad and skirt (included with 1U passive/3U+ active solution)
• Thermal interface material (pre-applied on heat sink)
• Installation and warranty manual
• Intell Inside Logo

Other items listed in Figure 8-3 that are required to complete this solution will be shipped with either the chassis or boards. They are as follows:

• CEK Spring (supplied by baseboard vendors)
  • Chassis standoffs (supplied by chassis vendors)

9 Debug Tools Specifications

Please refer to the appropriate platform design guidelines for information regarding debug tool specifications. Section 1.3 provides collateral details.

9.1 Debug Port System Requirements

The Dual-Core Intel® Xeon® Processor 5200 Series debug port is the command and control interface for the In-Target Probe (ITP) debugger. The ITP enables run-time control of the processors for system debug. The debug port, which is connected to the FSB, is a combination of the system, JTAG and execution signals. There are several mechanical, electrical and functional constraints on the debug port that must be followed. The mechanical constraint requires the debug port connector to be installed in the system with adequate physical clearance. Electrical constraints exist due to the mixed high and low speed signals of the debug port for the processor. While the JTAG signals operate at a maximum of 75 MHz, the execution signals operate at the common clock FSB frequency. The functional constraint requires the debug port to use the JTAG system via a handshake and multiplexing scheme.

In general, the information in this chapter may be used as a basis for including all run-control tools in Dual-Core Intel® Xeon® Processor 5200 Series-based system designs including tools from vendors other than Intel.

Note: The debug port and JTAG signal chain must be designed into the processor board to utilize the XDP for debug purposes except for interposer solutions.

9.2 Target System Implementation

9.2.1 System Implementation

Specific connectivity and layout guidelines for the Debug Port are provided in the appropriate platform design guidelines.

9.3 Logic Analyzer Interface (LAI)

Intel is working with two logic analyzer vendors to provide logic analyzer interfaces (LAIs) for use in debugging Dual-Core Intel® Xeon® Processor 5200 Series systems. Tektronix and Agilent should be contacted to obtain specific information about their logic analyzer interfaces. The following information is general in nature. Specific information must be obtained from the logic analyzer vendor.

Due to the complexity of Dual-Core Intel® Xeon® Processor 5200 Series-based multiprocessor systems, the LAI is critical in providing the ability to probe and capture FSB signals. There are two sets of considerations to keep in mind when designing a Dual-Core Intel® Xeon® Processor 5200 Series-based system that can make use of an LAI: mechanical and electrical.

9.3.1 Mechanical Considerations

The LAI is installed between the processor socket and the processor. The LAI plugs into the socket, while the processor plugs into a socket on the LAI. Cabling that is part of the LAI egresses the system to allow an electrical connection between the processor and a logic analyzer. The maximum volume occupied by the LAI, known as the keepout volume, as well as the cable egress restrictions, should be obtained from the logic analyzer vendor. System designers must make sure that the keepout volume remains unobstructed inside the system. Note that it is possible that the keepout volume reserved for the LAI may include different requirements from the space normally occupied by the heatsink. If this is the case, the logic analyzer vendor will provide a cooling solution as part of the LAI.

9.3.2 Electrical Considerations

The LAI will also affect the electrical performance of the FSB, therefore it is critical to obtain electrical load models from each of the logic analyzer vendors to be able to run system level simulations to prove that their tool will work in the system. Contact the logic analyzer vendor for electrical specifications and load models for the LAI solution they provide.

§
