Table of Contents

PREFACE....11

About this Guide 11

Technician Notes 11

INTRODUCTION 13

Product Description....13

Features....14

CONTROLS AND CONNECTIONS 15

System Specifications....16

Front Panel Controls and LEDs 16

Rear Panel Connectors....17

GETTING STARTED....19

Identifying Included Components....20

Keyboard Setup 21

Mouse Setup....21

Monitor Setup....22

Power Setup 22

Turning On the IPS 23

Turning Off the IPS 23

IPS Specifications 25

PREFACE

ABOUT THIS GUIDE

This manual is a setup and maintenance guide that can be used for reference when setting up the DVR and for troubleshooting when a problem occurs. Only authorized personnel should attempt to repair this unit.

Toshiba reserves the right to make changes to the DVRs represented by this manual without notice.

The following text and symbols mark special messages throughout this guide:

NOTE: Text set off in this manner indicates topics of interests that can help the user understand the product better.

TIP: Text set off in this manner indicates topics and points of interests that can be helpful when using or settings up the DVR.

TECHNICIAN NOTES

	WARNING: Only authorized technicians trained by Toshiba should attempt to repair this DVR. All troubleshooting and repair procedures that may be shown are for reference and minor repair only. Because of the complexity of the individual components and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board. Improper repairs can create a safety hazard. And any indications of component replacement or printed wiring board modifications may void any warranty.
	WARNING: To reduce the risk of electrical shock or damage to the equipment:Do not disable the power grounding plug. The grounding plug is an important safety feature.Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.Disconnect the power from the computer by unplugging the power cord either from the electrical outlet or the computer.
	CAUTION: To properly ventilate your system, you must provide at least 3 inches (7.6 cm) of clearance at the front and back of the DVR.

INTRODUCTION

PRODUCT DESCRIPTION

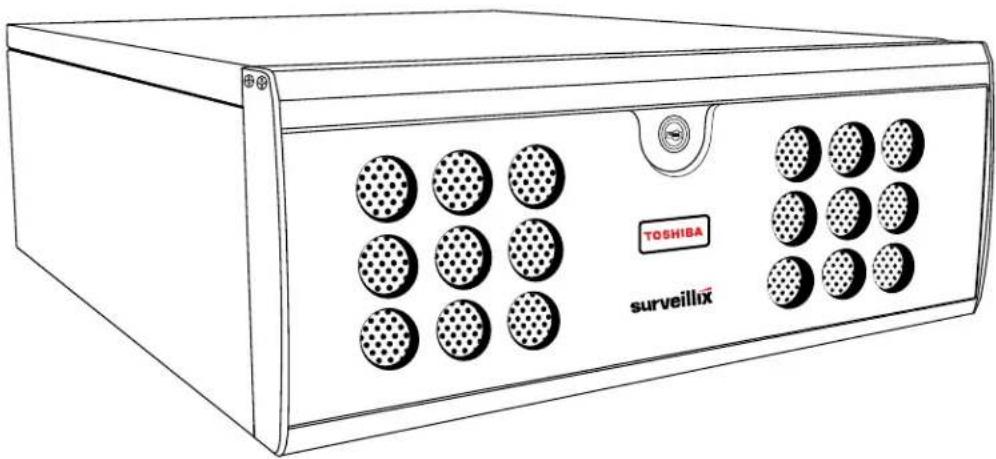

Line drawing of a server rack unit with labeled buttons and ports (no readable text or symbols beyond branding)

A Surveillix IPS is simply a server that performs as a High Definition Digital Recorder. By utilizing the many features of a computer, including processing power, storage capacity, graphics compression, and security features, the DVR is more powerful than the analog recorders of the past.

The Surveillix IPS server software comes pre-configured for fast and seamless integration within your existing IT infrastructure. Designed around Microsoft® Windows® XP Embedded, the server software offers unparalleled stability, security, and ease of use. Accordingly, your security investment has never been easier to maintain. Multiple users may simultaneously connect through any network connection for instantaneous live viewing, digital search, and off site video storage. Users can also connect remotely through DSL, Cable Modems, ISDN, or 56K dial-up. This powerful software enables users to establish recording schedules, create motion detection zones, use PTZ controls, and configure alarm inputs and outputs for each of the system's cameras. With the latest advancements in the IPS Server Software, searching and indexing your video archive has never been easier. Video can now be found, viewed, and exported in a number of file formats with just a few clicks.

The Surveillix IPS is high performance security product ready to meet today's security demands.

Toshiba's Surveillix IPS includes the following new features:

• Optimized and Designed for Microsoft® Windows XP Embedded®
• Up to 32 Network Based Video Inputs
• Remote System Operation & Configuration
  • Supports Multiple Simultaneous Remote Connections
  • PAN / TILT / ZOOM Controls via IP Protocols
• Simultaneous Video Search, Playback and Backup
  • Video Indexes for Easy Searching
  • Multiple Levels of Security Access
• Up to 1 Channel of Audio Recording
• Up to 2 Terabytes Internal Storage
  • High Performance, Durable, Rack mount Case
  • Output the Video to a NTSC/PAL Display
  • Digital Signature Support
  • Continuous, Motion Detection, Alarm, Pre-Alarm, and Scheduled Recording Modes
  • Records at the encoding resolution of the network camera
  • Multi-Site Management Software Support (optional upgrade)

CONTROLS AND CONNECTIONS

This chapter includes the following information:

• Input / Output Connector Locations
  • Front Panel Controls and LEDs
• Rear Panel Connectors

SYSTEM SPECIFICATIONS

Surveillix™ state-of-the-art Network Video Recorders are housed in a high performance and versatile 3U Rack-Mount case allowing easy storage of multiple IPSs for enterprise applications. Every Surveillix IPS comes equipped with the latest technology:

Intel® CPU

100/1000

Gigabit

Ethernet

2 GB (8/16 CH) or 3GB (32 CH) of System Memory

DVD±RW

Recorder

500 GB Video Storage Drive (minimum)

FRONT PANEL CONTROLS AND LEDS

The front panel of the IPS contains the devices that will be commonly used for data removal, retrieval, and backup replacement. The most common components and buttons are shown below:

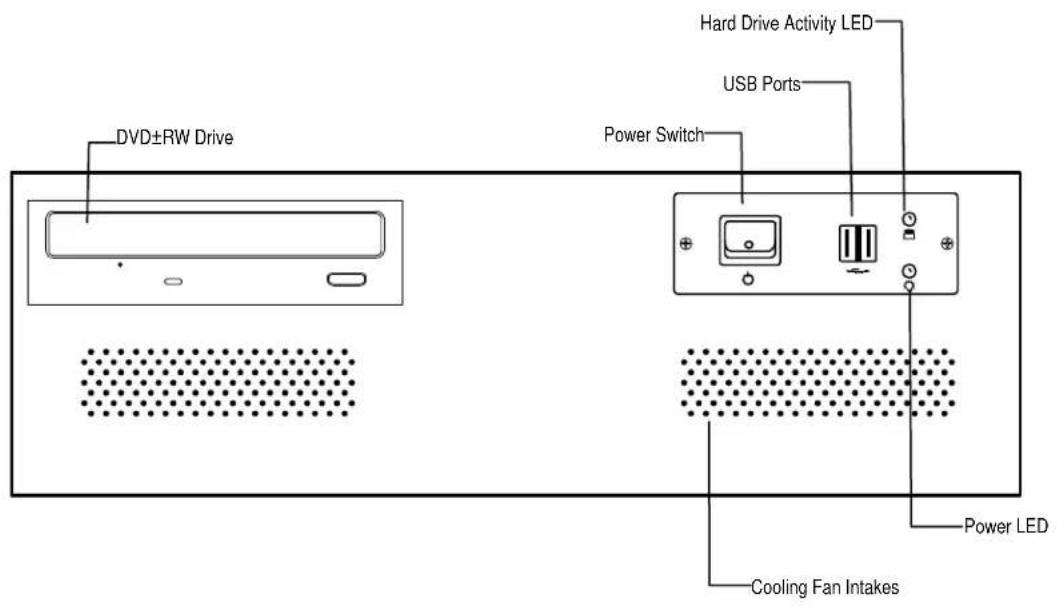

DVD±RW Drive Hard Drive Activity LED USB Ports Power Switch Power LED Cooling Fan Intakes

REAR PANEL CONNECTORS

The rear panel of the IPS contains the connectors used to attach cameras, sensors, and relays to the IPS. Below are diagrams that outline the location and description of each connector:

Fire Wire Port IEEE AC Power Connector RJ-45 Network Jack Cooling Fan PS/2 Mouse Input PS/2 Keyboard Input DVI-D Port SVGA Output USB Ports Audio • Line In – line level • Speaker Out • Microphone In – not used Power Switch

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

12

18

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

18

18

18

18

18

18

18

18

18

GETTING STARTED

This chapter includes the following information:

• Included Components
• Setting Up the IPS Hardware
• Optional Components

IDENTIFYING INCLUDED COMPONENTS

Surveillix™ IPSs come with a mouse, keyboard and selected software and cables. Identify the following components to make sure everything has been properly included with the new DVR. If any of the following items are missing, contact the dealer to arrange a replacement.

IPS	Mouse	Keyboard
Repair Disc Software Disc Power Cable
Audio Adapter	Rack Mount Attachments with Screws	IPS Manual

To attach the keyboard to the DVR, plug the end of the Keyboard into the keyboard PS/2 Port located on the back of the machine.

The keyboard PS/2 Port can be identified by the purple color.

Refer to the Rear Panel Connectors diagram for more information.

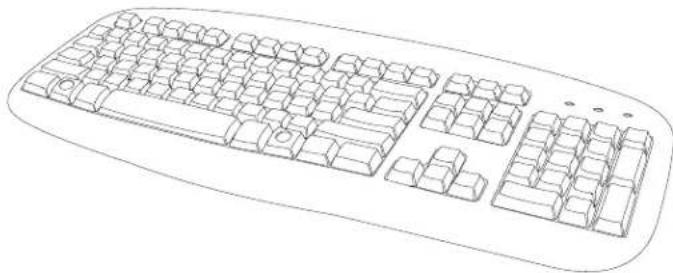

Line drawing of a standard computer keyboard with multiple keys and dials (no text or symbols)

MOUSE SETUP

To attach the mouse to the DVR, plug the end of the mouse into the mouse PS/2 Port located on the back of the machine. The mouse PS/2 Port can be identified by the green color.

The mouse uses a cursor called a pointer. Pointers come in many different shapes but are most commonly shaped like an arrow.

The mouse has two buttons: a left button and a right button. Quickly pressing and releasing one of these buttons is called clicking. Sometimes you will need to double-click – or click the same button twice quickly.

In this manual:

Click means to position the mouse cursor over an item and to single click the left button.

Right click means to position the mouse cursor over an item and to single click the right button.

Double-click means to position the mouse cursor over an item and to click the left button twice.

Select means to position the mouse cursor over a radio button, checkbox, or list item and click on it.

The scroll wheel in between the two buttons is used for added navigation functionality. By moving the wheel with index finger (scrolling), quickly move through multiple pages, lines, or windows. The wheel may also function as a third button allowing the user to quickly click or double-click an icon or a selected item.

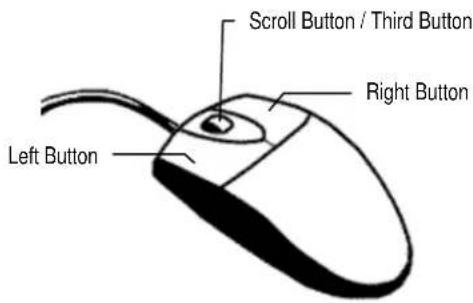

Scroll Button / Third Button Right Button Left Button

The IPS may have one or both of the following connections available for monitors which can be used individually or in tandem.

SVGA Output* To VGA Monitor

DVI-D Output To TV / Digital Monitor

Attach the monitor or monitors to the rear of the DVR using the cable supplied by the monitor manufacturer. Refer to the monitor manual for detailed information on how to setup and use it.

NOTE: The monitor must be capable of having a screen resolution of 1024 x 768 and display colors of at least 32 Bit.

POWER SETUP

WARNING:

To reduce the risk of electrical shock or damage to the equipment:

Do not disable the power grounding plug.

The grounding plug is an important safety feature.

If the electrical plug you are using does not have a ground plug receptacle contact a licensed electrician to have it replaced with a grounded electrical outlet.

Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

Disconnect the power from the computer by unplugging the power cord either from the electrical outlet or the computer.

TURNING ON THE IPS

1. Turn on the monitor and any external peripherals (ex. Printers, External Storage Devices, etc.) connected to the DVR.
2. Turn on the Power Switch located on the front of the DVR.
3. The IPS will run a series of self-tests. After two or three minutes, a series of messages may be displayed as the various hardware and software subsystems are activated. Under normal circumstances, users should not be asked to respond to these messages. If asked to respond to the messages (adding a Printer, Monitor, etc for the first time) follow the instructions carefully.
4. Startup is complete when the Surveillix IPS software is finished loading and displays the main menu screen.

TURNING OFF THE IPS

1. Click the Exit Button on the main menu screen of the IPS software.
2. Select Power Off from the drop down menu, which appears in the Power Off prompt, and click OK.

The DVR may take several minutes to shut down completely.

CAUTION: Always be sure to follow the proper procedures when turning off the power to the DVR. NEVER disconnect the power to the DVR while it is still running or in the process of shutting down. Doing so can cause data loss, file corruption, system instability and hardware failure.

IPS SPECIFICATIONS

8 / 16	/ 32 CH
CPU Intel® CPU
Storage (Hard Drive) 500	GB Standard / up to 2 TB
Storage MAX Up to 4	HDD with DVD ± RW
Operating System Microsoft® Windows® XP Embedded
Recording Rate	Up to 30 PPS per camera / Dependent on Network Video Device Encoding Rate
Resolution Recording resolutions dependent upon the resolutions the Network Camera supports
Video Inputs None
Video Outputs SVG	A x 1, DVI-D x 1
Motion Detection Up to 15 Regions Per Channel / Adjustable Sensitivity
Remote Operation Full Remote Control Through PSTN, ISDN, ADSL, LAN, and TCP/IP
Remote Software Compatible with Microsoft Windows 2000,XP, Vista
PAN / TILT / ZOOM Via IP Protocols
Recording Mode Continuous, Motion Detection, Sensor, Scheduled Recording
Backup	USB,
Digital Signature	Supports Digital Signature Verification
Emergency Agent	Transmitted through TCP/IP – SCS
