Product Type	Weather-Resistant Surface-Mount Loudspeaker
Model	SM82-EZ-WX
Low-Frequency Driver	8" (203 mm) polypropylene cone with butyl rubber surround (assumed)
High-Frequency Driver	1" (25.4 mm) soft dome tweeter with BroadBeam Ring waveguide
Impedance (Nominal)	8 Ω
Sensitivity (1W/1M)	83 dB
Frequency Response (±3 dB)	80 Hz - 20 kHz
Max Continuous Power RMS	50 W (8 Ω) / 64 W (70.7V tap)
Max SPL @ 1M	100 dB (RMS)
Transformer Taps	70.7V: 64W, 32W, 16W, 8W, 4W, 2W; 100V: 64W, 32W, 16W, 8W, 4W; 25V: 8W, 4W, 2W, 1W, 0.5W
Coverage Angle (Avg 2-10 kHz)	95° Horizontal x 100° Vertical
IP Rating	IP65 (with port plug installed)
Enclosure Material	High Impact Polystyrene (HIPS)
Grille	Aluminum with powder-coat finish (black or white)
Input Connector	4-position ceramic terminal strip (accepts up to 8 AWG)
Mounting	U-bracket (stainless steel for WX version), vertical or horizontal
Included Accessories	Safety cable, mounting bracket, port plug, Allen wrench, watertight strain-relief bushing
Certifications	CE, RoHS, UL 1480A, EN54-24
Warranty	5 years limited (3 years on electronics)
Color Options	Black (BK) or White (WH)

Frequently Asked Questions - SM82-EZ-WX SoundTube

What is the difference between the SM82-EZ and SM82-EZ-WX?

The SM82-EZ-WX is the weather-extreme version, featuring a stainless steel mounting bracket and a port plug to seal the enclosure, achieving an IP65 ingress protection rating for use in damp or outdoor environments.

How do I install the safety cable?

Attach the safety cable to one of the U-bracket clamping screws on the side of the cabinet. The cable provides a secondary safety attachment in case the primary mounting fails.

What is the purpose of the port plug?

The port plug seals the enclosure to protect internal components from humidity and corrosive elements. For increased protection, apply RTV silicone around the edge of the plug. On WX versions, the plug is pre-installed.

How do I set the tap selector for 70.7V or 100V systems?

Use the six-position rotary switch on the back of the speaker. The switch includes a transformer bypass position for 8 Ω operation. The preset maximum tap is 64W for the SM82-EZ-WX in 70.7V mode.

Can the speaker be mounted horizontally?

Yes, the same U-bracket allows mounting in either vertical or horizontal orientation. The bracket can be pre-mounted to the surface, and the speaker slides onto it.

What tools are needed for installation?

The included Allen wrench is used for the U-bracket screws. You will also need user-supplied fasteners (screws/bolts) for mounting the bracket to the wall or ceiling.

Is the speaker suitable for outdoor use?

Yes, with an IP65 rating, the SM82-EZ-WX is protected against dust and water jets, making it ideal for damp outdoor applications such as patios, amusement parks, and covered walkways.

What is the maximum power handling in 8 Ω mode?

In transformer bypass mode (8 Ω), the speaker handles 50 W continuous RMS (100 W program power).

How do I daisy-chain multiple speakers?

The ceramic terminal strip provides two positive and two negative connectors for easy daisy-chaining. Run wire from the amplifier to the first speaker, then from the first to the next, etc.

What is the recommended amplifier power?

For 8 Ω operation, use an amplifier rated for 50-100 W RMS per channel. For 70.7V/100V systems, ensure the total tap wattage of all speakers does not exceed the amplifier's rated power.

USER MANUAL SM82-EZ-WX SoundTube

Install Instructions For:

SM52-EZ-BK, SM52-EZ-WH, SM52-EZ-WX-BK, SM52-EZ-WX-WH, SM82-EZ-BK, SM82-EZ-WH, SM82-EZ-WX-BK & SM82-EZ-WX-WH

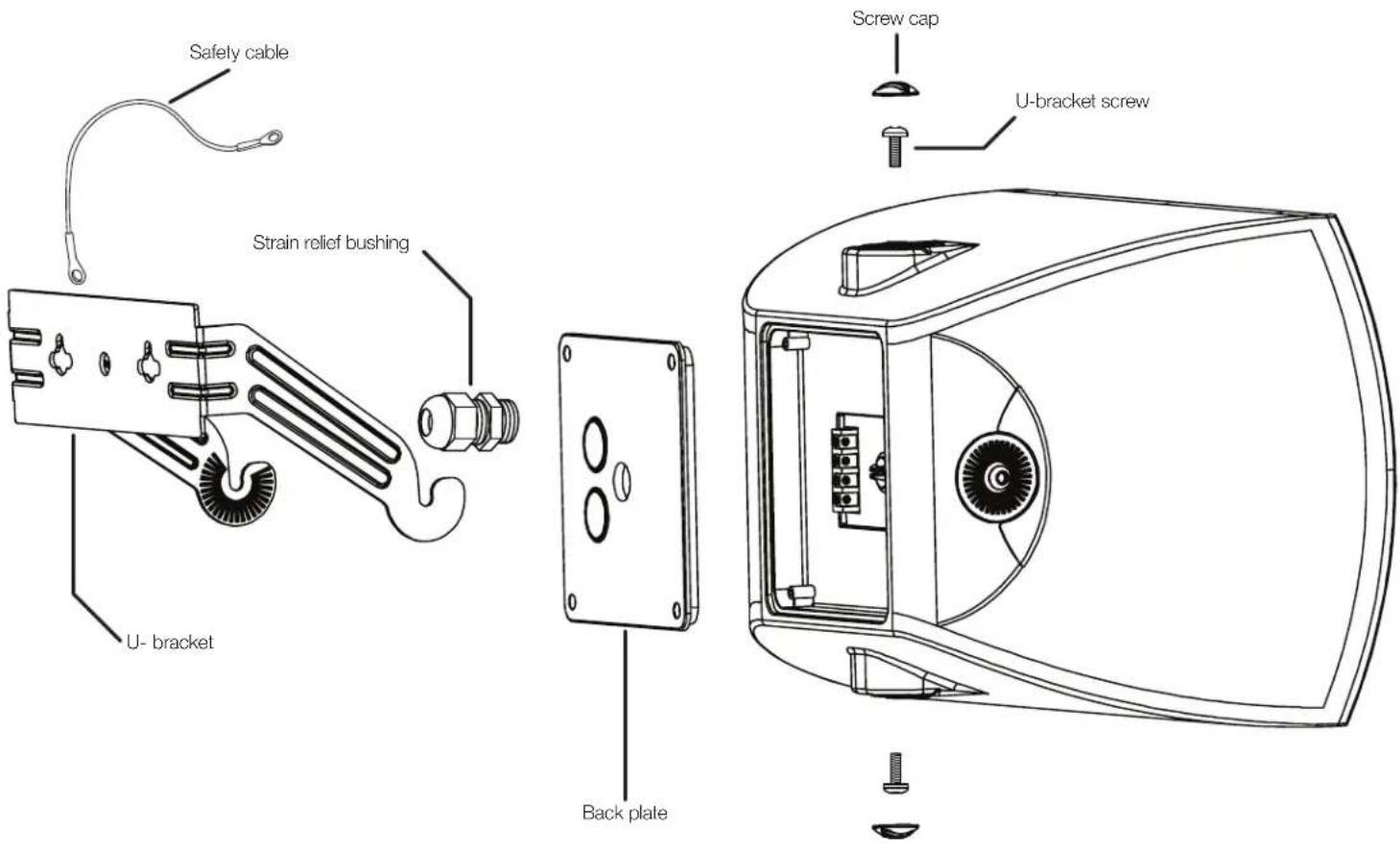

Box contents

1 Speaker
1 U-bracket
2 U-bracket screws
2 Screw caps
1 Allen wrench
1 Back plate
1 Port plug
1 Safety cable
1 Strain relief bushing

1.435.647.9555

800.647.TUBE

www.soundtube.com

©2016SoundTube Entertainment, Inc. All rights reserved. PN INS-SM-EZ Rev02-10-2016

Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Warning

Do not spec or install speaker near support beam, ventilation duct or other structure that may interfere with speaker function or dispersion.

SM-EZ Series

Install Instructions For:

SM52-EZ-BK, SM52-EZ-WH, SM52-EZ-WX-BK, SM52-EZ-WX-WH, SM82-EZ-BK, SM82-EZ-WH, SM82-EZ-WX-BK & SM82-EZ-WX-WH

1. Unpack speaker and mounting hardware.

1. Choose a secure mounting surface with sufficient strength to reliably hold the speaker. The speaker may be mounted in either the vertical or the horizontal position with the same U-bracket.

1. Mount u-bracket with clamping slots pointing upward. Securely fasten mounting bracket and safety cable to surface (user must supply fasteners).
   Note: The safety cable will attach to the U-bracket clamping screw on one side of the cabinet.

1. If being installed per EN54-24 regulations or in instances where a water tight strain relief bushing is necessary, attach the included strain relief bushing to the back plate. If it is not required, skip this step.

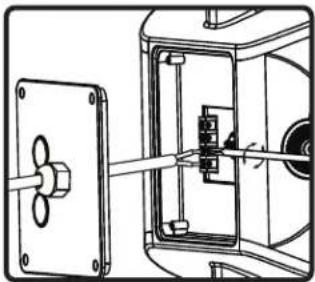

1. Run signal wires through cstrain relief bushing then connect to ceramic terminal strip. Two + (plus) and two - (negative) connectors are provided for daisy chaining.

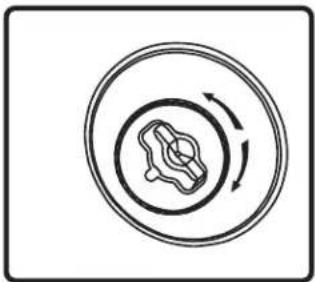

1. Select the tap position by rotating the rotary switch located on the back of the speaker to desired setting. The switch is preset to the maximum tap setting in 70.7 V mode (32W for the SM52-EZ[-WX] and 64W for the SM-82-EZ-II[-WX]).

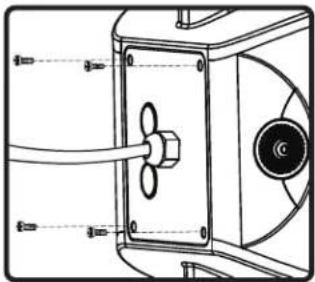

1. Install back plate and secure with included fasteners.

1. Select desired location for safety cable and remove the U-bracket screw from that side. Attach safety cable to the clamping screw and reinstall loosely.

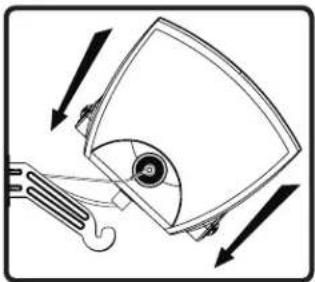

1. Tilt speaker 45° (grille up) and slide on to bracket.

1. Aim speaker and tighten u-bracket screws. Once tightened down, place the screw caps on the screws. Done!

Port protection for SM-EZ

To enhance protection of internal components from humidity and other potentially corrosive elements, use provided port plug to seal enclosure. Use RTV silicone around edge of the port plug for increased protection. Note: WX versions will come with the port plug pre-installed.

SM82-EZ-WX, SM52-WX

Install Instructions For: Stainless Steel Bracket and Port Plug Installation

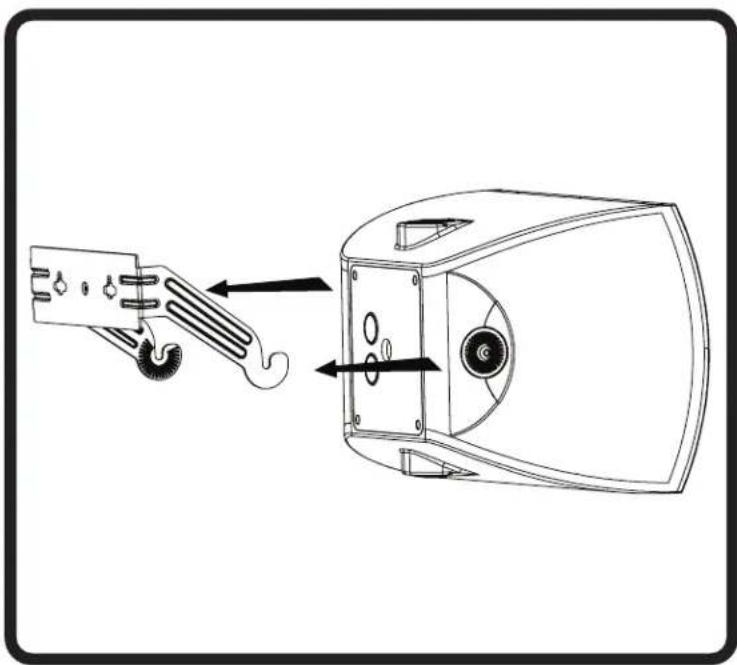

1. To make this unit weather extreme rated (WX) you will need to locate and discard the bracket that came in the box with the loudspeaker. WX units come with a separate stainless steel mounting bracket that will be used instead.

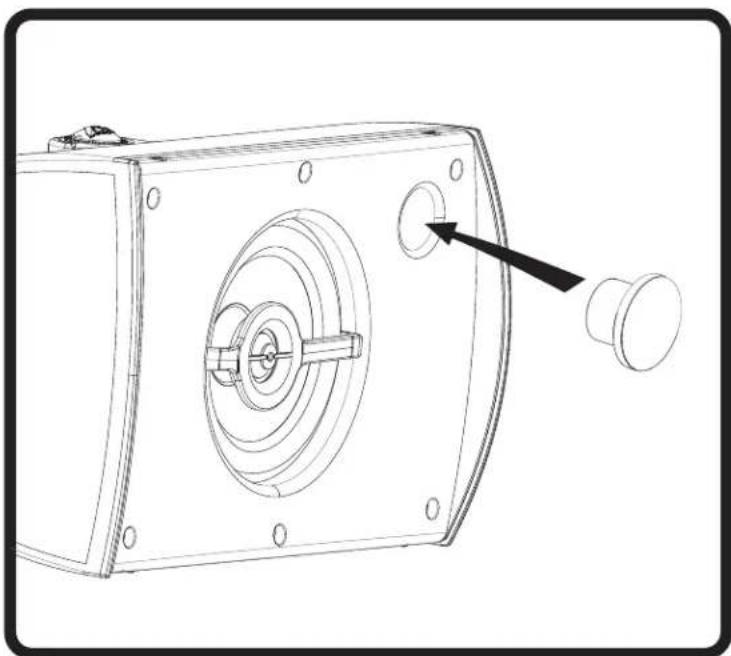

1. To make this unit weather extreme rated (WX) the port plug supplied in the box will need to be installed. Remove the grill by taking out the screws located around the edges. The grill should come off easily. Push port plug into hole on baffle and re-install grill. Note: RTV silicone can be used on the port plug for increased protection.

SM52-EZ-WX PRODUCT SPECIFICATIONS

System Type	5.25", coaxial, surface-mount, sealed (with port plug installed) (32 W transformer for 25/70.7/100 V or transformer bypass)
Impedance (Nominal) 1	8 Ω
Sensitivity dB @ 2.83 V / 1 M	83 dB
Sensitivity dB @ 1 W / 1 M 2	83 dB
Frequency Response ( ± 3 dB) 3	80 Hz - 20 kHz
Frequency Response ( ± 10 dB) 3	62 Hz - 22 kHz
Max. Program Power 4	100 W
Max. Continuous Power RMS 5	50 W
Max. Power SPL @ 1 M RMS 6	100 dB
Coverage Angle ( ± 6 dB @ 2 kHz)	90° Horizontal | 120° Vertical
Coverage Angle ( ± 6 dB @ 10 kHz)	70° Horizontal | 110° Vertical
Coverage Angle (Avg. 2-10 kHz)	95° Horizontal | 100° Vertical
Aiming Angle	0° - 90°
Directivity Factor (Q)	6.9 (averaged 100 Hz - 10 kHz) | 5.9 (2 kHz)
Directivity Index (DI)	5.2 (averaged 100 Hz - 10 kHz) | 7.7 (2 kHz)
Tap Selector	Six-position rotary switch with transformer bypass
Low-Frequency Driver	1 x 133 mm (5.25") polypropylene cone, butyl rubber surround
High-Frequency Driver	25.4 mm (1") soft dome tweeter
Low-Frequency Voice Coil	25.4 mm (1") high temperature Kapton
Crossover Frequency	3.5 kHz
Network Type: Low Pass	12 dB per octave, 2nd order
Network Type: High Pass	12 dB per octave, 2nd order
Enclosure Material	High Impact Polystyrene (HIPS)
Grille	Aluminum with powder-coat finish
Inputs	Ceramic terminal strip
Colors	Black or white (custom colors available)
Height	301.8 mm | 11.88"
Width	190.5 mm | 7.5"
Depth (Without Bracket)	168.4 mm | 6.63"
Weight	3.35 kg | 7.4 lbs
Packaging	One per box
Included Accessories	Safety cable with speaker mounting bolt, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing
Optional Accessories	N/A
IP-Rating	IP65
Certifications	CE, RoHS, UL 1480A, EN54

Description

The SM52-EZ-WX is a cost-effective, high-efficiency surface-mount loudspeaker for distributed or 8 Ω applications. The SM52-EZ-WX is designed for extreme weather resistance is rated for high levels of protection against both water and dust. The SM52-EZ-WX incorporates a dedicated 5.25" polypropylene woofer and an offset 1" soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 100 dB max. SPL).

The SM52-EZ-WX uses a 32 W low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Mounting for the SM52-EZ-WX includes a pre-mountable U-bracket for fast, secure installation and easy division of labor.

Features

• The SM52-EZ-WX is a cost-conscious, weather-resistant, surface-mount loudspeaker.
• BroadBeam Ring ^™ technology for midrange clarity and ultra-wide off-axis performance up to 10 kHz for maximum coverage area per speaker.
• One 5.25" (133 mm) polypropylene woofer and one 1" (25.4 mm) soft dome tweeter.
• Extreme weather resistance with IP65 ingress protection rating allows use in challenging outdoor conditions.
• 83 dB average sensitivity offers high output capabilities and reduced amplification costs.
• Easy access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position.
  • Aluminum grille with powder-coat finish.
• Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
• UL 1480A and EN54 approved.
  • High-quality black or white paint finish.
• Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing.

¹ Impedance listed per IEC 60268-5
² 1 W/1 M sensitivity determined using nominal impedance
² Frequency response measured in half or full space as dictated by speaker mounting configuration
⁴ Max program power is 3 dB above max continuous power
⁵ Continuous power rating, EIA-426-B test
⁶ Max output based on max continuous power

Transformer Taps

70.7 V Output 100 V Output 25 V Output
32 W 98 dB 32 W 98 dB 4 W 89 dB
16 W 95 dB 16 W 95 dB 2 W 86 dB
8 W 92 dB 8 W 92 dB 1 W 83 dB
4 W 89 dB 4 W 89 dB 0.5 W 80 dB
2 W 86 dB

Applications

Designed for damp outdoor background to mid-level SPL surface-mount applications. The system includes a detachable mounting bracket designed for premounting in surface-mounting applications. The full-frequency dispersion pattern and high sensitivity make the SM52-EZ-WX surface-mount speaker ideal for music and paging in retail, amusement, restaurant, airports, hotels, schools, and casinos. For applications where addition bass is required, SoundTube's RS1001i-II-T provides bass down to 41 Hz (±10 dB).

Patented Technologies

SoundTube Entertainment and the MSE Audio Group constantly develop new technologies which enhance audio product performance. SoundTube Entertainment innovations are protected by multiple U.S. and international patents, which explicitly cover SoundTube dome, enclosure and dispersion technologies. The MSE Audio Group actively defends its patents in order to protect SoundTube resellers and end-users.

Technical Data and Specification Tools

SoundTube Entertainment strives to provide complete and effective technical information and data to dealers, engineers and designers. All data is available from SoundTube Entertainment or at www.soundtube.com.

Technical data and downloads include:

• EASE ^TM data - 3-D polar plots.
• EASE™ Address - 2-D modeling for distributed systems
  • AutoDesk ^® Revit ^® software
• Tech Sheets - technical information and architectural specs for system engineers
• SoundTubeSPEC™ - Proprietary speaker placement software

Independent Data Acquisition and Verification

All data for SoundTube speakers is independently collected from and verified by NWAA Labs (www.nwaalabs.com) using their proprietary MACH testing system. All data is collected and analyzed according to ASTM, ISO and AES standards using EASERA, TEF and MLSSA. Full balloon data including both phase and magnitude is compiled into a variety of formats including EASE 4.x, GLL and CLF.

Architectural Specifications

The loudspeaker shall consist of a 133 mm (5.25") low-frequency transducer and a 25.4 mm (1") high-frequency transducer with a frequency dividing network installed in a vented enclosure. The low-frequency voice coil diameter shall be 25.4 mm (1"). The high-frequency transducer shall be constructed of silk material with a proprietary BroadBeam Ring™ waveguide.

Performance specifications of a typical production unit shall be as follows: Usable frequency response shall extend from 62 Hz - 22 kHz ( ± 10 dB, half space, independently verified). Measured sensitivity (2.83 V input, 1 meter) shall be at least 83 dB. The speaker shall have a nominal impedance of 8 Ω and be available for 25, 70.7, and 100 V modes with transformer bypass. The frequency dividing network shall have a crossover frequency of 3.5 kHz with slopes of 12 dB per octave (2nd order) for both low and high pass filters. Rated power capacity shall be at least 50 W continuous (RMS) and conform to EIA-426-B testing. Maximum continuous output at 1 M shall be 100 dB.

Installation and safety attachment for the speaker shall be by stainless steel U-bracket affixed to the speaker chassis with steel insert. For safety redundancy, a secondary cable shall be included and attached to the speaker chassis.

The external wiring input connector shall be via 4-position ceramic terminal strip, accepting up to 8-gauge wire. The system shall be for indoor/outdoor applications and shall include a weather-resistant cover over all wire connections.

The enclosure shall be constructed of injection-molded, High Impact Polystyrene (HIPS). The grille shall be constructed of powder-coated aluminum for lasting performance. Overall cabinet dimensions shall be no more than 301.8 mm (11.88") in height by 190.5 mm (7.5") in width by 168.4 mm (6.63") in depth (without SM bracket). The unit shall include port plug, Allen wrench and watertight strain-relief bushing.

The speaker shall carry an ingress protection rating of IP65.

The system shall be the SoundTube SM52-EZ-WX for both low and high impedance applications.

SoundTube®

13720 W. 109th St.

Lenexa, KS 66215

Phone: [phone]

Fax: [phone]

Toll Free: 855.663.5600

www.mseaudio.com

All SoundTube speakers come with a 5-year limited warranty and 3-year warranty on all electronics.

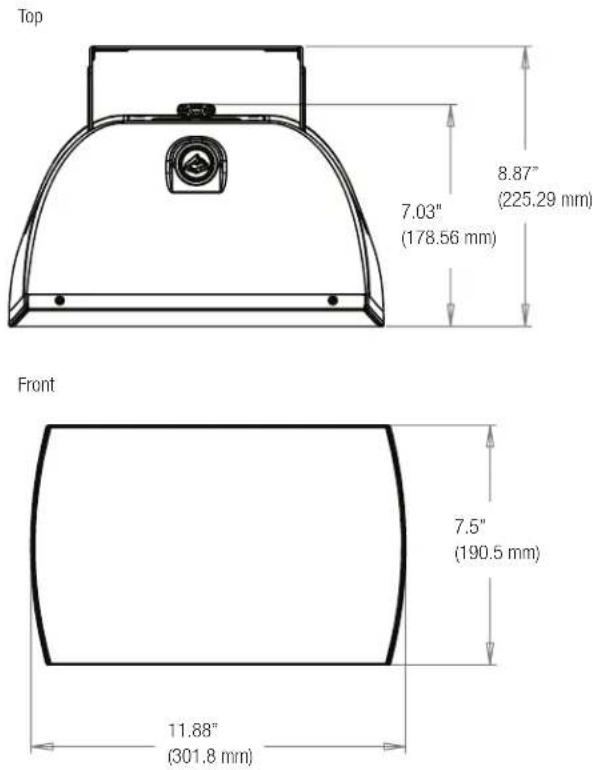

Mechanical Drawings

Plots

Technical data, EASE™ plots, SoundTubeSPEC™ software and product downloads available at www.soundtube.com

Graphs

Phase/Impedance
