Codex 3 8RA-249EU - Office MSI - Free user manual and instructions

Product Type	Desktop PC
Brand	MSI
Model	Codex 3 8RA-249EU
Form Factor	Mid Tower
Processor	Intel Core i7-8700 (up to 4.6 GHz, 6 cores)
RAM	16 GB DDR4 (2 x 8 GB, expandable up to 64 GB)
Storage	256 GB SSD + 1 TB HDD
Graphics	NVIDIA GeForce GTX 1060 6 GB
Operating System	Windows 10 Home (64-bit)
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.2, Gigabit Ethernet
Ports - Front	2x USB 3.1 Gen 1, 1x USB 2.0, 1x Headphone, 1x Microphone
Ports - Rear	4x USB 3.1 Gen 1, 2x USB 2.0, HDMI, DisplayPort, DVI-D, PS/2, Audio jacks
Power Supply	500 W 80+ Bronze certified
Dimensions (W x D x H)	195 x 440 x 470 mm (7.7 x 17.3 x 18.5 in)
Weight	Approx. 8.5 kg (18.7 lb)
Cooling System	Silent PWM fans with MSI Click BIOS
Expansion Slots	1x PCIe x16, 2x PCIe x1, 2x DIMM slots
Optical Drive	None (not included)
Warranty	2 years limited
Maintenance	Dust filter on front and PSU; easy access to internals
Safety Features	Over-current protection, thermal monitoring

Frequently Asked Questions - Codex 3 8RA-249EU MSI

How do I connect the PC to a monitor?

Use the HDMI, DisplayPort, or DVI-D ports on the back of the PC. For best performance, connect to the dedicated graphics card ports (near the bottom) rather than the motherboard ports.

Can I upgrade the RAM?

Yes, the system supports up to 64 GB DDR4 RAM via two DIMM slots. To upgrade, open the side panel and insert compatible modules into the slots.

How do I clean the dust filters?

The PC has dust filters on the front intake and underneath the power supply. Remove them and rinse with water, let dry completely before reinstalling.

What should I do if the PC doesn't turn on?

Check the power cable connection and ensure the power supply switch is on. Try a different outlet. If still off, press the power button firmly. If no response, contact MSI support.

Is the PC suitable for gaming?

Yes, with an Intel Core i7 processor and NVIDIA GeForce GTX 1060, it can handle most games at 1080p medium-high settings.

How do I enter the BIOS?

Press the Delete key repeatedly during startup. You can then adjust settings like boot order, overclocking, and fan curves.

Can I install an additional hard drive?

Yes, there are empty 3.5-inch and 2.5-inch drive bays. Connect the drive to a free SATA port and power cable from the PSU.

Does the PC have built-in Wi-Fi?

Yes, it includes Wi-Fi 802.11ac and Bluetooth 4.2. The antennas are included and should be attached to the rear panel for best reception.

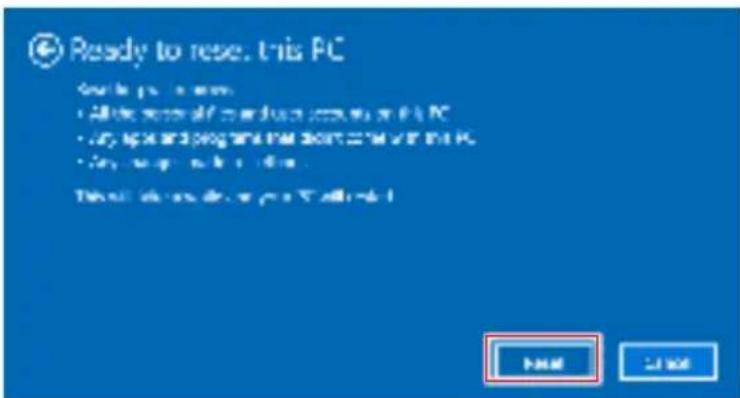

How do I perform a factory reset?

Go to Settings > Update & Security > Recovery > Reset this PC. Choose 'Remove everything' or 'Keep my files' as desired. Follow the on-screen instructions.

What is the warranty coverage?

The PC comes with a 2-year limited warranty covering hardware defects. Excludes accidental damage, wear and tear, and unauthorized modifications.

USER MANUAL Codex 3 8RA-249EU MSI

Copyright and Trademarks Notice ....iii

Revision ....iii

Upgrade and Warranty....iv

Acquisition of Replaceable Parts ....iv

Technical Support....iv

Green Product Features....iv

Environmental Policy.... v

Chemical Substances Information ...... v

Battery Information...... v

Safety Instructions....vi

CE Conformity......viii

FCC-B Radio Frequency Interference Statement......viii

WEEE Statement......viii

RoHS Statement ix

1. Overview ...... 1-1

Packing Contents....1-2

System Overview 1-3

Component Replacement & Upgrade 1-7

2. Getting Started....2-1

Safety & Comfort Tips....2-2

Hardware Setup 2-3

3. System Operations 3-1

Power Management....3-2

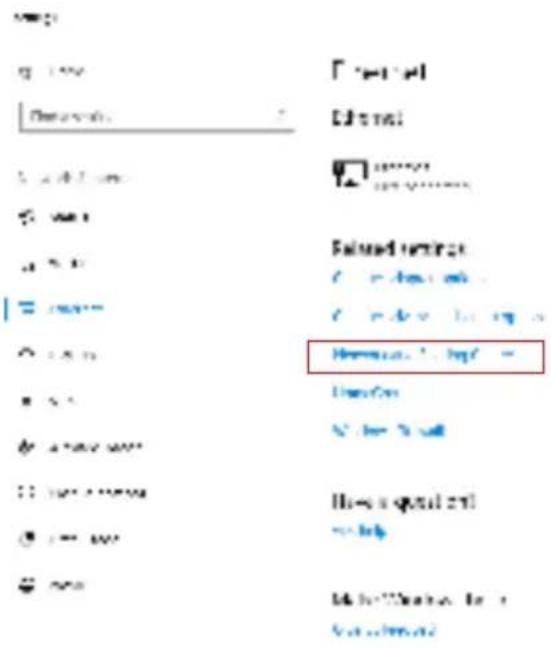

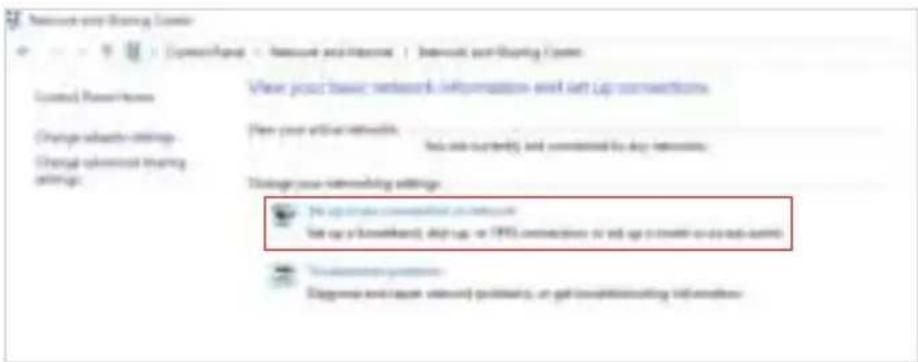

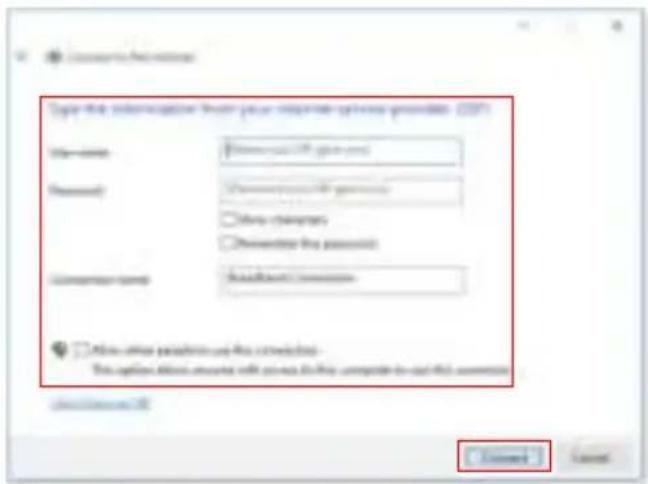

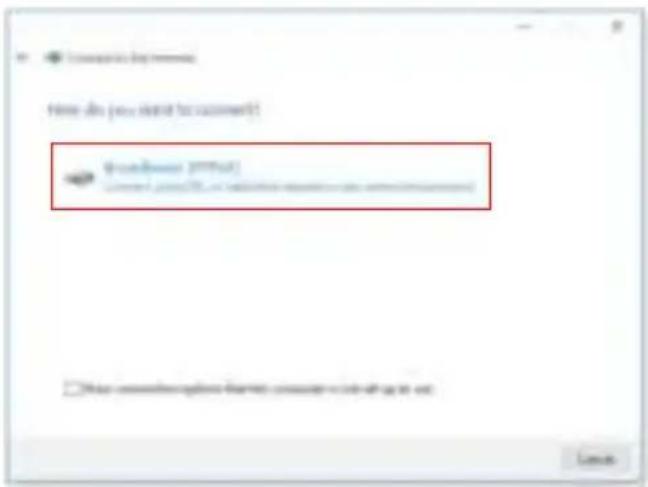

Network Connection (Windows 10)....3-4

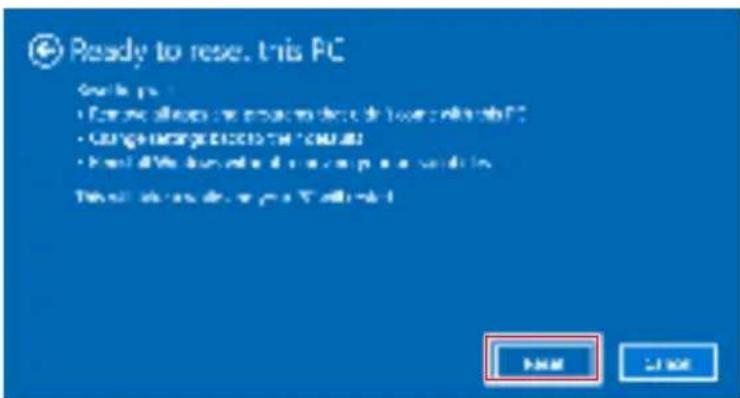

System Recovery (Windows 10)....3-7

System Recovery (F3 Hotkey Recovery) 3-11

Copyright and Trademarks Notice

Copyright © Micro-Star Int'l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int'l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.

Revision

Revision

Date

V2.0

2018/03

Upgrade and Warranty

Please note that certain components preinstalled in the product may be upgradable or replaceable by user's request. For any further information about the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service.

Acquisition of Replaceable Parts

Please be noticed that the acquisition of replaceable parts (or compatible ones) of the product users purchased in certain countries or territories may be fulfilled by the manufacturer within 5 years at most since the product has been discontinued, depending on the official regulations declared at the time. Please contact the manufacturer via https://www.msi.com/support/ for the detailed information about the acquisition of spare parts.

Technical Support

If a problem arises with your system and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates and other information via https://www.msi.com/support/

Green Product Features

• Reduced energy consumption during use and stand-by
  Limited use of substances harmful to the environment and health
  Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
Visit the MSI website and locate a nearby distributor for further recycling information.
Users may also reach us at [e-mail] for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

廢電池請回收

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

For further information please visit:

https://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Safety Instructions

Read the safety instructions carefully and thoroughly.

All cautions and warnings on the equipment or user's manual should be noted.

Keep the User's Guide that comes with the package for future reference.

Keep this equipment away from humidity and high temperature.

Lay this equipment on a reliable flat surface before setting it up.

Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100\~240V before connecting the equipment to the power outlet. Do not disable the protective earth pin from the plug. The equipment must be connected to an earthed mains socket-outlet.

Always unplug the AC power cord before installing any add-on card or module to the equipment.

Always disconnect the AC power cord or switch the wall socket off if the equipment would be left unused for a certain time to achieve zero energy consumption.

Power Rating

▶ 100-240V\~, 50-60Hz, 6-3A (Option 1)
▶ 100-240V\~, 47-63Hz, 10-5A (Option 2)

The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.

Do not leave the equipment in an unconditioned environment with a storage temperature above 60^ C or below 0^ C, which may damage the equipment.

NOTE: The maximum operating temperature is around 40^ C.

Never pour any liquid into the opening that could damage or cause electrical shock.

Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.

When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliably connected to protective earthing system of the building.

Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

Always keep the strong magnetic or electrical objects away from the equipment.

If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.

The equipment does not work well or you can not get it work according to user's manual.

The equipment has dropped and damaged.
The equipment has obvious sign of breakage.

1. The optical storage devices are classified as CLASS 1 LASER PRODUCT. Use of controls or adjustments or performance of procedures other than those specified is prohibited.
2. Do not touch the lens inside the drive.

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

WEEE Statement

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on Au 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

http://www.msi.com/html/popup/csr/cemm_jp.html

http://tw.msi.com/html/popup/csr_tw/cemm_jp.html

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Turkey EEE regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine restriction of hazardous substances

The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.

1

Overview

Congratulations for purchasing the Codex Series Personal Computer System. This system is your best PC choice. With the fantastic appearance, it can easily be set anywhere. The feature packed platform also gives you an exciting PC experience.

Packing Contents

System

Line drawing of a U-shaped electrical plug with terminal connectors (no text or symbols)

AC Power Cord

Driver/ Utility Disc (Optional)

Simple line drawing of a closed book with a rectangular cover on the front page (no text or symbols)

User Manual & Quick Guide (Optional)

Simple line drawing of a closed book with a rectangular cover on the front page (no text or symbols)

Warranty Card & Warranty Book

Mouse (Optional)

Front view of a standard computer keyboard layout (no text or symbols visible)

Keyboard (Optional)

* Please contact us immediately if any of the items is damaged or missing.
* The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased.

System Overview

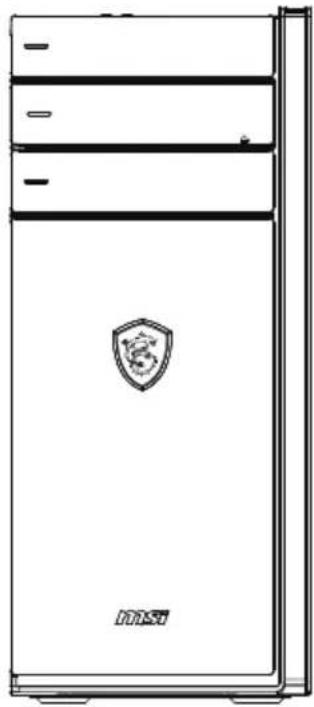

Diagram of a desktop computer tower with numbered components and labeled ports, showing internal layout and status indicators.

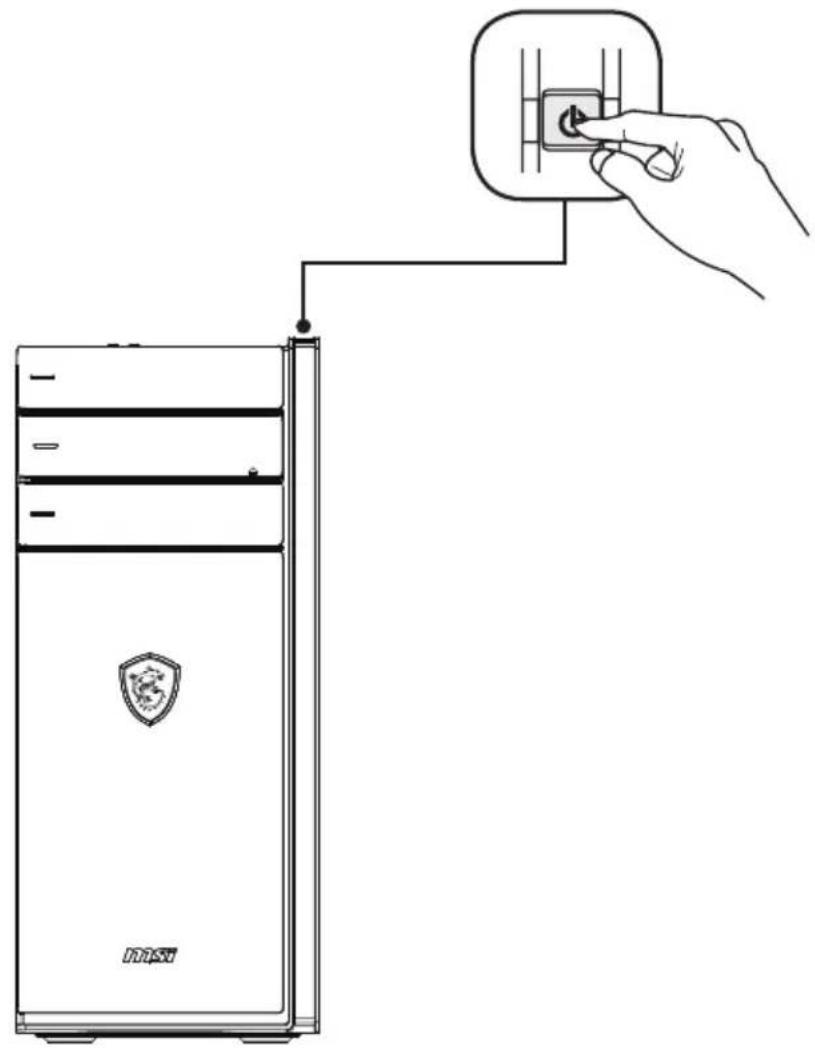

Power Button

Press the power button to turn the system on and off.

Hard Disk Drive LED

This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected.

USB 3.1 Gen 1 Port (Type-C)

USB 3.1 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed data transfer for various devices, such as storage devices, hard drives, video cameras, etc. The slim and sleek USB Type-C connector features reversible plug orientation and up to 5V/3A power supply for external devices.

USB 2.0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate.

Headphone Jack

This connector is provided for headphones or speakers.

Microphone Jack

This connector is provided for microphones.

PS/2® Keyboard / Mouse Port

The PS/2 ^® keyboard / Mouse DIN connector for PS/2 ^® keyboard / Mouse.

USB 2.0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate.

VGA Port

The VGA port supports monitors and other VGA interface devices.

DVI-D Port

The DVI-D (Digital Visual Interface-Digital) connector allows you to connect a LCD monitor. It provides a high-speed digital interconnection between the computer and its display device. To connect an LCD monitor, sim-ply plug your monitor cable into the DVI-D connector, and make sure that the other end of the cable is properly connected to your monitor (refer to your monitor manual for more information.)

HDMI-Out Port

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams. HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable.

LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it.

Green/ OrangeYellow

LED Color LED State Condition
Left Yellow Off LAN link is not established.
				On (steady state) LAN link is established.
				On (blinking) The computer is communicating with another computer on the LAN.
Right Green Off 10 Mbit/sec data rate is selected.
				On 100 Mbit/sec data rate is selected.
				Orange On 1000 Mbit/sec data rate is selected.

USB 3.1 Gen1 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 5Gbit/s (SuperSpeed) data transfer rate and is backward-compatible with USB 2.0 devices.

USB 2.0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate.

Line-In Jack

Used for connecting external audio outputting devices.

Line-Out Jack

Used as a connector for speakers or headphones.

Microphone Jack

This connector is provided for microphones.

Ventilator

The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.

Power Supply Switch

Switch this switch to - can turn on the power supply. Switch it to 0 to cut off the power circulation.

Power Jack

Power supplied through this jack supplies power to your system.

LED Button

Press the button to turn on or off the LED.

ODD Eject Button

Press the button to eject the optical disc drive.

Important

High-speed devices are recommended for USB 3.1 ports whereas low-speed devices, such as mouse or keyboard, are suggested to be plugged into the USB 2.0 ports.

Component Replacement & Upgrade

Please note that certain components preinstalled in the product may be upgradable or replaceable by user's request depending on the models users purchased.

Line drawing of a refrigerator with a shield emblem on the door (no text or symbols)

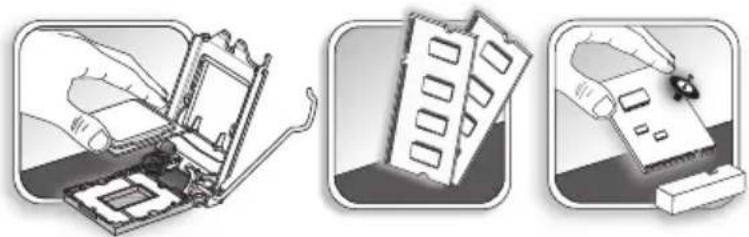

Three-step illustration showing hands installing a circuit board, folding a component, and inserting a device into a base (no text or symbols)

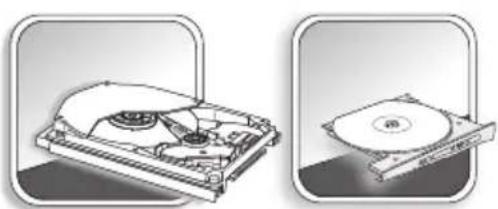

Two technical illustrations of a hard disk drive system, showing internal components and casing (no text or symbols)

For any further information on the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service.

2

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting peripheral devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Safety & Comfort Tips

Choosing a good workspace is important if you have to work with your PC for a long period of time.

1. Your work area should have enough illumination.
2. Choose the proper desk and chair and adjust their height to fit your posture when operating.
3. When sitting on the chair, sit straight and keep a good posture. Adjust the chair's back (if available) to support your back comfortably.
4. Place you feet flat and naturally on the floor, so that your knees and elbows have the proper position (about 90-degree) when operating.
5. Put your hands on the desk naturally to support your wrists.
6. Avoid using your PC in a place where discomfort may occur (such as on the bed).
7. The PC is an electrical device. Please treat it with great care to avoid personal injury.

Hardware Setup

Connecting the AC Power

1. Unpack the package to find the AC power cord. Plug one end of the AC power cord to the Personal Computer System.

2. Plug the male end to the electrical outlet.

> Disconnecting the AC Power

1. Unplug the AC power cord from the electrical outlet first.
2. Unplug the AC power cord from the Personal Computer System.

Diagram showing cable connection from a power outlet to server rack, with numbered annotations indicating cable routing steps.

Important

When unplugging the AC power cord, always hold the connector part of the cord. Never pull the cord directly.

Powering on the System

Press the power button to power on the system.

Diagram showing a hand inserting a small component into a server rack, with Chinese label 'DINSS' on the front panel.

3

System Operations

This chapter provides you with essential information on system operations.

Important

All information is subject to change without prior notice.

Power Management

Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits.

To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity.

Power Management in Windows 10

■ [Power Options] in Windows OS allow you to control the power management features of your display, hard drive, and battery. Right-click [Start] 📋, select [Control Panel] from the list and then click [System and Security].

Adjust your computer's settings

System and Security

Review your computer's status

Save backup copies of your files with File History

Select [Power Options] and choose a power plan that suits your personal needs. You may also fine-tune the settings by clicking [Change plan settings].

■ The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down (S5) for rapid and easy management of your system power.

Power Management through ENERGY STAR qualified monitors

The power management feature allows the computer to initiate a low-power or “Sleep” mode after a period of user inactivity. When used with an external ENERGY STAR qualified monitor, this feature also supports similar power management features of the monitor. To take advantage of these potential energy savings, the power management feature has been preset to behave in the following ways when the system is operating on AC power:

ENERGY STAR

■ Turn off the display after 10 minutes
■ Initiate Sleep after 30 minutes

Waking the System Up

The computer shall be able to wake up from power saving mode in response to a command from any of the following:

■ the power button,
■ the network (Wake On LAN),
■ the mouse,
■ the keyboard.

Energy Saving Tips:

■ Turn off the monitor by pressing the monitor power button after a period of user inactivity.
- Tune the settings in Power Options under Windows OS to optimize your PC's power management.
- Install power saving software to manage your PC’s energy consumption.
■ Always disconnect the AC power cord or switch the wall socket off if your PC would be left unused for a certain time to achieve zero energy consumption.

Network Connection (Windows 10)

Wired Network

1. Right-click [Start] and select [Network Connections] from the list.
2. Select [Ethernet] and then [Network and Sharing Center].

g 19% [·] [·] [·] L 41 cm [·] d 51 [·] C 18 cm [·] D 18 cm [·] E 31 [·] b 4 cm [·] G 18 cm [·] H 18 cm [·] I 18 cm [·] J 18 cm [·] K 18 cm [·] L 18 cm [·] M 18 cm [·]

1. Select [Set up a new connection or network].

Network user sharing Center User/Request - Network and Internet - Internet user sharing Center Control Power Users Change update settings Change update sharing settings View your server network information and start up connections New user interaction networks Set up currently and connected to day networks Change your networking settings No up create connections or networks Set up a broadband, day up, or WiFi connections or end up in health or use auto controls Accession questions Diagnose and again wireless questions, or get quick accessing information

1. Choose [Connect to the Internet] and click [Next].
2. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password.

Access to Time do you want to connect! Forward: [1996a] [ ] 2000-2004 - 2005-2007 □ No connection from create or log out Cancel

1. Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection.

Display the information from your respective proxy provider (ODY) File name: Windows NT 800 files Password: ********** □ None passwords □ Dimenerate the password: Computer name: Android Computer □ Active other parameters use the connection This option allows us to access to this computer to use this connection 确定/取消

▶ Wireless Network

1. Go to [Start] , click [Settings] and select [Network and Internet].

2. A list of available WLAN connections pops up. Choose a connection from the list.

3. To establish a new connection, select [Network and Sharing Center].

Related settings Change adapter options Change advanced sharing options Network and Sharing Center HomeGroup Internet options Windows Firewall

1. Select [Set up a new connection or network].

2. Followingly, choose [Manually connect to a wireless network] and click [Next] to continue.

3. Enter information for the wireless network you intend to add and click [Next] to proceed.

Microsoft Connect to a wireless network Enter information for the wireless network you want to add Network name: Security type: Choose non-seconds Encryption type: Security key: Make choices Start this connection automatically Connect issues if the network is not broadcasting Warning: If you select this option, your computer's privacy might be at info. Save Cancel

1. A new WLAN connection has been made.

System Recovery (Windows 10)

The purposes for using the System Recovery Function may include:

• Restore the system back to the initial status of original manufacturer's default settings.
  ■ When some errors have occurred to the operating system in use.
  ■ When the operating system is affected by virus and is not able to work normally.
  ■ When you want to install the OS with other built-in languages.

Before using the System Recovery Function, please back up the important data saved on your system drive to other storage devices.

If the following solution fails to recover your system, please contact the authorized local distributor or service center for further assistance.

Reset this PC

1. Go to [Start] , click [Settings] and select [Update and security].

2. Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery.

Add Add this? Add this is all off 3.1, then I change on the 2016-2017 period 3.1 to 3.1 and Add this Add this is all off Add this is all off on the 2016-2017 period 3.1 to 3.1 and Add this is all off

1. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything].

Choose an option log version I know that you have a version to base and y3.0 I know that you have a version to option.

Reset this PC	Keep my files
	Remove everything	Only the drive where Windows is installed	Just remove my files
			Remove files and clean the drive
		All drives	Just remove my files
			Remove files and clean the drive

Keep my files

1. Select [Keep my files].

Choose an option Help you? Know your own task or what is Create me again. You can't get your own help.

1. The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs. Click [Next] to continue.

© your apps will be removed This is now closed to print any product in this and/or use to install all other apps. Download to download.

1. The next screen will show the changes to be made during the process. Click [Reset] to start the system reset.

Ready to rese. this PC Help us: • For me all you can use this PC or this PC? • Change image (this PC) • Use the device to save this PC. This PC is not closed!

Remove everything

1. Select [Remove everything].

Choose an option OK OK your option is taking any action. Choose an option 3.0 OK your option is taking any action.

1. If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives].
2. Then select between [Just remove my files] and [Remove files and clean the drive].

Do you want to clean the drives, too? And leaving it: The quick access to your drive is required. Power/Work button is left To avoid the drive, if extended when a driver needs we need to use your drive.

1. The next screen will show the changes to be made during the process. Click [Reset] to start the system reset.

Ready to rese. this PC Help you to use • All the next file is used to switch PC • Use PC to log or print PC to save PC • Use PC to print PC Next will change your next!

System Recovery (F3 Hotkey Recovery)

▶ Precautions for Using the System Recovery Function

1. If your hard drive and system encountered non-recoverable problems, please use the F3 Hotkey recovery from the Hard Drive first to perform the System Recover Function.

2. Before using the System Recovery Function, please backup the important data saved on your system drive to other storage devices.

▶ Recovering the system with the F3 Hotkey

Follow the instructions below to continue:

1. Restart the PC.
2. Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display.
3. On the "Choose an Option" screen, tap "Troubleshoot".
4. On the "Troubleshoot" screen, tap "Restore MSI factory" to reset the system to the default settings.
5. On the "RECOVERY SYSTEM" screen, tap "System Partition Recovery".
6. Follow the on-screen instructions to continue and complete the Recovery Function.
