BD3057B3SN - Refrigerator Profilo - Free user manual and instructions

Brand	Profilo
Model	BD3057B3SN
Product Type	Refrigerator with freezer compartment
Installation Type	Freestanding
Door Hinge	Reversible (left/right)
Max Door Opening Angle (Standard)	90°
Max Door Opening Angle (In Cavity)	125°
Distance from Wall (Hinge Side)	At least 40 mm for 90° opening
Cavity Projection Requirement	15 mm beyond furniture on each side
Height-Adjustable Feet	Yes, front feet
Glass Front	Yes
Transport Method	Appliance can be pushed; feet must be fully threaded
Power Supply	220-240 V, 50 Hz (typical)
Climate Class	SN-T (typical for this category)
Energy Efficiency Class	E (estimated for this model)
Net Capacity (Refrigerator)	Approx. 200 L (estimated)
Net Capacity (Freezer)	Approx. 50 L (estimated)
Noise Level	Approx. 40 dB (estimated)
Refrigerant	R600a (typical)
Weight	Approx. 60 kg (estimated)
Dimensions (H x W x D)	1850 x 600 x 650 mm (estimated)

Frequently Asked Questions - BD3057B3SN Profilo

How do I change the door hinges on my Profilo BD3057B3SN refrigerator?

It is recommended to have the door hinges changed by customer service. If you do it yourself, ensure the appliance is unplugged. Follow the numerical sequence in the installation manual (Fig. 1). Tilt the appliance back if needed and place packaging underneath. Not all models allow reversal.

What are the installation requirements for this refrigerator?

Install in a dry, well-ventilated room away from direct sunlight and heat sources (cooker, radiator). Minimum distances: 3 cm from electric/gas cookers, 30 cm from oil/solid-fuel cookers. The appliance must be level; use the front height-adjustable feet on uneven floors.

How much space is needed for the door to open properly?

For glass front models, the hinge side must be at least 40 mm from the wall to open 90°. For cavity installation, the appliance must project 15 mm beyond the furniture on each side to allow 125° opening.

Can I transport the refrigerator on its back?

The appliance can be pushed during transport. To avoid damage, ensure the height-adjustable feet are fully threaded. When transporting, handle the doors carefully as the glass front may shatter.

How do I clean the glass front?

Use a soft, damp cloth with mild detergent. Avoid abrasive cleaners or sharp objects that could scratch the glass. Dry with a lint-free cloth to prevent streaks.

What should I do if the refrigerator is not level?

Use the front height-adjustable feet to level the appliance. Turn the feet clockwise to raise or counterclockwise to lower. Ensure the appliance is stable and does not wobble.

Is the door hinge reversible on all models?

The instruction states that not all models have reversible door hinges. Check your specific model. For the BD3057B3SN, it is likely reversible, but confirm with the manual or customer service.

What is the recommended temperature setting?

The optimum refrigerator temperature is between 3°C and 5°C. The freezer compartment should be set to -18°C or lower. Adjust using the thermostat dial inside the appliance.

How often should I defrost the freezer?

This model likely features automatic defrost (no-frost) for the refrigerator section. The freezer may require manual defrosting when ice build-up exceeds 5 mm. Follow the instructions in the user manual.

Where can I find the user manual for this refrigerator?

You can download the user manual for the Profilo BD3057B3SN in PDF format from notice-facile.com or the manufacturer's website. The manual includes installation, operation, and maintenance instructions.

USER MANUAL BD3057B3SN Profilo

Installationinstructionsen

Montajtalimatlaritr

Сборкаги

Installing the appliance 5

Installation location 5

Distance from wall 5

Installation in cavity 6

Changingoverthedoorhinges ..... 6

Aligning the appliance 6

Transport7......

tr İçindekiler

Transport7......

Cihazın kurulması 7

Gerätaufstellen

Transporting

Caution!

Whentransportingandinstallingthe appliance,handletheappliancedoors carefully.Theglassfrontmayshatter!

The appliance can be pushed. Therefore the height-adjustable feet at the front of the appliance must be completely threaded.

Installingtheappliance

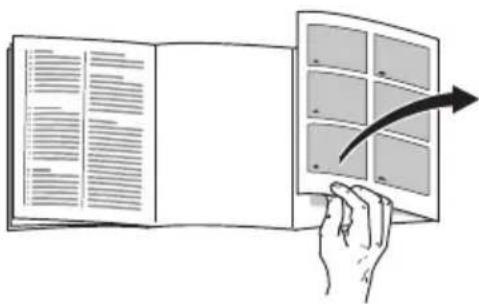

Pleasefoldouttheillustratedlastpage. Theseinstallationinstructionsreferto severalmodels.

Thediagramsmaydiffer.

Installationlocation

Theapplianceshouldbeinstalledinadry, wellventilatedroom. Theinstallation locations should neither be exposed to directs sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use as suitable insulating plate or observe the following minimum distance to a heat source:

3cmtoelectricorgascookers. 30cmtoanoilorsolid-fuelcooker.

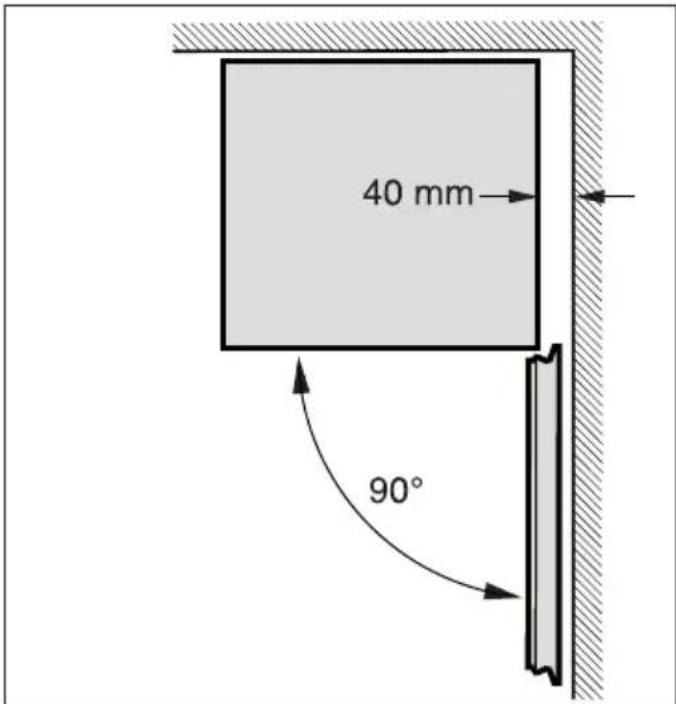

Distancefromwall

Ifappliancesfeatureaglassfront, the hingesidemustbeatleast40 mm fromthewalltoensurethatthedoors can beopenedby90°.

Installationincavity

Theappliancemustproject15 mm beyondthefurnitureoneithersideto ensurethatthedoorscanbeopenedby 125°.

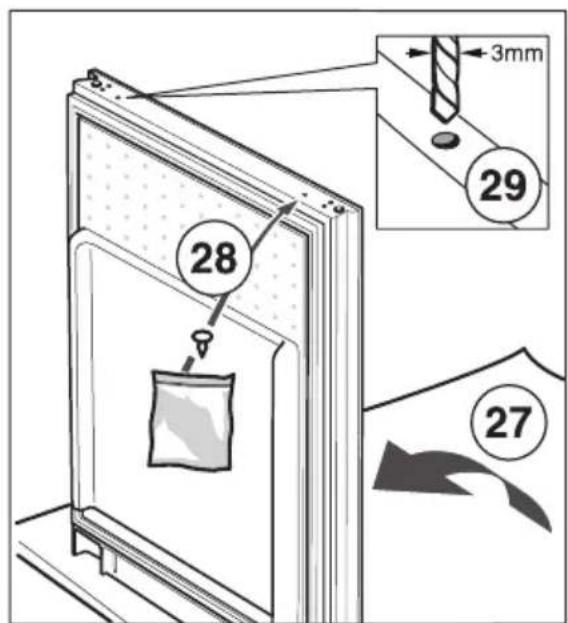

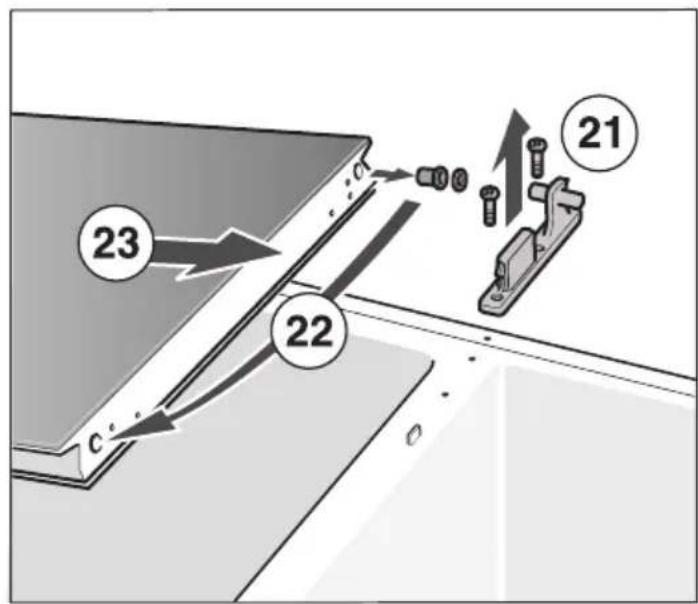

Changingoverthedoor hinges

Werecommendthatyouhavethedoor hingeschangedoverbyourcustomer service.Youcanfindoutthecostsfor changingoverthedoorhingesfromyour appropriatecustomerservice.

⚠ Warning!

While changing over the door hinges, ensure that the appliance is not connected to the powers supply. Pull out them ains plug beforehand. Tilt back the appliance if required, place packaging material, etc. underneath.

Installationinnumericalsequence.Fig. 1

*Notallmodels.

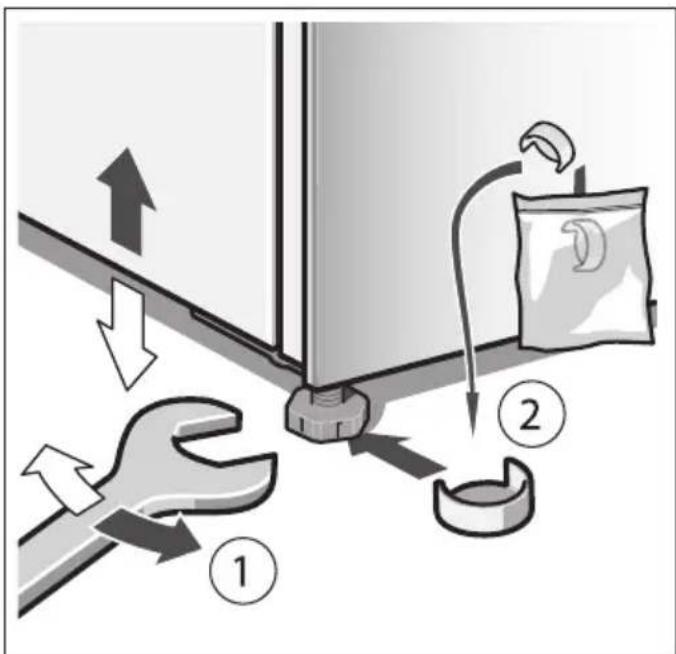

Aligningtheappliance

Theappliancemustbelevel.Iftheflooris uneven,usethefrontheight-adjustable feet.

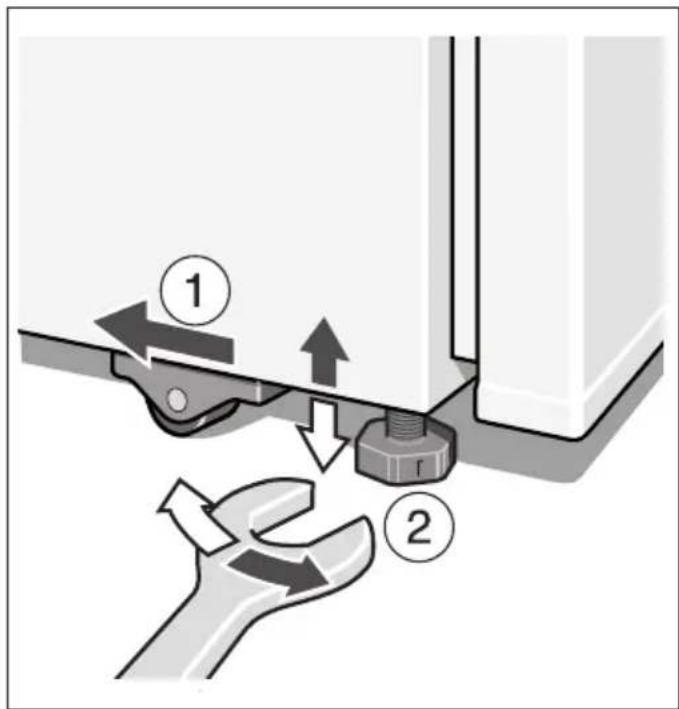

Transport

⚠️Dikkat

Cihazınkurulması

Транспортировка

⚠️ Осторожно

Illustration of a refrigerator with a curved arrow indicating motion or change (no text or symbols)
