DA-PI2101 - PoE Injector IDIS - Free user manual and instructions

Product Type	PoE Injector
Brand	IDIS
Model	DA-PI2101
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	48 V DC
Power Output	30 W (max)
PoE Standard	IEEE 802.3af/at (PoE/PoE+)
Ports	1 x RJ-45 Data In, 1 x RJ-45 PoE Out
Data Transfer Rate	10/100/1000 Mbps (Gigabit)
Dimensions (L x W x H)	100 mm x 60 mm x 30 mm
Weight	200 g
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	5% to 90% (non-condensing)
Protection	Overcurrent, Overvoltage, Short Circuit
LED Indicators	Power (Green), PoE Active (Amber)
Installation	Desktop or wall-mountable (bracket included)
Maintenance & Cleaning	Wipe with a dry, soft cloth; do not use liquids
Safety	CE, FCC, RoHS compliant; use with certified Ethernet cables
Spare Parts & Repairability	No user-serviceable parts; contact IDIS support for replacements
General Information	Designed for powering IP cameras, access points, and other PoE devices

Frequently Asked Questions - DA-PI2101 IDIS

What is the DA-PI2101 PoE Injector used for?

The DA-PI2101 is used to supply power and data over a single Ethernet cable to PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.

What PoE standard does the DA-PI2101 support?

It supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), delivering up to 30W of power.

Can I use the injector with non-PoE devices?

No, the injector adds power to the Ethernet cable. Non-PoE devices may be damaged. Use a PoE splitter if needed.

Does the injector affect network speed?

No, the DA-PI2101 supports Gigabit Ethernet (10/100/1000 Mbps) and passes data without degradation.

How do I install the DA-PI2101?

Connect the Data In port to your network switch using an Ethernet cable, then connect the PoE Out port to your PoE device. Plug the power cord into an AC outlet.

What do the LED indicators mean?

The Power LED (green) lights when the injector is receiving power. The PoE Active LED (amber) lights when power is being delivered to the connected device.

Can the injector be mounted on a wall?

Yes, the DA-PI2101 comes with a mounting bracket for wall installation. Use the included screws to secure it.

What should I do if the PoE device does not power on?

Check the power cord connection, verify that the device is PoE-compatible, and ensure the Ethernet cable is Cat5e or better. If the PoE Active LED is off, the device may draw too much power.

Is the DA-PI2101 compatible with IDIS cameras?

Yes, it is designed to work seamlessly with IDIS IP cameras and other IDIS PoE devices, as well as standard PoE devices from other brands.

How do I clean and maintain the injector?

Disconnect the power before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use any liquids or chemicals. Ensure adequate ventilation around the unit.

USER MANUAL DA-PI2101 IDIS

PoE Injector IEEE 802.3at PoE Power Source Injector, 10/100/1000 Mbps LAN

Operation Manual

DA-PI2101

FCC Compliance Statement

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

User's Caution Statement

Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Product Overview

DA-PI2101 is a single port PoE Power Source (PSE) injector that supplies 55V DC power to a remote network camera via a UTP Ethernet cable. It offers outstanding reliability with low power consumption and long life span. It is capable of transmitting maximum of 30W of output for up to 100 meters.

DA-PI2101 is IEEE802.3af and IEEE 802.3at-compliant. It is also equipped with a circuitry for preventing damages to the device when non-standard or low-voltage PoE devices are connected to ensure safe operations.

Product Features

• Up to 30W of PoE Power Feeding on 2-pairs
• Compatible with IEEE 802.3af/at
• Protects low power devices to receive only the power they need

- Automatic detection and protection of non-standard Ethernet terminals

• Supports 10/100/1000 Base-T LAN environment
- Parallel slide-in design to ease the installation

Accessories

The product consists of the following components.

Line drawing of a rectangular electronic device with a label on the front panel (no readable text or symbols)

Main Unit (DA-PI2101) AC power cable

(conventional 220V)

Operation Manual

Front

Back

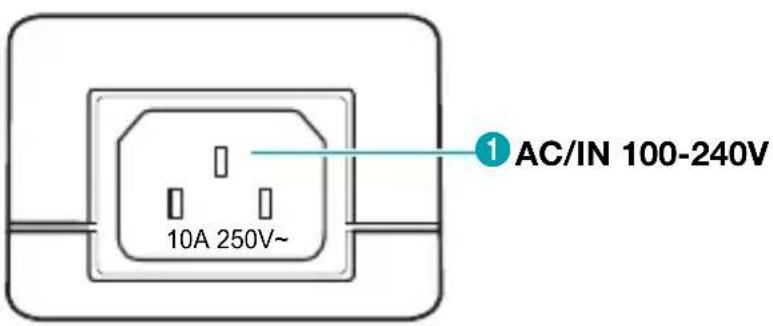

1	AC/IN 100-240V	Insert the AC power cable to the main unit to turn the device On.

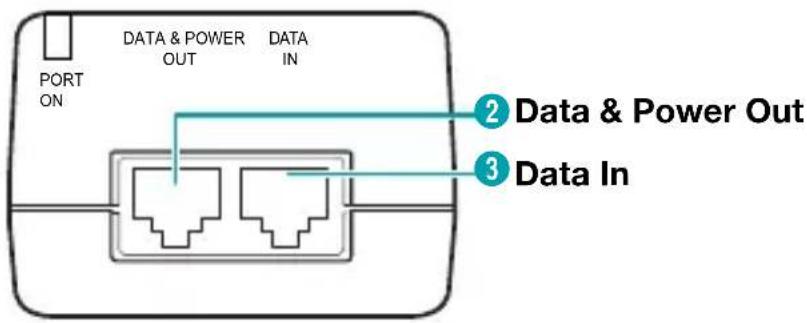

2	Data Power Out	Sends power and data received via Data In port over UTP cable.
3	Data In	Receives data input via UTP cable.

1 Connect the AC power cable to DA-PI2101.

Make sure that the power LED (Yellow LED at the top) is lit.

2 Connect the Video In port of DirectIP™ NVR and Data In port of DA-PI2101 using a UTP cable.
3 Connect the DATA & POWER OUT port of DA-PI2101 and network port of DirectIP™ camera using a UTP cable.
4 Make sure that the camera is connected to power source and camera is connected to the NVR.

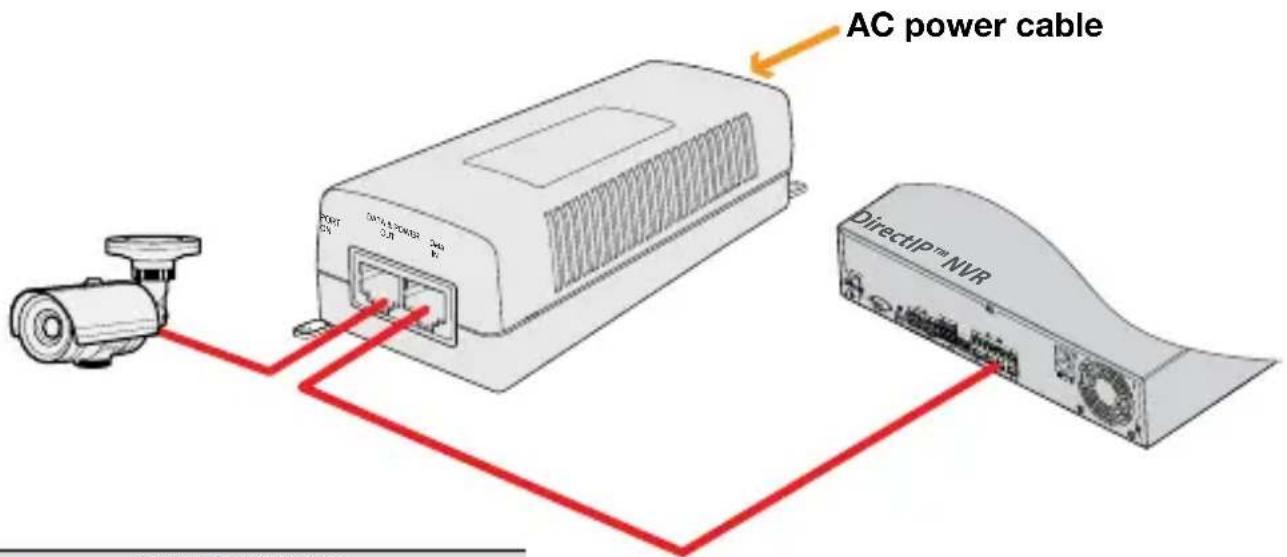

Installation Layout

Types of Cables
	UTP Cable (Data only)
	AC Power

Specifications

Model	DA-PI2101
Power input port	1
Transfer speed	10/100/1000 Mbps
Power pin allocation	4/5 (+), 7/8 (-)
Power output	55V DC, 30W Max.
Power input	100 ~ 240 VAC, 50/60Hz, 0.67A
Dimensions (W)X(D)X(H)	53 X 140 X 32.5 (mm)
Weight	200g
LED indicators	Power input (Yellow LED), PoE Power Output (Green LED)
Connector	RJ-45
Operating Temperature	-10°C ~ +40°C (14°F ~ 104°F)
Approval	FCC, CE, KC, UL

IDIS
