HIFE18B2NA - Air conditioner Elgin - Free user manual and instructions

Product Type	Split Air Conditioner (Cooling Only)
Model	HIFE18B2NA
Brand	Elgin
Cooling Capacity	18,000 BTU/h
Power Supply	208-230V / 60Hz
Phase	Single Phase
Refrigerant	R410A
Energy Efficiency Ratio (EER)	11.0 (Estimated)
SEER	13.0 (Estimated)
Indoor Unit Dimensions (W x H x D)	38.6 x 11.4 x 8.3 inches
Indoor Unit Weight	27 lbs
Outdoor Unit Dimensions (W x H x D)	34.3 x 25.2 x 12.6 inches
Outdoor Unit Weight	77 lbs
Air Flow (Hi/Lo)	600/450 CFM
Sound Level (Indoor)	45 dB (Low), 52 dB (High)
Sound Level (Outdoor)	62 dB
Timer Function	24-hour On/Off Timer
Remote Control	IR Remote Included
Filter Type	Washable Mesh Filter
Filter Cleaning	Every 2 weeks (recommended)
Self-Diagnosis	LED Error Code Display
Low Voltage Start-Up	Yes
Auto Restart After Power Failure	Yes
Sleep Mode	Yes

Frequently Asked Questions - HIFE18B2NA Elgin

How do I clean the air filter on my Elgin HIFE18B2NA air conditioner?

Turn off the unit and unplug it. Open the front panel, remove the filter, vacuum or wash it with mild soap and water, let it dry completely, then reinstall. Clean every 2 weeks during heavy use.

What do the error codes on the display mean?

Common codes: E1 - indoor sensor error, E2 - outdoor sensor error, E3 - communication error, E4 - high pressure protection, E5 - low pressure protection. Refer to your manual for full list.

How do I use the timer function?

Press the TIMER button on the remote. Use +/- to set the desired on or off time. Press SET to confirm. The unit will automatically start or stop at the programmed time.

The remote control is not working. What should I do?

Check if the batteries are dead and replace them with new ones. Ensure there is no obstruction between the remote and the indoor unit. Point the remote directly at the unit. If still not working, try resetting the unit by unplugging for 5 minutes.

How often should I service my air conditioner?

Clean the filter every 2 weeks. Have a professional inspect and clean the coils, check refrigerant levels, and tighten electrical connections annually.

Can I install the air conditioner myself?

Split air conditioner installation requires proper tools and knowledge of electrical and refrigerant systems. It is recommended to hire a certified HVAC technician to ensure safe and efficient operation.

Why is my air conditioner not cooling enough?

Check if the filter is dirty, if the thermostat is set correctly, if doors/windows are closed, and if the outdoor unit has proper airflow. If problem persists, it may need professional diagnosis.

How do I set the sleep mode?

Press the SLEEP button on the remote. The unit will gradually increase the temperature by 1°C (2°F) per hour for up to 2 hours, then maintain that temperature for 6 hours before shutting off. This saves energy and prevents overcooling.

What is the recommended temperature setting for energy efficiency?

Set the thermostat to 24°C (75°F) for a balance of comfort and energy savings. Each degree lower increases energy consumption by about 6%.

How do I troubleshoot water leakage from the indoor unit?

If water drips from the indoor unit, check if the filter is dirty (causing ice formation), if the unit is properly leveled, and if the drain line is clogged. Clean the drain line with a mixture of bleach and water or a wet/dry vacuum.

USER MANUAL HIFE18B2NA Elgin

Line drawing of a mechanical component being held, with an inset showing a detail (no text or symbols)

6. PAINEL INDICATIVO DA UNIDADE INTERNA

INDICADOR DE TEMPERATURA

- Este visor mostra a temperatura ajustada e código de autodiagnóstico.

Isometric line drawing of a wall-mounted air conditioner unit with a hand adjusting its panel (no text or symbols)

Line drawing of a hand pressing down on a wall-mounted air conditioner (no text or symbols)

16. TRAVAR

Illustration of hands holding a rectangular object with an inset showing a detail of a corner detail (no text or symbols)

Line drawing of a car air conditioner unit with a hand pressing down on the cover (no text or symbols)

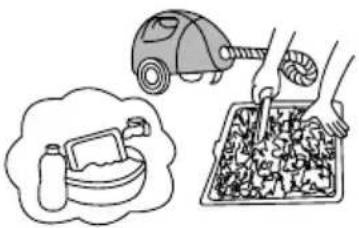

Illustration showing a vacuum cleaner pouring liquid into a tray of food, with a thought bubble containing a container (no text or symbols)

CASO O APARELHO NÃO SEJA UTILIZADO POR LONGO PERÍODO

Retire as pilhas do controle remoto.

Cartoon illustration of a person sitting on a bed, appearing tired or frustrated (no text or symbols)

Diagram showing battery charging process with two batteries and a plug, no text or symbols present

Line drawing of a car air conditioner unit with a hand adjusting the panel (no text or symbols)

Cartoon illustration of a person hanging from a ceiling with a large mouth, next to an abacus (no text or symbols)

Cartoon illustration of a person riding a smiling, anthropomorphic object (no text or symbols)

Cartoon illustration of a smiling face with arms outstretched, surrounded by arrows pointing downward (no text or symbols)

Cartoon illustration of a distressed character opening a door with smoke (no text or symbols)

Cartoon illustration of a smiling character with a speech bubble and computer screen (no text or symbols)

Cartoon illustration of two smiling characters in a stylized airplane (no text or symbols)

24. CUIDADOS NO MANUSEIO

Cartoon illustration of a person reacting to a crying face while another person holds his hand, with no text or symbols present.

Illustration of a fire extinguisher inside a brick stove with a person reacting in shock (no text or symbols)

Simple line drawing of a person sleeping on a bed (no text or symbols)

Cartoon illustration of a sad food character standing on a tray with fruits and drinks (no text or symbols)

25. CERTIFICADO DE GARANTIA
