| Product Type | Video Projector Lift / Flat Panel Mount |
| Model | Lift Pivot 26P (Da-Lift 26PL) |
| Load Capacity | 25 lbs (11.3 kg) |
| Power Supply | 120V AC, 60 Hz, less than 5.0 amps |
| Material | Fabricated mild steel (14-gauge welded support frame, 14-gauge welded tilting frame, 18-gauge ceiling tile holder and trim) |
| Finish | White powder coat |
| Dimensions (Width A) | 17.00 in (432 mm) |
| Dimensions (Depth B) | 13.63 in (346 mm) |
| Dimensions (Height C) | 25.38 in (645 mm) |
| Travel (D) | 16.00 in (406 mm) |
| Ceiling Opening Width (E) | 14.00 in (356 mm) |
| Ceiling Opening Depth (F) | 12.75 in (324 mm) |
| Mounting | Suspended ceiling or drywall ceiling |
| Adjustments | Front to back, left to right, vertical, and tilt |
| Controls | Internally mounted wall switch; optional infrared or radio frequency remote |
| Electrical | Prewired 120V AC grounded duplex receptacle, two outlet boxes, duplex plate |
| Cable Management | Signal cable and power cord management options; electrical knockouts |
| Included Mount | Universal projector mount |
| Compliance | Underwriters' Laboratories listed |
| Installation | Designed for ceiling recessed installation; adjustable bottom for flush finish |
Frequently Asked Questions - Lift Pivot 26P DA-LITE
User questions about Lift Pivot 26P DA-LITE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Flat Screen Mount in PDF format for free! Find your manual Lift Pivot 26P - DA-LITE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Lift Pivot 26P by DA-LITE.
USER MANUAL Lift Pivot 26P DA-LITE
- Raise or lower video projectors weighing up to 300 pounds with a push of a button.
- Heavy-duty, all metal construction with rack and pinion, chain drive lift mechanism for quiet operation.
- Bottom of lift is adjustable for flush installation and can be finished to match ceiling.
- Complete with three position control switch with cover plate.
- Optional plenum kit available where needed. Plenum covers meet plenum building codes for Da-Lite's complete line of concealed projector lifts.

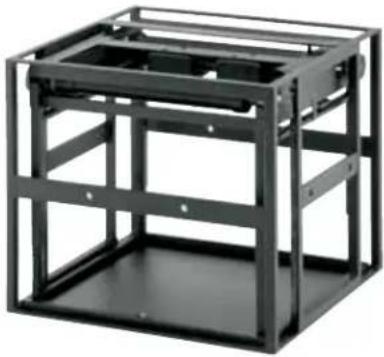

SUGGESTED SPECIFICATIONS:
_Video Projector Lift, Model
Da-Lift 15, 19 or 19L,
electrically operated 120 V (60 Hz) not more than 2.2 amp. for projectors weighing up to 300 pounds. Da-Lift 10M and 15M electrically operated 120 V (60 Hz) not more than 1.5 amp. for projectors weighing up to 40 pounds. To have rack and pinion, with chain drive lift mechanism. Shall have specially designed motor, to be three wire with ground, quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor and an electric brake to prevent coasting. To have preset but adjustable limit switch to automatically stop lift in the "down" position. When raised,
the lift will engage a micro switch that will cut power to the motor. Frame to be black welded steel with two electrical outlets furnished on the platform, for ceiling recessed installation. Bottom of projector lift to be adjustable to allow flush installation with surrounding surface. Removable tray is attached to bottom frame assembly to allow for ceiling tile attachment (by others). To be complete with three position control switch with cover plate. Optional low voltage, radio frequency or infrared, remotes available. Optional plenum kit available where required by code. To be listed by Underwriters' Laboratories.
DA-LIFT VIDEO PROJECTOR LIFT SPECIFICATIONS
| Model | Inside Dimensions | Unit Approx. | ||||||||
| Load Cap. Lbs. | Width “A” In. | Height “B” In. | Depth “C” In. | Travel “D” In. | Width “E” In. | Height “F” In. | Depth “G” In. | Weight Lbs. | Ship. Wt. Lbs. | |
| Da-Lift 10M | 40 | 225/8" | 15" | 22" | 10" | 181/2" | 10" – 17" | 171/2" | 87 | 115 |
| Da-Lift 15M | 40 | 225/8" | 20" | 22" | 15" | 181/2" | 15" – 22" | 171/2" | 87 | 115 |
| Da-Lift 15 | 300 | 303/4" | 20" | 34" | 15" | 261/2" | 15" – 22" | 281/2" | 122 | 172 |
| Da-Lift 19 | 300 | 323/4" | 24" | 38" | 19" | 281/2" | 19" – 30" | 321/2" | 132 | 182 |
| Da-Lift 19L | 300 | 423/4" | 24" | 48" | 19" | 381/2" | 19" – 30" | 421/2" | 177 | 215 |
DA-LIFT PIVOT
FEATURES:
- Includes universal projector mount.
- Front to back, left to right, vertical, and tilt projector adjustments.
- Signal cable and power cord management options.
• Electrical knockouts provided. -
Internally mounted wall switch for installer operation.
-
Includes two outlet boxes, prewired duplex female receptacle, and duplex plate.
- All internal wiring is complete.
- Designed to mount in suspended ceiling or drywall ceiling.
- Infrared or radio frequency remote operation available.
- Unit has white powder coat finish.
SUGGESTED SPECIFICATIONS:
Da-Lite/Advance Video Projector lift model Da-Lift ____ 26PL/33PL shall be mounted where indicated on plans. The lift shall operate on 120V AC power and not draw more than 5.0 amps. The mount shall be a fabricated mild steel design and consist of a 14-gauge welded support frame, 14-gauge welded tilting frame, 18-gauge ceiling tile holder and 18-gauge ceiling tile trim piece. Product shall have a prewired 120V AC grounded duplex receptacle and a prewired built-in switch for installer operation. Product shall have a commercial powder coat white finish.
DA-LIFT PIVOT VIDEO PROJECTOR LIFT SPECIFICATIONS
| Model | Load Cap. | Dim. A | Dim. B | Dim. C | Dim. D | Dim. E | Dim. F |
| Da-Lift 26PL | 25 lbs. | 17.00" | 13.63" | 25.38" | 16.00" | 14.00" | 12.75" |
| Da-Lift 33PL | 25 lbs. | 21.50" | 16.63" | 32.38" | 20.50" | 18.50" | 16.25" |
