USER MANUAL DENEB 5Q GPIO Ram Audio

INSTALLATION AND FIRST STEPS

Welcome to RAM OCS, the Online Control System for RAM Audio V/W Series DSP amplifiers. By using it you can control and monitor the DSP unit of a V/W amplifier through an Ethernet network or a USB connection, in a Windows system.

To start, install the software in a Windows system (XP, Vista, 7, 8 or 10) and connect the amplifiers to the Ethernet network or the USB port. Each amplifier is programmed from factory with a unique IP number inside the range 192.168.xxx.xxx. To detect initially the amplifiers you have to work inside this range. Change the computer IP to 192.168.0.10 for example, and use a mask 255.255.0.0. After detect the amplifiers inside this range you can change the IP of each one if required.

Execute the RAM OCS software using the Shortcut created in the desktop and start scanning the network. To do that, click in the loupe (1) icon placed near to the left top side of the window. The system has to detect all amplifiers you have connected in your network or connected using the USB port. To open an amplifier you have to do a double click on the amplifier showed in the devices tree (2).

Create a virtual amplifier: if you do not have any amplifier connected to the system, you can add an offline amplifier clicking with the right mouse button on the "Amplifiers" section of the devices tree (3), and selecting the Add device option.

To obtain some help for the different button functions, you can maintain the cursor over a button for two seconds to show a hint which can help you.

The elements of the main screen are as follows:

Project Menu Tab Amp Menu Tab Amplifier configuration main window RAM OCS - Online Control System - Project1 mpocs [My Project] RAM V12044 - NTL_Amp1 - 244V4567 New Library Open Library Case Library Save Library Receive Library Send DSP Firmware Show Frequency Monitor Real Time Operation File Customizations View Project/Camp Menu Icons 1 Devices Control Groups Zone / Model Name SN All Devices Amplifiers V12044 NTL_Amp 244V4567 1 Amps Scan - Tree management icons 3 Devices Tree: show a list of all amplifiers detected in your Ethernet network or USB connection 2 1 V12044 - NTL_Amp1 - 244V4567 - Stadium.alibocs Library DSP Edit Gain Delay PEQ In X-IIR X-FIR PEQ Out RMS Dyn. PEAK Dyn. Amp. Setup Speaker Data Global Preset Load Alt AR 215 Box Send Alt In Preset: 2/1/1/1 Route 1/1/1/1 Out Preset: 2/2/3/4 Read Current INPUTS GAN DELAY PEQ In Preset Load Main Eq Sound IN-1 Analog SPK-15 Scan DANTE In Preset Load Bpass Flat Sound IN-2 Analog SPK-15 Scan DANTE In Preset Load Bpass Flat Sound IN-3 Analog SPK-8 Scan DANTE In Preset Load Bpass Flat Sound IN-4 Analog SPK-8 Scan DANTE Route X-SR X-FR GAN DELAY PEQ RMS DYN PEAK DYN OUTPUTS Output Preset Load 2 SPK-15 CH-A Low Output Preset Load 2 SPK-15 CH-D Low Output Preset Load 3 Ex SPK-8 CH-C Mid Output Preset Load 4 Ex DRV-4 CH-D S Frequency response - V12044 - NTL_Amp1 - 244V4567 Influence Legend Gain Case A: Low C: Low D: Hi Sum Delay In B: Low C: Mid D: Hi Sum PEQ In C: Mid D: Hi Sum X-IIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIR X-FIRM Cursor Show Name Max: 10 Hz 0 dB A: Low B: Low C: Mid D: Hi Sum Show Phase Zoom In/Out Right button Fanc CTRL Left button Frequency

Frequency response graphic window

MAIN MENU DESCRIPTION

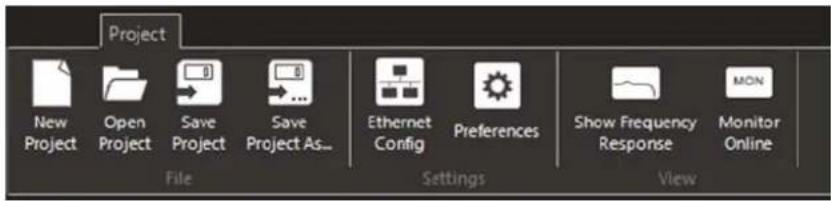

- Project Menu icons:

Project New Project Open Project Save Project Save Project As... Ethernet Config Preferences Show Frequency Response MON Monitor Online File Settings View

It contains different sections:

File section: contains different icons for manage your project, to open or save the structure of an amplifier group. Also you can create a new empty project.

Settings section: contains the following icons:

- Ethernet devices: pressing this icon you can change the name or the IP of an amplifier. Also you can send a buzz to a specific amplifier to do a blinking of the back panel LEDs to help you to identify an amplifier.

- Preferences: permits to change different software parameters, as can be the dB scale of the response window, humidity and temperature taken in account to calculate the speed of sound, wrapped or unwrapped phase representation, or write a resume of the current project. Also, contains a button for firmware update.

View section: contains the following icons:

- Show Frequency Response: shows the graphical window with the frequency response of your current DSP configuration. - Monitor Online: turn on/off the monitor mode which permits to read the real time data of the current amplifier. You can see it in the Gain or Amp Setup tabs

- Amplifier Menu icons:

New Library Open Library Save Library Save Library as... File Communications Show Frequency Response MON Monitor Online RT Real Time Operation View

It contains different sections:

File section: contains different icons where you can manage your Library, to open or save the current PC Library. Also you can create a new empty Library.

Communications section: using the icons you can send or receive the current library to/from the amp. These icons are the same you have in the Sync Library section of the Library Tab. Also you can send to the amp a new DSP firmware to upgrade it in the future.

View section: contains the following icons:

- Show Frequency Response: shows the graphical window with the frequency response of your current DSP configuration. - Monitor Online: turn on/off the monitor mode which permits to read the real time data of the current amplifier. You can see it in the Gain or Amp Setup tabs. - Real Time Operation: turn on/off the real time mode, so any change you make in the DSP configuration or the amplifier setup is replayed instantaneously. When you enable this option, it will synchronize the amp and the PC configuration, sending the current configuration you have in the PC to the amplifier.

DSP AMPLIFIER WINDOW

When you open a DSP amplifier appears a window which contains different tabs. The description of these Tabs are as follows:

1- Library (green tab): this tab shows the complete presets library, which contains 65 Input presets, 99 Output Presets and 64 Global Presets. Using this tab you can manage the Library to make different functions:

• Send the Input/Output/Global Presets to the amp
• Open/Save a Library file from/to the PC
• Send/Receive the complete Library to/from the amp

You can assign Input and Output presets for each channel individually, or you can make a combination of different input and output presets defining a Global Preset, to assign the desired combination of input and output presets to all channels simultaneously. To create the presets you have to use the following tab DSP Edit.

The elements of this tab are as follows:

Global Preset list tab Input Preset list tab Output Preset list tab Send buttons: to send the Global/In/Out Presets to the amp. You can send a single preset or all list. Disk Library section: use these buttons to Open and Save a complete Library (Global+In+Out presets) as a file in the PC disk Library DSP Edit Gain Delay PEQ In X-IIR X-FIR PEQ Out RMS Dyn. PEAK Dyn. Amp. Setup Speaker Data Global Preset Input preset Output preset Preset Information Comments Project Engineer Send All Global Presets Send Selected Global Preset Send & Recall Selected Preset Disk Library Demo Lib.alliboc Open Library File Save Library File Save Library File as... Sync Library Send Library To Amp Receive Library From Amp No Preset Name Inputs Routes Outputs 1 AR215 1/2/3/4 1/1/1/1 1/2/3/4 2 AR210 + Sub 1/2/2/2 1/2/2/2 13/14/15/16 3 4x PM10 Full 3/3/3/3 1/2/3/4 5/6/7/8 4 LR PM15 7/8/2/2 1/1/2/2 12/13/12/13 5 P21 Full 1/1/1/1 1/1/1/1 14/14/14/14 6 2x LR Stage 7/7/8/8 1/3/2/4 16/17/16/17 7 (Empty) -/-/- -/-/- -/-/-- Global/In/Out Preset list, includes the preset number and name information Send & Recall button: to send and recall on the amp (place as current) a specific preset. In case of In/Out Preset you have to specify the Channel Sync Library section: to synchronize the amp and PC Library. You can send the current Library to the amp, or receive the Library from the amp

Reset preset Reset this preset Open from disk Open file from disk into livery Save to disk... Save this preset to disk Read preset from amp Read this preset from amp Send preset to amp Send this preset to amp input library Send preset to amp output... Send this preset to output...

When you press the right mouse button over a Preset you open a menu with the next options:

Reset Preset: initializes completely a Preset erasing all data it contains.

Open from disk: you can open a file previously saved which contains all Preset information.

Save to disk: save a file to disk with all Preset information.

Read preset from amp: reads from the amplifier library the selected Preset.

Send preset to amp: sends to the amplifier library the selected Preset.

Send preset to amp output/input: sends to the amplifier library and recall the selected Preset to a specific output/input.

2- DSP Edit (blue tabs): using this tab you can create the Input/Output/Global Presets. You can access to the different parameters of the preset using the blue tabs next to DSP Edit tab (Gain, Delay, PEQ In, X-IIR, X-FIR, PEQ Out, RMS Dyn, PEAK Dyn) or pressing directly the icon of the parameter desired of each channel. After define all required parameters, to create a preset you have to assign a unique memory number, a name, and press the button Send. This creates an Input/Output preset, assigns it to a fix memory in the PC and amp library, and recall it in the amp (places it as current). If you are working with an offline amplifier (you have not connected an amplifier), then only sends it to the PC library.

You can create a preset and send it to the library using any channel you want. After that you can load it in any channel, selecting it using the up/down arrows and pressing the Load button. To send and recall (place as current) it to the amplifier, press the button Send.

The Global Preset contains the information of a combination of Input/Output presets memory and the Route section, to work easily with a fix combination of presets. So, you can define the different Input/Output presets you will use for each channel, define also the Route section and assign a number and name for the Global Preset. After that, press the button Send All and you will send all In/Out presets you have used to the library and also the definition of this combination together with the Route section to create a Global Preset. After that, you can Load it quickly searching the number using the up/down arrows of the global preset section and pressing the Load All button. Warning: pay attention to avoid overwrite any In/Out preset if you have defined it with the same memory number when you press the Send All button.

Using the Read Current button you transfer to the DSP Edit tab all parameters which are loaded as current in the amplifier.

The elements of the DSP Edit tab are as follows:

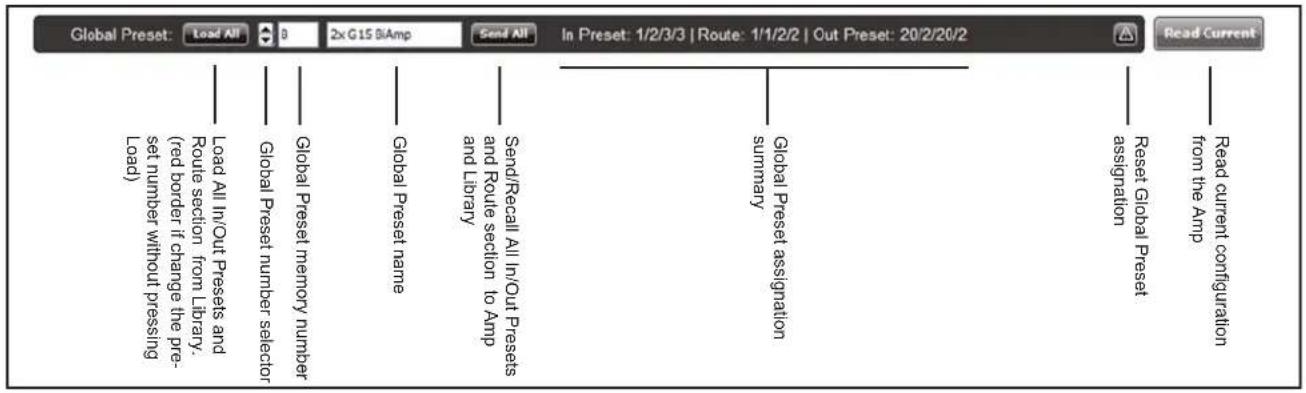

Global Preset: Load All 0 2x G15 BiAmp Send All In Preset: 1/2/3/3 | Route: 1/1/2/2 | Out Preset: 20/2/20/2 Read Current Load All In/Out Presets and Route section from Library. (red border if change the pre- set number without pressing Load) Global Preset memory number Global Preset number selector Global Preset name Send/Recall All In/Out Presets and Route section to Amp and Library Summary Global Preset assignation Read current configuration assignment Reset Global Preset from the Amp

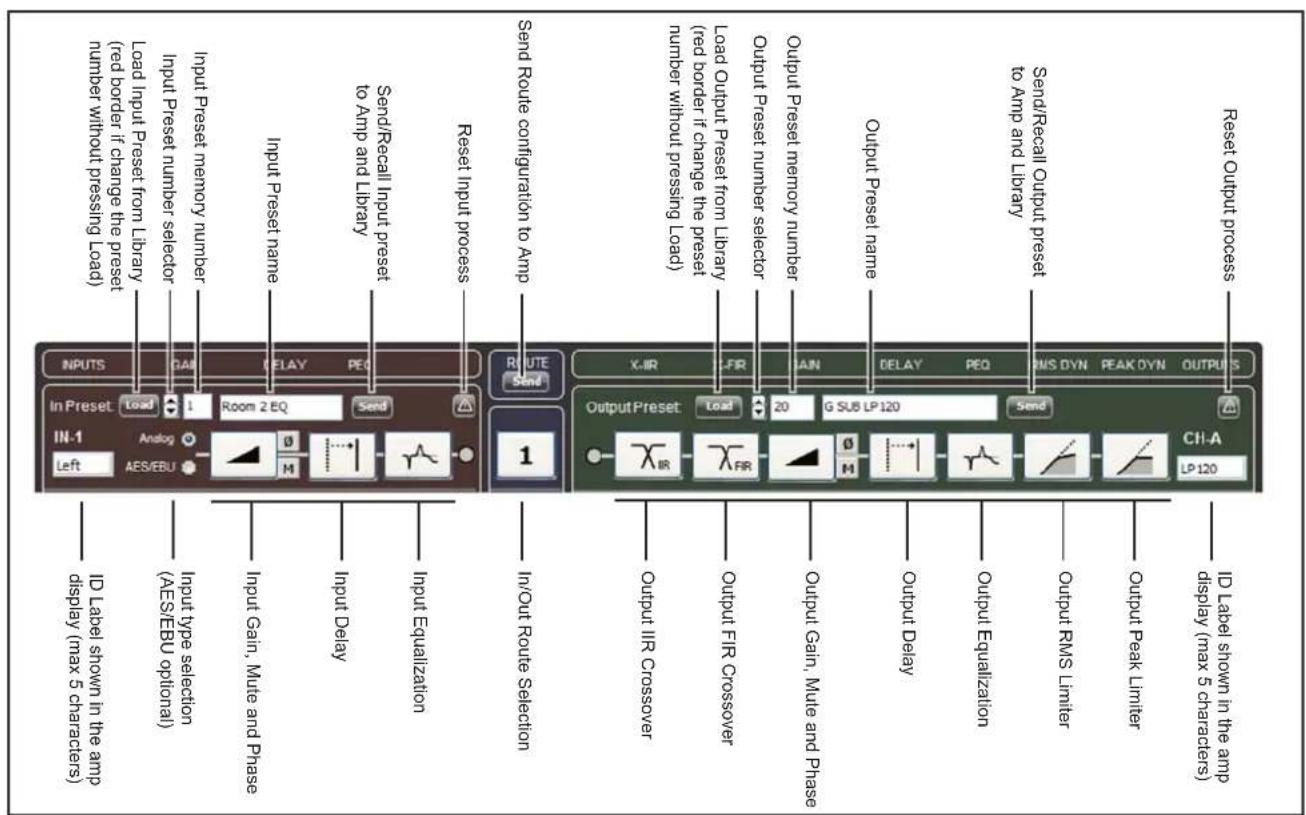

Input Preset Load Input Preset number selector Load Input Preset from Library ( red border if change the preset number without pressing Load) Input Preset memory number Input Preset number selector Input Preset name Input Preset name Send/Recall Input preset to Amp and Library Send Route configuration to Amp Output Preset number selector Load Output Preset from Library (red border if change the preset number without pressing Load) Output Preset memory number Output Preset name Output Preset output preset to Amp and Library Send/Recall Output preset to Amp and Library Reset Output process In/Preset IN-1 Left Analog AES/EBU Route Send X-IR Output Preset X-IR Output FIR Crossover Output FIR Crossover Output Gain, Mute and Phase Input Delay Input Equalization In/Out Route Selection Output Delay Output Equalization Output RMS Limiter Output Peak Limiter CH-A LP 120 ID Label shown in the amp display (max 5 characters) ID Label shown in the amp display (max 5 characters)

When you access to the DSP Edit tab, the Frequency Response curve window is automatically open. You can also open or close this window using the corresponding icon in the main menu.

The elements of the Frequency Response window are as follows:

Frequency response - V12044 - MTL_Amp1 - 244V4567 Influence Gain Delay In PEQ In X-IIR X-FIR Delay Out PEQ Out Speaker Legend Cursor Show Name A: Low B: Low C: Mid D: Hi Sum Show Phase 1000 Hz ; 0 dB Max. 15 10 5 0 -5 -10 -15 Min. 100 1000 10000 Zoom In/Out: Right button | Pan: CTRL+Left button Frequency Channel selection: you can select which curve is shown, including the sum of all channels (Add). You can change the plot colors. Also you can show the Phase response. Use the Cursor marker to select the active curve to show in the Cursor Information section Frequency response plot: shows the frequency response of the 4 channels on the DSP Edit tab. You can change the dB scale (changing the Options in the Project menu). You can make a Zoom using the right mouse button and selecting the region towards the right side. If you select the region towards the left side you have a zoom out function. You can make a Pan function pressing the left mouse button together to the [Ctrl] key Corner resize

3- Amp Setup: using this tab you can control different amplifier parameters. You can change the front panel potentiometers Level, Gain, configure bridge mode, disable the ICL system or Link the inputs (not available with DSP installed). Also you can monitor the output voltage, current (if installed option), temperature and show the LED status. The system measures in real time the impedance of the load connected to each channel (if installed option). To activate all monitor functions you have to press the Monitor Online icon in the top menu. Also, optionally you have the turn on/off button.

Library DSP Edit Gain Delay PEQ In X-IIR X-FIR PEQ Out RMS Dyn. PEAK Dyn. Amp. Setup Speaker Data V9004 Amplifier Vout Meter Select CH A LEVEL OUT 0 dB Meter ICL Temp Prot Z Gain (dB) Bridge ICL Link 4 Ohm 32,0 CH B LEVEL OUT 0 dB Meter ICL Temp Prot Z Gain (dB) Bridge ICL Link 4 Ohm 32,0 CH C LEVEL OUT 0 dB Meter ICL Temp Prot Z Gain (dB) Bridge ICL Link 4 Ohm 32,0 CH D LEVEL OUT 0 dB Meter ICL Temp Prot Z Gain (dB) Bridge ICL Link 4 Ohm 32,0

4- Speaker Data: you can load the response curve (magnitude and phase) of your acoustic system measured with different systems (Clio, Smaart, AP, MLSAA...) to show it directly in the final curve response. So you can view directly the influence of the DSP process in your true speaker response.

Import Data Name Adjust Ref. Level Output Name ... Clear 0 dB spl A: OUT ... Clear 0 dB spl B: OUT ... Clear 0 dB spl C: OUT ... Clear 0 dB spl D: OUT CLIO Acoustidyzer 1/3 oct Smaart V6 or newer WINAIR Linear-X UMS CALSOD Audio Precision SpectraLab DAAS 32 SATLive MLSAA ARTA Acoustidyzer (FFT)
