Kaibab HD 18 x 56 - Observation glasses Vortex - Free user manual and instructions

Product Type	Binoculars
Brand	Vortex
Model	Kaibab HD 18 x 56
Magnification	18x
Objective Lens Diameter	56 mm
Optics Type	HD (High Density) extra-low dispersion glass
Eyecups	Twist-up, adjustable for eyeglass users
Interpupillary Distance Adjustment	Yes, by rotating barrels
Focus System	Center focus wheel with diopter adjustment on right eyepiece
Diopter Adjustment	Pull-up ring to unlock, rotate to set, push down to lock
Lens Covers	Rainguard for oculars, tethered objective covers
Carry Case	Protective case with attached carry strap
Neckstrap	Adjustable, attaches via buckle system
Lens Cleaning	Use lens cleaning fluid and optical paper; avoid facial tissue
Safety Warning	Do not look at the sun or intense light sources
Warranty	VIP Unlimited Lifetime Warranty (unconditional, does not cover theft/loss/deliberate damage)
Customer Service	Vortex Optics, 800-426-0048, [e-mail]

Frequently Asked Questions - Kaibab HD 18 x 56 Vortex

How do I adjust the eyecups on the Kaibab HD binoculars?

Twist the eyecups up or down. Keep them fully extended if not wearing eyeglasses; twist them down for the best viewing with eyeglasses.

How do I set the interpupillary distance (IPD)?

Rotate the binocular barrels inward or outward until the distance between the ocular lenses matches the distance between your pupils. You should see a single, clear image without shading.

What is the proper way to focus the binoculars?

First, close your right eye and adjust the center focus wheel until the image is sharp with your left eye. Then, close your left eye, pull up the diopter ring on the right eyepiece, rotate it to focus the image, and push the ring back down. From then on, only use the center focus.

How do I clean the lenses?

Remove dust with pressurized air, a soft brush, or an acrylic optical brush. For smudges, fog the lenses with your breath and wipe gently with a non-abrasive lens cloth. Use lens cleaning fluid and optical paper for stubborn dirt. Avoid facial tissue or heavy fabrics.

How should I store the binoculars when not in use?

Place the lens covers on both ocular and objective lenses, then store the binoculars in the provided carry case. If the optics get wet, leave the covers off and let them dry completely before putting them in the case.

What does the VIP warranty cover?

The VIP Unlimited Lifetime Warranty covers repair or replacement at no charge if the binoculars become damaged or defective. It does not cover theft, loss, or deliberate damage.

How do I attach the neckstrap?

Thread the strap end from bottom up through the strap attachment loop on the binocular, then pass it through the buckle. Adjust the length and pull the webbing tight to secure. Do not attach metal rings directly to the loop; use nylon zip ties if needed.

Are the lens covers tethered?

Yes, the objective lens covers are tethered to the binocular. The ocular lenses come with a rainguard that is not tethered but can be attached to the neckstrap.

Can I use the binoculars to look at the sun?

No. Never look at the sun or any intense light source with binoculars, as it can cause permanent eye damage, including blindness.

How do I lock the diopter setting?

After adjusting the diopter ring (pull up, rotate to focus), push the ring back down until it clicks or sits flush. This locks your setting. Note the diopter value for future reference.

USER MANUAL Kaibab HD 18 x 56 Vortex

2

BASIC OPERATION

Adjust the eyecups

The eyecups on a Kaibab HD binocular twist up and down so any

viewer can see the full field and enjoy comfortable viewing with or without eyeglasses.

When not using eyeglasses or sunglasses, keep the eyecups fully extended. For the best viewing

when viewing through eyeglasses, twist eyecups down.

Close-up of a green binoculars with black lenses (no visible text or symbols)

Adjust the interpupillary distance

The interpupillary distance (IPD) is the distance between the centers of the left and right eye pupils. Match the IPD of your eyes to that of the binocular so that you see a single image that is free of shading.

IPD

Distance between the centers of the ocular lenses.

Rotate the binocular barrels inward or outward to line your eyes up with ocular lenses.

Properly focus the binocular

For the best views, follow this two-step process to properly adjust the center focus and diopter. Choose an object that is about 20 yards away from you and stay in the same spot until you have adjusted the binocular for your eyes.

1. Adjust the center focus—start by closing your right eye or covering the right objective lens with your hand. Focus your left eye on the object and adjust the center focus wheel until the image is in focus. Leave the center focus in this position as you adjust the diopter.

Man using binoculars to observe (no visible text or symbols)

1. Adjust the diopter—start by closing your left eye or covering the left objective lens with your hand. Look through your right eye and pull the diopter ring (found on the right

Man wearing a polo shirt and holding binoculars, focused on the eye (no visible text or symbols)

eyepiece) toward your eye to unlock and adjust. Rotate the diopter until the object is in focus. Then, push the diopter ring back down to lock your settings. Make note of this diopter setting in case you need to set it again. From this point on, you will only need to use the center focus wheel.

ACCESSORIES

Carry Case

The protective case of the Kaibab HD provides safe storage between viewing sessions. The carry strap is already attached to the case.

Lens Covers

The Kaibab HD comes with a rainguard for the ocular lenses and tethered objective lens covers. Use these covers to protect the lenses whenever you are not viewing.

Neckstrap

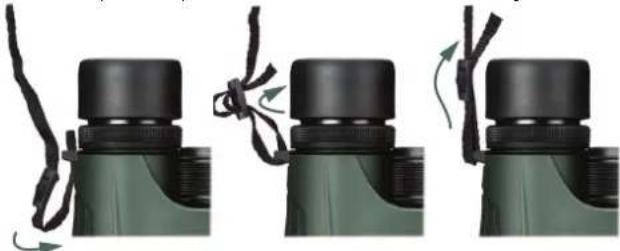

Securely attach your binocular to the binocular strap:

Three-step illustration of a binoculars with black caps and attached straps, showing motion sequence (no text or symbols)

1. Thread the end of strap from the bottom up through the strap attachment loop.

2. Hold the buckle and thread the end of the strap through the buckle.

3. Adjust overall strap length then pull strap webbing tight so it is secure within the buckle.

Note: Please do not thread a metal ring directly onto the strap attachment loop when attaching rings or clips for other after-market equipment. Instead, use nylon zip ties according to the manufacturer's instructions.

LENS CARE

Maintain the optical brilliance of the Kaibab HD binocular by keeping lens surfaces free of dirt, oils, and dust.

Protect lenses while out in the field

Make use of the provided eyepiece and objective lens covers to protect the lenses when not viewing. If the optics are exposed to moisture, keep the caps off and allow the optics to dry out completely before putting them in the case for storage.

Keep lenses clean

In order to enjoy the best views through your binocular, take time to regularly clean the exterior lenses:

• Remove any dust or grit from lenses before wiping. Use a can of pressurized air, soft camel hair brush, or an acrylic optical brush.
• Clear lenses of smudges, fingerprints, or eyelash oil. Fog the lenses with your own breath, then use a non-abrasive lens cloth to clean the lenses.

Note: Use lens cleaning fluid and optical paper to clean lenses. Never use facial tissue, heavy cotton, or flannel clothing on lenses—these materials can scratch the surface of a lens.

Caution: Binoculars are not intended for looking at the sun, or any other intense light source. Such viewing could damage the retina and cornea of your eyes—even to the point of causing blindness.

THE VIP WARRANTY

We build optics based on our commitment to your absolute satisfaction. That's why Vortex products are unconditionally guaranteed and we make this Very Important Promise to you—a Very Important Person.

Rest assured that in the event your Kaibab HD binocular becomes damaged or defective, Vortex Optics will repair or replace the binocular at no charge to you. Call Vortex Optics at 800-426-0048 for prompt, professional, and friendly service.

UNLIMITED UNCONDITIONAL Lifetime Warranty

Vortex Optics

2120 West Greenview Drive

Middleton, WI 53562

[e-mail]

Visit www.vortexoptics.com for more information. Canadian customers may visit www.vortexcanada.net for customer service information.

Note: The VIP warranty does not cover theft, loss, or deliberate damage to the product.

KAIBABHD

BINOCULARS

www.VORTEXOPTICS.COM

BIN-KAIBAB-HD-13A

© Vortex Optics USA
