SC-459AU7TMS - Refrigerator Seiki - Free user manual and instructions

Product Type	Refrigerator
Brand	Seiki
Model	SC-459AU7TMS
Total Capacity	459 L
Refrigerator Capacity	330 L
Freezer Capacity	129 L
Energy Class	A
Climate Class	N-ST
Noise Level	42 dB
Dimensions (H x W x D)	1780 x 700 x 700 mm
Weight	72 kg
Power Supply	220-240 V, 50 Hz
Annual Energy Consumption	320 kWh
Refrigerant	R600a
Control Type	Mechanical
Temperature Range (Fridge)	0°C to 8°C
Temperature Range (Freezer)	-18°C to -24°C
Defrost Type	Frost Free
Adjustable Shelves	Yes
Door Hinge	Left/Right reversible

Frequently Asked Questions - SC-459AU7TMS Seiki

How do I adjust the temperature in my Seiki SC-459AU7TMS refrigerator?

Use the temperature control dial located inside the fresh food compartment. Turn it to a higher number for colder settings. Wait 24 hours for the temperature to stabilize.

What is the capacity of the freezer section?

The freezer has a capacity of approximately 129 liters, suitable for storing frozen foods and ice.

How often should I defrost the refrigerator?

The SC-459AU7TMS features frost-free technology, so manual defrosting is not required. The appliance automatically defrosts to prevent ice buildup.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions on how to change the hinge side.

What type of refrigerant does this fridge use?

It uses R600a (isobutane), an environmentally friendly hydrocarbon refrigerant. Ensure proper ventilation during installation.

How to clean the interior and shelves?

Unplug the appliance, remove all food, and wash with a mixture of warm water and mild detergent. Rinse and dry thoroughly before plugging back in.

What are the recommended temperature settings for energy efficiency?

Set the refrigerator between 3°C and 5°C and the freezer at -18°C for optimal energy savings while preserving food.

Why is my refrigerator making unusual noises?

Normal sounds include clicking (compressor start/stop), gurgling (refrigerant flow), and humming (fan). If sounds are loud, check leveling and clearance.

How do I replace the interior light bulb?

Unplug the fridge, remove the light cover by pressing tabs, and replace with a same specification bulb (usually 15W E14). Reassemble and plug in.

What should I do if the fridge is not cooling enough?

Check if the thermostat is set correctly, ensure door seals are clean and tight, and verify air vents inside are not blocked by food. If problem persists, contact service.

USER MANUAL SC-459AU7TMS Seiki

Exterior view of a modern stainless steel refrigerator with a black handle (no visible text or symbols)

INSTRUCTION MANUAL

MODEL: SC-459AU7TMS

Please read this manual carefully before using, and keep it for future reference.

CONTENTS

General	Safety			4
Product	Overview
Installation			8
Operation			9
Reversing	the	Door
Crisper	Drawer	Humidity
Troubleshooting			14
Specifications			15
Customer	Helpline

7

16

GENERAL SAFETY

IMPORTANT INFORMATION

Read this manual thoroughly before you start using the Top Mount Refrigerator.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING or CAUTION. These words will be used to alert you of potential hazards that and injure you and others. Following these instruction will tell you how to reduce the chance of injury and the possible dangers if instructions aren't followed.

This symbol alerts you to take care as the appliance contains flammable materials: isobutane as refrigerant and cyclopentane as insulation blowing gas. Do not expose it to high heat, sparks and open flames.

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a gas with a high level of environmental compatibility, which is flammable. During transportation and installation of the appliance, make sure that none of the components of the refrigerant circuit become damaged.

WARNING: Never use an appliance with a damaged refrigerant circuit. If the refrigerant circuit becomes damaged, avoid proximity to open fires and all types of heat and ignition sources. Thoroughly ventilate the room in which the appliance is located.

It is dangerous for anyone other than an authorised service person to work on this appliance. In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.

The room for installing the appliance must be at least 1m³ per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found in the Technical Specifications at the back of the manual and on the appliance rating label.

GENERAL SAFETY INSTRUCTIONS (Cont.)

To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below:

INSTALLATION

• Heavy: The product is heavy, be careful when moving it. To avoid back or other injury, have 2 people lift or mechanical aid when installing.
• Damage: When unnoxing, thoroughly inspect the appliance carefully for any damage. If there is any damage, do not install the appliance. Contact our support centre on 1300 296 699 for advice.
• Protection from moisture: Make sure the appliance is installed in an indoor area away from wind, rain, water spray or drips.
• Protect from heat: Do not place the appliance next to an oven, grill or other source of high heat, or where it will be exposed to direct sunlight for long periods of time.
• WARNING: Ventilation: Make sure to have enough ventilation, keep any ventilation openings, in the appliance enclosure or in the built-in structure, clear all obstructions. Make sure plenty of air circulation around the appliance to prevent overheating.
• Level: Install appliance level in order for proper operation.

ELECTRICAL SAFETY

• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.

Plug the power plug directly into a separate power point that cannot be accidentally turned off, and that is easily accessible so you can switch it off if needed.

• Power cord: Do not kink or damage the power supply cord. Make sure it is behind the appliance so no one can step on or place anything on the power supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or abrasion damage. Any damage to the cord may cause a short circuit, fire and/or electric shock. Contact our support centre on 1300 296 699 for advice
• WARNING! The light supplied with this appliance cannot be replaced by the user. Contact the authorised service agent for replacement or service.
• Disconnection: Never pull the powercord to unplug appliance. Grip the plug and pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work, make sure it is carried out by an electrician.

GENERAL SAFETY INSTRUCTIONS (Cont.)

USAGE CONDITIONS AND RESTRICTIONS

• Children: Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children.
• Usage restrictions: The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Indoor domestic use only: Only for indoor domestic use only, such as in households, kitchen areas in shops, offices and in other working environments, use by clients in hotels, motels, bed and breakfast establishments and in catering and similar non-retail applications. It is not to be used for industrial or commercial use.
• Intended purpose: Do not use this product for anything other than its intended purpose, and only use it as described in this manual. Do not attempt to alter or modify this appliance.
• WARNING! Do not use any electrical or electronic appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CLEANING AND MAINTENANCE

• Flames: Do not allow open flames or ignition sources enter the appliance.
• Disconnect: Make sure to unplug appliance before cleaning or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet.
• Flammable/explosive substances: Do not store flammable or explosive substances such as aerosol cans with flammable propellant in this appliance.
• Solvents: Do not use solvent based cleaning products or abrasives on the interior.
• WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• Service: Never try to repair, modify or replace any part of the appliance, unless this manual says you can do so. All other servicing is to be done by a qualified technician, or contact our support centre on 1300 296 699 for advice.

REPONSIBLE DISPOSAL

- Do not throw this appliance out with your household rubbish. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately.

PRODUCT OVERVIEW

INSTALLATION

• Safety first: Before installing your new bar fridge, read all safety instructions in this manual, especially the sections on electrical safety and installation.
• Do not tilt the appliance more than 45^irc from upright when moving.
• This appliance is designed to be freestanding only and is not be recessed or built in.
• Do not apply force to any part such as the condenser or door.
• Place the bar fridge on a strong, level floor that is solid enough to support the unit when it is fully loaded.
• To fix the balance, Adjust the levelling legs at the bottom of the appliance.
• Ensure there is nothing that could prevent the door from closing.
• SPACING: Allow 10cm clear space between the back and 5cm on the sides of the appliance and your wall or anything else to make sure there is enough air circulation, which is needed to allow for the cooling of the compressor and condenser.
• If you have to position the refrigerator on carpet, use a plastic carpet protector underneath the appliance.

SIDE VIEWTOP VIEW

BE SURE TO PLACE APPLIANCE:

• Away from direct sunlight.
• Away from sources of heat (may increase power consumption).
• An area without excessive moisture and high humidity.

WARNING: Before you plug in the appliance, let it stand upright for 2 hours.

This will allow the refrigerant gases to settle into the compressor and reduce the possibility of a malfunction in the cooling system from transportation.

OPERATION

1. For first time use, Please make sure to set the thermostat dial to Colder, then leave it powered on for 2-3 hours. then set the thermostat to desired settings and place foods in the appliance.

FREEZER COMPARTMENT TEMPERATURE SETTING

The internal temperature is controlled by a sensor. There are 3 settings: COLD, COLDER (which is recommended) and COLDEST.

FRIDGE COMPARTMENT TEMPERATURE SETTING

The internal temperature is controlled by a sensor. There are 3 settings: COLD, COLDER (which is recommended) and COLDEST.

REVERSING THE DOOR

This appliance has the capability of opening the door from either the left or right side. The appliance is delivered to you with the door opening from the left side. To change the opening direction, please follow the below instructions. Be sure to unplug the appliance to change the door.

WARNING: To ensure correct reliable operation of the refrigerator, contact an authorised service agent to reverse the door for you. Incorrect installation of the door may result in damage and excessive wear on refrigerant components.

To reverse the door, you will need a straight screw driver, cross screwdriver, spanner and components in the poly bag:

1. Left Hinger 2. Left Hinge Cover

2. Left Middle Stopper x 2 4. Left Middle Stopper Metal Block x 2

3. Close upper door, take out the screw from the top hinge covers using a cross screwdriver.

Technical line drawing showing a mechanical assembly before and after modification (no text or symbols)

REVERSING THE DOOR (Cont.)

1. Unscrew from the middle hinge using a cross screwdriver, then take off the lower door.

Line drawing of a mechanical clamp or bracket with a handle and screwdriver (no text or symbols)

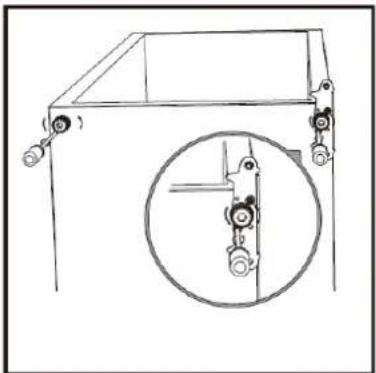

1. Laying down the refrigerator, take out the adjusting feet, then unscrew the lower hinge using a cross screw driver.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting to the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

REVERSING THE DOOR (Cont.)

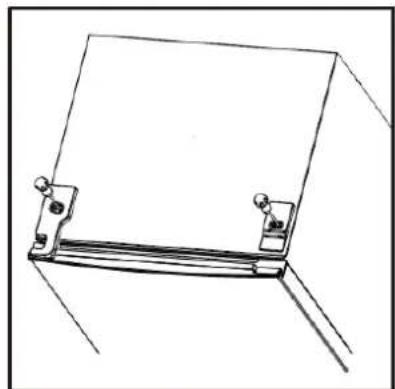

1. Unscrew the right middle stopper with the metal block from the bottom part of the upper door. Install the left middle stopper and metal block on the left side.

Line drawing of a flat electronic device with a cable and indicator lights, no text or symbols present

Line drawing of a rectangular electronic device with a small connector and a label (no text or symbols present)

1. Rotate the middle hinge around 180^irc , place the lower pin into the lower door and screw it into the left hand side hole.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Install the upper door and fix the upper door hinge onto the cabinet.

Simple line drawing of a person climbing a ladder with a small object on the wall (no text or symbols)

1. Take the left hinge cover and screw it to the top hinge and and then cover it with the hole cover on the right side.

Simple line drawing of a mechanical bracket or frame with mounting holes (no text or symbols)

CRISPER DRAWER HUMIDITY

LOW HUMIDITY

Move the regulator to the left

HIGH HUMIDITY

Move the regulator to the right

TROUBLSHOOTING

Problem Possible Cause
The appliance does not operate	· It is not plugged in. Make sure it is properly plugged in and there is power at the socket · The circuit breaker tripped or has blown a fuse. · A general power outage has cut power to your home.
The fridge turns on and off frequently.	· The room temperature is higher then usual · Too much food is within the fridge. · Door is open too often · Door not closed · Temperature set incorrectly.
There are vibrations · Appliance is	not level.
The fridge seems to make too much noise.	· A rattling noise may come from the flow of the refrigerant, which is standard. · You may hear gurgling sounds caused by the flow of refrigerant. · Contraction and expansion of the internal walls may cause popping and crackling noises.
The door will not close properly.	· Not Level · The door was reversed and not installed correctly. · The gasket is dirty or bent. · The shelves, bins or baskets are out of position.
Moisture forms on the inside or outside walls of the bar fridge.	· Hot and humid weather increases the rate of frost build-up. · Open the door less often
Excessive frost and ice has built up.	· Door has been left open. · Something is preventing the door from closing. · The door gasket is dirty or damaged.
The compressor runs continuously.	· Select a lower setting. · The door is open or not closed properly. · Too much food is within the fridge.

SPECIFICATIONS

Total Gross Volume 459 Litres
Total Storage Volume 425 Litres
Climate Class T
Rated Current 1.2A
Power Supply 220-240V ~ 50Hz
Rated Power of Lamp 1W
Defrost Power 190W
Energy Consumption 382 kW.h/y
Refrigerant R600a(56g)
Insulation Blowing Gas Cyclopentane

SEIKI

CUSTOMER HELPLINE:

1300 296 699

DISTRIBUTED BY:

Ayonz Pty Ltd
