AT-RACK-1RU-ME - Rack Accessory Atlona - Free user manual and instructions

Product Type	Rack Shelf
Brand	Atlona
Model	AT-RACK-1RU-ME
Rack Form Factor	1U (1.75 in / 44.45 mm height)
Rack Width	Standard 19 in (482.6 mm)
Material	Heavy-duty steel
Maximum Device Capacity	Up to 4 quarter-rack width devices
Compatible Series	HDR Extender 70m, UHD Extender, OME Extender, Avance Extender
Mounting Hardware Included	8 screws, stabilizing bar with 2 screws and washers, 8 cable ties, 8 rubber feet
Special Features	Removable stabilizing bar with optional rubber feet for vertical stability
Power Supply Mounting	Space for up to 4 power supplies; cable ties included for securing
Maintenance	No special cleaning required; wipe with dry cloth
Safety	Ensure rack is on flat surface; do not exceed load capacity
Package Contents	1x AT-RACK-1RU-ME, 1x stabilizing bar (pre-installed), 8x screws, 8x cable ties, 8x rubber feet, 1x installation guide
Warranty	10 years (hardware purchased on/after June 1, 2013)

Frequently Asked Questions - AT-RACK-1RU-ME Atlona

What devices are compatible with the AT-RACK-1RU-ME?

The rack shelf is compatible with Atlona's 70m HDR extender series, UHD extenders, OME extenders, and Avance extenders. A full list of compatible models is available at atlona.com/product/at-rack-1ru-me/.

How many devices can I install in one rack shelf?

Up to four quarter-rack width devices can be installed simultaneously.

Is the stabilizing bar necessary?

The stabilizing bar is optional. It helps reduce vertical movement; you can also attach the included rubber feet to its bottom for additional stability.

Can I mount power supplies on the shelf?

Yes, the back of the shelf has space for up to four power supplies. Use the included cable ties to secure them.

What mounting hardware is included?

The package includes 8 screws, 8 cable ties, 8 rubber feet, and a stabilizing bar with 2 screws and washers.

What is the warranty period for the AT-RACK-1RU-ME?

Atlona offers a 10-year limited warranty for hardware products purchased on or after June 1, 2013.

How do I install devices on the rack shelf?

Place the rack on a flat surface, slide the device in, and secure it with two screws through the holes directly behind the device. Repeat for up to four devices.

Does the shelf require power?

No, the AT-RACK-1RU-ME is a passive rack shelf and does not require any power connection.

Can I stack multiple shelves?

Yes, the shelf is 1U high, so you can stack multiple units in a standard 19-inch rack by using the rack screws (not included) to mount each shelf.

What is the weight capacity of the shelf?

The exact weight capacity is not specified, but it is designed for heavy-duty use with professional AV equipment. Distribute weight evenly and do not overload.

USER MANUAL AT-RACK-1RU-ME Atlona

One Rack Unit Multi-Extender Rack Shelf

AT-RACK-1RU-ME

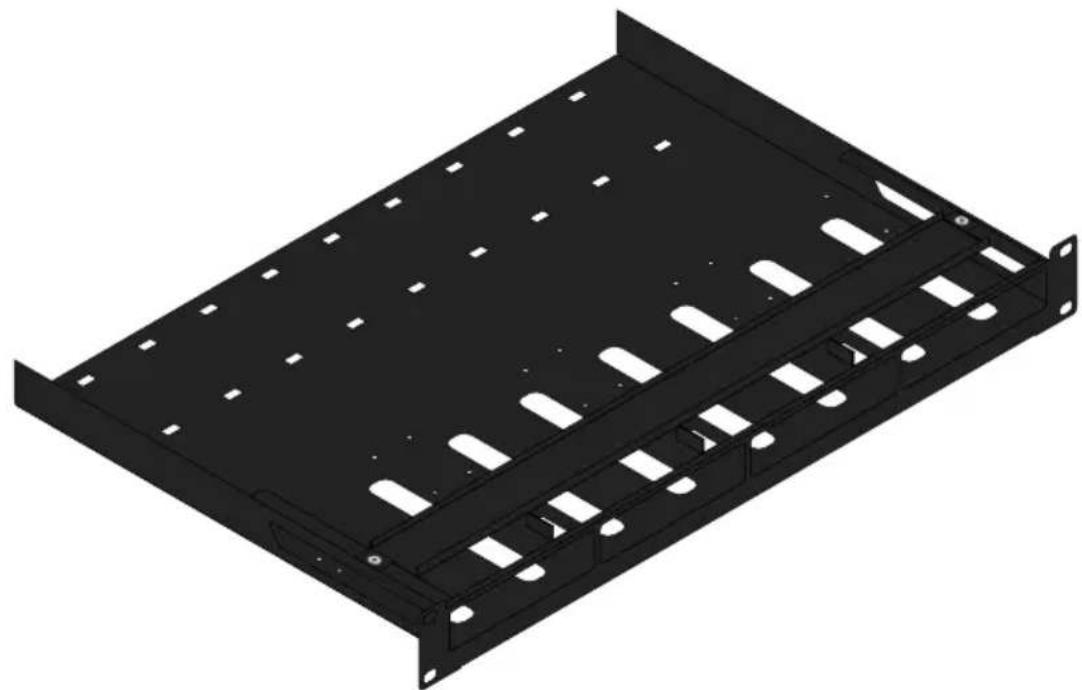

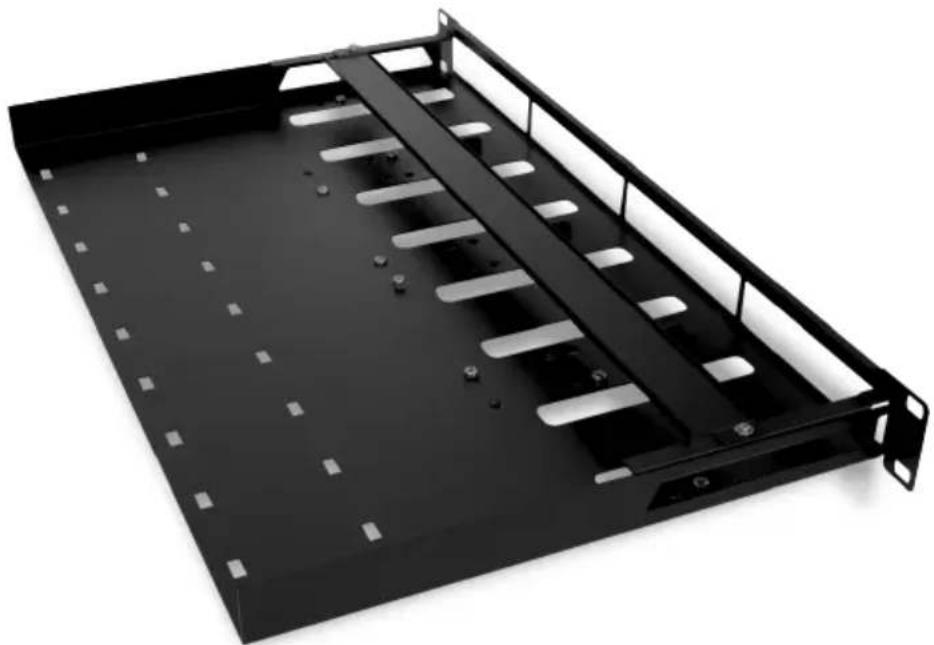

The Atlona AT-RACK-1RU-ME is a heavy duty, 1U rack shelf designed for installation of up to four quarter rack wide devices. The rack shelf is compatible with the 70 meter length HDR extender series, UHD extenders, OME extenders, and Avance extenders.

Package Contents

1 x AT-RACK-1RU-ME

1 x Stabilizing bar (pre-installed)

w/2 screws and washers

8 x Screws

8 x Cable ties

8 x rubber feet

1 x Installation Guide

Compatible Devices

AT-AVA-EX70-2PS-KIT

AT-AVA-EX70-KIT

AT-AVA-EX70C-KIT

AT-AVA-EX70C-BP-KIT

AT-AVA-EX100CE-BP-KIT

AT-OME-EX-KIT (TX only)

AT-OME-EX-TX

AT-OME-EX-KIT-LT

AT-OME-RX11

AT-HDR-EX-70-2PS

AT-HDR-EX-70C-KIT

AT-HDR-M2C

AT-UHD-EX-100CE-KIT

AT-UHD-EX-100CE-TX

AT-UHD-EX-100CE-TX-PD

AT-UHD-EX-100CE-RX

AT-UHD-EX-100CE-RX-PSE

AT-UHD-EX-70-2PS

AT-UHD-EX-70-KIT

AT-UHD-EX-70C-KIT

AT-UHD-EX-70C-TX

AT-UHD-EX-70C-RX

IMPORTANT: Visit https://atlona.com/product/at-rack-1ru-me/ for the latest compatibility list.

Mounting Instructions

1. Place the rack on a flat surface.

1. Slide the first quarter rack width device into the rack.
2. Secure it by placing two of the included screws in the holes directly behind the device.

1. Repeat for up to 4 quarter rack width devices.

1. Once the devices are installed, the power supplies can be installed on the rack. Place the power supplies on the back of the rack and use the cable ties to keep them in place. There is space for up to four power supplies, some devices are PoE powered and will not require power supplies.

NOTE: If there is any vertical movement from the devices, the included rubber feet can be affixed to the bottom of the rack bar. Some slight bowing may occur, it will not effect the rest of the devices. See instructions on next page for feet installation.

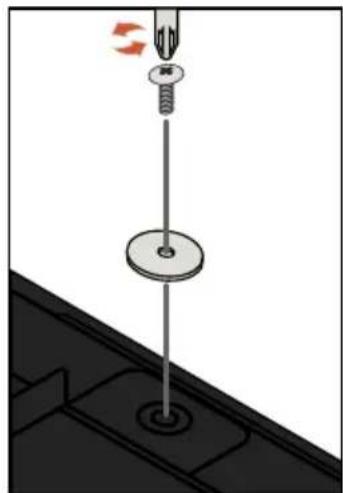

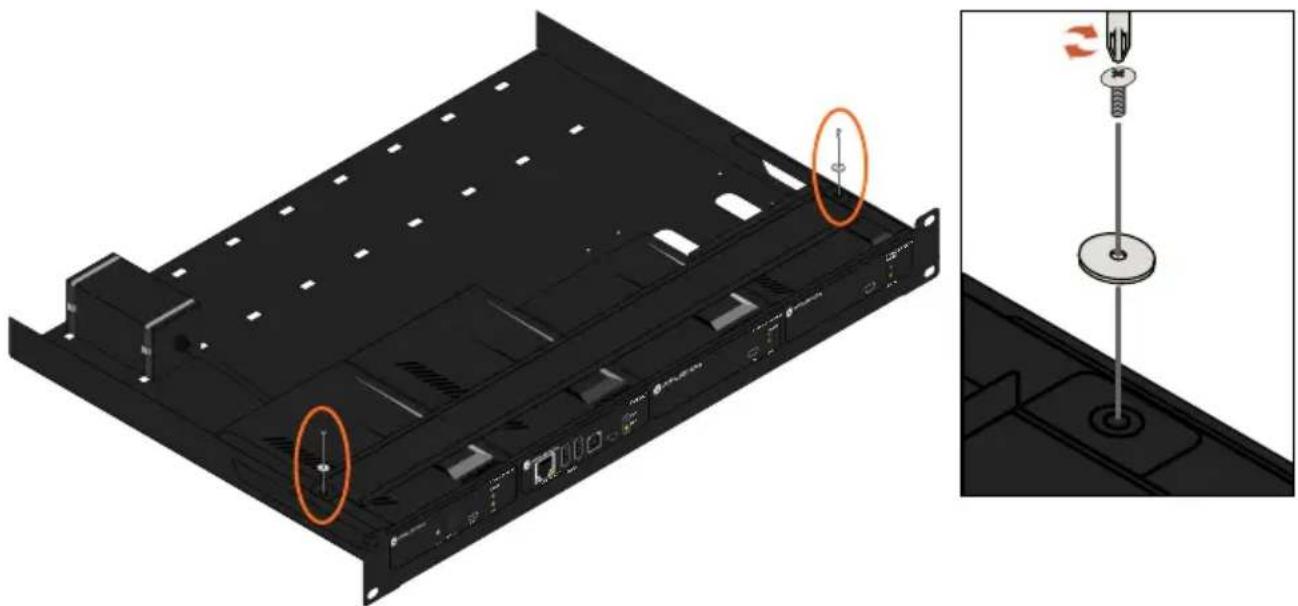

1. *Optional* Remove the screw and washer from the stabilizing bar across the top of the rack.

1. *Optional* Once the bar is removed, peel the feet from the paper and place the sticky side to the bottom of the stabilizing bar.

1. *Optional* Once the feet are attached, reattach the stabilizing bar to the rack shelf with the previously removed screw and washer.
