USER MANUAL CD-FX835 PANASONIC

Please use this service manual with referring to the user guide (D.F.U.) without fail.

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous.

Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order :

1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

USA

MARANTZ AMERICA, INC

1100 MAPLEWOOD DRIVE

ITASCA, IL. 60143

USA

PHONE : 630 - 741 - 0300

MARANTZ PROFESSIONAL PRODUCTS

2640 WHITE OAK CIRCLE, SUITE A

AURORA, ILLINOIS 60504 USA

PHONE:[phone]

WANGBURAPAPIROM, PHRANAKORN,

BANGKOK, 10200 THAILAND

PHONE : +66 - 2 - 222 9181

FAX : +66 - 2 - 224 6795

SINGAPORE

WO KEE HONG DISTRIBUTION PTE LTD

130 JOO SENG ROAD

03-02 OLIVINE BUILDING

SINGAPORE 368357

PHONE : [phone]

FAX : [phone]

NEW ZEALAND

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom.

Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer.

Ref. UL Standard No. 1492.

In case of difficulties, do not hesitate to contact the Technical

Department at above mentioned address.

1. TECHNICAL SPECIFICATIONS

Audio characteristics

Channels ....2 channels

Frequency response....2 Hz to 20 kHz

Dynamic range 100 dB

Signal-to-noise ratio....110 dB

Channel separation 100 dB (1 kHz)

Harmonic distortion 0.0025% (1 kHz)

Wow & flutter ...... Precision of quartz

Error correction system .... Cross-interleave Reed

Solomon code (CIRC)

Audio output 2.0 V rms, stereo

Headphone output.... 18 mW/32 ohms (variable maximum)

Digital output

Coaxial output (pin jack) 0.5 Vp-p, 75 ohms

Optical output (square optical connector)....-19 dBm

Optical readout system

Laser....AlGaAs semiconductor

Wavelength....780 nm

Signal system

Sampling frequency....44.1 kHz

Quantization 16-bit linear/channel

Power supply

Power requirement AC 220V 60Hz (/C)

AC 100V 50/60Hz (/F)

AC 110/220V 50/60Hz (/K)

AC 230V 50Hz (/N)

AC 230V 50/60Hz (/S)

Power consumption....12 W

Cabinet, etc.

Maximum dimensions....440(W) x 89(H) x 317 (D) mm

Weight 5.7 kg

Allowable operating temperature....+5 to +35°C

Allowable operating humidity....5 to 90% (no condensation)

2. SERVICE PROCEDURE

Emergency Eject

1. To open the stucked tray, insert a pin into the eject pinhole and push the eject lever.

2. Use a pin 4mm or less.

Close-up of a CD-ROM drive showing internal components and a highlighted screw (no text or symbols visible)

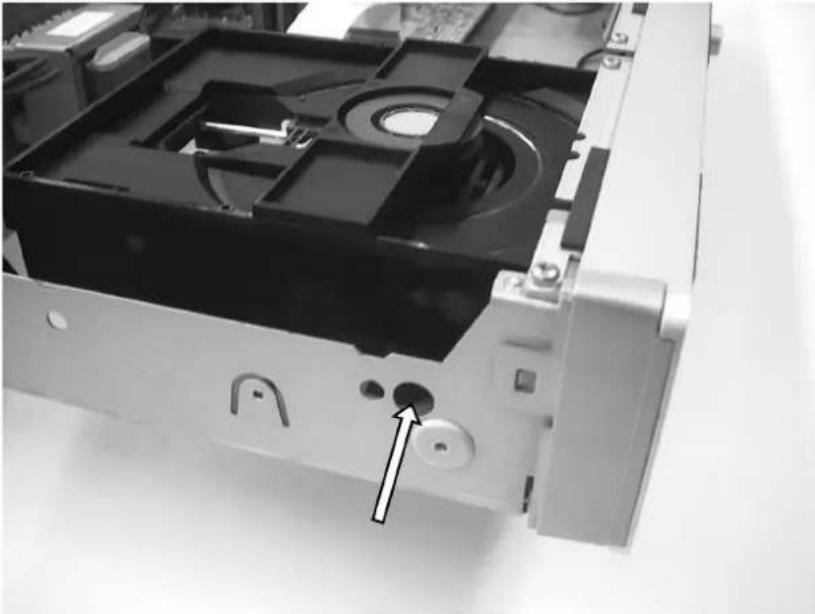

This picture shows the unit upside down. The eject lever is pointed by the arrow. The lever is thin so aim the narrow area carefully.

Interior view of an electronic device with visible wiring and components (no text or symbols)

Cautions in Assembling and Disassembling

When removing the flat wire PS01, connecting the optical pick up and the CD decoder board, short-cut the two lands pointed by the arrow with solder. Otherwise the laser diode may be damaged by static electricity.

CD Decorder Board (PS01) Repair

When Repairing the CD decoder board PS01, you can fix the board on the loader unit as shown in the pictuer below with the flat wires that are provided as service parts.

Disk Tray Open/Close Speed Adjustment

Open/Close speed of the tray can be changed.

When vibration occurs upon tray open/close and some unusual behavior happens, change the tray speed to stop vibration.

Step 1. With pressing DISPLAY and QUICK REPLAY buttons, press POWER button.

Step 2. Press EASY JOG button.

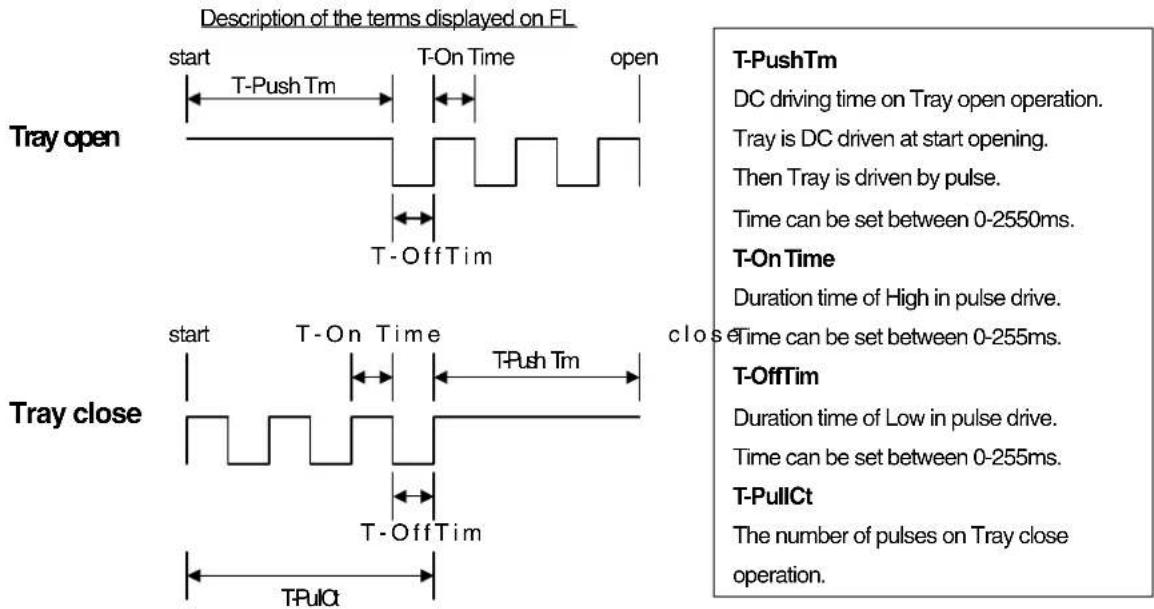

"T-OnTime 015" (means Tray On Time 015ms default) is displayed.

Turn EASY JOG to change tray open/close speed from 000 to 255ms. Turn the number smaller to make the open/close speed slower. Turn the number bigger to make the speed faster. Set bigger number to stop the tray vibration. But the open/close speed becomes faster.

Press EASY JOG button again. The display changes as shown below so you can change other parameters for the open/close speed.

Display(Default Setting)	Description Bigger Number Smaller Number
T- OffTim 003	When open/close speed is too fast.Note) 001, 002, 003 cannot be set.	open/close speedbecomes faster	open/close speedbecomes slower
T- PushTm 070	When vibration cannot be stoppedby adjusting T-OnTime.	open/close speedbecomes slower	open/close speedbecomes faster
T- PullCt 040	When disc clamp miss happens. Set smaller number to make it better.

Step 3. Press EASY JOG button to complete adjustment.

Step 4. Press STOP button to store the settings in memory.

To reset all the settings to default status, press number 0 button in Service Mode 0

(Display : Ver *, ** P00). When miss-operated, press number 0 button to retry.

1. Turning into Service Mode

While pressing DISPLAY and QUICK REPLAY buttons, press POWER button.

1. Mode0 (Display Ver :*.* * P00 Version number of the micro computer is displayed)

Status: [FOCUS OFF] [SPINDLE OFF] [RADIAL OFF] [MUTE ON]

- While pressing ▶ and ◀ buttons, the sledge moves toward the outer edge. Release the button makes the sledge return to the origin.

Press EASY JOG or NEXT ▶ button on the remote to go to Mode 1.

1. Mode 1 (Display : Ver :*.**P01)

Status: [FOCUS ON] [SPINDLE OFF] [RADIAL OFF] [MUTE ON]

- Press NEXT ▶ button to go to Mode 2.

- Press PREV ◀ button to go to Mode 0.

1. Mode 2 (Display : Ver :*.** P02)

Status: [FOCUS ON] [SPINDLE ON] [RADIAL OFF] [MUTE ON]

- Press NEXT ▶ button to go to Mode 3.

- Press PREV ◀ button to go to Mode 1.

1. Mode 3 (Display : Ver :*.** P03)

Status: [FOCUS ON] [SPINDLE ON] [RADIAL ON] [MUTE OFF]

- Press PREV ◀ button to go to Mode 1.

* In this Service Mode, all of the following button functions work in any status.

1) Press DISPLAY button to light up all the FL segments. Press it again then each FL segment lights up one by one.

2) Press STOP button. Then press a button on the unit. The name of the button is displayed.

Pressing a button on the remote displays the RC-5 code of the button.

3) Press PLAY button in Mode 1, 2 or 3 then normal operation can be performed. If an error occurs the error number is displayed. (Ex : Err 10) See the table below.

1. Terminating Service Mode

Turn off power to quit Service Mode.

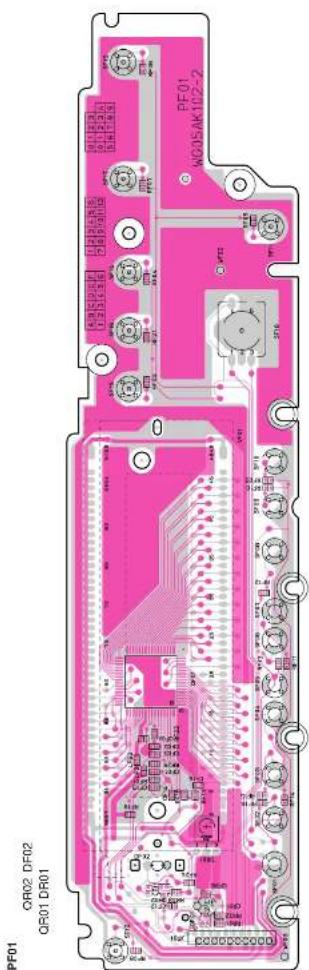

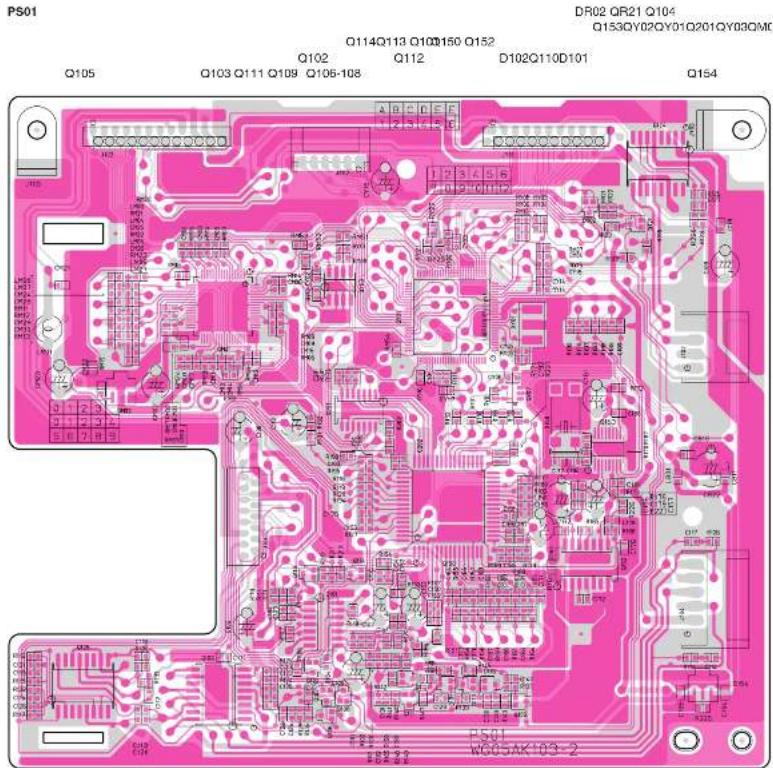

6. PARTS LOCATION

PM01

	QN03 Q80D8D807
QN06 QN07	DN09 QN08-QN11	D806DN01-DN04	D801-D804
QN04Q805	DN05 QN01 QN02	D805
Q808 D815	Q805 Q801Q807 D810 D813 Q802 Q803D814
QD03	D301-D305(Odd)	D401-D405(Odd)	Q427	Q603
QD02	Q301-Q315(Odd)	Q401-Q409(Odd)	Q411	Q613
QD01	D302-D306(Even)	D402-D406(Even)	Q414	Q604
	Q302-Q316(Even)	Q402-Q410(Even)	Q412	Q602

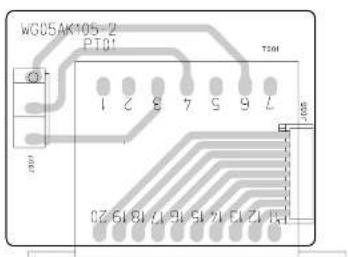

PH01

PT01

25 26

7. IC DATA

QY02:BD4742G

Pin Assignment

1pin : N.C.

2pin : SUB

3pin : GND

4pin : Vout

5pin : Vcc

Q153:BU2630FV

Pin descriptions

Pin No.	Pin name	Name	Function	I/O cuircuit
16	XOUT	Crystal resonator	For reference frequency	TYPE A
1	XIN
2	V_ss
3	RPD	Phase comparator output	This is LO if the locally divided value is higher than the reference frequency, HI if it is lower, and Z if it matches.	TYPE E
4	P-R	Output port	This is controlled by the input data.	TYPE D
5	RON
6	F-R	VCO input	Local input for reception	TYPE F
7	CE	Chip enable clock signal serial data	When CE is HIGH, the DA synchronized to the rise of CK is read into the internal shift register, and is latched at the timing of the CE fall.	TYPE B
8	CK
9	DA
10	LD	Unlock output	This goes ON when the PLL is unlocked on the transmission side	TYPE D
11	F-T	VCO input	Local input for transmission	TYPE F
12	TON	Output port	This is controlled by the input data	TYPE D
13	P-T
14	TPD	Phase comparator output	This is LO if the locally divided value is higher than the reference frequency, HI if it is lower, and Z if it matches.	TYPE E
15	V_DD	Power supply	2.5~5.5V

QD01:CS4396

Pin Description

Pin Description

PIN Pin	Name Type Descript	on Source	de/Dest
CDDSP interface
1 CD	LRCK I DSP Interface	left/right	Clock From DSP
3 CD	SDI I DSP interface serial data	From DSP
2 CD	BCK I DSP interface bit clock	From DSP
SDI interface
9 BS	SDI I Bitstream	interface	serial data From MCU
7	BS_LRCK	I	Bitstream interface left/right Clock	From MCU
8	BS_BCK I Bitstream	interfacelce clock	From MCU
4	DREQ	O	Bitstream data request	To MCU
PCM IN interface
13	BCKI	I	ADC bit clock	From ADC
14	SDI	I ADC serial data	From ADC
12 LR	CKI I ADC left/right Clock		From ADC
PCM OUT interface
20	LRCKO	O	DAC Interface left/right Clock	To DAC
22	SDO	O	DAC serial data	To DAC
21	BCKO	O	DAC bit clock	To DAC
19	OSCK	O	DAC oversampling clock	To DAC/ADC
GPSO interface
55	GPSO_CK	I GPSO	bit clock From MCU
54	GPSO_SDO	O	GPSO serial data	To MCU
56	GPSO_REQ	O	GPSO request signal	To MCU
GPIO interface
26	IODATA0	I/O	GPIODATA0
27	IODATA1	I/O	GPIODATA1
28	IODATA2	I/O	GPIODATA2
31	IODATA3	I/O	GPIODATA3
32	IODATA4	I/O	GPIODATA4
33	IODATA5	I/O	GPIODATA5
34	IODATA6	I/O	GPIODATA6
35	IODATA7	I/O	GPIODATA7
44	IODATA8	I/O	GPIODATA8
45	IODATA9	I/O	GPIODATA9
46	IODATA10	I/O	GPIODATA10
47	IODATA11	I/O	GPIODATA11
48	IODATA12	I/O	GPIODATA12
49	IODATA13	I/O	GPIODATA13
50	IODATA14	I/O	GPIODATA14
51	IODATA15	I/O	GPIODATA15
PIN	Pin Name	Type	Description	Sourde/Dest
HANDSHAKE SIGNALS
60 STB I Strobe signal From MCU
59 RQST O I2C data signal To MCU
I^2C LINK
63 SCL I I2C clock signal From MCU
64 SDA I/O I2C data signal To MCU
MISCELLANEOUS
17	XTI	I Oscillator input
18 XTO O Oscillator output
25 CLKOUT O Buffered output clock
15	-RESET	I Reset
16	-TESTEN	I Reserved for test purpose
40	FILT0	I PLL external filter
38	FILT1		PLL external filter
POWER SUPPLY
39	PLL_VCC
41	PLL_GND
5	VDD_1		Digital supply (2.5V Power Supply)
10	VDD_2		Digital supply (2.5V Power Supply)
29	VDD_3		Digital supply (2.5V Power Supply)
36	VDD_4		Digital supply (2.5V Power Supply)
53	VDD_5		Digital supply (2.5V Power Supply)
62	VDD_6		Digital supply (2.5V Power Supply)
23	VCC_1		Digital supply (3.3V Power Supply)
42	VCC_2		Digital supply (3.3V Power Supply)
58	VCC_3		Digital supply (3.3V Power Supply)
6	VSS_1
11	VSS_2
24	VSS_3
30	VSS_4
37	VSS_5
43	VSS_6
52	VSS_7
57	VSS_8
61	VSS_9

Pin Assignment

Pin Description

SYMBOL PIN	DESCRIPTION
HFREF 1 comparator common mode input
HFIN 2 comparator signal input
ISLICE 3 current feedback output from data slicer
V_SSA1	4(1)	analog ground 1
V_DDA1	5(1)	analog supply voltage 1
I_ref	6 reference current output pin
V_RIN	7 reference voltage for servo ADC's
D1 8 unipolar current input (central diode signal input)
D2 9 unipolar current input (central diode signal input)
D3 10 unipolar current input (central diode signal input)
D4 11 unipolar current input (central diode signal input)
R1 12 unipolar current input (satellite diode signal input)
R2 13 unipolar current input (satellite diode signal input)
V_SSA2	14(1)	analog ground 2
CROUT 15 crystal/resonator output
CRIN 16 crystal/resonator input
V_DDA2	17(1)	analog supply voltage 2
LN 18 DAC left channel differential output - negative
LP 19 DAC left channel differential output - positive
V_neg	20(1)	DAC negative reference supply (equivalent to DAC V_ss )
V_pos	21(1)	DAC positive reference supply (equivalent to DAC V_DD )
RN 22 DAC right channel differential output - negative
RP 23 DAC right channel differential output - positive
SELPLL	24 selects whether internal clock multiplier PLL is used
TEST1	25 test control input 1; this pin should be tied LOW
CL16	26 16.9344 MHz system clock output
DATA	27 serial data output (3-state)
WCLK 28 word clock output (3-state)
SCLK	29 serial bit clock output (3-state)
EF 30 C2 error flag output (3-state)
TEST2	31 test control input 2; this pin should be tied LOW
KILL 32 kill output (programmable open-drain)
V_SSD1	33(1)	digital ground 2
V2/V3	34	versatile I/O: input versatile pin 2 or output versatile pin 3 (open-drain)
WCLI	35 word clock input (for data loopback to DAC)
SDI	36 serial data input (for data loopback to DAC)
SCLI	37 serial bit clock input (for data loopback to DAC)
RESET	38 power-on reset input (active LOW)
SDA 39 microcontroller interface data I/O line (open-drain output)
SCL	40 microcontroller interface clock line input
RAB 41 microcontroller interface R/ W and load control line input (4-wire bus mode)
SILD	42 microcontroller interface R/W and load control line input (4-wire bus mode)
STATUS	43 servo interrupt request line/decoder status register output (open-drain)
TEST3	44 test control input 3; this pin should be tied LOW
RCK	45 subcode clock input
SUB 46 P-to-W subcode bits output (3-state)
SFSY	47 subcode frame sync output (3-state)
SBSY	48 subcode block sync output (3-state)
CL11/4	49	11.2896 MHz or 4.2336 MHz (for microcontroller) clock output
V_SSD2	50(1)	digital ground 3
DOBM	51 bi-phase mark output (externally buffered; 3-state)
V_DDD1(P)	52(1)	digital supply voltage 2 for periphery
CFLG	53 correction flag output (open-drain)
RA 54 radial actuator output
FO 55 focus actuator output
SL 56 sledge control output
V_DDD2(C)	57(1)	digital supply voltage 3 for core
V_SSD3	58(1)	digital ground 4
MOTO1 59 motor output 1; versatile (3-state)
MOTO2 60 motor output 2; versatile (3-state)
V4 61 versatile output pin 4
V5 62 versatile output pin 5
V1 63 versatile input pin 1
LDON	64 laser drive on output (open-drain)

Note
1. All supply pins must be connected to the same external power supply voltage

QY01:μPD784216A

Pin No.	Port Name	I/O	Signal Name	Pull up	Initial	Remarks
1	P120/RTP0	O n	c.	L n.c.
2	P121/RTP1	O n	c.	L n.c.
3	P122/RTP2	O n	c.	L n.c.
4	P123/RTP3	O n	c.	L n.c.
5	P124/RTP4	O n	c.	L n.c.
6	P125/RTP5	O n	c.	L n.c.
7	P126/RTP6	O n	c.	L n.c.
8	P127/RTP7	O n	c.	L n.c.
9	VDD +3.3V		Power +3.3V
10	X2	I	5MHz			Main system clock 5MHz
11	X1	I	5MHz			Main system clock 5MHz
12	VSS		GND			GND
13	XT2		n.c.			n.c.
14	XT1		GND			GND
15	/RESET	I	CPU_RES			Reset active low
16	P00/INTP0	I	IR	int.		RC-5 signal in
17	P01/INTP1	I	MP_RQST	int.		from STA016T
18	P02/INTP2/NMI	I	HFD	int.		from HF Detector
19	P03/INTP3	I	TXT_REQ	int.		from LC89170M
20	P04/INTP4	I	ENC_A	int.		Rotary Encoder A signal(C.W)
21	P05/INTP5	I	ENC_B	int.		Rotary Encoder B signal(C.C.W)
22	P06/INTP6	I	n.c.	int.
23	AVDD		+3.3V			Power +3.3V
24	AVREF0		+3.3V			A/D reference
25	P10/ANI0	I	KIN_1	ext.		A/D 4-key input
26	P11/ANI1	I	KIN_2	ext.		A/D 4-key input
27	P12/ANI2	I	KIN_3	ext.		A/D 4-key input
28	P13/ANI3	I	KIN_4	ext.		A/D 4-key input
29	P14/ANI4	I	KIN_5	ext.		A/D 4-key input
30	P15/ANI5	I	GND			GND
31	P16/ANI6	I	GND			GND
32	P17/ANI7	I	GND			GND
33	AVSS		GND			GND
34	P130/ANO0	I	GND			GND
35	P131/ANO1	I	GND			GND
36	AVREF1		+3.3V			D/A reference
37	P70/RXD2/SI2	O	DIS_CE	int.	L	Latch for LC7571x
38	P71/TXD2/SO2	O	DIS_SDA	int.	L	Data for LC7571x
39	P72/ASCK2/SCK2	O	DIS_SCL	int.	L	Clock for LC7571x
40	P20/RXD1/SI1	I	RXD			for PcLink
41	P21/TXD1/SO1	O	TXD			for PcLink
42	P22/ASCK1/SCK1	O	n.c.		L
43	P23/PCL	O	n.c.		L
44	P24/BUZ	O	n.c.		L
45	P25/SI0/SDA0	I	TXT_SDA	int.		Data for LC89170M
46	P26/SO0	O	n.c.		L
47	P27/SCK0/SCL0	O	TXT_SCK	int.	L	Clock for LC89170M
48	P80/A0	O	n.c.		L	n.c.
49	P81/A1	O	n.c.		L	n.c.
50	P82/A2	O	n.c.		L	n.c.
51	P83/A3	O	n.c.		L	n.c.
52	P84/A4	O	n.c.		L	n.c.
53	P85/A5	O	n.c.		L	n.c.

Pin No.	Port Name	I/O	Signal Name	Pull up	Initial	Remarks
54	P86/A6	O	n.c.		L	n.c.
55	P87/A7	O	n.c.		L	n.c.
56	P40/AD0	I/O	CD_SDA	ext.	H	Data for CD10/MB15U10
57	P41/AD1	O	CD_SCL	ext.	H	Clock for CD10/MB15U10
58	P42/AD2	O	CD_SILD	int.	H	Latch for CD10 servo part
59	P43/AD3	O	CD_RAB	int.	L	Latch for CD10 decoder part
60	P44/AD4	O	PLL_CS	int.	L	CS for MB15U10
61	P45/AD5	O	CD_RES	int.	L	Reset for CD10/LC89170M
62	P46/AD6	O	DIS_RES	int.	L	Reset for LC7571x
63	P47/AD7	O	MP_RES	int.	L	Reset for STA016T
64	P50/A8	O	MP_STB	int.	L	Strobe for STA016T
65	P51/A9	I/O	IIC_SDA	ext.	L	Data for STA016T/AT24C4
66	P52/A10	O	IIC_SCL	ext.	L	Clock for STA016T/AT24C4
67	P53/A11	O	TRAY_CONT	ext.	HighZ	Tray in/out control
68	P54/A12	I	LOAD_SW	ext.		Tray loading sw Low active
69	P55/A13	O	SMUTE	int.	L	Soft mute for DAC
70	P56/A14	O	n.c.		L	n.c.
71	P57/A15	O	n.c.		L	n.c.
72	VSS		GND			GND
73	P60/A16	O	n.c.		L	n.c.
74	P61/A17	O	n.c.		L	n.c.
75	P62/A18	O	n.c.		L	n.c.
76	P63/A19	O	n.c.		L	n.c.
77	P64/RD	O	n.c.		L	n.c.
78	P65/WR	O	n.c.		L	n.c.
79	P66/WAIT	I	MP3_EN	int.	L	MP3 Enable = OpenMP3 Disable = LOW
80	P67/ASTB	O	MOT_SW	int.	L	Spindle Free RUN Active HIGH
81	VDD		+3.3V			Power +3.3V
82	P100/Ti5/TO5	O	n.c.		L	n.c.
83	P101/Ti6/TO6	O	n.c.		L	n.c.
84	P102/Ti7/TO7	O	n.c.		L	n.c.
85	P103/Ti8/TO8	O	n.c.		L	n.c.
86	P30/TO0	O	n.c.		L	n.c.
87	P31/TO1	O	n.c.		L	n.c.
88	P32/TO2	O	n.c.		L	n.c.
89	P33/Ti1	O	n.c.		L	n.c.
90	P34/Ti2	O	n.c.		L	n.c.
91	P35/Ti00	O	n.c.		L	n.c.
92	P36/Ti01	O	n.c.		L	n.c.
93	P37/EXA	O	n.c.		L	n.c.
94	TEST		GND			GND
95	P90	O	S_PLAY	ext.	H	LED L active
96	P91	O	FL_OFF	ext.	H	LED L active
97	P92	O	n.c.		L	n.c.
98	P93	O	n.c.		L	n.c.
99	P94	O	n.c.		L	n.c.
100	P95	O	n.c.		L	n.c.

1. EXPLODED VIEW AND PARTS LIST


POS. NO	VERS. COLOR	PART NO.(FOR EUR)	DESCRIPTION	PART NO.(MJI)
001B	BLACK	05AK248010 FRONT PANEL AL BLACK 05AK248010
001B	GOLD	05AK248110 FRONT PANEL AL GOLD 05AK248110
002B	185J25	1010 MARANTZ BADGE BL PAINTED 185J251010
009B	BLACK	383K105020 FRONT CHASSIS PL RIGHT BLACK 383K105020
009B	GOLD	05AK105110 FRONT CHASSIS PL RIGHT GOLD 05AK105110
010B	BLACK	385K105010 FRONT CHASSIS PL LEFT BLACK 385K105010
010B	GOLD	05AK105210 FRONT CHASSIS PL LEFT GOLD 05AK105210
020B	05AK158010 WINDOW PINK SMOKE 05AK158010
023B	05AK270020 BUTTON 10 KEY 05AK270020
025B	BLACK	383K270040 BUTTON PLAY STOP BLACK 383K270040
025B	GOLD	05AK270140 BUTTON PLAY STOP GOLD 05AK270140
026B	BLACK	383K270020 BUTTON OPEN/CLOSE BLACK 383K270020
026B	GOLD	05AK270130 BUTTON OPEN/CLOSE GOLD 05AK270130
030B	BLACK	05AK063010 ESCUTCHEON BLACK 05AK063010
030B	GOLD	05AK063110 ESCUTCHEON GOLD 05AK063110
031B	05AK251010 BADGE ESCUTCHEON 05AK251010
037B	BLACK	386K154010 JOG KNOB BLACK 386K154010
037B	GOLD	05AK154110 JOG KNOB GOLD 05AK154110
048B	BLACK	284T154310 KNOB HEADPHONE VOLUME BLACK 284T154310
048B	GOLD	284T154250 KNOB HEADPHONE VOLUME GOLD 284T154250
050B	BLACK	05AK270010 BUTTON POWER BLACK 05AK270010
050B	GOLD	05AK270110 BUTTON POWER GOLD 05AK270110
009G		183J057010 LEG (GOLD HOT STAMP) FRONT 183J057010
010G		183J057110 LEG (GOLD HOT STAMP) REAR 183J057110
026G	376K121010 LINK POWER SW 376K121010
001M	05AK304500 MEGHA LOADER ASSY 05AK304500
002M	05AK304510 MEGHA TRAVERSE ASSY 05AK304510
L098	FC50270040 FERRITE CORE USB-4 TRANS-MAIN FC50270040
L099	FC90280010 FERRITE CORE HF70SH28X2X10 SERVO-MAIN FC90280010
▲W001	/C	nsp MAINS CORD KOREA 3A 250V YC02000820
▲W001	/F	nsp MAINS CORD F HVFF 2X1.25 YC01800940
▲W001	/K	nsp MAINS CORD CCEE APP. (AC250V 10A)+ VAR2P YC01800880
▲W001	/N	YC01800790 MAINS CORD N (MAYOR) YC01800790
▲W001	/S	nsp MAINS CORD BS WITH VAR-2 YC01800930
WF01		nsp FFC (JF01-JY01) YU20110520
WM01		nsp FFC (J150-J103) YU24140520
001T	/F	nsp PACKING USER GUIDE CD7300 F 05AK851110
001T	/K/S	nsp USER GUIDE CD7300(ENG/CHI) 05AK851350
001T	/C	nsp USER GUIDE CD7300(C) 05AK851210
001T	/N	05AK851250 USER GUIDE CD7300(N) 05AK851250
009T	/F	nsp USER MANUAL ADDRESS SHEET 416K851130
WZ03		ZK05AK0010 REMOTE CONTROLLER RC7300CD ZK05AK0010
NOT STANDARD SPARE PARTS
001D	BLACK	nsp LID TOP COVER BLACK 349K257020
001D	GOLD	nsp LID TOP COVER GOLD 349K257120
001S		nsp PACKING CASE 05AK801010
002S		nsp CUSHION 386K809010

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
1 QP404109862 QP401117093 QP35810266	SUSPENSION(4822 404 10986) QP40410986CLAMPER(4822 401 11709) QP40111709BELT(4822 358 10266) QP35810266

NOTE: "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

12. ELECTRICAL PARTS LIST

ASSIGNMENT OF COMMON PARTS CODES.

RESISTORS

R ***: 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W

R***: 2) GD05 ××× 160, Carbon film fixed resistor, ±5% 1/6W

Examples ;

①Resistance value

Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually.

CAPACITORS

C***: CERAMIC CAP.

Examples ;

② Tolerance (Capacity deviation)

* Tolerance of COMMON PARTS handled here are as follows :

③ Capacity value

0.5 pF .... 005	3 pF .... 030	100 pF .... 101
1 pF .... 010	10 pF .... 100	220 pF .... 221
1.5 pF .... 015	47 pF .... 470	560 pF .... 561

C*** : CERAMIC CAP.

Examples ;

④ Capacity value

100 pF .... 101	1000 pF .... 102	10000 pF .... 103
470 pF .... 471	2200 pF .... 222

C***: 5) ELECTROLY CAP. ( ≠), 6) FILM CAP. ( ≠)

Examples

⑤ Capacity value

NOTE : 1) The above CODES ( R*** , R*** , C*** , C*** and C *** ) are omitted on the schematic diagram in some case.

2) On the occasion, be confirmed the common parts on the parts list.

3) Refer to "Common Parts List" for the other common parts (RI05, DD4, DK4).

NOTE ON SAFETY FOR FUSIBLE RESISTOR :

The suppliers and their type numbers of fusible resistors are as follows;

1. KOA Corporation

Part No. (MJI)	Type No. (KOA) Description
NH05 ××× 140	→ RF25S ×××× ΩJ (±5% 1/4W)
NH05 ××× 120	→ RF50S ×××× ΩJ (±5% 1/2W)
NH85 ××× 110	→ RF73B2A ×××× ΩJ (±5% 1/10W)
NH95 ××× 140	→ RF73B2E ×××× ΩJ (±5% 1/4W)
* Resistance value
	Resistance value(0.1 Ω – 10 kΩ)

1. Matsushita Electronic Components Co., Ltd

Part No. (MJI)	Type No. (MEC) Description
NF05 × × × 140	ERD-2FCJ × × ×(±5% 1/4W)
RF05 × × × 140
NF02 × × × 140	ERD-2FCG × × ×(±2% 1/4W)
RF02 × × × 140
*Resistance value	*Resistance value

Examples ;

* Resistance value

Symbol ⚠️ Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol ⚠️. Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.

安全上の注意：

NOTE: "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
CD01	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CD02	nsp CER. CHIP 1μF	10V F DK98105200
CD03	nsp ELECT.	47μF M 16V RA-2 OA47601620
CD04	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CD05	nsp ELECT.	47μF M 16V RA-2 OA47601620
CD06	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CD07	nsp ELECT.	100μF 16V ARA OA10701650
CD08	nsp CER. CHIP 1μF	10V F DK98105200
CD09	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CD10	nsp CER. CHIP 1μF	10V F DK98105200
CD14	nsp ELECT.	100μF 10V ARA OA10701050
CD16	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CD17	nsp CER. CHIP	0.01μF	DK98103300
CD18	nsp CER. CHIP	0.01μF	DK98103300
CD21
s	nsp CER. CHIP 4700pF	±10% B 50V	DK96472300
CD24
CD25	nsp CER. CHIP 100pF	±5% CG 50V	DD95101300
CD26	nsp CER. CHIP 100pF	±5% CG 50V	DD95101300
CD27	nsp CER. CHIP 100pF	±5% CG 50V	DD95101300
CD28	nsp CER. CHIP 10pF	±0.5pF CH 50V	DD91100300
CD29	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CD30	nsp CER. CHIP	220pF	DK96221300
CD31	nsp CER. CHIP 4700pF	±10% B 50V	DK96472300
CN01	nsp ELECT.	1000μF M 16V RA-2	OA10801620
CN02	nsp ELECT.	10μF M 16V RA-2	OA10601620
CN03	nsp ELECT.	47μF M 16V RA-2	OA47601620
CN04	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CR91	nsp CER. CHIP	220pF	DK96221300
CR92	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CT91	nsp CER. CHIP 100pF	±5% CG 50V	DD95101300
CT92	nsp ELECT.	10μF M 16V RA-2	OA10601620
CT93	nsp CER. CHIP 4700pF	±10% B 50V	DK96472300
CT94	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
CT95	nsp CER. CHIP 0.1μF	GRM39F104Z16 DK98104200
			PM01-RESISTORS
R301
s		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R306
R307		nsp	CHIP 6.8kΩ ±5% 1/16W	NN05682610
R308		nsp	CHIP 6.8kΩ ±5% 1/16W	NN05682610
R309		nsp	CHIP 2.7kΩ ±5% 1/16W	NN05272610
R310		nsp	CHIP 2.7kΩ ±5% 1/16W	NN05272610
R311
s		nsp	CHIP 120Ω ±5% 1/16W	NN05121610
R314
R315		nsp	CHIP 68Ω ±5% 1/16W	NN05680610
R316		nsp	CHIP 68Ω ±5% 1/16W	NN05680610
R317		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R318		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R319		nsp	CHIP 33kΩ ±5% 1/16W	NN05333610
R320		nsp	CHIP 33kΩ ±5% 1/16W	NN05333610
R321		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R322		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R323		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R324		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R325		nsp	CHIP 100Ω ±5% 1/16W	NN05101610
R326		nsp	CHIP 100Ω ±5% 1/16W	NN05101610
R327		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R328		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R333		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
R334		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
R401
s		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R406
R407
s		nsp	CHIP 120Ω ±5% 1/16W	NN05121610
R410

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
R411		nsp	CHIP 68 ± 5% 1/16W	NN05680610
R412		nsp	CHIP 68 ± 5% 1/16W	NN05680610
R413		nsp	CHIP 22 ± 5% 1/16W	NN05220610
R414		nsp	CHIP 22 ± 5% 1/16W	NN05220610
R415		nsp	CHIP 33k ± 5% 1/16W	NN05333610
R416		nsp	CHIP 33k ± 5% 1/16W	NN05333610
R417		nsp	CHIP 22 ± 5% 1/16W	NN05220610
R418		nsp	CHIP 22 ± 5% 1/16W	NN05220610
R419		nsp	CHIP 1k ± 5% 1/16W	NN05102610
R420		nsp	CHIP 1k ± 5% 1/16W	NN05102610
R421		nsp	CHIP 100 ± 5% 1/16W	NN05101610
R422		nsp	CHIP 100 ± 5% 1/16W	NN05101610
R423		nsp	CHIP 1k ± 5% 1/16W	NN05102610
R424		nsp	CHIP 1k ± 5% 1/16W	NN05102610
R601		nsp	CHIP 0 ± 5% 1/16W	NN05000610
R602		nsp	CHIP 0 ± 5% 1/16W	NN05000610
R603
R606		nsp	CHIP 100 ± 5% 1/16W	NN05101610
R607		nsp	CHIP 10k ± 5% 1/16W	NN05103610
R608		nsp	CHIP 10k ± 5% 1/16W	NN05103610
R609		nsp	CHIP 100k ± 5% 1/16W	NN05104610
R610		nsp	CHIP 100k ± 5% 1/16W	NN05104610
R611
R614		nsp	CHIP 2.2k ± 5% 1/16W	NN05222610
R805		nsp	CHIP 68 ± 5% 1/16W	NN05680610
R806		nsp	CHIP 68 ± 5% 1/16W	NN05680610
R807		nsp	CHIP 100 ± 5% 1/16W	NN05101610
R808		nsp	CHIP 100 ± 5% 1/16W	NN05101610
R810		NH05022140	FUSIBLE 2.2 J 1/4W RADIAL	NH05022140
R811		nsp	CHIP 33 ± 5% 1/16W	NN05330610
R881		nsp	CHIP 0 ± 5% 1/16W	NN05000610
R882		nsp	CHIP 0 ± 5% 1/16W	NN05000610
R883		nsp	CHIP 0 ± 5% 1/16W	NN05000610
RD01		nsp	CHIP 1k ± 5% 1/16W	NN05102610
RD02		nsp	CHIP 47k ± 5% 1/16W	NN05473610
RD03		nsp	CHIP 47k ± 5% 1/16W	NN05473610
RD04		nsp	CHIP 47k ± 5% 1/16W	NN05473610
RD05		nsp	CHIP 10k ± 5% 1/16W	NN05103610
RD06		nsp	CHIP 47k ± 5% 1/16W	NN05473610
RD07		nsp	CHIP 10 ± 5% 1/16W	NN05100610
RD08		nsp	CHIP 47k ± 5% 1/16W	NN05473610
RD09		nsp	CHIP 47k ± 5% 1/16W	NN05473610
RD10		nsp	CHIP 4.7k ± 5% 1/16W	NN05472610
RN01		nsp	CHIP 1k ± 5% 1/16W	NN05102610
RN02		nsp	CHIP 2.2k ± 5% 1/16W	NN05222610
RN03		nsp	CHIP 1k ± 5% 1/16W	NN05102610
RN04		nsp	CHIP 22k ± 5% 1/16W	NN05223610
RN05		nsp	CHIP 22k ± 5% 1/16W	NN05223610
RN07		nsp	CHIP 1k ± 5% 1/16W	NN05102610
RN08		nsp	CHIP 47k ± 5% 1/16W	NN05473610
RN09		nsp	CHIP 10k ± 5% 1/16W	NN05103610
RN10		nsp	CHIP 220k ± 5% 1/16W	NN05224610
RN11		nsp	CHIP 220k ± 5% 1/16W	NN05224610
RR91		nsp	CHIP 22 ± 5% 1/16W	NN05220610
RT91		nsp	CHIP 100 ± 5% 1/16W	NN05101610
RT93		nsp	CHIP 10 ± 5% 1/16W	NN05100610
RT94		nsp	CHIP 22 ± 5% 1/16W	NN05220610
R***			PM01-RESISTORS (COMMON)CARBON FILM FIXED RES. ± 5% 1/6W :R329-R332 R425-R428 R801-R804

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
D303
D306	HZ20018050 CHIP DIODE 1SS302 HZ20018050
D401	HZ21005000 CHIP DIODE 1SS301 DAN202U HZ21005000
D402	HZ21005000 CHIP DIODE 1SS301 DAN202U HZ21005000
D403
D406	HZ20018050 CHIP DIODE 1SS302 HZ20018050
▲ D801
▲ D804	HD20055100 DIODE SHOTTKY			HD20055100
	11EQS10 1A 100V
▲ D805	HD20002710 DIODE 1D3 1A/200V			HD20002710
▲ D806	HD20002710 DIODE 1D3 1A/200V			HD20002710
D807	HZ30011020 CHIP DIODE MA8043M			HZ30011020
▲ D808	HD20002710 DIODE 1D3 1A/200V			HD20002710
D810	HZ21005000 CHIP DIODE 1SS301 DAN202U HZ21005000
D811	HZ30011020 CHIP DIODE MA8043M			HZ30011020
D813	nsp DIODE			HD20002000
	1SS176 MA165 1SS254 30V 0.1A
D814	nsp DIODE			HD20002000
	1SS176 MA165 1SS254 30V 0.1A
D815	HZ21005000 CHIP DIODE 1SS301 DAN202U HZ21005000
D816	HZ30011020 CHIP DIODE MA8043M			HZ30011020
▲ D N01
▲ D N04	HD20002710 DIODE 1D3 1A/200V			HD20002710
DN05	HZ30011020 CHIP DIODE MA8043M			HZ30011020
DN09	HZ30471000 CHIP DIODE MA8047-M 4.7V			HZ30471000
Q301	HF203691B0 F.E.T.			HF203691B0
Q302	HF203691B0 F.E.T.			HF203691B0
	2SK369 BL VGDS-40V PD0.4W
Q303	HX328731B0 CHIP TRS. 2SC2873 (Y)			HX328731B0
Q304	HX328731B0 CHIP TRS. 2SC2873 (Y)			HX328731B0
Q305
Q308	HX113121B0 CHIP TRS. 2SA1312 (B)			HX113121B0
Q309	HX333241B0 CHIP TRS. 2SC3324 (B)			HX333241B0
Q310	HX333241B0 CHIP TRS. 2SC3324 (B)			HX333241B0
Q311	HF201701H0 F.E.T. 2SK170 V RANK			HF201701H0
Q312	HF201701H0 F.E.T. 2SK170 V RANK			HF201701H0
Q313	HF100741H0 F.E.T. 2SJ74 V RANK			HF100741H0
Q314	HF100741H0 F.E.T. 2SJ74 V RANK			HF100741H0
Q315	HF203691B0 F.E.T.			HF203691B0
	2SK369 BL VGDS-40V PD0.4W
Q316	HF203691B0 F.E.T.			HF203691B0
	2SK369 BL VGDS-40V PD0.4W
Q401	HF203892A0 F.E.T. 2SK389 GR OR BL			HF203892A0
Q402	HF203892A0 F.E.T. 2SK389 GR OR BL			HF203892A0
Q403	HX328731B0 CHIP TRS. 2SC2873 (Y)			HX328731B0
Q404	HX328731B0 CHIP TRS. 2SC2873 (Y)			HX328731B0
Q405
Q408	HX113121B0 CHIP TRS. 2SA1312 (B)			HX113121B0
Q409	HX333241B0 CHIP TRS. 2SC3324 (B)			HX333241B0
Q410	HX333241B0 CHIP TRS. 2SC3324 (B)			HX333241B0
Q411	HF201701H0 F.E.T. 2SK170 V RANK			HF201701H0
Q412	HF201701H0 F.E.T. 2SK170 V RANK			HF201701H0
Q413	HF100741H0 F.E.T. 2SJ74 V RANK			HF100741H0
Q414	HF100741H0 F.E.T. 2SJ74 V RANK			HF100741H0
Q601
Q604	HX342132A0 CHIP TRS. 2SC4213			HX342132A0
Q801	HC3890509F IC REG. NJM7805FA +5V			HC3890509F
Q802	HC3890909F IC REG. NJM7809FA +9V 1A			HC3890909F

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
Q803		HC3990909F	IC REG. NJM7909FA	HC3990909F
Q805		HT417622B0	TRS. 2SD1762 (E F)	HT417622B0
Q806		HC39124090	IC REG. NJM79L24A:0.1A-24V	HC39124090
Q807		HC38105090	IC REG. NJM78L05A	HC38105090
Q808		HX300012A0	CHIP TRS.2SC4081 (Q R) 2SC4116 (Y GR)	HX300012A0
QD01		HC10011880	IC DAC CS4396-KS24BIT DR=120DB	HC10011880
QD02		BA20035210	DIG. TRS. DTC114EU	BA20035210
QD03		HC10427050	IC TC7SHU04F 1PACK 1NV	HC10427050
QN01		HX300012A0	CHIP TRS.2SC4081 (Q R) 2SC4116 (Y GR)	HX300012A0
QN03		BA10026210	DIG. TRS. DTA114EU	BA10026210
QN04		BA20035210	DIG. TRS. DTC114EU	BA20035210
QN05		BA10026210	DIG. TRS. DTA114EU	BA10026210
QN06		BA10026210	DIG. TRS. DTA114EU	BA10026210
QN07		HX300012A0	CHIP TRS.2SC4081 (Q R) 2SC4116 (Y GR)	HX300012A0
QN08		BA10026210	DIG. TRS. DTA114EU	BA10026210
QN09		HX346721A0	CHIP TRS. 2SC4672 Q	HX346721A0
QN10		BA20035210	DIG. TRS. DTC114EU	BA20035210
QN11			PM01-MISCELLANEOUS
▲F801		FS20100200	FUSE 1A 250V SEMKO VDE	FS20100200
▲F802		FS20100200	FUSE 1A 250V SEMKO VDE	FS20100200
J601		YT02021080	TERMINAL YKC21-3337 CINCHP-JACK W/R GOLD	YT02021080
JR91		YT02020890	TERMINAL 2P CINCH PIN JACK	YT02020890
JT91		YT02010790	TERMINAL 14X14 RA 1L1PBLK AU FLM-GND	YT02010790
JT92		YJ15000210	OPT. CONNECTOR JFJ300	YJ15000210
L829		FC90050130	CHIP FERRITE BL02RN2-R62T2	FC90050130
LD01		FC90050130	CHIP FERRITE BL02RN2-R62T2	FC90050130
LD02		FN31000020	BLM11B252SD	FN31000020
LD03		FC90020110	CHIP FERRITE BLM11B601S	FC90020110
LR91		FC90020110	CHIP FERRITE BLM11B601S	FC90020110
LT91		TP41042030	PULSE TRNSF.(TPS247MN-0386AN)	TP41042030
LT92		FC90020110	CHIP FERRITE BLM11B601S	FC90020110
SR01		SS01021010	SLIDE SWITCH SSSF12-S06N0HORIZONTAL N-SHOT	SS01021010
			PP01-MAINS SWITCHCIRCUIT BOARD
▲C001		DF77103500	FILM. 0.01μF M 250V AC	DF77103500
▲F001		FS10050850	FUSE 500 MA 250V BS LISTED	FS10050850
▲J001		YP04000760	PLUG CONNECTOR 2P B3P-VH	YP04000760
▲J003	/C/F/N/S	YP04000760	PLUG CONNECTOR 2P B3P-VH	YP04000760
▲J003	/K	nsp	PLUG B3P5-VH	YP04000920
▲S001		SP01012480	PUSH SW. ESB92S94B TV-5 1.5MM	SP01012480
▲S002	/K	nsp	SLIDE SW. SDKGA4 SEMKO	SS02021510
			PS01-SERVOCIRCUIT BOARDSPS01-CAPACITORS
C101		nsp	CER. CHIP 5pF ±0.25pF CH 50V	DD90050300
C102		nsp	CER. CHIP 0.01μF	DK98103300
C103		nsp	CER. CHIP 0.1μF GRM39F104Z16	DK98104200
C104		nsp	CER. CHIP 4700pF ±10% B 50V	DK96472300
C105		nsp	ELECT. 47μF M 16V RA-2	OA47601620
C108		nsp	ELECT. 47μF M 16V RA-2	OA47601620
C110		nsp	ELECT. 100μF M 10V RA-2	OA10701020
C111
§		nsp	CER. CHIP 0.1μF GRM39F104Z16	DK98104200
C114
C115		nsp	CER. CHIP 1000pF ±10% B 50V	DK96102300
C116		nsp	CER. CHIP 1000pF ±10% B 50V	DK96102300

NOTE: "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
C117
s	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C120
C121	nsp CER. CHIP 1000pF ±10% B 50V DK96102300
C122
s	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C125
C126	nsp CER. CHIP 1000pF ±10% B 50V DK96102300
C127	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C128	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C129	nsp CER. CHIP 1000pF ±10% B 50V DK96102300
C130	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C131	nsp CER. CHIP 1000pF ±10% B 50V DK96102300
C132	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C133	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C150	nsp CER. CHIP 0.047μF DK98473300
C151	nsp CER. CHIP 1000pF ±10% B 50V DK96102300
C152	nsp CER. CHIP 0.01μF DK98103300
C153	nsp CER. CHIP 1μF 10V F DK98105200
C154	nsp CER. CHIP 47pF ±5% CG 50V DD95470300
C155	nsp CER. CHIP 0.022μF DK98223300
C158	nsp CER. CHIP 22pF ±5% CG 50V DD95220300
C159	nsp CER. CHIP 22pF ±5% CG 50V DD95220300
C163	nsp CER. CHIP 180pF DD95181300
C164	nsp CER. CHIP 220pF DK96221300
C165	nsp CER. CHIP 220pF DK96221300
C166	nsp CER. CHIP 330pF DK96331300
C167	nsp CER. CHIP 180pF DD95181300
C168	nsp CER. CHIP 220pF DK96221300
C169	nsp CER. CHIP 220pF DK96221300
C170	nsp CER. CHIP 180pF DD95181300
C171	nsp CER. CHIP 220pF DK96221300
C172	nsp CER. CHIP 22pF ±5% CG 50V DD95220300
C173	nsp CER. CHIP 180pF DD95181300
C174	nsp CER. CHIP 220pF DK96221300
C175	nsp CER. CHIP 1μF 10V F DK98105200
C176	nsp CER. CHIP 22pF ±5% CG 50V DD95220300
C177	nsp CER. CHIP 22pF ±5% CG 50V DD95220300
C178	nsp CER. CHIP 0.01μF DK98103300
C180	nsp CER. CHIP 0.01μF DK98103300
C181	nsp CER. CHIP 0.01μF DK98103300
C182	nsp CER. CHIP 0.01μF DK98103300
C184	nsp CER. CHIP 22pF ±5% CG 50V DD95220300
C185	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C187	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C188	nsp CER. CHIP 2200pF DK96222300
C192	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C193	nsp CER. CHIP 1μF 10V F DK98105200
C194	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C195	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C201	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C202	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C810	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
C811	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
CM02		nsp ELECT. 100μF M 10V RA-2 OA10701020
CM03
s	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
CM06
CM07	nsp CER. CHIP 1μF 10V F DK98105200
CM08		nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
CM09	nsp CER. CHIP 1μF 10V F DK98105200
CM10		nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
CM11	nsp CER. CHIP 1μF 10V F DK98105200
CM13	nsp CER. CHIP 4700pF ±10% B 50V DK96472300
CM14	nsp CER. CHIP 470pF DK96471300
CM15	nsp CER. CHIP 1μF 10V F DK98105200
CM16		nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
CM17	nsp CER. CHIP 470pF		DK96471300
CM18	nsp CER. CHIP 4700pF ±10% B 50V DK96472300
CM21	nsp CER. CHIP 0.1μF		GRM39F104Z16 DK98104200
CM22	nsp CER. CHIP 0.1μF		GRM39F104Z16 DK98104200
CM23		nsp	ELECT. 100μF M 10V RA-2	OA10701020
CM24	nsp CER. CHIP 33pF ±5% CG 50V DD95330300
CM25	nsp CER. CHIP 47pF ±5% CG 50V DD95470300
CM26	nsp CER. CHIP 47pF ±5% CG 50V DD95470300
CM27	nsp CER. CHIP 47pF ±5% CG 50V DD95470300
CY01
CY04	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
CY05		nsp	CER. CHIP 1μF 10V F	DK98105200
CY06	nsp CER. CHIP 0.1μF GRM39F104Z16 DK98104200
CY14		nsp	CER. CHIP 0.01μF	DK98103300
CY15		nsp	CER. CHIP 0.01μF	DK98103300
CY16		nsp	ELECT. 100μF M 10V RA-2	OA10701020
	PS01-RESISTORS
R101		nsp	CHIP 4.7kΩ ±5% 1/16W	NN05472610
R102		nsp	CHIP 4.7kΩ ±5% 1/16W	NN05472610
R103		nsp	CHIP 4.7kΩ ±5% 1/16W	NN05472610
R104		nsp	CHIP 220kΩ ±5% 1/16W	NN05224610
R105		nsp	CHIP 2.2kΩ ±5% 1/16W	NN05222610
R106		nsp	CHIP 100kΩ ±5% 1/16W	NN05104610
R107		nsp	CHIP 15kΩ ±5% 1/16W	NN05153610
R109		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
R110		nsp	CHIP 47Ω ±5% 1/16W	NN05470610
R111		nsp	CHIP 5.6kΩ ±5% 1/16W	NN05562610
R113		nsp	CHIP 2.7kΩ ±5% 1/16W	NN05272610
R114		nsp	CHIP 5.6kΩ ±5% 1/16W	NN05562610
R115		nsp	CHIP 12kΩ ±5% 1/16W	NN05123610
R116		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R117		nsp	CHIP 1.5kΩ ±5% 1/16W	NN05152610
R118		nsp	CHIP 18kΩ ±5% 1/16W	NN05183610
R119		nsp	CHIP 15kΩ ±5% 1/16W	NN05153610
R120		nsp	CHIP 12kΩ ±5% 1/16W	NN05123610
R121		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
R122		nsp	CHIP 12kΩ ±5% 1/16W	NN05123610
R123		nsp	CHIP 12kΩ ±5% 1/16W	NN05123610
R124		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R125		nsp	CHIP 390Ω ±5% 1/16W	NN05391610
R126		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R127		nsp	CHIP 15kΩ ±5% 1/16W	NN05153610
R129		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R130		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R131		nsp	CHIP 220Ω ±5% 1/16W	NN05221610
R132		nsp	CHIP 220Ω ±5% 1/16W	NN05221610
R133		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R134		nsp	CHIP 22Ω ±5% 1/16W	NN05220610
R135		nsp	CHIP 3.3kΩ ±5% 1/16W	NN05332610
R136		nsp	CHIP 180kΩ ±5% 1/16W	NN05184610
R137		nsp	CHIP 100kΩ ±5% 1/16W	NN05104610
R138		nsp	CHIP 100kΩ ±5% 1/16W	NN05104610
R139		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R140		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
R141		nsp	CHIP 470Ω ±5% 1/16W	NN05471610
R142		nsp	CHIP 2.2kΩ ±5% 1/16W	NN05222610
R143		nsp	CHIP 100kΩ ±5% 1/16W	NN05104610
R144		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
R145		nsp	CHIP 100Ω ±5% 1/16W	NN05101610
R146		nsp	CHIP 2.2kΩ ±5% 1/16W	NN05222610
R147		nsp	CHIP 2.2kΩ ±5% 1/16W	NN05222610
R148		nsp	CHIP 100kΩ ±5% 1/16W	NN05104610
R149		nsp	CHIP 150kΩ ±5% 1/16W	NN05154610
R150		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
R151		nsp	CHIP 470Ω ±5% 1/16W	NN05471610
R152		nsp	CHIP 1MΩ ±5% 1/16W	NN05105610

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
R153	nsp	CHIP 22kΩ ±5% 1/16W NN05223610
R154	nsp	CHIP 1kΩ ±5% 1/16W NN05102610
R155
R165	nsp	CHIP 10kΩ ±5% 1/16W NN05103610
R166	nsp	CHIP 47Ω ±5% 1/16W NN05470610
R167	nsp	CHIP 33kΩ ±5% 1/16W NN05333610
R168	nsp	CHIP 22Ω ±5% 1/16W NN05220610
R169	nsp	CHIP 22Ω ±5% 1/16W NN05220610
R170	nsp	CHIP 100Ω ±5% 1/16W NN05101610
R171	nsp	CHIP 10kΩ ±5% 1/16W NN05103610
R172	nsp	CHIP 10Ω ±5% 1/16W NN05100610
R173	nsp	CHIP 0Ω ±5% 1/16W NN05000610
R174	nsp	CHIP 1kΩ ±5% 1/16W NN05102610
R175	nsp	CHIP 100Ω ±5% 1/16W NN05101610
R176	nsp	CHIP 10kΩ ±5% 1/16W NN05103610
R177	nsp	CHIP 100Ω ±5% 1/16W NN05101610
R178	nsp	CHIP 1kΩ ±5% 1/16W NN05102610
R179	nsp	CHIP 47Ω ±5% 1/16W NN05470610
R180	nsp	CHIP 100Ω ±5% 1/16W NN05101610
R181	nsp	CHIP 0Ω ±5% 1/16W NN05000610
R182	nsp	CHIP 100Ω ±5% 1/16W NN05101610
R183	nsp	CHIP 1kΩ ±5% 1/16W NN05102610
R185	nsp	CHIP 680Ω ±5% 1/16W NN05681610
R186	nsp	CHIP 1kΩ ±5% 1/16W NN05102610
R187		nsp CHIP 1MΩ ±5% 1/16W	NN05105610
R188	nsp	CHIP 220Ω ±5% 1/16W NN05221610
R189
R192	nsp	CHIP 10kΩ ±5% 1/16W NN05103610
R194	nsp	CHIP 10Ω ±5% 1/16W NN05100610
R195		nsp CHIP 5.6Ω ±5% 1/16W	NN05056610
R196		nsp CHIP 4.7kΩ ±5% 1/16W	NN05472610
R197	nsp	CHIP 4.7kΩ ±5% 1/16W NN05472610
R198	nsp	CHIP 4.7kΩ ±5% 1/16W NN05472610
R199	nsp	CHIP 220Ω ±5% 1/16W NN05221610
R201	nsp	CHIP 10kΩ ±5% 1/16W NN05103610
R202	nsp	CHIP 22kΩ ±5% 1/16W NN05223610
R211	nsp	CHIP 68Ω ±5% 1/16W NN05680610
R212		nsp CHIP 5.6Ω ±5% 1/16W	NN05056610
R213		nsp CHIP 5.6Ω ±5% 1/16W	NN05056610
R220	nsp	CHIP 12kΩ ±5% 1/16W NN05123610
R221	nsp	CHIP 100Ω ±5% 1/16W NN05101610
R226	nsp	CHIP 22Ω ±5% 1/16W NN05220610
R227	nsp	CHIP 0Ω ±5% 1/16W NN05000610
RM01		nsp CHIP 1kΩ ±5% 1/16W	NN05102610
RM02		nsp CHIP 10Ω ±5% 1/16W	NN05100610
RM03		nsp CHIP 10Ω ±5% 1/16W	NN05100610
RM04		nsp CHIP 4.7Ω ±5% 1/16W	NN05047610
R M05
R M09	nsp CHIP 10Ω ±5% 1/16W NN05100610
RM11		nsp CHIP 330Ω ±5% 1/16W	NN05331610
RM12		nsp CHIP 330Ω ±5% 1/16W	NN05331610
RM13		nsp CHIP 330Ω ±5% 1/16W	NN05331610
RM14		nsp CHIP 10Ω ±5% 1/16W	NN05100610
RM15		nsp CHIP 10Ω ±5% 1/16W	NN05100610
RM16		nsp CHIP 1kΩ ±5% 1/16W	NN05102610
RM17		nsp CHIP 10Ω ±5% 1/16W	NN05100610
RM18		nsp CHIP 470kΩ ±5% 1/16W	NN05474610
RM19		nsp CHIP 470Ω ±5% 1/16W	NN05471610
RM24		nsp CHIP 1kΩ ±5% 1/16W	NN05102610
R M5
R M54	nsp CHIP 1kΩ ±5% 1/16W NN05102610
RR21		nsp CHIP 10kΩ ±5% 1/16W	NN05103610
RR22		nsp CHIP 2.2kΩ ±5% 1/16W	NN05222610
RR23		nsp CHIP 10kΩ ±5% 1/16W	NN05103610

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
RY01		nsp	CHIP 47kΩ ±5% 1/16W	NN05473610
RY02		nsp	CHIP 10Ω ±5% 1/16W	NN05100610
RY03		nsp	CHIP 47kΩ ±5% 1/16W	NN05473610
RY04		nsp	CHIP 47kΩ ±5% 1/16W	NN05473610
RY05		nsp	CHIP 10Ω ±5% 1/16W	NN05100610
RY06		nsp	CHIP 47kΩ ±5% 1/16W	NN05473610
RY07		nsp	CHIP 10Ω ±5% 1/16W	NN05100610
RY08		nsp	CHIP 47kΩ ±5% 1/16W	NN05473610
RY09		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
RY10		nsp	CHIP 47kΩ ±5% 1/16W	NN05473610
RY11		nsp	CHIP 10Ω ±5% 1/16W	NN05100610
RY13		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
RY14		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
RY15		nsp	CHIP 10kΩ ±5% 1/16W	NN05103610
RY17		nsp	CHIP 4.7kΩ ±5% 1/16W	NN05472610
RY21		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
RY22		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
RY23		nsp	CHIP 1kΩ ±5% 1/16W	NN05102610
PS01-SEMICONDUCTORS
D101		HZ21005000	CHIP DIODE 1SS301 DAN202U	HZ21005000
D102		HZ21005000	CHIP DIODE 1SS301 DAN202U	HZ21005000
DR02		HZ21005000	CHIP DIODE 1SS301 DAN202U	HZ21005000
Q101		HC10207490	IC TZA1024 RF AMP	HC10207490
Q102		HX300012A0	CHIP TRS.2SC4081 (Q R) 2SC4116 (Y GR)	HX300012A0
Q 10 3		HC10165490	IC TDA7073AT	HC10165490
Q105			SOP DUAL BTL DRIVER
Q106		BA10026210	DIG. TRS. DTA114EU	BA10026210
Q107		BA20035210	DIG. TRS. DTC114EU	BA20035210
Q108		BA20035210	DIG. TRS. DTC114EU	BA20035210
Q109		HX300012A0	CHIP TRS.2SC4081 (Q R) 2SC4116 (Y GR)	HX300012A0
Q110		HX100012A0	CHIP TRS.2SA1586 (Y GR) 2SA1576A (Q R)	HX100012A0
Q 11 1		HX300012A0	CHIP TRS	HX300012A0
Q114			2SC4081 (Q R) 2SC4116 (Y GR)
Q150		HC10209490	IC SAA7324H/M2B	HC10209490
Q152		HC762837Z0	IC SN74LS628NS	HC762837Z0
Q153		HC10225210	IC BU2630FV-E2	HC10225210
Q154		HC90005090	IC NJM78L05UA CHIP REG	HC90005090
Q201		HC10390030	IC CD TEXT DECORDER SANYO	HC10390030
QM01		HC10010540	IC STA016T MP3 DECODER	HC10010540
QM02		HX346721A0	CHIP TRS. 2SC4672 Q	HX346721A0
QR21		HX300012A0	CHIP TRS.2SC4081 (Q R) 2SC4116 (Y GR)	HX300012A0
QY01		HU05AKN10F	MICROPROCESSORUPD784216AGC-175-8EU	HU05AKN10F
QY02		HC10224210	IC BD4742G RESET IC 4.2V	HC10224210
QY03		HC10033990	IC AT24C04N-10SI-2.5	HC10033990
PS01-MISCELLANEOUS
L150		FC90020110	CHIP FERRITE BLM11B601S	FC90020110
L151		FN31000020	BLM11B252SD	FN31000020
L801		FC90020110	CHIP FERRITE BLM11B601S	FC90020110
LM01		FC90050130	CHIP FERRITE BL02RN2-R62T2	FC90050130
LM03		FN31000020	BLM11B252SD	FN31000020
LM06
LM07		FC90020110	CHIP FERRITE BLM11B601S	FC90020110
LM08		FC90020110	CHIP FERRITE BLM11B601S	FC90020110
X150		JX08001320	CRYSTAL CM309S 8.4672MHz	JX08001320
XY01		FQ01005020	CERAMIC VIB. CSTCC10.0MGRESONATOR 10MHz	FQ01005020

NOTE: "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

POS. NO	VERS. COLOR	PART NO. (FOR EUR)	DESCRIPTION	PART NO. (MJI)
	PT01-TRANS		CIRCUIT BOARD
▲J007 /K nsp PLUG B3P5-VH YYP04000920			P04000920
▲J007 /C/F/N /S			PLUG CONNECTOR 2P B3P-VH YP04000760
▲T001 /F nsp MAINS TRANSF.			EI57-25 100V 50/60HZ	TS15725190
▲T001 /K nsp MAINS TRANSF.			EI57-25 110V/220V 50/60HZ	TS15725200
▲T001 /C/N/S TS15725210 MAINS TRANSF.			EI57-25 230V 50HZ	TS15725210

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
