Product Type	Oil-filled Radiator Heater
Model	KASMGPH20YA
Brand	Kogan
Power Source	220-240V ~ 50/60Hz
Power Consumption	2000W (High) / 1200W (Medium) / 800W (Low)
Number of Heat Settings	3
Dimensions (H x W x D)	640 x 280 x 360 mm
Weight	9.2 kg
Heating Element	Oil-filled radiator
Fin Material	Steel with painted finish
Thermostat Control	Adjustable thermostat with dial
Timer	24-hour programmable timer
Safety Features	Overheat protection, tip-over switch, thermal fuse
Portability	Built-in carry handle and castor wheels
Cord Length	1.8 m
Room Coverage	Up to 20 sq m
Operation	Manual controls with on/off switch
Cleaning Instructions	Wipe with soft damp cloth; do not use abrasive cleaners
Storage	Store in a dry place, allow to cool before storing
Repairability	Spare parts available through Kogan support
Warranty	2 years limited manufacturer warranty

Frequently Asked Questions - KASMGPH20YA Kogan

How do I set the timer on the Kogan KASMGPH20YA heater?

Turn the timer dial clockwise to the desired number of hours (1-24). The heater will operate for that duration and then automatically turn off.

What is the maximum wattage of this heater?

The maximum power consumption is 2000W on the high setting.

Can I use this heater in a bathroom?

No, this heater is not rated for bathroom use. It is designed for indoor use in dry areas only.

How do I clean the KASMGPH20YA oil heater?

Unplug the heater and allow it to cool completely. Wipe the surfaces with a soft damp cloth. Do not use chemicals or immerse in water.

What safety features does this heater have?

It includes overheat protection, a tip-over switch that cuts power if knocked over, and a thermal fuse for added safety.

Does the heater have a remote control?

No, the KASMGPH20YA is manually operated with dials for thermostat and timer.

What is the recommended room size for this heater?

It is suitable for rooms up to approximately 20 square meters.

How long does it take to heat up?

The oil-filled radiator heats gradually; initial warmth is felt within 10-15 minutes, but full heat may take 30 minutes.

Can I use an extension cord with this heater?

It is recommended to plug the heater directly into a wall outlet. If necessary, use a heavy-duty extension cord rated for at least 15A.

Where can I find replacement parts or service?

Contact Kogan customer support for spare parts and repair information. Do not attempt to open or repair the unit yourself.

USER MANUAL KASMGPH20YA Kogan

Line drawing of a rectangular electronic device with wheels and a 27-degree angle label (no text or symbols on the device itself)

KOGAN SMARTERHOME™ PREMIUM GLASS PANEL HEATER

1500W, 2000W & 2400W

KASMGPH15YA, KASMGPH15YB, KASMGPH20YA, KASMGPH20YB, KASMGPH24YA & KASMGPH24YB

Safety & Warnings 3

Overview 5

Installation 7

Connect to SmarterHome™ App 11

Google Home Control 14

Amazon Alexa Control 17

Operation 20

Cleaning & Care 24

Specifications 25

Notes 26

SAFETY & WARNINGS

- Read all instructions fully before using the product for the first time and retain for reference. If passing this product on to a new owner, include a copy of this guide.

• Power Input: 220-240V\~50-60Hz

- Do not leave this unit unattended while it is in use.

- Some parts of this product can become very hot and cause burns. Particular attention must be given when children and vulnerable people are present. Keep children and pets at a safe distance from the unit.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when occupied by persons not capable of leaving a room on their own, unless constant supervision is provided.

- In order to avoid overheating and potential fire hazard, ensure the heater is not covered. In particular, do not use it for drying clothes.

- Do not attempt to repair this product yourself. If the product or its power supply experiences any malfunction or damage, stop using it immediately and contact Kogan.com to arrange a repair.

- If the power cable shows any signs of damage, cease use immediately and contact help.Kogan.com for support.

- Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol: otherwise, the marks will burn into the element causing premature heater failure.

• This product is suitable for indoor use only.

- Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.

- Do not touch the plug with wet or damp hands.

- Do not run the power cable under carpeting. Do not cover the power cable with rugs, runners, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.

- Do not wind the power cable around the unit.

- Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire or damage to the heater.

- Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.

• Always ensure that the heater is plugged into a suitable socket.

- Do not position directly above or below an electrical socket.

• Always use on a dry, suitably strong, stable, flat and level surface.

- Always unplug the unit and ensure that the unit has cooled completely before moving, cleaning or storing.

- This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by Kogan.com, may result in fire, electric shock or injury to persons.

- Check exterior walls for areas of damage before installing the heater.

- Check exterior walls for communication and electrical cables and pipelines. Should any service lines be present in the immediate vicinity do not install your heater, find an alternative location to install this product.

- Do not remove any of the warning stickers or signs from the product.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- When the appliance is not in use and before cleaning, unplug the appliance from the outlet firstly.

- WARNING: In order to avoid overheating, do not cover the heater.

- The heater must not be located immediately below a socket outlet.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or attach it to the wall.

- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 metre from the air outlet.

- The heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

OVERVIEW

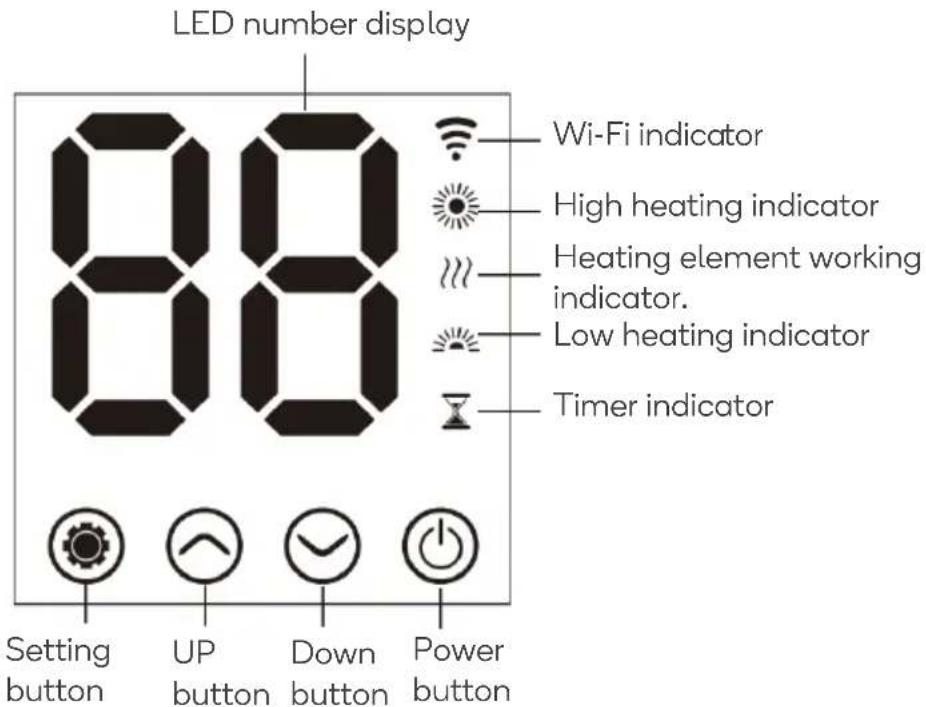

Control panel

INSTALLATION

Note:

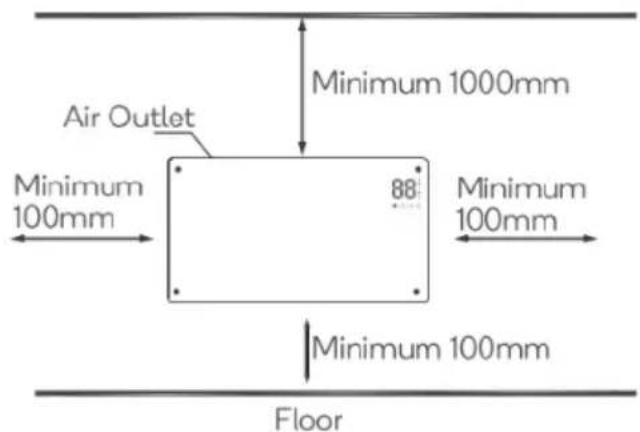

The heater MUST be installed with a minimum distance of 100mm from all four sides of the heater.

Wall mounting

Model L(mm)
KASMGPH15YA & KASMGPH15YB 597
KASMGPH20YA & KASMGPH20YB 832
KASMGPH24YA & KASMGPH24YB 952

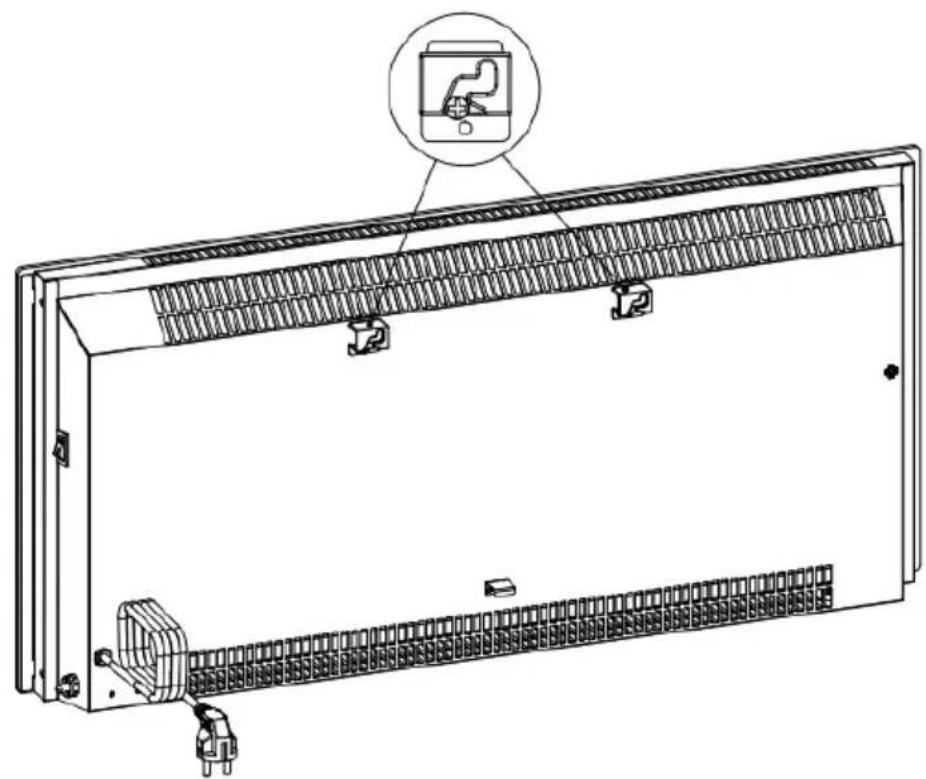

1. Insert the wall bracket into the hole, align the bracket with screw holes and tighten the screws.
2. Insert the spacer support part into the hole in the rear of the heater and push down.

Technical line drawing of an electrical enclosure with internal components and a close-up inset showing a device (no text or symbols present)

1. Drill two holes 250mm (L1) apart, ensuring they are straight using a spirit level, then insert the wall anchors.

2. Ensuring the holes are aligned, attach the heater to the wall with 35mm self-tapping screws.

Removing the Heater

To remove the heater from the wall, pull the heater 5mm outward and then move it 10mm to the left.

Leg Installation

1. Attach the legs into the hole in the underside of the heater and push it upwards.

2. Align the legs with the screw hole and secure them in place using the supplied screw.

3. To remove the legs, perform the above steps in reverse order.

Close-up of a metallic plate with circular holes and a square cutout, circled in black (no text or symbols visible)

CONNECT TO SMARTERHOME™ APP

Install App

Download the "Kogan SmarterHome" app from the Play Store (Android) or App Store (iOS).

Play Store (Android)

App Store (iOS)

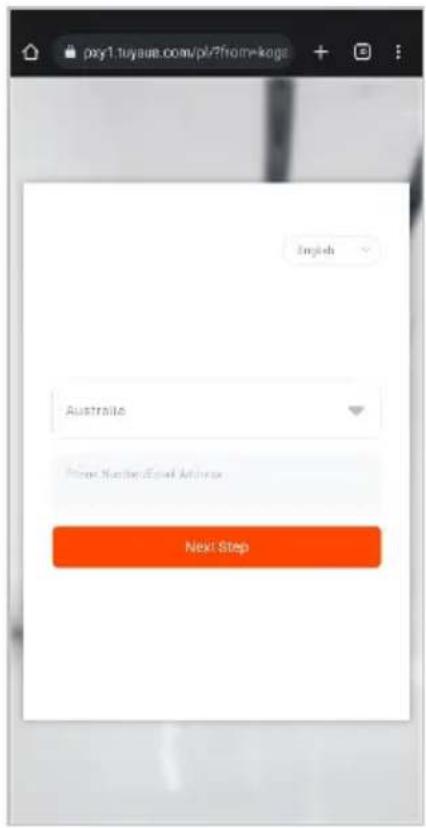

To register:

1. If you already have a SmarterHome account, select 'Log In'. To register a new account, select 'Sign Up'.
2. The system will automatically recognise your country. If needed, you can manually select your country from the drop-down box. Enter your email address and tap 'Get Verification Code' to continue.
3. A 6-digit code will be sent to the submitted email address. Enter this code before the one-minute timer expires.
4. Continue to the next page and complete your SmarterHome profile.

Set device in pairing mode

When the device is first turned on, it may automatically enter pairing mode (Wi-Fi indicator will be flashing rapidly).

If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the setting and down buttons for 3 seconds until the Wi-Fi indicator is flashing rapidly.

Add device through network

1. Once registered, tap "Add Device" on the app's home page, or the "+" in the upper right corner, to add a new device through the network.
2. Select the product type from the list of options in the app (Heating & Cooling → Heaters).

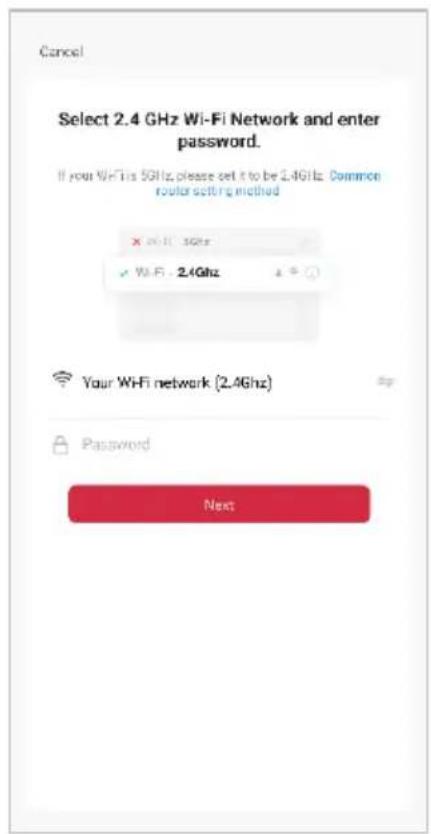

3. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.

Notes:

• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
• Depending on the product, Steps 3 and 4 may be in opposite order.

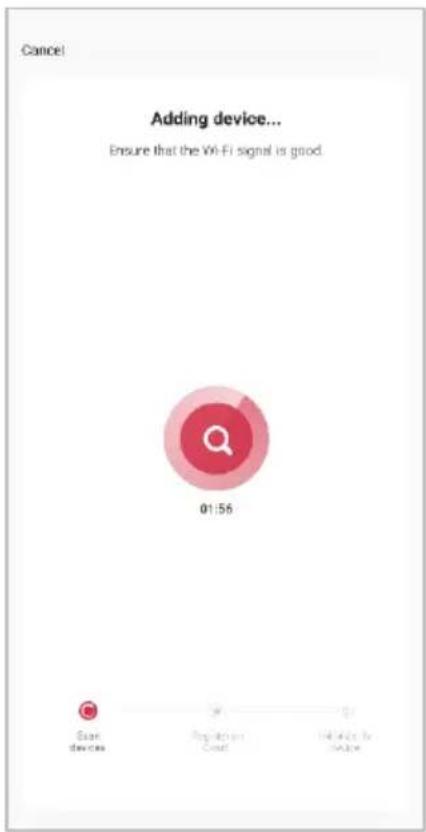

1. Ensure that the device is in pairing mode, with the Wi-Fi indicator flashing rapidly, and tap "Confirm light is rapidly flashing".

2. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.

3. After successfully being added, you will have the option to rename the device and assign it to a location. It will now be listed on the app's home page. Tap the device listing to enter its control page.

Note:

Once connected, you can select Create Scene from the “+” in the upper right corner (or from the Scene tab) to group connected SmarterHome™ products and automate their functions.

GOOGLE HOME CONTROL

Note:

You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Google Home app

1. From the home page of the Google Home app, select the “+” icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’ page.
2. Select 'Set up device', then select the 'Works with Google' option.

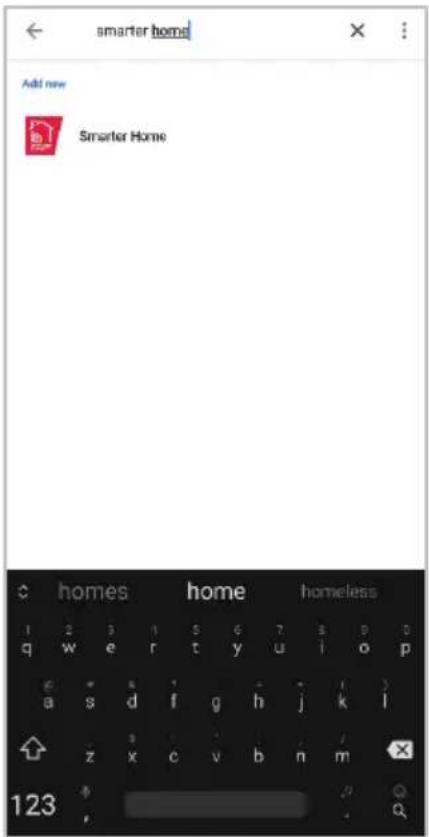

1. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ service.
2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.

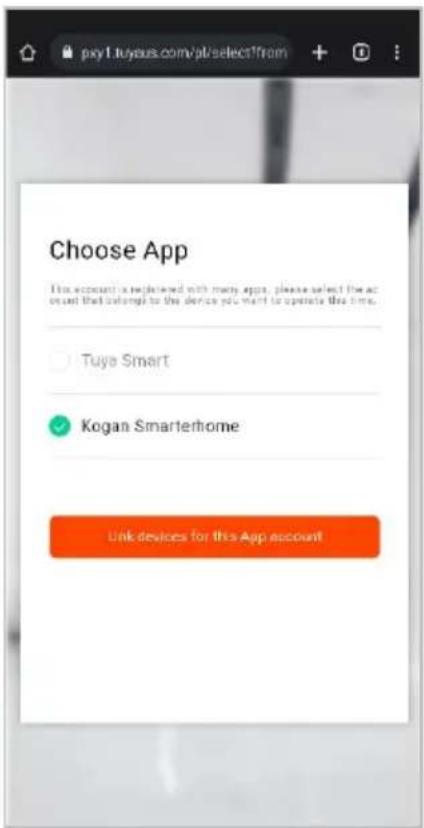

3. Select "Kogan SmarterHome™" from the app options.

1. Tap 'Authorise' to grant Google permission to access the SmarterHome™ app and your devices.
2. Once connected, the app will display any compatible devices linked to your SmarterHome™ account. From here you can assign them to rooms and set up any routines. Tap on any of the devices to view a list of available commands.

Note:

Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

AMAZON ALEXA CONTROL

Note:

You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Alexa app

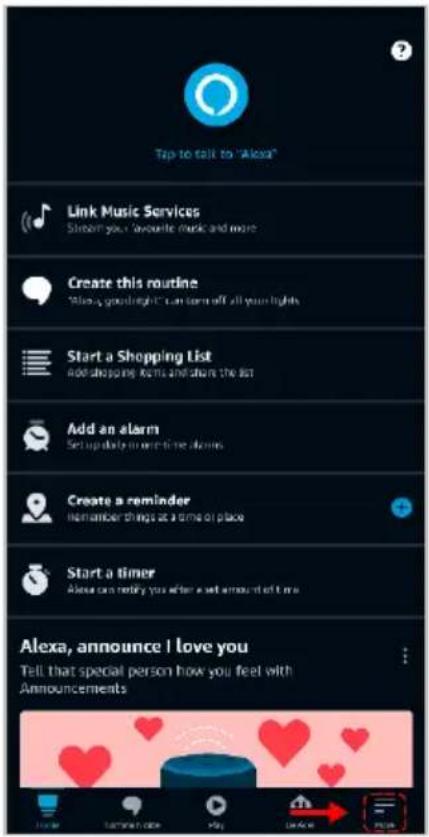

1. From the home page of the Alexa app, select the “≡” icon in the bottom-right and select “Skills & Games” from the sidebar.

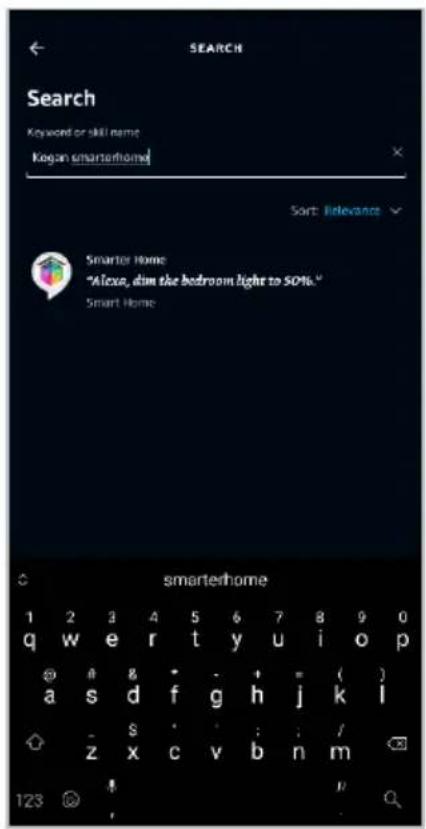

2. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ skill.

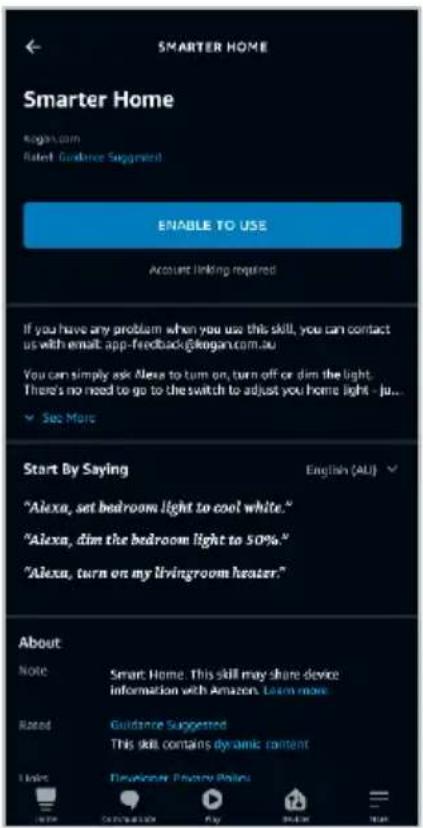

1. Tap 'Enable to Use' to add the Kogan SmarterHome™ skill to Alexa.
2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
3. Select "Kogan SmarterHome™" from the app options.

1. Tap 'Authorise' to grant Alexa permission to access the SmarterHome™ app and your devices.
2. Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa's voice commands.

Note:

Please note that Alexa can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

OPERATION

Turn the Heater On/Off

1. Connect the heater to a power socket and turn on the main switch: the heater will be in standby (setting, up, down and power buttons illuminate).
2. Press the power button to begin heating operation: the display will show the current ambient temperature.
3. Press the power button to turn the heater off.

Temperature Setting

1. Press the setting button first to enter the temperature setting mode. Use the up and down buttons to select the desired temperature (5–45°C).
2. The selected temperature will be set when there is no input for 5 seconds.

Timer Setting

1. With a timer set, the heater will turn off automatically once the set time has been reached.
2. Press the setting button twice to enter the timer setting mode. Use the up and down buttons to select the desired timer (in hours).
3. The current timer setting will be accepted when there is no input for 5 seconds.

High/Low Power Mode Selection

Press the Setting button on the remote and then press the “☐” button to toggle between high and low power modes. The respective indicator will be illuminated.

Model	Mode	Power	Description
KASMGPH15YA & KASMGPH15YB	Low (50%) 750W		The heater's power consumption will be reduced, but it will require a longer time to reach the desired temperature.
	High (100%) 1500W		In high power mode, the heater will consume more power, allowing it to reach the desired temperature more quickly.
KASMGPH20YA & KASMGPH20YB	Low (50%) 1000W		The heater's power consumption will be reduced, but it will require a longer time to reach the desired temperature.
	High (100%) 2000W		In high power mode, the heater will consume more power, allowing it to reach the desired temperature more quickly.

Model	Mode	Power	Description
KASMGPH24YA & KASMGPH24YB	Low (50%) 1200W		The heater's power consumption will be reduced, but it will require a longer time to reach the desired temperature.
	High (100%) 2400W		In high power mode, the heater will consume more power, allowing it to reach the desired temperature more quickly.

• Pressing the Up “♡” button on the heater during operation will enable High power mode. The indicator will illuminate. To return to normal heating mode press the Up “♡” button again. The indicator will turn off.
• Pressing the Down “√” button on the heater during operation will enable Low power mode. The indicator will illuminate. To return to normal heating mode press the Down “√” button again. The indicator will turn off.

Child-Lock Function

1. In heating mode, press and hold both up and down buttons on the display for 3 seconds and the child lock function will be enabled. After 5 seconds, the display will show the ambient temperature.
2. To remove the child lock, press and hold both up and down buttons on the display for 2 seconds again.

Display Buttons Activation

During operation, the display buttons will not be illuminated. Touch the panel below the display and they will come on.

Switch Between Fahrenheit and Celsius

Press the Setting button and the Up button at the same time for 10 seconds.

Eco Function (Night Mode)

In this mode the heater will turn off the display and only the heating mode & timer indicators will be shown.

1. To enable ECO mode, press and hold the setting and down buttons for 3 seconds. Alternatively, press the ECO button on the remote control.
2. To turn the display back on, press the ECO button on the remote or touch the display.

Wi-Fi Reset

1. During operation, press and hold the setting button for 5 seconds.
2. Wi-Fi will now be reset, and the Wi-Fi indicator light will be flashing rapidly.
3. Connect the heater to the Kogan SmarterHome™ app following the steps from the “Connect To SmarterHome™ App” section of this user guide.

Tip-over switch

Auto turn off function: The product is equipped with tip-over switch, if the heater falls over, place it back upright and restart.

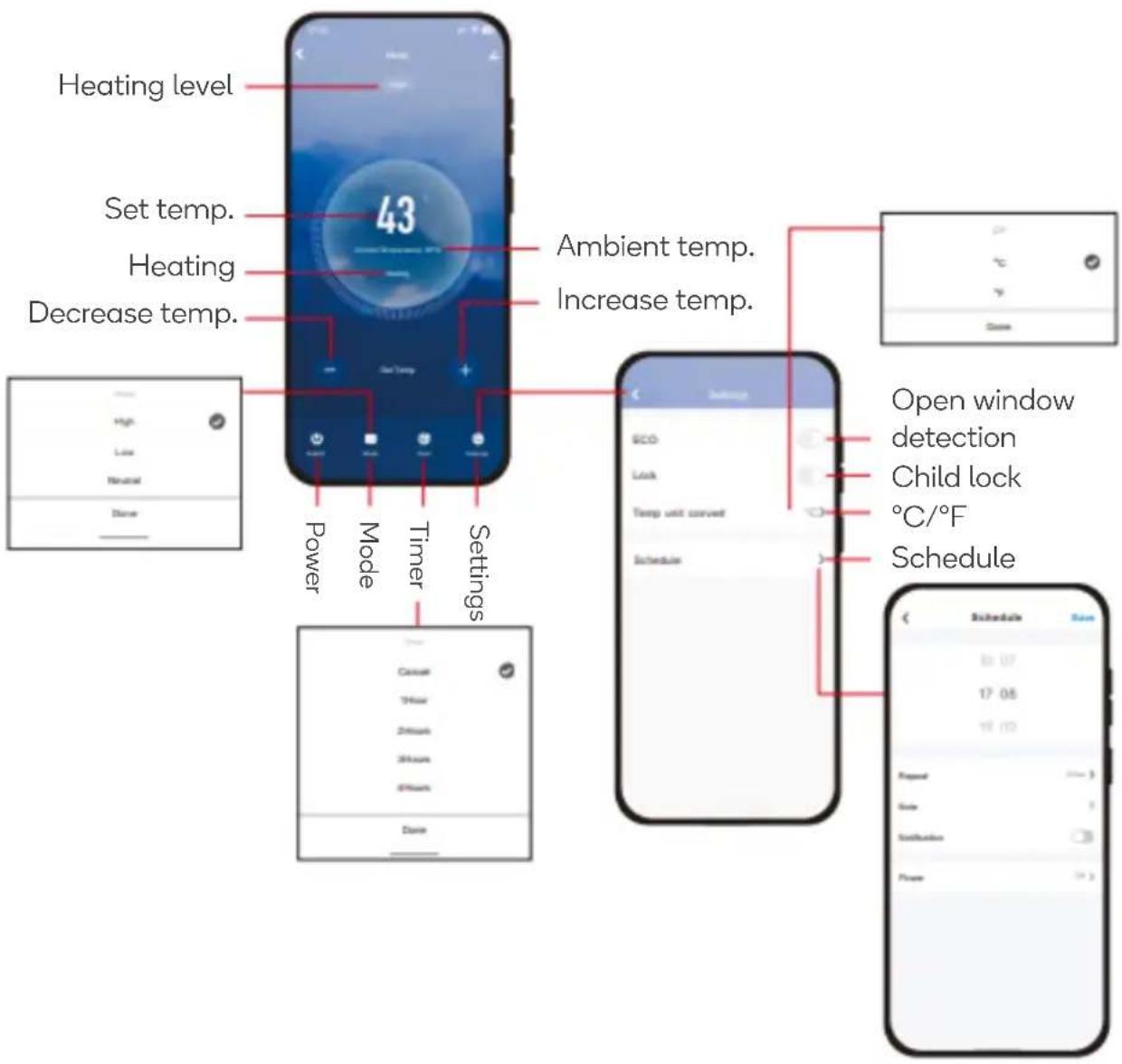

Using the App

Notes:

• When device is online, it can be controlled.
• When device is offline, it displays "Offline" and cannot be remotely powered on.

CLEANING & CARE

Cleaning the Heater

• Disconnect the power supply to the heater before cleaning.
• Ensure that the heater has been allowed to cool down completely before cleaning.
• Holding both sides of the heater, lift upwards and then pull forwards. The heater requires regular cleaning, to ensure trouble-free operation.
• Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.
• Use a vacuum cleaner to remove dust and fluff from around the grilles. Failure to do this may cause discoloration.
• Ensure the heater is dry before connecting back into the power supply.

Power Cord

If the power cord is damaged must be replaced. Cease use immediately and contact help.Kogan.com for support.

Storage

If you do not plan to use the heater for extended periods of time, it is recommended that the heater is cleaned and then stored (preferably in its original packaging) in a cool dry place.

SPECIFICATIONS

Model	KASMGPH15YA & KASMGPH15YB	KASMGPH20YA & KASMGPH20YB	KASMGPH24YA & KASMGPH24YB
Rated Power	1500W	2000W	2000-2400W
Rated Voltage	220-240V~50Hz
Dimensions (mm)	597 x 70 x 400	832 x 70 x 400	952 x 70 x 400

Disposal

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
