707F - Kitchen sink Sani-Lav - Free user manual and instructions

Product Type	Wall-Mount Kitchen Sink
Brand	Sani-Lav by Columbia Products
Model	707F (also 707F-0.5)
Material	Stainless Steel
Faucet Centers	8" on center
Mounting Type	Wall-mounted with support brackets
Compliance	NSF/ANSI 2, NSF/ANSI 61 Section 9, ASME A112.18.1/CSA B125.1, NSF/ANSI 372 (low lead)
Included Components	Wall mount sink, 8" on center faucet, faucet mounting kit, wall-mounting bracket, (2) support brackets, (4) support bracket bolts and washers, strainer assembly with basket
Faucet Type	Gooseneck swivel spout (10" spout)
Aerator Type	Standard 2.0 GPM or low-flow 0.5 GPM (55/64-27 thread)
Valves	Knee pedal valves (optional installation)
Waste Connection	Strainer assembly to drain pipe
Water Supply Connections	Hot and cold supply lines (not included)
Installation Height	Recommended 45" from finished floor to top edge of wall bracket
Care Instructions	Use abrasive cleaner (Bon-Ami or Zud) weekly; rinse with hot water after use; dry regularly to prevent rust; avoid harsh chemicals, abrasive pads, steel wool
Safety Warning	California Prop 65: Contains chromium (hexavalent compounds), lead, and phthalates (DEHP)
Replacement Parts Available	Yes: gooseneck spout, aerators, handle kits, valve repair kits, mounting kit, wall flanges
Tools Required for Installation	Tape measure, adjustable wrench, drill, pipe wrench, level, safety glasses, screwdrivers, pencil, socket wrench
Not Included	Screws for wall bracket, water supply lines, drain pipe, fastening hardware for support brackets
Warranty/Support	Contact Columbia Products: 800.626.2117 or columbiasinks.com

Frequently Asked Questions - 707F Sani-Lav

What is the recommended installation height for the Sani-Lav 707F sink?

The recommended height is 45 inches from the finished floor to the top edge of the wall mounting bracket.

What tools are needed for installation?

You will need a tape measure, adjustable wrench, drill motor and bits, pipe wrench, level, safety glasses, screwdrivers (Phillips and standard), pencil, and socket wrench.

How do I install the faucet on the 707F sink?

Install the faucet using the provided faucet mounting kit. Use pipe thread sealant instead of Teflon tape for better sealing.

What should I do if water drips from the spout or lever?

This may indicate a worn seat washer, seat, or O-rings. Shut off the cold water source and check if the leak continues. If it stops, repair the cold side; otherwise, repair the hot side. Install a hot or cold faucet repair kit.

How do I clean the stainless steel sink?

Clean with an abrasive cleaner like Bon-Ami or Zud weekly, scrubbing in the direction of the grain. Alternatively, use baking soda. Rinse well and dry. Avoid harsh chemicals and steel wool.

Are replacement parts available for the 707F sink?

Yes, replacement parts include the 10" gooseneck swivel spout, aerators (standard 2.0 GPM or low-flow 0.5 GPM), 4" wrist handle kits, faucet valve repair kits, faucet mounting kit, and female wall flanges.

What certifications does the 707F sink have?

It is certified to NSF/ANSI 2 (food equipment), NSF/ANSI 61 Section 9, and ASME A112.18.1/CSA B125.1. It also meets NSF/ANSI 372 for low lead content (less than 0.25% lead in wetted surfaces).

Does the sink come with a faucet?

Yes, the sink includes an 8-inch on-center faucet and a faucet mounting kit.

Can I install the sink without support brackets?

No, support brackets are essential for stability. They must be mounted to the wall and attached to the bottom of the sink.

What should I avoid when cleaning the sink?

Avoid harsh abrasive cleaners, corrosive chemicals, scouring pads, carbon steel brushes, and steel wool. Also avoid oily rags and mixing cleaners, as some can produce dangerous gases.

USER MANUAL 707F Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Operating Manual for Wall Mount Stainless Steel Sink

Models 707F and 707F-0.5

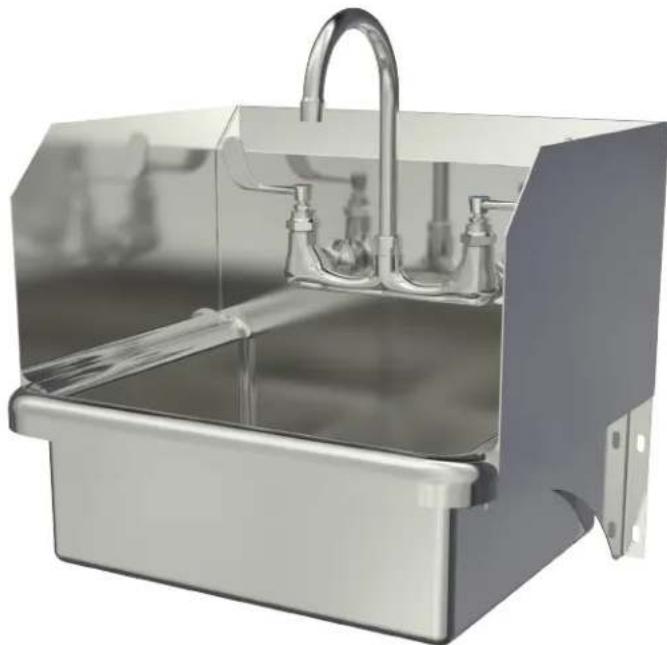

3D rendering of a stainless steel kitchen sink with faucet and water dispenser (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, NSF/ANSI 61, Section 9, ASME A112.18.1/CSA B125.1

NSF.

COLUMBIA SPECIFICATIONS

WALL MOUNT SINK

Parts List

□(1) Wall mount sink
□(1) 8" on center faucet
□(1) Faucet mounting kit
□(1) Wall-mounting bracket
□(2) Support brackets
☐ (4) Support bracket mounting bolts and washers
□(1) Strainer assembly with basket

Tools Required

□ Tape measure
□ Adjustable wrench
□ Drill motor and drill bits
□ Pipe wrench
□ Level
□ Safety glasses
□ Screw drivers: phillips and standard
□ Pencil
□ Socket wrench

Installation Instructions

Step 1

1. Establish sink location on the wall.
2. Measure a recommended 45" from finished floor and draw a level line which will be the top edge of the wall mounting bracket.
3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill holes and secure bracket to the wall as shown in illustration A. Screws are not provided.

Step 2

1. Install faucet to the sink using faucet mounting kit provided. We recommend using pipe thread sealant instead of Teflon tape.
2. Install strainer assembly to the drain hole.
3. Connect hot and cold water supply lines (not included) to the back of faucets.

Step 3

1. Position sink onto the wall bracket.
2. Mount support bracket to the bottom of the sink. Do not tighten.
3. Slide or push support brackets against the wall and mark holes for fastening. See illustration B.
4. Remove support brackets from the sink and drill holes for fastening.
5. Install fastening hardware to the drilled holes. (not included)
6. Mount support bracket to the bottom of the sink and fasten them to the wall.

Step 4

1. Install valves onto the sink.
2. Install elbow fittings to Knee Pedal Valves.
3. Connect hot and cold connecting tubes from the spouts to valves.

Step 5

1. Connect waste line or drain pipe to the strainer assembly.
2. Connect hot and cold water supply line to the water source.

Step 6

1. Remove aerator from the spout assembly and flush water system. Check connections for leaks. Replace aerator onto the spout assembly.
2. We recommend sealing top of backsplash to wall as shown in illustration C.

Go to columbiasinks.com for more information on replacement parts and installation videos.

Trouble Shooting Guide

Problem Possible	Cause To Diagnose Remedy
Water drips from the spout or from under the lever.	1. Seat washer is worn2. Seat is worn3. O-rings are worn	Shut cold water source off.See if water still leaks from the spout. If leaks continues repair hot side if not repair cold side.	Recommend installing hot or cold faucet repair kit.

Close-up of a hand holding a small white object over a metal ruler, showing measurement scale (no text or symbols visible)

Illustration A

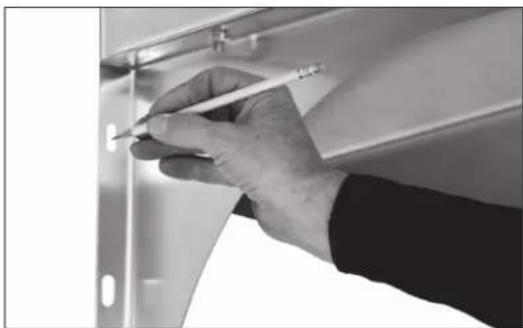

Close-up of a hand holding a pen, writing on a wall-mounted device (no visible text or symbols)

Illustration B

Close-up of a stainless steel faucet and a piping bag attached to a sink (no text or symbols visible)

Illustration C

Notice for California Consumers

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),

Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects

or other reproductive harm. For more information go to www.P65Wamings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certified under

NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

COLUMBIA SPECIFICATIONS

WALL MOUNT SINK

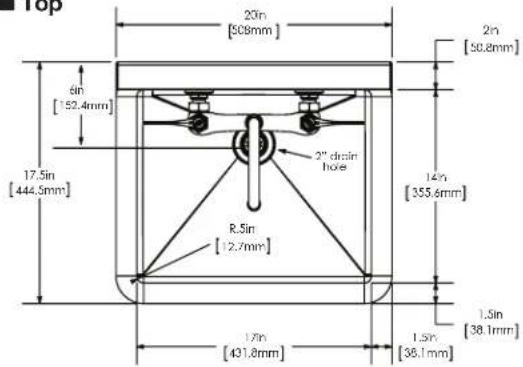

Top

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

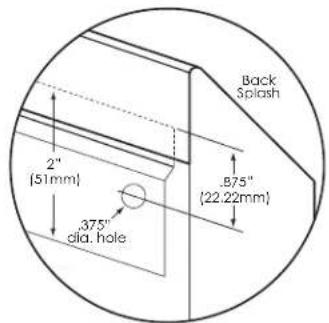

■ Wall Mounting Detail

Front Side

The image is too blurry to recognize any text content.

■ Supply Line Detail

■ Hole Configurations

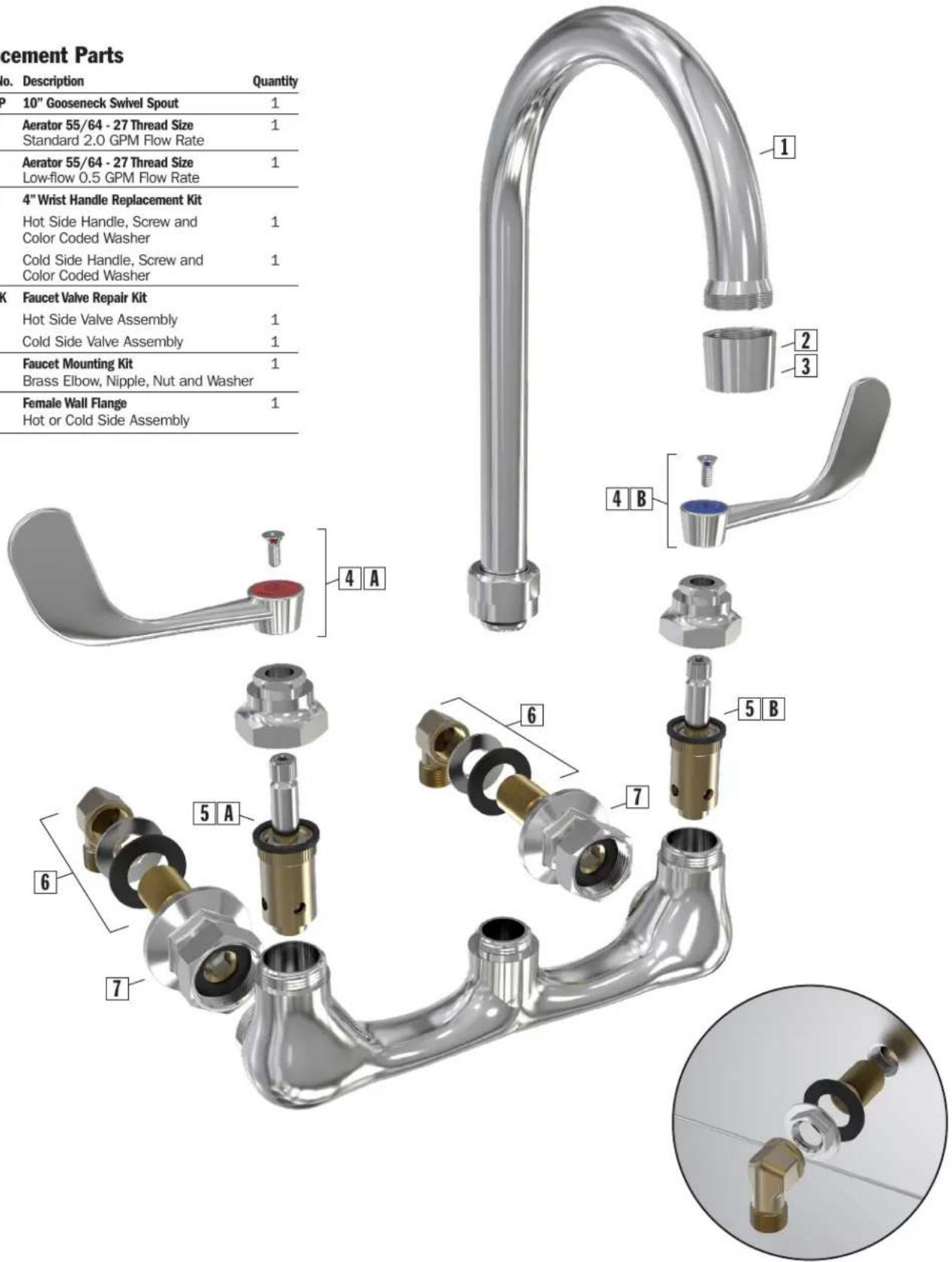

Replacement Parts

Part No.	Description	Quantity
1 204SP	10" Gooseneck Swivel Spout	1
2 1002	Aerator 55/64 - 27 Thread Size Standard 2.0 GPM Flow Rate	1
3 1003	Aerator 55/64 - 27 Thread Size Low-flow 0.5 GPM Flow Rate	1
4 211C	4" Wrist Handle Replacement Kit
A	Hot Side Handle, Screw and Color Coded Washer	1
B	Cold Side Handle, Screw and Color Coded Washer	1
5 204RK	Faucet Valve Repair Kit
A	Hot Side Valve Assembly	1
B	Cold Side Valve Assembly	1
6 1009	Faucet Mounting Kit Brass Elbow, Nipple, Nut and Washer	1
7 24FL	Female Wall Flange Hot or Cold Side Assembly	1

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

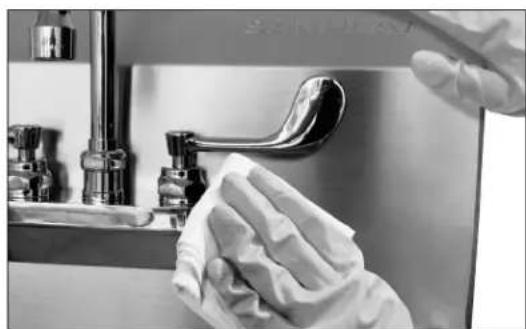

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

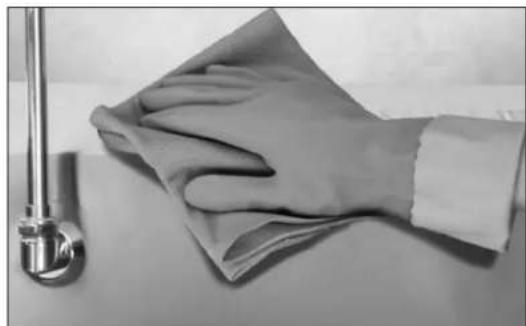

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]
