Product Type	Dual Monitor Mount
Brand	Atdec
Model	A-STSWW
VESA Compatibility	75x75mm / 100x100mm
Weight Capacity per Monitor	Up to 8 kg (17.6 lbs)
Number of Monitors	2
Height Adjustment Range	250 mm (9.8 in)
Tilt Angle	+90° / -45°
Swivel Angle	±90°
Rotation	360°
Mounting Type	Desktop clamp or grommet
Desk Thickness Compatibility	10 – 75 mm (0.4 – 3.0 in)
Material	Aluminum and steel
Color	Black and silver
Weight (Mount Only)	3.2 kg (7.1 lbs)
Power Supply	Not required (manual operation)
Maintenance	Wipe with dry cloth; avoid solvents
Safety	Check tightness monthly; do not exceed weight limit
Spare Parts Availability	Contact Atdec support for replacements
Warranty	5 years limited

Frequently Asked Questions - A-STSWW Atdec

What tools are required for installation?

You will need a Phillips screwdriver and possibly a wrench (included).

How do I adjust the height of the monitor arm?

Loosen the height adjustment screw using the provided hex key, move the arm to the desired height, then retighten.

Can this mount support curved monitors?

Yes, as long as the monitor's weight and VESA pattern are within the specified limits.

Is the mount compatible with a glass desk?

We recommend using the grommet mount option for glass desks; the clamp may break the glass.

What is the maximum desk thickness for the clamp?

The clamp supports desks from 10 mm to 75 mm (0.4 – 3.0 in) thick.

How do I route cables for a clean setup?

Use the integrated cable clips along the arm to secure and hide cables.

Can I use this mount for a single monitor only?

Yes, you can remove one arm and use it as a single monitor mount.

How do I rotate the monitor to portrait mode?

Rotate the VESA plate 90° clockwise or counterclockwise until it clicks into portrait position.

What should I do if the arm sags under weight?

Tighten the tension adjustment screw using the hex key until the arm stays in position.

Where can I find replacement parts?

Contact Atdec customer service or visit the official website for spare parts requests.

USER MANUAL A-STSWW Atdec

Installation Instructions

Sit-to-Stand Workstation

Wall Mounted

Line drawing of a mechanical arm with adjustable legs and a flat base (no text or symbols)

Component Checklist

Technical line drawing of a mechanical lever or bracket (no text or symbols)

Lower Arm Upper Arm

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Vertical Screen Slider

Line drawing of a mechanical device with a clip and handle (no text or symbols)

Keyboard Tray Tilt Head

Tools Required

• 8mm wrench
• Drill
• 10mm masonry bit
  • 4.5mm drill bit
• Ratchet
• Spirit Level
• Stud Finder
• Pencil

Wall Mounting Hardware

F

Coach Screw (x6)

G

Nylon Anchor (x6)

Hardware

HJKLM

N

5mm Allen 6mm Allen2.5mm

AlkenDrive

Plastic Washer (x1)

Metal Washer (x1)

O

P

QR

M6X10 (x3)

s

M6X8 (x1) M4x10 (x4) M6X12 5x4) M8X20 (x1)
T

Velcro

IMPORTANT INFORMATION

! IMPORTANT - Install as per Installation Instructions

! The manufacturer accepts no responsibility for incorrect installation.
! This product supports a maximum load 8Kg (17.6lbs.)
I The wall mount can be installed on vertical, flat, solid concrete or brick walls, or timber stud walls only.
! The wall should be strong enough to sustain a weight of at least four times that of the display and wall mount bracket combined. If in doubt, consult a structural engineer.
! Check wall anchors and screws every 3 months from the time of installation to ensure the workstation is firmly fixed to the wall.
! Tighten all screws (do not exert excessive force to avoid breaking the screws or damaging their thread)

Step 1. Check Components

Check that you have received all parts against the Component Checklist.

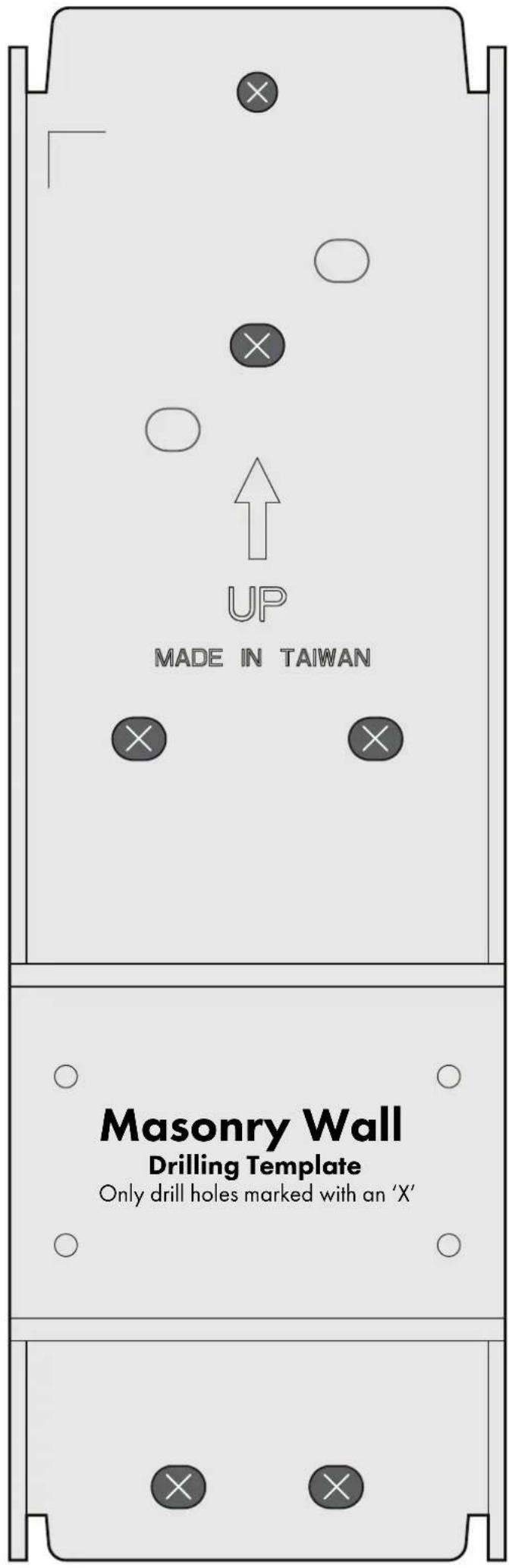

Step 2. Option A - Masonry or cement wall installation

Note: For optimum performance, use a spirit level to ensure straight installation.

Tip: Screw in the top coach screw first.

Step 2. Option B - Stud wall installation

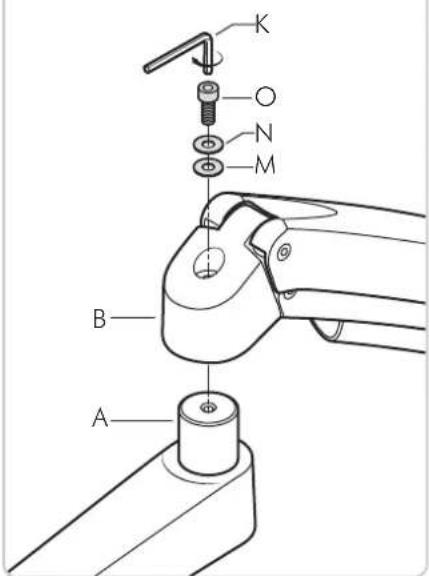

Step 3. Assemble upper arm

Step 4. Assemble slider to keyboard tray

Step 5. Assemble slider to keyboard tray

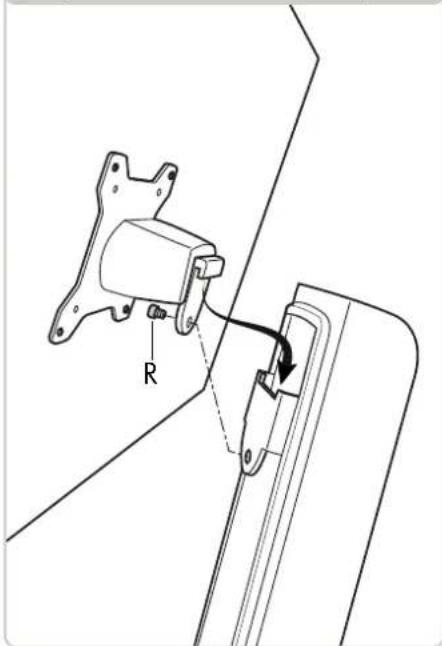

Step 6. Attach tilting head to screen

Step 7. Attach screen to arm Step 8. Replace covers

Diagram of a mechanical assembly with a lever and base mount (no text or symbols)

Adjusting

Screen Height Tension

Diagram of a mechanical device with two vertical arrows pointing up and down, mounted on a base (no text or symbols)

Tension Adjustment Points

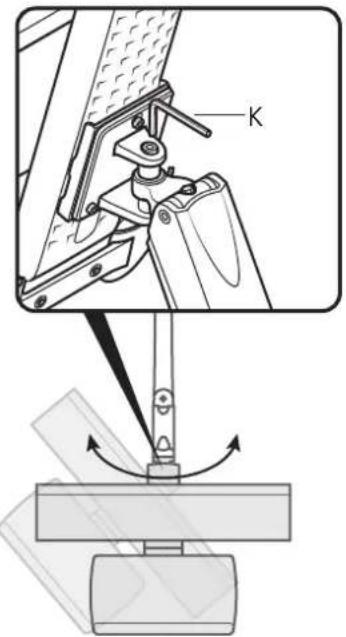

Screen Tilt Tension

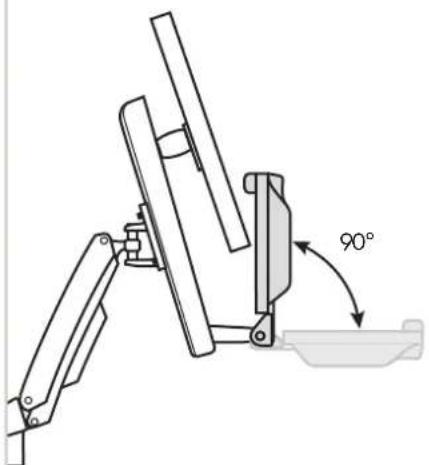

Keyboard Tray Storage

The keyboard tray can be folded away for storage.

Mechanical assembly diagram showing a 90-degree angle measurement on a bracket (no text or symbols present)

Note: Supplied velcro strips secure the keyboard when stowed.

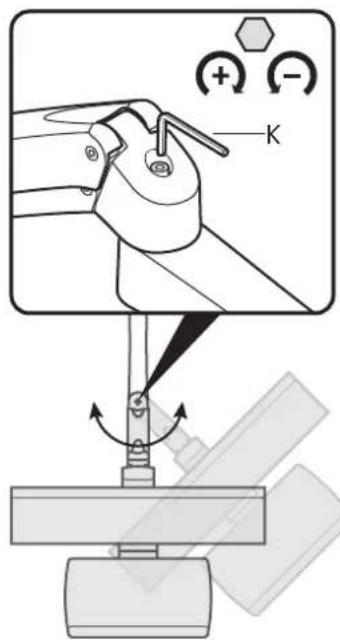

Arm Rotation Joint Tension

Note: Arm must be in highest position to access tension adjustment point.

Mouse Tray PositionArm Height Tension

Diagram of a medical device with an arrow indicating direction, no text or symbols present

The mouse tray can be positioned on the left or right of the keyboard tray.

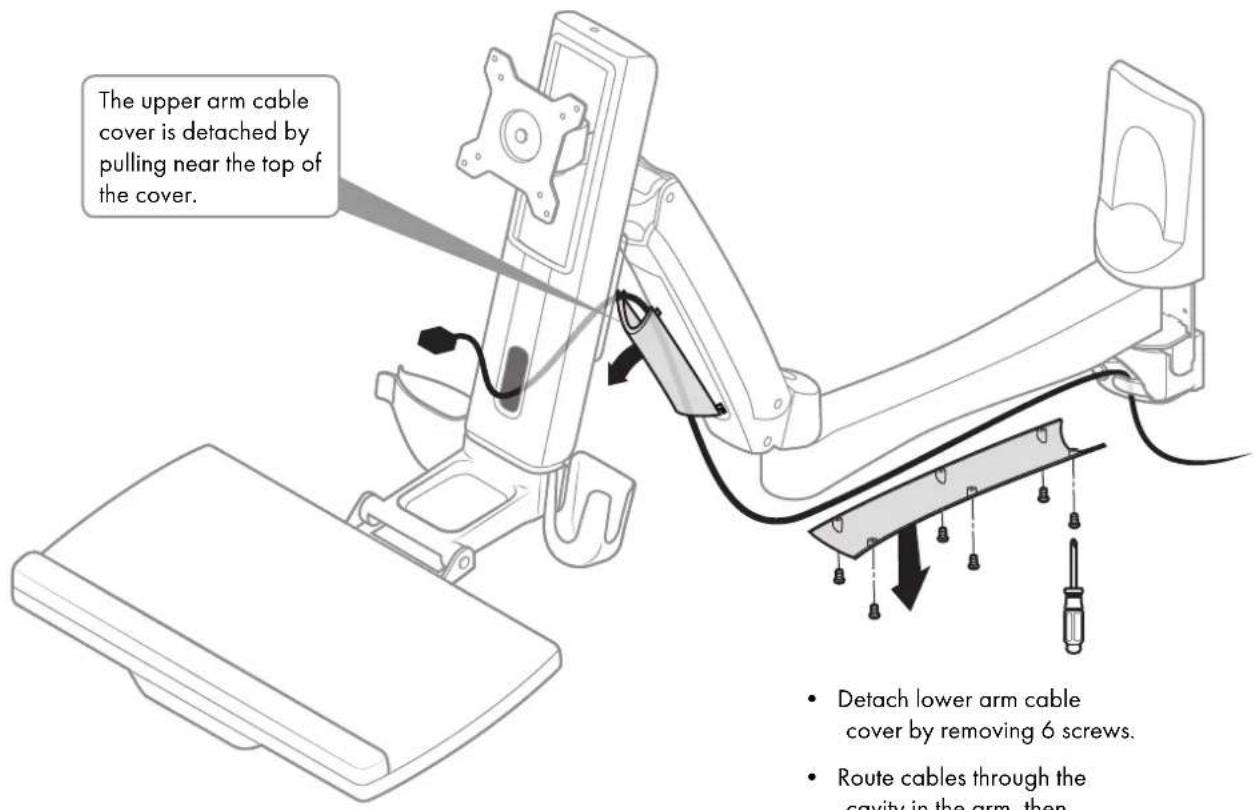

Cable Management. Route cables through arm.

Note: Ensure there is sufficient slack in the cables to accommodate the workstation's range of movement.

- Detach lower arm cable cover by removing 6 screws.

- Route cables through the cavity in the arm, then reattach the cover.

Secure Keyboard Attach velcro to keyboard and tray Cleaning

Wrist pad and mouse tray can be removed for cleaning.
