EXH-150C - AV Extender BZBGear - Free user manual and instructions

Brand	BZBGear
Model	EXH-150C
Product Type	AV Extender
Dimensions	85 mm x 60 mm x 25 mm
Weight	0.2 kg
Power Supply	5V DC, 1A via micro USB
Input Interface	HDMI (Type A)
Output Interface	RJ45 (Cat5e/6)
Max Transmission Distance	150 meters (Cat6)
Supported Resolutions	Up to 1080p@60Hz
HDCP Support	Yes, HDCP 1.4
Audio Formats	LPCM, Dolby Digital, DTS
IR Control	Built-in IR pass-through
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 85% RH (non-condensing)
LED Indicators	Power and Link status
Mounting	Desktop or wall-mountable
Maintenance	Clean with dry cloth; avoid liquids
Safety	Use only provided power adapter; keep away from water
Spare Parts	Not provided; contact support
Repairability	Not user-serviceable; consult technician
General Information	Extends HDMI signal over Ethernet cable; compatible with most HDMI sources

Frequently Asked Questions - EXH-150C BZBGear

How do I connect the BZBGear EXH-150C extender?

Connect the HDMI source (e.g., Blu-ray player) to the transmitter unit via HDMI cable. Connect the transmitter to a Cat5e/6 cable (up to 150m). Connect the other end of the Ethernet cable to the receiver unit. Finally, connect the receiver to your display via HDMI.

What resolutions does the EXH-150C support?

It supports resolutions up to 1080p@60Hz with 48-bit color depth. Lower resolutions like 720p and 480p are also supported.

Do I need to install drivers?

No, the EXH-150C is plug-and-play. It does not require any special drivers or software.

What type of Ethernet cable is recommended?

For best performance, use Cat6 cable. Cat5e also works but may reduce maximum distance.

Can I extend audio as well?

Yes, the extender supports LPCM, Dolby Digital, and DTS audio formats along with the video signal.

How do I power the units?

Each unit requires a 5V DC, 1A power adapter (included). Connect the adapter to the micro USB port on each unit.

What should I do if there is no signal?

Check all cable connections. Ensure the HDMI source is powered on and the display is set to the correct input. Verify that the Ethernet cable is not longer than 150m and is of good quality. Try power cycling both units.

Does the EXH-150C support HDCP?

Yes, it supports HDCP 1.4, which is compatible with most protected content from Blu-ray players, streaming devices, etc.

Can I use an IR remote through the extender?

Yes, the extender has built-in IR pass-through. Connect the IR blaster to the transmitter and the IR receiver to the display side to control the source device remotely.

Is there a warranty?

The BZBGear EXH-150C typically comes with a 1-year limited warranty against defects. Check the product packaging or contact BZBGear support for details.

USER MANUAL EXH-150C BZBGear

18Gbps HDMI over HDBaseT Extender with Bi-directional IR (150M)

Two black wireless device modules labeled 'HDBBase Extended 160M' and 'HyDCT', showing ports, interfaces, and connectors (no readable text beyond branding)

User Manual

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction......1
2. Features....1
3. Package Contents ...... 2
4. Specifications ...... 2
5. Operation Controls and Functions......4
   5.1 Transmitter Panel 4
   5.2 Receiver Panel....5
   5.3 IR Pin Definition 6
6. Application Example 8
7. Warranty Information ...... 9
8. Mission Statement ...... 10

1. Introduction

The BG-EXH-150C 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps, and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embedded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR control signal.

The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.

2. Features

☆ HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ The maximum extended transmission distance via a single Cat5e/6 cable: 394ft / 120 meters for 4K2K signal; 492ft / 150 meters for 1080P signal
☆ Support one HDMI loop output on the transmitter
☆ De-embedded audio to analog stereo output on receiver
☆ With bi-directional IR, RS-232 and CEC pass-through
☆ HDR, HDR10+, Dolby Vision and HLG function supported
☆ Support PoC (Power over Cable) function
☆ Compact design for easy and flexible installation

3. Package Contents

Qty	Item
1	18Gbps HDMI over HDBaseT Extender (Transmitter)
1	18Gbps HDMI over HDBaseT Extender (Receiver)
1	IR Blaster cable (1.5 meters)
1	20~60KHz IR Receiver cable (1.5 meters)
4	Mounting Ear
2	3-pin Phoenix connector
1	24V/1A Locking Power adapter

4. Specifications

Technical
HDCP Compliance	HDCP 2.2 / HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	4K2K 50/60Hz 4:4:44K2K 50/60Hz 4:2:24K2K 50/60Hz 4:2:04K2K 30Hz 4:4:41080p, 1080i, 720p, 720i, 480p, 480iAll HDMI 3D TV formatsAll PC resolutions including 1920 x 1200
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)8-bit (4K60Hz 4:4:4)
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats	PCM 2.0
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection
Transmitter	Inputs: 1x HDMI Type A [19-pin female]Outputs: 1x HDMI Type A [19-pin female]1x HDBT OUT [RJ45, 8-pin female]Control: 1x IR IN [3.5mm Stereo Mini-jack]1x IR OUT [3.5mm Stereo Mini-jack]1x RS-232 [Phoenix jack]1x SERVICE [Mini-USB, Update port]
Receiver	Inputs: 1x HDBT IN [RJ45, 8-pin female]Outputs: 1x HDMI Type A [19-pin female]1x AUDIO OUT [3.5mm Stereo Mini-jack]Control: 1x IR IN [3.5mm Stereo Mini-jack]1x IR OUT [3.5mm Stereo Mini-jack]1x RS-232 [Phoenix jack]1x SERVICE [Mini-USB, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver:140mm [W] x 65mm [D] x 18mm [H]
Weight	Transmitter: 160g, Receiver: 155g
Power Supply	Input: AC 100 - 240V 50/60HzOutput: DC 24V/1A (Locking connector)
Power Consumption	9.36 W
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
Resolution / Distance
4K2K	394ft / 120M
1080P	492ft / 150M
Resolution / Cable Length	4K60 - Feet / Meters	4K30 - Feet / Meters	1080P60 - Feet / Meters
HDMI IN / OUT	16ft / 5M	32ft / 10M	50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

5. Operation Controls and Functions

5.1 Transmitter Panel

No.	Name	Function Description
1	Power LED	Red LED indicates that the transmitter is powered on.
2	SERVICE port	Firmware update port.
3	DC 24V	DC 24V/1A power supply input port.Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn't need power supply.
4	HDBT OUT	RJ45 connector for connecting the HDBT IN port of receiver with a CAT 5e/6 cable.
5	Connection Signal Indicator lamp	Illuminating: Transmitter and Receiver are in good connection status.Flashing: Transmitter and Receiver are in poor connection status.Dark: Transmitter and Receiver are not connected.
6	Data Signal Indicator lamp	Illuminating: HDMI signal with HDCP.Flashing: HDMI signal without HDCP.Dark: No HDMI signal.
7	HDMI OUT	HDMI loop output for display.
8	HDMI IN	HDMI source input.
9	IR IN	IR input port for receiving the signal of IR remote.
10	IR OUT	IR output port for control of source device. This IR output signal is from the IR IN port of receiver.
11	RS-232	3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.

5.2 Receiver Panel

No.	Name	Function Description
1	Power LED	Red LED indicates that the receiver is powered on.
2	SERVICE port	Firmware update port.
3	DC 24V	DC 24V/1A power supply input port.Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply.
4	HDBT OUT	RJ45 connector for connecting the HDBT OUT port of transmitter with a CAT 5e/6 cable.
5	Connection Signal Indicator lamp	Illuminating: Transmitter and Receiver are in good connection status.Flashing: Transmitter and Receiver are in poor connection status.Dark: Transmitter and Receiver are not connected.
6	Data Signal Indicator	Illuminating: HDMI signal with HDCP.Flashing: HDMI signal without HDCP.Dark: No HDMI signal.
7	HDMI OUT	HDMI output for display.
8	AUDIO OUT	3.5mm stereo connector for analog audio output.
9	IR IN	IR input port for receiving the signal of IR remote.
10	IR OUT	IR output port for control of display device. This IR output sign is from the IR IN port of transmitter.
11	RS-232	3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.

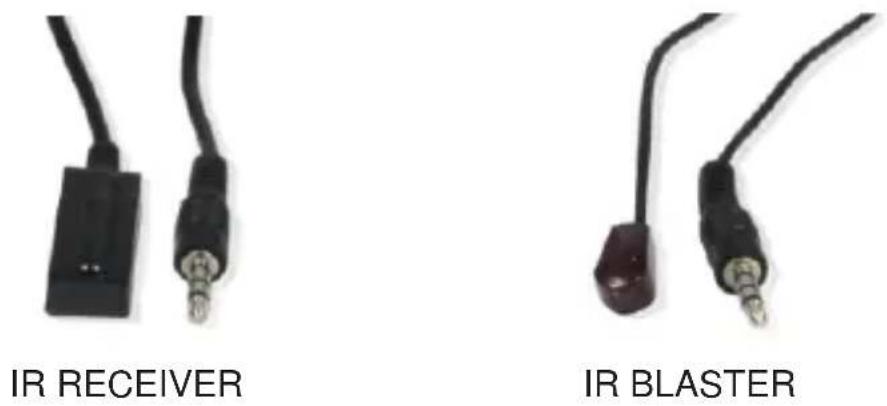

5.3 IR Pin Definition

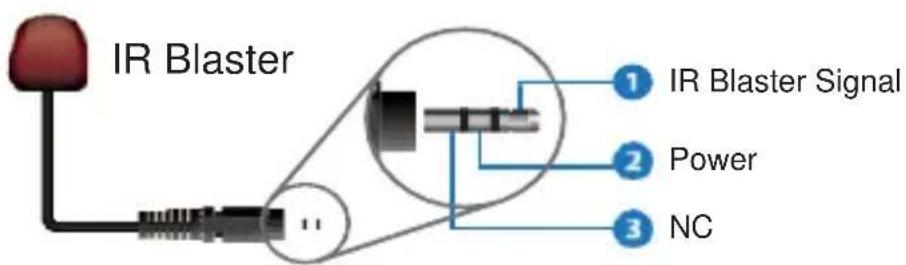

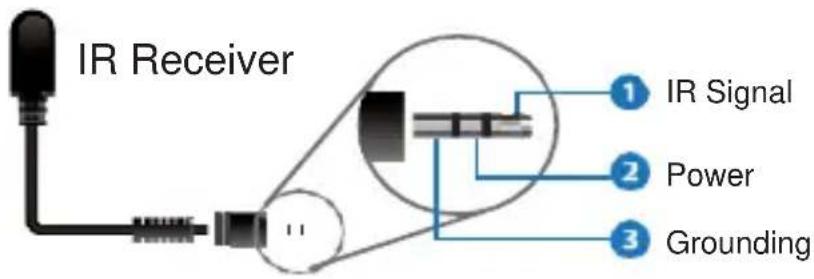

IR Receiver and Blaster pin's definition is as below:

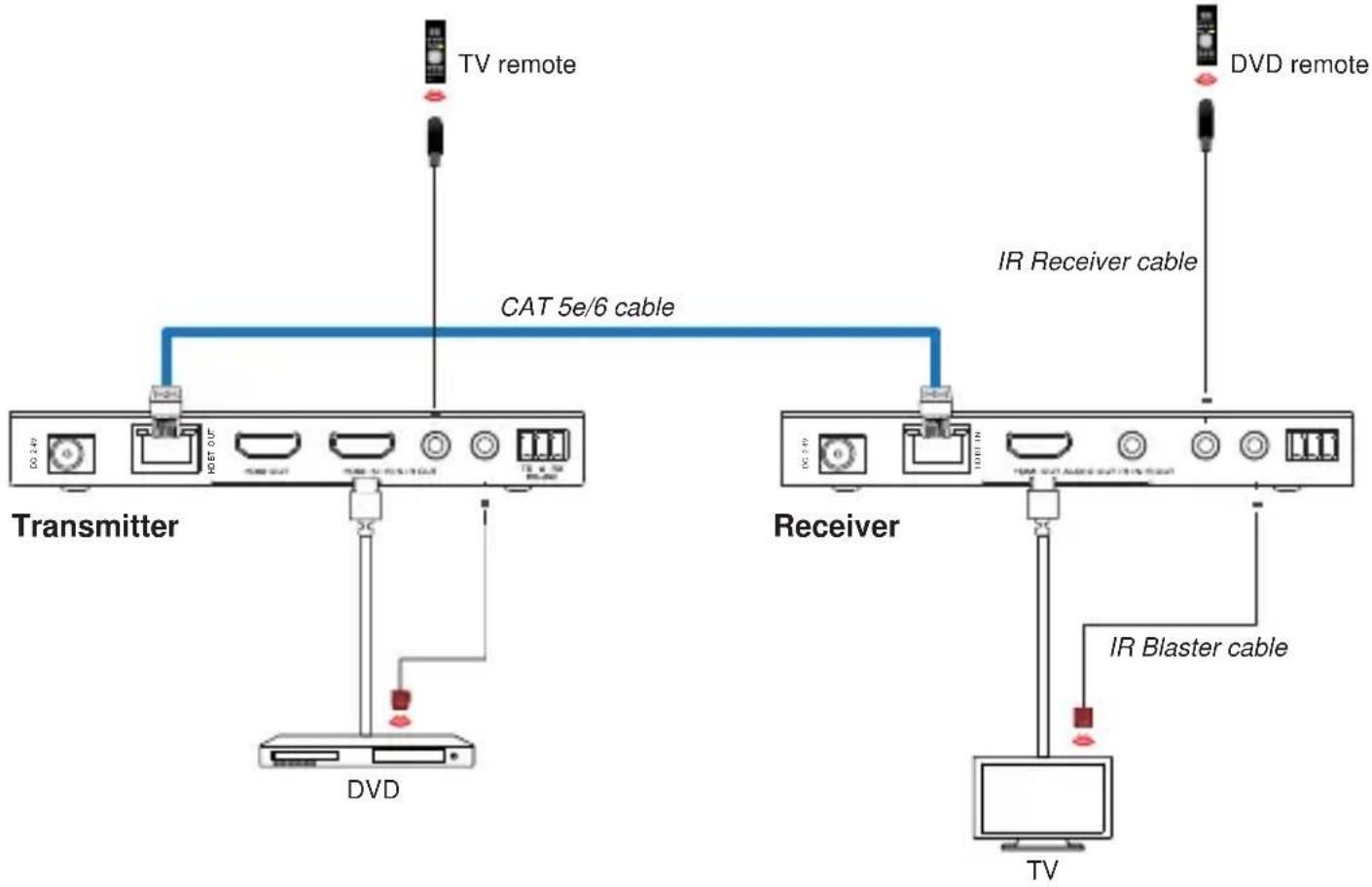

The following is IR system diagram about IR cable use method.

Note: IR remote sends signal at the distance of 0\~5 meters / 0\~8 meters with the angle of ±45° in vertical direction.

1. Application Example

