USER MANUAL EXACKT Simplified MFG

Black rectangular electronic device with ports labeled AC/200X, H278-100X, and WiFi, shown without any readable text or symbols beyond labels.

User Manual

VER 1.0

Thank you for purchasing this product

The Simplified MFG EXACKT is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction...... 2
2. Features .... 3
3. Package Contents .... 3
4. Specifications.... 4
5. Operation Controls and Functions.... 5
   5.1 Transmitter Panel.... 5
   5.2 Receiver Panel....6
   5.3 IR Pin Definition....6
6. Application Example ...... 7
7. Warranty Information......8
8. Contact Information...... 8

1. Introduction

The EXACKT can extend a 1080p/720p high definition video / audio signal and one-way IR up to 70 meters (230 feet) between transmitter and receiver over the existing AC wiring. The EXACKT transmitter encodes a 1080p/720p HDMI signal into H.265 and uses the existing AC wiring to transmit the HDMI signal to the receiver elsewhere in the same venue as long as the AC is in the same electrical box and same phase. Most residences have the electrical outlets wired in the same phase.

The EXACKT kit includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for transmitting the HDMI input signal via the AC wiring and emitting IR control signals sent from the IR RX at the receiver end. The receiver unit is responsible for receiving the HDMI signal and transmitting IR control signal.

2. Features

• Plug and play operation
  • Supports video resolutions 480i/480p/720p/1080i/1080p/1400x1050
  • Distance up to 230ft / 70 meters
• Can be used with up to two extra receivers (sold separately)
  • Supports LPCM Stereo at 32kHz., 44.1kHz., & 48kHz.
• IR transmission from Display (RX Device) to TX device at source end

3. Package Contents

• 1× HDMI over AC transmitter
• 1× HDMI over AC receiver
• 1× IR Blaster (1.5m length)
• 1× 20\~60KHz IR Receiver (1.5m length)
- 2x Power Cords
- 1× User Manual

4. Specifications

Technical
HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP 1.4
Video Bandwidth	6.75Gbps
Video Resolution	Up to 1080p
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth	8/10/12-bit
HDMI Audio Formats	LPCM 2.0 32kHz., 44.1kHz., & 48kHz.
ESD Protection	Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
Connections
Transmitter	Inputs: 1x HDMI Type A [19-pin female]Outputs: 1x HDMI Type A [19-pin female]1x IR OUT [3.5mm Stereo Mini-jack]
Receiver	Inputs: 1x IR IN [3.5mm Stereo Mini-jack]Outputs: 1x HDMI Type A [19-pin female]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver:135mm (5.31′′)[W] x 96.5mm (3.8′′)[D] x29mm (1.14′′)[H]
Weight	Transmitter/Receiver: 405g (14.28oz.)
Power Supply	Input: AC 100 - 240V 50/60Hz.
Power Consumption	3.5 W Max Each
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
Cable Length	Use Premium Highspeed HDMI cable up to 10m

5. Operation Controls and Functions

5.1 Transmitter Panel

POWER LINK RESET HDMI over Power Extender [ENC]

AC/220V HDMI OUT HDMI IN IR OUT

Name	Function description
Power LED	Red LED indicates that power is connected to transmitter/Encoder
Link LED	Blinking = Not paired to ReceiverBlinking Rapidly = Pairing/Paired
Recessed Reset Button	Press the recessed button with paperclip or other pin-like object (gently) for 3 seconds to reset the device
AC/220V	110/220V cable input (110V Supplied)
HDMI Out	HDMI “Loop out” for intercepting the signal to a current display
HDMI In	Connect to the HDMI source
IR OUT	Connect to wideband IR Blaster (included). The IR signal is from the IR IN port of the receiver.

5.2 Receiver Panel

POWER LINK RESET HDMI over Power Extender DEC

AC/220V HDMI OUT IR IN

Name	Function description
Power LED	Red LED indicates that power is connected to Receiver/Decoder
Link LED	Blinking = Not paired to ReceiverBlinking Rapidly = Pairing/Paired
Recess Reset Button	Short press will copy EDID of connected display3 Second press will reset the receiver
AC/220V	110/220V cable input (110V Supplied)
HDMI Out	HDMI output for signal to display
IR IN	Connect to wideband IR Receiver. The IR signal will be transmitted to the IR OUT port of the transmitter.

5.3 IR Pin Definition

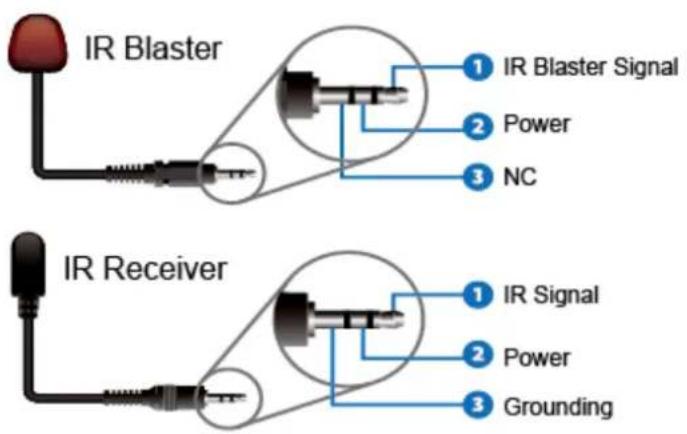

IR Blaster 1 IR Blaster Signal 2 Power 3 NC IR Receiver 1 IR Signal 2 Power 3 Grounding

6. Application Example

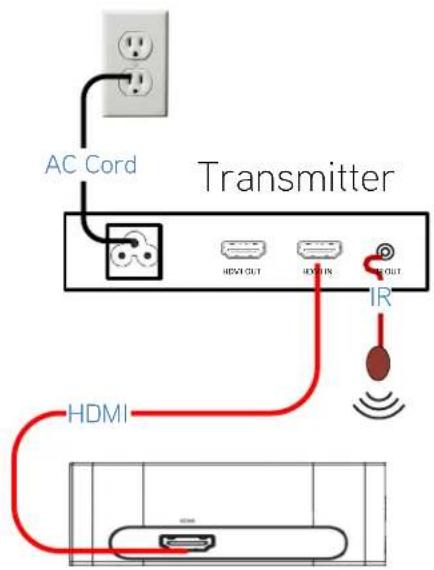

AC Cord HDMI OUT HDMI IN IR OUT IR HDMI Streamer AC Cord HDMI OUT HDMI IN IR HDMI Display

Please note up to two more receivers (decoders) can be added to an EXACKT kit (sold separately). All devices need to be on the same electrical panel in order to operate correctly. The part number is EXACDEC.

7. Warranty

Should you feel that this product does not function adequately due to defects in materials or workmanship, we (referred to as "the warrantor") will, for the length of the period indicated below (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. The decision to repair or replace is made by the warrantor. The purchaser must mail in the product during the warranty period. This limited warranty only covers the product purchased as new and is extended to the original purchaser only. It is non-transferrable to subsequent owners, even during the warranty period. A purchase receipt or other proof of purchase date is required for the limited warranty service.

8. Contact Information

Sales and Tech Support

P. 833-HDMI-411 (833-436-4411)

E. [e-mail]

SIMPLIFIED MFG

Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210

SIMPLIFIED MFG

EXACKT HDMI over AC Extender Kit

1.

Illustration of an open brown cardboard box (no text or symbols)

Transmitter (ENC)

AC Cord

Receiver (DEC)

AC Cord

1.

AC Cord Transmitter HDMI IR

HDMI Source

AC Cord Receiver IR HDMI Display

EXACKT

HDMI over Electrical Wiring Extender

SIMPLIFIED

MFG

Specifications:

Two black electronic devices with ventilation grilles and ports, shown from different angles (no visible text or symbols)

The EXACKT is a HDMI over power wire solution. Perfect when you have no wiring infrastructure and it is cost prohibitive to retrofit it. The EXACKT is a kit that allows HDMI 1080p to be transmitted on the existing electrical wiring in the venue. Simply plug your source into the transmitter, plug it into the wall and it will broadcast over the existing wiring to a receiver where you will have an HDMI output to your display.

Features:

• Works on the AC wiring
• 1080p
- Simple set up, just plug it in
• 1-Way IR (kit included)
- Long distance (up to 100m)
• Supports up to 3 receivers (optional EXACDEC)
• 3-Year Warranty

Technical
HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP 1.4
Video Bandwidth	3.97 Gbps
Video Resolutions	480i/480p/720p/1080i/1080p/1400x1050
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	8-bit, 10-bit, 12-bit
HDMI Audio Formats (Pass-through)	LPCM 2 channel stereo @ 32kHz., 44.1kHz., & 48kHz.
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs	TX: 1x HDMI Type A [19-pin female]1x AC input type C13RX: 1x AC input type C131x IR INPUT [3.5mm Stereo Mini-jack]
Outputs	TX: 1x IR OUTPUT [3.5mm Stereo Mini-jack]RX: 1x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions	135mm (5.31”)[W] x 96.5mm (3.8”)[D] x 29mm (1.14”)[H]
Weight RX/TX 405g/405g (14.28oz.)
Power Supply Input: AC100 - 240V 50/60Hz
Power Consumption	3.5W each device (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
