Product Type	Horizontal Cable Duct
Form Factor	2U Rackmount
Rack Compatibility	Standard 19-inch racks (EIA-310)
Height	3.5 inches (2U)
Width	17.2 inches (faceplate)
Depth	3.0 inches
Weight	1.5 lbs
Material	Cold-rolled steel, black powder coat
Mounting	Adhesive backing or screw-mount (hardware included)
Color	Black
Capacity	Supports up to 50 cables (Cat6 or equivalent)
Front Cover	Removable, snap-on design
Main Function	Route and conceal cables horizontally between equipment
Installation	Mounts on front or rear rack rails, no tools required for cover removal
Compliance	RoHS, TAA (if specified)
Included Accessories	Mounting screws, adhesive strips, cable ties
Maintenance	Wipe clean with a dry cloth; avoid liquid cleaners
Safety Warning	Secure to rack to prevent tipping; do not exceed load capacity
Spare Parts	Contact Tripp Lite support for replacement covers or mounting kits
Repairability	Not user-serviceable; replace unit if damaged
General Information	Designed for use with SmartRack enclosures and standard racks

Frequently Asked Questions - SmartRack SRCABLEDUCT2UHD Tripp Lite

What is the Tripp Lite SmartRack SRCABLEDUCT2UHD used for?

It is a horizontal cable duct designed to organize and route cables neatly within a 2U space of a standard 19-inch rack.

Does it require power?

No, this is a passive accessory that does not require any electrical power.

What is the maximum cable capacity?

It can accommodate up to 50 cables (Cat6 size), depending on cable thickness.

How do I install it in a rack?

Mount the duct to the front or rear rack rails using the included screws or adhesive strips. The cover snaps on and off without tools.

Is it compatible with all 19-inch racks?

Yes, it fits standard EIA-310 compliant 19-inch racks, including most brands like APC, Tripp Lite, and generic enclosures.

What material is it made of?

It is constructed from cold-rolled steel with a black powder-coat finish for durability.

Can I mount it without screws?

Yes, it includes adhesive backing strips for tool-less mounting on smooth surfaces, but screws are recommended for permanent installation.

How do I clean the cable duct?

Wipe it with a soft dry cloth. Avoid using liquids or abrasive cleaners to prevent damage.

Can I replace the cover if lost?

Contact Tripp Lite support to order a replacement cover. The cover is not sold separately in retail stores.

Is it RoHS compliant?

Yes, it is RoHS compliant and meets environmental standards.

USER MANUAL SmartRack SRCABLEDUCT2UHD Tripp Lite

Owner's Manual

SmartRack™ High-Capacity Horizontal Cable Manager

Models: SRCABLEDUCT1UHD & SRCABLEDUCT2UHD

Introduction

SRCABLEDUCT Horizontal Cable Managers route patch cables horizontally at the front or the rear of a standard 19-in. rack. Their plastic fingers allow patch cords to enter and exit in an organized manner.

Included Hardware

Rack Enclosure & 4-Post Rack Mounting:

• 4 x M6 Cage Nuts
  • 4 x M6 Cup Washers
• 4 x M6 Screws

2-Post Rack Mounting:

• 4 x #12 Cup Washers
• 4 x #12-24 Screws

1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support

Copyright © 2011 Tripp Lite. All rights reserved. SmartRack is a trademark of Tripp Lite.

Installation

Note: The following diagrams show the SRCABLEDUCT2UHD being installed in a rack enclosure. SRCABLEDUCT1UHD uses the same procedure, but the cage nuts will be installed with 1U rack spaces between them rather than 2U. Both the 1U and 2U units can also be installed in a 2-post or 4-post rack in the same manner, but 12-24 hardware will be used for 2-post mounting.

1 Install the cage nuts in the desired location in the rack horizontally using a cage nut tool (user-supplied).

Diagram of a device panel with two circular components and dotted lines indicating connection points (no text or symbols)

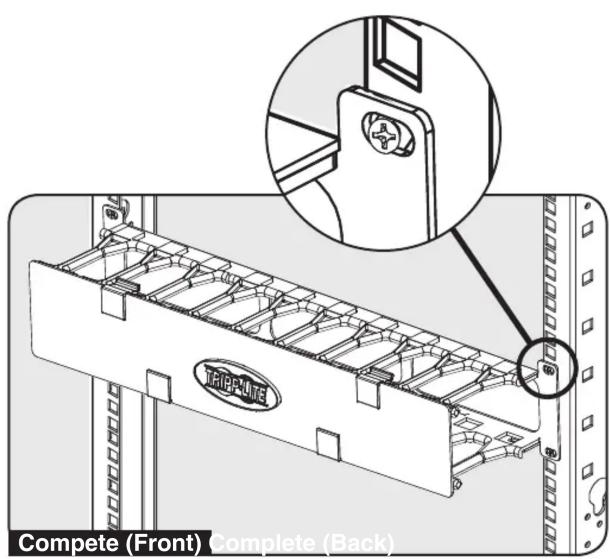

2 Attach the cable manager to the rack by tightening the included screws and washers into the cage nuts.

Diagram of a server rack with internal components and a magnified inset showing a close-up of the rack structure (no text or symbols)

Warranty & Warranty Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Warranty Registration

Visit www.triplite.com/warranty today to register the warranty for your new Tripp Lite product.You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support
