Product Type	HDMI over Single CAT5e/6/7 HDBaseT Receiver
Brand	CYP
Model	PU-607BD-RX
Dimensions (W×D×H)	102 mm × 113 mm × 25 mm
Weight	256 g
Power Supply	24 V / 1.25 A DC
Power Consumption	13 W
Video Bandwidth	300 MHz / 9 Gbps
Ethernet Speed	100 Mbps
Max Resolution	4K (3840×2160) at 30 Hz, 1080p at 60 Hz
HDMI Compliance	v1.4, HDCP, DVI
Audio Support	Up to 7.1 CH, Dolby TrueHD, DTS-HD
3D Support	Yes
CEC Support	Yes
Input Interfaces	1×CAT5e/6, 1×IR Extender (3.5mm)
Output Interfaces	1×HDMI, 1×RS-232 (D-Sub 9), 1×IR Blaster (3.5mm), 1×LAN (RJ45)
Max CAT5e/6/7 Distance	80 m (CAT5e), 100 m (CAT6/7)
IR Frequency	30 ~ 50 kHz
ESD Protection	±8 kV (air-gap), ±4 kV (contact) per Human Body Model
Operating Temperature	0 °C ~ 40 °C
Storage Temperature	-20 °C ~ 60 °C
Relative Humidity	20 ~ 90 % RH (non-condensing)
Chassis Material	Aluminum
Color	Silver
Package Contents	1×Receiver, 1×IR Blaster, 1×IR Receiver, 1×24 V/1.25 A DC Adaptor, 1×Operation Manual

Frequently Asked Questions - PU-607BD-RX CYP

What is the maximum transmission distance for the PU-607BD-RX?

The maximum transmission distance is 100 meters using CAT6/7 cables, and 80 meters using CAT5e cables.

Does the PU-607BD-RX support 4K resolution?

Yes, it supports all v1.4 HDMI resolutions including 4K (up to 3840×2160 at 30 Hz).

Can the receiver be powered via the transmitter?

Yes, the PU-607BD-RX supports Bi-Directional Power over Ethernet (PoE). Only one unit (transmitter or receiver) needs to be connected to power to operate both.

What audio formats are supported?

It supports up to 7.1 channels of uncompressed audio, including Dolby TrueHD and DTS-HD Master Audio.

Does the PU-607BD-RX have RS-232 control?

Yes, it includes an RS-232 output (D-Sub 9 pin female) for serial control of connected devices.

Which transmitters are compatible with this receiver?

It is only compatible with the PU-607BD-TX and PU-607BDWP-TX transmitters.

What is the power consumption of the receiver?

The power consumption is 13 W.

How do I connect IR control?

Connect the supplied IR blaster to the 'IR 2 Blaster' port and the IR receiver to the 'IR 1 Extender' port. Ensure line-of-sight to the devices being controlled.

Does the PU-607BD-RX support 3D video?

Yes, it supports 3D signals as per HDMI 1.4 specifications.

What is the video bandwidth of this device?

The video bandwidth is 300 MHz / 9 Gbps, allowing uncompressed video up to 10.2 Gbps.

USER MANUAL PU-607BD-RX CYP

HDMI over Single CAT5e/6/7 HDBaseT™ - Bi-Directional PoE Receiver (Full 5Play™ & Single LAN up to 100m)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd also makes no commitment to update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from CYP (UK) Ltd.

© Copyright 2011 by CYP (UK) Ltd.

All Rights Reserved.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 11/02/2014 First release

CONTENTS

1. Introduction......6
2. Applications ......6
3. Package Contents ......6
4. System Requirements ......6
5. Features......7
6. Operation Controls and Functions .....8
   6.1 Receiver Front and Rear Panels ...... 8
   6.2 IR Cable Pin Assignment 9
   6.3 D-Sub 9 Pin Definitions ...... 9
7. Connection Diagram ...... 10
8. Specifications....11
9. Acronyms......12

1. INTRODUCTION

The PU-607BD-RX Receiver allows uncompressed HDMI signals and IP data to be received via a Single CAT5e/6/7 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres. This Receiver is designed to be used with the PU-607BD-TX or PU-607BDWP-TX Transmitters only, which enables Bi-Directional Power over Ethernet (PoE) functionality.

2. APPLICATIONS

Household entertainment sharing and control
Lecture room display and control
■ Showroom display and control
Meeting room presentation and control
■ Classroom display and control

3. PACKAGE CONTENTS

1×PU-607BD-RXReceiver
1×IR Blaster
×IRReceiver
1×24 V/1.25 A DC Power Adaptor
Operation Manual

4. SYSTEM REQUIREMENTS

Input HDMI source equipment such as DVD/Blu-ray player and HDMI equipped output display (TV or monitor).

5. FEATURES

Supports all v1.4 HDMI resolutions including 4K.
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP, & DVI compliant
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7; 80m - CAT5e)
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5Play™ convergence: HDMI, LAN, Bi-Directional POE & Control (IR & RS232)
Supports 3D signals
Supports Bi-Directional Power over Ethernet (PoE)
Note: Only compatible with PU-607BD-TX & PU-607BDWP-TX Transmitters

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Receiver Front and Rear Panels

1 HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal.
2 LAN: Connect to a PC or Laptop to the Internet or network connection.
3 RS-232 Out: Connect to the device that is to be controlled (via D-Sub 9 pin female cable) by RS-232 commands.
4 Power LED: This blue LED will illuminate when the device is connected to a power supply.
5 DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. Only one side of power needs to be connected to activate both transmitter and receiver.
6 IR 2 Blaster: Connect to the supplied IR blaster cable for IR signal transmission. Place the IR blaster in direct line of sight of the equipment to be controlled.
7 IR 1 Extender: Connect to the supplied IR receiver cables for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR extender.
8 Link LED: The yellow LED will illuminate when both the input and output signals are connected.
9 CAT5e/6 In: Connect to the transmitter unit with a Single CAT5e/6 cable for transmission of all data signals.

6.2 IR Cable Pin Assignment

6.3 D-Sub 9 Pin Definitions

PinDefine TX / RX
1 N/C
2 TxD / RxD
3 RxD / TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C

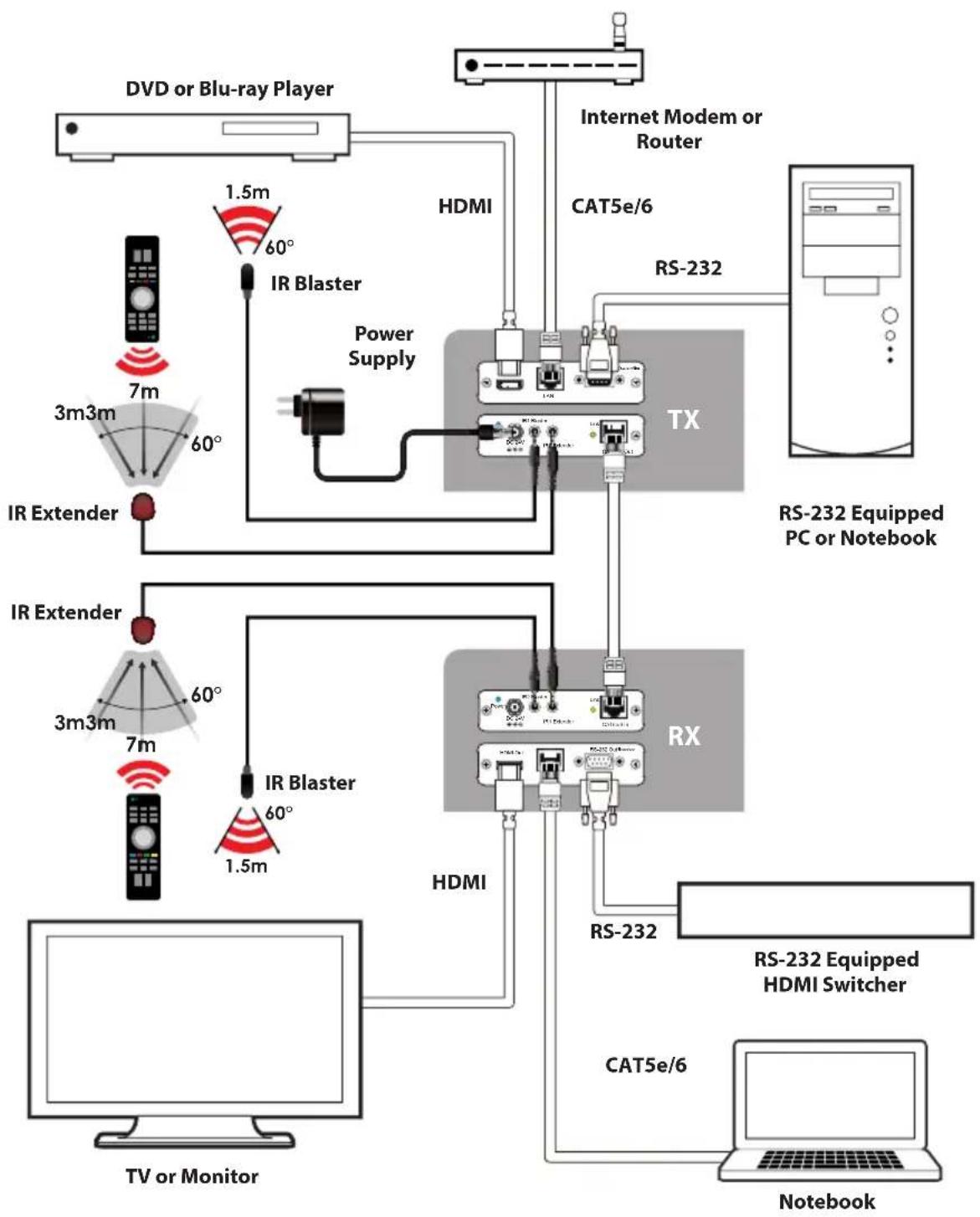

7. CONNECTION DIAGRAM

Note: Only one of the units need to be connected to power, either the transmitter or receiver, on order for both to operate. In this example the transmitter is powering the receiver

8. SPECIFICATIONS

Video Bandwidth 300MHz / 9Gbps

Ethernet Speed 100 Mbps

Receiver

Input 1×CAT5e/6, 1×IR Extender

Output 1×HDMI, 1×RS-232, 1×IR Blaster, 1×LAN

HDMI In/Out Cable Up to 10 Meters

Distance

CAT6 In/Out Cable Up to 100 Meters

Distance

HDMI In/Out Supports 480i\~1080p@50/60, 1080p@24,

Resolution VGA\~WUXGA

IR Frequency 30\~50 kHz

ESD Protection Human Body Model:

±8 kV (air-gap discharge)

±4 kV (contact discharge)

Power Supply 24 V/1.25 A DC (US/EU Standards, CE/FCC/UL certified)

Dimensions 102mm (W)×113mm (D)×25mm (H)/each

Weight 252 g (TX), 256 g (RX)

Chassis Material Aluminum

Silkscreen Color Silver

Power Consumption 13 W

Operating Temperature 0 °C\~40 °C/32 °F \~104 °F

Storage Temperature -20 °C\~60 °C/-4 °F\~140 °F

Relative Humidity 20\~90 % RH (non-condensing)

9. ACRONYMS

ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CEC Consumer Electronics Control
DVIDigital Visual Interface
HDCP High-bandwidth Digital Content Protection
HDMIHigh Definition Multimedia Interface
IR Infrared

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA

Tel: [phone] | Fax: [phone]

Email: [e-mail]

www.cypeurope.com

v1.00
