USER MANUAL PKG-PSM-137 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
• Small Metric and US Standard Socket Set (1/4" drive)
• 7/8" Wrench
• 1/2" Wrench
• 7/16" Wrench
  • US Standard Allen Wrench Set
  • Phillips head Screwdriver

Interior view of a vehicle showing a mechanical assembly with no visible text or symbols

Complete assembly in vehicle (2010 Ford Focus)

Required parts to complete assembly Optional parts for assembly

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Close-up of a hand using a tool to adjust a mechanical component, with inset showing close-up details (no text or symbols visible)

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

Close-up of hands using a wrench to adjust the internal gear mechanism, with inset showing a close-up of the component (no visible text or symbols)

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

Close-up of a hand using a wrench to adjust or install a mechanical component on a car (no visible text or symbols)

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

Close-up of a car seatbelt with a hand adjusting the compartment, no visible text or symbols

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

Two-panel image showing a hand holding a mechanical component and a close-up of a mechanical assembly (no visible text or symbols)

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

7

Two-panel image showing a hand holding a small electronic device and a microscope in a vehicle (no visible text or symbols)

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset.

B) No adjustment required, please proceed to Step 8.

9

Two-panel image showing a hand operating a mechanical clamp device, with no visible text or symbols.

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes.
3-bolt pattern allows for 90 rotation.
2-bolt pattern allows for 180 rotation.
B) Motion Device is already connected, please proceed to step 10.

11

Close-up of a hand using a screwdriver to adjust or install a CD drive into a battery pack (no visible text or symbols)

Attach the Docking Station to the mounting bracket.

8

Close-up of a hand using a tool to adjust a metal bracket component, labeled with parts a and b (no text or symbols on the object itself)

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

10

Interior view of an electronic device showing internal components and cables (no visible text or symbols)

Attach the Power Supply to the designated mounting location on the Docking Station.

12

Close-up of a person adjusting a mechanical component inside a car (no visible text or symbols)

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Interior view of a vehicle airfoil with mechanical arms and cabin (no visible text or symbols)

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

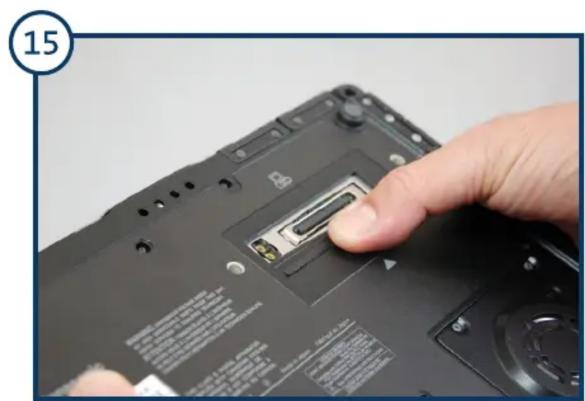

Close-up of a hand pressing a black electronic device into a control panel (no visible text or symbols)

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

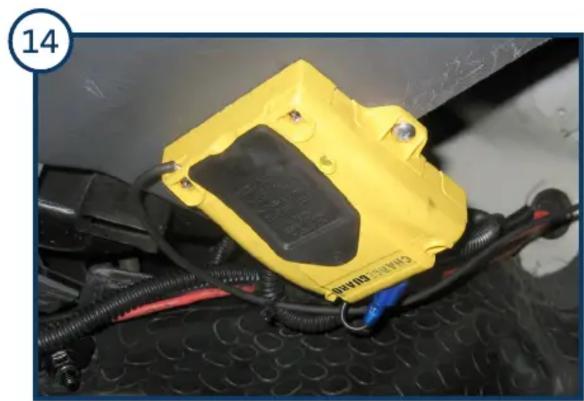

Close-up of a yellow electric shock absorber with black housing and wiring, mounted on a perforated metal surface (no visible text or symbols)

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

Two-step photo showing hands operating a device with a black plastic cover and a white case, labeled (a) and (b), no visible text or symbols.

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

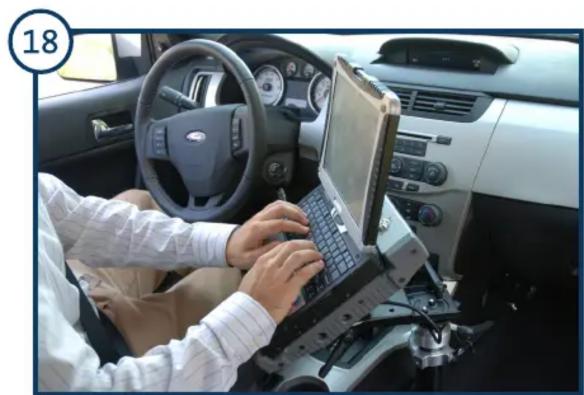

Interior view of a car with a person using a laptop on the steering wheel (no visible text or symbols)

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
