808 MS - Paper shredder Dahle - Free user manual and instructions

Product Type	Paper Shredder
Model	808 MS
Brand	Dahle
Shred Size	4 x 30 mm (cross-cut)
Security Level	P-4 (DIN 66399)
Shred Capacity	8 sheets (70 gsm)
Bin Capacity	20 liters
Continuous Run Time	5 minutes
Cool Down Time	30 minutes
Power Supply	230 V, 50 Hz
Power Consumption	200 W
Noise Level	58 dB(A)
Dimensions (HxWxD)	500 x 350 x 250 mm
Weight	5.0 kg
Feed Opening Width	220 mm
Auto Start/Stop	Yes
Reverse Function	Yes (manual reverse)
Overload Protection	Yes (thermal overload cut-out)
Shreds Credit Cards	Yes (one at a time)
Shreds Staples	Yes (small staples)
Lubrication	Recommended every 30 minutes of use (Dahle oil sheets)
Maintenance	Empty bin regularly; oil cutting heads

Frequently Asked Questions - 808 MS Dahle

What is the shred size and security level of the Dahle 808 MS?

The Dahle 808 MS produces cross-cut particles of 4 x 30 mm, corresponding to security level P-4 according to DIN 66399. This is suitable for most confidential documents.

How many sheets can the Dahle 808 MS shred at once?

The Dahle 808 MS can shred up to 8 sheets of 70 gsm paper at a time. Thicker paper or multiple sheets may reduce capacity.

What is the bin capacity of the Dahle 808 MS?

The shredder has a 20-liter waste bin, which is visible through a window to monitor fill level.

Can the Dahle 808 MS shred credit cards and staples?

Yes, it can shred one credit card at a time (remove any metal or plastic parts if possible). It can also handle small staples, but it's recommended to remove large staples to prolong blade life.

How do I clean and maintain the Dahle 808 MS?

Regularly empty the bin to prevent jams. Lubricate the cutting blades every 30 minutes of cumulative use with Dahle oil sheets or a light machine oil applied across the feed opening. Run the shredder in reverse briefly after oiling.

What should I do if the Dahle 808 MS stops working or jams?

First, ensure the shredder has not overheated (allow 30 minutes to cool). If jammed, press the reverse button to clear the paper. If the jam persists, unplug the unit and carefully remove the jammed paper from the feed opening.

Does the Dahle 808 MS have overload protection?

Yes, it features a thermal overload cut-out. If the motor overheats, the shredder will automatically shut off. Let it cool down for 30 minutes before resuming use.

How long can I continuously shred with the Dahle 808 MS?

The recommended continuous run time is 5 minutes, followed by a 30-minute cool-down period. Exceeding this may damage the motor.

What are the dimensions and weight of the Dahle 808 MS?

The shredded measures approximately 500 x 350 x 250 mm (HxWxD) and weighs about 5.0 kg.

Is the Dahle 808 MS suitable for home or office use?

It is designed for personal or small office use. Its cross-cut shredding and P-4 security level make it ideal for shredding confidential documents, though its 8-sheet capacity is best for light to moderate use.

USER MANUAL 808 MS Dahle

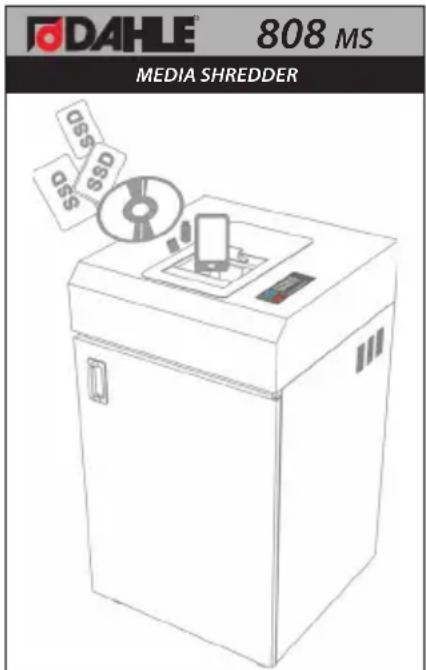

Line drawing of a laboratory instrument with a CD and SSD components (no text or symbols)

Operating Instructions

Dahle 808ms

TABLE OF CONTENTS

CONTENTS

PAGE

Safety Precautions....3-4

Installation....4

Operation 5

Maintenance 6

Warranty 6

Troubleshooting....7

READ CAREFULLY BEFORE USING

Proper care of your new shredder will ensure many years of trouble free operation, with minimum of maintenance or repair.

IMPORTANT:

Please note that all packaging should be retained by the customer for (30) days from the time of receipt. In the event that this unit needs to be sent back for replacement or repair this packaging will be required to do so. Should the packaging have been discarded before the (30) day requested period, packaging costs may be incurred by the customer.

SPECIFICATIONS

DAHLE 808 MS MEDIA SHREDDER

Security Level: O-3 / E-3

Shred Size: 4mm x 15mm

Feed Width: 6 _2

Bin Capacity: 4 gal.

Warranty: 1 year

Dimensions: 21.75" X 21.75" X 39.5"

Weight: 287 lbs.

Power Supply: 115v 50/60 Hz 15 Amp

Warranty includes labor but excludes wearable parts.

IMPORTANT SAFETY PRECAUTIONS

Your new shredder features powerful cutting mechanisms that may cause serious injury. Please follow all safety precautions.

• Only store, transport, and operate the shredder in an upright position!
• All liquids and gases used on the shredder must comply with Dahle guidelines!
• The shredder must only be operated in enclosed spaces at temperatures of 15 °C to 32 °C(59 °F–90 °F) and non-condensed humidity of 15% to 95%!
• Do not place the shredder near a heat source!
• Ensure the shredder is firmly on the floor at a distance of 4" from the wall; activate caster locks!
• Avoid any accumulation of heat!
• The mains socket must be grounded and easily accessible at all times!
• Use only the power cord supplied with the device by Dahle and ensure that it is not damaged!
• Ensure that the building installation has short-circuit protection: max. 16 A (US max. 20 A)!
• Do not use near flammable liquids and gases!
• Do not use near caustic substances!
• Do not subject to moisture!
• Do not open up the machine!
  • Automatic start-up!
• Switch off the shredder at the main switch when not in use!
• Only use the shredder provided that it is in perfect working order, while observing the operating instructions and the usual regulations, guidelines and applicable safety and accident prevention requirements. Take the shredder out of service immediately if faults occur!
• The device is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or a lack of experience and knowledge, unless they are working under supervision or receive detailed instruction about how to use the device from a person who is responsible for safety.

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

16100-13100|1121

IMPORTANT SAFETY PRECAUTIONS

1. It is obligatory to follow the safety instructions!
2. Read the operating instructions carefully before using the shredder!
3. This shredder is not intended to be used by children (the product is not a toy)!
4. Do not touch the feed opening with your hands!
5. Do not allow items of clothing to touch the feed opening!
6. Do not allow your hair to touch the feed opening!
7. Prior to maintenance work, disconnect the shredder from the power supply!

INSTALLATION

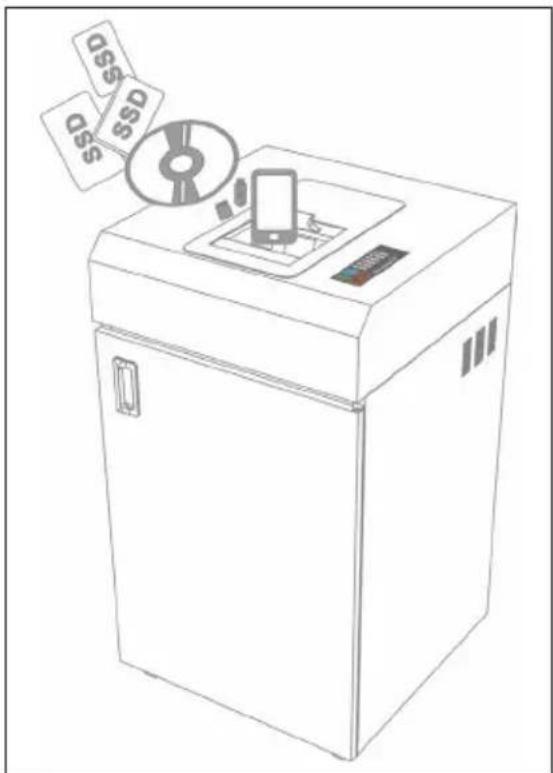

Line drawing of a laboratory instrument with a CD and SSD components (no text or symbols)

• Insert supplied waste bin into the shredder.
• Plug shredder directly into a wall outlet. Do not use a power strip or extension cord.

OPERATION

DAHLE® AUTO MANUAL STOP REV. FULL OPEN INDICATOR OVER LOAD REV STOP START

POWER ON

- Turn on both power switches. One is located inside the door and the other is on the right side of the shredder.

AUTO START

• Press the START button. The AUTO LED will illuminate and the shredder will run for 1 minute.
• AUTO mode switches off after five (5) minutes of no activity.

MANUAL MODE

- With the AUTO button illuminated, push the START button again. The MANUAL LED will illuminate, and the shredder will begin to run. Insert media through bypass chute. Press the START button again to turn off Manual mode.

REVERSE MODE

- Pushing the REV button will illuminate the REV LED and the shredder will operate in reverse. Use this function if too much media is inserted and a jam occurs.

BAG FULL

- When the waste container is full, the FULL LED will illuminate, and the shredder will stop automatically. Open the door, remove and empty the waste container. Replace the waste container, close the door, and press the START button to resume shredding.

OPEN

- When the door is open the OPEN LED will illuminate and the shredder will not operate. Close the door to resume shredding.

MAINTENANCE

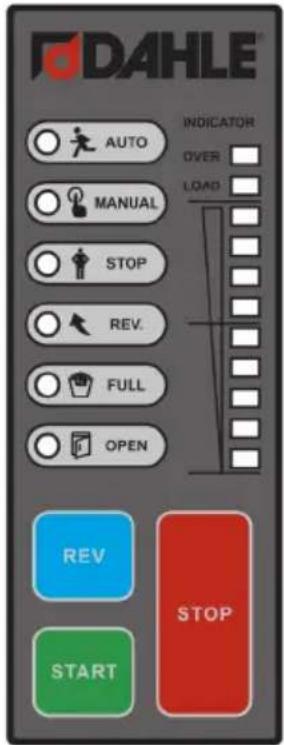

DAHLE AUTO MANUAL STOP REV. FULL OPEN INDICATOR OVER LOAD REV STOP START

• After emptying the waste container, we recommend to press and hold the REV button for 5 seconds to initiate a cleaning cycle. This cleaning will take 1 minute and the machine will return to AUTO mode when complete.
• Switch off the shredder and disconnect power by removing power cord from wall outlet.
• Clean the exterior of the machine with a soft cloth. Do not use harsh detergents or chemicals.

WARRANTY

Dahle guarantees it's industrial shredders to be free from manufacturing defects (materials / workmanship) for a period of one year.

This warranty shall not apply to wearable items or defects caused by ordinary wear and tear, insufficient maintenance or improper operation. This warranty applies to the original purchaser only and is not transferable. There are no other warranties expressed or implied beyond the face of this agreement.

TROUBLESHOOTING

Easy check points before you report malfunction.

Symptoms	Check Point
1. The paper shredder is not working.2. Auto LED light is off	- Check the power plug- Check the voltage of the outlet (AC 120V or 220V it depends on your country's voltage rate)- Check the fuse which is located just below the main switch.	Confirmation
3. The paper shredder does not reverse and just stops when it's fed too much paper.	- Press the reverse button and clear the jammed paper then re-operate the paper shredder.
4. When the waste basket is full, the shredder is not working.	- Clear the waste basket then check that the Full LED light is off	Clear
5. Cabinet door is closed but the Door LED & Stop LED lights are still on	- Check the main switch which is located on the right top side.
