Product Type	Ceiling light
Brand	Lucide
Model	Sole
Material	Aluminum
Color	White (RAL9003)
Height	105 mm
Net Weight	1.0 kg
Power Requirements	100-240 V AC
Bulb Type	Integrated LED (CITIZEN, 6W)
Number of Bulbs	1
Dimmable	No
IP Rating	IP54
Energy Efficiency Class	E (estimated)
Mounting Type	Ceiling mount
Installation	Hardwired, professional installation recommended
Cleaning	Wipe with a soft, dry cloth; avoid abrasive cleaners
Safety	Disconnect power before installation or cleaning
Spare Parts	Integrated LED module not replaceable; contact Lucide for service
Repairability	Non-repairable; entire fixture must be replaced if LED fails
Warranty	Refer to Lucide warranty policy

Frequently Asked Questions - Sole Lucide

How do I install the Lucide Sole ceiling light?

Installation must be done by a qualified electrician. Disconnect power, mount the bracket to the ceiling, connect wires (L, N, earth), and attach the fixture.

Can the Lucide Sole be used in bathrooms?

Yes, the fixture has an IP54 rating, making it suitable for use in bathrooms or covered outdoor areas, provided it is installed at least 1 meter away from water sources.

Is the Sole dimmable?

No, the Lucide Sole is not dimmable. It operates at full brightness only.

Can I replace the LED bulb?

The LED module is integrated and not replaceable. If the light fails, the entire fixture must be replaced or serviced by Lucide.

What is the color temperature of the integrated LED?

The color temperature is not specified in the manual. Typically, Lucide LED fixtures offer 3000K warm white or 4000K neutral white. Please check the product packaging.

How do I clean the Lucide Sole?

Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or solvents. Ensure the light is off and cool before cleaning.

What is the warranty period for this light?

Lucide typically offers a 2-year warranty. For exact terms, refer to the warranty card included with the product or contact Lucide customer service.

Can I install the Sole outdoors?

The IP54 rating allows for use in covered outdoor areas, but it is not fully waterproof. Avoid direct exposure to rain or splashing water.

Does the Sole require a special switch?

No, it works with a standard on/off wall switch. No special dimmer or controller is needed.

What are the exact dimensions of the Sole?

The height is 105 mm. Width and length are not provided in the manual; the shape may be round or square. Please refer to the product packaging or Lucide's website for exact dimensions.

USER MANUAL Sole Lucide

Line drawing of the item (with outline dimensions)

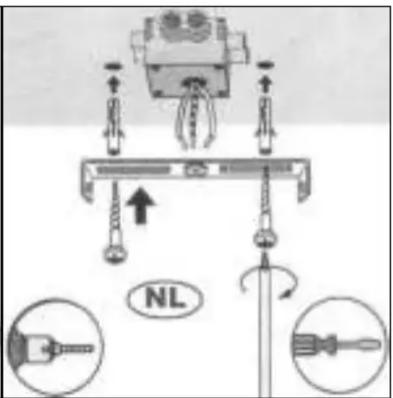

Installation drawing (the same as it in its instruction manual)

Line drawing of a curved mechanical component with a circular recess and central grid pattern (no text or symbols)

23242/06/31

Technical details

materials used: aluminum
color:	whiteRAL9003
dimmable and how is the fixture dimmable: No
size: Height: 105Length:Width:Net Weight:	140521.04
power requirements:	100-240V
bulb type and maximum Wattage:	CITIZENLED 6W
number of bulbs:	1
IP degree: IP54

EES label (only one in English, vertical)
