USER MANUAL ASPIRE Z3-601 ACER

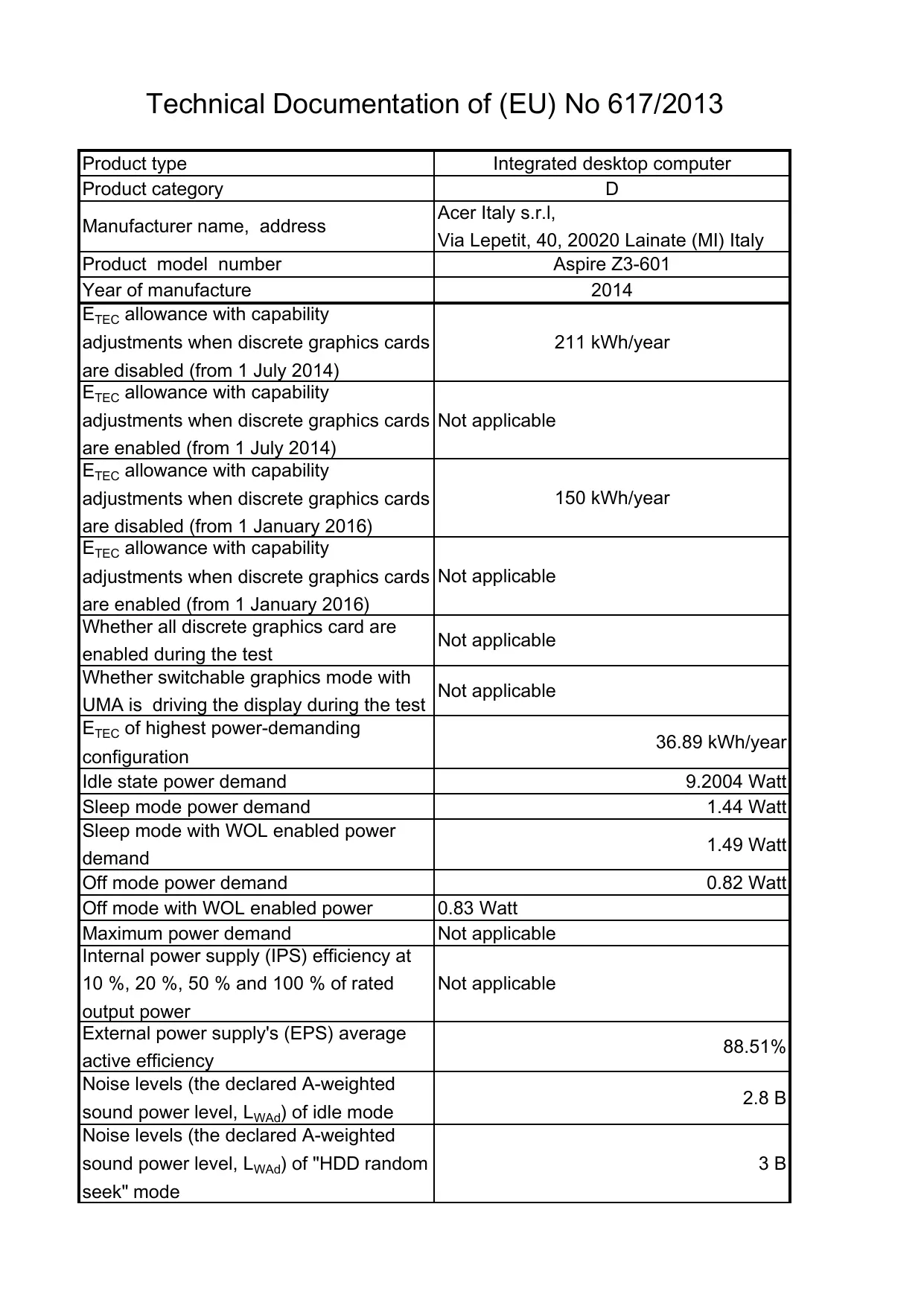

Technical Documentation of (EU) No 617/2013 Product type Product category Manufacturer name, address Product model number Year of manufacture ETEC allowance with capability adjustments when discrete graphics cards are disabled (from 1 July 2014) ETEC allowance with capability
Integrated desktop computer D Acer Italy s.r.l, Via Lepetit, 40, 20020 Lainate (MI) Italy Aspire Z3-601 2014 211 kWh/year
adjustments when discrete graphics cards Not applicable are enabled (from 1 July 2014) ETEC allowance with capability adjustments when discrete graphics cards are disabled (from 1 January 2016) ETEC allowance with capability
adjustments when discrete graphics cards Not applicable are enabled (from 1 January 2016) Whether all discrete graphics card are Not applicable enabled during the test Whether switchable graphics mode with Not applicable UMA is driving the display during the test ETEC of highest power-demanding configuration Idle state power demand Sleep mode power demand Sleep mode with WOL enabled power demand Off mode power demand Off mode with WOL enabled power 0.83 Watt Maximum power demand Not applicable Internal power supply (IPS) efficiency at 10 %, 20 %, 50 % and 100 % of rated Not applicable output power External power supply's (EPS) average active efficiency Noise levels (the declared A-weighted sound power level, LWAd) of idle mode Noise levels (the declared A-weighted sound power level, LWAd) of "HDD random seek" mode
36.89 kWh/year 9.2004 Watt 1.44 Watt 1.49 Watt 0.82 Watt
3B Minimum number of loading cycles that the batteries can withstand Configuration of memory Configuration of internal storage Configuration of discrete television tuner Configuration of discrete audio card Configuration of discrete graphics cards Configuration of discrete graphics cards category The battery in this product cannot be easily replaced by users themselves For products with an integrated display, the total content of mercury is
Measurement methodology for ETEC Not applicable 4~8GB 1 piece Not applicable Not applicable Not applicable Not applicable Not applicable 0 mg COMMISSION REGULATION (EU) No 617/2013 of 26 June 2013 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for computers and computer servers: ANNEX II Ecodesign requirements and timetable: 1.1.1. ETEC formula.
EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; Measurement methodology for idle mode 5.3.4. Measuring long idle mode; 5.7. True RMS watt meter specification; 5.8. True RMS watt meter accuracy; Annex E.2 (informative) ENERGY STAR® V5 compliant testing methodology.
Measurement methodology for sleep mode
EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.3. Measuring sleep mode; 5.4. Test conditions; 5.7. True RMS watt meter specification; 5.8. True RMS watt meter accuracy.
Measurement methodology for off mode
EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.2. Measuring off mode; 5.4. Test conditions; 5.7. True RMS watt meter specification; 5.8. True RMS watt meter accuracy.
Measurement methodology for IPS efficiency
Measurement methodology for EPS efficiency
EN 50563:2011 External a.c.—d.c. and a.c.—a.c. power supplies — Determination of no-load power and average efficiency of active modes.
ECMA-109 2nd edition (December 1987) Declared Noise Emission Values of Computer and Business Equipment: 4. Determination of the declared noise emission values. ECMA-74 11th edition (December 2010) Measurement of Airborne Noise emitted by Information Technology and Telecommunications Equipment: Measurement methodology for noise level 5. Installation and operating instructions; 6. Method for determination of sound power levels of equipment in reverberation test rooms; 7. Method for determination of sound power levels of equipment under essentially free-field conditions over a reflecting plane; Annex C.15 Equipment category: personal computers and workstations. Measurement methodology for battery loading cycles
Sequence of steps for achieving a stable condition with respect to power demand
EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.2. Measuring off mode; 5.3.3. Measuring sleep mode; 5.3.4. Measuring long idle mode.
Description of how sleep mode was selected or programmed
EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.3. Measuring sleep mode.
EN 62623:2013 — Desktop and notebook computers — Measurement of energy Description of how off mode was selected consumption: or programmed 5.2. Test setup; 5.3.2. Measuring off mode. ENERGY STAR® Program Sequence of events required to reach the Requirements Product Specification for mode where the equipment automatically Computers, Eligibility Criteria Version 6.0, changes to sleep mode Rev. Oct-2013: 1.D.4 Sleep Mode. Sequence of events required to reach the mode where the equipment automatically Not applicable changes to off mode The length of time after a period of user inactivity in which the computer automatically reaches a power mode that 30 min has a lower power demand requirement than sleep mode The length of time before the display sleep mode is set to activate after user inactivity
User information on the energy-saving potential of power management functionality
