USER MANUAL ASPIRE XC-115 ACER

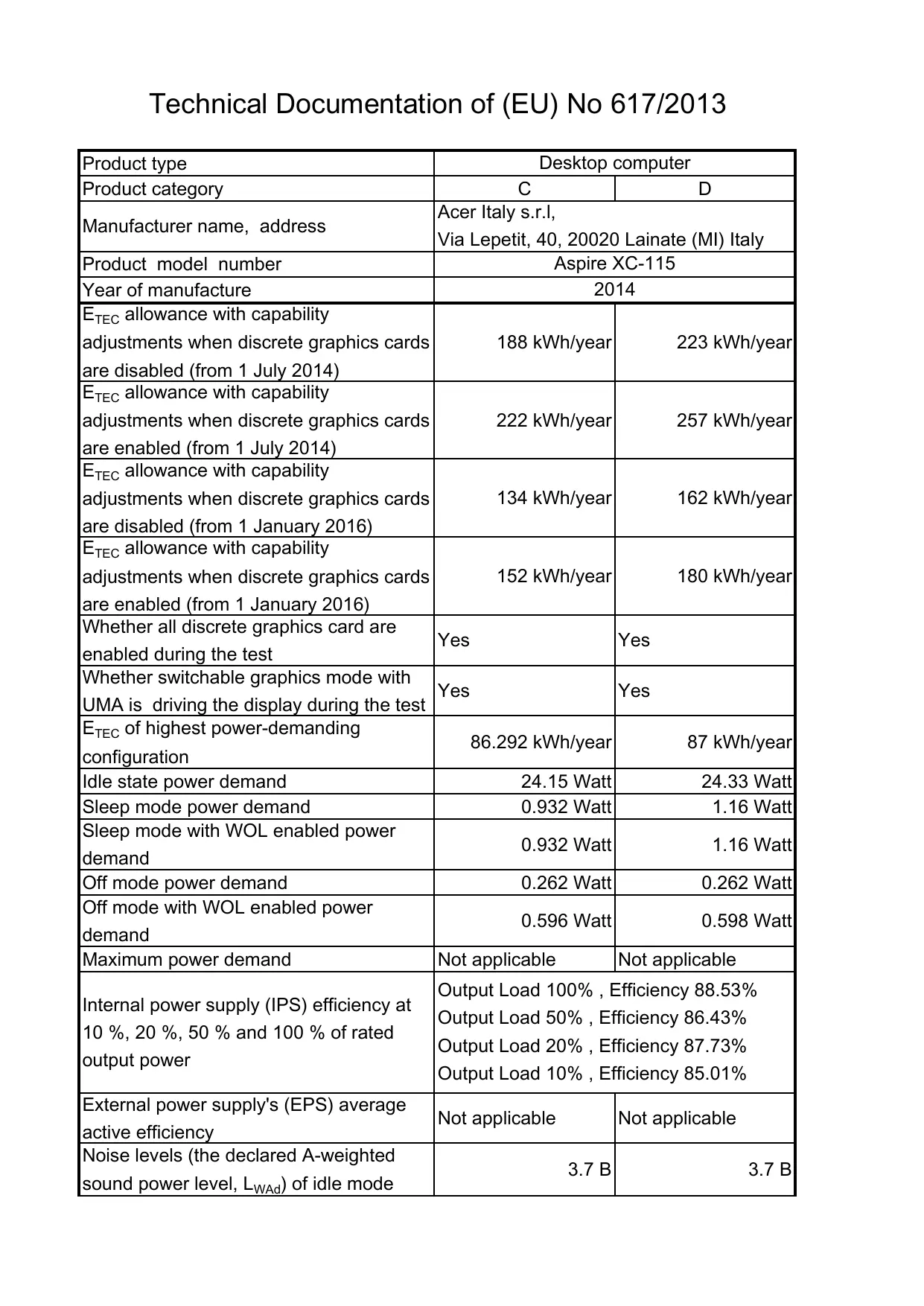

Technical Documentation of (EU) No 617/2013
| Product type | Desktop computer | |
| Product category | C | D |
| Manufacturer name, address | Acer Italy s.r.l., Via Lepetit, 40, 20020 Lainate (MI) Italy | |
| Product model number | Aspire XC-115 | |
| Year of manufacture | 2014 | |
| ETEC allowance with capability adjustments when discrete graphics cards are disabled (from 1 July 2014) | 188 kWh/year | 223 kWh/year |
| ETEC allowance with capability adjustments when discrete graphics cards are enabled (from 1 July 2014) | 222 kWh/year | 257 kWh/year |
| ETEC allowance with capability adjustments when discrete graphics cards are disabled (from 1 January 2016) | 134 kWh/year | 162 kWh/year |
| ETEC allowance with capability adjustments when discrete graphics cards are enabled (from 1 January 2016) | 152 kWh/year | 180 kWh/year |
| Whether all discrete graphics card are enabled during the test | Yes | Yes |
| Whether switchable graphics mode with UMA is driving the display during the test | Yes | Yes |
| ETEC of highest power-demanding configuration | 86.292 kWh/year | 87 kWh/year |
| Idle state power demand | 24.15 Watt | 24.33 Watt |
| Sleep mode power demand | 0.932 Watt | 1.16 Watt |
| Sleep mode with WOL enabled power demand | 0.932 Watt | 1.16 Watt |
| Off mode power demand | 0.262 Watt | 0.262 Watt |
| Off mode with WOL enabled power demand | 0.596 Watt | 0.598 Watt |
| Maximum power demand | Not applicable | Not applicable |
| Internal power supply (IPS) efficiency at 10%, 20%, 50% and 100% of rated output power | Output Load 100%, Efficiency 88.53% Output Load 50%, Efficiency 86.43% Output Load 20%, Efficiency 87.73% Output Load 10%, Efficiency 85.01% | |
| External power supply's (EPS) average active efficiency | Not applicable | Not applicable |
| Noise levels (the declared A-weighted sound power level, LwAd) of idle mode | 3.7 B | 3.7 B |
| Noise levels (the declared A-weighted sound power level, \(L_{\text{WAd}}\)) of "HDD random seek" mode | 3.7 B | 3.7 B |
| Minimum number of loading cycles that the batteries can withstand | Not applicable | Not applicable |
| Configuration of memory | 2GB | 4~16GB |
| Configuration of internal storage | 1 piece | 1 piece |
| Configuration of discrete television tuner | 0 piece | 0 piece |
| Configuration of discrete audio card | 0 piece | 0 piece |
| Configuration of discrete graphics cards | 1 piece | 1 piece |
| Configuration of discrete graphics cards category | G1 | G1 |
| The battery in this product cannot be easily replaced by users themselves | Not applicable | Not applicable |
| For products with an integrated display, the total content of mercury is | Not applicable | Not applicable |
| Measurement methodology for \(E_{\text{TEC}}\) | COMMISSION REGULATION (EU) No 617/2013 of 26 June 2013 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for computers and computer servers: ANNEX II Ecodesign requirements and timetable: 1.1.1. \(E_{\text{TEC}}\) formula. | |
| Measurement methodology for idle mode | EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.5. Measuring short idle mode; 5.7. True RMS watt meter specification; 5.8. True RMS watt meter accuracy; Annex E.2 (informative) ENERGY STAR® V5 compliant testing methodology. | |
| Measurement methodology for sleep mode | EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.3. Measuring sleep mode; 5.4. Test conditions; 5.7. True RMS watt meter specification; 5.8. True RMS watt meter accuracy. | |
| Measurement methodology for off mode | EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.2. Measuring off mode; 5.4. Test conditions; 5.7. True RMS watt meter specification; 5.8. True RMS watt meter accuracy. | |
| Measurement methodology for IPS efficiency | Generalized Test Protocol for Calculating the Energy Efficiency of Internal Ac-Dc and Dc-Dc Power Supplies Revision 6.6 (April,2012). | |
| Measurement methodology for EPS efficiency | Not applicable | |
| Measurement methodology for noise level | ECMA-109 2ndedition (December 1987) Declared Noise Emission Values of Computer and Business Equipment: 4. Determination of the declared noise emission values. ECMA-74 11thedition (December 2010) Measurement of Airborne Noise emitted by Information Technology and Telecommunications Equipment: 5. Installation and operating instructions; 6. Method for determination of sound power levels of equipment in reverberation test rooms; 7. Method for determination of sound power levels of equipment under essentially free-field conditions over a reflecting plane; Annex C.15 Equipment category: personal computers and workstations. | |
| Measurement methodology for battery loading cycles | Not applicable | |
| Sequence of steps for achieving a stable condition with respect to power demand | EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.2. Measuring off mode; 5.3.3. Measuring sleep mode; 5.3.5. Measuring short idle mode. | |
| Description of how sleep mode was selected or programmed | EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.3. Measuring sleep mode. | |
| Description of how off mode was selected or programmed | EN 62623:2013 — Desktop and notebook computers — Measurement of energy consumption: 5.2. Test setup; 5.3.2. Measuring off mode. | |
| Sequence of events required to reach the mode where the equipment automatically changes to sleep mode | ENERGY STAR® Program Requirements Product Specification for Computers, Eligibility Criteria Version 6.0, Rev. Oct-2013: 1.D.4 Sleep Mode. | |
| Sequence of events required to reach the mode where the equipment automatically changes to off mode | Not applicable | |
| The length of time after a period of user inactivity in which the computer automatically reaches a power mode that has a lower power demand requirement than sleep mode | 30 minutes | |
| The length of time before the display sleep mode is set to activate after user inactivity | 10 minutes | |
| User information on the energy-saving potential of power management functionality | http://www.energystar.gov/index.cfm?c=power_mgt.pr power mgt_users | |
| User information on how to enable the power management functionality | http://www.energystar.gov/index.cfm?c=power_mgt.pr power mgt_users | |
| Test parameter for ambient temperature | 25 °C | |
| Test parameter for test voltage | 230 V | |
| Test parameter for frequency | 50 Hz | |
| Test parameter for total harmonic distortion of the electricity supply system | 3 % | |
| Test parameter for information and documentation on the instrumentation, set-up and circuits used for electrical testing | Digital Power Meter- Yokogawa WT210 Programmable AC Soure- Chroma 61603 | |
