Product Type	Washing Machine
Brand	Samsung
Model	SWT58H0
Dimensions (W x D x H)	715 mm x 430 mm x 870 mm
Weight (without pump)	19 kg
Weight (with pump)	21 kg
Water Pressure Range	0.05 ~ 0.78 MPa (0.5 ~ 8.0 kg.f/cm²)
Extraction Efficiency	60%
Standard Water Quantity	42 L
Washing Capacity	3.8 kg
Spinning Capacity	3.8 kg
Motor Input (Wash)	280 W
Motor Input (Spin)	110 W
Motor Max Input	350 W
Rated Time (Wash)	1 hour
Rated Time (Spin)	15 minutes
Wash Timer Range	1 - 15 minutes
Spin Dry Timer Range	1 - 5 minutes
Cycle Selector Positions	Wash/Rinse, Drain, Overflow Rinse, Additional Rinse
Water Selector (B Type)	Wash and Spin positions
Safety Features	Grounded connection, child lock, automatic power-off when not in use, inner lid and spin dryer lid safety
Filter Type	Overflow filter and drain pump filter (cleaning required)
Drain Hose Connection	With pump: height 70-80 cm above ground; without pump: lay hose down to sink hole
Installation Clearance	At least 15 cm from wall

Frequently Asked Questions - SWT58H0 SAMSUNG

What should I do if the washer does not start?

Check that the power cord is properly plugged into a working outlet. Also, verify that there is no power outage. If the problem persists, contact Samsung service.

Why is the drainage incomplete?

The filter may be clogged with lint. Clean the filter as described in the 'Cleaning the Machine' section of the manual.

How can I prevent clothes from not moving freely during washing?

Ensure the laundry load is not overloaded. The washer has a maximum capacity of 3.8 kg for washing.

Why does the spin dryer basket not run?

Check that the spin dryer lid is completely closed. Also, make sure no laundry (like socks) has fallen out of the basket and is clinging to the axle.

What causes incomplete spinning?

The laundry may not be arranged evenly in the spin basket. Distribute clothes evenly and ensure the safety cover is placed correctly.

How do I clean the filter?

For the drain pump filter: place a rag under the filter, rotate counterclockwise, pull out, remove dirt, then rotate clockwise to lock. For the overflow filter: pull the upper side with fingers into the holes.

Can I use hot water for washing?

No, do not use water hotter than 50°C, as plastic parts may deform or be damaged, and clothing may be deformed or decolored.

What are the installation requirements?

Place the washer on a sturdy, flat surface with at least 15 cm clearance from walls. Do not install near water, steam, or direct sunlight. For pump models, install the drain hose 70-80 cm above ground.

How do I perform an additional rinse?

After rinsing, load laundry evenly into the spin basket. Supply water for about 1 minute while adjusting flow to prevent overflow. Set the water selector to Spin and cycle selector to Drain, close lids, and set spin dry timer for 2-3 minutes.

What is the recommended washing time for different fabrics?

Extremely solid heavy fabric: 10-15 minutes; linen/cotton: 8-10 minutes; ordinary clothes: 7 minutes; slightly soiled synthetic: 2-5 minutes; wool or hand-wash synthetics: 2-5 minutes.

USER MANUAL SWT58H0 SAMSUNG

In case of pump drained washer, remove the cap-hos e from the drain hole.

CAUTIONS

Be sure that the washer is grounded.

To avoid electrical shock, use a metal pipe for the ground connection. But, don't ground the was her with gas pipes or telephone lines to avoid to dangers of explosion or lightning

Simple line drawing of a smiling face and hand holding a tool, with no text or symbols present.

Do not put your hands into the spin dryer bas ket when it is s pinning.

Your fingers can be caught by spinning laundry and damaged.

Never allow children to operate or play with the was her.

C ildren playing with the was her may accidentally fall into the was hing tub.

Dis connect the power cord from the power supply when not in us e.

Ventilation opning must not be obstructed by carpeting when the was hing machine is installed on a carpeted floor.

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

To avoid overfilling and damages this appliance must be filled with the operator present using a moderate water supply press ure only.

PRECAUTIONS WHEN OPERATING

Don't use excessively hot water. (50°C or more) P lastic parts may be deformed or damaged. Also, clothing may be deformed or decolored.

Before was hing, c heck all pockets. If nails or pins remain in pockets, they may damage the was her or clothes.

Clos e the water tap a little if the water pres sure is too high.

B e s ure to c over with the inner cover on laundry before s pinning. This prevents laundry from being tossed out and damaged.

To avoid water s plas hes, clos e the was h tub lid.

B e s ure lay the drain hos e down (in cas e no drain pump)

☐☐☐ Never s plas h water on the c ontrol panel.

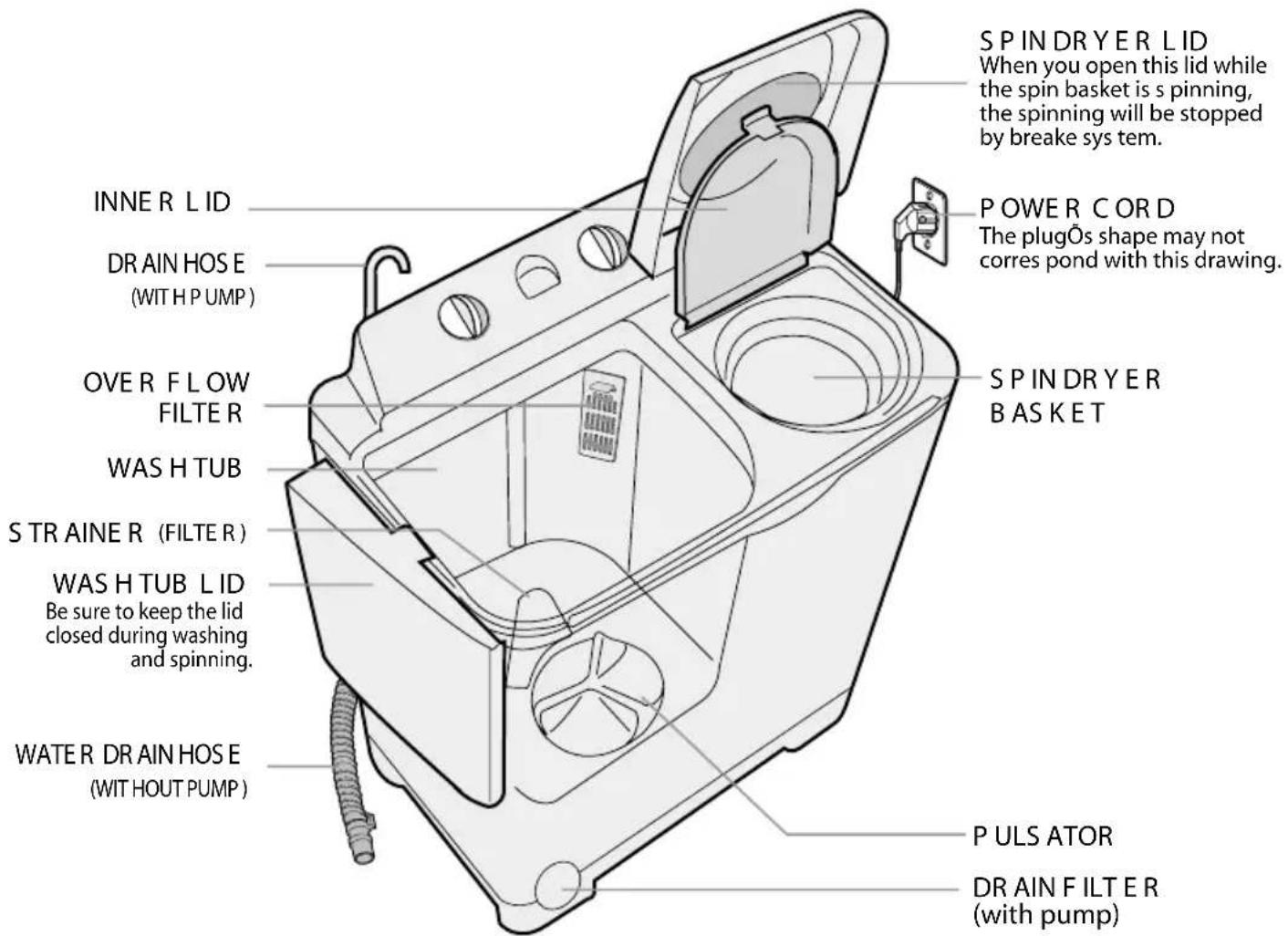

DESCRIPTION OF PARTS

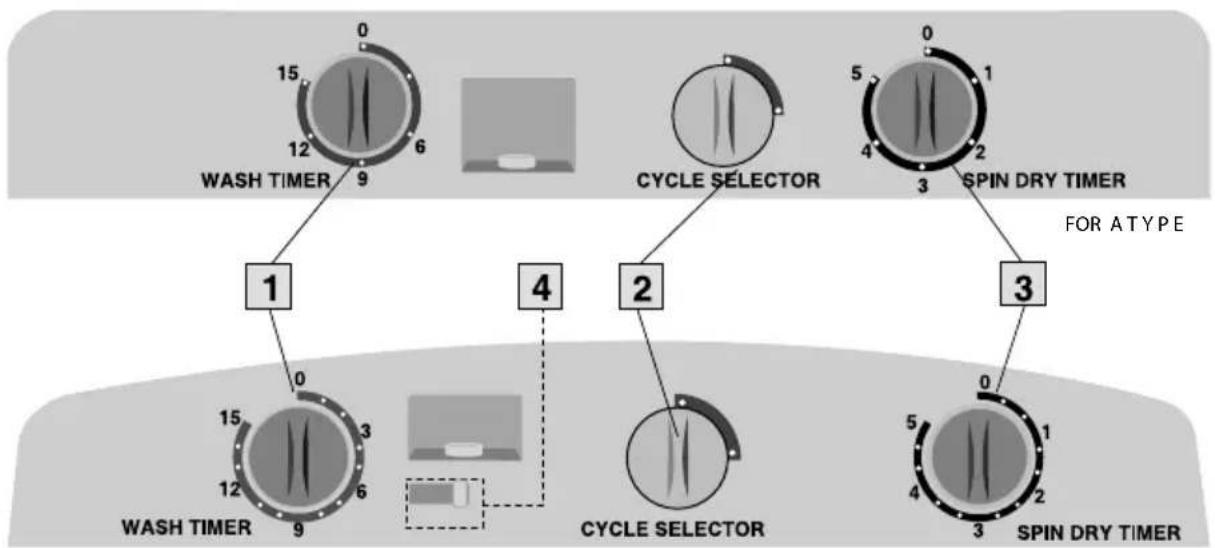

CONTROL PANEL

1. WAS H TIME R

This is used to set the wash time, 1-15 minutes.

2.C YCLE SELECTOR

This is used to select the Washing / R insing or draining

3. S P IN D R Y T I M E R

This is used to set the s pin time, 1-5 minutes.

4. WATER SELECTOR (FOR B TYPE)

During washing, WATER SELECTOR KNOB should be selected to wash. During spin rinsing, WATER SELECTOR KNOB should be selected to s pin.

FOR B TYPE

TO WAS H

1. Before s tarting was hing, check the following; Connect the water supply hose and open the water tap.
2. Lay the drain hose down toward a sinkhole. (In case no drain pump)

3. Place the drain hose in sink or bath. (In case drain pump)
   -Connect the power cord to the power supply outlet.

4. Set the CYCLE SELECTOR KNOB to 'WASH · RINS E'. (in case e drain pump "WASH")

1. Set the WATER SELECTOR KNOB to WASH.
   FOR B TYPE

2. Fill water in the was h tub and add the detergent.

Cartoon illustration of a smiling box character giving a thumbs-up (no text or symbols)

1. Load laundry in the was h tub and fill water to H high water level.

Line drawing of a washing machine with handle and side panel (no text or symbols)

1. S et the WAS H TIME R 1-15minutes.

1. After was hing, s et the CYCLE SELECTOR KNOB to ÔDR AINÕ for drain.

SP IN DRY

1. Trans fer the clothes into the s pin bas ket and arrange the c lothes evenly.

1. Be sure to attach the safety cover and close the inner lid.

1. Clos e the s pin dryer lid.

1. Set the SPIN DRY TIMER 1-5 minutes.

RINSING

1. Set the CYCLE SELECTOR KNOB to 'WASH RINSE' (In case drain pump "WASH")

CYCLE SELECTOR

CYCLE SELECTOR

1. S upply the proper amount of water as not to overflow the top of the was hing tub.

2. S et the WAS H TIME R 2\~3minutes.

3. Drain the water. Set the CYCLE SELECTOR KNOB to DRAIN

4. Repeat this cycle until drain water is c lean. (2\~3 c y c le)

WASH TIMER

CYCLE SELECTOR

OVER FLOW R INSE

1. Keep s uppling water

Adjust water pressure to ensure that the amount of water supplied is not exceed that water drained.

CYCLE SELECTOR
(Without pump)

CYCLE SELECTOR
(with pump)

1. S et the W A S H TIME R 6\~8minutes.

WASH TIMER

1. As soon as the WAS H TIME R s huts off, turn off the water tap.

WASH TIMER

1. Set the CYCLE SELECTOR KNOB to ÔDR AINÕ.

CYCLE SELECTOR

ADDITIONAL R INS E

1 After rinsing you can select this course for more effective rinse (Don't select only this course e for rinse.) Load the laundry evenly into the s pin bas ket.

inner lid safety cover

4 After stopping water supply, cover the laundry with safety cover and close the inner lid.

Set the WATER SELECTOR KNOB to

SPIN and CYCLE SELECTOR KNOB to ÕDRAINÕ.

CYCELE SELECTOR

5 Close the spin dryer lid.

3 Supply water for about 1 minute. Adjust the water flow to prevent overflow from the wash tub.

1 min.

SPIN DRY TIMER

6 Set the SP IN DRY TIMER 2\~3 minutes.

INSTALLATION

ENV IR ONME NT

Leave some space

S pace at last 15cm between the washer and the wall.

P lace the was her on a s turdy flat s surface. If the washer is placed on an uneven or weak surface, noise or vibration may be occurred. (Allowable is 2ù)

Never ins tall the was her near water.

Do not place the washer in s teamy rooms or where the washer is directly exposed to rain. Moisture may des troy the electrical insulation and caus e an electrical s hock hazard.

Avoid direct sunlight or heating devices.

As plas tic and electrical components are affected by direct heat, never place the was her near heaters, boilers,etc. Do not place under direct s unlight.

Install the drain hose about 70\~80cm above the ground for pump model.

HOW TO CLEAN THE FILTER (In case drain pump)

1. Place a rag under the washer filter not to wet the floor.
2. Rotate the filter counterclockwise and pull out the filter.
3. Remove dirt and rotate the filter clockwise until it locks in position.

C ONNE C TING T HE DR AIN HOSE

After pressing the joint ring(a), insert the drain hose(b) to drain direction.

Illustration of hands installing or adjusting a component on a wall (no text or symbols visible)

CLEANING THE MACHINE

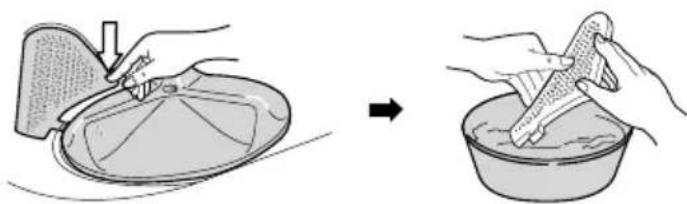

1. OVER FLOW FILTER

Pull the upper side of the overflow filter with your fingers into the holes in the direction of arrow as shown in the figure.

1. CLEANING THE FILTER

P ush the strainer(filter) out and take up the filter as shown in figure.

Wash the filter and was hing tub.

Illustration showing a hand using a tool to clean a dish in a bowl, with no text or symbols present.

1. CLEANING THE WASHER BODY

Wipe off s trains on the cabinet and operation panel with soft cloth.

Do not use benzene, thinners, cleanser, or wax, nor scrub the washer with a brush.

Painted surfaces or plastic parts will be damaged.

WAS HING TIME

K INDS OF C L OTHING	WAS HING TIME
E xtremely solid heavy fabric	10 to 15 minutes
Linen,cotton,etc.	8 to 10 minutes
Ordinary clothes (underwear,etc)	7 minutes
S lightly solied synthetic fiber	2 to 5 minutes
100%wool,mixed wool knitting, thin synthetic fiber with tags indicating hand washing	2 to 5 minutes

S PIN DRY TIME

TIME	TYPE OF LAUNDRY
1min.	Thin(s synthetic fiber)
1~2min.	wool
3~5min.	cotton
5min.	thick(cotton)

DE T E R G E N T

In case the water level is at High, amount of water is 42l.

$$ ^ \prime - H - ^ {\prime} $$

Follow the directions printed on the package for amount of detergent. Choos e the amount of detergent depending on the fabric type and water level.

MAINTENANCE

WHEN YOU LOAD THE LAUNDRY INTO THE SPIN BASKET.

Press the laundry evenly and put the safety cover into the spin basket drum as shown in the figure.

Bottom of balancer

Simple line drawing of two containers with swirling contents, one partially enclosed by a black circle (no text or symbols)

Two identical containers with swirling contents and a black X mark, no text or symbols present

TROUBLE SHOOTING

TROUBLE	CHECK POINT	TROUBLE	CHECK POINT
The was her does not work.	Check that the power cord is connected to a power outlet well. Power s toppage?	Incomplete draining	Is thefilter clogged with lint?See Oleaning the machineOn page 5.
Clothes will not move freely.	Is the laundry overloaded?	The spin dryer basket will not run.	Is the spin dryer lid closed completely?Are laundry(s ocks ,etc .)falling out of the spin dryer basket and clinging to the axle?See OTo pick outOOn page 6.
Incomplete pinning	Are the laundry arranged evenly?

SAMSUNG

Owner's Instructions

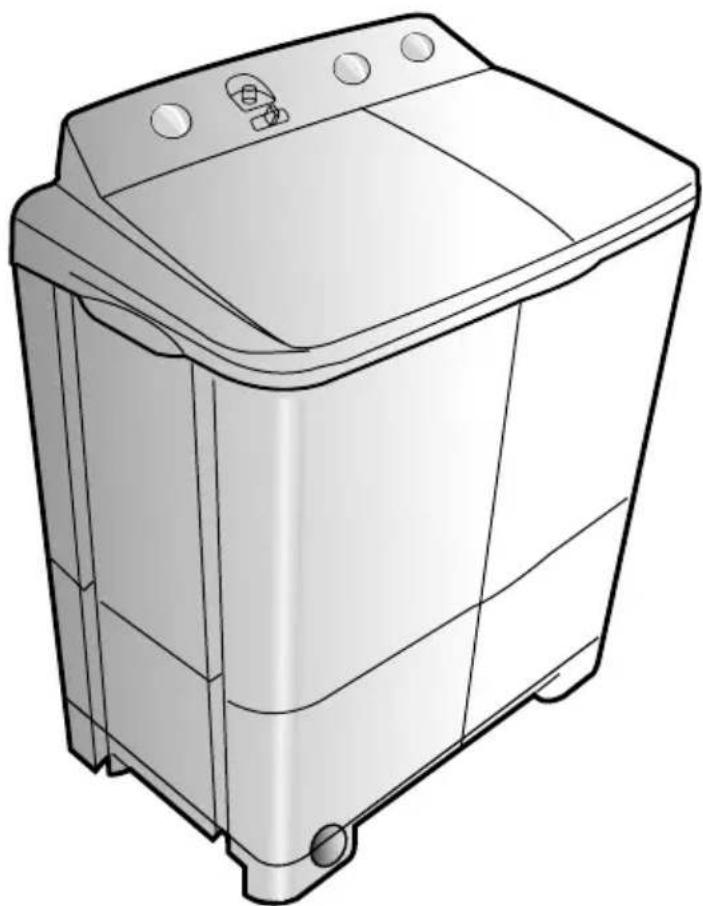

Line drawing of a washing machine with front panel and side legs (no text or symbols)

Before operating the unit, please read this manual thoroughly, and retain for future reference.

BEFORE USING THE WAS HER 1

CAUTIONS 1

PRECAUTIONS WHEN OPERATING 1

DESCRIPTION OF PARTS 2

CONTROL PANEL 2

WASHING PROCEDURE 3

TO WAS H 3

SPINDRY3

R INS ING 4

OVER FLOW RINSE 4

ADDITIONAL R INS E 4

INSTALLATION 5

E NV IR ONME NT 5

HOW TO CLEAN THE FILTER 5

CONNECTING DRAIN HOSE 5

CLEANING THE MACHINE 5

LA UNDRY GUIDE 6

MA INT E NANCE 6

TROUBLESHOOTING 6

SPECIFICATIONS

IF YOU NEED HELP.

Do not hesitate to call your local sams ung service center.

They will be willing to help you.

B e sure to give them your name, address, telephone number and the purpose of the call.

SPECIFICATION

DIMENSIONS (mm)	W715mmxD430mmxH870mm
WATER PRESSURE	0.05~0.78 MPa0.5 ~ 8.0 kg.f/cm2
WEIGHT	With out pump 19kg	With pump 21kg
EXTRACTION EFFICIENCY	60 %
STANDARD QUANTITY OF WATER	42 l
NOMAL CAPACITY	Washing : 3.8 kg	S pinning : 3.8 kg
MOTOR INPUT	Washing : 280 W	S pinning : 110 W
MOTOR MAX INPUT	350 W
RATING TIME	Washing 1Hour	S pinning 15minutes
