USER MANUAL PT4500-SDI-TK-V2 Ikan
High Bright 15" SDI Tally Teleprompter w/ Travel Case
□ 1x Teleprompter Base
□ 1x Hood Frame
□ 1x Silicone Hood w/ Canvas Shroud
□ 1x Counterweight
□ 1x Tall Riser
□ 1x Medium Riser
□ 1x DSLR Riser
□ 2x L-Shaped Hex Keys
□ 2x 1/4-20 Camera Screws
□ 1x 15 in. SDI 4:3 Monitor
□ 1x Power Adapter
□ 1x 70/30 15 in. Glass
□ 1x Digital Copy of Prompter Pro4
□ 1x Hard Travel Case
Teleprompter Assembly Setup
Step 1
Place the teleprompter glass frame on a flat surface and remove the four screws as shown.
Step 2

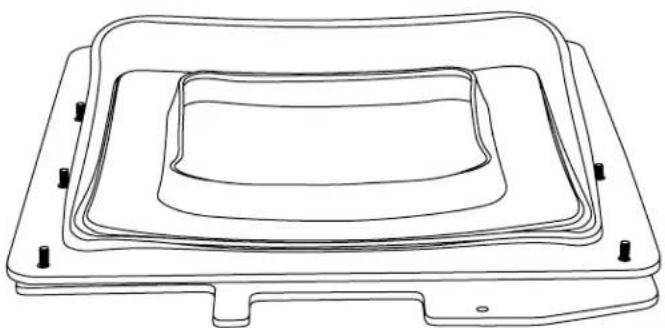

Align and attach the teleprompter hood with the 8 screw pegs from the teleprompter frame.
The metal frame is directional. Make sure the thicker side is on top and the slimmer side is on the bottom.
Step 4

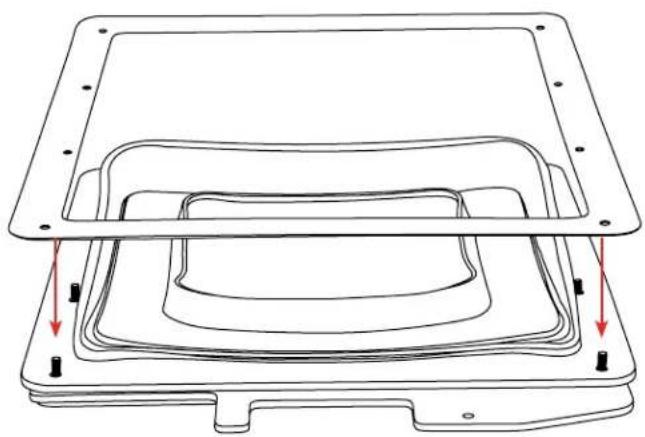

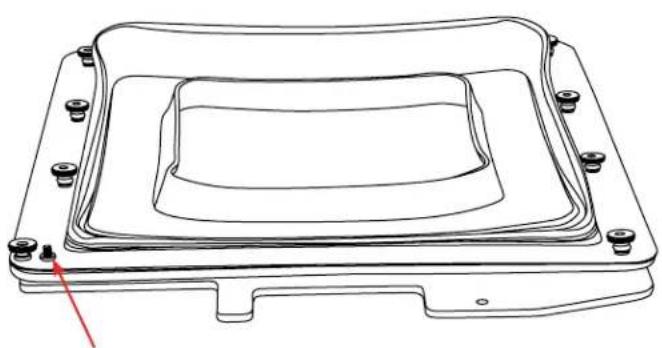

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.
Extend the teleprompter hood open and attach teleprompter boot using the clips. It is suggested to align the seam with the bottom of the teleprompter hood.


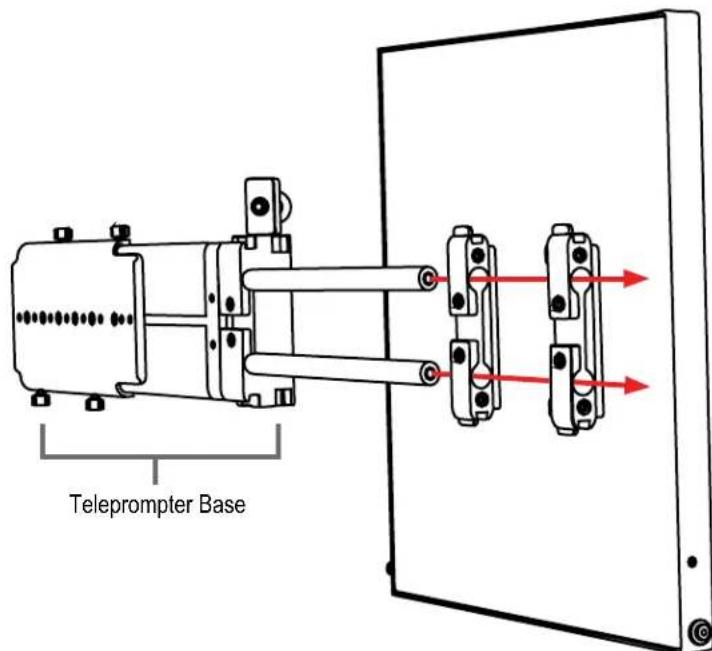

Removethe monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.


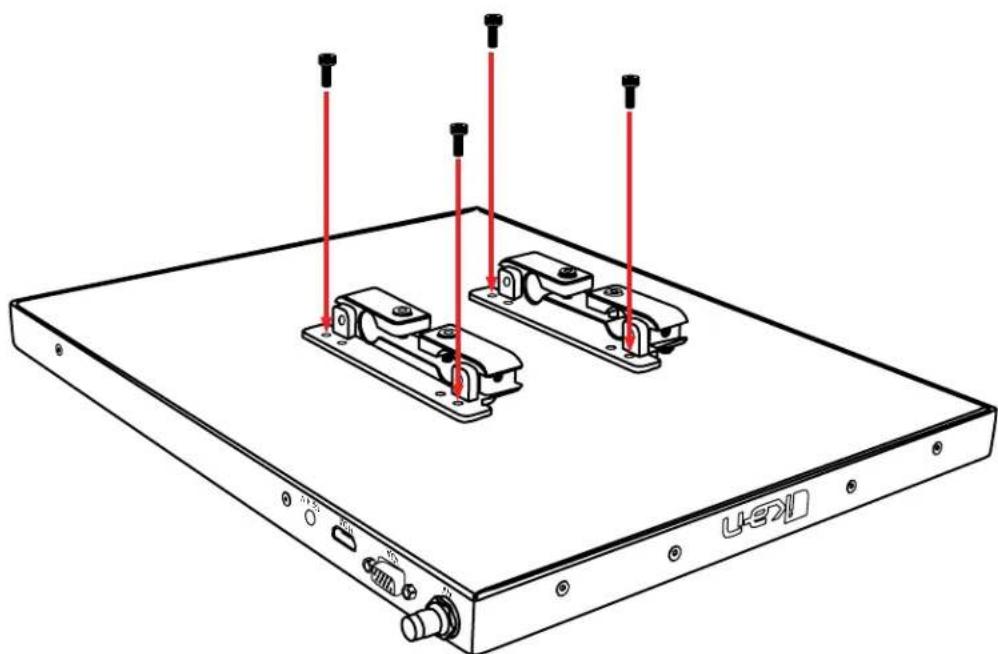

Attach the monitor mounts on the back of the monitor's VESA compatible threads using the 4 included screws and provided 2mm hex key.
After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.

Step 9
While sliding the teleprompter bracket into the slot of the teleprompter base pull on the red knob to allow the bracket to fully slide in.
Step 10
Oncethe bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.
Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.
Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality SKB rolling hard case.

BNC-SDI Input
VGA- Video Graphics Array DE15 Connection
HDMI- High-Definition Multimedia Interface Input Connection
Power Port - 12-24v Input

HDMI- Switch HDMIinput
VGA-Switch to VGAinput
SDI – Switch to composite SDinput
Flip - Toggle image flip
(Canbe set to horizontal, vertical, or both via menu)
UpArrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGBSetup - Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V - Assign toggle button to flip image vertically
Reset - Factory reset
Return
PC Setup (Only available for VGA)
H-Position - Adjust horizontal position
V-Position – Adjust vertical position
Auto - Monitor automatically adjust position
Return
Exit
How to set-up FLIP button feature:
-
Press MENUbutton
-
Navigate to SYSTEM CONFIG.
-
Navigate to FLIP-V or FLIP-H
-
Change FLIP-V and/or FLIP-Hto "ON"
-
Exit MENU
-
The FLIP button should now be activated and can be pressed to mirror the image Horizontally or Vertically
-
When FLIP-H is ON, the image will flip Horizontally
-
When FLIP-Vis ON, the image will flip Vertically
-
If both are ON, the FLIPbutton will toggle both Horizontal and Vertical flip
Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Teleprompters:
ikancorp.com/15-in-videos/

Optional Accessories
PT4500-G Replacement Glass for both PT4500-SDI-V2
M15W 15" High Bright Widescreen Talent Monitor (for PT4500-SDI-V2)
PT15-SDI-V2 15" High Bright 4:3 Monitor (for PT4500-SDI-V2)
PT-CASE-V2 Rolling Hard Case for PT4500-SDI-V2 Teleprompter
PT-CASE-15TM Hard Case for 15" Talent Monitor
Supported Video Signals
SDI & HDMI:
1080p @ 50, 25, 59.94, 60, 23.976, 24, 29.97, 30 Hz
1080i @ 50, 59.94, 60 Hz
720p @ 50, 59.94, 60 Hz
480p @ 59.94 Hz
576p @ 50, 59.94 Hz
576i @ 50 Hz
1920x1200 @ 60 Hz
1600 x 1200 @ 60 Hz
1400x1050 @ 60 Hz
1280x1024 @60 Hz
1280x960 @ 60 Hz
1360x768 @ 60 Hz
1280x768 @ 60 Hz
1024x768 @60 Hz
800x600 @ 60 Hz
640x480 @ 60 Hz
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: support@ikancorp.com
CONDITIONS OF WARRANTY SERVICE
- Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
- The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
- Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
- Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2024 Ikan International. All rights reserved.

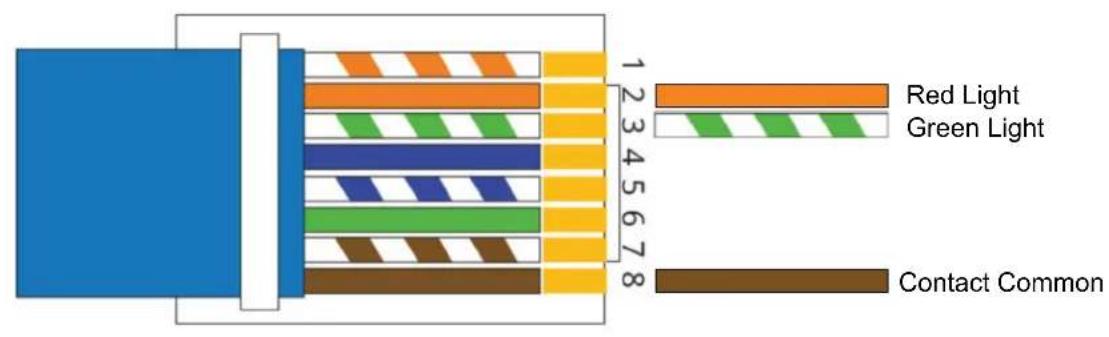

Pinout Diagram for Tally Light
Tally Light Pinout:
Tally Pin Layout Diagram

Learn More
More dynamic information at official website :www.ikancorp.com
Support
Contact email: support@ikancorp.com
©2024 Ikan International. All rights reserved.
