Europower PMP860M - Mixer BEHRINGER - Free user manual and instructions
Find the device manual for free Europower PMP860M BEHRINGER in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Powered Mixer |
| Brand | Behringer |
| Model | Europower PMP860M |
| Power Output | 2 x 300W (600W total) at 4Ω |
| Channels | 8 (4 mono mic/line + 2 stereo line) |
| Graphic EQ | 7-band on main output |
| Digital Effects | 24-bit, 100 presets with dedicated control |
| Phantom Power | +48V switchable on channels 1-4 |
| Input Connectors | 4x XLR/TRS combo, 4x stereo RCA/TRS |
| Output Connectors | 2x Speakon for speakers, 1x monitor out, 1x line out |
| Frequency Response | 20 Hz - 20 kHz |
| Total Harmonic Distortion | < 0.05% |
| Signal-to-Noise Ratio | > 90 dB |
| Built-in Media Player | USB port for MP3 playback |
| Dimensions (H x W x D) | 178 x 483 x 310 mm |
| Weight | 10 kg |
| Power Supply | 230V AC, 50-60 Hz |
| Construction | Rugged steel chassis with kickback design |
| Cooling | Variable speed fan |
| Protection Features | Limiter, short circuit, thermal overload |
| Accessories Included | Power cord, rackmount ears, user manual |
| Warranty | 3 years |
| Maintenance | Clean with dry cloth; avoid moisture and dust |
| Safety | Class I equipment; ensure proper grounding |
Frequently Asked Questions - Europower PMP860M BEHRINGER
How do I connect passive speakers to the PMP860M?

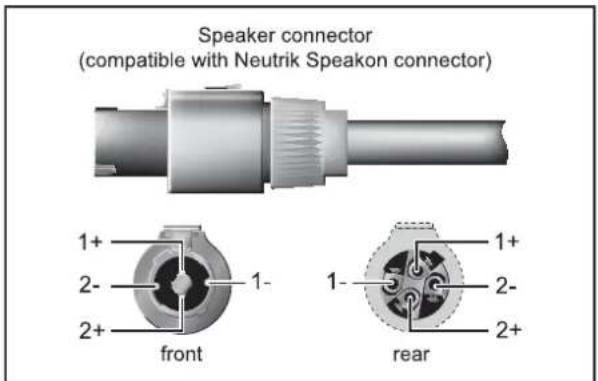

Use Speakon cables to connect the mixer's main outputs to your speakers. Ensure the mixer is powered off before connecting. On the rear panel, connect the left and right Speakon jacks to the corresponding speaker inputs.
How can I apply effects to a channel?
Press the FX button on the desired channel strip to route it to the internal effects processor. Then use the FX select knob to choose a preset (100 available). Adjust the FX level to blend effect with dry signal.
What is phantom power and when should I use it?
Phantom power (+48V) supplies voltage to condenser microphones. Press the +48V button on channels 1-4. Only enable it when using condenser mics; turn off for dynamic mics to avoid noise.
How do I reduce feedback during live performance?
Use the 7-band graphic EQ on the master output to cut frequencies that feed back. Identify the problematic frequency by slowly boosting then cutting. Also position microphones away from speakers.
Can I play music from a USB drive?
Yes, insert a USB drive with MP3 files into the USB port on the top panel. Use the media player controls to play/pause and skip tracks. Volume is controlled by the USB input level knob.
What is the maximum load impedance for the speaker outputs?
The amplifier is stable with loads from 4Ω to 8Ω per channel. Do not connect speakers with lower total impedance (e.g., two 4Ω speakers in parallel) as it may cause overheating.

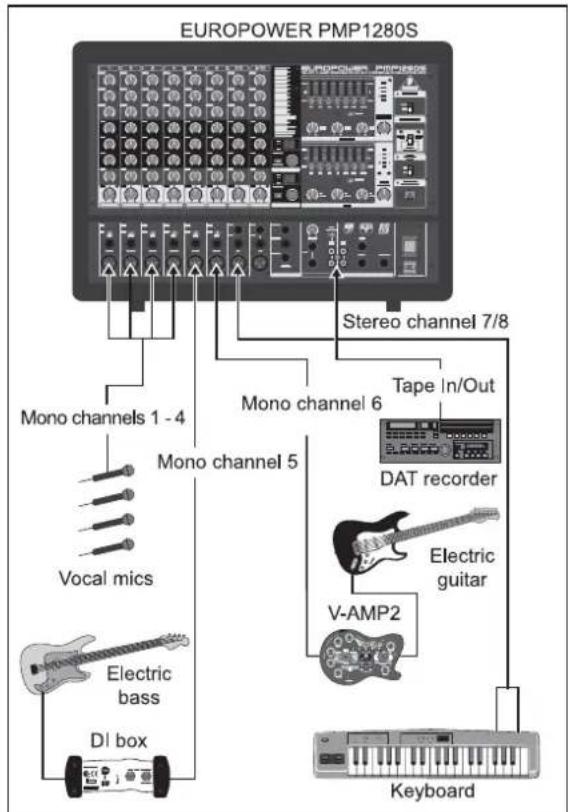

How do I connect a keyboard or guitar?

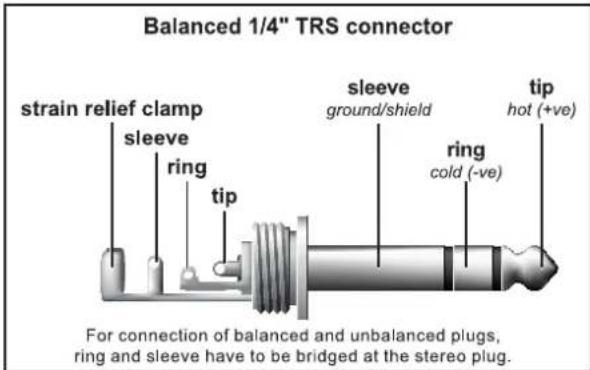

Use a 1/4-inch (6.35mm) TRS cable to connect your keyboard or guitar to one of the stereo line inputs (channels 5-8). Set the input switch to Line (not Mic) to avoid distortion.
Why is there no sound from the speakers?
Check: 1) Mixer is powered on and master volume is turned up. 2) Speakon cables are securely connected. 3) Channels are not muted (Mute button off) and levels are up. 4) Speaker power is on if powered speakers are used. 5) The Protect LED is not lit (indicates thermal or short circuit).
How should I clean the mixer?
Unplug the mixer. Use a soft dry cloth to wipe the surface. For stubborn dirt, slightly dampen the cloth with water. Never use solvents or abrasive cleaners. Avoid letting liquid enter the casing.
Can I rackmount the PMP860M?
Yes, it fits a standard 19-inch rack (3U height). Remove the side handles and attach the included rackmount ears using the provided screws. Ensure adequate ventilation around the rack.
