Product Type	Built-in Oven
Brand	Gaggenau
Model	AA 410 112
Dimensions (H x W x D)	595 x 594 x 548 mm
Net Weight	Approx. 40 kg
Power Supply	220-240 V, 50/60 Hz
Total Power Consumption	3.5 kW
Energy Efficiency Class	A+
Oven Capacity	76 L
Cooking Functions	4D Hotair, Grill, Pizza, Bottom Heat, Defrost
Temperature Range	30 °C - 300 °C
Cleaning Type	Pyrolytic self-cleaning
Safety Features	Child lock, Residual heat indicator, Automatic switch-off
Display Type	TFT touch display
Connection Type	Hardwired (no plug)
Warranty	2 years
Spare Parts Availability	Available through Gaggenau service centers
Repairability Index	8.5/10

Frequently Asked Questions - AA 410 112 GAGGENAU

How do I install the Gaggenau AA 410 112 oven?

Installation must be carried out by a qualified technician. Ensure the niche dimensions match the product specifications (595x594x548 mm). The appliance requires a hardwired connection to a suitable power supply (220-240 V). Refer to the installation manual for detailed steps.

How do I set the clock on this oven?

Press the clock icon on the TFT display. Use the + and - buttons to adjust the time. Confirm by pressing the checkmark. The clock is set.

What does error code E011 mean?

Error code E011 indicates a temperature sensor fault. Try restarting the appliance. If the error persists, contact Gaggenau customer service.

How do I use the pyrolytic self-cleaning function?

Remove all oven racks and accessories. Select the Pyrolytic cleaning function from the menu. The oven will heat to approximately 500°C to burn off residues. After the cycle, wipe away the ash with a damp cloth. Ensure proper ventilation.

Can I use aluminum foil in this oven?

Aluminum foil can be used but avoid covering the entire oven floor or touching the heating elements. Use it on a baking tray or to cover dishes. Improper use may damage the oven.

What accessories are compatible with the AA 410 112?

Compatible accessories include standard baking trays, wire racks, and rotisserie kit (if applicable). Use only Gaggenau-approved accessories to ensure safety and performance.

How do I replace the oven light bulb?

Disconnect power. Remove the glass cover by turning it counterclockwise. Replace with a 40W halogen G9 bulb (max 300°C). Reattach the cover and restore power.

Why is my oven not heating up?

Check if the oven is properly connected to power and the circuit breaker is on. Ensure the correct cooking function is selected. If the problem persists, there may be a fault with the heating element or thermostat. Contact service.

How do I clean the oven door glass?

Use a soft cloth with mild detergent and water. Do not use abrasive cleaners or sharp objects. For stubborn stains, a glass ceramic cleaner can be used. Rinse thoroughly.

Is the oven Wi-Fi enabled?

No, the Gaggenau AA 410 112 does not have Wi-Fi connectivity. It operates via a TFT touch display with manual controls.

USER MANUAL AA 410 112 GAGGENAU

3D diagram of a rectangular electronic device with grid-like internal compartments and mounting holes (no text or symbols)

Technical diagram of a mechanical device with an inset showing a heat exchanger or cooling unit (no text or symbols present)

3

de

Wichtige Hinweise

Read these instructions carefully and keep them in a safe place. abst safety during use can only be ensured if the appliance is fitted correctly according to these installation instructions. The installer is responsible for ensuring that the appliance operates perf the point of installation.

The appliance must be connected to the mains only by a licensed and trained technician.

Before carrying out any type of work, turn off the electricity.

Risk of injury!

From sharp edges during installation. Always wear protective gloves while installing the appliance.

Regenerating the odour filter

To guarantee the odour filter power, regenerate the odour filter with normal use (daily for approx. one hour) every 3–4 months. You can regenerate the odour filter in a standard oven.

Risk of scalding!

The odour filter remains hot for quite some time after it has been regenerated. Do not touch the odour filter straight after it regenerated – allow it to cool down.

Leave the hot odour filter to cool down on a heat-resistant

Notes

The odour filter can be regenerated up to 30 times and must be replaced at least every 10 years with normal use (daily for approx. one hour).

If a regenerable odour filter falls, it may become damaged. The damage is not always visible from the outside. Dispose of der Geschäft and replace down any regenerable odour filters that have

■ Never clean odour filters with cleaning products, water, in the dishwasher or with a damp cloth.

■ To ensure that you do not scratch the baking tray, place the odour filter on a wire rack.

■ Regenerate the odour filter at a maximum of 200 °C (Hot Air). Do not regenerate the odour filter with the oven cleaning function (pyrolytic self-clean).

belüfter ist. ■ Odours may develop when regenerating the odour filter. I that the room is well ventilated. Open a window.

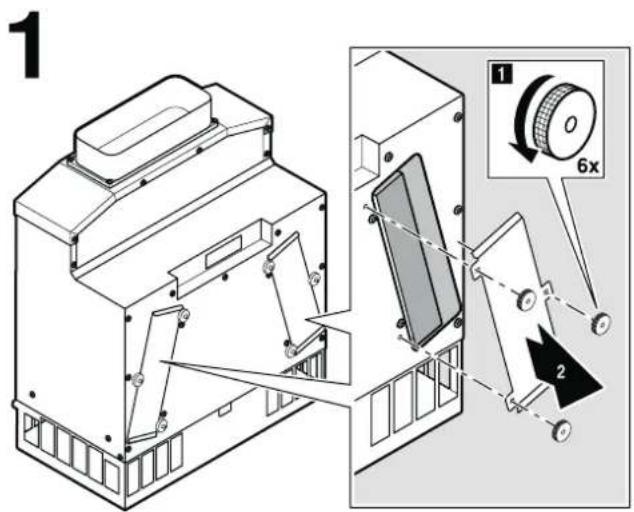

1. Remove the panel or cover. (Fig. 1)

2. The odour filter is heavy so you should take hold of with one hand from below and remove it. (Fig. 2)

3. Preheat the oven to a maximum of 200 °C (Hot Air).

4. Regenerate the odour filter in the oven for 120 minutes at a maximum of 200 °C (Hot Air).

Fenster_offnen

1. Ensure that the room is well ventilated. Open a window.

2. Allow the odour filter to cool down.

3. The odour filter is heavy so you should take hold with one hand from below and insert the regenerated

4. Insert the panel or cover.

az

Vacib gösterişlər

kk

Herizgi eskertuлер

⚠️ Fare for forbrenning!
