Tune Flex - Earphones HARMAN KARDON - Free user manual and instructions

Product Type	True Wireless Stereo Earbuds
Model	Tune Flex
Driver Size	12 mm Dynamic
Frequency Response	20 Hz – 20 kHz
Impedance	32 ohms
Sensitivity	108 dB SPL @ 1 kHz
Maximum SPL	92.5 dB
Microphone Sensitivity	-38 dBV/Pa @ 1 kHz
Bluetooth Version	5.2
Bluetooth Profiles	A2DP V1.3, AVRCP V1.6, HFP V1.7
Bluetooth Transmitter Power	< 10 dBm
Battery Type (Earbuds)	Lithium-ion polymer 54 mAh / 3.85 V
Battery Type (Charging Case)	Lithium-ion polymer 570 mAh / 3.85 V
Charging Time	< 2 hours
Music Playtime (ANC Off)	Up to 8 hours
Music Playtime (ANC On)	Up to 6 hours
Talk Time	4.5 hours
Weight (Earbud)	4.8 g per earbud
Weight (Charging Case)	38.6 g
Water Resistance	Not specified (assume IPX4 splash proof typical)
Active Noise Cancellation	Yes (ANC) with Ambient Aware and TalkThru
Controls	Touch controls: tap (1x,2x,3x) and hold
Voice Assistant	Compatible with Google Assistant, Siri, and Bixby (via app)
App Support	JBL Headphones app (Android & iOS)
Operating Temperature	Up to 45°C
Safety Warnings	Do not open, service, or disassemble battery. Do not short circuit. Dispose of batteries properly.
Spare Parts & Repairability	Ear tips included in multiple sizes. Battery replacement not recommended.

Frequently Asked Questions - Tune Flex HARMAN KARDON

How do I pair the JBL Tune Flex with my phone?

Make sure the earbuds are in the charging case, then open the lid. The earbuds will enter pairing mode automatically. Go to your phone's Bluetooth settings, look for JBL TUNE FLEX and tap to connect. For Android, you can use Fast Pair if available.

What is the battery life of the JBL Tune Flex?

With ANC off, enjoy up to 8 hours of music playback. With ANC on, up to 6 hours. The charging case provides additional charges. Talk time is up to 4.5 hours.

How do I enable Active Noise Cancellation (ANC)?

ANC can be toggled via the JBL Headphones app or by using the touch controls (if configured). In the app, you can also choose Ambient Aware to hear surroundings or TalkThru to lower music volume and amplify voices.

Are the JBL Tune Flex water-resistant?

The official specifications do not mention an IP rating. However, they likely offer basic splash resistance for workouts or light rain. Avoid submerging them in water.

Which ear tip sizes are included?

The package includes open ear tips in size XS and sealing ear tips in sizes S, M, L. Choose the size that provides a comfortable and secure fit for optimal sound and ANC performance.

How do I use the JBL Headphones app?

Download the JBL Headphones app from the App Store or Google Play. After pairing, open the app to customize EQ (Jazz, Vocal, Bass, Club, Studio), adjust ANC modes, assign voice assistants, and update firmware.

Can I use only one earbud at a time?

Yes, the JBL Tune Flex supports mono mode. Simply take out either the left or right earbud and it will work as a standalone. Both earbuds are independently connected.

How do I perform a factory reset?

Place both earbuds in the charging case and close the lid. Press and hold the button on the case for 10 seconds until the LED flashes red and white. The earbuds will reset and be ready for pairing.

Which voice assistants are supported?

Through the JBL Headphones app, you can enable Google Assistant, Amazon Alexa, or Bixby and assign it to a touch gesture on the left or right earbud. Siri is supported on iOS.

What is the Bluetooth range?

The Bluetooth 5.2 connection has a typical range of up to 10 meters (33 feet) in open space. Walls and obstacles may reduce the range.

USER MANUAL Tune Flex HARMAN KARDON

XS [OPEN EAR TIPS]

S/M/L (SEALING EAR TIPS)

SCAN ME

APP

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

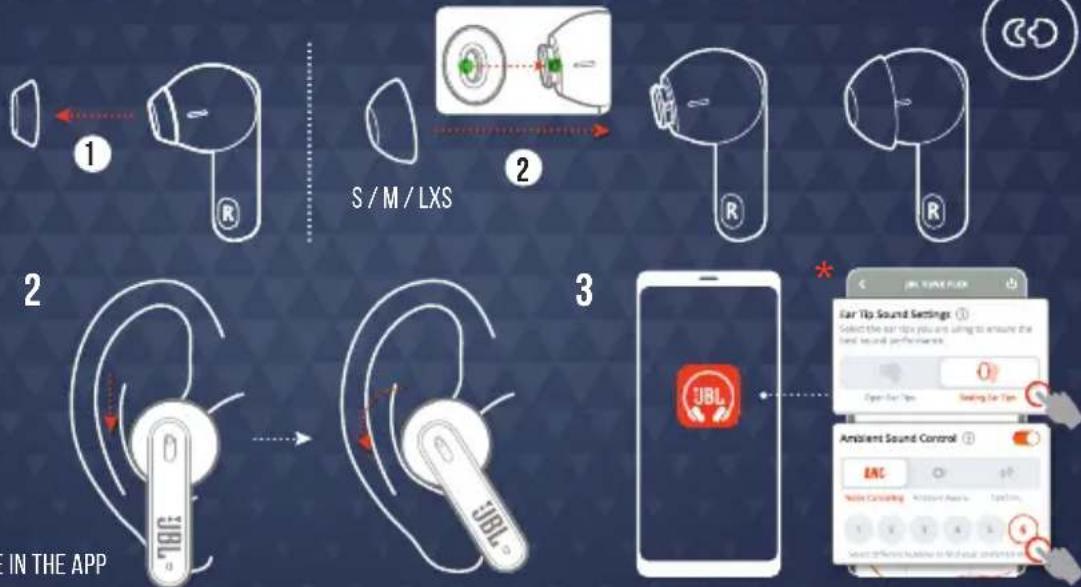

HOW TO WEAR

1 TRY DIFFERENT SIZES FOR OPTIMAL SEALING AND AUDIO PERFORMANCE. * EAR TIP SOUND SETTINGS AVAILABLE IN THE APP

FIRST TIME USE

POWER

ON &

CONNECT

OTHERS ANDROID™ 6.0+

CHOOSE "JBL TUNE FLEX" TO CONNECT

Fast Pair

DUAL CONNECT + SYNC

STEREO MODE

L/R MONO MODE

CONTROLS

• TAP × 1 •• TAP × 2 ••• TAP × 3 — HOLD [2]

* ENABLE ADVANCED CONTROLS BY CONNECTING YOUR JBL TUNE FLEX TO JBL HEADPHONES APP

** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

*** SELECT THE EAR TIPS YOU ARE USING FOR THE BEST SOUND PERFORMANCE.

VOICEAWARE

POWER OFF

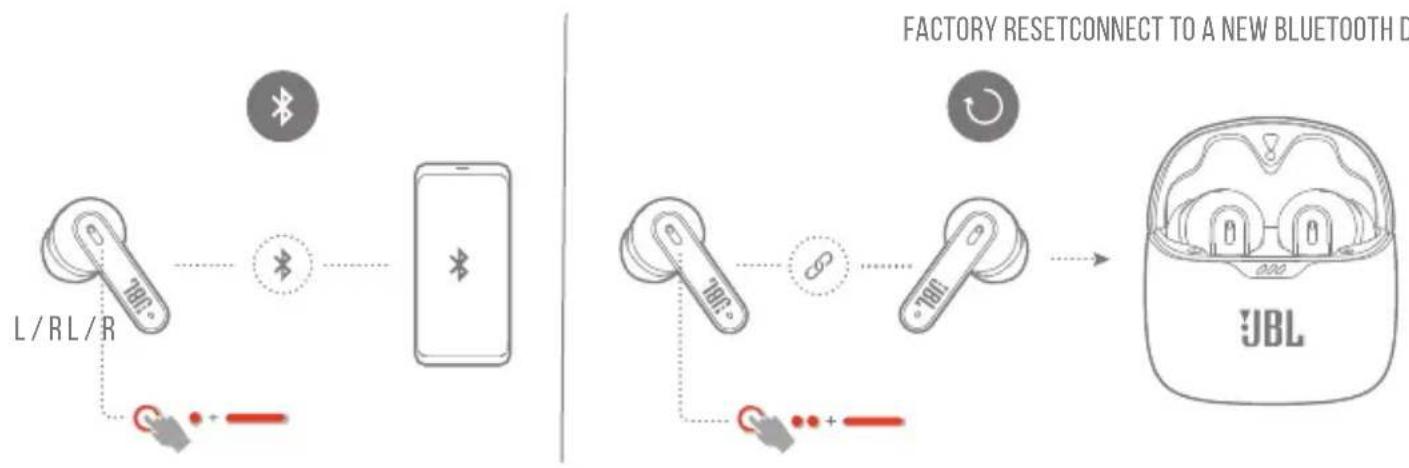

MANUAL SETUP

FACTORY RESET CONNECT TO A NEW BLUETOOTH DEVICE

DO MORE WITH THE APP

*ONLY AVAILABLE ON ANDROID™

CHARGING

LED BEHAVIORS

BT CONNECTING

BT CONNECTED

BT NOT CONNECTED

FACTORY RESET

LOW BATTERY

CHARGING

FULLY CHARGED

TECH SPEC

Model: TUNE FLEX

Driver size: 12 mm/0.472" Dynamic Driver

Power supply: 5V

1A

Earbud:

4.8 g per pc (9.6 g combined)/

0.0105822 lbs per pc (0.021 lbs combined)

Charging case: 38.6 g/ 0.085 lbs

Earbud battery type: Lithium-ion polymer (54 mAh/ 3.85 V)

Charging case battery type: Lithium-ion polymer (570 mAh/ 3.85 V)

Charging time: < 2 hrs from empty

Talk time: 4.5 hrs

Music playtime with BT on

and ANC off: up to 8 hrs

Music playtime with BT on

and ANC on: up to 6 hrs

Frequency response: 20 Hz – 20 kHz

Impedance: 32 ohm

Sensitivity: 108 dB SPL@1 kHz

Maximum SPL: 92.5 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter

frequency range: 2.4 GHz - 2.4835 GHz

Bluetooth transmitter

power: <10 dBm

Bluetooth transmitter

modulation: GFSK, π/4-DQPSK, 8DPSK

Maximum operation

temperature: 45 °C

FR

CONTENU DE LA BOÎTE

(Embouts ouverts) (Embouts isolants)

APPLICATION

ANC (Aktives Noise-Cancelling)*

Ambient Aware

(Umgebungsbewusst)*

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

A2DP V1.3, AVRCP V1.6, HFP V1.7

2.4 GHz - 2.4835 GHz

<10 dBm

GFSK, π/4-DQPSK, 8DPSK

45°C

BOX CONTENTS

A2DP V1.3, AVRCP V1.6, HFP V1.7

GFSK, π/4-DQPSK, 8DPSK

FI

PACKAGE CONTENTS

LED INDICATOR FUNCTIONS

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter frequency range: 2.4 GHz - 2.4835 GHz

A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter

connecting your JBL TUNE FLEX

0.0105822 lbs elk (0.021 lbs samen)

∅repropper Sound settings***

Voice assistants**

* Activate advanced controls by

MANUAL CONFIGURATION

Connect a new Bluetooth device

Reset to

factory settings

DO MORE WITH THE APP

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Frequency range for

Bluetooth transmitter: 2.4 GHz – 2.4835 GHz

Bluetooth transmitter power: <10 dBm

Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK

A2DP V1.3, AVRCP V1.6, HFP V1.7

Ambient Aware (Ambient

Awareness)

Talkthru*

A2DP V1.3, AVRCP V1.6, HFP V1.7

2.4 GHz - 2.4835 GHz

<10 dBm

GFSK, π/4-DQPSK, 8DPSK

45°C

Items in the box

(Open-type ear tips)

(Sealed-type ear tips)

App

With this free app, you can better control and

personalize your listening experience.

How to wear

Try different sizes to achieve the perfect

seal and sound quality.

*Ear tips available in the app

Sound settings

First use

Power on and connect

Other

Android™ 6.0+

Select "JBL TUNEFLEX" to

connect

Dual Connect + Sync

Spatial Sound Mode

Mono Mode

Control Button

Tap | Press and Hold

ANC (Active Noise Cancelling)*

Ambient Aware

TalkThru*

Bixby/Siri®/Other

Ear Tip Sound Settings***

Voice Assistant**

*Enable advanced controls by connecting your JBL TUNE FLEX

to the JBL Headphones app.

**Through the JBL Headphones app

**Through the JBL Headphones app**

Activate your voice assistant,

then assign it to the earbud of your choice

(left/right).

Choose the appropriate ear tips for the best sound experience.

VOICEAWARE

Power off

Manual setup

Connect to a new Bluetooth device

Factory reset

Do more with this app

Charging status

LED status

Bluetooth connecting

Bluetooth connected

Bluetooth connected

Bluetooth not connected

Factory reset

Battery low

Charging

Fully charged

Technical specifications

Model: TUNE FLEX

0.0105822 lbs each (0.021 lbs for both)

Charging case: 38.6 g / 0.085 lbs

38.6 g / 0.085 lbs

OTHER APP USES

*Only available on Android™. MENGICLDAVA

MENGIST DAYA

LED PATTERN

BT connecting

BT connected

BT not connected

One side 0.0105822 lbs (both sides 0.021 lbs)

A2DP V1.3, AVRCP V1.6, HFP V1.7

** JBL Headphones 30000

Voice Assistant

Frequency response: 20 Hz – 20 kHz

Impedance: 32 ohm

Sensitivity: 108 dB SPL@1 kHz

Maximum SPL: 92.5 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth profile version:

A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter frequency

range: 2.4 GHz - 2.4835 GHz

Bluetooth transmitter power:

<10 dBm

Bluetooth transmitter modulation:

GFSK, π/4-DQPSK, 8DPSK

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
