Kayak Support 520 - Kayak Rack THULE - Free user manual and instructions

Product Type	Kayak Support (J-style carrier)
Brand	Thule
Model	Kayak Support 520
Compatible Roof Bars	Round (up to 80 mm), square, elliptical, and aerodynamic bars
Load Capacity	34 kg (75 lbs) per pair (max 2 kayaks)
Weight	2.5 kg (5.5 lbs) per support
Dimensions	60 x 30 x 15 cm (23.6 x 11.8 x 5.9 in)
Material	Aluminum frame, stainless steel hardware, UV-resistant rubber pads
Padding Type	Molded rubber cradles with anti-slip surface
Strap System	Quick-adjust cam straps with locking buckles
Installation	Tool-free attachment to roof bars; uses EZ-Mount brackets
Locking	Integrated lock core for securing to roof bars (key included)
Kayak Types	Sit-on-top, sit-in, touring, recreational kayaks (up to 34 kg)
Number of Kayaks	Up to 2 kayaks (requires two supports)
Warranty	Limited lifetime warranty
Cleaning & Maintenance	Wash with mild soap and water; lubricate moving parts annually
Spare Parts	Replacement straps, lock cores, and rubber pads available at authorized dealers
Certification	TUV approved, meets FMVSS standards

Frequently Asked Questions - Kayak Support 520 THULE

What roof bars are compatible with the Thule Kayak Support 520?

The Kayak Support 520 is compatible with round bars up to 80 mm diameter, square bars, elliptical bars, and most aerodynamic factory bars. It uses Thule's EZ-Mount system for a secure fit.

How many kayaks can I carry with two supports?

You can carry up to two kayaks using two supports, each with a maximum load capacity of 34 kg (75 lbs), for a total of 68 kg (150 lbs). Ensure the kayaks are properly secured.

Do I need tools to install the Kayak Support 520?

No, installation is tool-free. The supports attach to the roof bars using hand-tightened knobs. However, a Torx key is provided for locking the supports to the bars.

How do I lock the Kayak Support 520 to my roof bars?

Each support includes a lock cylinder. Insert the key, turn to lock, and remove the key. This secures the support to the bar, preventing theft.

What is the maximum width of a kayak that fits on the support?

The support accommodates kayaks with a width up to 38 cm (15 in). For wider kayaks, consider using Thule's adjustable saddle supports.

Can I use the Kayak Support 520 for a sit-on-top kayak?

Yes, the rubber cradles are designed for all types of kayaks, including sit-on-top, sit-in, and touring kayaks. Ensure the kayak is centered and strapped securely.

How do I clean and maintain the Kayak Support 520?

Clean the support with a mild soap and water solution. Avoid abrasive cleaners. Lubricate moving parts (like knobs) with a silicone spray annually to prevent corrosion.

Are replacement parts available for the Kayak Support 520?

Yes, replacement straps, rubber pads, and lock cores are available from authorized Thule dealers. Use only genuine Thule parts to maintain safety.

Does the Kayak Support 520 come with a warranty?

Thule offers a limited lifetime warranty on the Kayak Support 520. It covers manufacturing defects but not normal wear or damage from misuse.

Can I leave the Kayak Support 520 on my vehicle year-round?

It is not recommended to leave the supports on the roof bars permanently. Remove them when not in use to extend lifespan and prevent unnecessary wear.

USER MANUAL Kayak Support 520 THULE

Illustration of two U-shaped metal latch components with attached clips and a separate THULE brand logo (no text or symbols on main objects)

EN Roof mounted kayak carrier

Technical line drawing of a U-shaped metal bracket with mounting base and mounting bracket (no text or symbols)

Thule SquareBar

Thule WingBar Evo

Thule WingBar

Thule AeroBar

1

Thule SquareBar

2

Thule SquareBar

1

Thule WingBar Evo

Thule WingBar

Thule AeroBar

Technical line drawing of a U-shaped metal bracket with mounting base (no text or symbols)

2

Thule WingBar Evo

Thule WingBar

Thule AeroBar

i

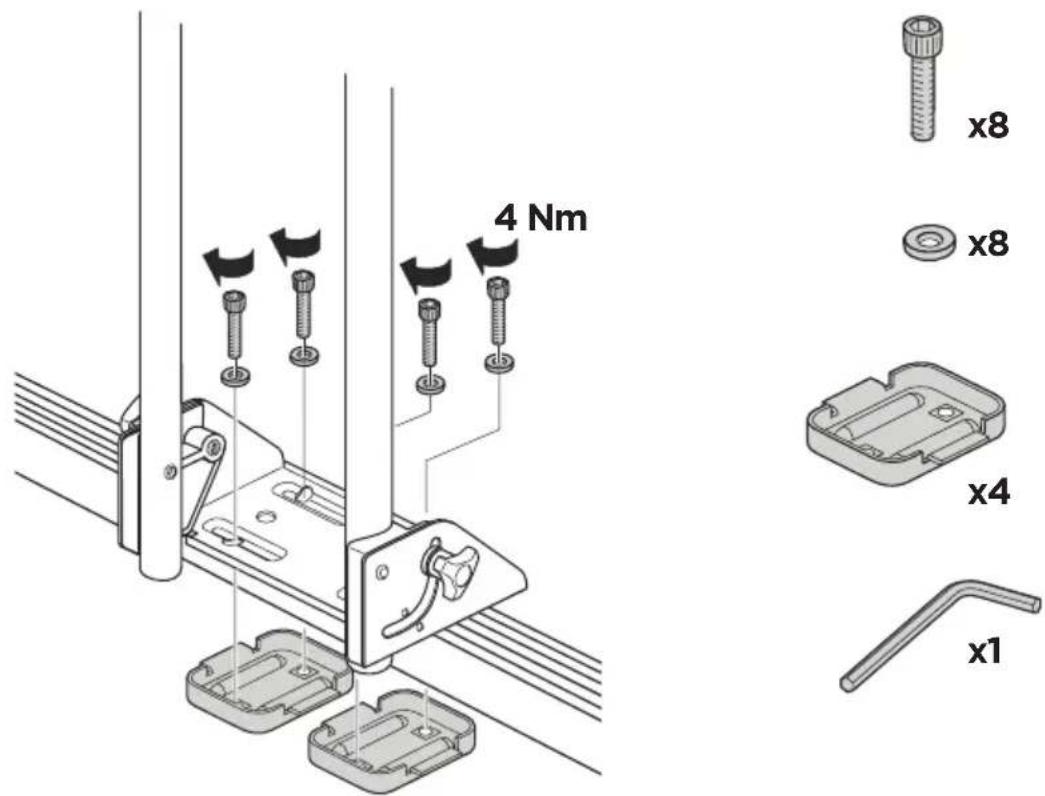

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Thule WingBar Evo

x4

x4

x4

x4

3

i

Technical illustration of a mechanical clamp or bracket assembly with two views showing motion (no text or symbols)
