XT Kit 3070 - Roof racks THULE - Free user manual and instructions
Find the device manual for free XT Kit 3070 THULE in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Roof Rack Kit |
| Brand | Thule |
| Model | XT Kit 3070 |
| Compatibility | Fiat Qubo (2008-2017), Peugeot Bipper (2008-) |
| Mounting Type | Fixpoint (requires existing fixing points on vehicle roof) |
| Included Components | 2 crossbars, 4 feet (FootPack 751 or 753), mounting hardware, instructions |
| Load Capacity | Up to 75 kg (distributed load, check vehicle limits) |
| Weight | Approx. 5.5 kg |
| Material | Aluminum crossbars, reinforced plastic feet with steel reinforcements |
| Dimensions | Crossbar length: approx. 120 cm; foot height: approx. 10 cm |
| Color | Black crossbars with silver or black feet |
| Installation | Requires only a few turns of bolts per foot; no drilling |
| Safety | ISO 11154-E certified; aerodynamic design reduces wind noise |
| Maintenance | Clean with mild soap and water; periodically check bolt tightness |
| Part Numbers | 50985, 751 FootPack, 753 FootPack |
| Crossbar Shape | Aerodynamic rectangular profile |
| Locking System | Optional Thule lock cylinders can be added (sold separately) |
| Warranty | 5-year limited warranty |
| Accessories Compatible | Thule roof boxes, bike carriers, ski holders, and other T-track accessories |
Frequently Asked Questions - XT Kit 3070 THULE
How do I install the Thule XT Kit 3070?
Installation is straightforward: place the feet on the vehicle's fixpoints, tighten the bolts only a few turns as indicated in the manual, and then secure the crossbars. No drilling required. Always follow the vehicle-specific instructions.
Is this kit compatible with my car?
The Thule XT Kit 3070 is designed for Fiat Qubo (2008-2017) and Peugeot Bipper (2008-) with factory fixpoints. Check your vehicle's roof for existing fixing points before purchase.
What is the maximum load capacity?
The kit supports a distributed load of up to 75 kg. However, always verify your vehicle's maximum roof load capacity, as it may be lower.
Can I use a roof box with this rack?
Yes, the XT Kit 3070 is compatible with Thule roof boxes and other T-track accessories. Ensure the total load does not exceed the vehicle's roof load limit.
How do I clean and maintain the roof rack?
Clean with mild soap and water and a soft cloth. Avoid abrasive cleaners. Periodically check and retighten all bolts to ensure secure attachment.
Are the crossbars adjustable in width?
The crossbars have a fixed length and are not adjustable. They are pre-sized to fit the specified vehicle models.
Does the kit come with locks?
Locks are not included. You can purchase Thule lock cylinders separately to secure the rack to the vehicle.
What tools are required for installation?
Only a Torx T25 or T30 tool (depending on the version) is needed for tightening the bolts. The kit includes the necessary hardware.
Is the rack aerodynamic?
Yes, the crossbars feature an aerodynamic design that reduces wind noise and drag, improving fuel efficiency.
How do I ensure safety while driving with the rack?
Before each trip, verify that all bolts are tight, the load is evenly distributed and secured, and that the maximum load is not exceeded. Remove the rack when not in use to preserve vehicle roof integrity.
User questions about XT Kit 3070 THULE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Roof racks in PDF format for free! Find your manual XT Kit 3070 - THULE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XT Kit 3070 by THULE.

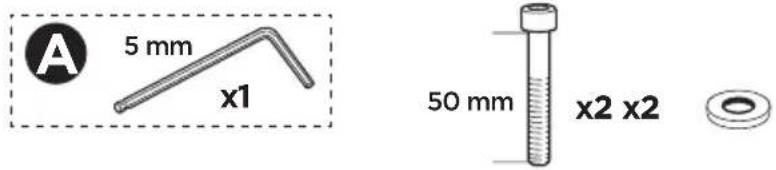

USER MANUAL XT Kit 3070 THULE

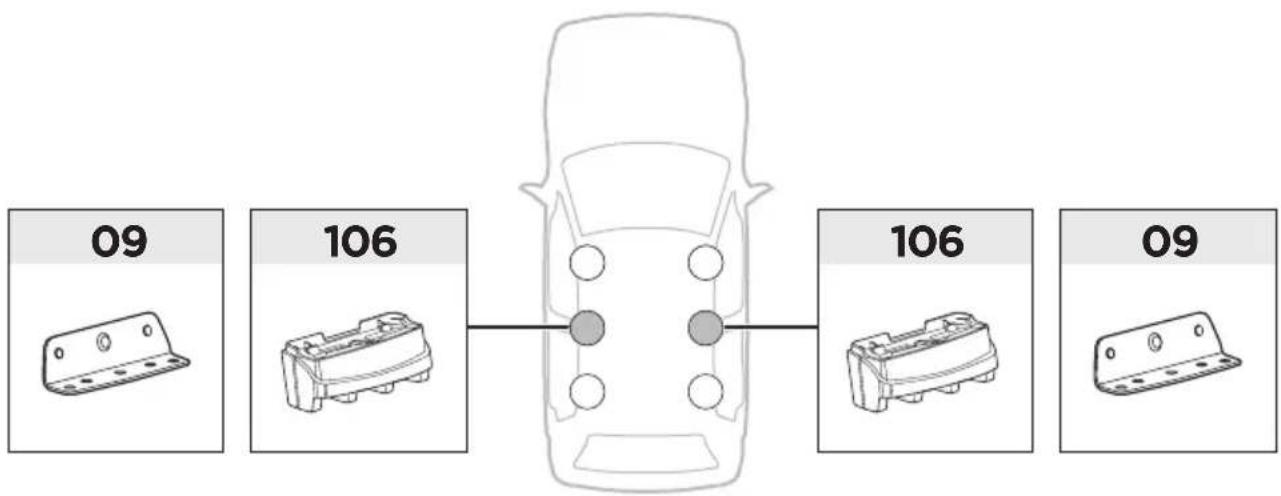

FIAT Qubo, 4-dr MPV, 08-17
FIAT Qubo, 5-dr MPV, 08-17
PEUGEOT Bipper, 3-dr Van, 08-
PEUGEOT Bipper, 4-dr Van, 08-
PEUGEOT Bipper, 5-dr Van, 08-
This kit is only for vehicles with fixpoint mounting.
ISO 11154-E
50985

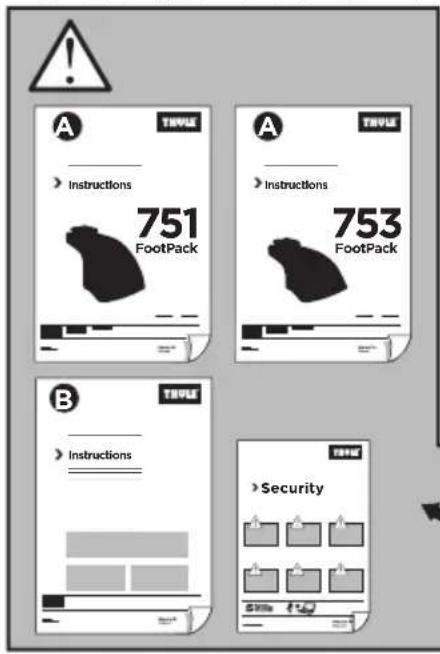

751 FootPack

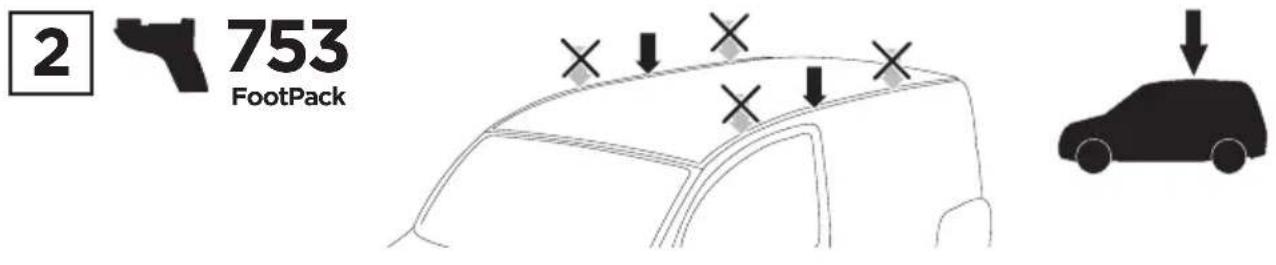

753 FootPack
x1
x1

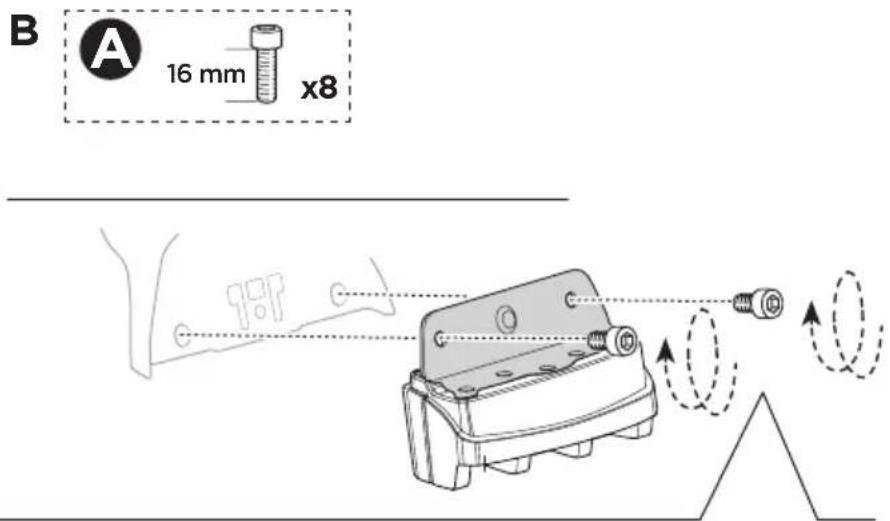

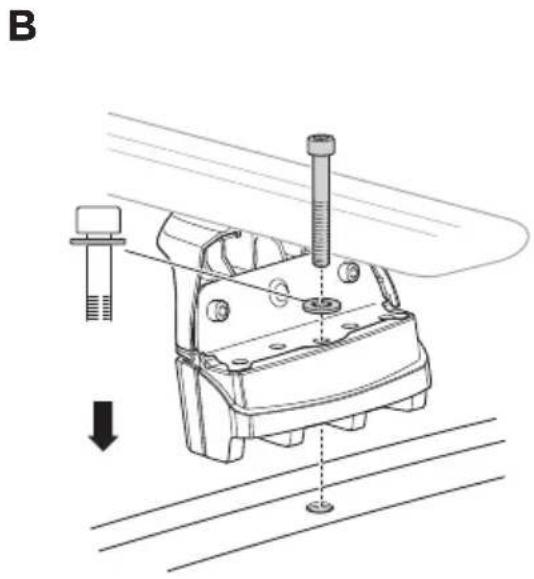

EN Only a few turns


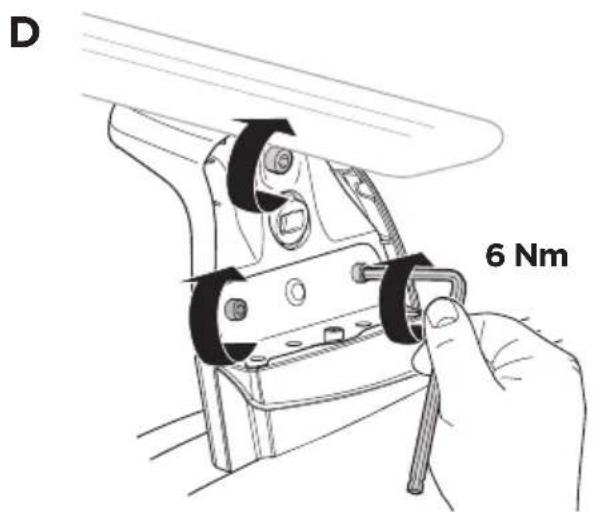

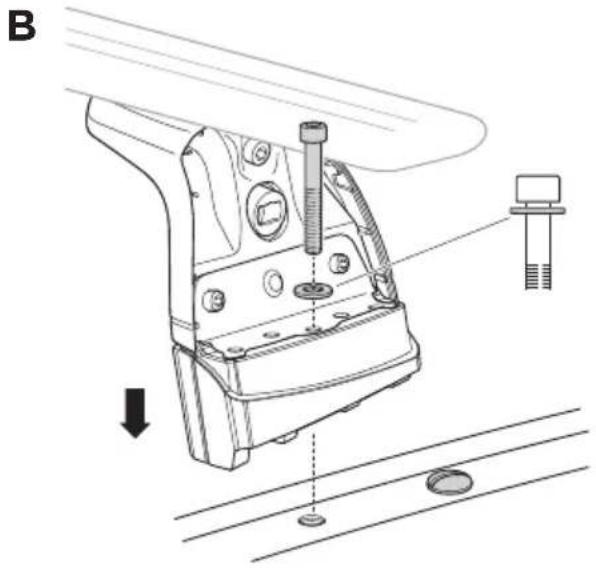

EN Only a few turns

