WD510U-G - Video projector MITSUBISHI - Free user manual and instructions
Find the device manual for free WD510U-G MITSUBISHI in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | DLP Video Projector |
| Model | WD510U-G |
| Brand | Mitsubishi |
| Resolution | WXGA (1280 x 800) |
| Brightness | 3000 ANSI lumens |
| Contrast ratio | 2000:1 |
| Display technology | DLP |
| Lens | Manual zoom/focus |
| Light source | UHP lamp, 230W |
| Lamp life | 3000 hours (normal), 4000 hours (eco) |
| Inputs | HDMI, VGA, Composite, S-Video, USB (service) |
| Dimensions (W x D x H) | 332 x 229 x 107 mm |
| Weight | 3.2 kg |
| Power consumption | 310W (max), <1W (standby) |
| Power supply | AC 100-240V, 50/60 Hz |
| Keystone correction | Vertical, +/- 20° |
| Built-in speaker | 10W mono |
| Maintenance | Clean air filter every 500 hours, replace lamp as needed |
| Safety | Class 1 laser product (if applicable), Kensington lock slot |
| Spare parts | Replacement lamp (model: not specified), air filter kit |
| Repairability | Customer replaceable lamp and filter; other repairs by qualified technician |
| General info | User manual included, remote control, power cable |
Frequently Asked Questions - WD510U-G MITSUBISHI
What is the resolution of the Mitsubishi WD510U-G projector?
The Mitsubishi WD510U-G has a native WXGA resolution of 1280 x 800 pixels, ideal for widescreen presentations.
How long does the lamp last on the WD510U-G?
The lamp life is approximately 3000 hours in normal mode and up to 4000 hours in eco mode.

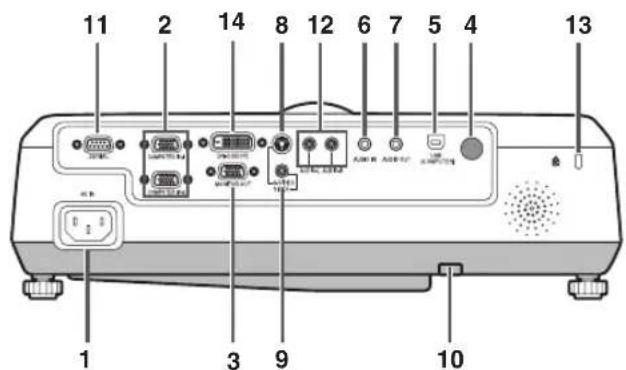

What are the available input ports on this projector?
The projector includes HDMI, VGA, Composite, S-Video, and a USB port for service.
Can the Mitsubishi WD510U-G be ceiling mounted?
Yes, the projector supports ceiling mounting. Use a compatible mount and follow the instructions in the manual for proper installation.

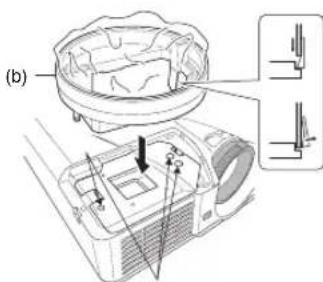

How do I clean the air filter?
The air filter should be cleaned every 500 hours of use. Use a vacuum cleaner to remove dust, or replace the filter if damaged.
What is the brightness of the WD510U-G?
The brightness is 3000 ANSI lumens, making it suitable for rooms with moderate ambient light.
Does the projector have keystone correction?
Yes, it features vertical keystone correction of up to +/-20 degrees to adjust the image shape.
How do I replace the lamp?
Turn off and unplug the projector. Let it cool for at least 45 minutes. Remove the lamp cover, loosen the screws, and gently pull out the old lamp. Insert the new lamp and fasten the screws. Refer to the manual for the correct lamp model.
Is there a built-in speaker?
Yes, the projector has a 10W mono speaker for audio output without external speakers.
What is the weight and size of the projector?
The projector weighs 3.2 kg and measures 332 x 229 x 107 mm (W x D x H).
