CrossWave Cordless - Broom BISSELL - Free user manual and instructions

Brand	Bissell
Model	CrossWave Cordless
Product Type	Cordless Wet/Dry Vacuum Cleaner
Power Source	25.2V Li-ion battery
Runtime	Up to 30 minutes
Charge Time	4-5 hours
Clean Water Tank Capacity	0.5 L
Dirty Water Tank Capacity	0.2 L
Weight	4.5 lbs (2.0 kg)
Dimensions (L x W x H)	10 x 7 x 43 in (260 x 180 x 1090 mm)
Filtration	Mesh filter and screen
Brush Roll	Multi-surface brush roll
Self-Cleaning Cycle	Yes
LED Headlights	Yes
SmartClean Technology	Auto-adjusts suction and water flow
Maintenance	Clean brush roll and tanks after use; replace filter every 3 months
Included Accessories	Charger, cleaning solution sample
Warranty	2-year limited warranty

Frequently Asked Questions - CrossWave Cordless BISSELL

How do I clean the brush roll?

To clean the brush roll, remove the brush roll cover and use the cleaning tool provided to remove hair and debris. Rinse under water and allow to dry before reinstalling. For deep cleaning, use the self-cleaning cycle by pressing the self-clean button after use.

How long does the battery last?

The battery runtime is up to 30 minutes on a full charge. Actual runtime may vary based on floor type and usage mode. The battery status light on the handle shows the remaining charge: green (70-100%), yellow (40-69%), red (10-39%), red flashing (0-9%).

Can I use any cleaning solution?

Only use Bissell approved cleaning solutions for the CrossWave Cordless. Using other solutions may damage the machine and void the warranty. We recommend Bissell CrossWave Multi-Surface Cleaning Formula.

How do I empty the dirty water tank?

Turn off the machine and remove the dirty water tank by pressing the release button. Empty the contents into a sink, rinse the tank with clean water, and allow to dry. Ensure the float and screen are clean before reattaching.

Why is the machine not spraying water?

Check if the clean water tank is properly seated and has enough water. Ensure the tank cap is tightened. If still not spraying, the spray nozzle may be clogged. Use a paperclip to gently clear the nozzle opening.

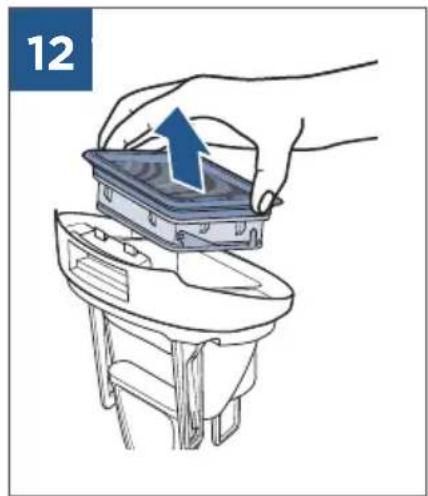

How do I maintain the filter?

The mesh filter should be rinsed under water every 5 uses and replaced every 3 months. Always ensure the filter is completely dry before reinstalling to prevent mold and odors.

What floors can I use the CrossWave Cordless on?

The CrossWave Cordless is designed for sealed hard floors such as tile, laminate, vinyl, and hardwood. It is not recommended for carpet or rugs. Do not use on unsealed wood.

How do I store the machine?

Store the machine upright in a cool, dry place. Remove and empty both water tanks. Do not store with water in the tanks. Keep the battery partially charged (around 50%) if storing for extended periods.

What do I do if the machine has low suction?

First, empty and clean the dirty water tank. Check the brush roll for obstructions and clean it. Also rinse the filter. If suction remains low, ensure the clean water tank is not overfilled and the float is moving freely.

Can I use the machine while charging?

No, the CrossWave Cordless cannot be used while charging. It is a cordless machine that operates on battery power only. Always unplug the charger before use.

USER MANUAL CrossWave Cordless BISSELL

SR KORISNIČKOM UPUTSTVU

TA பயனரின் மகேயட

TH คุมือผู้ใช้

TR KULLANICI KILAVUZU

Black-and-white icon of an open box with a question mark above it, symbolizing inquiry or confusion (no text or symbols present)

Line drawing of a vacuum cleaner (no text or symbols present)

Line drawing of a mechanical tool or tool with a curved handle and central shaft (no text or symbols)

3D rendered image of a cylindrical mechanical component with textured surface and flanged ends (no text or symbols)

Line drawing of a bottle labeled 'bloscil' with no additional text or symbols

Line drawing of a two-part plastic container or container (no text or symbols)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

Simple line drawing of a 3D rectangular prism with a flat top surface (no text or symbols)

Black-and-white icon of an open box with a question mark above it, no text or symbols present.

......2

....11

......4

Silhouette of a mechanical device with lever and base (no text or symbols)

12

6

Illustration of a battery and recycling symbol (no text or labels)

16

Simple line drawing of a water purifier with a handle and outlet (no text or symbols)

......7

Silhouette of a handheld vacuum cleaner (no text or symbols visible)

......9

Silhouette of a vacuum cleaner with a handle and two other components, against a plain background (no text or symbols)

1

Line drawing of a manual tool with a handle and spout (no text or symbols)

2

Line drawing of a vacuum cleaner (no text or symbols)

3

Illustration of a hand holding a wrist with a tool and sound waves, no text or symbols present

4

6

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

Diagram of a device casing with internal components and blue arrows indicating motion or flow (no text or symbols)

Line drawing of two plastic containers (no text or symbols)

9

Diagram of a mechanical device with a blue arrow indicating a component or connection (no text or symbols present)

10

Line drawing of a portable electronic device with a cup, handle, and cable (no text or symbols)

Battery icon with upward arrow and lightning bolt symbol (no text or numbers)

Mechanical assembly diagram showing a lever mechanism with a blue arrow indicating downward motion (no text or symbols present)

Diagram of a wall socket with a plug inserted, showing a circular socket and a blue arrow pointing to it (no text or symbols present)

BATTERY STATUS LIGHT STATUS
100% - 70%
69% - 40%
39% - 10%
> 9% - 1%
0%

Illustration of a cleaning water dispenser with a curved tube and faucet (no text or symbols)

Line drawing of a vacuum cleaner with a blue arrow pointing to the component (no text or symbols present)

Illustration of a hand using a tool to lift a bottle, with an arrow indicating upward motion (no text or symbols)

Illustration of a person using a vacuum cleaner on a mat, with blue arrows indicating motion (no text or symbols)

Isometric illustration of a person using a vacuum cleaner in a living room with furniture and plants (no text or symbols)

Illustration of hands holding a glass mug with a blue cap, no text or symbols present

Illustration of a hand using a tool to lift a nozzle, with sound waves and motion arrows indicating vibration or vibration (no text or symbols)

Silhouette of a vacuum cleaner with a handle and adjacent gear, showing motion direction (no text or symbols)

Illustration of a hand using a vacuum cleaner with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using a vacuum cleaner to lift a small electronic device (no text or symbols visible)

Illustration of a robotic vacuum cleaner performing a motion capture on a textured surface (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Illustration of a person using a vacuum cleaner on tiled floor, with blue directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a wrist with a blue arrow indicating force or movement (no text or symbols)

Illustration of a person using a vacuum cleaner on a tiled floor with sunlight and sun symbol (no text or labels)

Abstract black silhouette of a stylized object resembling a hammer or tool, with no visible text or symbols.

Diagram of a medical device with a blue highlighted area and arrow indicating a specific area (no text or symbols present)

Illustration of a hand pressing down on a car seatbelt component (no text or symbols)

Illustration of a hand inserting a blue belt into a car seat cover (no text or symbols)

Illustration of a hand placing a component into a cylindrical container with a blue upward arrow (no text or symbols)

Illustration of a hand holding a medical pressure monitor with a curved tube above it (no text or symbols)

Illustration of two hands using a faucet and a tool to lift water (no text or symbols present)

Illustration of a hand holding a medical pressure monitor with a curved tube above, no text or symbols present

Illustration of two hands performing a manual water tap installation (no text or symbols present)

Illustration of a hand placing a plastic tray into a waste bin with an upward arrow (no text or symbols)

Illustration of hands using a water tap to clean or wash a plastic container, with a bottle and plus sign nearby (no text or symbols)

Illustration of hands using a tool to lift a curved pipe (no text or symbols present)

Illustration of a hand cleaning a car wheel with a blue mesh overlay (no text or symbols)

Illustration of various household appliances including a blender, lamp, and doorbell (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component into a container (no text or symbols visible)

Illustration of a hand placing a plastic container into a waste bin (no text or symbols)

Illustration of a hand inserting a component into a cylindrical container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a speaker to lift a vacuum cleaner into a vehicle (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with blue arrows indicating motion (no text or symbols)

Illustration of hands cleaning a blue textured object with a blue arrow indicating direction (no text or symbols)

Diagram showing a hand using a tool to press down a component, with no visible text or symbols.

Illustration of a battery holder with a sun symbol above it (no text or symbols present)

Mechanical assembly diagram showing a component with a blue arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with a blue meshed area and arrow indicating direction (no text or symbols)

Diagram showing mechanical components with blue arrows indicating motion or force, no readable text or symbols present

Illustration of a hand using a device to interact with a speaker, showing sound waves (no text or symbols)

Line drawing of a vacuum cleaner inside a door, no text or symbols present

Illustration of two batteries with recycling symbols, one moving right and one falling into a recycling bin (no text or labels)

Line drawing of a vacuum cleaner's side view with a screwdriver inserted, showing the wheel and base (no text or symbols)

Line drawing of a hand adjusting a small mechanical device with circular components (no text or symbols)

Illustration of a rope knot securing a small object on a vertical surface (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a component on a wheeled device (no text or symbols visible)

Simple line drawing of a mechanical device with two circular components and a handle (no text or symbols)

Technical line drawing of a mechanical component with two circular features and internal structure (no text or symbols)

Line drawing of two hands holding a cylindrical object with a string, no text or symbols present

Line drawing of a hand using a tool to adjust or install a small mechanical component (no text or symbols present)
