| Product Type | LED Controller (AC-DC LED Driver) |
| Brand | Mean Well |
| Model | HBG-240-24A |
| Rated Power | 240W |
| Output Voltage | 24V DC constant voltage / constant current (CC/CV mode) |
| Output Current Range | 0 ~ 10A (adjustable via internal potentiometer) |
| Input Voltage | 100 ~ 277V AC (full range) |
| Input Frequency | 47 ~ 63Hz |
| Efficiency | Up to 90% (typical) |
| Dimming Control | 0-10V analog dimming (PWM optional via accessories) |
| Protections | Short circuit, over current, over voltage, over temperature |
| Enclosure Type | Metal case with IP65 rating (water and dust resistant) |
| Dimensions (L x W x H) | 244 x 68 x 38 mm (9.61 x 2.68 x 1.50 inches) |
| Weight | Approx. 1300 g (2.87 lbs) |
| Operating Temperature | -30°C ~ +70°C (with derating above 50°C) |
| Safety Standards | UL/EN/IEC 61347-1, UL/EN/IEC 61347-2-13, UL 8750 |
| Installation | Indoor/outdoor, mount on any surface (screw holes provided) |
| Wiring | Input: 3-pin terminal block (L, N, G); Output: 2-pin terminal block (+V, -V); Dimming: 2-pin terminal block (DIM+, DIM-) |
| Maintenance | Wipe with dry cloth; no user serviceable parts inside |
| Spare Parts Availability | Contact Mean Well authorized distributors |
Frequently Asked Questions - HBG-240-24A Mean Well
User questions about HBG-240-24A Mean Well
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your LED Controller in PDF format for free! Find your manual HBG-240-24A - Mean Well and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HBG-240-24A by Mean Well.
USER MANUAL HBG-240-24A Mean Well




SELV
IP65
IP67


(CCC optional)
IS 15885(Part 2(Sec13))
8
R-41027766
(for 48A,60A only)

cRU US
EAC CBCE UK CA
Features
- Constant Voltage + Constant Current mode output
• Circular metal housing with class design I
• Built-in active PFC function
• IP67 / IP65 rating for indoor or outdoor installations - Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
• Typical lifetime>50000 hours - 5 years warranty
Applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx
■ Description
HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90\~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C \~ +75°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
■ Model Encoding

| Type | IP Level | Function Note | |
| Blank | IP67 | Io fixed. | In Stock |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer with 3 in 1 dimming function | In Stock |
| DA IP67 | DALI control technology. | In Stock | |
SPECIFICATION
| MODEL | HBG-240-24☐ | HBG-240-36☐ | HBG-240-48☐ | HBG-240-60☐ | |
| OUTPUT | DC VOLTAGE | 24V | 36V | 48V | 60V |
| CONSTANT CURRENT REGIONNote.2 | 14.4~24V | 21.6~36V | 28.8~48V | 36~60V | |
| CONSTANT CURRENT REGION(for DA Type only) | 16.8~24V | 25.2~36V | 33.6~48V | 42~60V | |
| RATED CURRENT | 10A | 6.7A | 5A | 4.0A | |
| RATED POWER Note.5 | 240W | 240W | 240W | 240W | |
| RIPPLE & NOISE (max.) Note.3 | 150mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type (via built-in potentiometer) | ||||
| 6~10A | 4.0~6.7A | 3~5A | 2.4~4.0A | ||
| VOLTAGE TOLERANCE Note.4 | ±2.0% | ||||
| LINE REGULATION | ±0.5% | ||||
| LOAD REGULATION | ±0.5% | ||||
| SETUP, RISE TIME Note.6 | 500ms, 120ms /230VAC 2500ms, 120ms /115VAC | ||||
| HOLD UP TIME (Typ.) | 15ms /115VAC, 230VAC | ||||
| INPUT | VOLTAGE RANGE Note.5 | 90~305VAC 127~431VDC(Please refer to "STATIC CHARACTERISTIC" section) | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | ||||
| TOTAL HARMONIC DISTORTION | THD<20%(@load≥60%/115VC,230VAC; @load≥80%/277VAC)(Please refer to "TOTAL HARMONIC DISTORTION(THD)" section) | ||||
| EFFICIENCY (Typ.) Note.7 | 92.5% | 92.5% | 93% | 93.5% | |
| AC CURRENT (Typ.) | 2.5A/115VAC 1.3A/230VAC 1.2A/277VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 75A(width=680μs measured at 50% lpeak) at 230VAC; Per NEMA 410 | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | <0.75mA/277VAC | ||||
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B/AB/DA-TypeBlank/A-Type please refer to Note.9 | ||||
| PROTECTION | OVER CURRENT | 95~108% | |||
| Constant current limiting, recovers automatically after fault condition is removed | |||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 27~34V | 43~52V | 52~63V | 62~85V | |
| Shut down and latch off o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40~+75°C (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | |||
| MAX. CASE TEMP. | Tcase=+75°C | ||||
| WORKING HUMIDITY | 20~95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40~+80°C, 10~95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/10~50°C | ||||
| VIBRATION | 10~500Hz, 5G 12min./cycle, period for 72min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN BS EN/EN GB19510.1,61347-2-13 independent, 62384;GB19510.14, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 or IP67 approved | |||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/70% RH | ||||
| EMC EMISSION Note.9 | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≥75%); BS EN/EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV), EAC TP TC 020 | ||||
| OTHERS | MTBF | 1792.9K hrs min. Telcordia SR-332 (Bellcore):172.4K hrs min. MIL-HDBK-217F (25°C) | |||

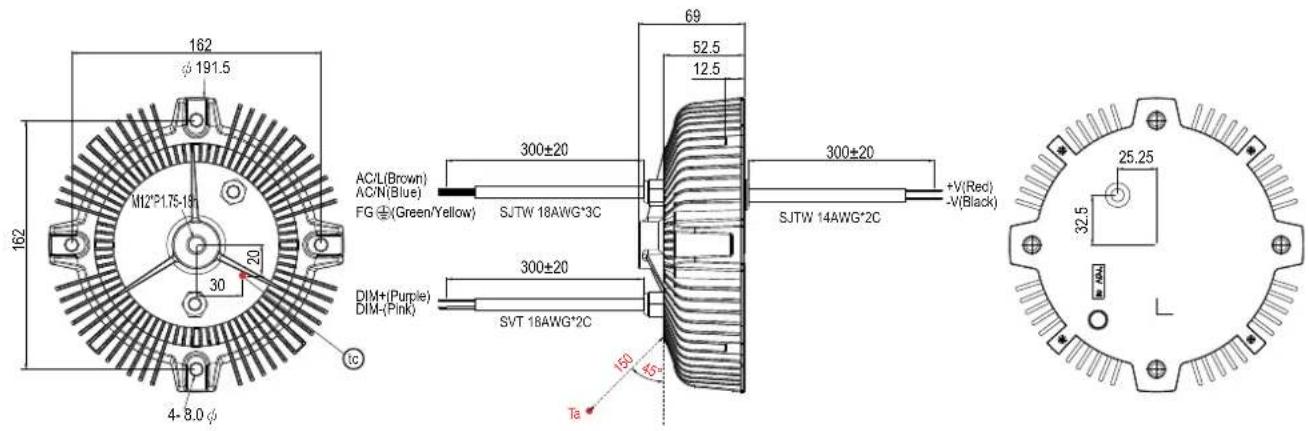

| DIMENSION | φ191.5mm*69mm(D * H) | ||||
| PACKING | 2.1Kg; 8pcs/18.3Kg/2.09CUFT | ||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25°C of ambient temperature.2. Please refer to "DRIVING METHODS OF LED MODULE".3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.4. Tolerance : includes set up tolerance, line regulation and load regulation.5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.7. The DA type power supply is less efficient than the A type power supply by 1%.8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.10. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly (point (or TMP, per DLC), is about 70°C or less.11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com12. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).13. For any application note and IP water proof function installation caution, please refer our user manual before using.https://www.meanwell.com/Upload/PDF/LED_EN.pdf※ Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx | ||||

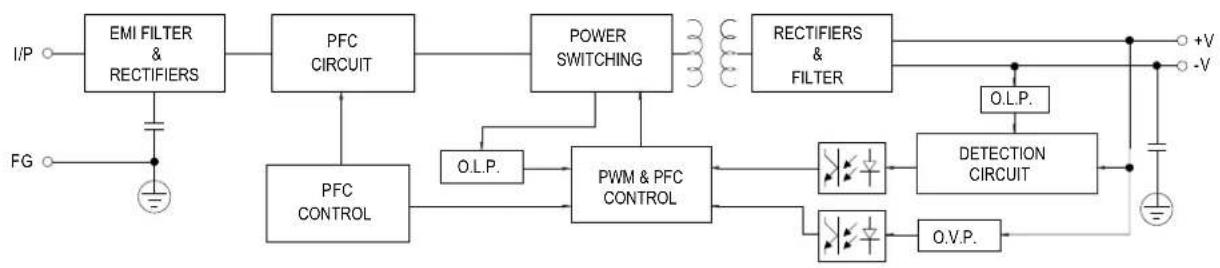

BLOCK DIAGRAM
fosc : 100KHz
■ DRIVING METHODS OF LED MODULE
※ This series is able to work in either Constant Current mode (a direct drive way) or Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.

line
| Io(%) | Vo(%) | |-------|-------| | 0 | 100 | | 50 | 100 | | 100 | 60 | | 100 | 100 |In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems. Should there be any compatibility issues, please contact MEAN WELL.
Typical output current normalized by rated current (%)
DIMMING OPERATION

※ 3 in 1 dimming function (for B/AB-Type)
- Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-
1 \~ 10VDC, or 10V PWM signal or resistance.
- Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
- Dimming source current from power supply: 100 A (typ.)μ

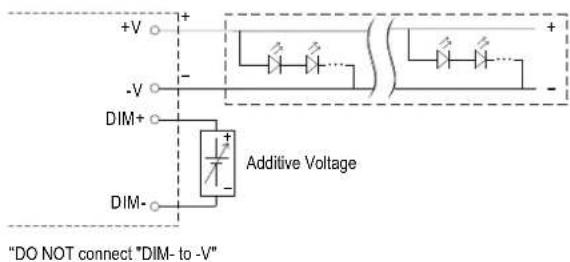

◎ Applying additive 1 \~ 10VDC


line
| Dimming input: Additive voltage | Output current (%)/Output current (%) | | ------------------------------- | ------------------------------------- | | 1V | 10% | | 2V | 20% | | 3V | 30% | | 4V | 40% | | 5V | 50% | | 6V | 60% | | 7V | 70% | | 8V | 80% | | 9V | 90% | | 10V | 100% |◎ Applying additive 10V PWM signal (frequency range 100Hz \~ 3KHz):


line
| Duty cycle of additive 10V PWM signal dimming input | Value | | -------------------------------------------------- | ----- | | 10% | 10% | | 20% | 20% | | 30% | 30% | | 40% | 40% | | 50% | 50% | | 60% | 60% | | 70% | 70% | | 80% | 80% | | 90% | 90% | | 100% | 100% |◎ Applying additive resistance:


line

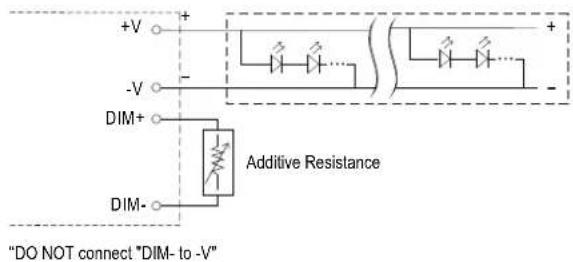

| Dimming Input: Additive resistance | Output current (%) | | :--- | :--- | | 10K/N | 10 | | 20K/N | 20 | | 30K/N | 30 | | 40K/N | 40 | | 50K/N | 50 | | 60K/N | 60 | | 70K/N | 70 | | 80K/N | 80 | | 90K/N | 90 | | 100K/N | 100 |Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL for other options.


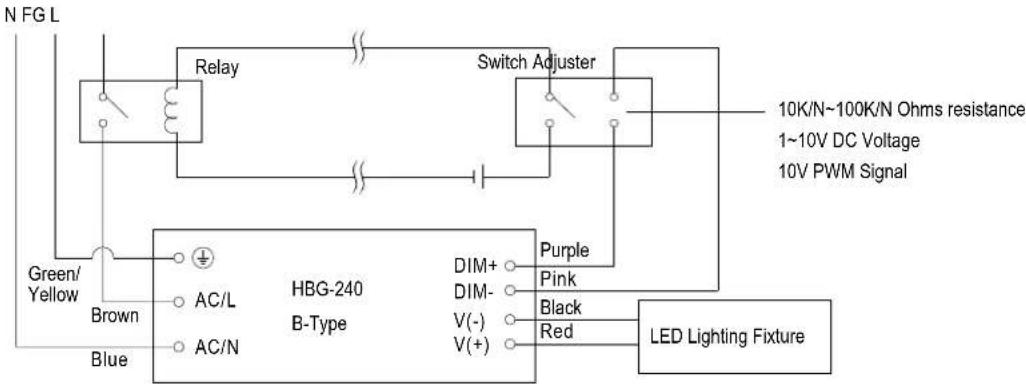

Using a switch and relay can turn ON/OFF the lighting fixture.
※ DALI Interface (primary side; for DA-Type)
- Apply DALI signal between DA+ and DA-.
• DALI protocol comprises 16 groups and 64 addresses. - First step is fixed at 8% of output.
■ OUTPUT LOAD vs TEMPERATURE(Note.11)

line
| (HORIZONTAL) | LOAD (%) | | ------------ | -------- | | 50 | 100 | | 60 | 100 |
line
| Tcase ( )°C | LOAD (%) | | ----------- | -------- | | - | 100 | | 1 | 100 | | 5 | 0 |■ STATIC CHARACTERISTIC

line
| INPUT VOLTAGE (V) 60Hz | LOAD (%) | | ---------------------- | -------- | | 90 | 80 | | 100 | 100 | | 305 | 100 |※De-rating is needed under low input voltage.
■ POWER FACTOR (PF) CHARACTERISTIC

line
| LOAD (240W) | 277V | 230V | 115V | |-------------|-------|-------|-------| | 50% | 0.84 | 0.90 | 0.98 | | 60% | 0.86 | 0.92 | 0.98 | | 70% | 0.88 | 0.93 | 0.98 | | 80% | 0.90 | 0.94 | 0.98 | | 90% | 0.91 | 0.95 | 0.98 | | 100% | 0.92 | 0.96 | 0.98 | | (240W) | 0.93 | 0.96 | 0.98 |■ TOTAL HARMONIC DISTORTION (THD)
※ 48V Model, Tcase at 65°C

■ EFFICIENCY vs LOAD
HBG-240 series possess superior working efficiency that up to 93% can be reached in field applications.
※ 48V Model, Tcase at 65°C

line
| LOAD | 277V | 230V | 115V | |------|-------|-------|-------| | 10% | 79.6 | 79.6 | 74.8 | | 20% | 80.0 | 79.5 | 75.0 | | 30% | 89.8 | 89.8 | 88.8 | | 40% | 94.2 | 94.2 | 89.2 | | 50% | 94.4 | 94.4 | 89.4 | | 60% | 94.5 | 94.5 | 89.5 | | 70% | 94.5 | 94.5 | 89.5 | | 80% | 94.5 | 94.5 | 89.5 | | 90% | 94.5 | 94.5 | 89.5 | | 100% | 94.5 | 94.5 | 89.5 |LIFE TIME

line

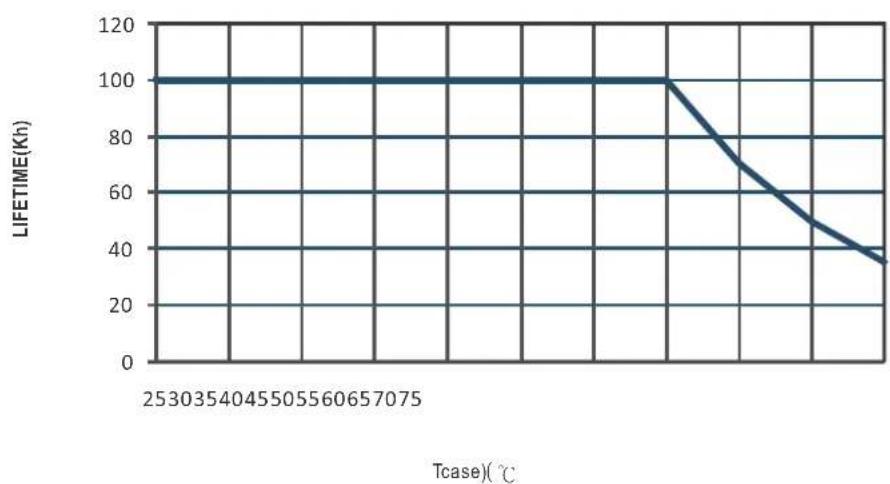

| Tcase(°C) | LIFETIME(Kh) | | --------- | ------------ | | 2530 | 100 | | 3540 | 100 | | 4045 | 100 | | 5055 | 100 | | 5560 | 100 | | 6065 | 100 | | 7075 | 100 | | 8075 | 100 | | 9075 | 100 | | 10075 | 100 | | 11075 | 100 | | 12075 | 100 | | 13075 | 100 | | 14075 | 100 | | 15075 | 100 | | 16075 | 100 | | 17075 | 100 | | 18075 | 100 | | 19075 | 100 | | 20075 | 100 | | 21075 | 100 | | 22075 | 100 | | 23075 | 100 | | 24075 | 100 | | 2530 | 10 | | 3540 | 1 | | 4045 | 1 | | 5055 | 1 | | 6065 | 1 | | 7075 | 1 | | 8075 | 1 | | 9075 | 1 | | 10075 | 1 | | 11075 | 1 | | 12075 | 1 | | 13075 | 1 | | 14075 | 1 | | 1533 | 2 | | 3543 | 2 | | 4343 | 2 | | 5343 | 2 | | 6343 | 2 | | 7343 | 2 | | 8343 | 2 | | 9343 | 2 | | 1333 | 3 | | 2333 | 3 | | 3333 | 3 | | 4333 | 3 | | 5333 | 3 | | 6333 | 3 | | 7333 | 3 | | 8333 | 3 | | 9333 | 3 | | 1233 | 4 | | 2233 | 4 | | 3233 | 4 | | 4233 | 4 | | 5233 | 4 | | 6233 | 4 | | 7233 | 4 | | 8233 | 4 | | 9233 | 4 | | 1223 | 5 | | 2223 | 5 | | 3223 | 5 | | 4223 | 5 | | 5223 | 5 | | 6223 | 5 | | 7223 | 5 | | 8223 | 5 | | 9223 | 5 | | 1223 | 6 | | 2223 | 6 | | 3223 | 6 | | 4223 | 6 | | 5223 | 6 | | 6223 | 6 | | 7223 | 6 | | 8223 | 6 | | 9223 | 6 | | 1223 | 7 | | 2223 | 7 | | 3223 | 7 | | 4223 | 7 | | 5223 | 7 | | 6223 | 7 | | 7223 | 7 | | 8223 | 7 | | 9223 | 7 | | 1223 | 8 | | 2223 | 8 | | 3223 | 8 | | 4223 | 8 | | 5223 | 8 | | 6223 | 8 | | 7223 | 8 | | 8223 | 8 | | 9223 | 8 | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - |MECHANICAL SPECIFICATION

• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point
• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point
• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point
※ AB-Type

- tc: Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point
INSTALLATIONS

Caution
- Please inspect the appearance of the driver if the package is damaged. There should not be any cracks.
- Please do not drop or bump the driver.
- All screws including the suspension screw should be paired with a spring washer and locked tight.
- The entire luminaire, including the driver, should be limited to 15Kg or less.
- The luminaire should be cautiously protected from damage due to shock throughout packaging and transportation.
- Please thoroughly follow the preceding cautionary notes to prevent the luminaire from falling, leading to injuries.
