USER MANUAL HEDS 968 Nextra HOOVER
Read this Manual
This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
Before Calling for Service
To review the section on Troubleshooting Tips will help you to solve some common problems by yourself and not need to ask for the help professional technicians.
NOTE:
The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice.
Safety Information .... 1
Operating Instructions
ControlPanel....2
DishwasherFeatures.... 2
WashCycleTable 3
WaterSoftener 4
Detergent....5
RinseAid 5,6
Loading the Dishwasher Rack . . . . . of Turning On the Appliance....7
Filtering System.... 8
CaringfortheDishwasher....9
Installation instruction
About Electricity connection ..... 10
AbouttheUnicouple....10
WaterConnection....11

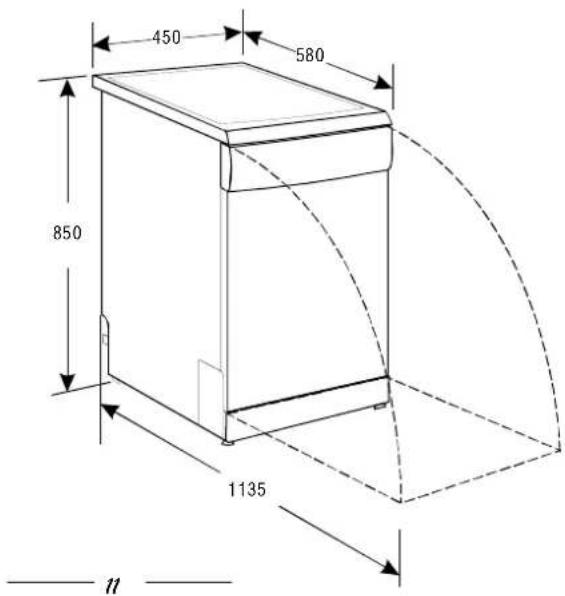

Dimensions....11
Troubleshooting Tips
Before recalling for service.... 12,13
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
▲ WARNING!
When using your dishwasher, follow the below basic precautions including the following:
GROUNDING INSTRUCTIONS
This appliance complies with international safety standards, and is fitted with a plug earth connection to ensure complete earthing of the product.
Before connecting the appliance to the mains supply it is important to ensure:
- That the supply socket is properly earthed.
- That your electricity supply is capable of meeting the consumption requirements listed on the rating plate of your appliance.
▲ WARNING!
Ensure that your product is properly earthed. In the absence of adequate earthing you will notice that when touching the metal parts of your appliance an electrical dispersion can be felt, due to the presence of a radio interference suppressor.
Important: manufacturer declines all responsibility for any damage due to non-earthing of the machine.
CE This appliance complies with Directives 89/336/EEC, 73/23/EEC and following changes.
WARNING! PROPER USE
Do not abuse, sit on, or stand on the door rack of the dishwasher.
Do not touch the heating element during or immediately after use.
Do not wash plastic items unless they are dishwasher safe or the equivalent. For plastic items not so marked, check the manufactures recommendations.
Use only detergent and rinse additives design for an automatic dishwasher. Never use soap laundry detergent, or hand washing detergent in your dishwasher. Keep these products out children.
Keep child away from detergent and rinse aid, keep child away from the open door of the dishwasher there could still be some detergent left inside.
The door should not be left in the open since this could present a tripping hazards.
During installation, the power supply must not be excessively or dangerously bent or flattened. Use the dishwasher only for its intended function.
Do not tamper with controls.
The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid Check that the detergent receptable is empty after contact with skin and eyes and keep children away completion of the wash cycle.
Important: when the appliance location is on carpet floors, attention must be paid so as to ensure that there is no obstruction to the bottom vents.
Dodishot operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating there is a risk of water squirting out.
Do not place any heavy objects of stand on the door when it is open. The appliance could tip forward.
When loading items to be washed: 1) Locate sharp items so that they are not likely damage the door seal; 2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
When using your dishwasher, you should prevent plastic item from contacting with heating element.
keep the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a placement.
Please dispose of packing materials properly.
not used the dishwasher only for its intended function.
Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Young children should be supervised to ensure that they do not play with the appliance.
Check that the detergent receptable is empty after completion of the wash cycle.
Cutlery is washed best if it is placed in the basket with handles downwards.
Warning:
knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
IMPORTANT!
To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

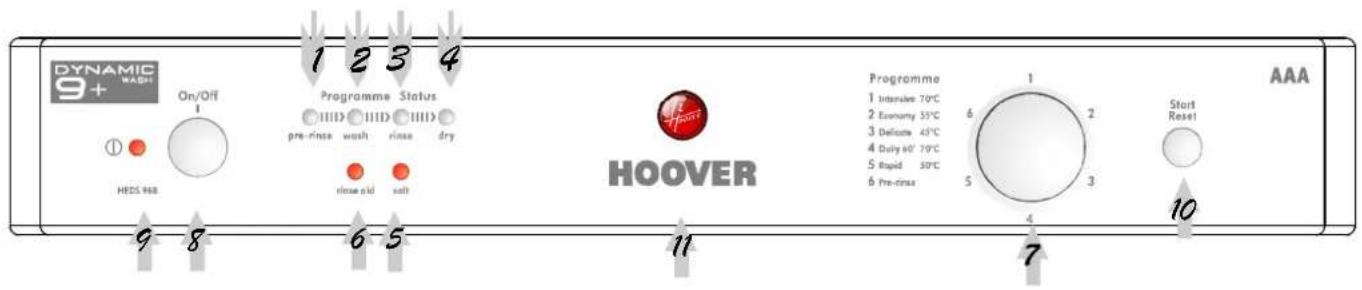

Control Panel
1 Pre-rinse light: Blink during pre-rinse.
2 Washligbltnk duriags h.
3 Rinse light: blink duringinse.
4 Drying light: blink during drying.
5 No Salt Indicator Light: comes on when there salt in the softener (Certain model only).
6 Rinse Aid indicator light: comes on when there rinse agent (Certain model only).
7 Washing Program Selector: Turn the knob clo select wash cycles.
8 ON/OFF Button: To turn ON/OFF the power supply. NOTE: this model has a "broken remember" function, which means that power supply broken down during washing will not reset the current washing program. So you cancel a program by cutting off the power. pls see section entitled "change a program". s not enough
9 Power Light : To come on when the ON/OFFe Button is down.
10 not enough Start / Reset Button: Press this button to start or pa selected program. When the program start one of the lig
11 Door Handle: Pull it to open the door.

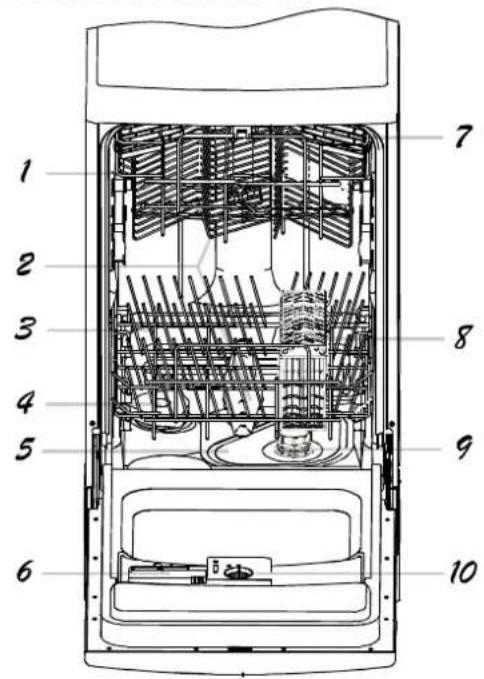

Dishwasher Features
1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Softener
5
6 Detergent
7 Cup Shelf
8 Silverware
9 Coarse Filter
10 Rinse Aid Dispenser
11 Ftrain pipe connector
12 Inlet pipe connector
Wash Cycle Table
| Program | Cycle | Cycle Selection Information | Description of Cycle | Detergent pre/main | Rinse Aid |
| Intensive | 1 | For the heaviest soiled loads, Pre-wash such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while. | Pre-wash (45°C) Wash (70°C) Rinse (75°C) Drying | 8/24 gr | ★ |
| Economy | 2 | For normally soiled loads, such apots, plates, glasses and lightly soiled pans. standard daily cycle. | Pre-wash Wash (55°C) Rinse (65°C) Drying | 5/22 gr | ★ |
| Delicate | 3 | For lightly soiled loads, such as plates, glasses, bowls and lightly soiled pans. | Pre-wash Wash (45°C) Rinse (65°C) Drying | 4/20 gr | ★ |
| Daily 60' | 4 | Daily wash in only 1 hour. Suitable for normal soiled dishes that are to be washed straight after a meal (max 6 settings). | Pre-wash(30°C) Wash (70°C) Rinse (65°C) plate Drying | 20 gr | ★ |
| Rapid | 5 | A shorter wash for lightly soiled loads (max 4 plate settings). | Wash (50°C) Rinse (55°C) Drying | 15 gr | ★ |
| Pre-rinse | 6 | To rinse dishes that you plan to wash later that day. | Pre-wash |
TURNING ON THE APPLIANCE
Starting a wash cycle...
1 Draw out the lower and upper basket, load the push them back. It is recommended that loading basket first, then the up (see on the section entitled "Loading the Dishwasher").
2 Pour in the detergent(see the section entitled, "Salt, Detergent and Rinse Aid").
3 With a little force to ensure the door is properly
NOTE: A click could be heard when the door is closed perfectly.
4 Insert the plug into the socket.
The power supply is 220-240VAC 50Hz, the specification of the socket is 12A250VAC. Makes sure that the water supply is turned on to full pressure.
5 Press the ON/OFF button
6 Turn the knob located on the right of the control the clockwise direction until the number or the sy for the cycle
7 Press the Stabu Rosetto start the washing.
8 When the washing is over, you can shut off the pressing on/off button.
NOTE:
Change the Programme
dThemisedA cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. In this case, the detergent dispenser must be refilled (see the paragraph entitled "Loading the Detergent").
1 closed
Please press the Start/Reset button and last more three seconds, this will cancel the current programme. (NOTE: turning off the appliance by pressing the on/c button can not cancel the current programme, because this model has a "broken remember" function.) Turn around the Washing Program Selector to select the desired programme.
3 Press the Start/Reset button to start the washing.
NOTEel Ifin you open the door when washing, the machine vmlp pause. When you close the door and press the Start/Reset button, the machine will keep on working at 10 seconds.
The fototrogram lights shows the state of the dishwasher: a) All program lights off----stand by b) One of the program lights on----pause c) One of the program lights blinking----run
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply before calling a service.
NOTE: If your model have not water softener, you may skip this section.
WATER SOFTENER
There are two ways to rewater the hardness: one way is using water softener, the other detergent.
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.
The appliances is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.

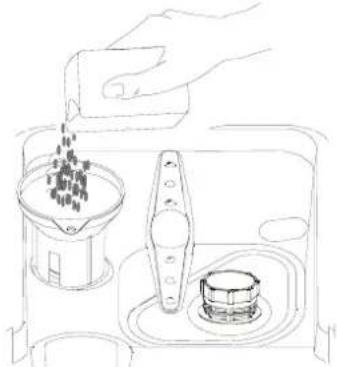

Loading the Salt into the Softener
Always use salt intended for use with dishwashers. The salt container is located beneath the lower rack and should be filled as follows:
2 If you are filling the container for the first time ,fill 2/3 of its volum
3 Place the end of the funnel(supplied) into the hole and introduce about salt. It is normal for a small amount of water to come out of the salt
4 Carefully screw the cap back on.
NOTE: 1. The salt container must be refilled when the salt warning light comes on. Though the salt container is filled enough, the indicator light may not black out before the salt fully dissolve. 2. If there are spills of the salt, a soak program could be run to wipe them out.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that the salt consumption could be set proceed as follows:
2 There is a ring on the container with an arrow on it (see Figure to the si necessary, rotate the ring in the anticlockwise direction from the "-" Setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustments should be made in accordance with the following schema:
| WATER HARDNESS | Selector Position | Salt consumption (gram/cycle) | Auto nomy (cycles/2kgs) | ||
| ^ fH | ^ dH | mmol/l | |||
| 0~10 | 0-5 | 0-1.0 | - | 0 | / |
| 10~25 | 5-14 | 1.0-2.5 | / | 20 | 60 |
| 25~50 | 14-28 | 2.5-5.0 | MED | 40 | 40 |
| >50 | >28 | >5.0 | + | 60 | 25 |
Contact your local water board for information on the hardness of your water supply.
YOU MAY NOT ADD TOO MUCH DETERGENT TO PREVENT THE FORMATION OF DEPOSITS BECAUSE YOUR DISHWASHERS HAVE SPECIALLY-DESIGNED WATER SOFTENERS.
The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table". Your dishwashensethers cotentional addishwashersaid Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.
Amount of Detergent to Use
IF THE WATER ISN'T TOO HARD, YOU MAY ALSO PREVENT THE FORMATION OF DEPOSITS BY ADDING DETERGENT. The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.
▲ WARNING!
Dishwasher detergent is corrosive! Take care to of reach of children.

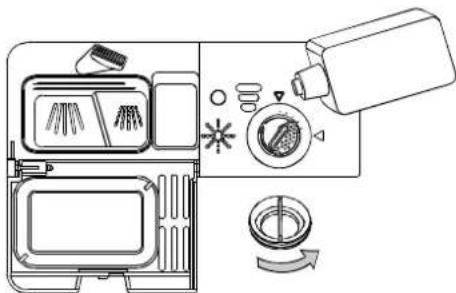

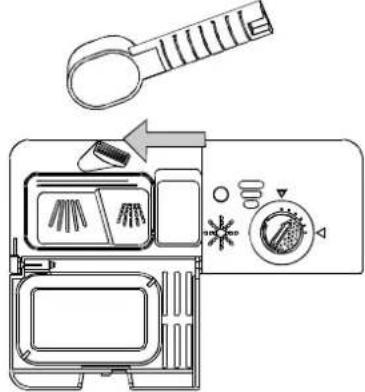

RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" Be(left) careful not to overfill the dispenser, because this can arrow and lift it out. cause oversu dsing. Wipe away any spills with a damp cloth.
Pour the rinse aid into the dispenser, being caredn'toforget to replace the cap before you close the dis overfill. door.
- Replace the cap by inserting it aligned with "open" Ifarry you have soft water, you may not need rinse aid for and turning it to the closed (right) arrow. Cause a white film to develop on your dishes.
Adjusting Rinse Aid Dispenser
A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather of foaming and cause cloudiness or steaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can with an equal amount of water.
The rinse aid dispenser has six settings. Always start with the dispenser set on "1". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing lid and rotating the dial to "2". If the dishes still are not drying properly or are dial to the next higher number until your dishes are spot-free. We suggest you to set on "4". (If only four settings we suggest you to set on "2".) In accordance with En50242 standard, the dispenser should be set on the maximum doing the performance.
When to Refill the Rinse Aid Dispenser
If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases. You should never let the rinse aid get below 1 / 4 full.
Full
3/4full
1/2full
- 1 / 4 full - Should refill to eliminate spotting ○ Empty
Loading the Dishwasher Racks.
For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

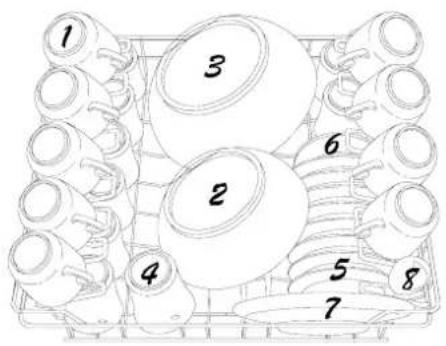

How to use the Upper Rack
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be adjusted for height by putting wheels of different height into the rails.
1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers
6 Dish
7 Dessert dishes
8 Gravyladle

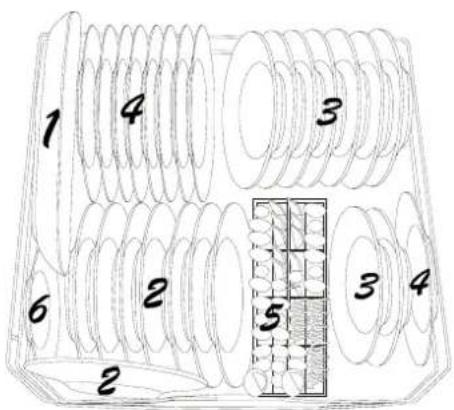

How to use the Lower Rack
We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.
- Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
10valplatter
2 Dessertdishes
3 Souplates
4 Dinner plates
5 Silverware basket
6 Saucers
SILVERWARE BASKET
Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.
1 Forks
5 Knives
2 Soupspoons
6 Serving spoons
3 Dessert spoons
7 Serving forks
4 Teaspoons
▲ WARNING!
Do not leave any item extend through bott Knives and other utensils with sharp points must be loaded in the basket with their down or placed in an horizontal position.
At the End of the Wash Cycle
When the working cycle has finished, the buzzer of dishwasher will mooing 8 seconds. Turn off the appliance using the ON/OFF button, shut off the water supply and open the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling and utensils while they are still hot and more susceptible to breakage. They will also
Forget to Add a Dish?
A forgotten dish can be added any time before the detergent cup opens.
1 Open the door a little to stop the washing.
3 Add forgotten dishes.
2 After the spray arms stop working, you can open the door completely.
4 Close the door, the dishwasher will work after ten second
▲ WARNING!
It is dangerous to open the door when washing, because the hot water may be scalded to you. The door should not be left in the open position since this could present a tripping hazard.

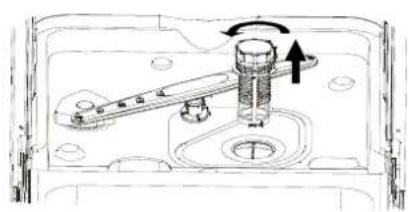

Filtering System
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter.
1 Main filter
Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
2 Coarse filter
Larger items, such as pieces of bone or glass, that could clog the drain are coarse filter. To remove an item caught in this filter, gently squeeze the tabs filter and lift it out.
3 Fine filter
This filter holds soil and food residue in the sump area and prevents it from redeposited on the dishes during a cycle.
Caring for the Dishwasher
To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the dishwasher outside, do not use solvents (degreasing action) neither abrasives, but only a cloth soaked with water.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
1 Cut off electrical power to the dishwasher. ReConnect the water pipe to the fuses or trip circuit breaker. water valve.
2 Turn off the water supply and disconnect the waterRemove the plastic sump cover in the inlet pipe from the water valve. tub the bottom and use a sponge to soak up water in rubber boot.
3 Drain water from the inlet and water valve. pipe (Use a pan to catch the water.)
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.
Cleaning the Filters
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it recirculated during the cycle. For this reason, it is a good idea to remove food particles trapped in the filter after each wash cycle by rinsing the so filter and cup under running water. To remove the filter assembly, pull on handle in the upward direction. The entire filter assembly should be cleaned once a month.
To clean the coarse filter and the fine filter, use a cleaning brush. Then, the filter parts as shown in the figures left and reinsert the entire assemb dishwasher, positioning in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement filter may reduce the performance level of the appliance and damage dishes
▲ WARNING!
Never run the dishwasher without the filters in place.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because scratch the finish. Some papers towels can also scratch or leave marks on the
▲ WARNING!
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface.
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply to appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.
Remove the Plug
Before cleaning or performing maintenance, always remove the plug from the socket. Do not run
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dish washback. do not use solvents or abrasive cleaning products.
Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water and a white vinegar, or a cleaning product made specifically for dishwashers.
When You Go on Holiday
When you go on holiday, it is recommended that you wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply leave the door of the appliance slightly ajar. This will the seals last longer and prevent odors from forming within the appliance.
^s Moving the Appliance
If the appliance must be moved, try to keep it in t position. If absolutely necessary, it can be positioned on
Seals
One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.
About Electricity Connecting
CAUTION, for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUNDING PRONG FROM THE POWER CORD.
Electrical Requirements
Fused electrical supply is required-copper wire only. Time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Outlet should be placed in adjacent cabinet.
Make sure that the plug on the appliance remains accessible after installation.
Electrical Connection
Insure proper ground exists before use
After making sure that the voltage and the frequency values for the current in t correspond to those on the rating plate and that the electrical system is sized f maximum voltage on the rating plate, insert the plug into an electrical socket wh earthed properly. If the electrical socket to which the appliance must be connected appropriate for plug ,(installed by a socketified at the electrician) using a adaptors or the like as they could cause overheating and burns.
About the unicouple.
We have two models of connectors, one type is shown as below, the other have a thread of 3 / 4 inch.
Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the consult our Service Department for advice.
Attach the faucet adapter. The special faucet adapter supplied with your dishwasher must be assembled to the sink faucet before you can use your dishwasher if your faucet has not threads. You will find the adapter installed with unicouple.
If faucet has not threads: attach the faucet adapter to faucet, then tighten every s of the adapter. To prevent leaking your should tighten the adapter.
How to Connect the Unicouple
2 Attach the Unicouple connector to the faucet adapter by depressing the collar at the top of the connector. When Unicouple is all the way up onto the adapter, release the collar. It will then snap Into position to lock the Unicouple in place. The Unicouple's small hose carries water from the faucet to the dishwasher. Its large hose carries drain water to the sink. Be sure Unicouple is pointing toward the sink bowl drain opening and the sink drain is open for water that will drain from your dishwasher. If your dishwasher drains into a disposer, operate the disposer until it is completely empty before starting the dishwasher.
3 Turn water fully on before starting the dishwasher.
▲ WARNING!
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.
How to Disconnect the Unicouple from Faucet Adapter
1 Turn off the water.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing.
3 Release Unicouple from faucet by depressing the collar at the top of the Unicouple connector.
How to Disconnect the Dishwasher
1 Remove the power cord plug from the wall receptacle.
2 Disconnect Unicouple from faucet adapter.
NOTE: When motor stops at the end of the final rinse, the Unicouple can be disconnected and returned to storage.
Cold Water Connection
If the water pipes are new or have not been used for an extended period of time run to make sure that the water is clear and free of impurities. If this precaution is there is a risk that the water inlet can get blocked and damage the appliance.
Hot Water Connection
The water supply to the appliance can also be connected to the house hot water (centralized system, heating system), as long as it does not exceed a temperature. In this case, the wash cycle time will be shortened by about 15 minutes and the w efficiency slightly reduced.
The connection must be made to the hot water line following the same procedure for the connection to the cold water line.
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust height of the dishwasher, making it level. In any case, the appliance should not more than 2.

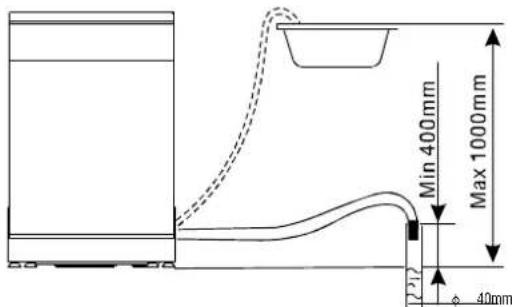

Drain hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height between 40 and 100cm and must not be immersed in water.
How to Drain Excess Water From Unicouple Hoses
If the sink is 34 or higher from the floor, the excesswater in Unic cannot be drained directly into the sink. It will be necessary to drain water from hoses into a bowl or suitable container that is held outside than the sink.
DIMENSIONS(mm)
Before Calling for service...
Troubleshooting Tips
Review the charts on the following pages may make you be free of calling for service.
| Problem | Possible Causes | What To Do |
| Dishwasher doesn't run | Fuse blown, or the circuit breaker acted | Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher |
| Power supply is not turned on | Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket. | |
| Water pressure is low | Check that the water supply is connected properly and the water is turned on. | |
| Drain pump doesn't stop | Overflow | The system is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump. |
| Noise | Some audible sounds are normal | Sound from soft food shredding action and detergent opening. |
| Utensils are not secure in the baskets or something small has dropped into the basket | To ensure everything is secured in the dishwasher. | |
| Motor hums Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every which will help keep the seal moist. | ||
| Suds in the tub | Improper detergent | Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporateAdd 1 gallon of cold water to the tub. Close and latch dishwasher, then drain out the water by slowly turning Dial until a drain period is reached. Repeat if necessary |
| Spilled rinse agent Always wipe up rinse agent spills immediately. | ||
| Stained tub interior | Detergent with colorant was used | Make sure that the detergent is the one without colorant. |
| Dishes are not dried | Rinse agent dispenser is empty | Make sure that the rinse agent dispense is filled. |
| Dishes and flatware not clean | Improper program | Select stronger program |
| Improper rack loading Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware. | ||
| Spots and filming on glasses and flatware | Extremely hard waterLow inlet temperatureOverloading the dishwasherImproper loadingOld or damp powder detergentEmpty rinse agent dispenserIncorrect dosage of detergent | To remove spots from glassware:Take out all metal utensils out of the dishwasher.Do not add detergent.Choose the longest cycle.Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash.Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.Close the door and let the dishwasher complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml)of citric acid crystals instead of vinegar. |
Before calling for service...
| Problem | Possible Causes | What To Do |
| Cloudiness on glassware | Combination of soft water and too much detergent | Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean. |
| Yellow or brown film on inside surfaces | Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm wait to remove the stains by hand.⚠ WARNINGYou have to wait for 20 minutes after a cycle to let tl elements cool down before cleaning interior; otherwise, burns will happen. | |
| Iron deposits in water can cause an overall film | You have to call a water softener company for a special | |
| White film on inside surface | Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other clean than dishwasher detergent for the risk of foaming or suds. | |
| Detergent cup lid won't latch | Dial is not OFF the position | Turn the DiOFF toposition and slide the door latch to the left. |
| Detergent left in dispenser cups | Dishes block detergent cups | Re-loading the dishes properly. |
| Steam | Normal phenomenon | There is some steam coming through the vent by the do latch during drying and water draining. |
| Black or gray marks on dishes | Aluminum utensils have rubbed against dishes | Use a mild abrasive cleaner to eliminate those marks. |
| Water standing in the bottom of the tub | This is normal A small | amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated. |
| Dishwasher leaks | Overfill dispenser or rinse aid spills | Be careful not to overfill the rinse aid dispenser.Spilled rinse aid could cause oversuding and lead to overflowing. Wipe away any spills with a damp cloth. |
| Dishwasher isn t level | Make sure the dishwasher is level. | |
ERROR CODES
| Codes | Meanings | Possible Causes |
| The pre-wash light and wash light brighten up simultaneously | Longer inlet time. | Faucets is not opened. |
| The wash light and rinse light brighten up simultaneously | Longer draining time. | The installation position of the drain pipe is too high |
| The pre-wash light, wash light and rinse light brighten up simultaneously | Longer heating time, but not reaching required temperature | Malfunction of temperature sensor or of heating element |
| All four lights brighten up simultaneously | Overfilled. | Too much inlet water. . |
| The pre-wash light and rinse light brighten up simultaneously | Failure of temperature sensor | Short circuit or break of temperature sensor |
| The pre-wash light and drying light brighten up simultaneously | Failure of temperature sensor | Open circuit or break of temperature sensor |
- Read this Manual
- Before Calling for Service
- NOTE:
- Operating Instructions
- Installation instruction
- Troubleshooting Tips
- IMPORTANT SAFETY INFORMATION
- READ ALL INSTRUCTIONS BEFORE USING
- ▲ WARNING!
- GROUNDING INSTRUCTIONS
- WARNING! PROPER USE
- Warning:
- IMPORTANT!
- TURNING ON THE APPLIANCE
- Starting a wash cycle...
- Change the Programme
- WATER SOFTENER
- Loading the Salt into the Softener
- Adjusting Salt Consumption
- Amount of Detergent to Use
- RINSE AID DISPENSER
- Adjusting Rinse Aid Dispenser
- When to Refill the Rinse Aid Dispenser
- Loading the Dishwasher Racks.
- How to use the Upper Rack
- How to use the Lower Rack
- SILVERWARE BASKET
- At the End of the Wash Cycle
- Forget to Add a Dish?
- Filtering System
- Caring for the Dishwasher
- Protect Against Freezing
- Cleaning the Spray Arms
- Cleaning the Filters
- How to Keep Your Dishwasher in Shape
- After Every Wash
- Remove the Plug
- No Solvents or Abrasive Cleaning
- When You Go on Holiday
- s Moving the Appliance
- Seals
- About Electricity Connecting
- Electrical Requirements
- Electrical Connection
- About the unicouple.
- How to Connect the Unicouple
- How to Disconnect the Unicouple from Faucet Adapter
- How to Disconnect the Dishwasher
- Cold Water Connection
- Hot Water Connection
- Positioning the Appliance
- Levelling the Appliance
- Drain hose Connection
- How to Drain Excess Water From Unicouple Hoses
- DIMENSIONS(mm)
- Before Calling for service...
Brand : HOOVER
Model : HEDS 968 Nextra
Category : Printer
