5240 - Kitchen sink Sani-Lav - Free user manual and instructions

Product Type	Kitchen Sink
Brand	Sani-Lav
Model	5240
Material	Stainless Steel
Finish	Brushed Stainless Steel
Number of Bowls	Single Bowl
Dimensions (L x W x D)	25 x 22 x 8 inches (63.5 x 55.9 x 20.3 cm)
Cutout Size	24.25 x 21.25 inches (61.6 x 54.0 cm)
Weight	15 lbs (6.8 kg)
Mounting Type	Drop-in / Top-mount
Number of Faucet Holes	1 pre-drilled hole (center)
Drain Size	3.5 inches (8.9 cm) standard
Drain Style	Pull-out strainer with basket
Minimum Cabinet Size	27 inches (68.6 cm)
Soundproofing	Sound-absorbing pads on bottom
Anti-condensation Coating	Spray-on undercoating
Included Accessories	Basket strainer, mounting clips, template
Installation Type	Self-rimming (no rail required)
Surface Treatment	Satin finish for scratch resistance
Warranty	Limited lifetime warranty
Cleaning Instructions	Wipe with mild soap and water; avoid abrasive cleaners
Safety Features	Rounded corners, no sharp edges
Repairability	Strainer and drain parts replaceable; sink body not repairable

Frequently Asked Questions - 5240 Sani-Lav

What is the Sani-Lav 5240 kitchen sink made of?

The sink is made of stainless steel with a brushed finish for durability and ease of cleaning.

Can I install an undermount faucet with this sink?

Yes, the sink has a single pre-drilled hole for a faucet, but it is designed for drop-in installation. Undermount faucets may require a deck-mounted faucet instead.

What are the exact dimensions of the sink?

The overall dimensions are 25 x 22 x 8 inches (63.5 x 55.9 x 20.3 cm), with a cutout size of 24.25 x 21.25 inches (61.6 x 54.0 cm).

Does the sink come with a drain assembly?

Yes, it includes a basket strainer with a standard 3.5-inch drain opening and a pull-out strainer.

How do I clean the sink to maintain its finish?

Clean with mild soap and water using a soft cloth. Avoid abrasive cleaners or scouring pads to prevent scratching.

Is the sink soundproofed?

Yes, it has sound-absorbing pads on the bottom to reduce noise from water and dishes.

What is the minimum cabinet size required?

A minimum cabinet width of 27 inches (68.6 cm) is recommended for proper fit and support.

Can I replace the drain parts if they break?

Yes, the strainer and drain assembly are replaceable and widely available at hardware stores.

Does the sink have an anti-condensation coating?

Yes, it features a spray-on undercoating that helps prevent condensation on the underside of the sink.

What is the warranty on this sink?

Sani-Lav offers a limited lifetime warranty against manufacturing defects. Normal wear and tear are not covered.

USER MANUAL 5240 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Floor Mount Stainless Steel Sink

Model 5240

3D rendering of a stainless steel kitchen sink with metal frame structure (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment

COLUMBIA SPECIFICATIONS

FLOOR MOUNT SINK

Parts List

□(1) Floor mount sink
□(1) Leg assembly set
☐ (6) Nuts, bolts and washers for leg assembly
☐ (4) Nuts and washers for connecting sink to leg assembly
☐ (1) Strainer assembly with basket

Front

Side

■ Hole Configuration

■ Floor Mounting Detail

Leg Assembly

x 6

Technical illustration of a metal frame structure with close-up insets showing mounting details (no text or symbols)

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

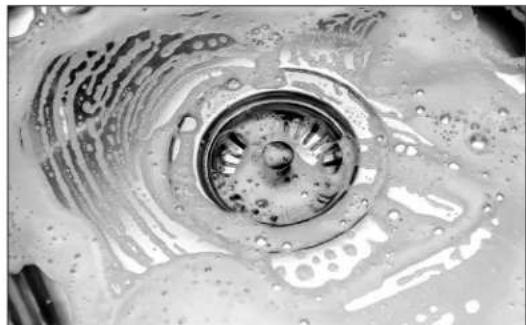

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]
