V-SG4K-3G - Générateur de signal vidéo Marshall Electronics - Free user manual and instructions

Product Type	4K Multi-Format Test Pattern Generator
Brand	Marshall Electronics
Model	V-SG4K-3G
Video Outputs	3G-SDI, HDMI 2.0
Maximum Resolution	4096 x 2160 (4K DCI) at 60p
Supported Formats	NTSC, PAL, 720p, 1080i, 1080p, 2160p
Built-in Patterns	Color bars, black burst, multi-burst, crosshatch, ramp, and more
Power Supply	12V DC, 1.5A (external adapter)
Dimensions (W x D x H)	190 x 130 x 45 mm
Weight	0.9 kg (2 lbs)
Control Interface	Front panel buttons, rotary encoder
Software Update	Via USB or SD card
Mounting	Desktop or optional rackmount kit
Operating Temperature	0°C to 40°C (32°F to 104°F)
Maintenance	Clean with dry cloth; avoid liquids and abrasives
Safety	Use only supplied power adapter; keep away from moisture
Spare Parts & Repairability	Contact Marshall Electronics support for service
General Information	Professional test signal generator for broadcast and production

Frequently Asked Questions - V-SG4K-3G Marshall Electronics

What video resolutions does the V-SG4K-3G support?

The V-SG4K-3G supports resolutions up to 4096 x 2160 (4K DCI) at 60p, as well as standard HD and SD formats like 1080p, 720p, and NTSC/PAL.

How do I connect the V-SG4K-3G to my monitor or camera?

Use the 3G-SDI or HDMI 2.0 output ports on the rear panel. Connect the appropriate cable to your device's input.

Can I update the firmware of the V-SG4K-3G?

Yes, firmware updates can be performed via USB or SD card. Download the latest firmware from the Marshall Electronics website and follow the instructions.

What test patterns are included?

The generator includes a wide variety of patterns such as color bars, black burst, multi-burst, crosshatch, ramp, checkerboard, and moving patterns for video testing.

Is the V-SG4K-3G rackmountable?

The unit comes in a compact desktop design but can be mounted in a 19-inch rack using an optional rackmount kit (sold separately).

What is the power requirement for the V-SG4K-3G?

It requires a 12V DC power supply with at least 1.5A current. Use only the included adapter to avoid damage.

How do I clean the device?

Wipe the exterior with a soft, dry cloth. Do not use liquids, solvents, or abrasive cleaners. Keep vents free of dust.

Can I use the V-SG4K-3G for 4K HDR testing?

Yes, the device supports HDR metadata pass-through and can generate patterns suitable for HDR calibration, such as HLG and PQ.

What does '3G' in the model name refer to?

'3G' refers to 3G-SDI, a standard for transmitting video up to 1080p at 60 fps. The V-SG4K-3G also supports higher formats via its HDMI output.

How do I select a test pattern?

Use the rotary encoder and front panel buttons to scroll through patterns and select one. The pattern name is displayed on the front LCD.

USER MANUAL V-SG4K-3G Marshall Electronics

V-SG4K-3G

HDMI / SDI Portable Signal Generator

Operation Guide

Table of Contents

Table of Contents 01

1. Introduction 02

2. Features 03

3. Controls and Connections 04

4. Specifications 06

5. Package Contents 06

6. Quick Start and System Check 07

7. Menu Operations 07

8. Software - PC Control App 09

9. Software - Test Pattern Uploader App 18

10. Troubleshooting 20

11. Warranty & Contact Information 21

1. Introduction

The V-SG4K-3G is a programmable SD/HD/3G-SDI and HDMI HD/UHD Test Pattern Generator, packed with features for video and audio testing of SDI and HDMI monitors, processors, and recorders. The compact and portable V-SG4K-3G generates a full range of resolutions with a maximum of 4K (UHD) at 60Hz, with 4:2:0 signal, making it a "must have" tool for AV Systems Integrators and installers. An internal audio tone generator as well as an external stereo input allows embedding of test audio into the SDI or HDMI signals.

The V-SG4K-3G can be easily operated from the front panel, with the 3-inch LCD display for additional menu settings, and to indicate the pattern being generated. In addition, remote control is available via USB or RS-232 serial interface. Control and pattern uploader applications are available to download from our website, www.marshall-usa.com.

Marshall

V-SG4K-3G Manual

2. Features

• Useful for quick checks on both HDMI and SDI devices.
• Wide range of video formats up to 4Kx2K (UHD) and frame rates up to 60fps as well as special patterns for 3D/VR checks.
  • Supports multiple HDMI sampling structures including RGB4:4:4, YUV4:4:4, YUV4:2:2, and YUV4:2:0.
  • SDI Output supports SD/HD/3G SDI up to 1080p at 60 fps.
• Includes 39 preset patterns plus 4 user-uploadable patterns.
• Generates 61 pre-defined resolutions, 10 user-defined resolutions, and 1 auto-sensing HDMI mode.
• LCD panel provides Pattern preview and Menu settings display.
• Supports 7 audio sample rates and 1 auto mode based on the HDMI EDID data from the device under test.
• The HDMI Output features multiple setting options including: HDMI/DVI mode, DeepColor mode, HDCP On/Off for compliance checking, "Color Space" selections (sampling structure) and other video parameters.
• HDMI EDID may be captured from a sink device (monitor, etc.) and stored in the generator. Up to 6 sets of EDID may be stored.
• Software for control and User Pattern upload is available on the Marshall Electronics website.

Marshall

3. Controls and Connections

Front Panel Description

1.3 - Inch LCD Panel. Displays current pattern and menus.
2. HDMI/SDI mode LED's. These indicate which output is currently active.
3. HDMI/SDI mode switching button. Selects between HDMI output and SDI output.
4. Status LED. Provides a quick check of the HDMI link status. (Does not light in SDI mode). The Status LED will be off when the HDMI link is lost or HPD (Hot Plug Detect) signal is not present from sink device. The Status LED blinks if an HDMI EDID error occurs.
5. Arrow cluster. The arrow buttons allow quick change of video format (Left or Right arrow) and pattern (Up or Down arrow). These buttons are also used to navigate in the Menu system.
6. Menu and Exit buttons. Pressing the Menu button brings the setup menu to appear on the 3-inch display. Pressing Exit cancels the current Menu operation. Use the Left and Right arrows to change menu categories. Use the Up and Down arrows to select desired Items. Press Menu to confirm the selection.
7. Mini-USB connector. Allows connection to a PC for external control. (Note: This is not a power port.)

www.marshall-usa.com3 4

Rear Panel Description 4. Specifications

1. RS-232 connector for PC control. Provides an alternative to the USB connection for control from a PC.
2. SDI Output BNC connector.
3. Stereo Audio Input connector (3.5 mm mini-phone). Allows embedding of custom audio into the HDMI or SDI video output.
4. HDMI Output / EDID capture connector.
5. 5-Volt DC Power connector. Note: Please use only 5-volt power sources, center pin positive. Similar-looking 12-volt power supplies are common and may damage the unit if connected.

Product Name V-SG4K-3G Test Pattern Generator

HDMI Version HDMI2.0/DVI

HDCP Version HDCP1.4

HDCP On / Off Test

Video Bandwith

Color Depth

HDMI Timing / Formats

Up to 9.0GHz (3.0GHz per HDMI channel)

Selectable 24, 30, 36, 48-bits

61 presets including special choices for HDMI 2.0 4K 50, 60,

720P, 1080P - 3D and HDMI auto timing / format

HDMI User Defined Timing

SDI Output

10 sets storable

SD-SDI / HD-SDI / 3G - SDI

Number of Test Patterns

44 (39 standard patterns, one 3D pattern and 4 user patterns)

Color Space / Sampling - HDMI

RGB 444, YUV 444, YUV 422, YUV 420

Color Space / Sampling - SDI

YUV 4:2:2

Audio Bit Depth

Selectable 16, 20 or 24-bit

Audio Sample Rate

Selectable 32, 44.1, 48, 88, 96, 176, 192KHz

Vertical Frequency Range

Up to 120 Hz depending on format

Power Consumption (max.)

4 Watts

Housing

Metal

Dimension (mm)

108mm × 98mm × 24mm

Weight (g)

500g

5. Package Contents

• Main Unit: V-SG4K-3G
  • 5-Volt 2 Amp Power Supply

6. Quick Start and System Check

1. Connect 5-volt power to the V-SG4K-3G. A pattern should appear on the 3-inch display and at least one LED should light.
2. Connect an HDMI cable from the V-SG4K-3G to a UHD monitor or other HDMI "sink" device.
3. Press the HDMI/SDI Output button to light the HDMI LED. The current test pattern should appear on the attached monitor or other connected device unless the current signal format is not supported by that device.
4. Press Left or Right arrow buttons to change Video Format. Press Up or Down arrow buttons to change Test Pattern.
5. Suggestion: At this point, you may wish to take a moment to scroll through some of the patterns and video formats to explore what is available with the V-SG4K-3G test generator.

7. Menu Operations

More adjustments and settings are available by pressing the MENU button. Depending on the current output mode (HDMI or SDI), menu categories may change. For example: here are two versions of the Timing Resolution menu.

SDI Mode

HDMI Mode

TIMING RES.

01-480i 59.94

02-720p 60Hz

03-720p 59.94

04-1080i 60Hz

05-1080i 59.94

06-1080p 60Hz

TIMING RES.

01-640x480 60Hz

02-800x600 60Hz

03-1024x768 60Hz

04-1280x768 60Hz

05-1360x768 60Hz

06-1280x960 60Hz

To change settings in the Menus, use the Left or Right arrow buttons to select categories. Use the Up or Down arrow buttons to select an item within a category. Press the Menu button to confirm an Item or press the Exit button to leave the menu without making a change.

Marshall

Menu Categories (HDMI Mode):

• Timing Resolution. Select from 44 picture formats and frame rates such as 1080p at 59.94 fps, 720p at 50 fps, 1080l at 50 fps, 17 3-D formats, 10 User-Defined formats, as well as AUTO mode. Video and Computer Graphic formats are supported.
• Color Space. Select color components and sampling structure such as RGB444, YUV422. AUTO mode polls the EDID information from the connected device and sets the generator to match.
• Deep Color Depth. Selects the bit depth of the generated signal from 8-bits up to 16-bit video. AUTO mode polls the EDID information from the connected device and sets the generator to match.
• HDCP Setting. Turn the HDCP flag ON or OFF. When HDCP is ON, the test signal will only appear on displays or projectors and only those that are HDCP compliant. This provides a quick way to confirm HDCP compliance.
• HDMI / DVI Setting. In DVI mode, the HDMI output is limited to the feature set that is supported by the DVI standard. Useful for testing when an HDMI-to-DVI adapter cable is being used. AUTO mode tests the interface and selects the matching mode.
• Audio Sampling Rate. Selects the sampling rate for the embedded audio. Choices are available from 32kHz to 192kHz. AUTO mode selects the best rate based on HDMI EDID data.
• Audio Sampling size. Selects the audio bit depth from 16- to 24-bits. AUTO mode selects the maximum bit depth based on the HDMI EDID data.
• Audio Source. Selects the audio that will be embedded in the video output. Internal tones of 1, 2, or 4kHz are available or external stereo audio from a line-level analog source can be selected.
• Audio Channels. Various audio embedding arrangements can be selected from simple 2-channel stereo to 7.1-channel surround. (8 embedded channels). When external audio is used, only channels 1 and 2 will be embedded.
• Audio Volume. Adjust the volume of the embedded audio here. The default setting is 10 (maximum) which produces 0dBm output. Each volume step is 6dB so, for example, 3 steps down to 07 equates to -18dB output. (EBU reference level).
  • Signal Output. Tum the Video output ON or OFF.

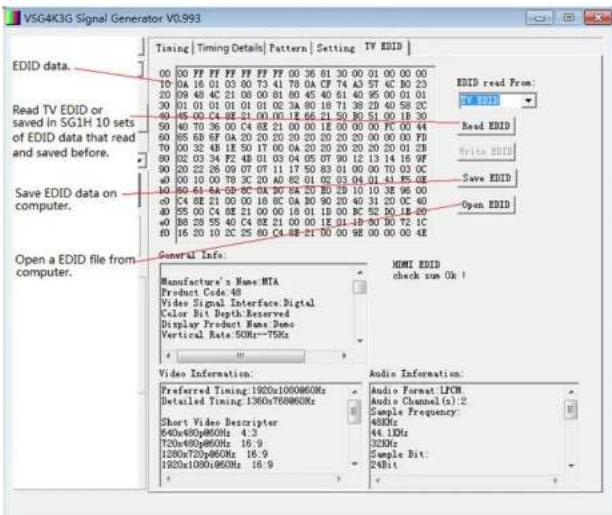

• Save EDID. Reads EDID information from an attached HDMI device and saves it in the generator. Up to 6 sets of EDID data may be saved.
• Sink EDID Info. Displays basic information about the attached HDMI device such as the Manufacturer name, Preferred Timing (preferred resolution and frame rate), Audio capabilities and more.

www.marshall-usa.com7 8

Marshall

V-SG4K-3G Manual

Menu Categories (SDI Mode):

• Timing Resolution. Select from 16 preset picture formats and frame rates such as 1080p at 59.94 fps, 720p at 50 fps, 1080l at 50 fps. Only SDI compliant formats are provided.
• Audio Source. Selects the audio that will be embedded in the video output. Internal tones of 1, 2, or 4kHz are available or external stereo audio from a line-level analog source can be selected.
• Audio Channels. Various audio embedding arrangements can be selected from simple 2-channel stereo to 8 channels. When external audio is used, only channels 1 and 2 will be embedded.
• Audio Volume. Adjusts the volume of the embedded audio. The default setting is 10 (maximum) which produces 0dBm output. Each volume step is 6dB so, for example, 3 steps down to 07 equates to -18dB output. (EBU reference level).
  • Signal Output. Turn the video output ON or OFF.

8. Software - PC Control App

Controlling the V-SG4K-3G from a computer:

A Windows® application is available for free download from the Marshall Electronics website here: http://www.lcdracks.com/racks/TestMeasurement/V-SG4K-3G.php

This application provides detailed control of all menu functions plus adjustment of many parameters not in the Menus. The V-SG4K-3G may be operated via USB or RS-232 serial link.

• USB Connection: Use only type A to mini-USB cable
• RS-232 Connection assuming standard 9-pin connector:

• Pin 2 Rx to Signal Generator Tx

• Pin 3 Tx to Signal Generator Rx

• Pin 5 Ground to Signal Generator

(If "null modem" cable or adapter is in use, connection of Pin 2 and 3 should be reversed)

Marshall

Quick Start and Operational Check

1. Copy app file to a convenient place such as the Desktop. Double click to open the app. It should run immediately without any installation needed.
2. Connect a mini-USB cable between the generator and the PC. (The PC will establish a "Comm Port" connection at this time. Normally, this takes a few seconds but should not take longer than 1 or 2 minutes the first time.)
3. Click the "Search Device" button (see figure below). The Activity Icon will light Red if step 2 was successful.
4. Try selecting SDI then HDMI. The HDMI & SDI LED's on the unit should follow these selections. (If you experience problems making a USB connection, please see Troubleshooting section.)

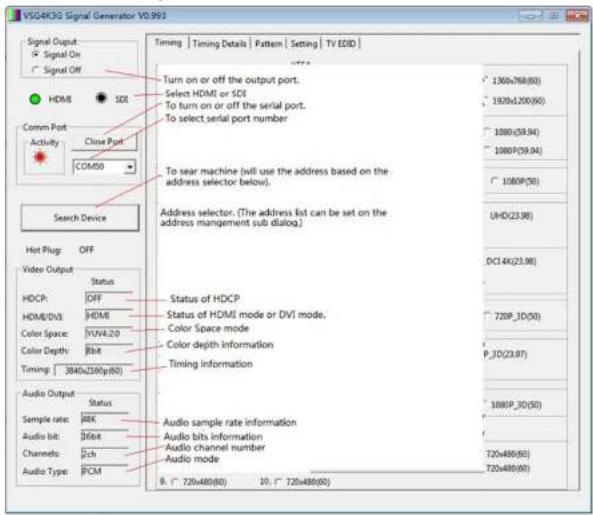

Main Screen Showing Current Status

Areas on the left of this screen show key information such as status of the link between the generator and PC as well as generator operating modes.

www.marshall-usa.com9 10

Timing Tab

The Timing Tab allows quick access to all available video formats and frame rates. The figure below shows the HDMI choices. Simply click on any of the choices to change the video output.

HDMI Timing Options

SDI Timing Options

In SDI mode, the choices available are those labeled "Video Standards."

Marshall

V-SG4K-3G Manual

Timing Details Tab

This page is useful for product development and QC. Non-standard timings may be entered here and stored for later retrieval with the "Save to Userdefine Timing" button. The "Update Status" button sends the new timing settings to the V-SG4K-3G.

Marshall

Pattern Selection Tab

This page allows quick selection of any available test pattern including four User-Defined patterns. (User-Defined patterns do not have icons). User-Defined patterns are uploaded to the V-SG4K-3G using the Pattern Uploader application.

Note that the "Pathological" pattern is available only in SDI mode as it is specifically designed for testing SDI interfaces.

www.marshall-usa.com13 14

Setting Tab

This page contains a collection of settings for video and audio.

Note that the choice for YUV 4:2:0 is available only when the generator is in HDMI mode and a UHD 50, 59.94 or 60 fps pattern is selected. In this mode, the signal generated is compatible with HDMI 2.0.

TV EDID Tab

This page allows testing HDMI EDID (Extended Display Identification Data). It has no application for SDI interfaces.

EDID is a set of information stored in a display device (monitor or projector) by the display manufacturer. In normal operation, this information is retrieved by a source device such as a set top box, media player, etc. when it is connected or powered on. EDID is intended to allow a source device to change its settings to match the display device. This process is invisible to the user.

The V-SG4K-3G Test Pattern generator allows inspection of this EDID information to help with trouble shooting, product development, equipment test and QC.

Using the EDID function

Click on the READ EDID button to capture EDID data directly from a connected display device when the window below the button says "TV EDID". Also, EDID data that has been previously captured and saved in the V-SG4K-3G may be accessed by selecting "Saved 1 - 6" in the pulldown window below the button.

The EDID information is organized in three zones on the page:

General Info – Details about the manufacturer and specifications.

Video Information – A list of all video formats, frame rates, and standards that will be compatible with the device.

Audio Information – A list of all audio formats and standards that will be compatible with the device. There is generally a lot of information in these windows. It may be necessary to scroll through the information to see all the possible options.

Information from the READ EDID function may be stored on the local PC by clicking on the SAVE EDID button. Each time SAVE EDID is clicked, a pair of files is saved to the PC. The files are saved to the same location as the Control Application. EDID saved files are automatically named and numbered sequentially and appear like this:

SigGen_EDID02.bin

SigGen_EDID02.txt

Marshall

V-SG4K-3G Manual

There is no limit to the number of EDID files that can be saved on a PC. Files may be renamed for convenience as long as the ".bin" and ".txt" extensions are not changed. For example, the two files above may be renamed something like:

BigMonitor1.bin

BigMonitor1.txt

Files saved on a PC may be opened later for more analysis by clicking on the OPEN EDID button and browsing to the file.

Note: The WRITE EDID button does not apply to the V-SG4K-3G signal generator and remains "grayed out."

Marshall

9. Software - Pattern Uploader App

Uploading Test Patterns to the V-SG4K-3G from a computer

A Windows® application is available for free download from the Marshall Electronics website here: http://www.lcracks.com/racks/TestMeasurement/V-SG4K-3G.php

The Pattern Uploader application allows the user to install up to 4 custom test patterns into the V-SG4K-3G non-volatile memory.

Note: User patterns must be .BMP files with 1920 x 1080 resolution.

Pattern Uploader Quick Start and Operational Check

1. Copy the app file to a convenient place such as the Desktop. Close the Control Application If It is open and double-click to open the Uploader app. It should run immediately without any installation step needed. The screen below will appear (pattern window will be black).
2. Connect the PC to the V-SG4K-3G Test Pattern Generator using a mini-USB cable as described for the Control App.

www.marshall-usa.com17 18

Marshall

V-SG4K-3G Manual

1. Click on the "Search for Signal Generator" button. The icon in the upper left corner will change to Red. Pattern uploading is a three-step process:

Step 1 – Click on the "Load Image" button. Browse to the desired pattern and click on the file name. An image of the pattern should immediately appear in the pattern window. In the "Use Pattern Number" window, enter a number from 1 – 4.

Step 2 - Click on the "SD NAND FLASH" button. The word "Erasing" may appear on the screen if there was a pattern previously stored. When erasing is complete, the uploading progress will appear in the "%" window. Take a break. Depending on the amount of detail in the image, this process can take up to 15 minutes to complete!

Step 3 - Click "Search for Signal Generator" then click on the 3-inch LCD Panel Data Flash button. This will immediately load a smaller version of the test pattern which will appear in the 3-inch LCD on the V-SG4K-3G Test Pattern Generator. This process runs very quickly and should complete in under 15 seconds.

TIP! You may prefer to do Step 3 before Step 2 to save time.

Please Note: An uploaded User Pattern will be available after the V-SG4K-3G has been turned off and back on again.

10. Troubleshooting

If you experience difficulties, try these tips:

No video out.

- Check the HDMI/SDI button.

• n the MENU, turn Signal Output ON.

• In the MENU, turn HDCP Setting OFF.

- Try a different video format / frame rate to find one that is compatible with the device being tested.

"EDID Invalid" Message

- Try a different HDMI cable. Some cables are not properly configured to test all functions.

- Try a different input on the attached device.

- Try powering the device Off and On.

USB connection not recognized by host PC

- Be sure to use a mini-USB cable, not a USB "Micro" cable.

- Try reconnecting the cable. This should "wake up" the USB port on the PC. Allow several minutes for the PC to recognize the device and find the correct driver. This is particularly true for Windows 10 which may reach out to the Web to locate a driver.

- If the USB interface is not recognized by the PC and you wish to install a driver manually, you may download the latest FTDI driver here:

http://www.ftdichip.com/Drivers/VCP.htm

Marshall

11. Warranty and Contact Information

The Marshall V-SG4K-3G Test Pattern Generator will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Manufacturer reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty. No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.

Due to constant effort to improve products and product features, specifications may change without notice.

Marshall

20608 Madrona Avenue, Torrance, CA 90503

Tel: [phone] • Fax: [phone]

www.marshall-usa.com

[e-mail]
