| Product Type | 2-Port KVM Switch |
| Brand | Belkin |
| Model | F1DN102B |
| Number of Ports | 2 |
| Supported Video Interfaces | VGA (HD-15) and DVI-D |
| Supported USB Devices | Keyboard, Mouse, USB 2.0 peripherals |
| Maximum Resolution | 1920 x 1200 (VGA), 1920 x 1200 (DVI) |
| Dimensions (W x D x H) | 4.33 x 2.56 x 0.94 inches (110 x 65 x 24 mm) |
| Weight | 0.55 lbs (250 g) |
| Power Supply | USB bus-powered, no external adapter required |
| Switching Method | Push-button on unit, keyboard hotkeys (Scroll Lock, etc.) |
| LED Indicators | Port selection LEDs (1, 2) |
| Supported Operating Systems | Windows, macOS, Linux |
| Compliance | FCC, CE, RoHS |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 0% to 80% RH, non-condensing |
| Maintenance | Wipe with a soft, dry cloth; do not use liquids or solvents |
| Safety | Keep away from liquids, do not disassemble, use only with compatible cables |
| Spare Parts and Repairability | No user-serviceable parts; contact Belkin support for warranty service |
Frequently Asked Questions - F1DN102B BELKIN
How do I switch between computers on the Belkin F1DN102B?
Press the button on the front of the switch or use the keyboard hotkey sequence Scroll Lock + Scroll Lock followed by the port number (1 or 2).
Does the F1DN102B support USB 3.0 devices?
No, the switch supports USB 2.0 devices only. For USB 3.0, consider a different KVM model.

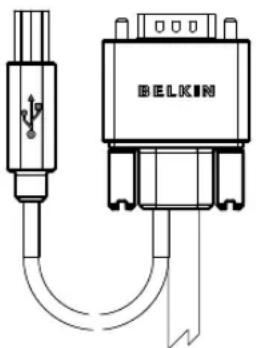

What video cables do I need?
You need VGA or DVI-D cables (male-to-male) depending on your monitors. The switch has female ports.
Can I use a wireless keyboard and mouse with this KVM?
Yes, if the wireless receiver is connected via USB to the switch. Ensure the receiver is compatible with USB 2.0.
Why is my keyboard or mouse not working after switching?
Try pressing the Scroll Lock hotkey twice to reset the connection. Also check that the switch is receiving power via USB.
Does the switch require external power?
No, the Belkin F1DN102B is bus-powered via the USB cable connected to your computer. No AC adapter needed.
What is the maximum resolution supported?
The switch supports up to 1920 x 1200 for both VGA and DVI connections.
Can I use the switch with a single monitor?
Yes, you can connect just one monitor using either VGA or DVI. The switch will still switch between computers.
Is the Belkin F1DN102B compatible with Linux?
Yes, the switch works with Linux as it uses standard USB HID and VGA/DVI signals. No special drivers required.
How do I clean the switch?
Use a soft, dry cloth to wipe the exterior. Do not use any liquids, sprays, or abrasive cleaners.
