Product Type	Vinyl Record Turntable
Brand	Crosley
Model	Switch II CR6034A
Drive Mechanism	Belt Drive
Speeds	33 1/3, 45, 78 RPM
Turntable Material	Aluminum
Cartridge	Ceramic Stereo Cartridge
Stylus	Sapphire Tip, Replaceable
Built-in Speakers	2 x 3 Inch Full Range
Outputs	Line Out (RCA), Headphone Jack (3.5mm)
Inputs	None
Power	AC Adapter (120V/60Hz, 5V DC 1A)
Dimensions (L x W x H)	14.2 x 10.2 x 4.5 inches (36 x 26 x 11.5 cm)
Weight	5.5 lbs (2.5 kg)
Materials	Wooden Plinth, Fabric Speaker Grille
Key Features	Portable Suitcase Design, 3-Speed, Built-in Stereo Speakers, Bluetooth Output, Headphone Jack
Additional Notes	Includes Audio-Technica AT3600L cartridge

Frequently Asked Questions - Switch II CR6034A Crosley

How do I connect the turntable to external speakers?

Use the Line Out RCA jacks on the back. Connect to an amplifier or powered speakers using a standard RCA cable. Alternatively, you can use Bluetooth to stream audio to a compatible speaker or sound system.

What should I do if the turntable is not spinning?

First, ensure the unit is plugged in and the power switch is on. Check if the belt is properly attached to the motor pulley and the platter. If the belt is loose or broken, it needs to be replaced. Also, verify the speed selector is set to a valid speed.

How can I replace the stylus (needle)?

The stylus is part of the cartridge. Gently pull the old stylus downward and out. Insert the new stylus into the cartridge until it clicks into place. Crosley recommends using a replacement stylus model NP-5 or compatible.

Does this turntable have a built-in preamp?

No, the Crosley Switch II does not have a built-in preamp. You will need an external phono preamp if connecting to an amplifier without a phono input or to a line-level input.

What is the maximum record size it can play?

The turntable can play 7-inch, 10-inch, and 12-inch vinyl records. Use the 45 RPM adapter for large-center-hole 7-inch records.

How do I clean the turntable and records?

For the turntable, use a soft, lint-free cloth to wipe the platter and dust cover. For records, use a carbon fiber brush or a record cleaning kit. Avoid alcohol or harsh chemicals.

Why is the sound distorted or skipping?

Check if the stylus is dirty or worn; clean with a stylus brush or replace if needed. Ensure the tracking force is set correctly (usually 3-5 grams). Also, verify the record is clean and not warped.

Can I play records through headphones?

Yes, plug standard 3.5mm headphones into the headphone jack on the top panel. The built-in speakers will mute automatically when headphones are connected.

How do I adjust the speed?

Use the speed selector knob on the front panel to choose between 33 1/3, 45, or 78 RPM. For fine-tuning, there is a pitch control slider on the side.

What are the safety precautions for this turntable?

Do not expose to moisture or liquids. Keep away from heat sources. Unplug during thunderstorms. Use only the supplied AC adapter. Do not attempt to open the casing; refer to a qualified technician for repairs.

USER MANUAL Switch II CR6034A Crosley

Line drawing of a vintage portable radio with a CD, front panel, and side-mounted unit (no text or symbols)

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable
• Speakers
• Turntable slip mat
• 45 RPM adapter
• Speaker wire
  • 3.5mm aux in cable
• Power adaptor

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power AC power adaptor, DC output 12V 2.5A

Power consumption 29W

Speaker 4", 4 Ω, 15 W x 2

Turntable speed 33 ^1/_3 , 45 RPM

Replacement needle Crosley NP5

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

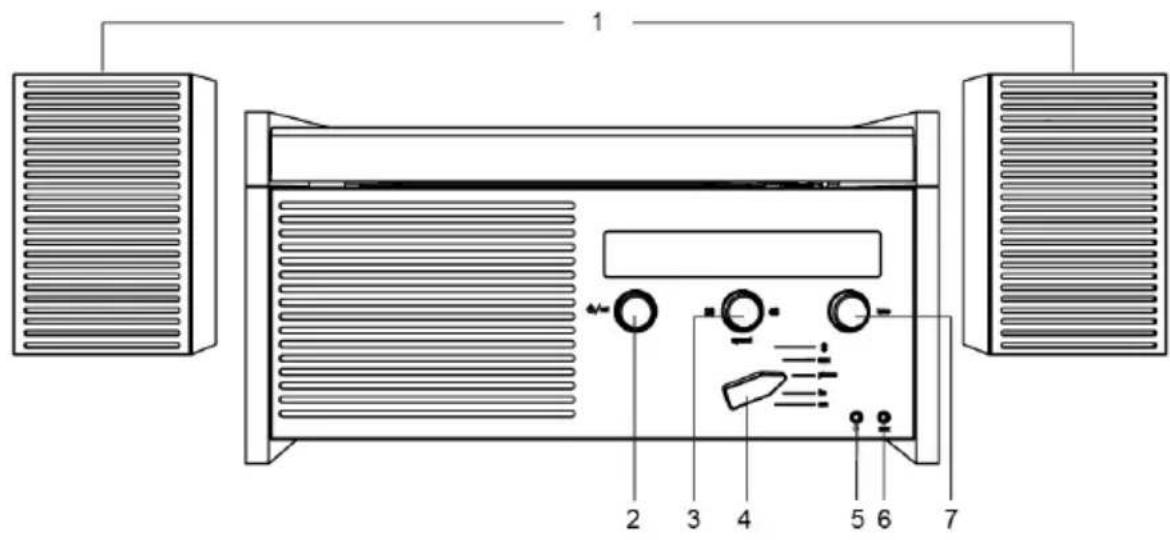

Product Description

1. Speaker
2. Power / Volume Knob
3. Speed Switch
4. Function Switch
5. Headphone Jack
6. Aux In Jack
7. Tuning Knob

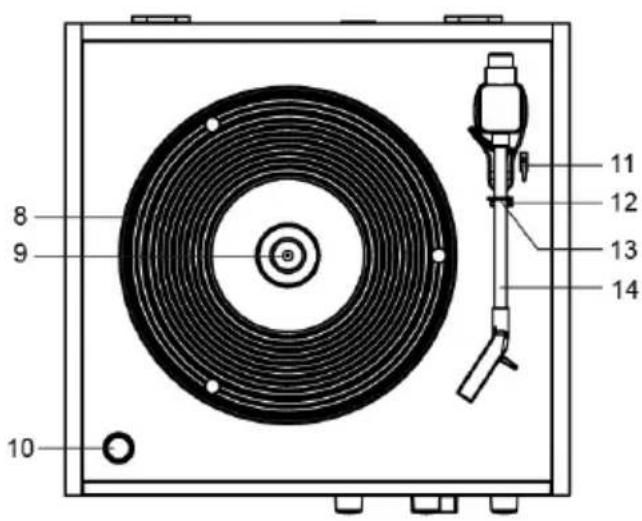

8. Turntable Platter

9. Turntable Spindle

10. Pitch Control

11. Cue Lever
12. Tonearm Rest
13. Hold Down Clip
14. Tonearm
15. Spring clip speaker terminals
16. Power Jack
17. 45 RPM Adapter

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Remove the tie-wrap that is holding the tonearm.
3. Place the slip mat on top of the turntable platter.
4. Connect the speakers to the Spring clip speaker terminals of the turntable.
5. Connect AC adaptor to the Power Jack of the unit.

Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting.

Stereo System Connection

Spring clip speaker terminals

The spring clip speaker terminals deliver amplified, speaker-level signals as output and should be connected with the passive speakers.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, rotate the Function Knob to Aux In mode, connect the 3.5mm auxiliary cable between your audio device and the Aux In Jack of this unit and start playing.

Turntable Operation

1. Rotate the Power / Volume Knob to turn on the power.
2. Set the Function Switch to PHONO position.
3. Set the Speed Switch accordingly.
4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
5. Remove the stylus protector from the stylus assembly.
   Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.
6. Release the tonearm Hold Down Clip.
   Note: when the turntable is not in use, remember to lock back hold down clip.
7. Use the Cue Lever to lift up the tonearm.

8. Gently move the tonearm over the record where play is desired to begin. Set the Cue Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback.

9. When the record is finished playing, use the Cue Lever again to raise the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps.

10. Lock the Tonearm Clip to secure the tonearm.

Pitch Control

The turntable speed can be increased or decreased by approximately 10% by rotating the Pitch Control Knob. To increase the speed, turn the Pitch Control Knob clockwise. To decrease the speed, turn the knob counter-clockwise.

Needle Replacement

Removing Needle

1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.

Three-step diagram showing a mechanical assembly process with arrows indicating direction (no text or symbols)

Installing Needle

1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the front of the needle upward until it snaps into place.

Radio Operation

1. Set the Function Switch to FM or AM position.

2. Rotate the Tuning Knob for desired radio station.

3. Set the Function Switch to FM or AM position.

4. Rotate the Tuning Knob for desired radio station.

Note:

- The unit is equipped with a FM wire antenna. To FM improve reception, move the wire around until the reception is clear without interferences. Do not connect the wire to any additional antenna.

- The AM antenna is built inside the unit. If AM reception is poor, try to rotate the unit for better reception.

Bluetooth Operation

1. Turn the Function Switch to Bluetooth mode *, you will hear an activation sound from the unit.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR6034" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.

Note: Bluetooth version - 5.0

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record's edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.
   Note: Do not use cleanser other that contains alcohol, benzene or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com for more cleaning product information.

Troubleshooting

There is no power

• Power adaptor is not connected correctly.
• No power at the power outlet.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, turn off the power and turn it on again.

Power is on, but the platter does not turn

• Turntable mode is not selected.
• Turntable's drive belt has slipped off.

Turntable is spinning, but there is no sound, or sound not loud enough

• Stylus protector is still on.
• Tone arm is lift up by the lever.
  • Headphone is plugged in.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosley Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://crosleybrands.com/euDoC
