Product Type	Backpan Option
Brand	Middle Atlantic
Model	LL-VWM-BPK
Compatibility	VWM Series Vertical Wall Mount Racks
Installation Method	Tool-less Lever Lock
Plate Size	6 inches (multi-pattern)
Material	Steel
Supplied Components	Backpan Lever Lock Brackets (2), Backpan Lever Lock Plate (1), 6-32 x 5/16 Bonding Screws (6), Lever Lock Securing Rivets (2), Lever Lock Plate Washers (20)
Required Tools	No. 2 Phillips Driver
Bonding Screws Required	4x 6-32 x 5/16 (2 per bracket)
Depth Adjustment	Multiple depths, all 4 corners must be at same depth
Securing Option	Plastic securing rivet for permanent installation
Warranty	Refer to www.middleatlantic.com/terms
Origin	USA (ISO 9001 and ISO 14001 Registered Company)

Frequently Asked Questions - LL-VWM-BPK Middle Atlantic

What is the LL-VWM-BPK used for?

The LL-VWM-BPK is a Lever Lock Backpan option designed for use with VWM Series Vertical Wall Mount Racks. It provides a tool-less mounting plate for small devices.

Does this backpan require tools for installation?

Yes, a No. 2 Phillips Driver is required to install the brackets using the provided bonding screws.

How do I install the Lever Lock backpan plate?

First install the brackets onto the backpan using 4 bonding screws (2 per side). Then insert the side of the plate without the clip into the brackets, and push the side with the clip until it clicks into place.

Can I secure the plate more permanently?

Yes, you can install the plastic securing rivet into the hole to permanently secure the clip.

Can the plate be installed at different depths?

Yes, the plate can be installed at different depths, but all four corners must be inserted at the same depth for proper function.

What screws are included for mounting the brackets?

Six 6-32 x 5/16 Phillips bonding screws are included, though only four are needed for installation.

What are the plate washers for?

The 20 Lever Lock plate washers are provided for convenience when mounting equipment onto the plate.

Is the LL-VWM-BPK compatible with all VWM racks?

It is designed for VWM Series Vertical Wall Mount Racks. Refer to the VWM Series manual (I-00796) for more information.

What is the warranty for this product?

Warranty information can be found at www.middleatlantic.com/terms.

Where is Middle Atlantic located?

Corporate headquarters in the USA, with additional offices in Canada. The company is ISO 9001 and ISO 14001 registered.

USER MANUAL LL-VWM-BPK Middle Atlantic

Technical line drawing of a mechanical component with slots and mounting brackets (no text or symbols)

THANK YOU

Thank you for purchasing a VWM Lever Lock™ Backpan option. Please read these instructions thoroughly before installing or assembling this product. For more information, refer to the VWM Series Vertical Wall Mount Rack Instruction Sheet (I-00796).

PRODUCT FEATURES

• Locks in place without tools in VWM Series Vertical Wall Mount enclosures
• 6" plate with multi-pattern designed to hold a wide range of small devices

I-00799 Rev -

SUPPLIED COMPONENTS AND HARDWARE

Backpan Lever Lock Brackets A

(6x) 6-32 x 5/16 Phil. Bonding Screw B

Pure electrical circuit lines without any symbols

Backpan Lever Lock Plate (LL-VP176-SWP) C

(2x) Lever Lock Securing Rivet D

(20x) Lever Lock Plate Washer E

REQUIRED TOOLS

• No. 2 Phillips Driver

1. Use (4x) 6-32 x 5/16 bonding screws (B, 2 per side) to install the brackets (A) into any of the following backpan locations. (FIGURE A)

CAUTION! The bonding screws must be used as explained to ensure proper bonding.

Page 2

INSTALLING THE LEVER LOCK BACKPAN OPTION (CONTINUED)

NOTE: The bracket bonding screw holes are located on the inside edges of the backpan. Each bracket is assembled as shown. (FIGURE B)

FIGURE B

INSTALLING THE LEVER LOCK BACKPAN OPTION (CONTINUED)

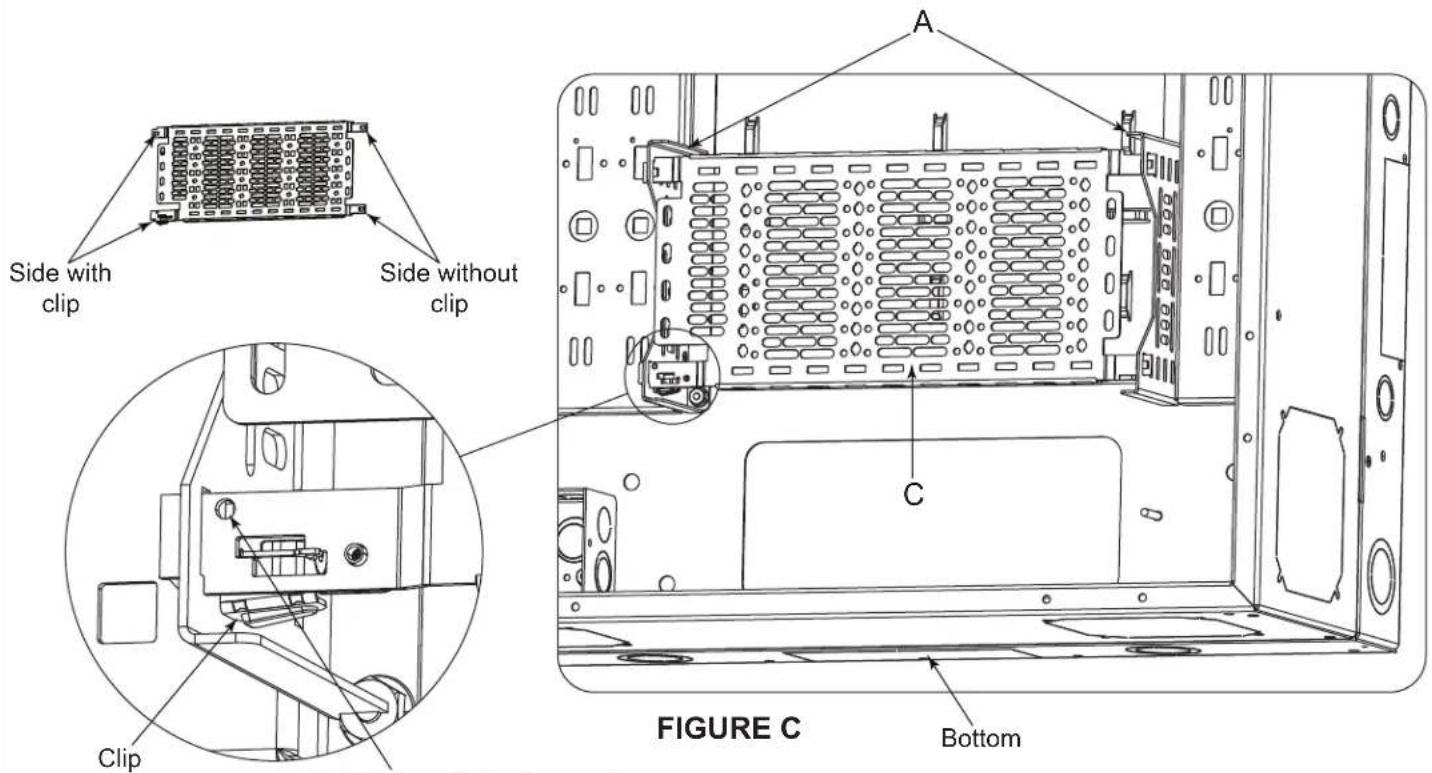

1. Insert the side of the Lever Lock backpan plate (C) without the clip into the brackets (A) first. Then install the side with the clip until it clicks into place. (FIGURE C)

NOTE: Install plastic securing rivet (D) into hole to secure the clip more permanently, if desired.

NOTE:

• The Lever Lock backpan plate may be installed on the brackets at different depths. All 4 corners of the Lever Lock backpan plate must be inserted into the brackets at the same depth in order to function correctly.
  • (20x) Lever Lock plate washers (E) are provided for equipment mounting convenience.

WARRANTY

For warranty information, refer to www.middleatlantic.com/terms.

Corporate Headquarters

Corporate Voice: 973-839-1011 - Fax: [phone] / International Voice: [phone]

Middle Atlantic Canada

Voice: 613-836-2501 - Fax: [phone] / ca.middleatlantic.com -

[e-mail]

Factory Distribution

USA: NÍJ - CA - IL Canada: ON - BC

At Middle Atlantic Products we are always listening. Your comments are welcome.

Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company.

Middle Atlantic Products

what great systems are built on™

middleatlantic.com ■ 800.266.7225
