Brand	Crystorama
Model	Addis ADD-317-AG-CL
Product Type	Light Fixture
Overall Height Adjustment	Adjustable via chain and rods; chain length 72 in., rods 12 in. each (4 rods supplied)
Canopy Dimensions	14.5 in. L x 5 in. W x 1 in. H
Glass Pieces	72 pieces clear glass, each 2.75 in. diameter x 7.75 in. H
Bulb Type	Candelabra Base (E12)
Max Wattage per Bulb	60 W (recommended 40 W for extended use)
Recommended Bulb	LED (for extended use)
Rating	Dry location
Material	Metal frame, clear glass
Installation	Must be installed by a licensed electrician in accordance with National Electric Code
Safety Warning	Contains lead; California Prop 65 warning: www.P65Warnings.ca.gov
Part Numbers for Components	Canopy (XBN317AGCAN14.5IN), Chain (XBN317AGCHA5MM), Rods (XBN317AGROD12IN), Glass (XBN300AGCLGLA7.75IN)
Care & Maintenance	Wipe with dry cloth; do not use harsh chemicals

Frequently Asked Questions - Addis ADD-317-AG-CL Crystorama

How many bulbs does the Addis ADD-317-AG-CL require?

The fixture requires 14 candelabra base bulbs (E12).

What is the maximum wattage for the bulbs?

The maximum wattage is 60W per bulb, but for extended use, it is recommended to use 40W bulbs, preferably LED.

Can I use dimmable bulbs with this fixture?

Yes, if you use dimmable LED bulbs and a compatible dimmer switch. Always check the bulb's specifications.

Is this fixture suitable for outdoor use?

No, the fixture is rated for dry locations only and should not be used outdoors or in damp areas.

How do I adjust the hanging height?

You can adjust the height by choosing the appropriate combination of rods (supplied 12-inch each) and chain length (72 inches). Refer to the installation instructions for details.

What is the size of the glass pieces?

Each piece is clear glass, measuring 2.75 inches in diameter and 7.75 inches in height. There are 72 pieces total.

What tools are needed for installation?

Basic tools such as screwdrivers, wire strippers, and pliers are required. An electrician is recommended for wiring connections.

How do I clean the glass?

Use a soft, dry cloth to wipe the glass. Avoid harsh chemicals or abrasive cleaners to prevent damage.

Does the fixture include bulbs?

No, bulbs are not included. You need to purchase 14 candelabra base bulbs separately.

What is the warranty on this fixture?

Crystorama offers a limited warranty; contact their customer service for specific warranty terms.

USER MANUAL Addis ADD-317-AG-CL Crystorama

ASSEMBLY INSTRUCTION MODEL ADD-317-AG-CL

Dress the glass from inner ring

All electrical components must be

installed by a licensed electrician

in accordance with the National

Electric Code and the appropriate

local electrical codes.

You will need 14 Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE (This fixture is Dry rated)

How to Install

1. Decide the preferred hanging height and choose the correct length of rods and chain needed.
2. Feed the wires through the rods and screw the rods onto the top of the fixture. Attach the quick link on one end of the chain to the top of the rod. Repeat for the other rod using another chain.
3. Attach the mounting strap onto the outlet box.
4. Raise the fixture up to the ceiling and do the wire connections. Put the canopy up against the ceiling then completely tighten the screws on the side to secure the canopy.
5. Install the bulb into the socket.
6. Dress the glass as illustrated.

Glass Sets

1. 72 pcs Clear glass 2 3/4x7 3/4"

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

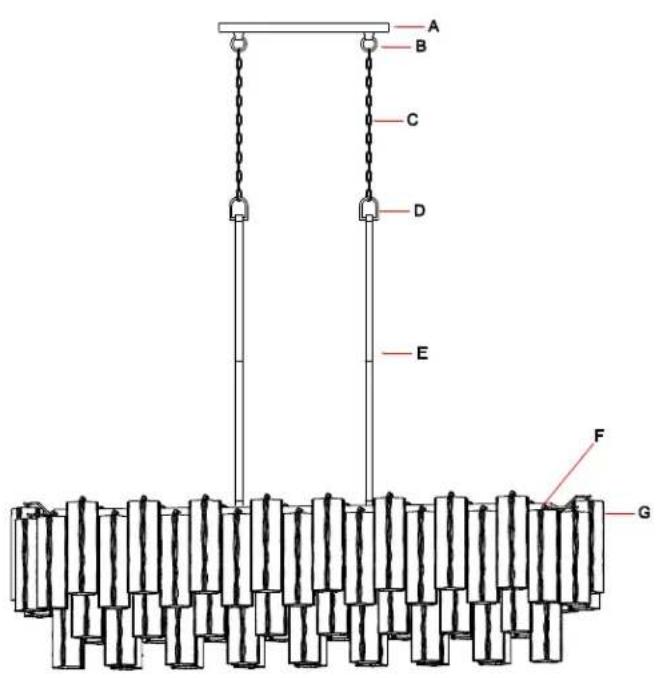

PART NUMBER MODEL ADD-317-AG-CL

Part Number

Part Numbers

A. (1)-Canopy L14.5**W5**H1 (XBN317AGCAN14.5IN)
B. (2)-Loop
C. (2)-Chain D5mm*72" (XBN317AGCHA5MM)
D. (2)-Loop
E. (4)-12"Rods (XBN317AGROD12IN)
F. (1)-Frame
G. (72)-Clear glass, D2 3/4xH7 3/4" (XBN300AGCLGLA7.75IN)
