Product Type	Gaming PC Case (Tower)
Brand	Mars Gaming
Model	MC-XP (MCXP black, MCXPW white)
Form Factor	E-ATX / ATX / Micro-ATX / Mini-ITX
Dimensions (L x W x H)	485 x 217 x 450 mm
Weight	7.21 kg
Material	Steel, Tempered Glass (dual side panels, front panel)
Motherboard Support	E-ATX (up to 280mm without internal fans), ATX, Micro-ATX, Mini-ITX
Expansion Slots	7 standard + 2 vertical (GPU riser not included)
Drive Bays	2x 2.5" SSD + 2x 3.5" HDD

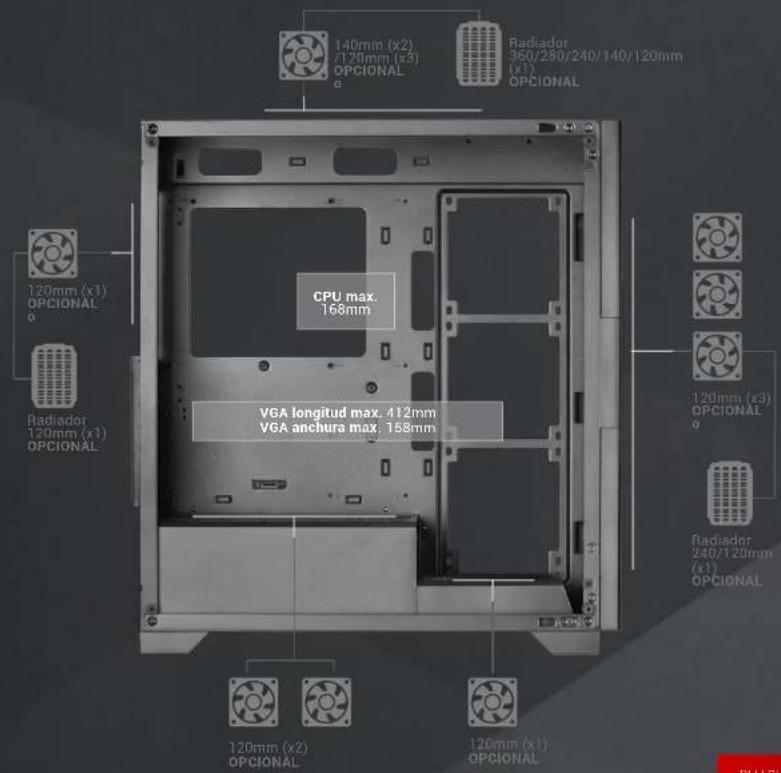

Cooling Fans Supported	Total up to 10: Top 3x120mm or 2x140mm, Front 3x120mm, Bottom 2x120mm, Rear 1x120mm
Liquid Cooling Support	Top: 360/280/240/140/120mm, Front: 240/120mm, Rear: 120mm
Maximum GPU Length	412 mm
Maximum GPU Width	158 mm
Maximum CPU Cooler Height	168 mm
I/O Ports	USB 3.0 x1, USB 2.0 x2, HD Audio + Mic
Power Supply Support	Standard ATX PSU (not included)
Cable Management	Dual chamber design with integrated cable management
Additional Features	Vertical GPU mounting support, removable hard drive cage
Cleaning and Maintenance	Clean tempered glass with a soft, lint-free cloth and mild glass cleaner. Avoid abrasive materials.
Spare Parts and Repairability	Contact Mars Gaming support for replacement fans, screws, and panels. Standard components are user-replaceable.

Frequently Asked Questions - MC-XP Mars Gaming

What motherboard sizes does the Mars Gaming MC-XP support?

The MC-XP supports E-ATX (up to 280mm without internal fans), ATX, Micro-ATX, and Mini-ITX motherboards.

Can I install a 360mm liquid cooler in this case?

Yes, the top panel supports a 360mm radiator. The front supports up to 240mm and the rear up to 120mm.

How many fans can I install in the MC-XP?

You can install up to 10 fans: 3x120mm at top, 3x120mm at front, 2x120mm at bottom, and 1x120mm at rear. Alternative sizes are noted in the manual.

What is the maximum graphics card length?

The maximum GPU length is 412mm, which accommodates most high-end graphics cards.

Does the case come with a power supply?

No, the power supply is not included. It requires a standard ATX PSU (sold separately).

Can I mount the GPU vertically?

Yes, the case includes 2 vertical expansion slots for vertical GPU mounting. Note that a PCIe riser cable is not included.

What storage drives can I use?

The case supports 2x 2.5" SSDs and 2x 3.5" HDDs in a removable hard drive cage.

What is the maximum CPU cooler height?

The maximum height for a CPU air cooler is 168mm.

How do I clean the tempered glass panels?

Use a soft, lint-free cloth with mild glass cleaner. Avoid abrasive materials that could scratch the glass.

Is the MC-XP available in different colors?

Yes, the model comes in black (MCXP) and white (MCXPW).

USER MANUAL MC-XP Mars Gaming

MARS GAMING

GAMENZI UNIVERSO

MC-XP

CAJA GAMING

Torre gaming custom E-ATX con doble ventana de cristal templado y diseño de cámara dual con jaula para discos duros extraible.

Soporte total para refrigeraciones líquidas de 360mm y hasta 10 ventiladores. Soporte para instalación de targetas gráficas en vertical.

ESPECIFICACIONES

Tipo	Tore
Diseño	Vanlans lateral y frontal total de cristal emplicado
Placas base	•E-ATX / ATX / MicroATX / Mini-ITX • hasta 280mm sin ventiladores internos instalados)
Ventiladores	Superior: 3x 120mm o 2x 140mm / interior: 3x 120mm / Inferior: 2x 120mm / I basero: 1x 120mm
Refrigeración líquida	Superior: 360, 280, 240, 140, 120mm / interior: 240, 120mm / I basero: 120mm
Bahía	2x 7.5" ISS + 2x 3.5" HDD
Ranuras de expansión	7 + 2 Ventricales (GPU riser no incluido)
VGA longitud máxima	412mm
VGA anchura máxima	158mm
CPU max.	168mm
Puerto I/O	US/910 x1 / USB/20 x2 / HD Audio + Mic
Extra	Estructura de cobre camara y sistema de gestión de cableado inter
Dimensiones	485x217x450mm / 7,21Kg

MARS GAMING

EAMERS, UNIVERSE

RIFERNCIA MCXP (negro)	RIFERNCIA MCXPW (blanco)	UDS/CAJA 1
LAN 8435693105008	LAN 8435693105015	IMPACULTADO 525x525x270mm
