| Product Type | Master Clock (Atomic Wall Clock) |
| Dimensions | 44.5 x 4.5 x 25 cm (1U rackmount) |
| Weight | 3.5 kg |
| Power Supply | AC 100-240V, 50/60Hz, external adapter |
| Frequency Accuracy | <0.001 ppm (atomic clock reference) |

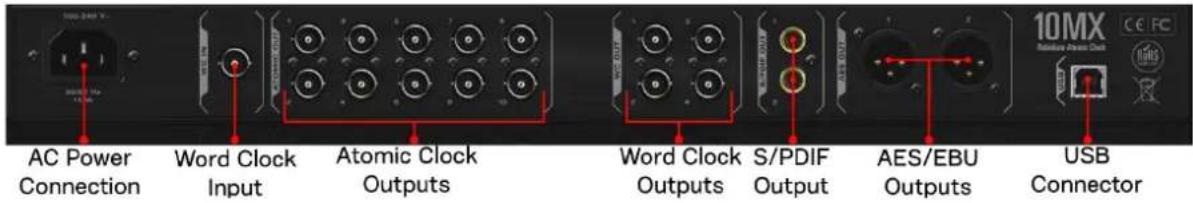

| Outputs | 10x BNC (Word Clock, 10MHz, etc.) |
| Inputs | 1x BNC (external reference) |
| Display | OLED screen for status and settings |
| Main Functions | Atomic clock sync, multiple clock formats, jitter reduction |
| Usage | Studio master clock for audio/video sync |
| Maintenance | Clean with soft dry cloth, avoid liquids |
| Safety | Use only supplied power adapter, keep away from moisture |
| Spare Parts | Contact Antelope Audio support for replacement parts |
| Repairability | Repairs by authorized service only |
| General Information | Professional-grade atomic master clock for critical sync |
Frequently Asked Questions - 10MX Antelope Audio
How do I set up the Antelope Audio 10MX?

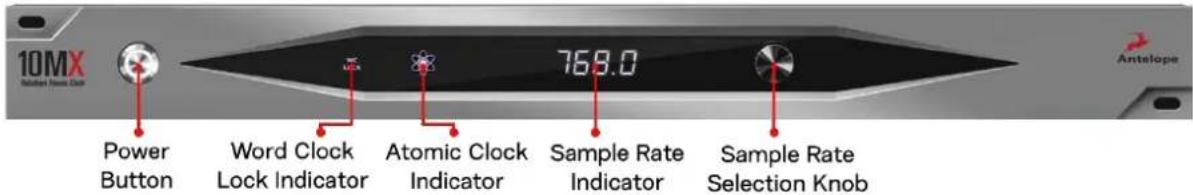

Connect the provided power adapter, connect reference input (if needed) and outputs to your devices, then configure via the front panel OLED menu.
What is the atomic accuracy of the 10MX?
The 10MX uses an atomic clock reference with an accuracy of <0.001 ppm, ensuring ultra-low jitter and precise sync.
How many outputs does the 10MX have?
It has 10 BNC outputs supporting various clock formats like Word Clock and 10MHz.
Can the 10MX be used standalone without an external reference?
Yes, it can operate as a standalone master clock using its internal atomic oscillator.

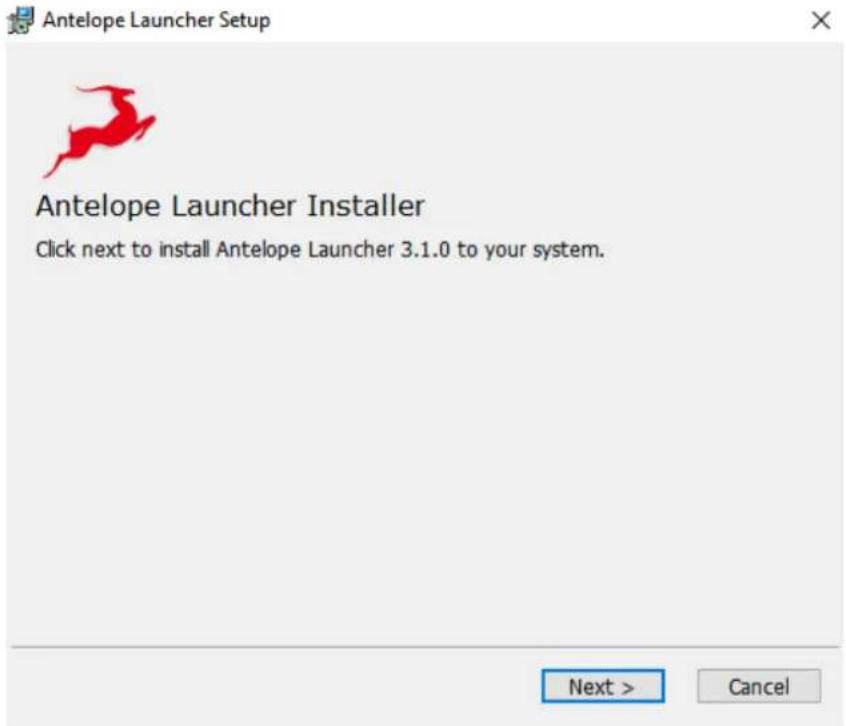

How do I update the firmware on the 10MX?
Download the latest firmware from Antelope Audio's site, connect via USB, and follow the provided update tool instructions.
Is the 10MX compatible with other audio brands?
Yes, it outputs standard clock signals compatible with most professional audio and video equipment.
What is the warranty period for the 10MX?
Antelope Audio typically offers a limited 2-year warranty; check your region for specific terms.
What is the power consumption of the 10MX?
Approximately 15 watts under normal operation.
How do I connect the 10MX to my DAW?
Use a BNC cable from a 10MX output to the word clock input of your audio interface; then set your DAW to external clock.
Does the 10MX output word clock?
Yes, it outputs standard Word Clock (75 ohms) on multiple BNC connectors.
