Brand	Kogan
Model	KAWLM120TSMA
Product Type	Heavy-Duty Tilt TV Wall Mount
Suitable TV Size	60 - 120 inches
Maximum Load Capacity	120 kg (265 lbs)
VESA Compatibility	Universal (supports standard VESA patterns via included hardware)
Tilt Adjustment	Yes (customizable tilt angle)
Material	Heavy-duty steel
Installation Surface	Solid concrete, masonry, or wood stud walls
Included Components	Wall mount (x1), TV bracket (x2), Spirit level (x1), Allen key (x1), Screws & washers set, Wall anchors (x6)
Required Tools (not included)	Phillips head screwdriver, stud finder, pencil, drill, wrench
Safety Features	Locking bolts to secure TV; tilt tightening screws
Maintenance	Check stability every 3 months
Usage	Indoor use only
Professional Installation	Recommended due to weight and complexity
Color	Black (typical)

Frequently Asked Questions - KAWLM120TSMA Kogan

What is the maximum TV size and weight this mount can support?

The Kogan KAWLM120TSMA supports TVs from 60 to 120 inches and has a maximum load capacity of 120 kg (265 lbs).

What wall types is this mount suitable for?

This mount is designed for solid concrete, masonry, or wood stud walls. It is not suitable for drywall alone without studs.

Does this mount tilt and how do I adjust the tilt?

Yes, it features a tilt function for optimal viewing angle. After installation, loosen the tilt screws slightly, adjust the angle, then retighten using the included Allen key.

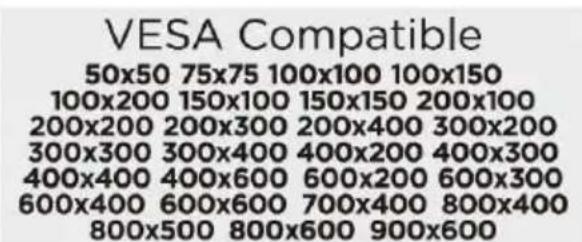

What VESA patterns are compatible?

The mount is universal and comes with various screws, washers, and spacers to fit most VESA patterns (e.g., 200x200, 400x400, 600x400, etc.).

What tools are needed for installation?

You will need a Phillips head screwdriver, stud finder, pencil, drill, and wrench. These are not included.

Can I install this mount on drywall without studs?

No, for drywall, you must attach to wood studs using the provided ST8x90 screws. Do not use wall anchors on drywall.

How do I ensure the mount is leveled?

Use the included spirit level when marking holes and attaching the wall mount. Ensure the bubble is centered for accurate leveling.

What should I do if screws or parts are missing?

Check the component list in the manual; if any parts are missing or faulty, contact your place of purchase for a replacement.

Is professional installation recommended?

Yes, due to the heavy weight and complexity, professional installation is recommended for safety.

How often should I check the mount for safety?

Every three months, inspect the mount for any looseness or damage. Tighten screws if needed to ensure secure attachment.

USER MANUAL KAWLM120TSMA Kogan

Technical line drawing of a structural frame with two vertical supports and a central horizontal beam (no text or symbols)

HEAVY-DUTY TILT TV WALL MOUNT

(SUITABLE FOR 60-120" TVS)

KAWLM120TSMA

SAFETY & WARNINGS

Read the entire user guide before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, contact your local distributor for assistance.

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.

• Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• This product is designed to be installed on solid concrete walls, masonry walls or wood stud walls.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Never exceed the maximum load capacity of 120kg or it may result in product failure or personal injury.

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.

MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).

COMPONENTS

Simple line drawing of a rectangular frame with a rounded rectangle and dotted border (no text or symbols)

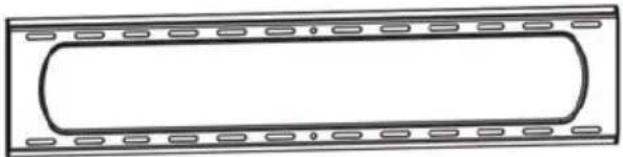

A Wall Mount (x1)

Simple line drawing of a mechanical tool or bracket with no text or symbols

B TV Bracket (x2)

C Spirit Level (x1)

D Allen Key (x1)

M-A M6x14 Screw (x4)

M-B M8x16 Screw (x4)

M-C M6x30Screw (x4)

M-D M8x35 Screw (x4)

M-E D8 Washer (x4)

M-F Spacer (x4)

M-G Spacer (x4)

W-A ST8x90 Screw (x6)

W-B Wall Anchor (x6)

W-C D8 Washer (x6)

Tools required for installation (not supplied)

Phillips head screwdriver

Stud finder

Pencil

Drill

Wrench

ASSEMBLY

Step 1:

Using a pencil and spirit level (C), mark the desired position for the mount on your wall, using the wall mount (A) for the hole positions.

If mounting on dry wall or plaster-board, use a stud finder first to check positions of wall studs and ensure the position is free from electrical wiring. Using a drill, create the pilot holes.

Drywall / plaster: Use a 6mm or 1/4" drill bit, drilling 90mm deep – 6 holes Masonry / concrete: Use a 12mm or 1/2" drill bit, drilling 95mm deep – 6 holes

When using spirit level, ensure the bubble is centred as per the image shown here.

Step 2:

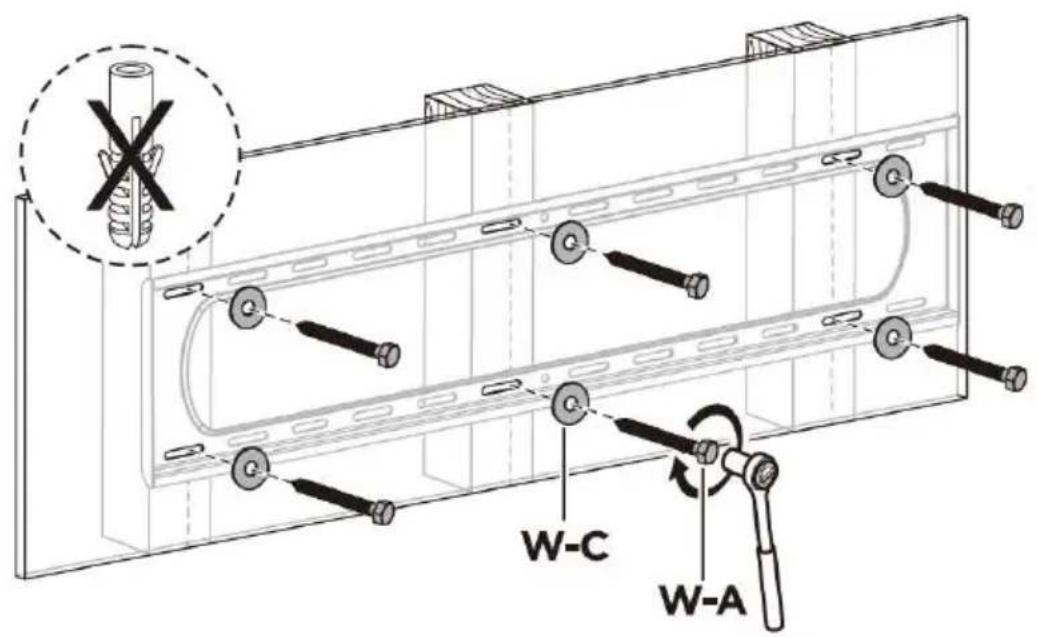

Drywall / plaster: Attach the wall mount (A) to the wall using the 6 ST8x90 screws (W-A) and D8 washers (W-C). Ensure a 5mm excess is left between the head of the screw and the wall surface. Do not use wall anchors.

Masonry / concrete: Insert wall anchors (W-B) into all 6 drilled holes. Attach the wall mount (A) to the wall using the 6 ST8x90 screws (W-A) and D8 washers (W-C). Ensure a 5mm excess is left between the head of the screw and the wall surface.

Step 3:

Align the brackets with your TV's VESA holes and secure using supplied screws ("M-" set), Washer (M-E) and spacers (M-F, M-G) depending on required length.

Step 4:

Hook the TV with brackets installed onto the wall mount. Two people should carry the TV to prevent damage.

Step 5:

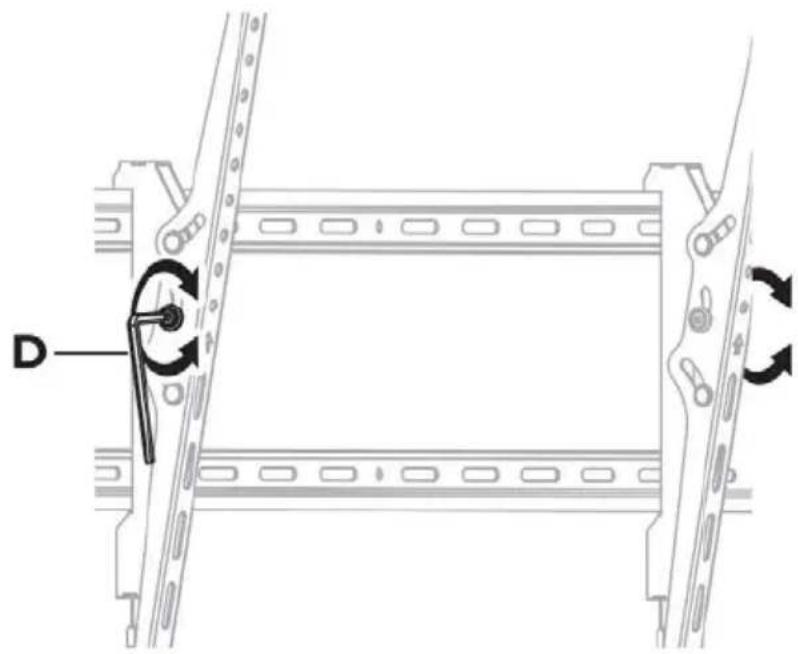

Once in place, use the Allen Key (D) to secure the brackets using the locking bolts.

Technical diagram of a mechanical frame with two vertical supports and a labeled component 'D' (no text or symbols beyond label)

Note:

If the display does not stop at your desired position,tighten the screws as shown.

Illustration of a hand pressing down on a tablet screen with a curved arrow indicating rotation (no text or symbols)

NOTES

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
[EMPTY]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the background/stylistic line and produces no actual text, it complies with the “Stylistic/Background Lines (Ignore)” rule. Therefore, the OCR result is consistent with the Ground Truth.
[Non-Text]
[Non-Text]
[EMPTY]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
[NO TEXT]
[Non-Text]
[Non-Text]
[EMPTY]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic or background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line or separator), not a placeholder for text. According to Rule 2, such stylistic/background lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. This correctly represents the absence of any textual content in the GT and correctly matches the visual line as a stylistic element. Therefore, the OCR output should have been empty or omitted this line entirely.
[Non-Text]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
广力云智慧零售收银系统
The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the stylistic line, it complies with Rule 2. Therefore, the OCR result is consistent with the Ground Truth.
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
